GM Lighting LTR-S SPEC 98'-6" LED Tape Light, Tunable White, 415 Lumens/ft, 24V
In stock
About this item
About this item
- Tunable White: Adjusts from 2400K to 5000K for versatile ambiance control.
- Voltage: Operates at 24V, ideal for consistent power delivery.
- Max Run: Supports up to 16'-4" continuous run at 5W/ft.

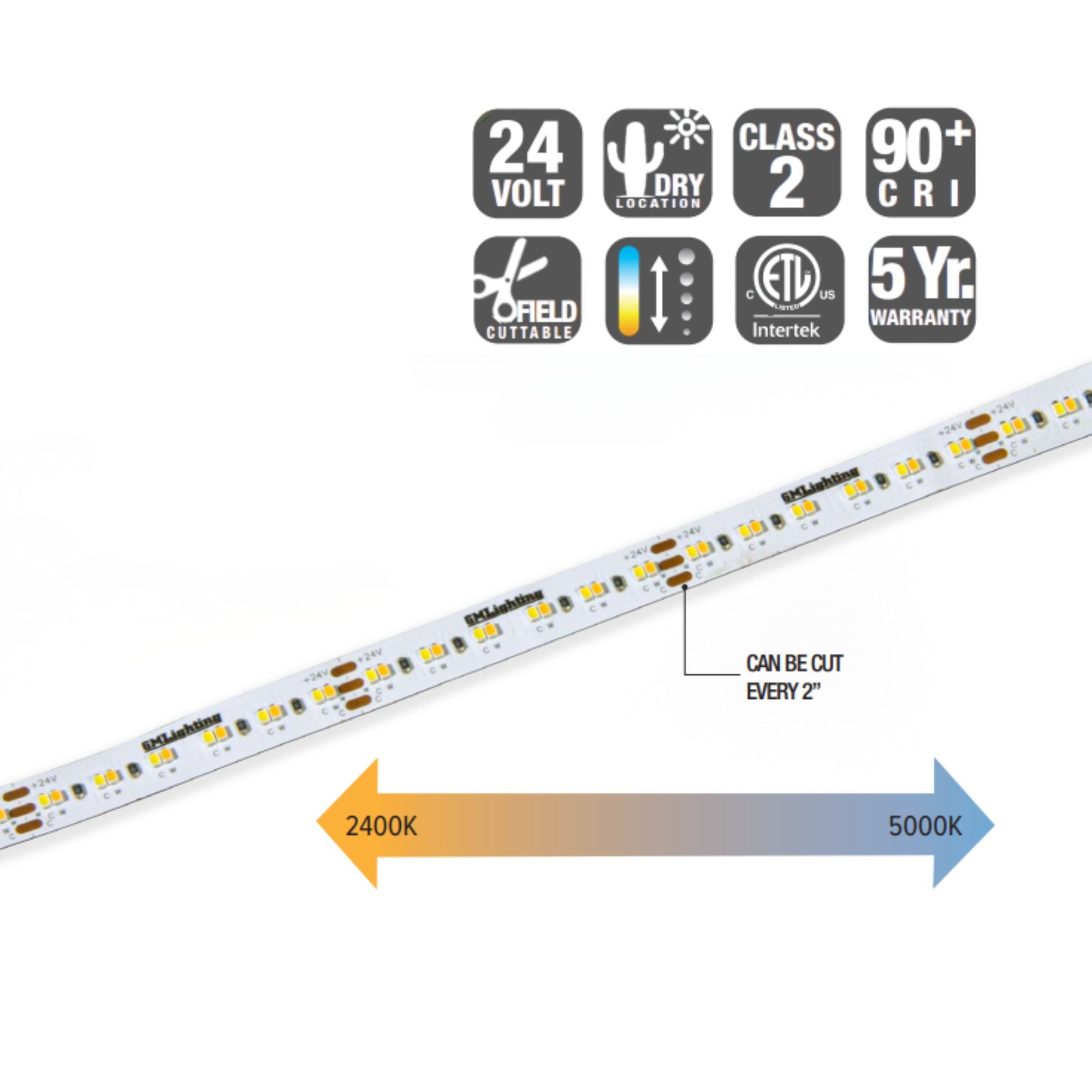

- Cuttable: Field cuttable every 2" for custom lengths.
- CRI: High 90+ CRI for superior color rendering.
We process payments securely and do not store credit card information.
Description
Description

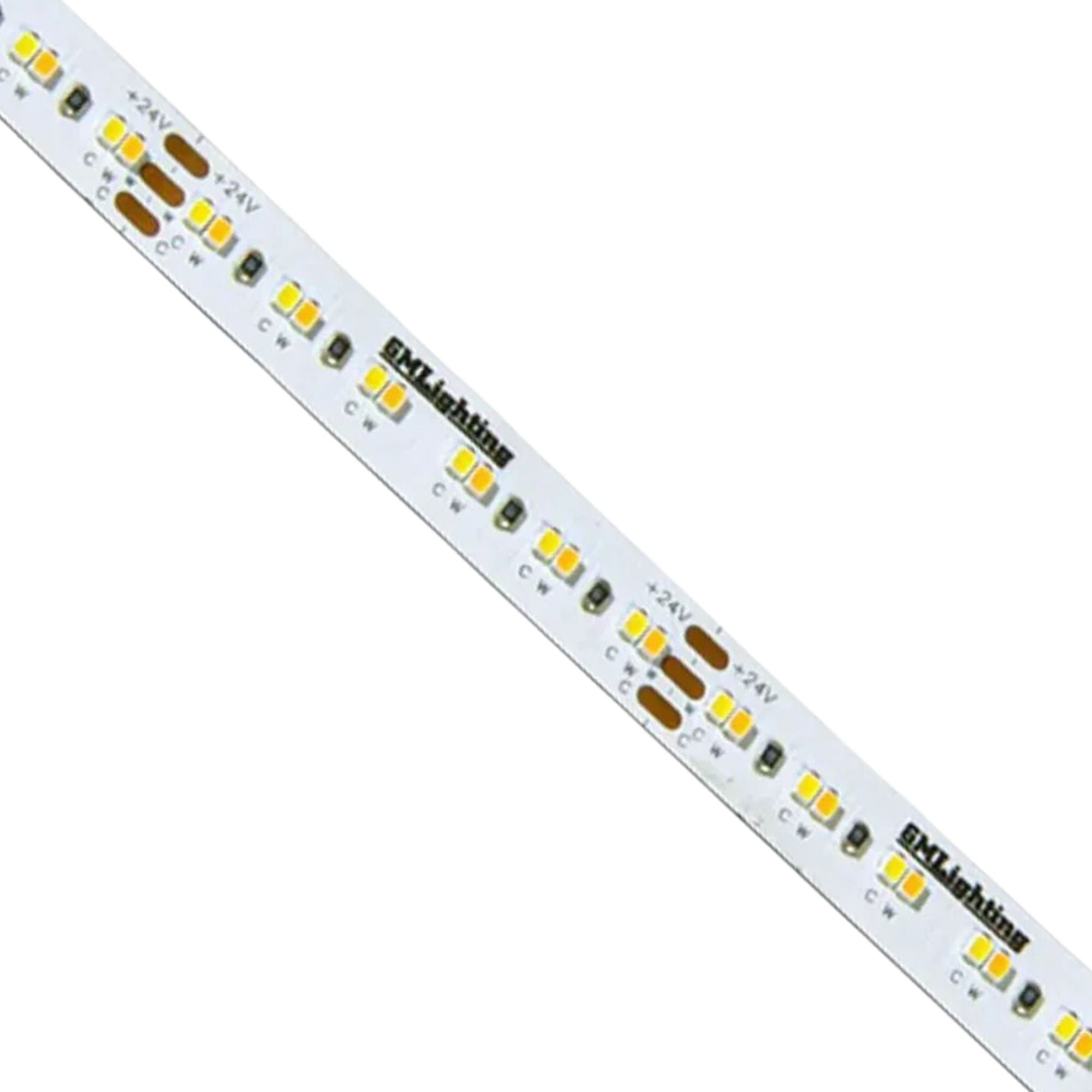

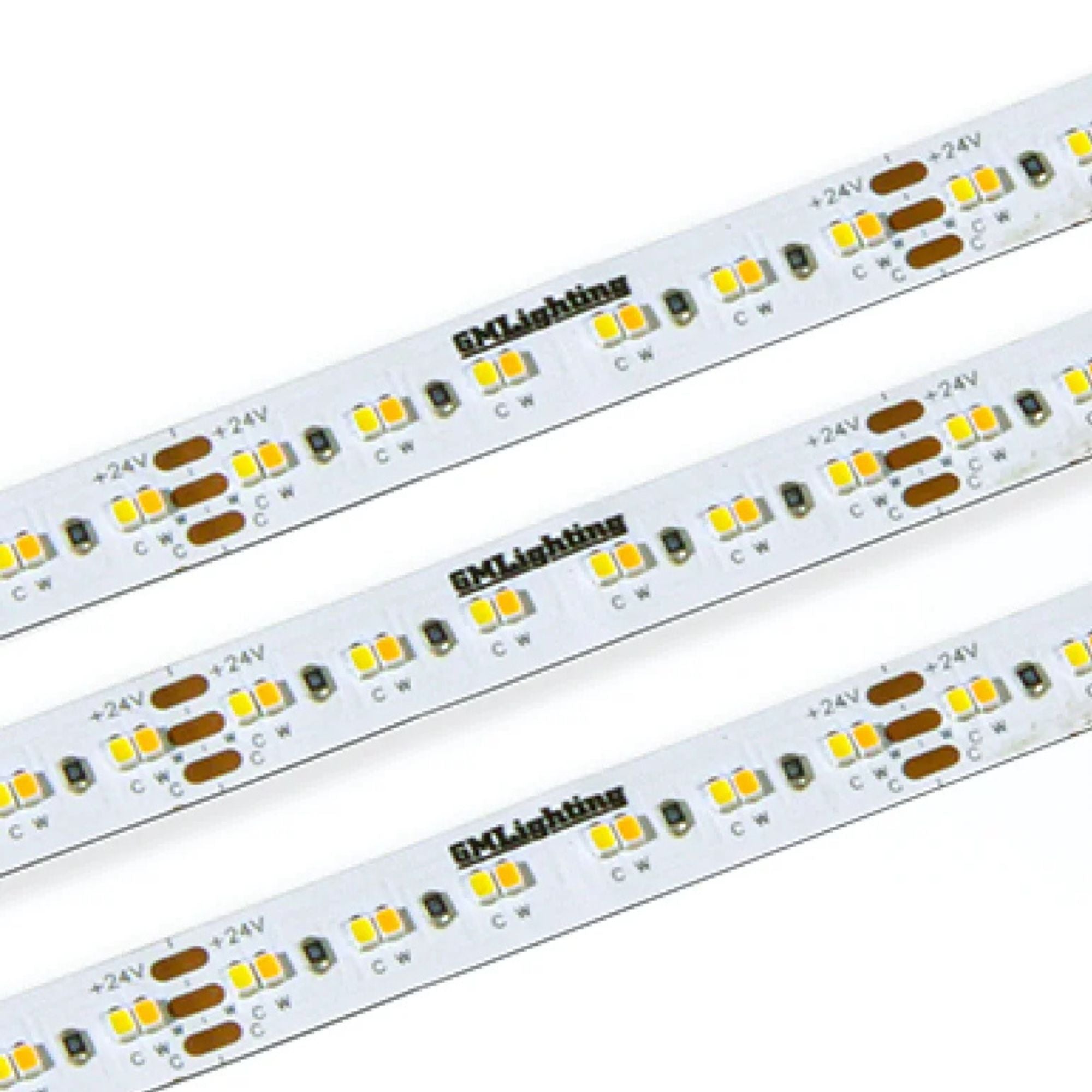

GM Lighting LTR-S SPEC LED Tape Light — Tunable White & Versatile Control
The GM Lighting LTR-S-TUN-24V-5.0W-100 is a 98'-6" LED tape light featuring tunable white technology, allowing adjustments between 2400K and 5000K. This tape light operates at 24V and is dry rated, making it suitable for indoor applications.
Key Features
- Voltage: 24V DC ensures stable operation.
- Wattage: 5W per foot for bright illumination.
- Lumens: 415 lumens per foot at 3500K.
- LEDs per Foot: High-density pitch for uniform light distribution.
- Max Run: 16'-4" at 5W per foot to prevent voltage drop.
- Cuttable: Every 2" for precise customization.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light spread.
- IP Rating: IP20, suitable for dry locations.
- Certifications: ETL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a durable 3M VHB adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
Delivering 415 lumens per foot with a 90+ CRI, this tape light offers excellent color accuracy and brightness. The tunable white feature allows for dynamic lighting adjustments.
Power, Wiring & Installation
Requires a 24V driver, sold separately. The tape is cuttable every 2" and supports a maximum continuous run of 16'-4" at 5W per foot. Compatible with dimming systems for flexible lighting control.

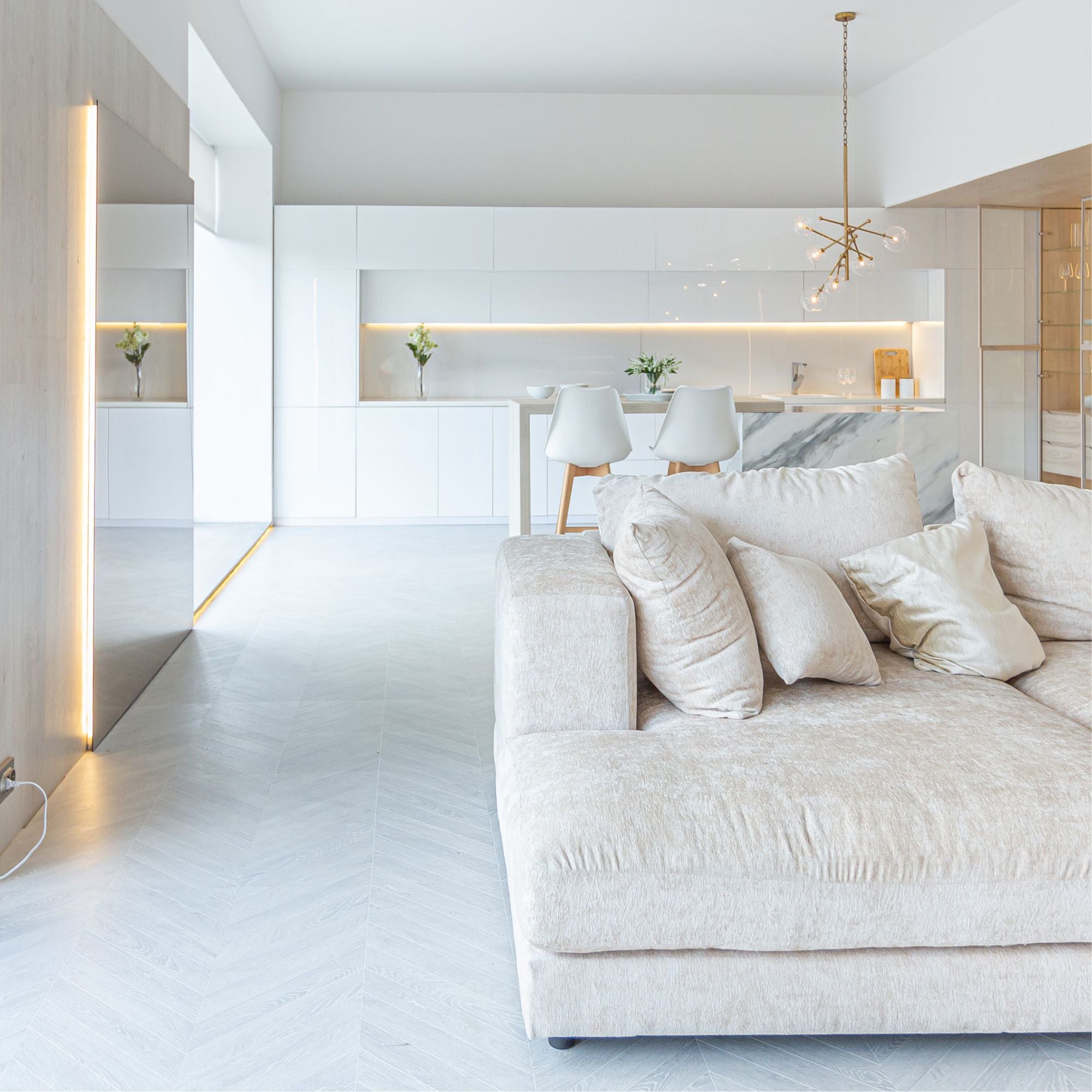

Where This Tape Works Best

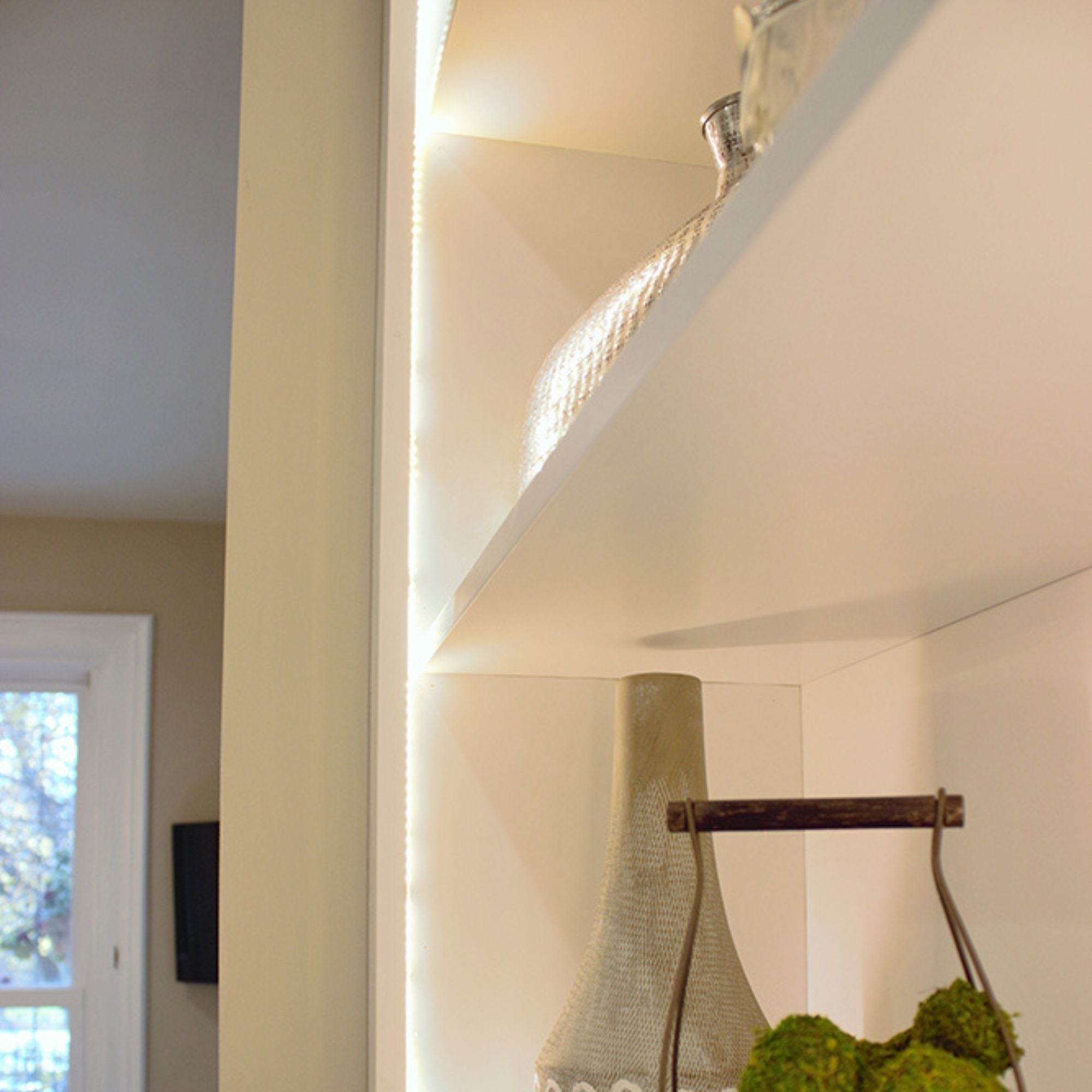

- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
What's Included
- 98'-6" LED tape light spool
- 48" lead affixed at the start of the reel
Specifications
Specifications

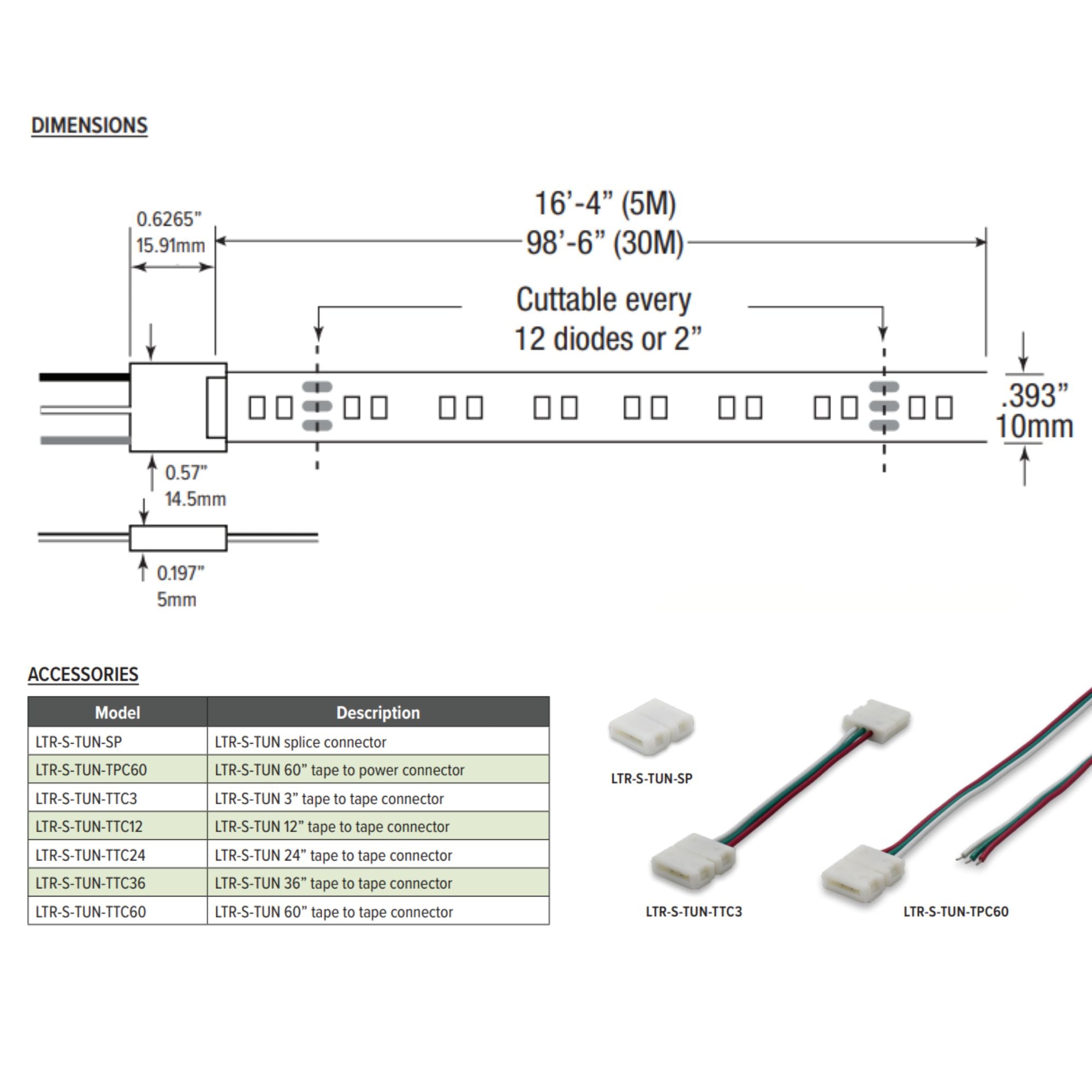

Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-TUN-24V-5.0W-100?
What is the maximum run length for the LTR-S-TUN-24V-5.0W-100?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is the tape light dimmable?
Is the tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
