GM Lighting LTR-S SPEC 16'-4' LED Tape Light, Tunable White, 267 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V for efficient energy use and compatibility with standard low-voltage systems.

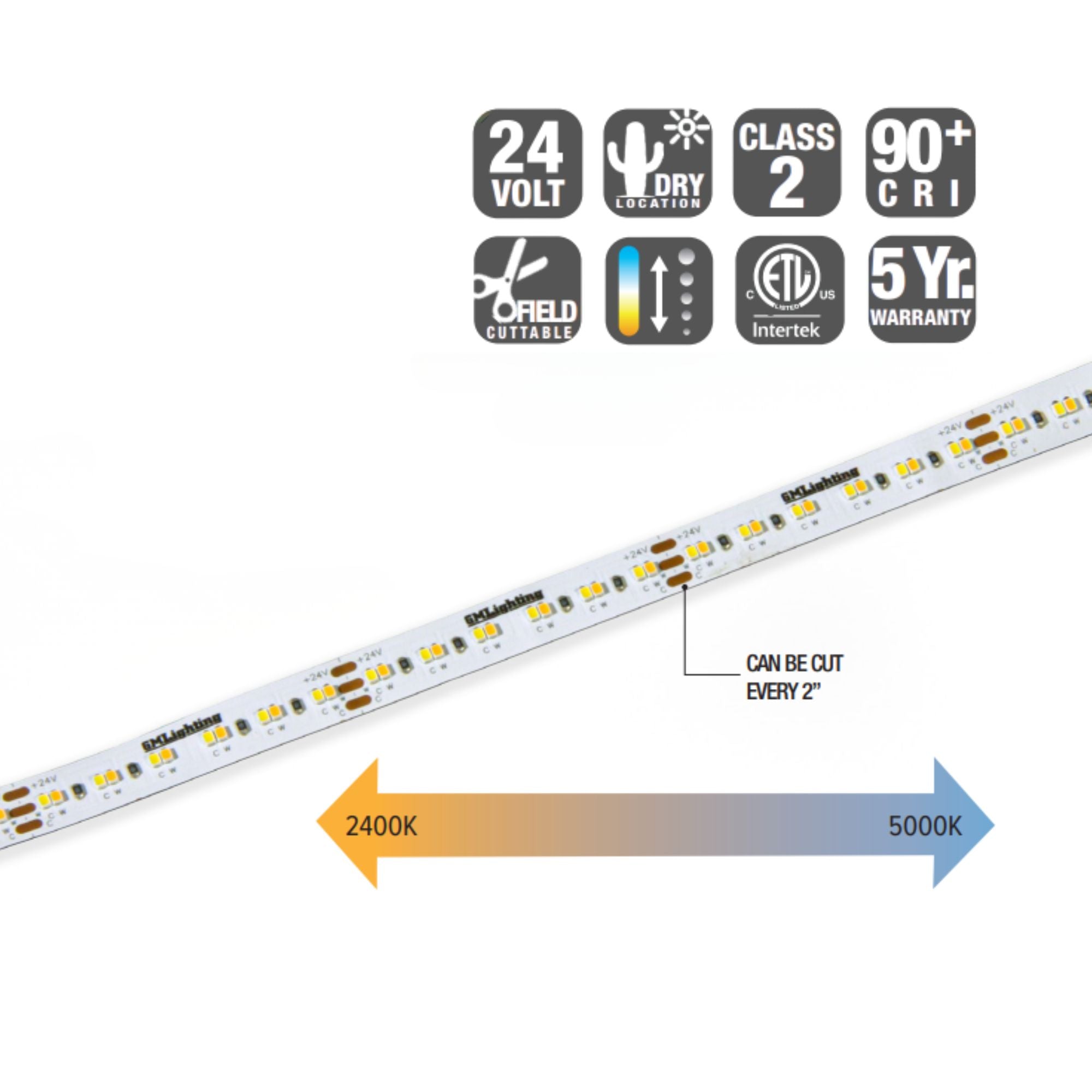

- Tunable White: Adjusts from 2400K to 5000K for customizable ambiance and mood setting.
- Max Run: Supports up to 32'-8' continuous run at 3W per foot, ideal for extensive installations.
- Cuttable: Field cuttable every 2' for precise length customization and installation flexibility.
- Environment: Dry rated, suitable for indoor applications where moisture is not a concern.
We process payments securely and do not store credit card information.
Description
Description

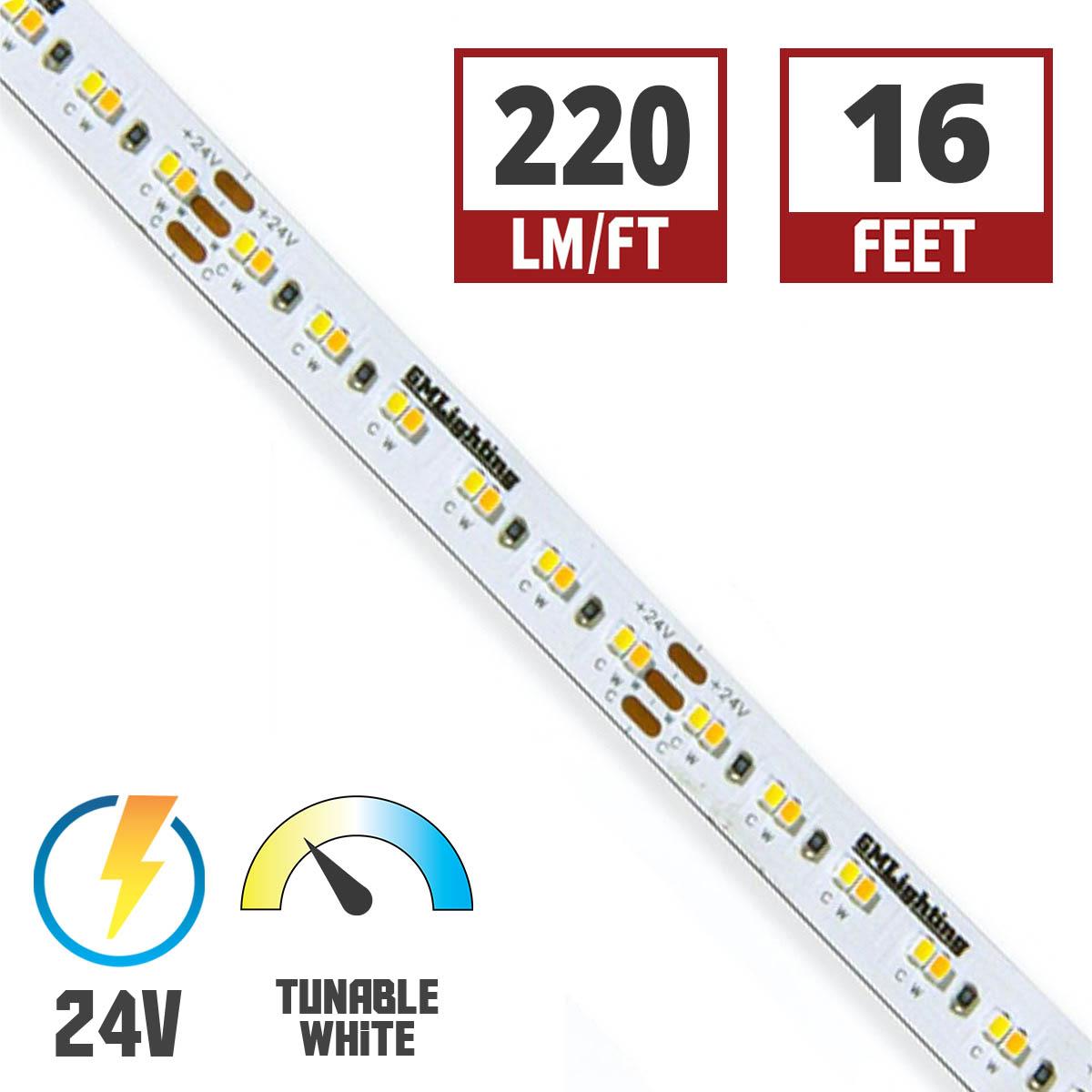

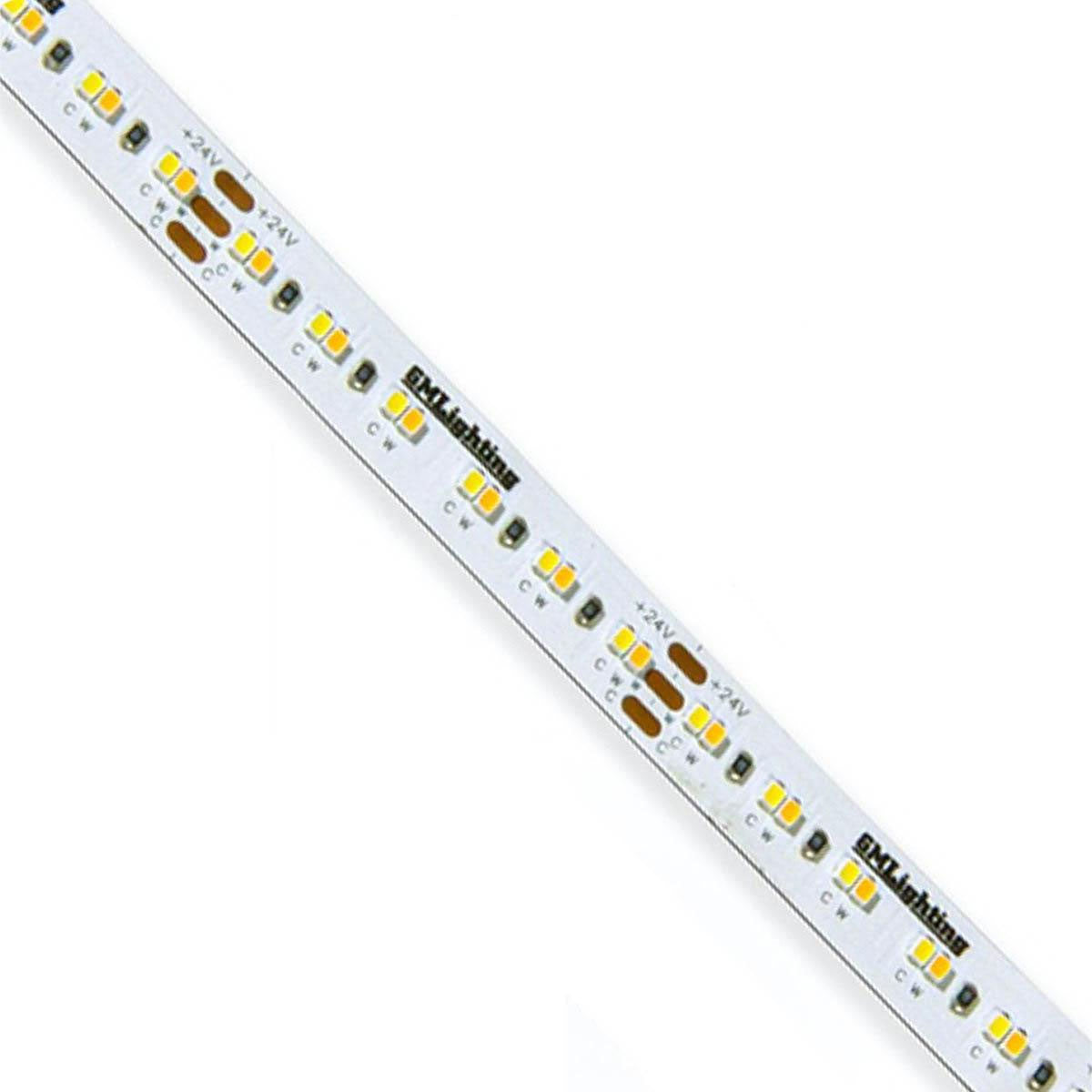

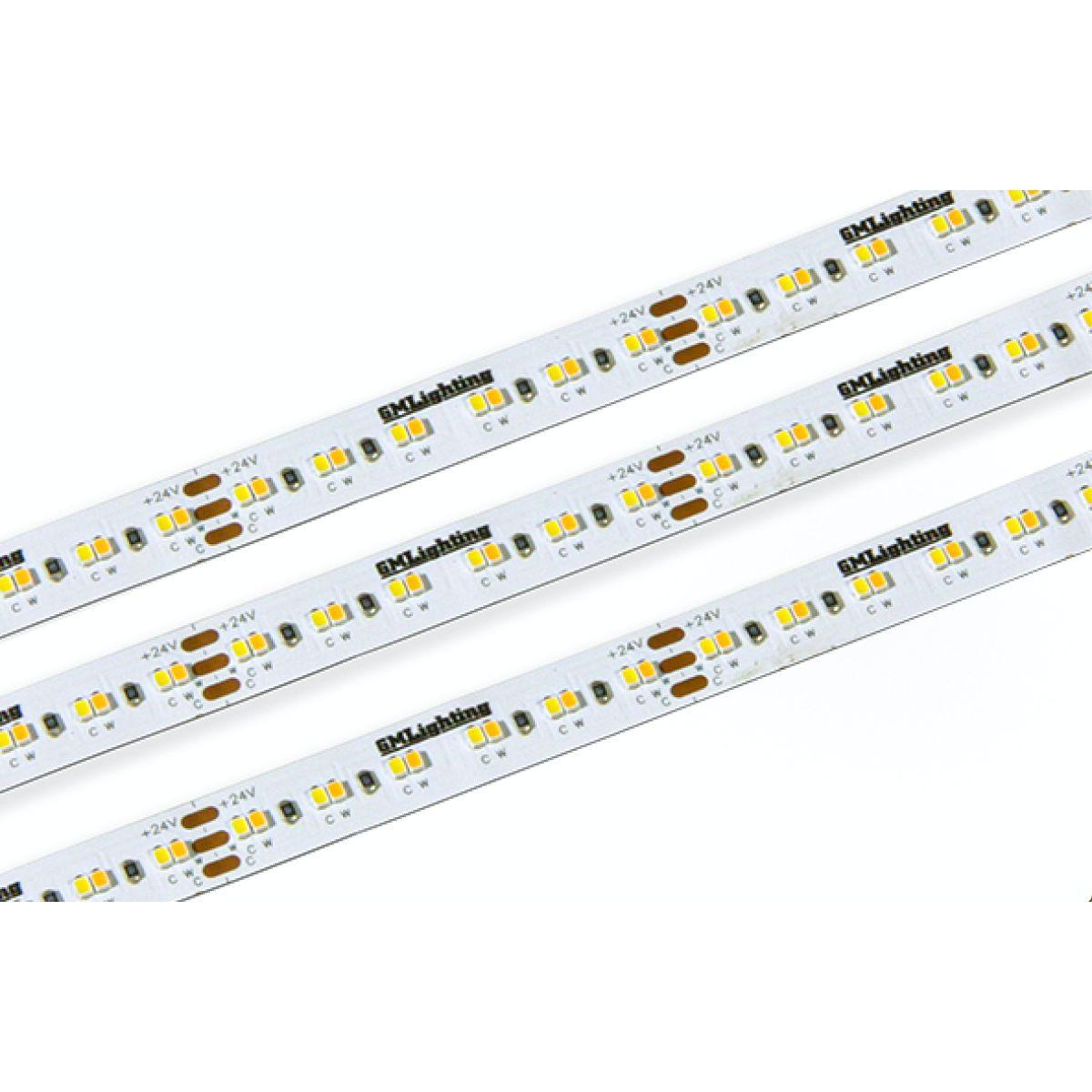

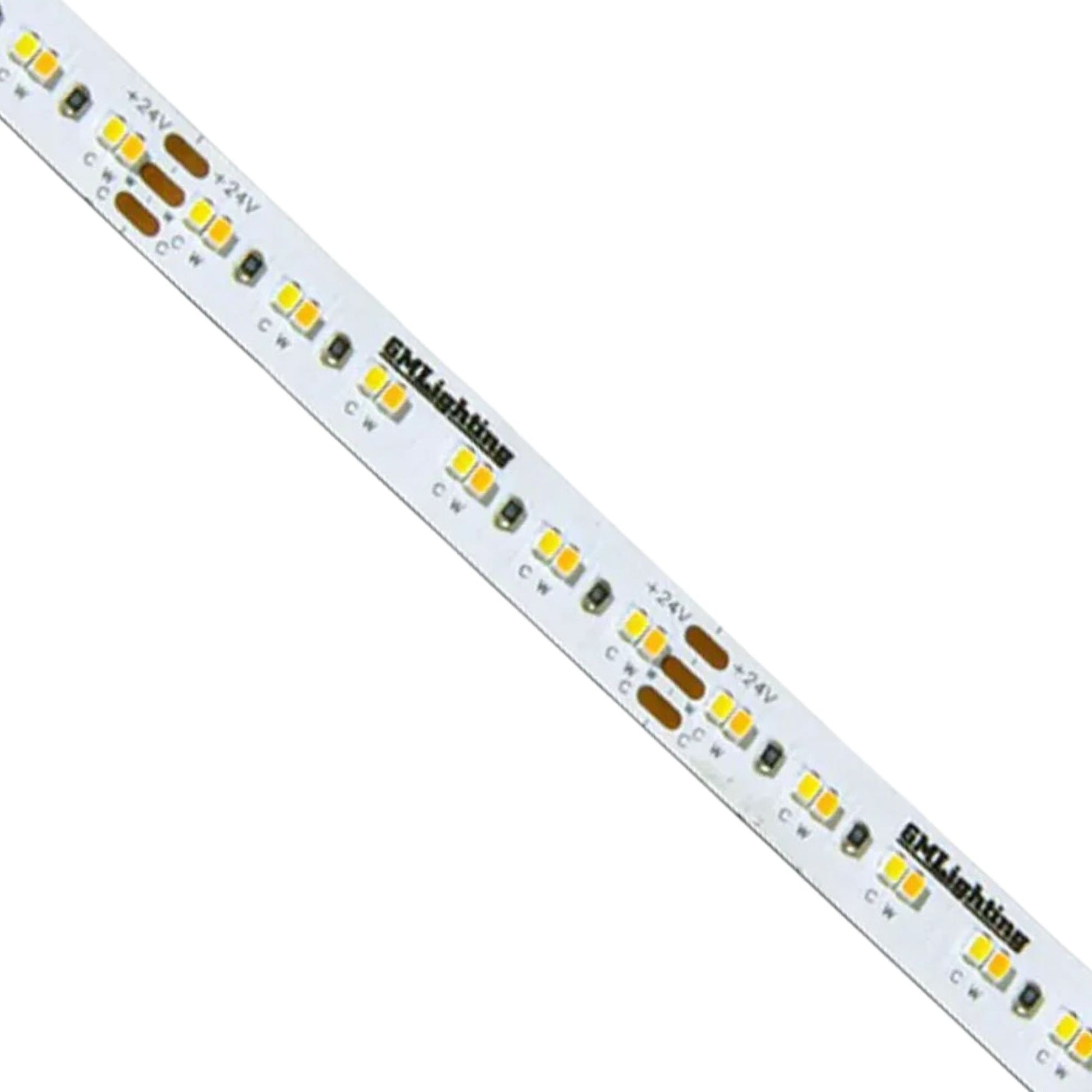

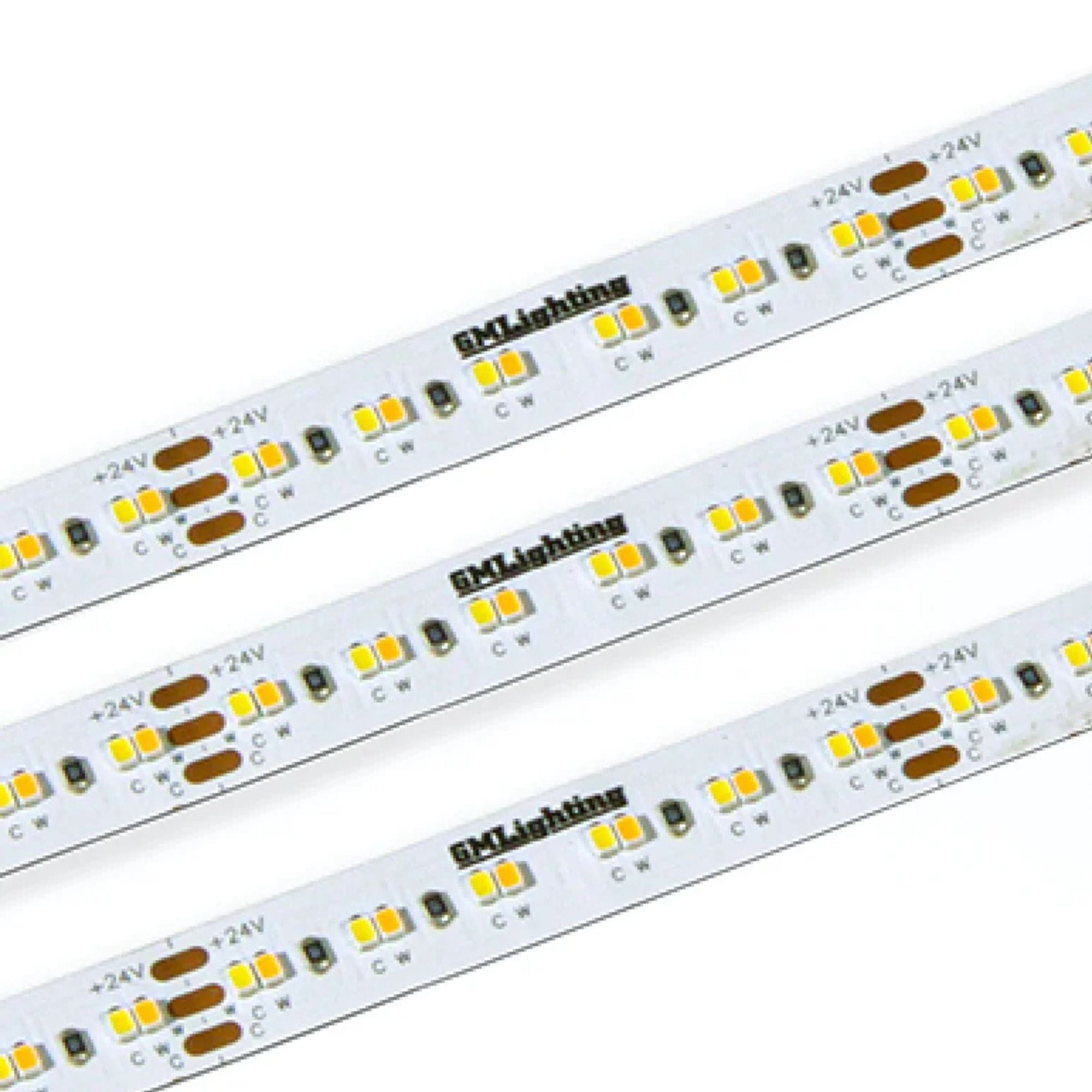

GM Lighting LTR-S SPEC LED Tape Light — Tunable White & High CRI
The GM Lighting LTR-S-TUN-24V-3.0W-16 is a 16'-4' LED tape light featuring tunable white technology, allowing color temperature adjustments from 2400K to 5000K. This tape light operates at 24V and is dry rated, making it ideal for indoor applications.
Key Features
- Voltage: 24V DC for low-voltage applications.
- Wattage: 3W per foot for balanced brightness and energy efficiency.
- Lumens: 267 lumens per foot at 3500K for bright, effective lighting.
- LEDs per Foot: High-density configuration for uniform light distribution.
- Max Run: 32'-8' continuous run at 3W per foot.

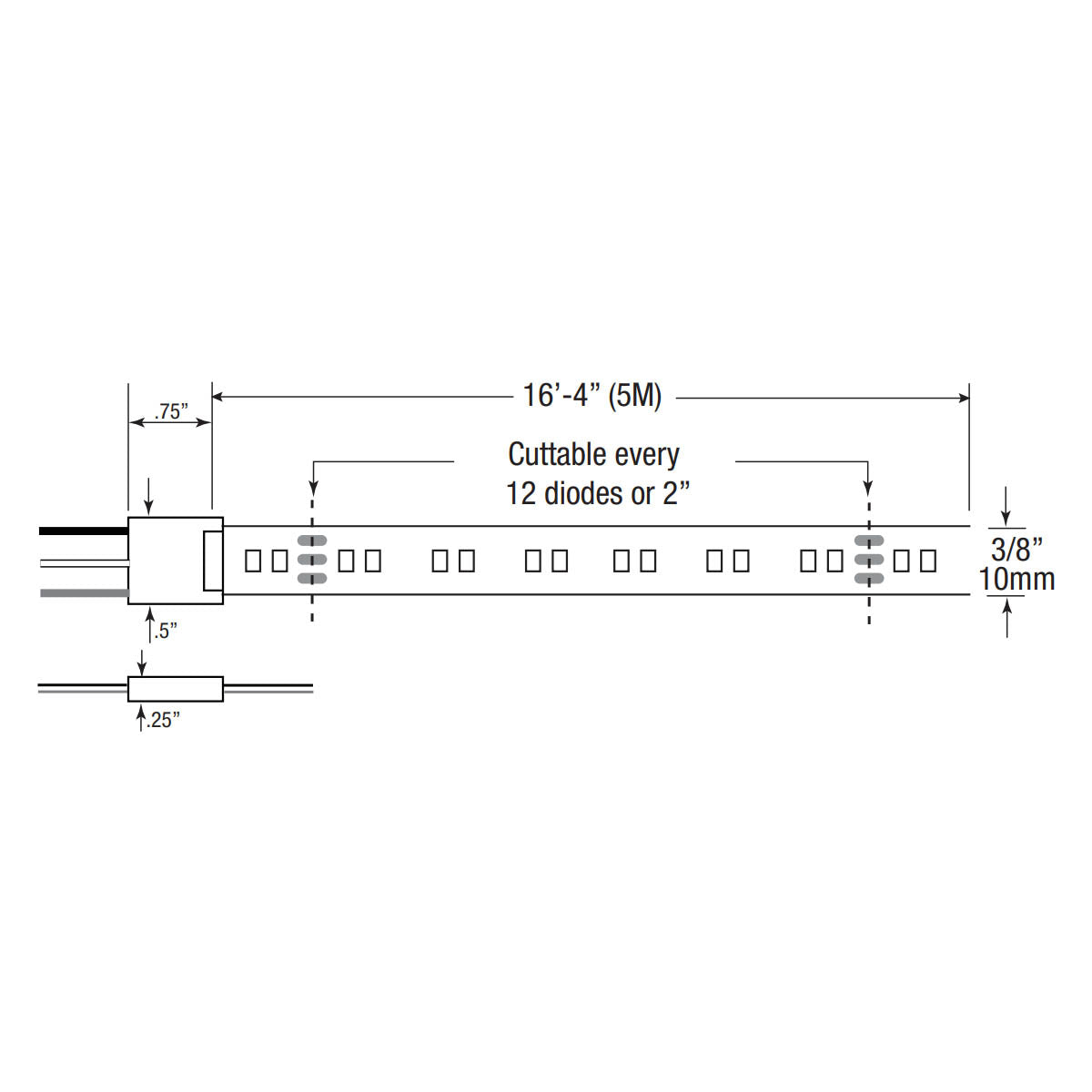

- Cut Increments: Cuttable every 2' for custom lengths.
- PCB Width: 10mm, compatible with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP20, suitable for dry locations.
- Certifications: ETL listed, Title 24 compliant with specific drivers.
Core Design & Construction
Featuring a 10mm PCB width, this tape light is designed for compatibility with standard aluminum channels. It includes a durable adhesive backing using 3M VHB™ tape for secure mounting in dry environments.
LED Illumination & Performance
With 267 lumens per foot and a CRI of 90+, this LED tape light ensures high-quality illumination with excellent color rendering. The tunable white feature allows for dynamic lighting adjustments.
Power, Wiring & Installation
Requires a 24V power supply, sold separately. The tape is field-cuttable every 2' and supports a maximum continuous run of 32'-8' to prevent voltage drop. Compatible with dimming systems for adjustable brightness.

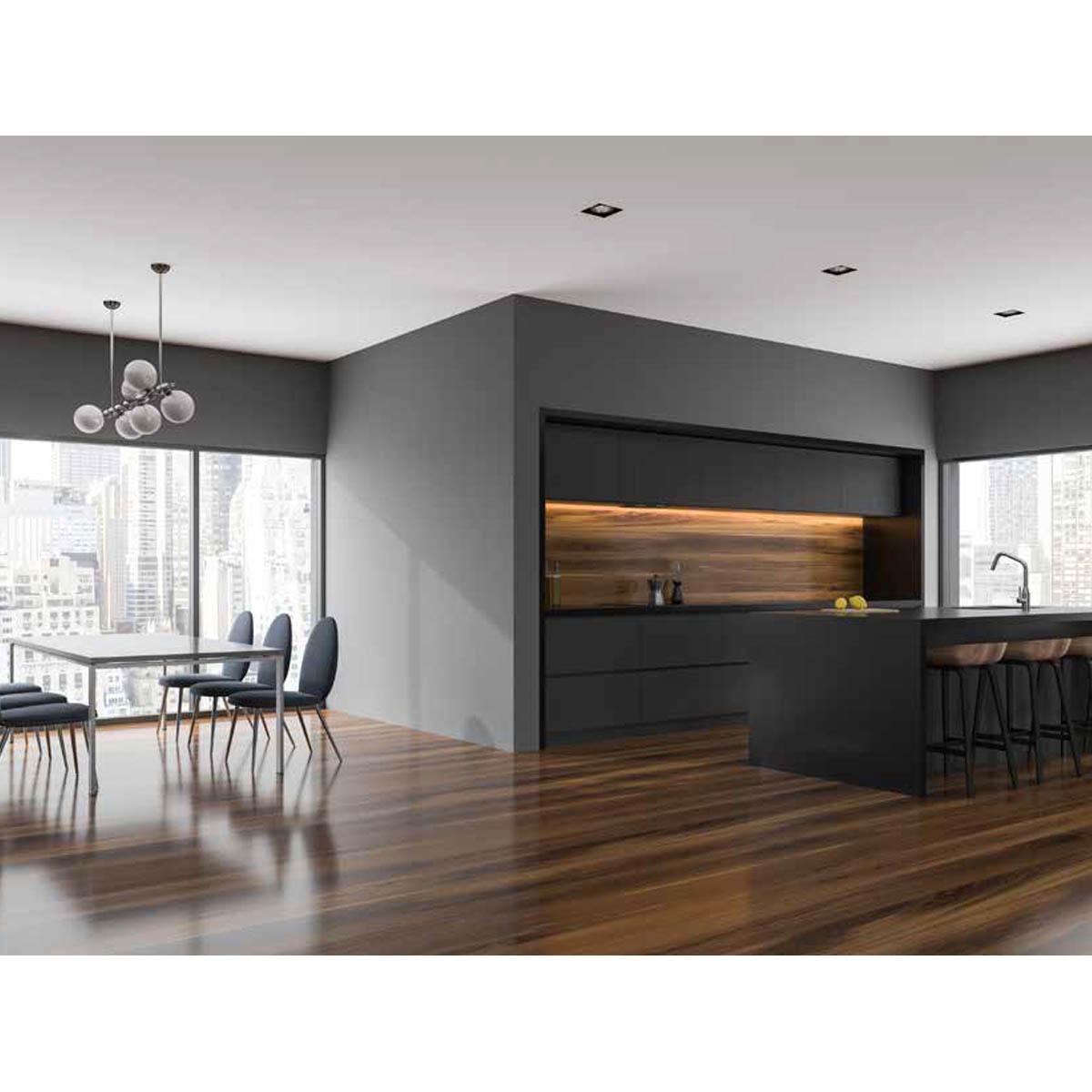

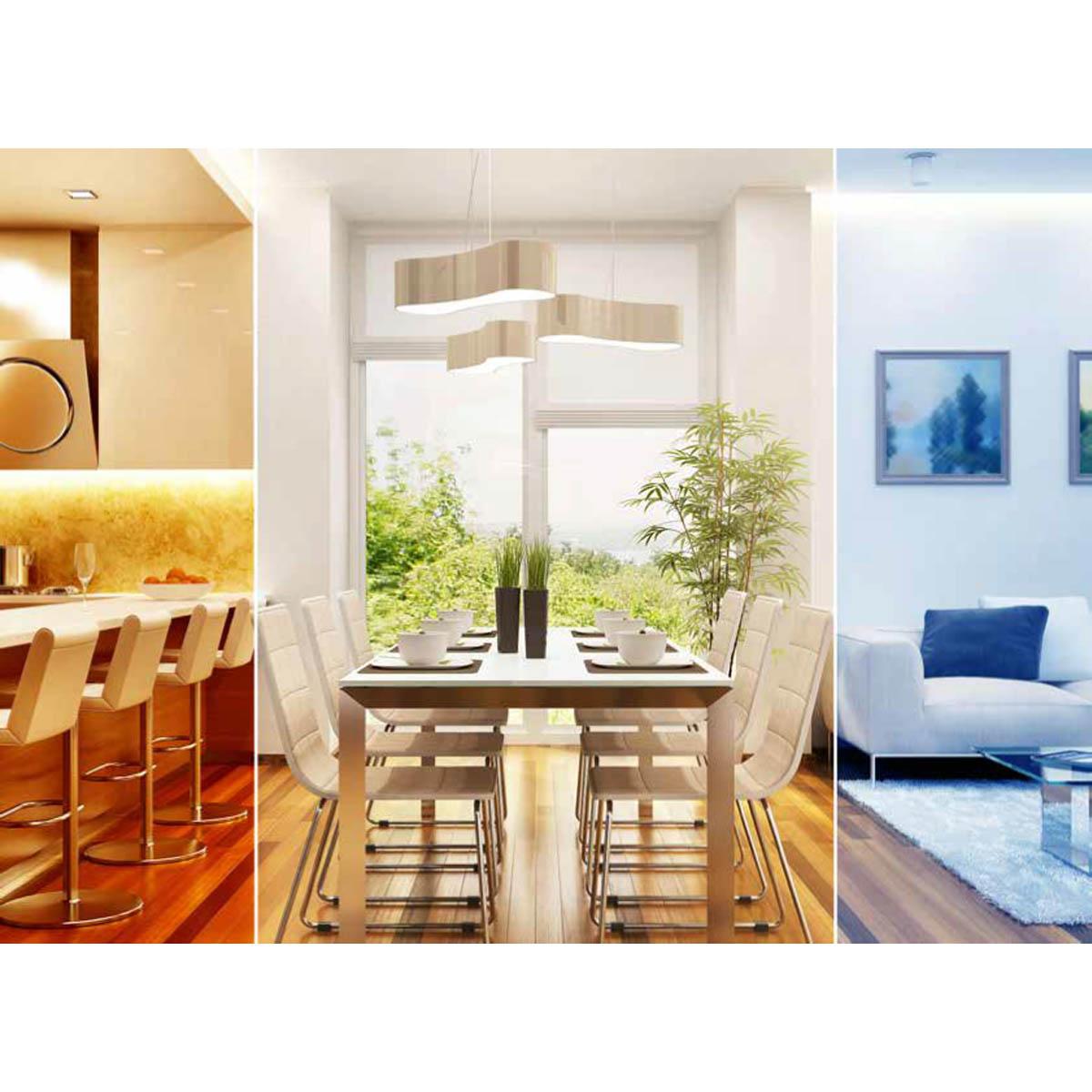

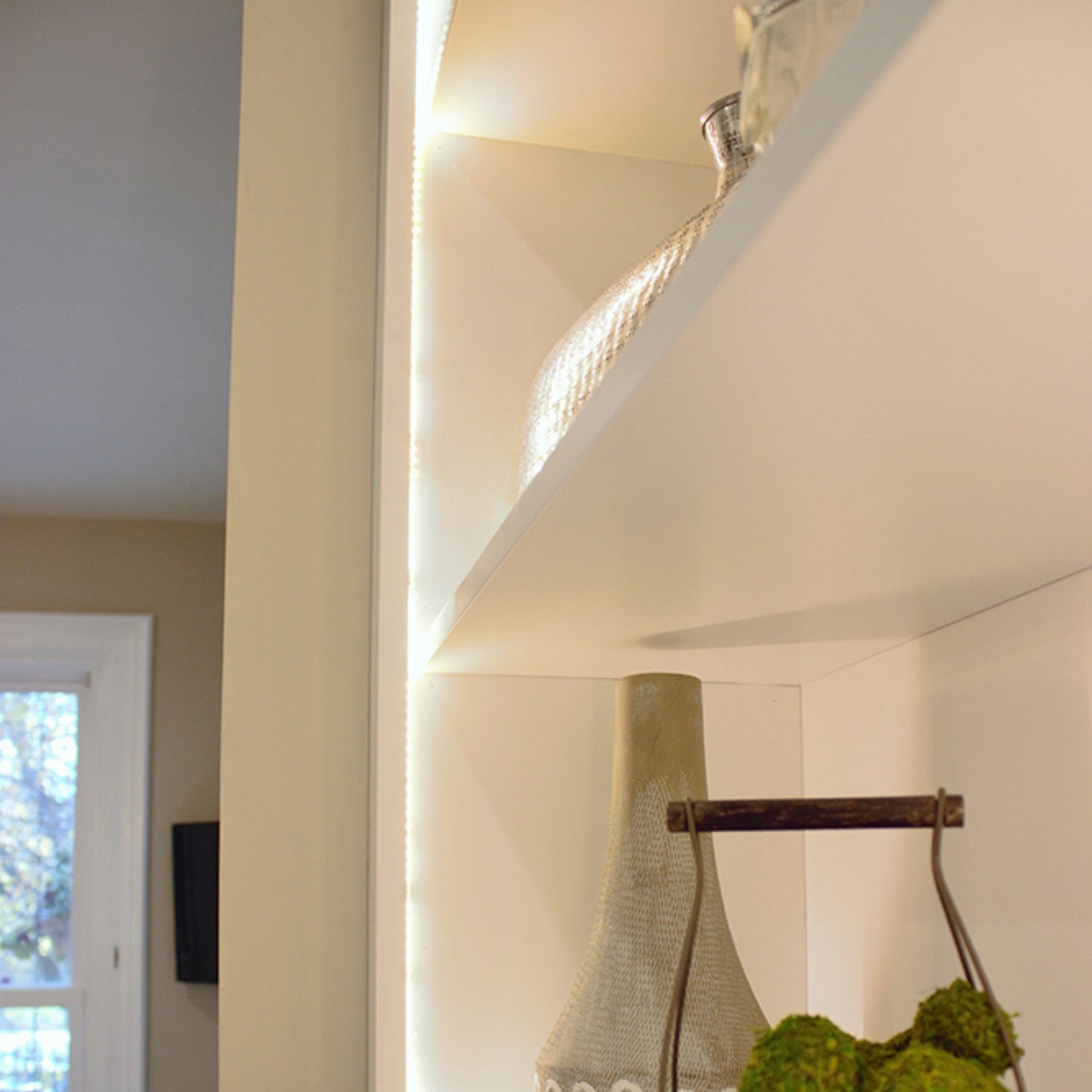

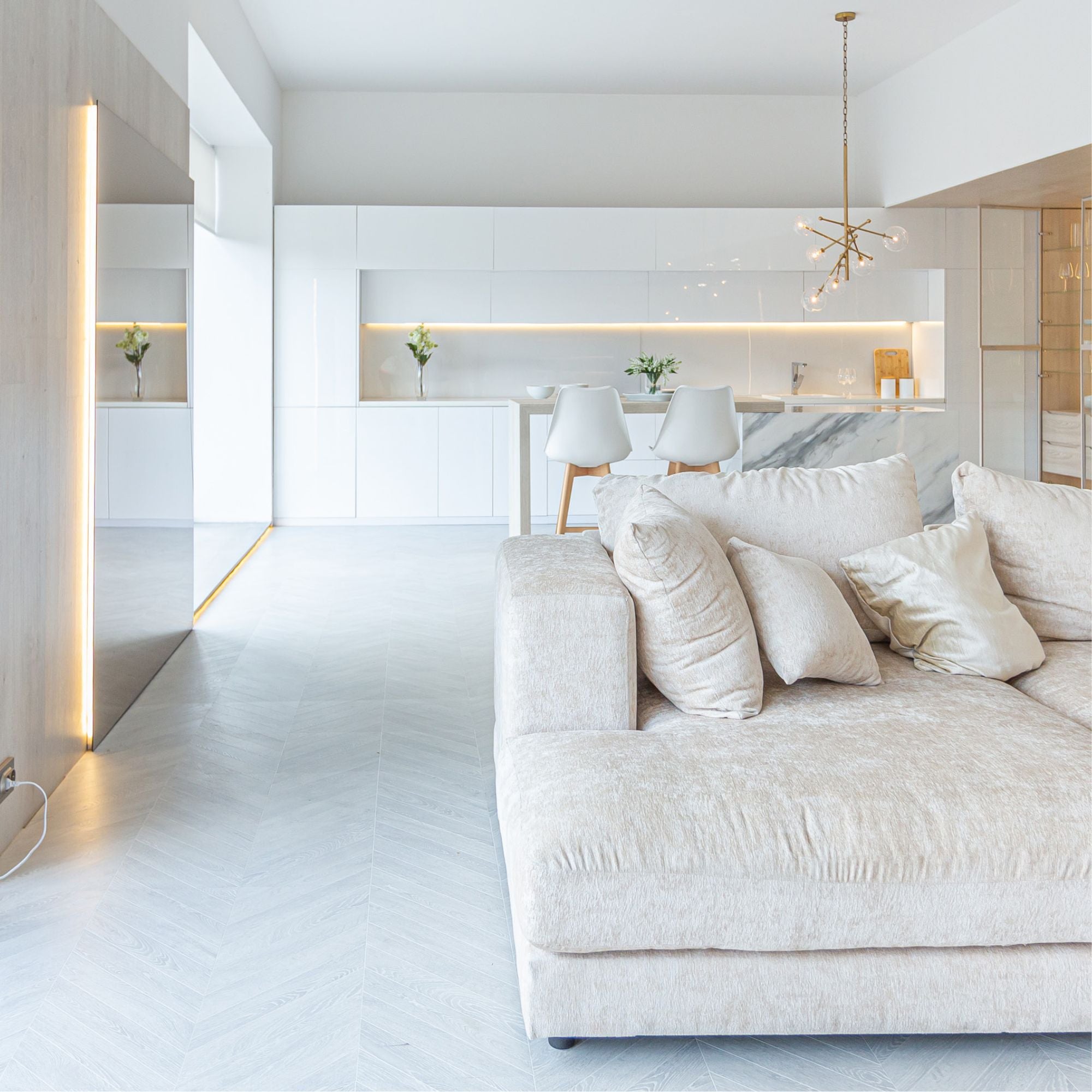

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Retail displays
- Architectural features
What's Included
- 16'-4' LED tape light spool
- 48' lead affixed at the start of the reel
Specifications
Specifications

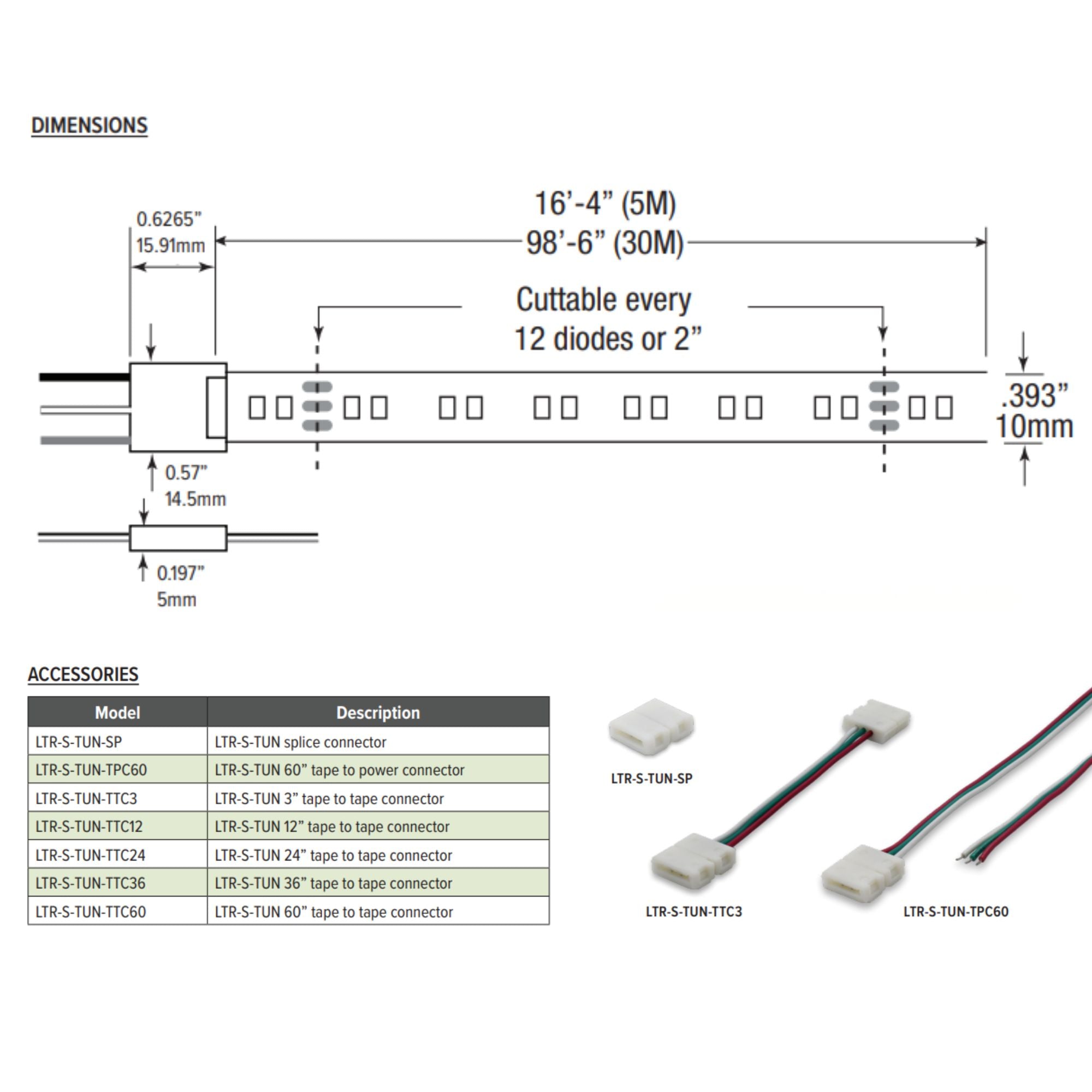

Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-TUN-24V-3.0W-16?
What is the maximum run length for the LTR-S-TUN-24V-3.0W-16?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light suitable for outdoor use?
Is this tape light suitable for outdoor use?
What type of dimming is compatible with this tape light?
What type of dimming is compatible with this tape light?
