GM Lighting LTR-S SPEC 16'-4' LED Tape Light, Tunable White, 162 Lumens/ft, 24V
In stock
About this item
About this item
- Tunable White: Adjusts from 2400K to 5000K for versatile lighting environments.
- Voltage: Operates at 24V, ensuring efficient power usage.
- Max Run: Maximum continuous run of 32'-8' to prevent voltage drop.
- Cuttable: Field cuttable every 2' for custom installations.
- CRI: 90+ CRI for superior color rendering.
We process payments securely and do not store credit card information.
Description
Description

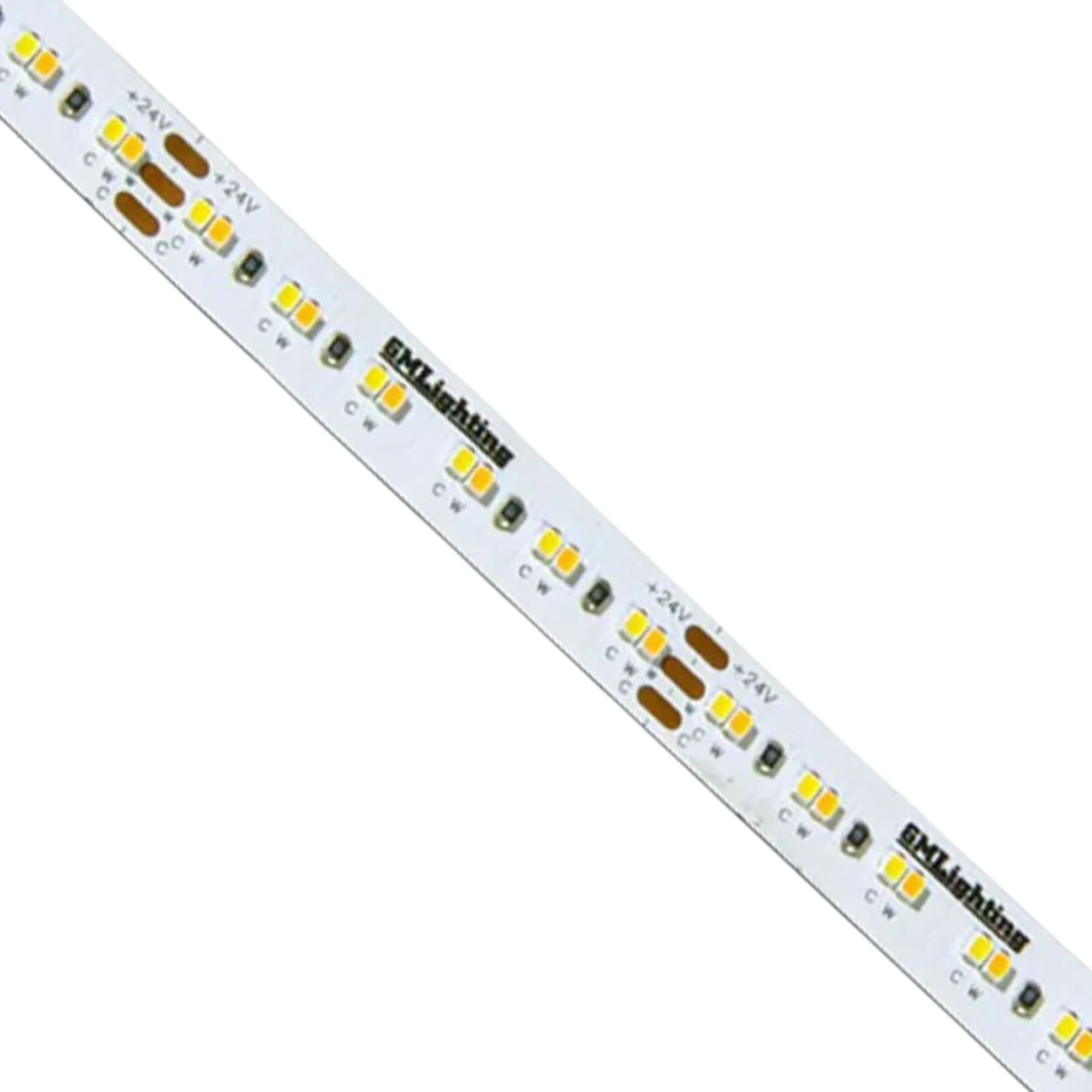

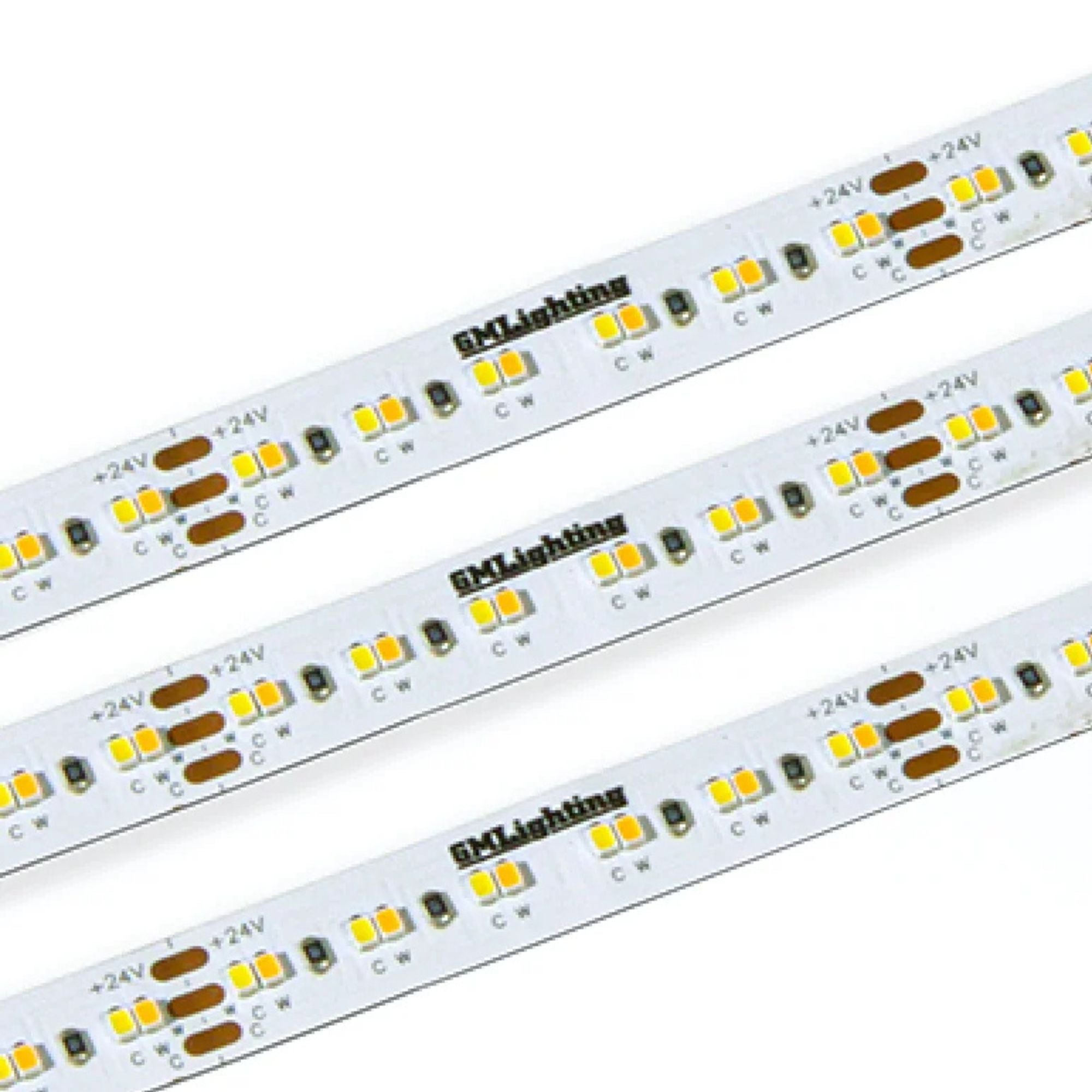

GM Lighting LTR-S SPEC LED Tape Light — Tunable White & High CRI
The GM Lighting LTR-S-TUN-24V-1.5W-16 is a 16'-4' LED Tape Light featuring tunable white technology, allowing adjustments from 2400K to 5000K. This tape light operates at 24V and is dry rated, making it suitable for indoor applications. With a high CRI of 90+, it ensures excellent color rendering.
Key Features
- Voltage: 24V DC for efficient energy use.
- Wattage: 1.5W per foot for low energy consumption.
- Lumens: 162 lumens per foot at 3500K.
- LEDs per Foot: High-density configuration for uniform light output.
- Max Run: 32'-8' to prevent voltage drop.

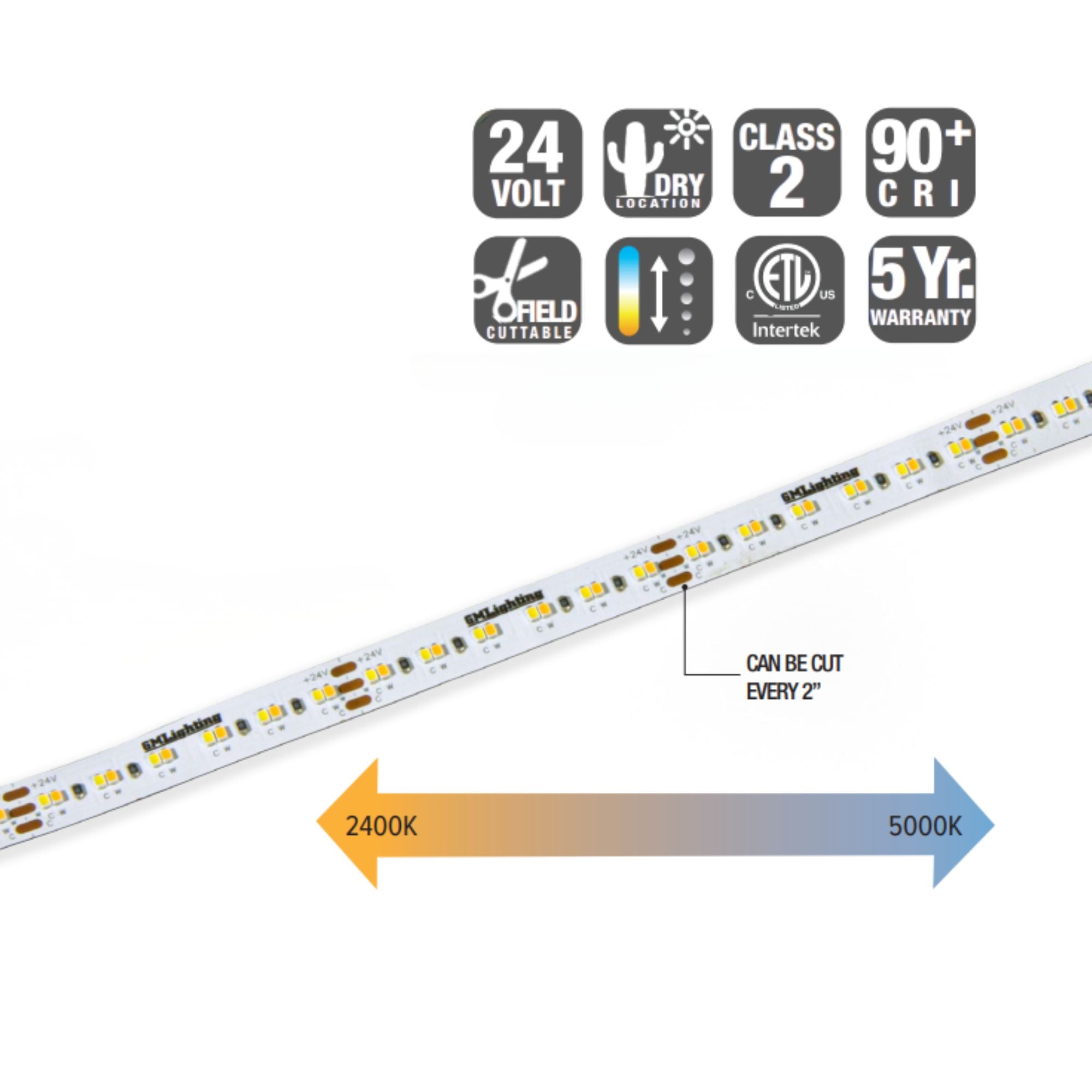

- Cut Increments: Cuttable every 2' for custom lengths.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20 for dry indoor use.
- Certifications: Title 24 compliant with specific drivers.
Core Design & Construction
The tape light features a 10mm wide PCB, ideal for use with standard aluminum channels. It includes a durable adhesive backing for easy installation and is designed for dry indoor environments.
LED Illumination & Performance
With 162 lumens per foot and a 90+ CRI, this tape light provides vibrant and accurate lighting. The tunable white technology allows for a customizable lighting experience.
Power, Wiring & Installation
Requires a 24V power supply, sold separately. The tape is cuttable every 2' and supports a maximum continuous run of 32'-8'. It is dimmable down to 0.1% with compatible systems.

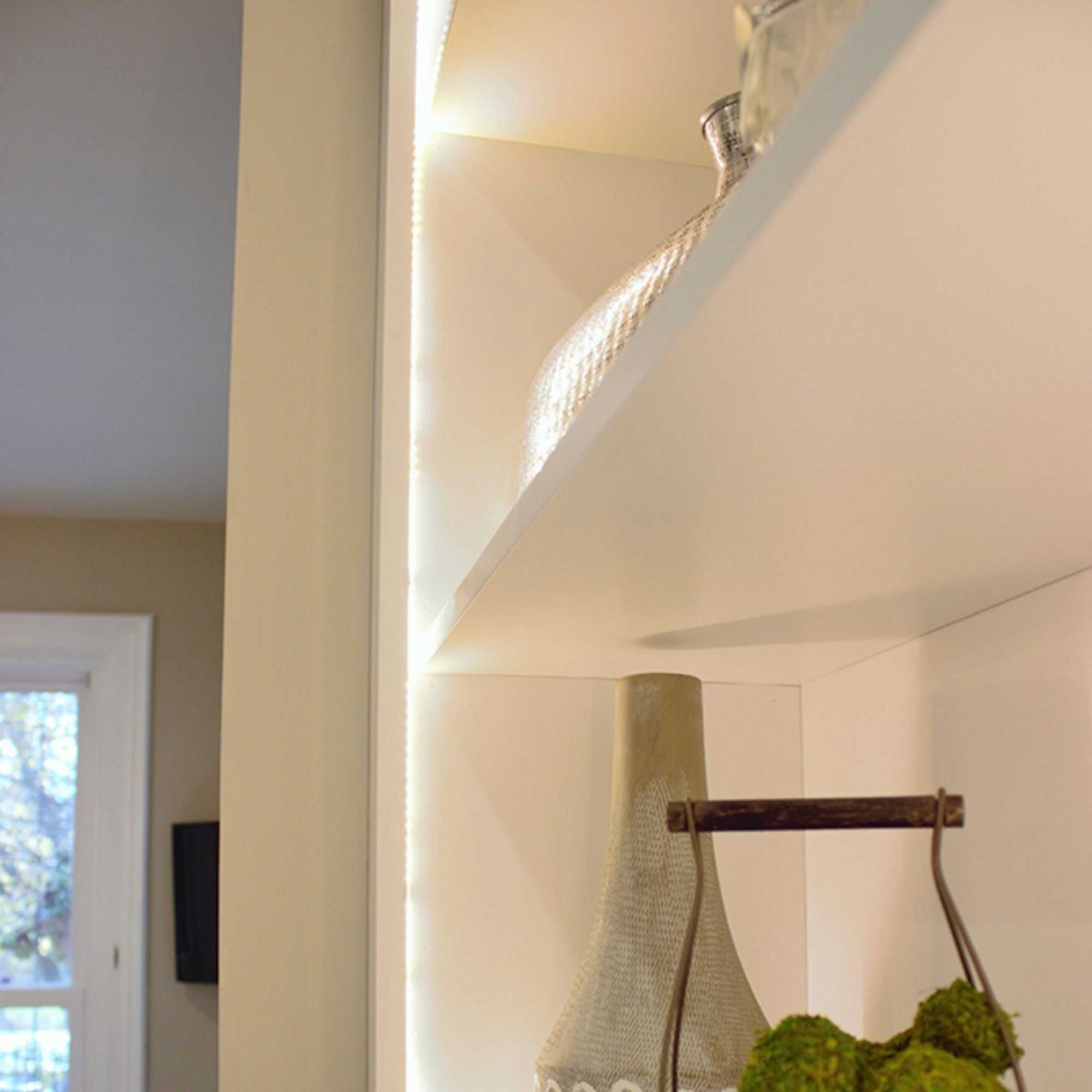

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' reel of LED tape light
- 48' of lead affixed at the start of the reel
Specifications
Specifications

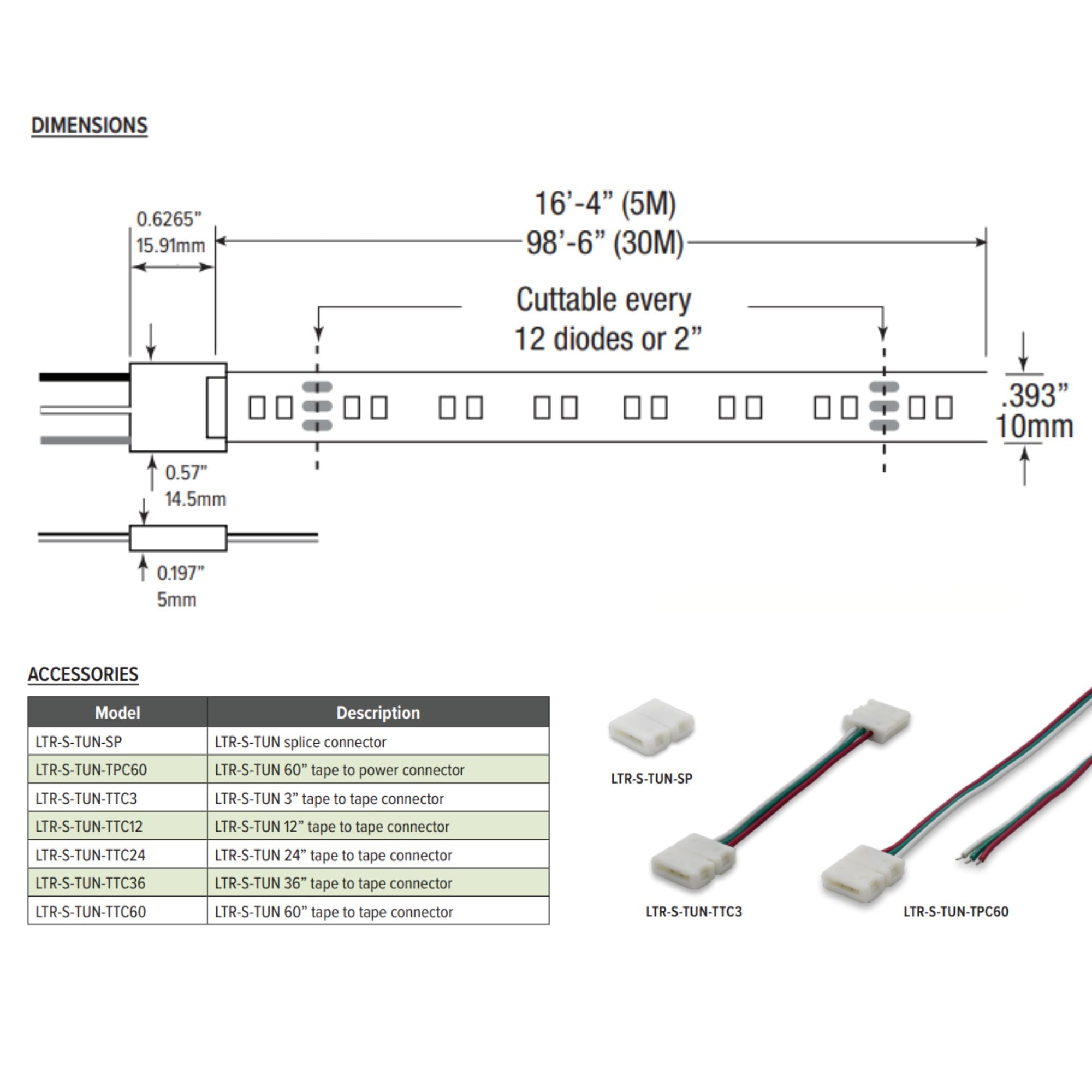

Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-TUN-24V-1.5W-16?
What is the maximum run length for the LTR-S-TUN-24V-1.5W-16?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for the LTR-S-TUN-24V-1.5W-16?
What voltage is required for the LTR-S-TUN-24V-1.5W-16?
Is the LTR-S-TUN-24V-1.5W-16 compatible with dimmers?
Is the LTR-S-TUN-24V-1.5W-16 compatible with dimmers?
What is the width of the PCB for this tape light?
What is the width of the PCB for this tape light?
