GM Lighting LTR-S SPEC 98'-6" LED Tape Light, Tunable White, 162 Lumens/ft, 24V
In stock
About this item
About this item
- Tunable White: Adjusts from 2400K to 5000K for versatile lighting applications.
- Voltage: Operates at 24V, ensuring efficient power usage.
- Max Run: Supports up to 32'-8" on a single lead for extensive installations.
- Cuttable: Can be cut every 2" for precise length customization.
- CRI: Features a high CRI of 90+ for superior color rendering.
We process payments securely and do not store credit card information.
Description
Description

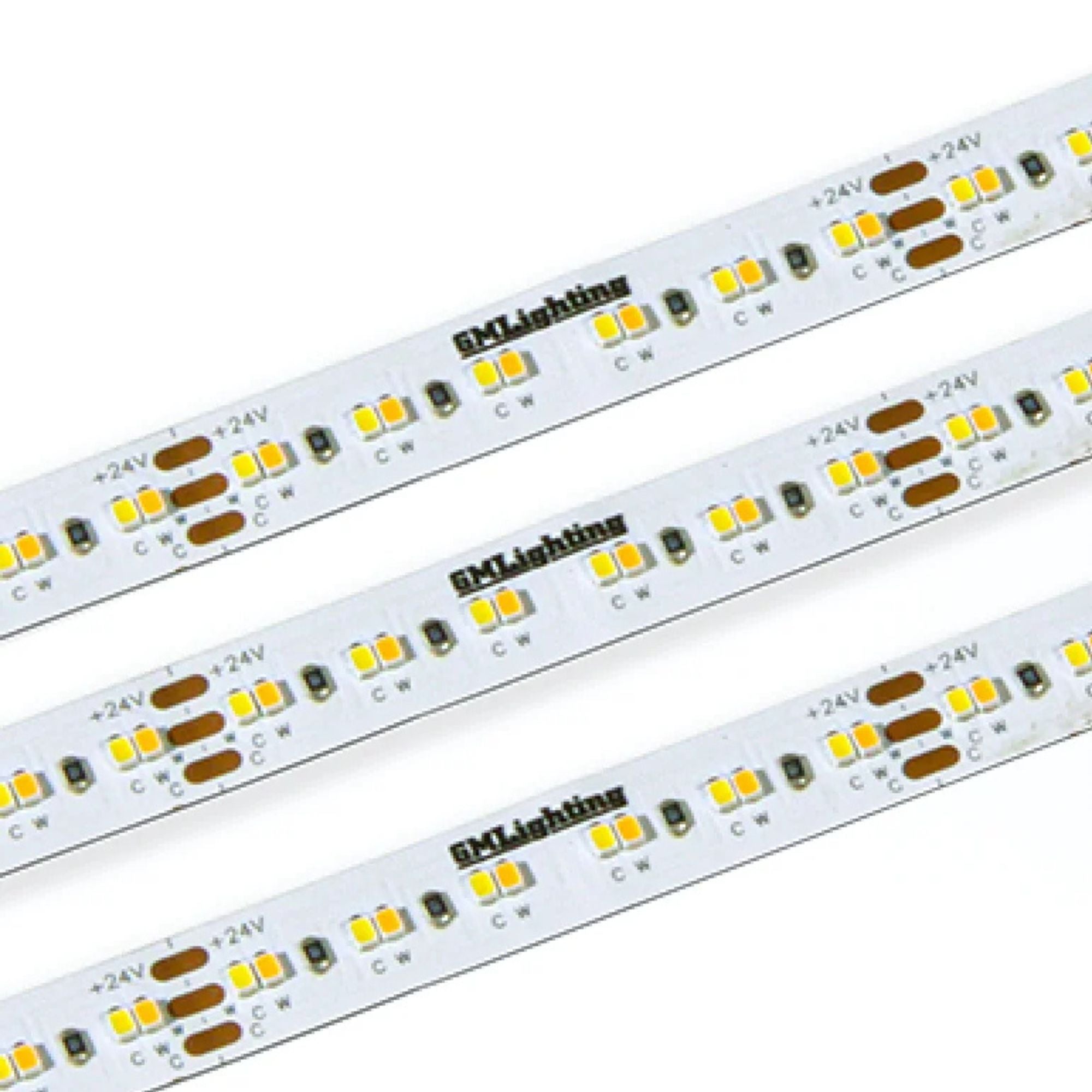

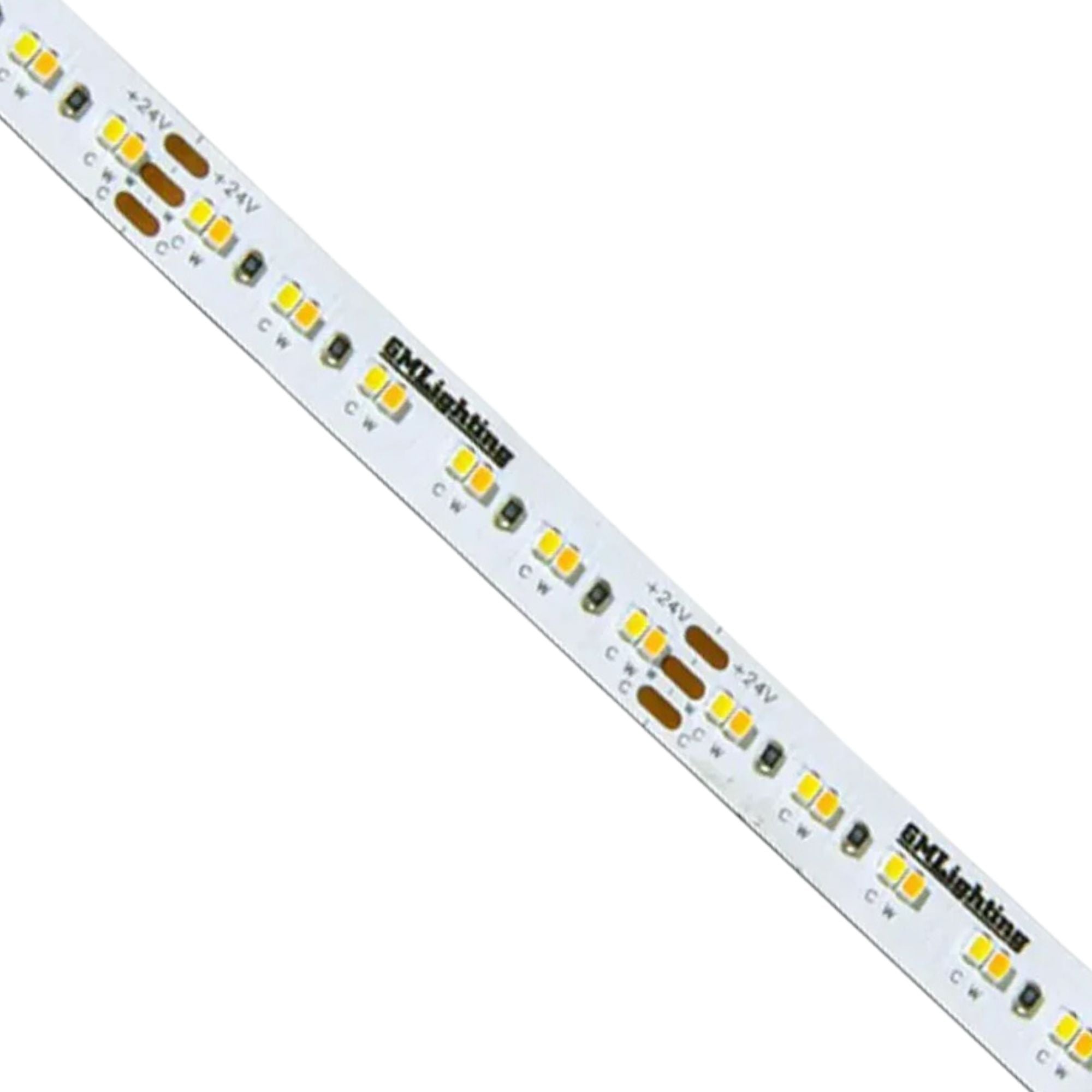

GM Lighting LTR-S SPEC LED Tape Light — Tunable White & High CRI
The GM Lighting LTR-S-TUN-24V-1.5W-100 is a tunable white LED tape light that spans 98'-6". This tape light operates at 24V and is dry rated, making it suitable for indoor applications. With its tunable white feature, it offers a color temperature range from 2400K to 5000K, allowing for dynamic lighting adjustments.
Key Features
- Voltage: 24V DC operation for consistent performance.
- Wattage: 1.5W per foot for energy-efficient lighting.
- Lumens: 162 lumens per foot at 3500K for bright illumination.
- LEDs per Foot: High-density configuration for uniform light distribution.
- Max Run: 32'-8" maximum continuous run to prevent voltage drop.

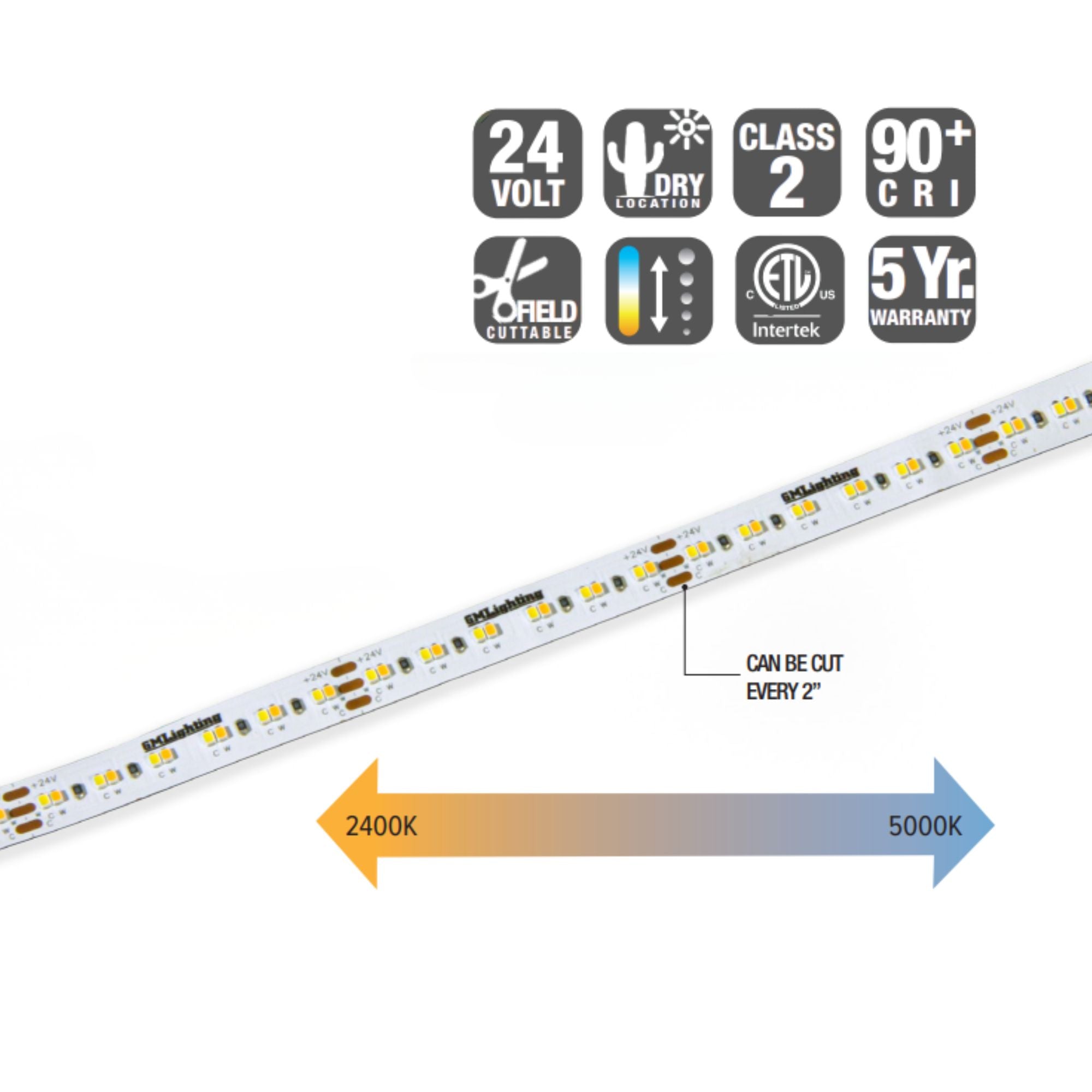

- Cuttable: Field cuttable every 2" for custom installations.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP20 for indoor use.
- Certifications: ETL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with most aluminum channels. It is equipped with a 3M VHB adhesive backing for secure mounting and is designed for dry indoor environments.
LED Illumination & Performance
Delivering 162 lumens per foot at 3500K, this tape light provides high-quality illumination with a CRI of 90+, ensuring accurate color representation. The tunable white technology allows for seamless transitions between different color temperatures.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is field-cuttable every 2" and supports a maximum continuous run of 32'-8". The tape is dimmable down to 0.1% for precise light control.

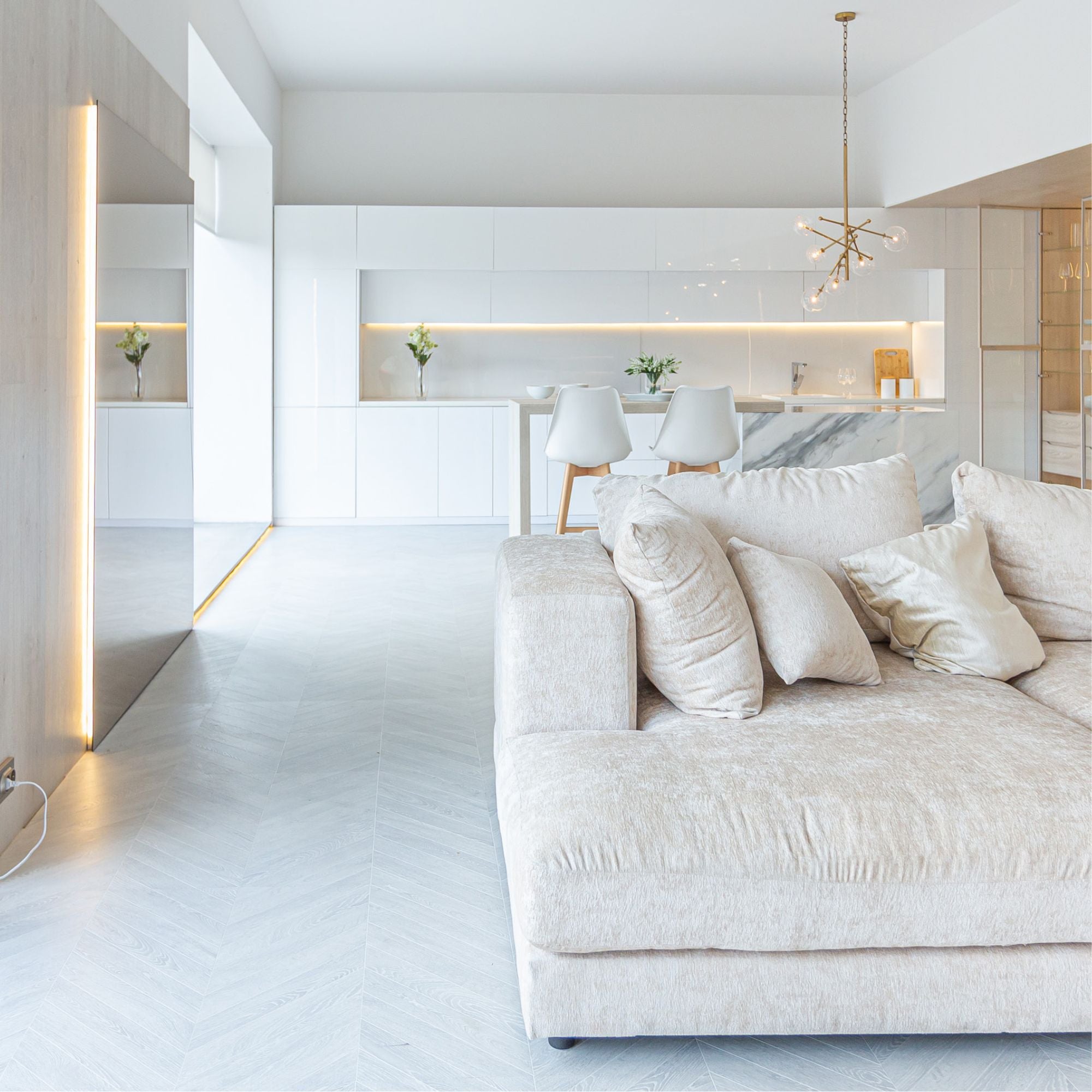

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting

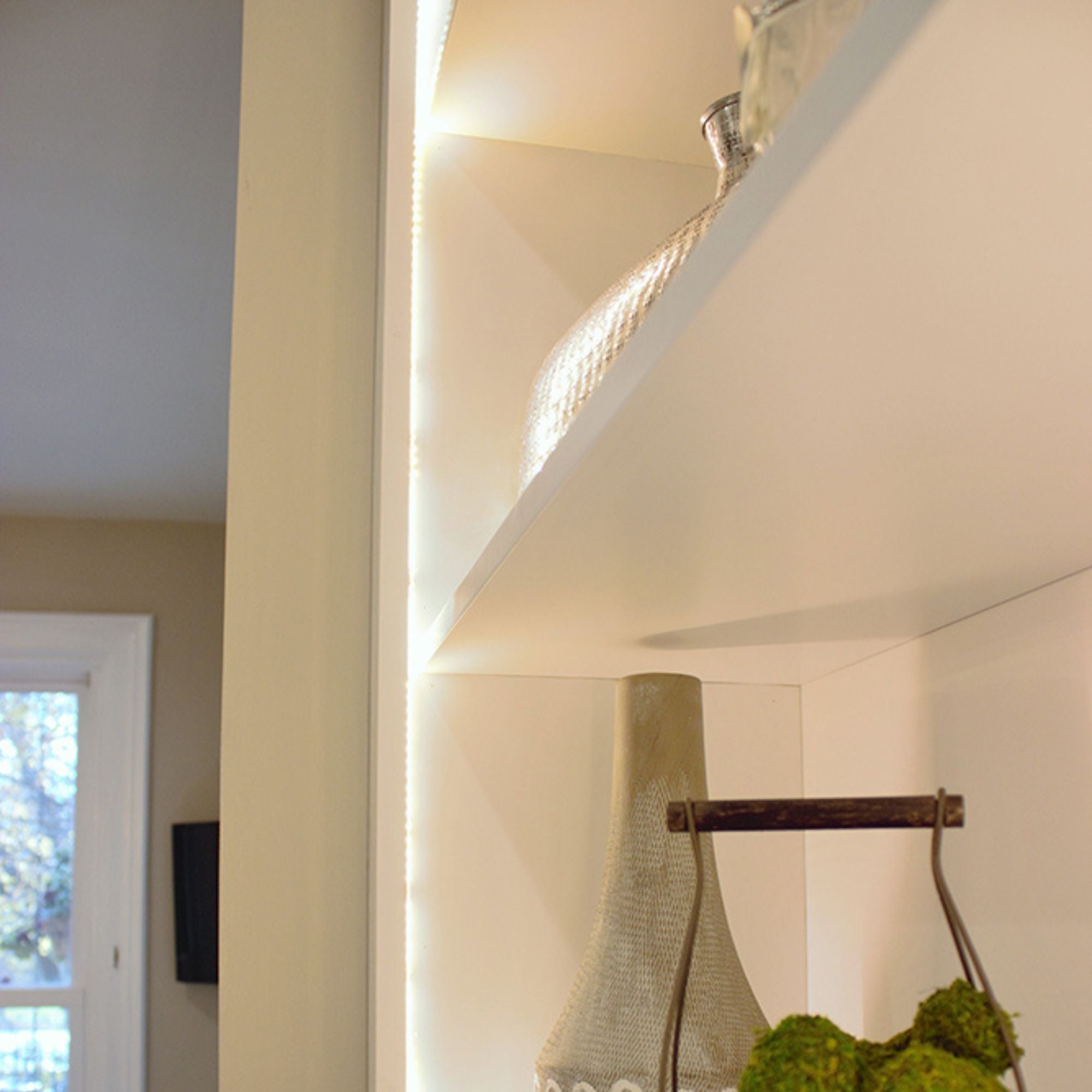

- Shelf lighting
- Display case lighting
What's Included
- 98'-6" reel of LED tape light
- 48" lead affixed at the start of the reel
Specifications
Specifications

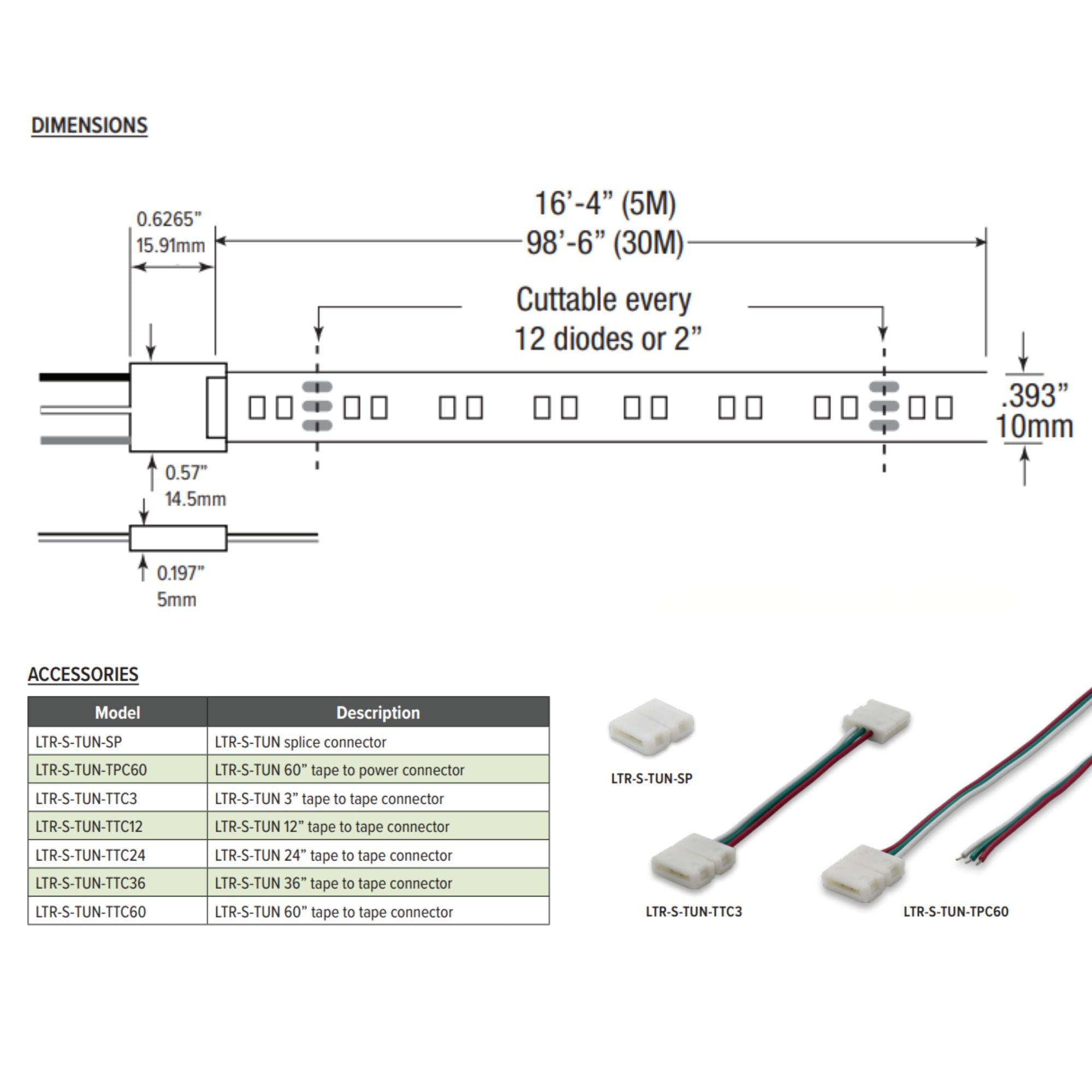

Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-TUN-24V-1.5W-100?
What is the maximum run length for the LTR-S-TUN-24V-1.5W-100?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light dimmable?
Is this tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
