GM Lighting LTR-S SPEC 16ft LED Tape Light, 3000K, 1143 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: 3000K provides a warm white light ideal for various applications.
- Voltage: Operates at 24V, ensuring compatibility with low voltage systems.
- Max Run: Maximum continuous run of 12 feet to prevent voltage drop.
- Cuttable Increments: Field cuttable every 2 inches for customized lengths.
- PCB Width: 10mm width suitable for most aluminum channels.
We process payments securely and do not store credit card information.
Description
Description

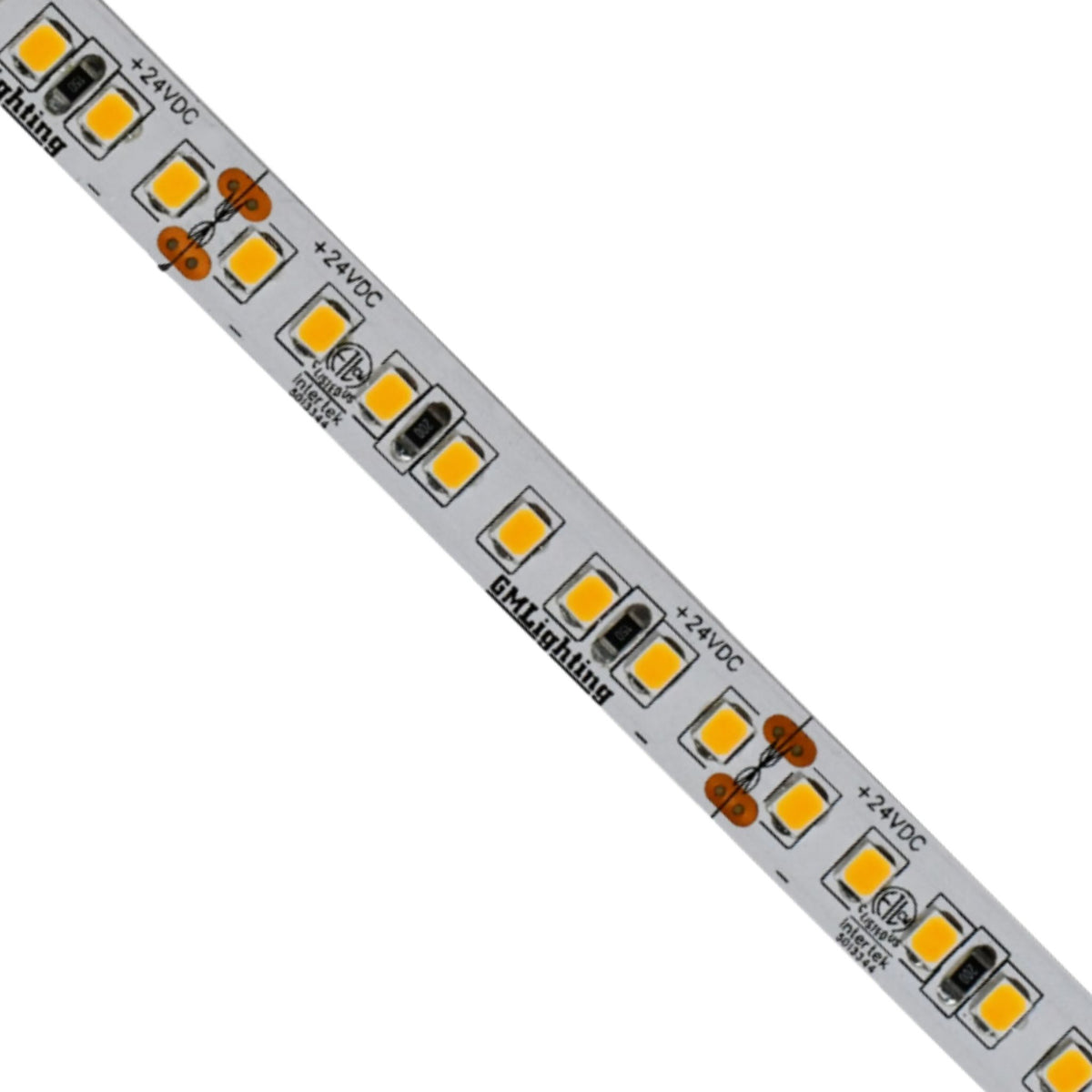

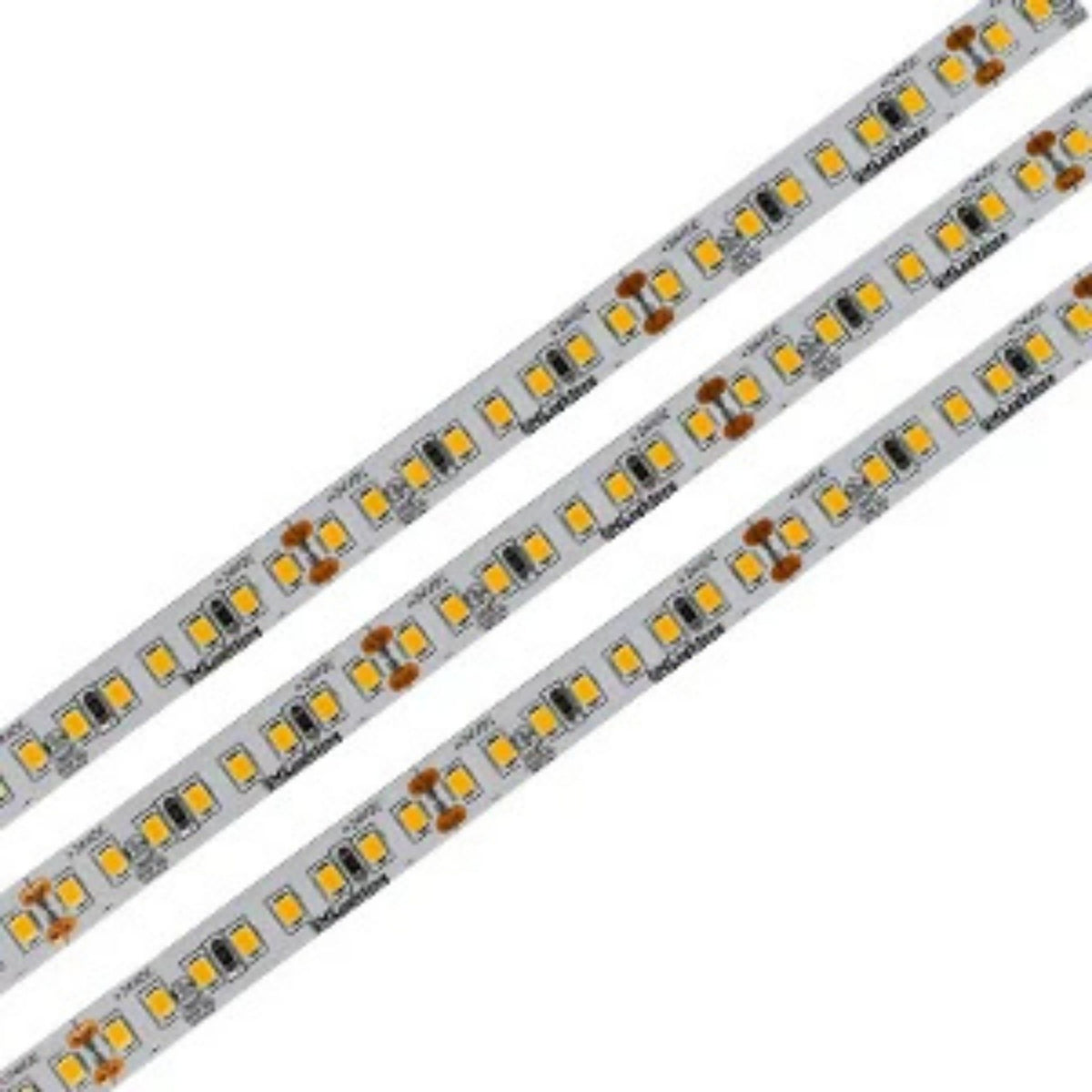

GM Lighting LTR-S SPEC LED Tape Light — 3000K & High Output

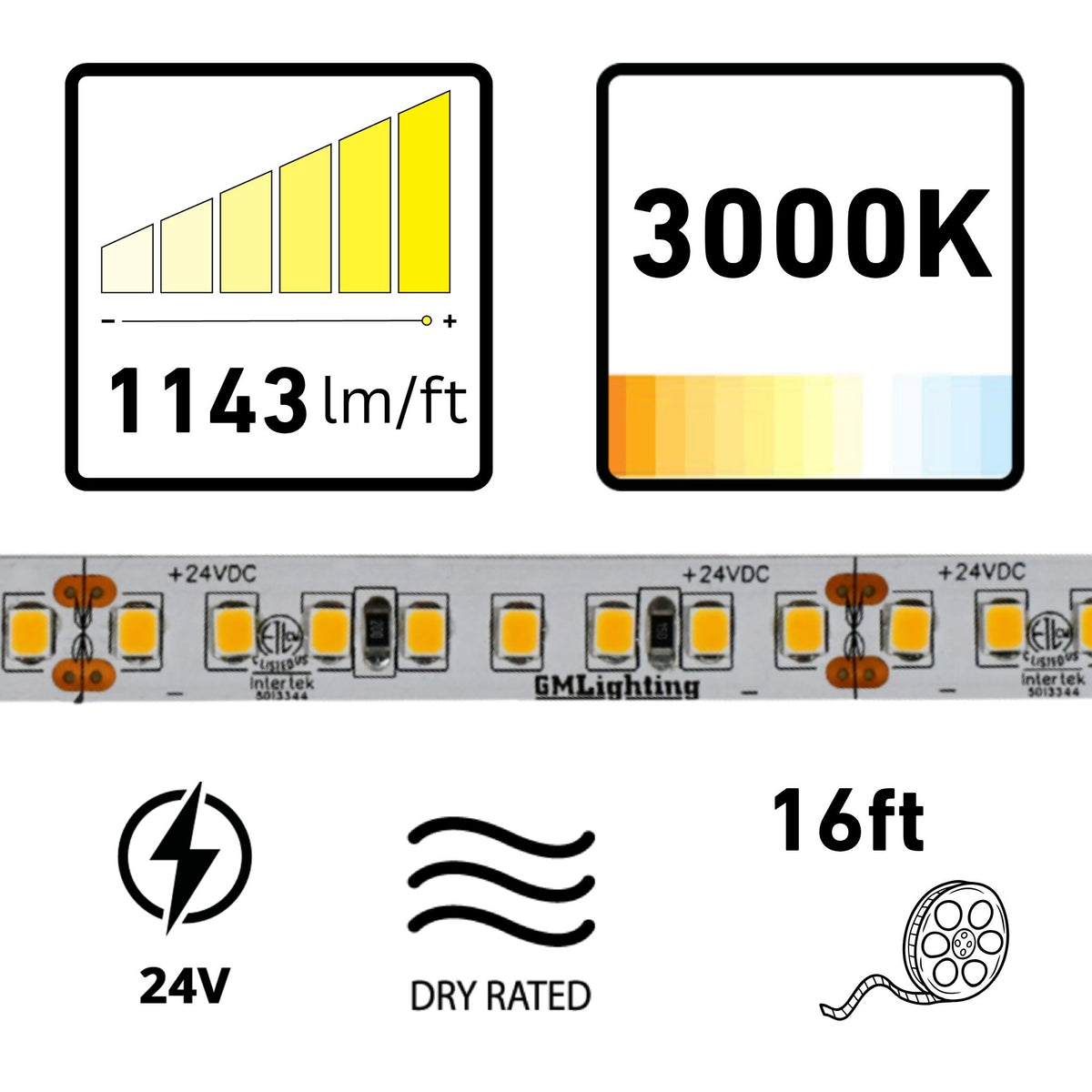

The GM Lighting LTR-S-HO-24V-8W-30K-16 is a high-output LED tape light that delivers over 1143 lumens per foot with a color temperature of 3000K. This 16-foot tape light operates at 24V and is dry rated, making it ideal for indoor applications.
Key Features
- Voltage: 24V DC for efficient power consumption.
- Wattage: 8 watts per foot for high output illumination.
- Lumens per Foot: 1143 lumens for bright lighting.
- LEDs per Foot: High density with 8 LEDs per 2 inches.
- Maximum Run Length: 12 feet to prevent voltage drop.

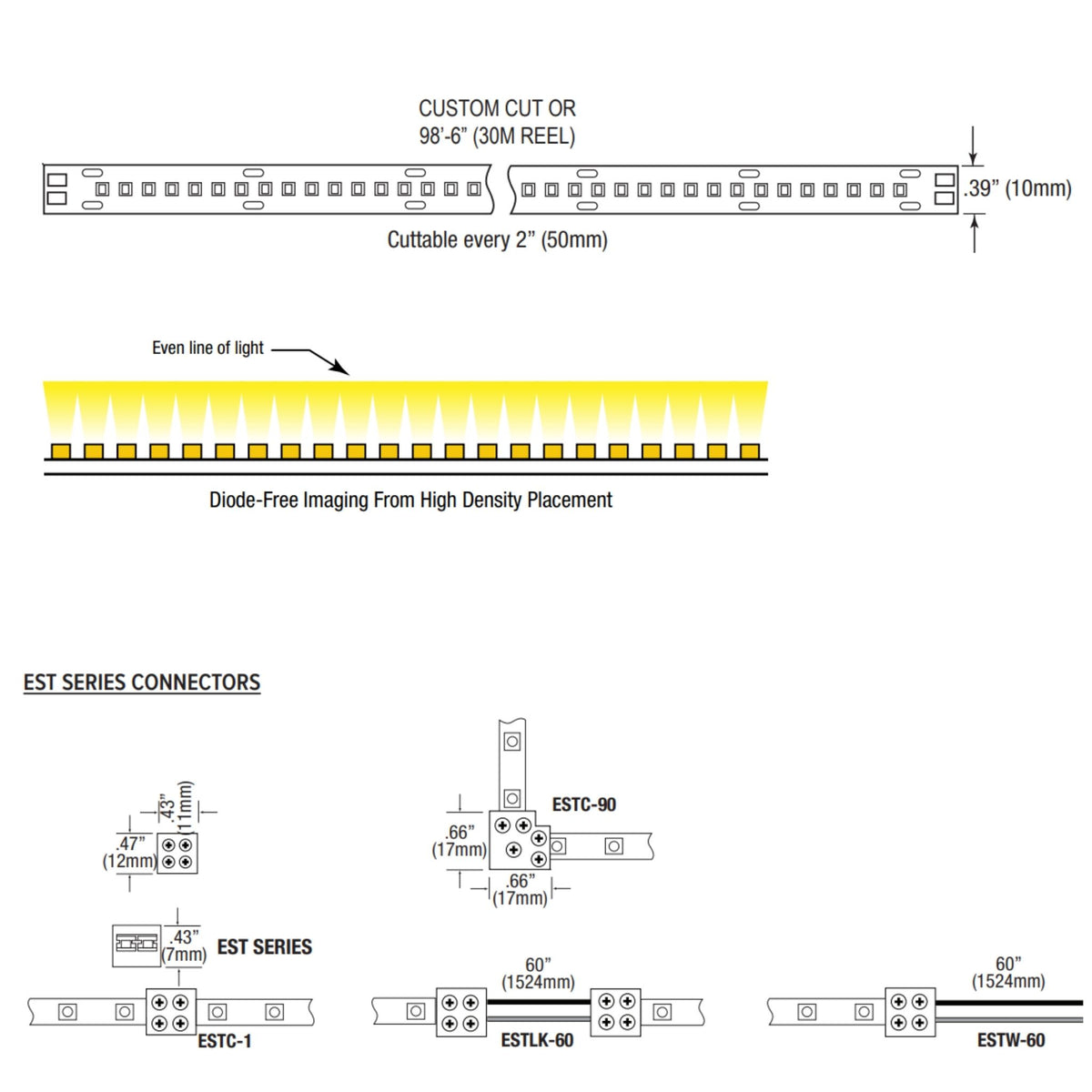

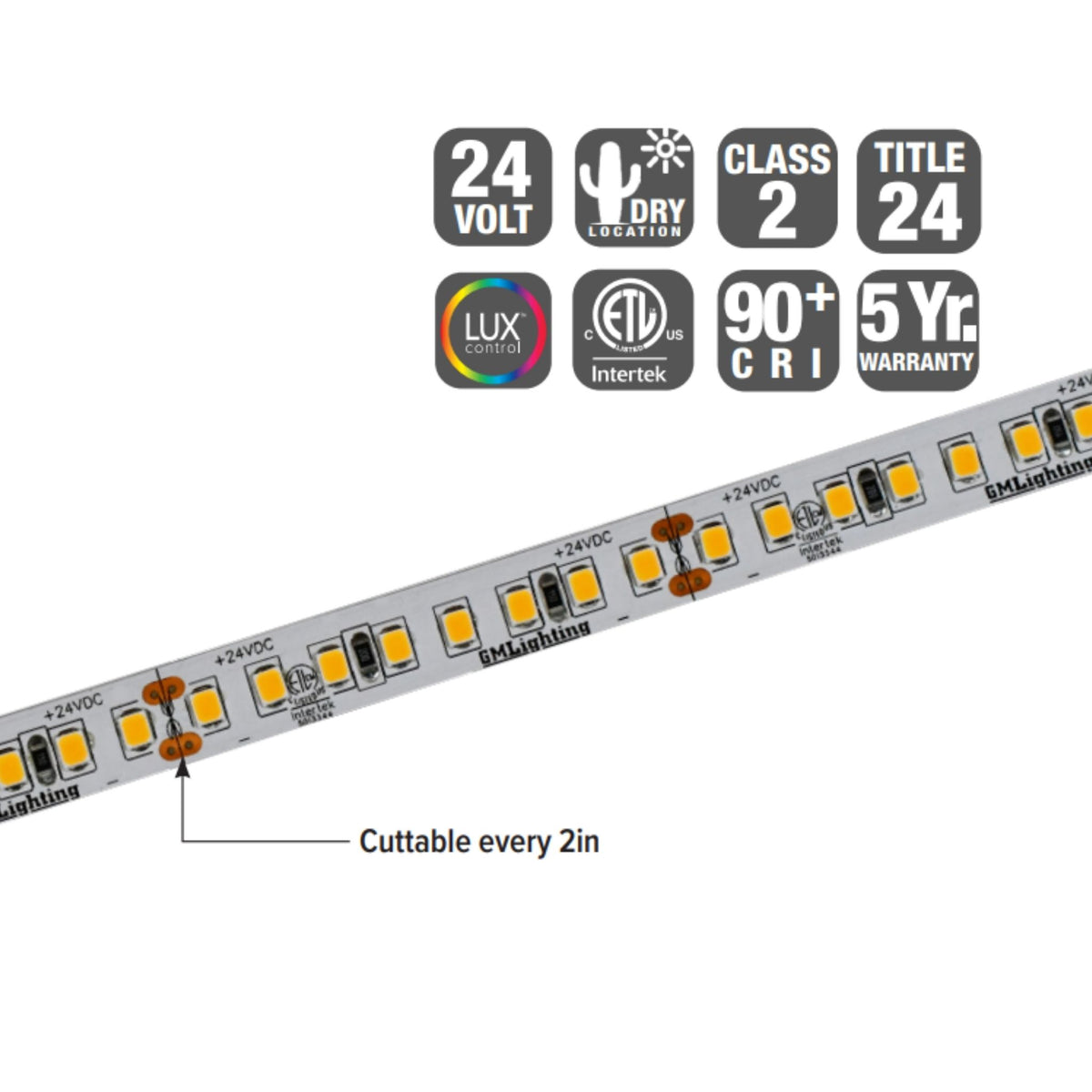

- Field Cuttable: Every 2 inches for custom installations.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP20 for dry locations.
- Certifications: ETL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for easy installation and is designed for dry environments.
LED Illumination & Performance
With over 1143 lumens per foot and a CRI of 90+, this LED tape light provides high-quality illumination with a warm 3000K color temperature, ideal for accent and task lighting.
Power, Wiring & Installation
This tape light requires a 24V power supply and is field cuttable every 2 inches. It supports dimming for adjustable light levels and has a maximum continuous run of 12 feet.
Where This Tape Works Best
- Cove lighting

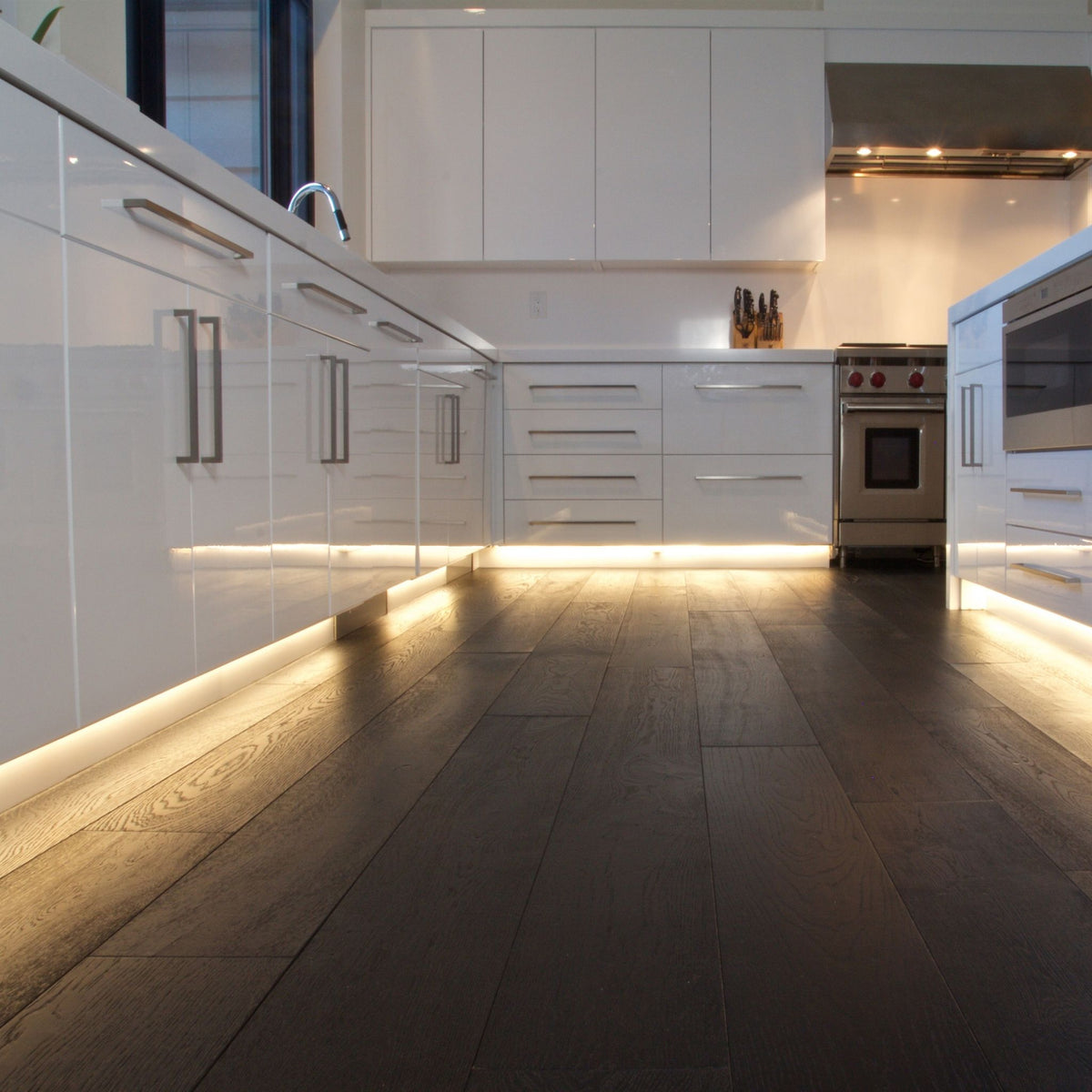

- Under cabinet lighting

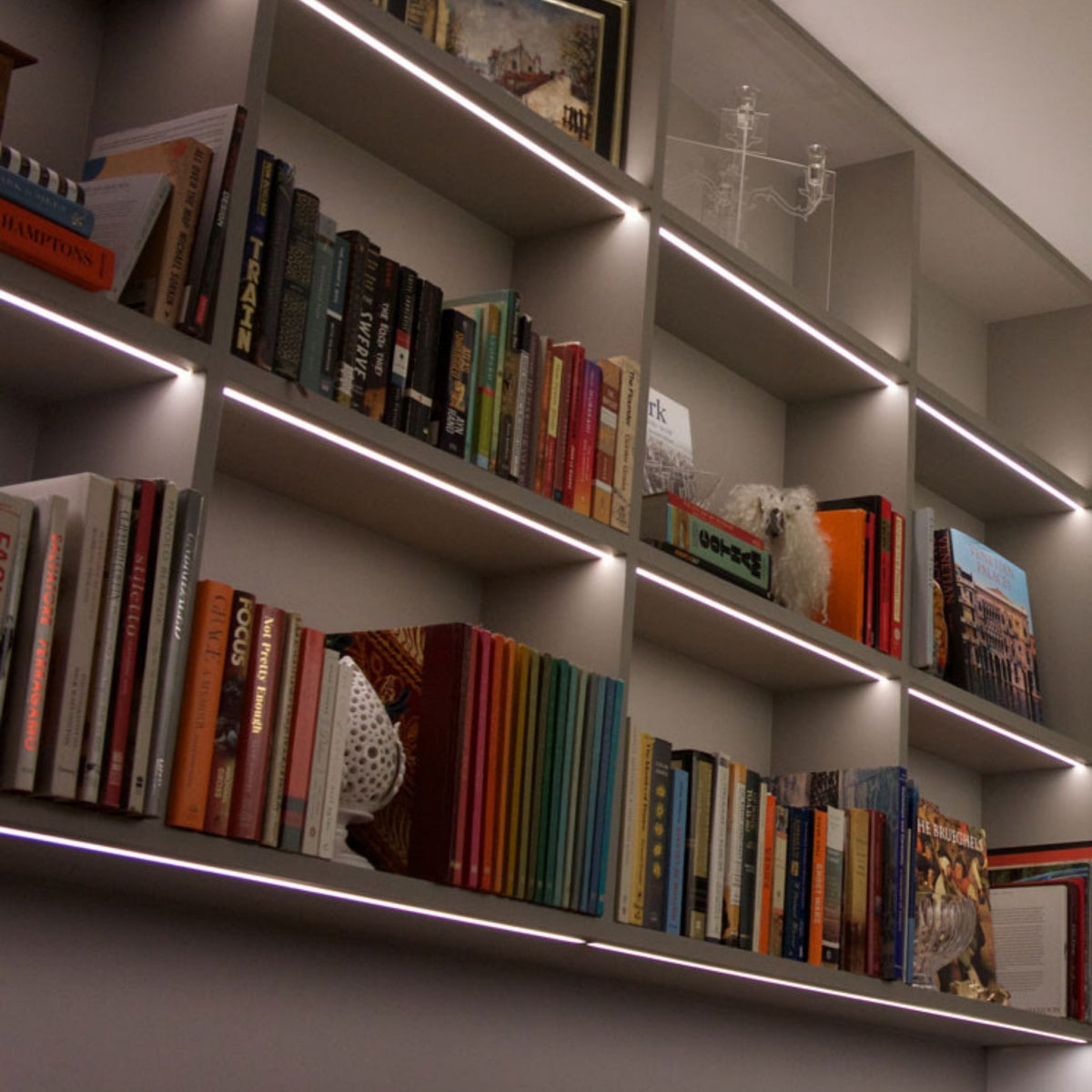

- Accent lighting
- Display case lighting
What's Included
- 16-foot LED tape light spool
- 48-inch soldered lead
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-HO-24V-8W-30K-16?
What is the maximum run length for the LTR-S-HO-24V-8W-30K-16?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light dimmable?
Is this tape light dimmable?
What is the width of the PCB?
What is the width of the PCB?
