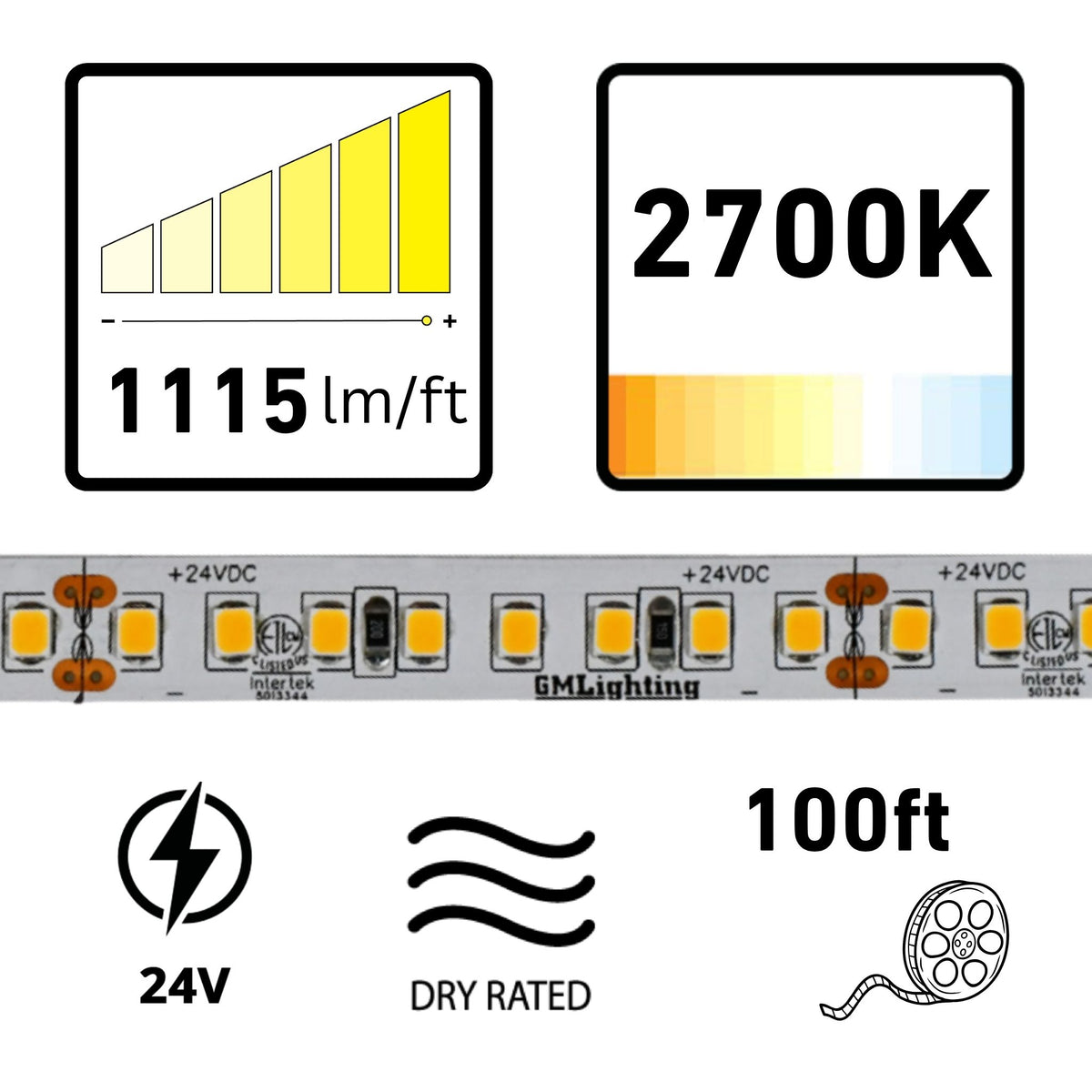

GM Lighting LTR-S SPEC, 98'6 in., LED Tape Light, 2700K, 1115 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Provides a warm 2700K light ideal for ambient settings.
- Voltage & Power: Operates at 24V with 8W per foot for high output applications.
- Maximum Run: Supports up to 12 feet on a single lead to prevent voltage drop.
- Cuttable Increments: Customizable with cut points every 2 inches for precise installations.
- PCB Width: Features a 10mm PCB width for compatibility with standard channels.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 2700K & High Output
The GM Lighting LTR-S-HO-24V-8W-27K-100 is a high-output LED tape light designed for architectural-grade applications. This tape light offers a warm 2700K color temperature, delivering over 1115 lumens per foot. It operates at 24V and is suitable for dry locations.
Key Features
- Voltage: 24V DC operation for consistent performance.
- Wattage: Consumes 8 watts per foot.
- Lumens: Delivers 1115 lumens per foot for bright illumination.
- LEDs per Foot: High-density placement with 8 LEDs per 2 inches.
- Maximum Run: Capable of running up to 12 feet on a single power lead.
- Cuttable: Field cuttable every 2 inches for custom lengths.
- PCB Width: 10mm width for easy channel installation.
- Beam Angle: 120-degree viewing angle for wide light distribution.
- IP Rating: Rated IP20 for indoor use.
- Certifications: ETL listed and Title 24 compliant.
Core Design & Construction
This LED tape features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for secure mounting and requires installation in an aluminum channel for optimal thermal management.
LED Illumination & Performance
With a high CRI of 90+, this tape light provides excellent color rendering. The light engine is designed for high output, making it suitable for demanding applications.
Power, Wiring & Installation
The tape operates at 24V and requires a compatible driver. It is dimmable and can be cut every 2 inches, allowing for flexible installations. The maximum continuous run is 12 feet to prevent voltage drop.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
- Architectural detailing
What's Included
- 98'6 in. reel of LED tape light
- 48 in. soldered lead
Specifications
