GM Lighting LTR-S SPEC, 16'4' LED Tape Light, Warm Dim, 194 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption.
- Color Temperature: Features Warm Dim technology, dimming from 3500K to 1800K.
- Max Run: Maximum continuous run length of 32'-8' to prevent voltage drop.
- Cuttable: Field cuttable every 3' for custom installations.
- CRI: High CRI of 95+ for superior color rendering.
We process payments securely and do not store credit card information.
Description
Description

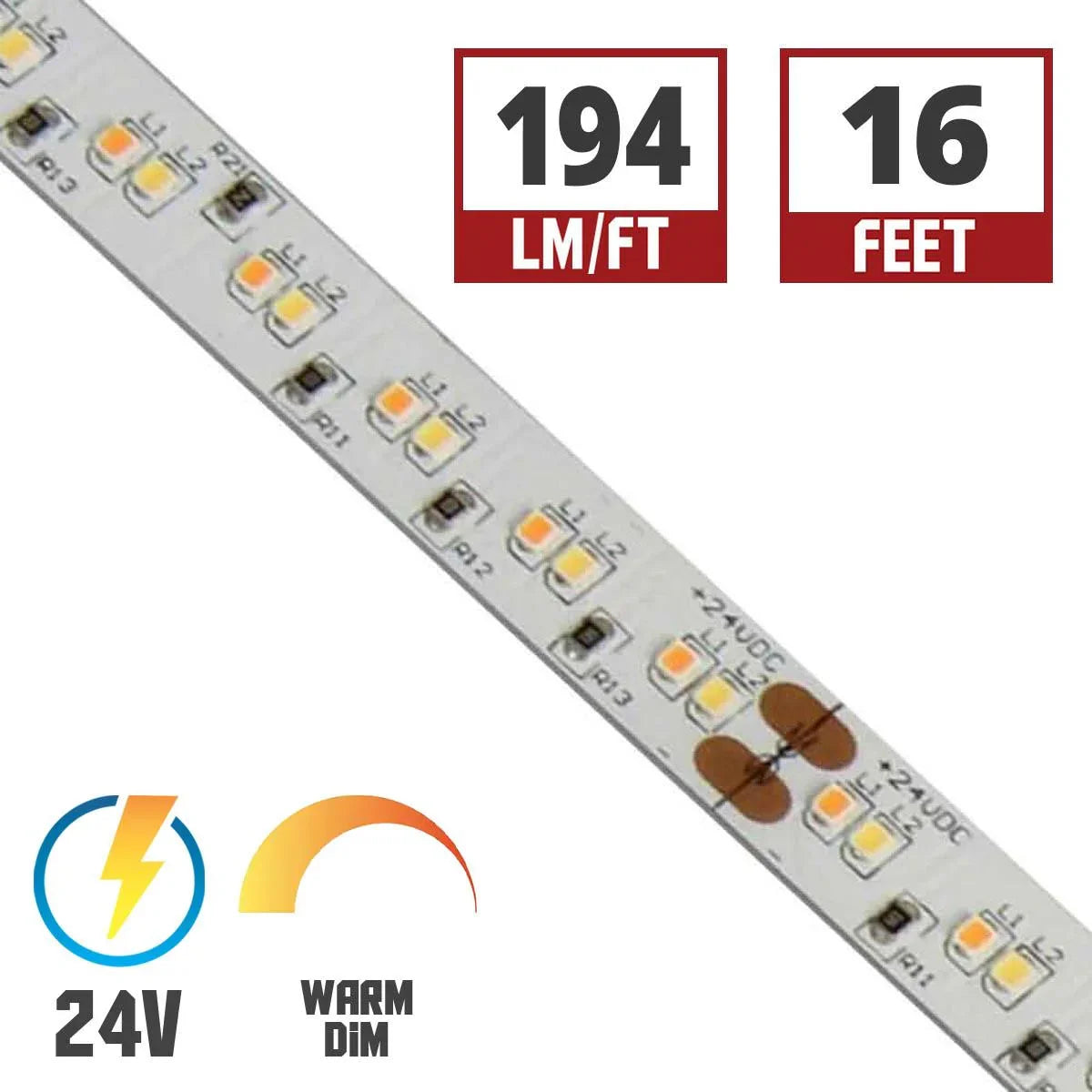

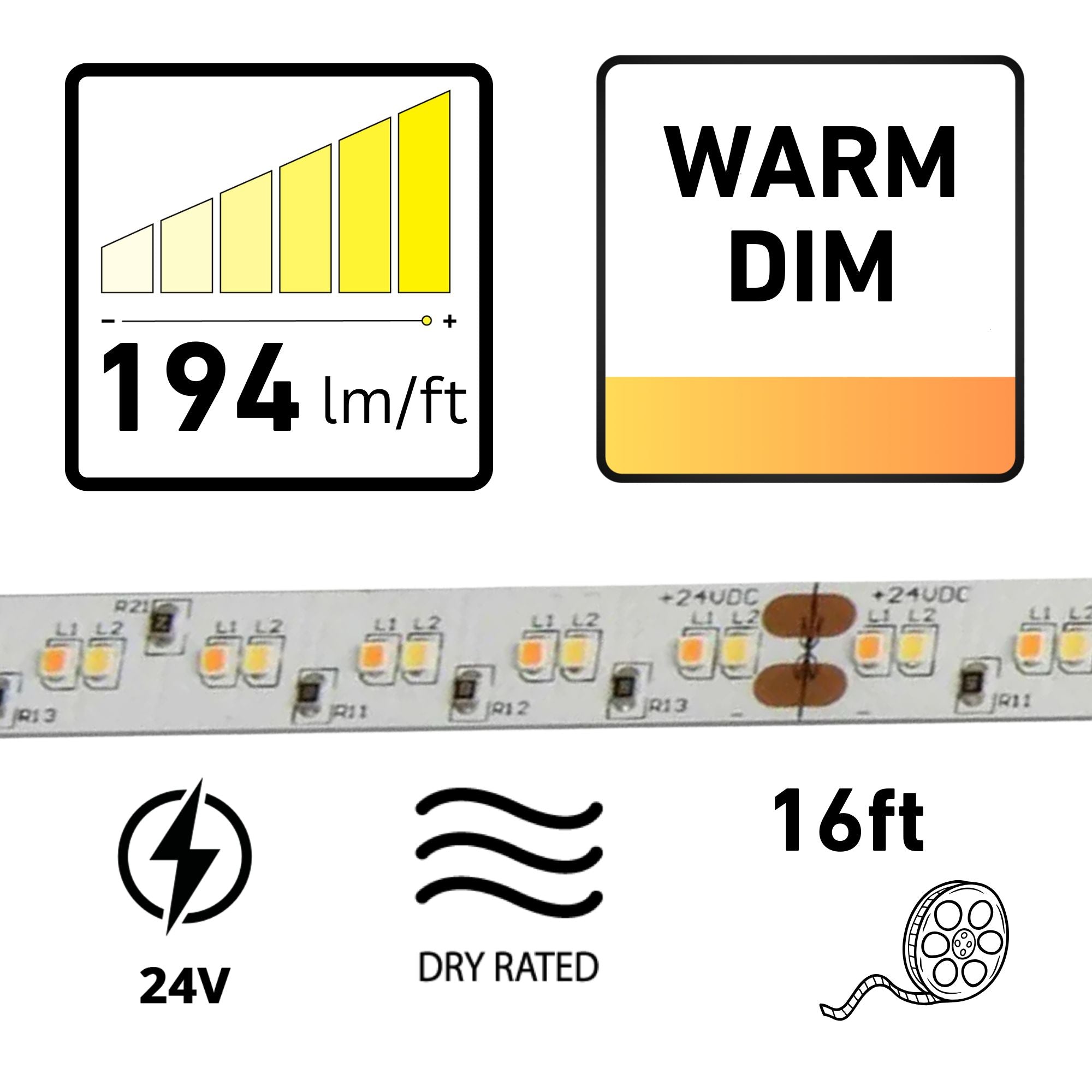

GM Lighting LTR-S SPEC LED Tape Light — Warm Dim & High CRI

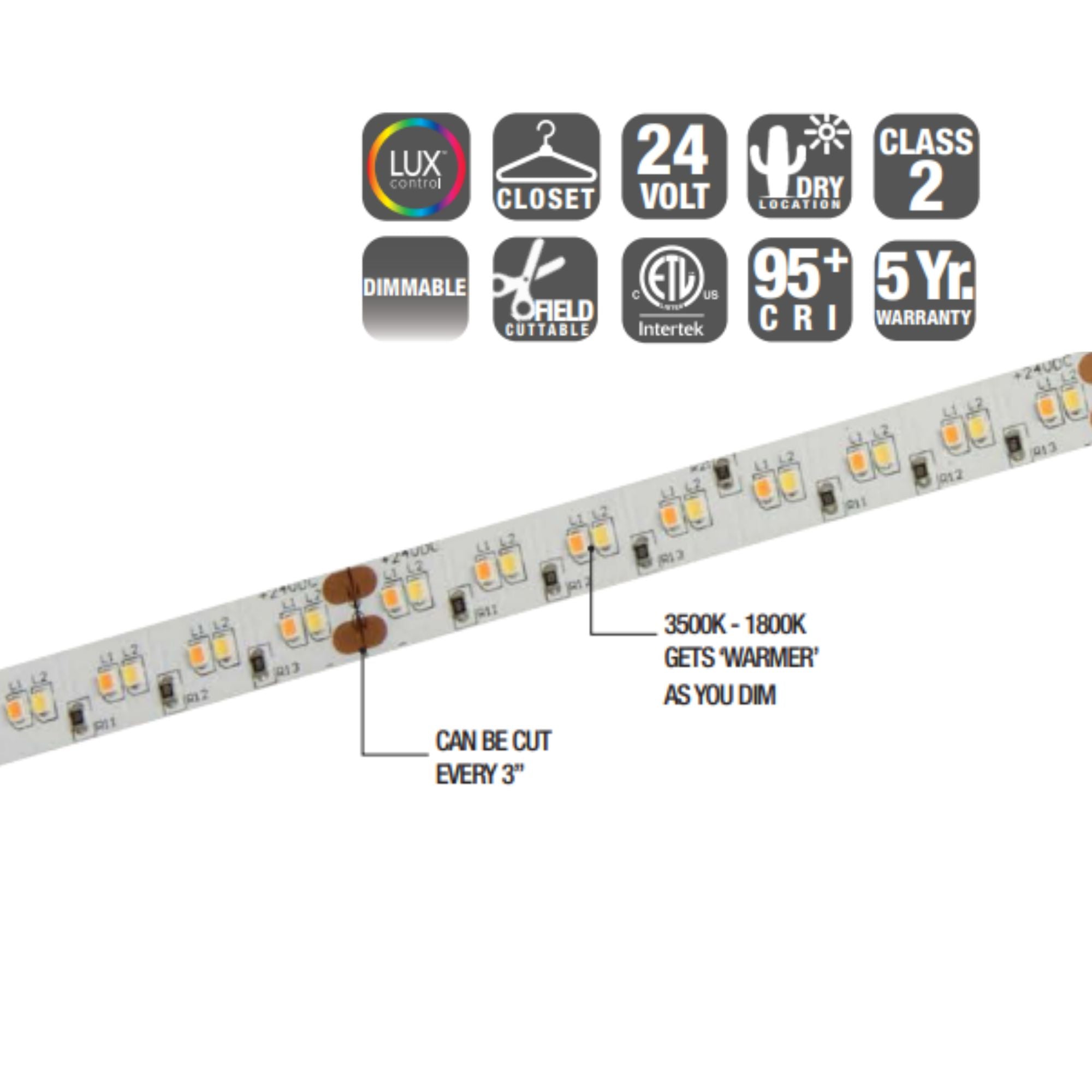

The GM Lighting LTR-S-DTW-24V-3.0W-16 is a 16'4' LED tape light featuring Warm Dim technology, allowing color temperatures to dim from 3500K to 1800K. This tape light operates at 24V and is designed for dry locations.
Key Features
- Voltage: 24V operation ensures efficient energy use.
- Wattage: Consumes 2.8 watts per foot.
- Lumens: Delivers 194 lumens per foot.

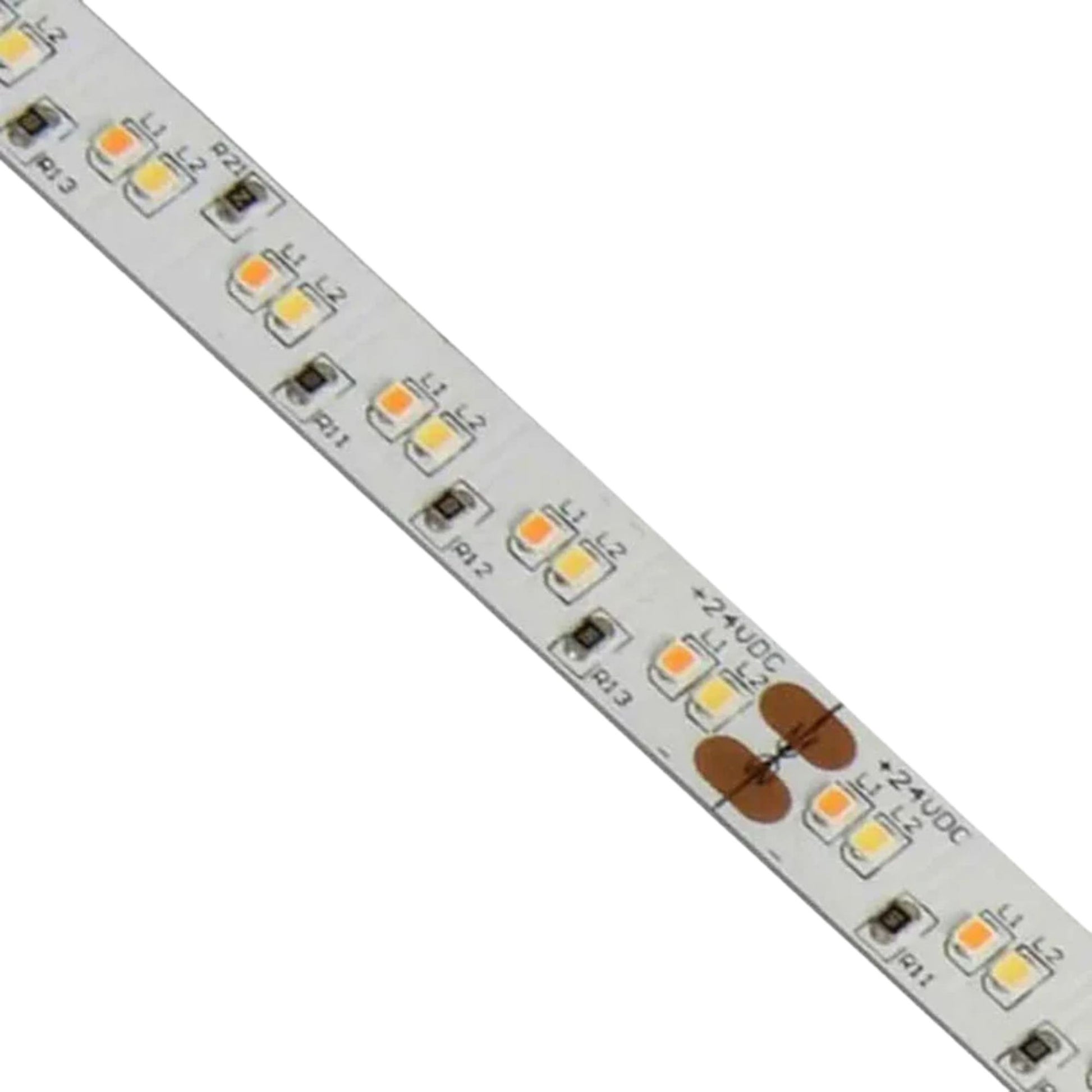

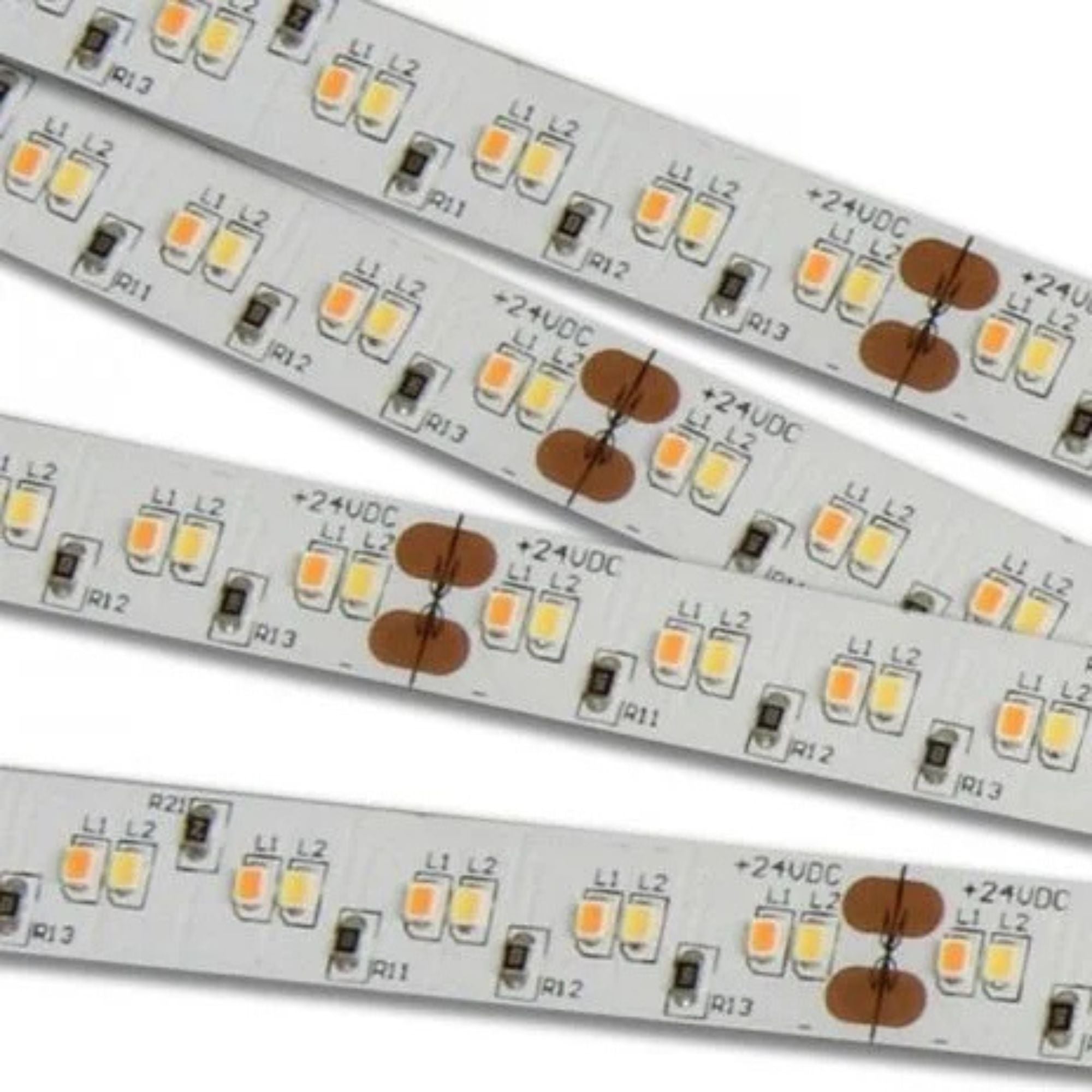

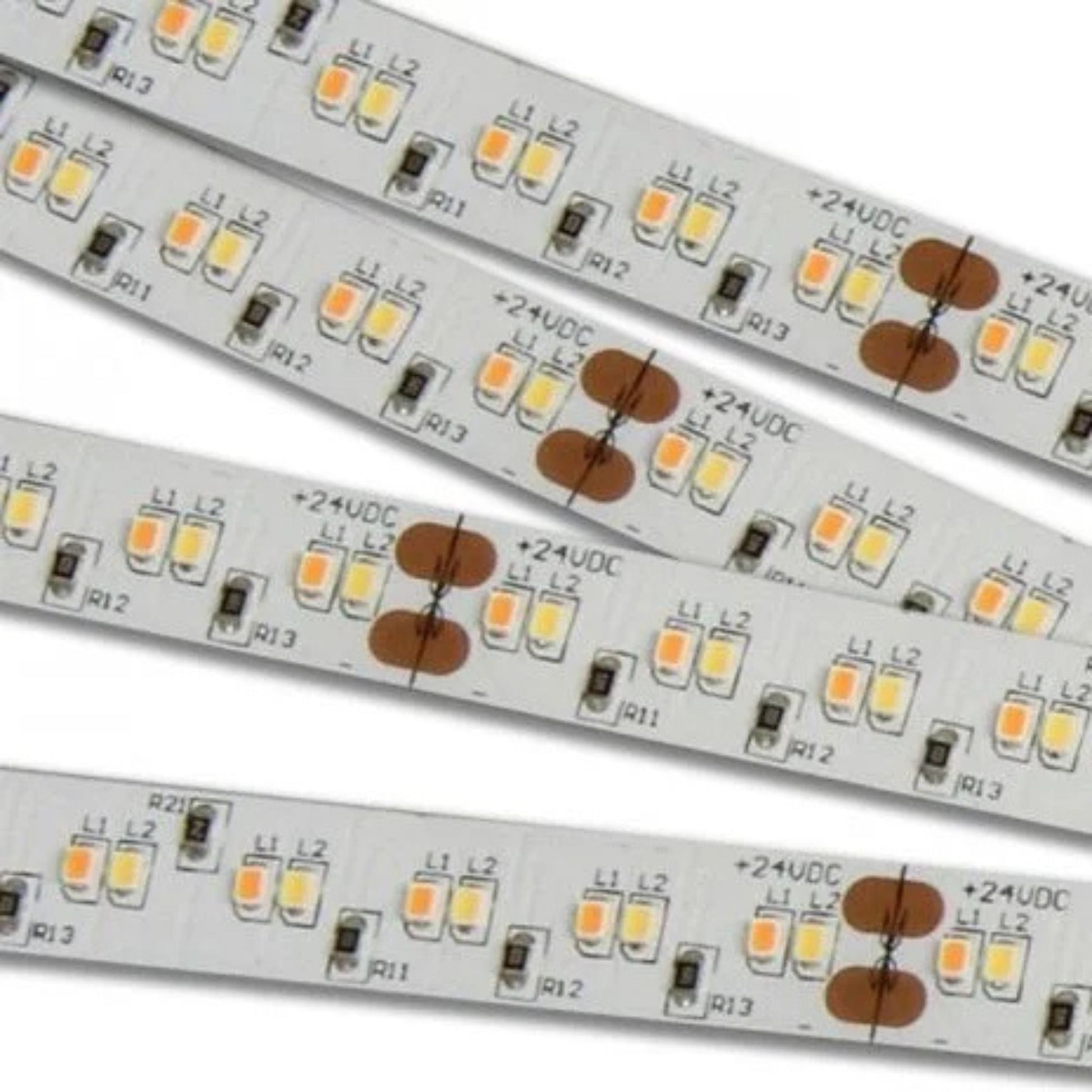

- LEDs per Foot: Features a double cluster of diodes for smooth dimming.
- Max Run: Supports a maximum run of 32'-8'.

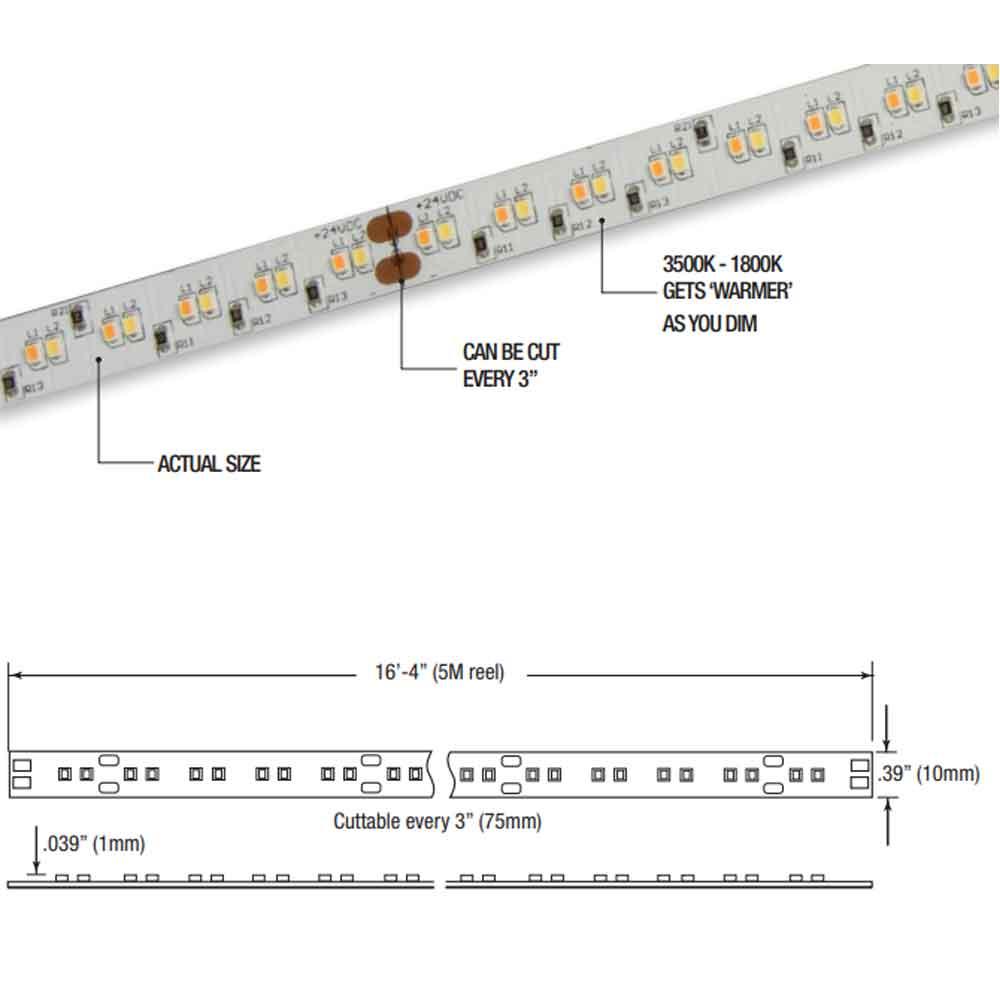

- Cuttable: Can be cut every 3' for custom lengths.

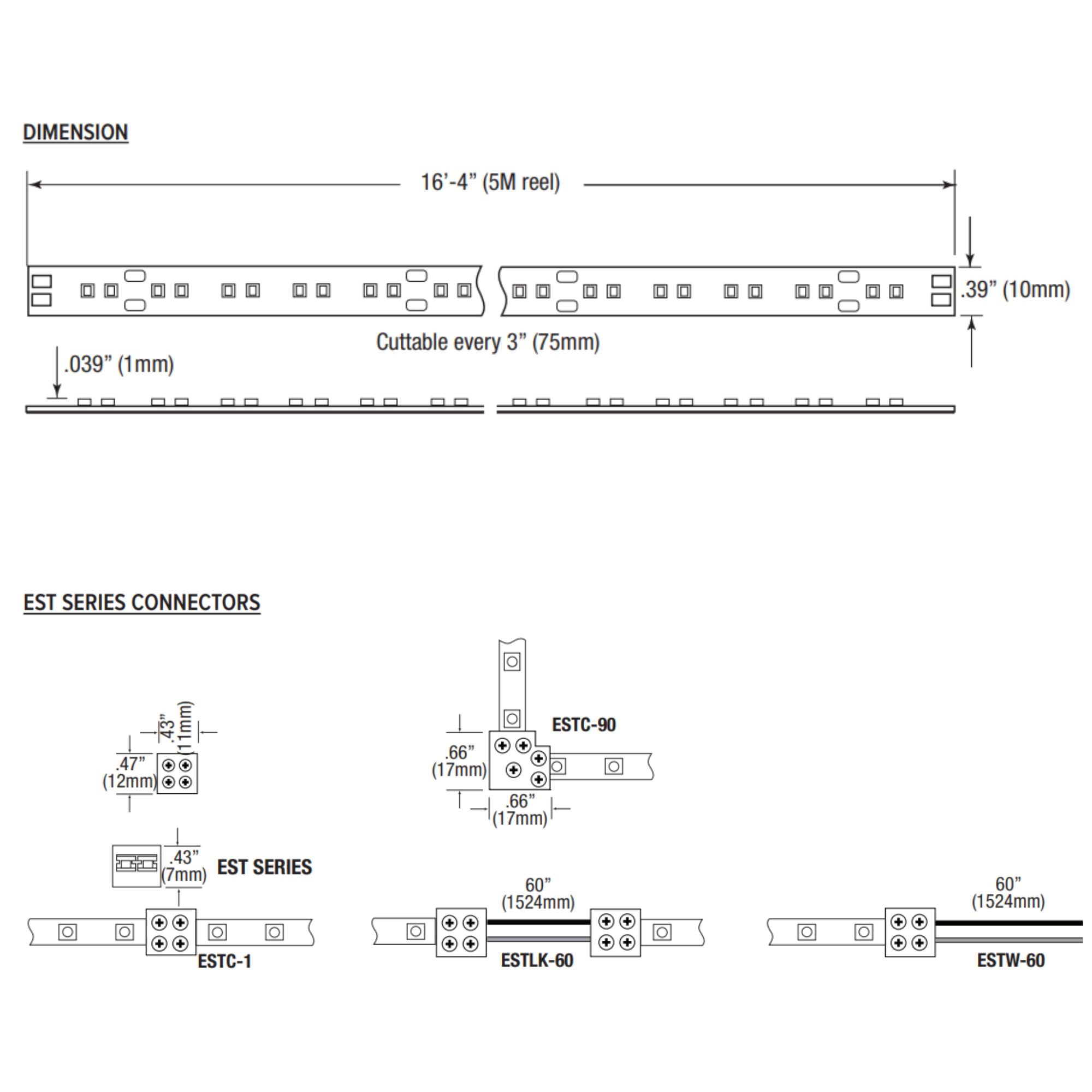

- PCB Width: 10mm width for compatibility with various channels.
- Beam Angle: 120° viewing angle for wide light distribution.
- IP Rating: Rated for dry locations.
- Certifications: ETL, Class 2, Closet Rated, NFPA 70 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, compatible with most aluminum channels. It includes a 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With 194 lumens per foot and a CRI of 95+, this tape light provides excellent illumination and color accuracy. The Warm Dim technology mimics incandescent dimming.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape is field cuttable every 3' and supports a maximum run of 32'-8'. It is dimmable with magnetic drivers and MLV switches.
Where This Tape Works Best

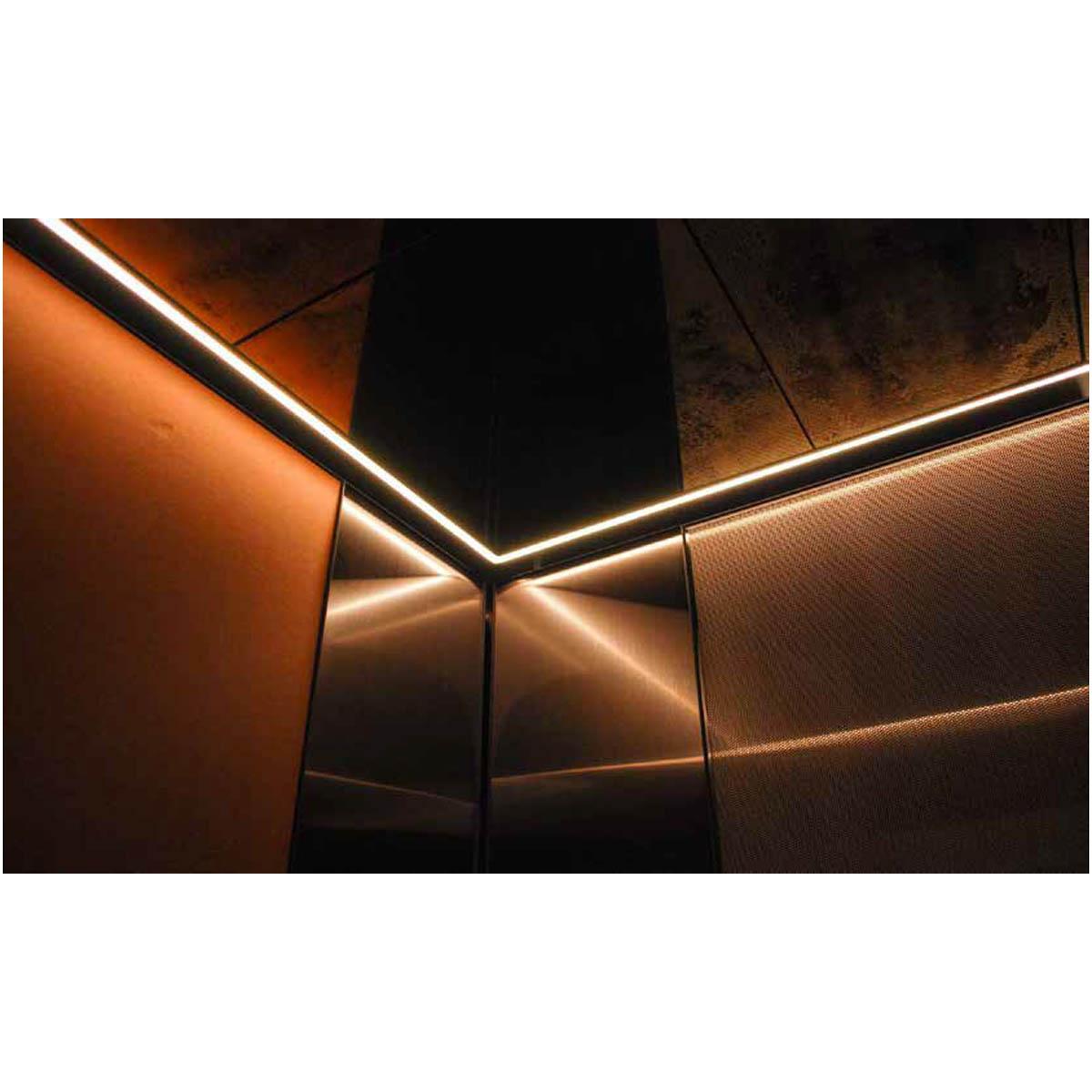

- Cove lighting

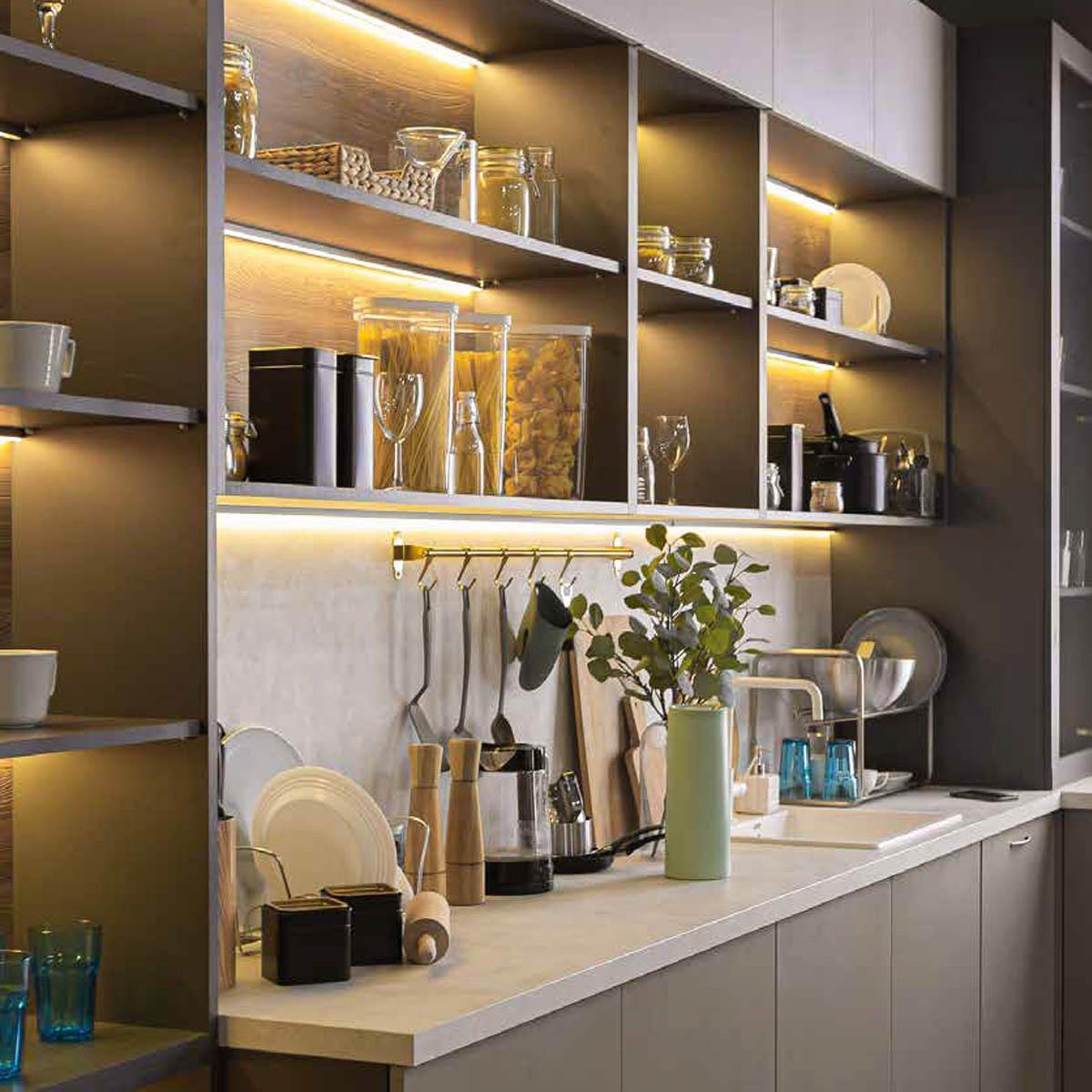

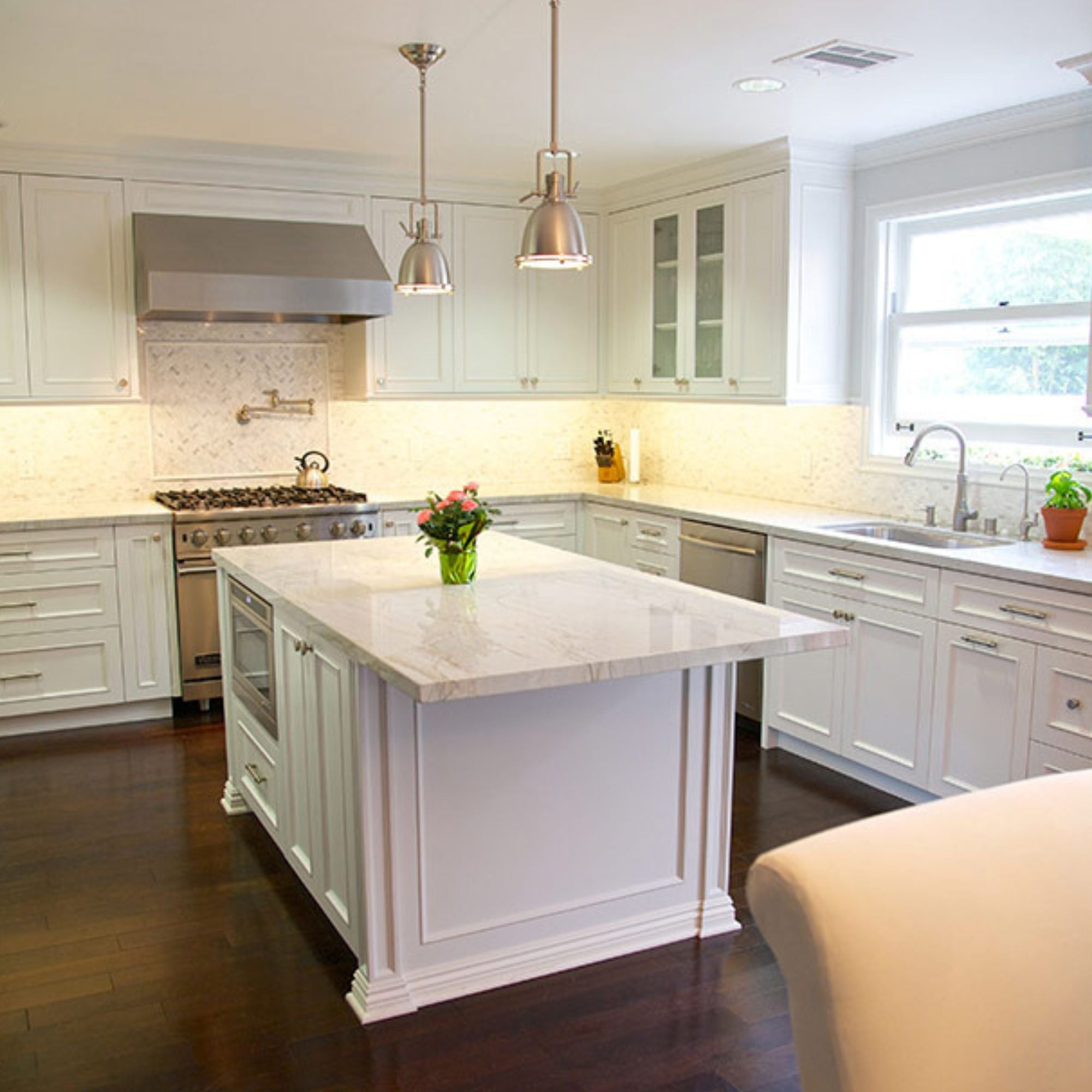

- Under cabinet lighting

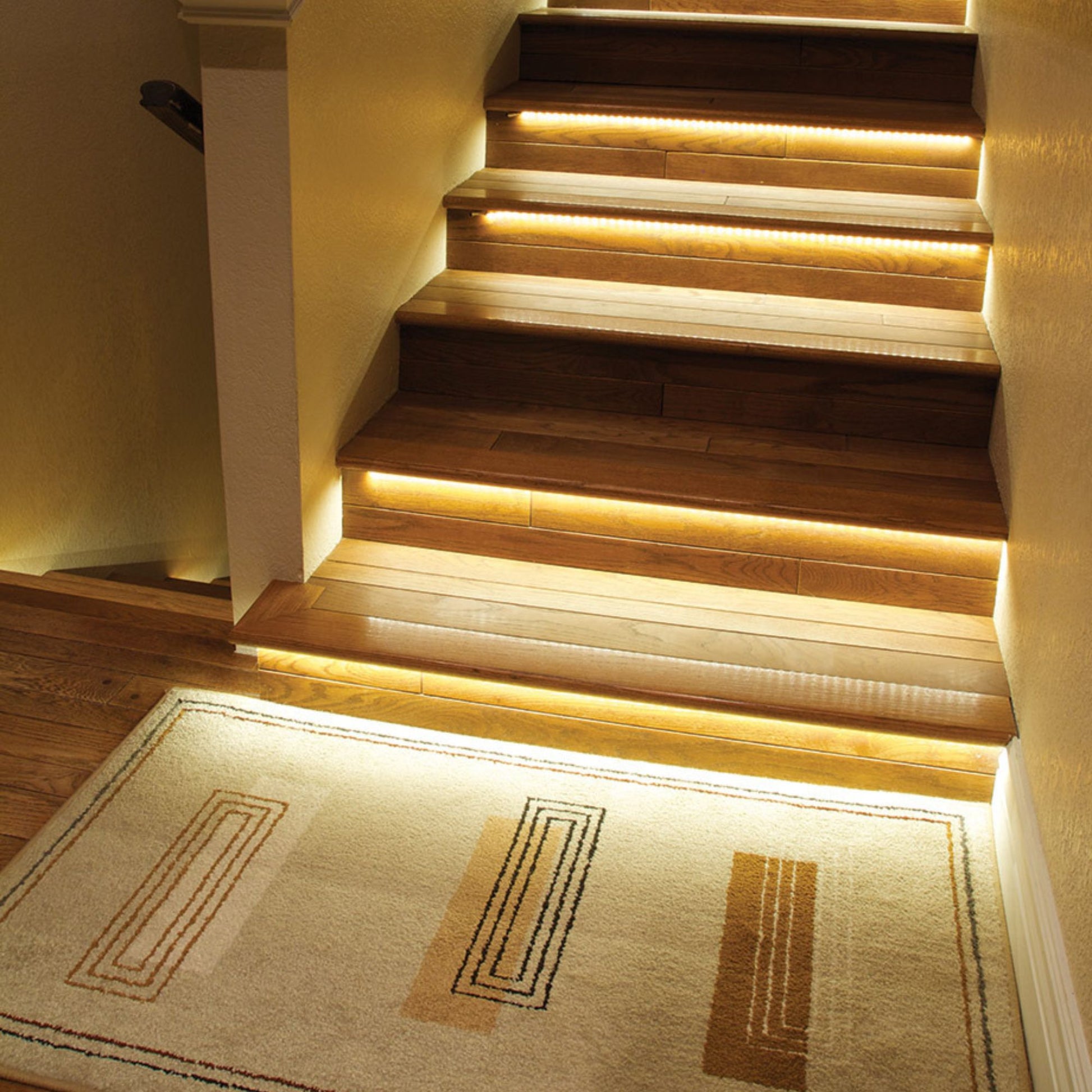

- Accent lighting
- Display case lighting
What's Included
- 16'4' LED tape light reel
- (3) Sure-Tite connectors
- 24' lead affixed to tape
