GM Lighting LTR-S-COB RGB+Tunable White LED Tape - 24V, 5W/ft, 16ft Reel
GM Lighting LTR-S-COB RGB+Tunable White LED Tape - 24V, 5W/ft, 16ft Reel
Regular price
$336.60
Sale price
$336.60
Regular price
$0.00
Shipping calculated at checkout.
In stock
Choose your location
enter a US zip code
Must be ordered in quantities of .
Couldn't load pickup availability
About this item
About this item
- RGB + Tunable White (2700K-6500K) Red, green, blue channels for vibrant color plus warm white and cool white for task and ambient lighting—all in one tape
- COB Technology Chip-on-board design delivers smooth, dotless illumination with reduced pixelization for premium, uniform light quality
- High CRI 90-91 Exceptional color rendering for accurate, true-to-life illumination in residential and commercial spaces
- 5-Channel Control Compatible with 5-channel DMX or RF control systems for dynamic color scenes and white tuning
- UL Listed for Dry and Damp Locations Meets North American safety standards for versatile indoor applications
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
Payment & Security
Payment methods
We process payments securely and do not store credit card information.
Description
Description

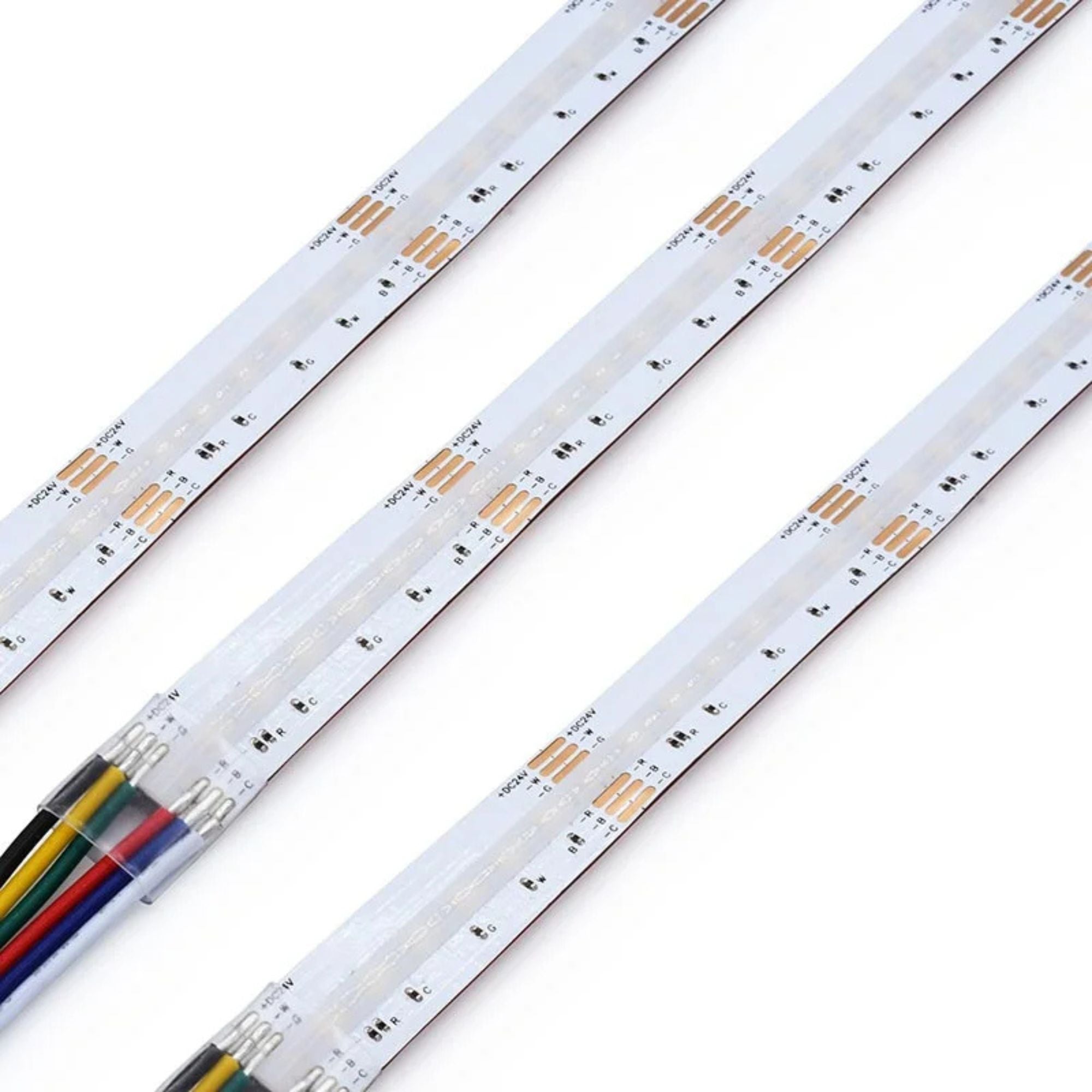

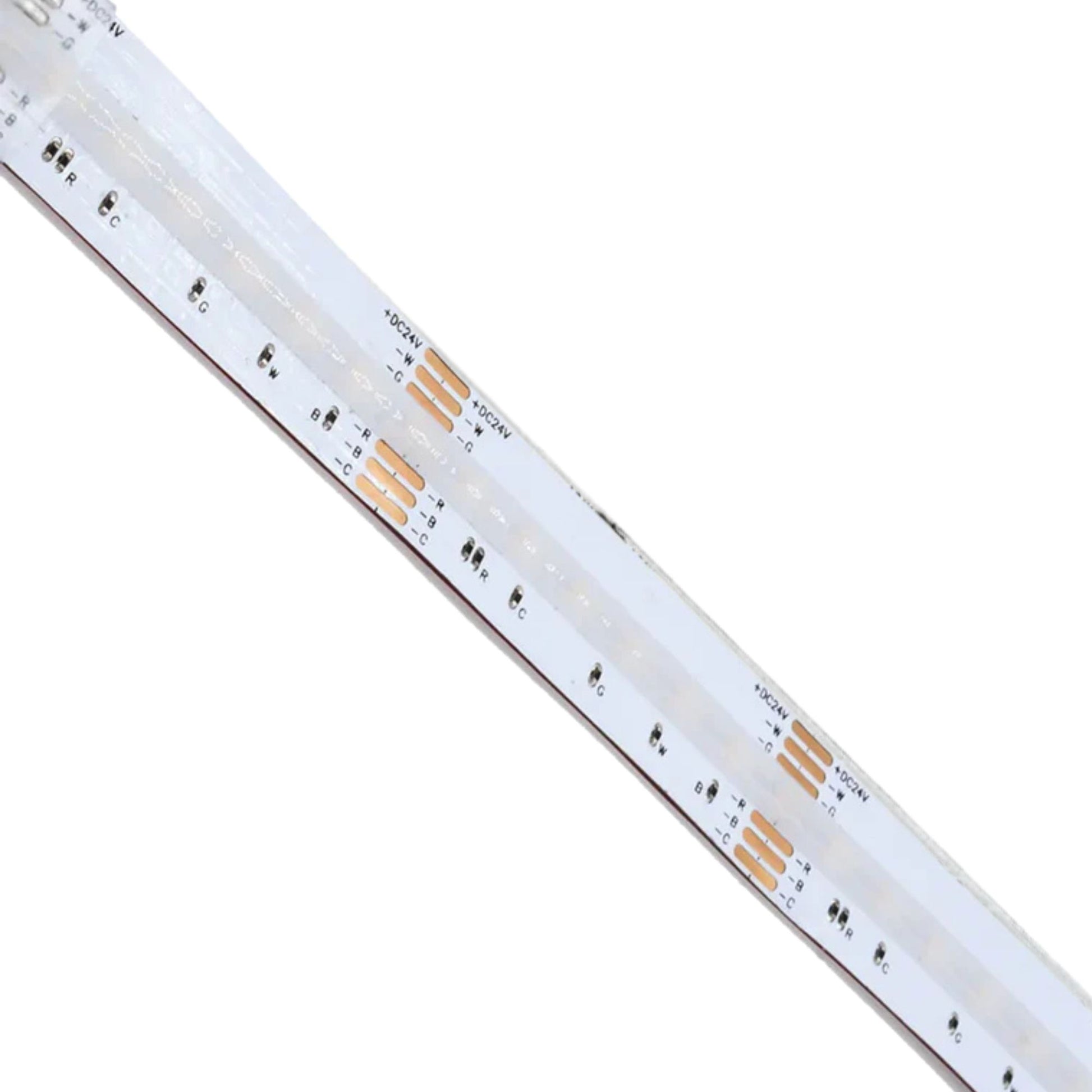

Premium COB RGB+Tunable White LED tape light combining full-spectrum color and adjustable white light (2700K-6500K) in one seamless, dotless strip—ideal for dynamic accent lighting, hospitality, and architectural applications.
Key Features

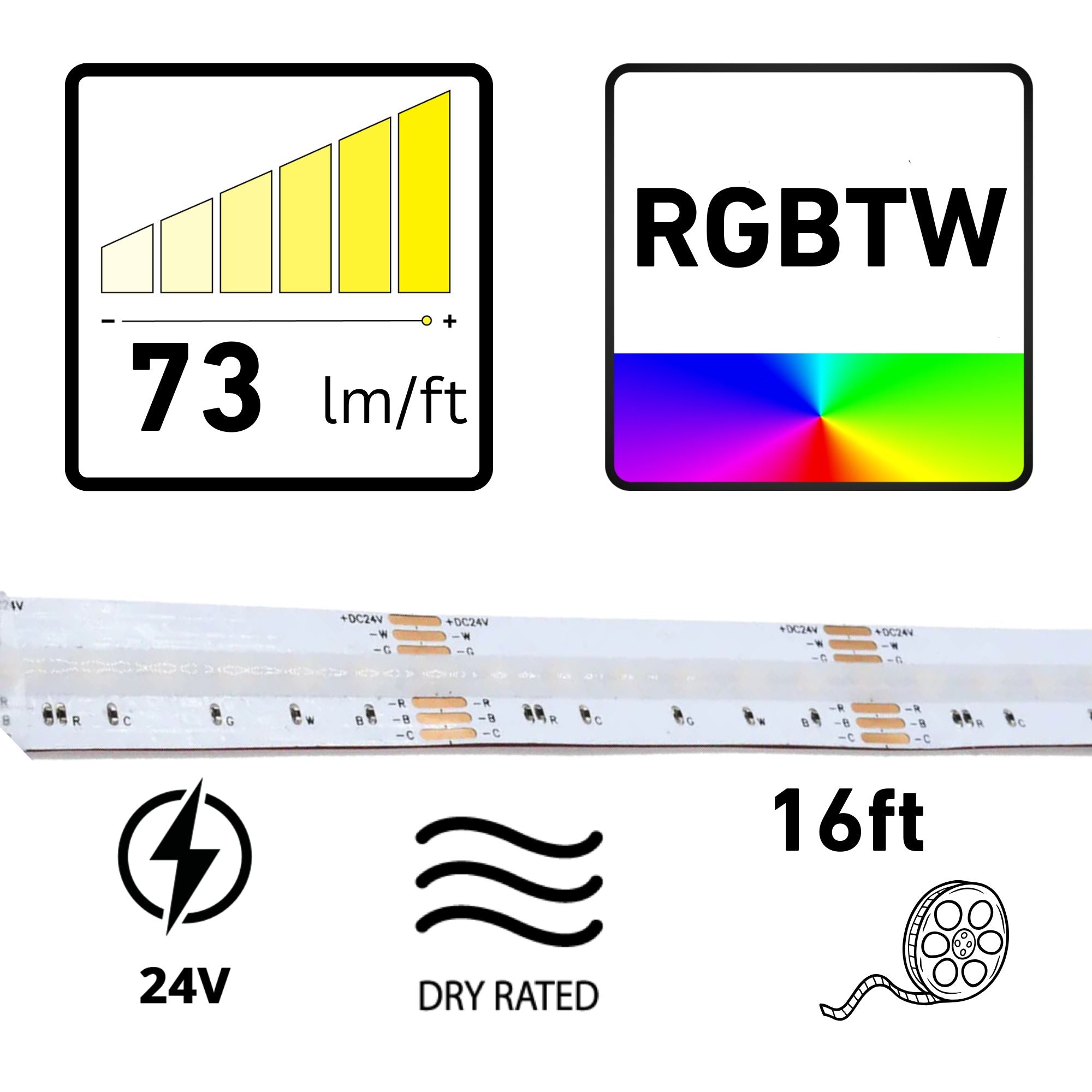

- RGB + Tunable White (2700K-6500K): Red, green, blue channels for vibrant color plus warm white (2700K, 68 lm/ft) and cool white (6500K, 73 lm/ft) for task and ambient lighting—all in one tape
- COB Technology: Chip-on-board design delivers smooth, dotless illumination with reduced pixelization for premium, uniform light quality
- High CRI 90-91: Exceptional color rendering for accurate, true-to-life illumination in residential and commercial spaces

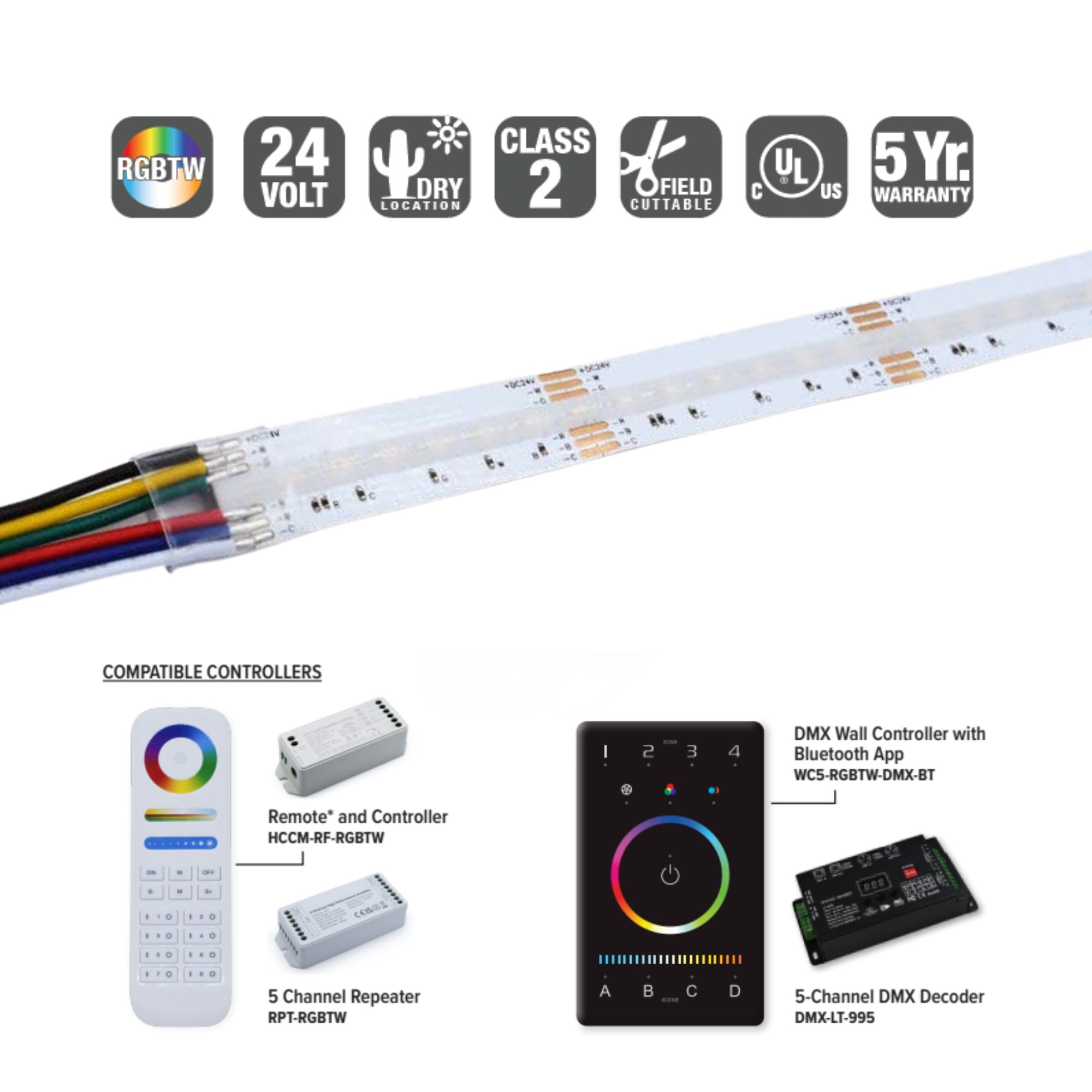

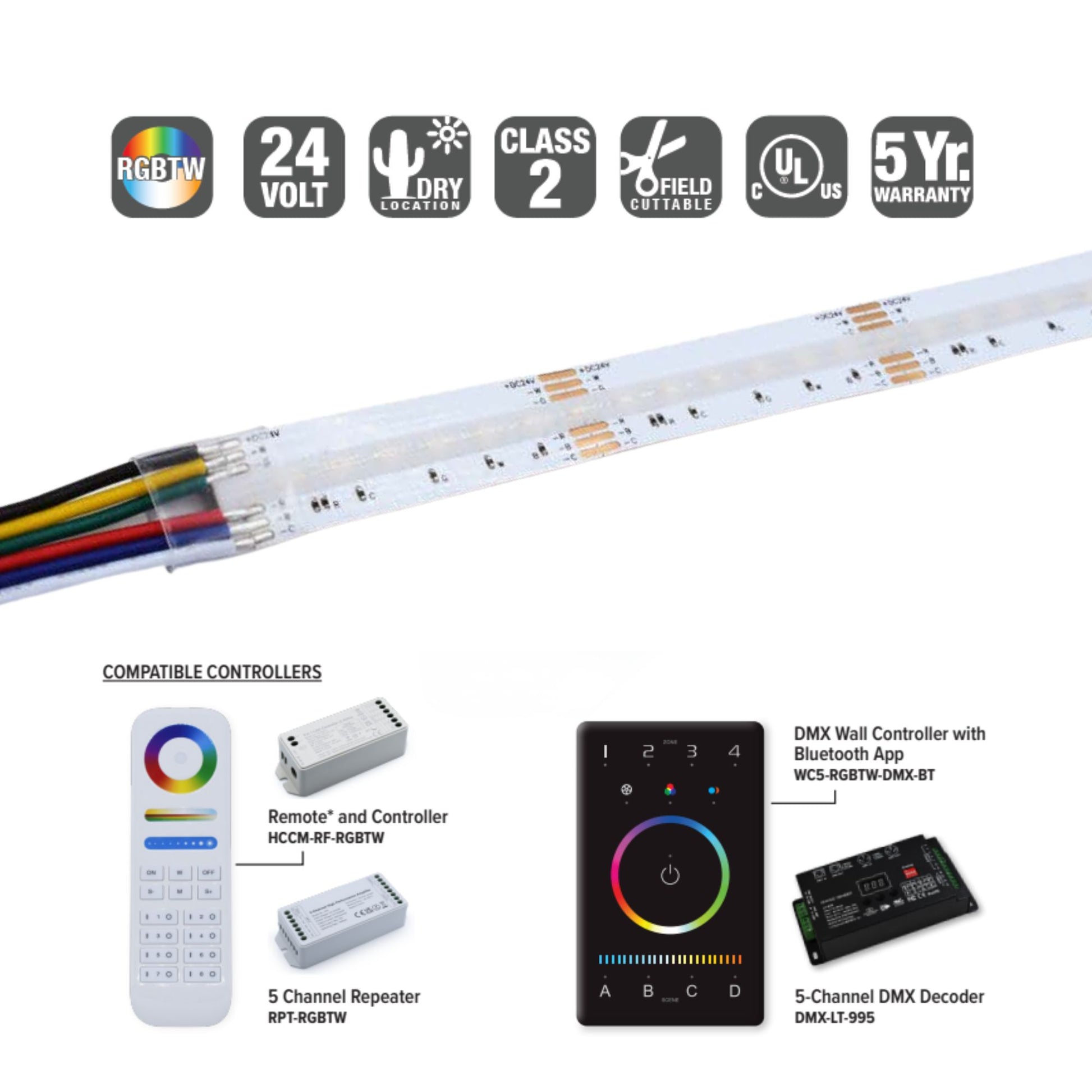

- 5-Channel Control: Requires 5-channel DMX or RF control systems for dynamic color scenes and white tuning
- UL Listed for Dry and Damp Locations: Meets North American safety standards for versatile indoor applications

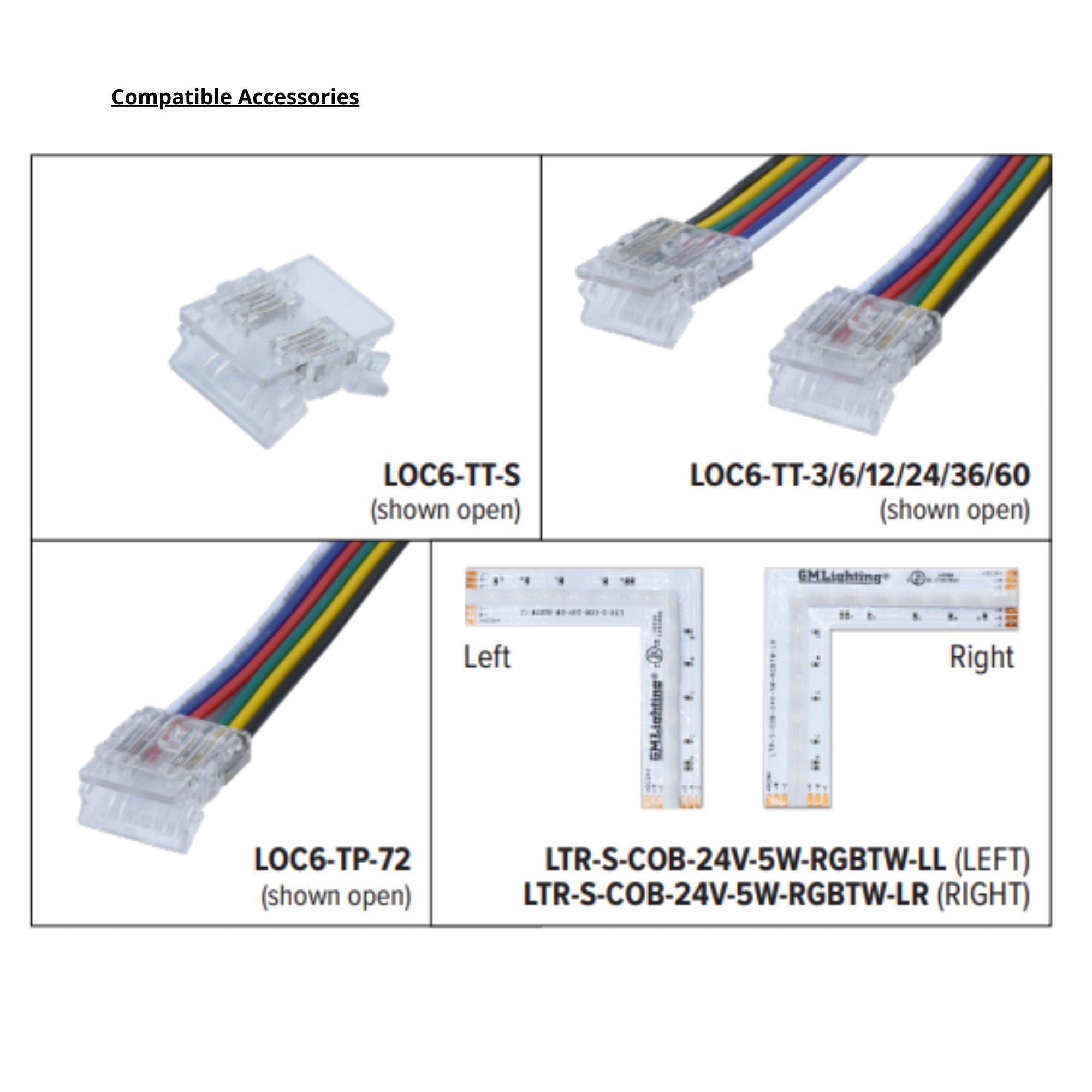

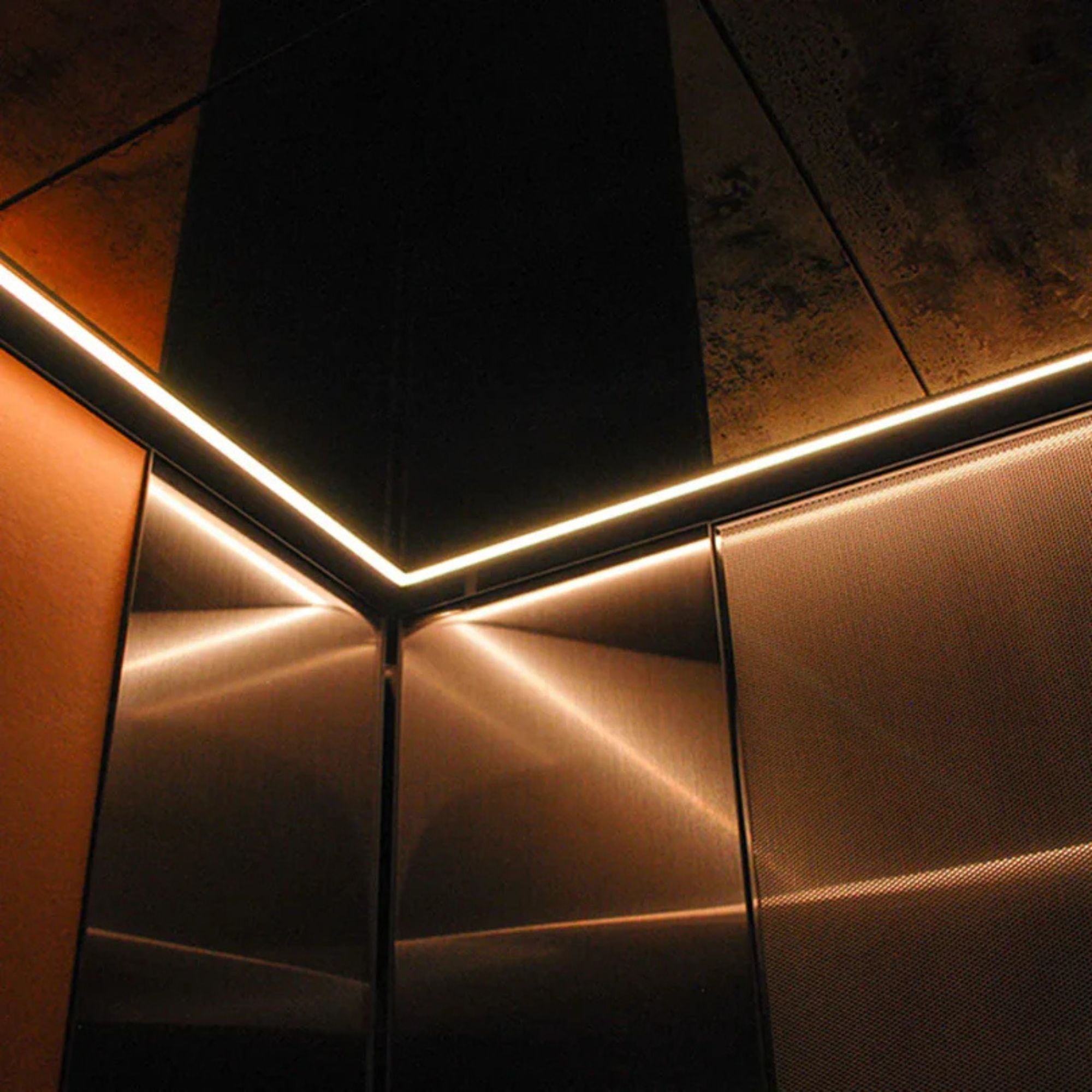

- Easy Corner Applications: 90° L-sections make flat corner installations simple and professional
- Wide 150° Viewing Angle: Broad beam spread ideal for cove, under-cabinet, and accent lighting
Technical Specifications

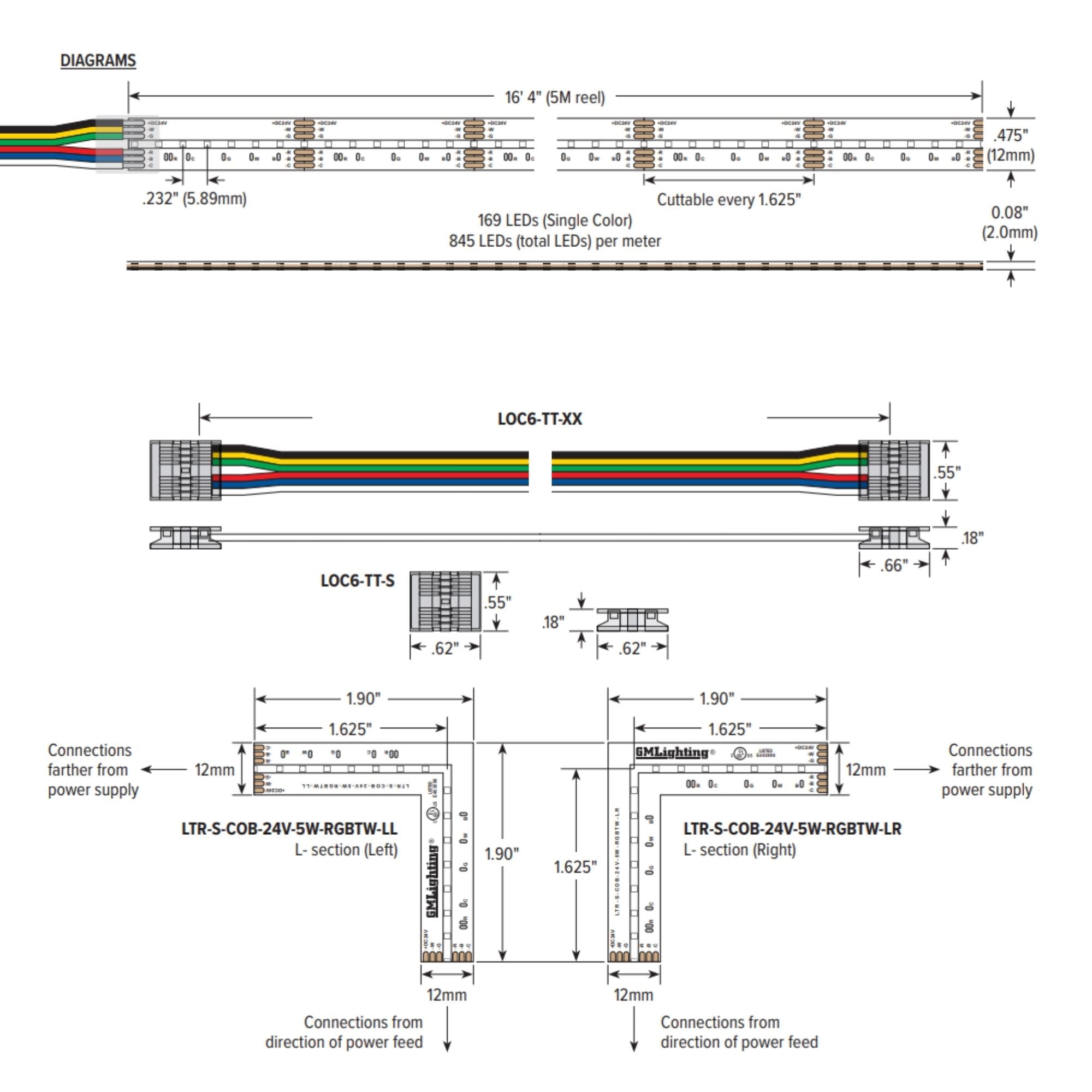

- Model: LTR-S-COB-24V-5W-RGBTW-16
- Length: 16 feet (4.88 meters) per reel
- Max Run Length: 16'4" (5m)
- Voltage: 24VDC
- Total Power: 5W per foot (all channels on)
- LED Channels: 5 (Red, Green, Blue, Warm White, Cool White)
Channel Performance:
- Warm White (2700K): 0.97W/ft, 68 lm/ft, CRI 91
- Cool White (6500K): 0.97W/ft, 73 lm/ft, CRI 90
- Red (628nm): 1.56W/ft
- Green (520nm): 0.69W/ft
- Blue (454nm): 0.12W/ft
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Certifications: UL Listed for US and Canada, Class 2
- Location Rating: Dry and damp locations
- Cut Intervals: Every 1-5/8" at designated cut marks
- Viewing Angle: 150°
- Mounting: 3M adhesive backing
- LED Type: COB (Chip-on-Board), 5 LED channels, single color
- Warranty: 5 years when paired with GM power supply
Applications

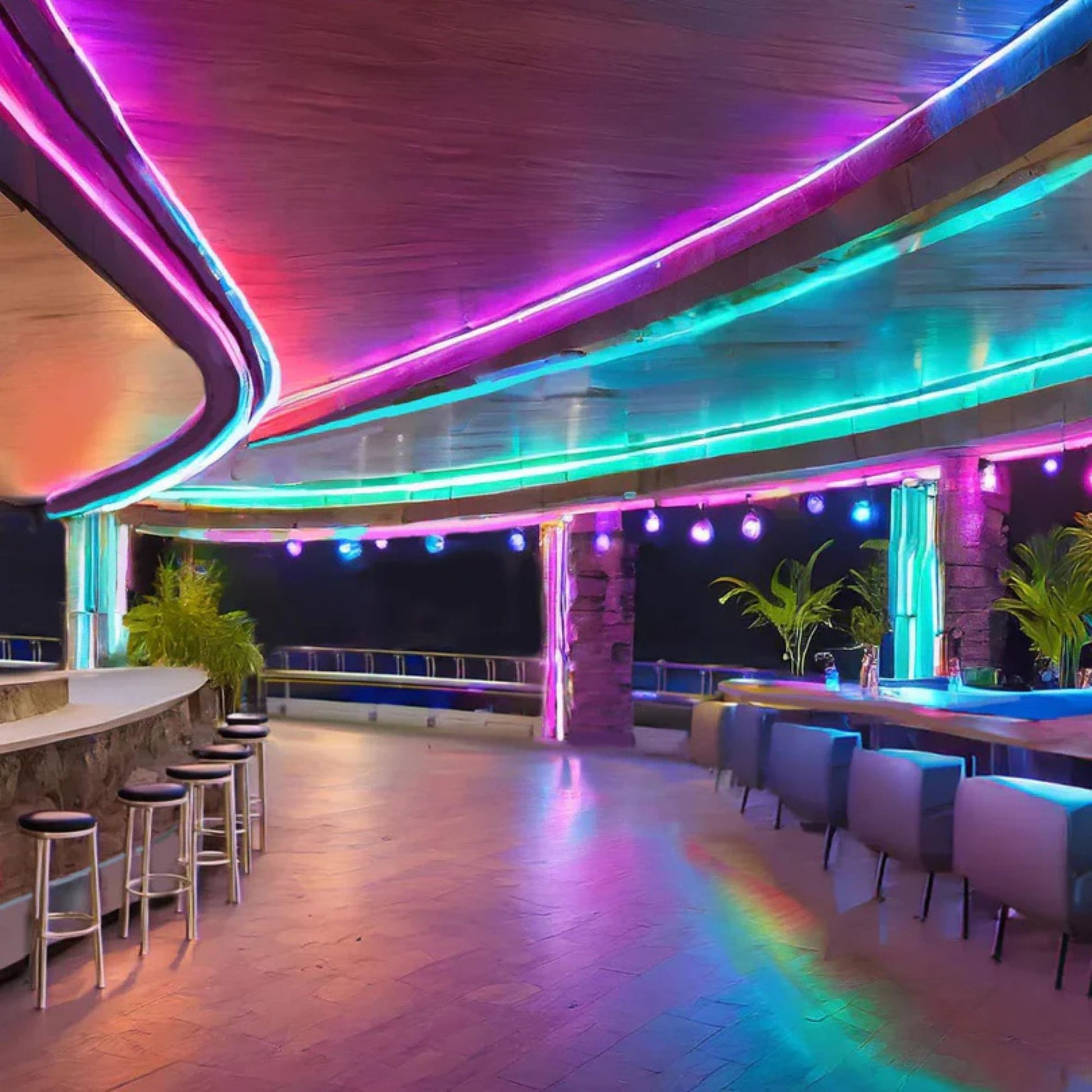

- Hospitality: Hotel lobbies, bars, restaurants requiring dynamic color scenes and tunable white for different times of day
- Residential: Under-cabinet kitchen lighting, cove lighting, entertainment spaces, and architectural accents with color-changing capability
- Retail: Display cases, shelving, product highlighting with adjustable color temperature and RGB accent options
- Commercial: Office coves, reception areas, conference rooms with tunable white for circadian lighting
-
Entertainment & Events: Bars, clubs, event spaces requiring vibrant RGB color effects and flexible white light
Note: 24V non-dimming power supply, 5-channel DMX or RF controller, connectors, and mounting channels sold separately. See accessories below for compatible components.
Specifications
Specifications
Dimensions
Length/Depth
192 in
Width/Diameter
0.48 in
Height
0.08 in
Weight
1 lb
Documents
Characteristics & Features
Lamp Color
RGB, Tunable White
Color Rendering
90 CRI
Beam Angle
150
Dimmable
Yes
Electrical Information
Voltage
24V
Item Details
SKU
LTR-S-COB-24V-5W-RGBTW-16
Brand
GM Lighting
Family
LTR S COB
UPC
849951019248
Warranty & Certifications
Product Warranty
5 Years
Product Rating
Damp Rated, Dry Rated
Frequently Asked Questions
Can I cut LED strip lights to a specific length?
Can I cut LED strip lights to a specific length?
Yes, LED strip lights are designed to be cut to length at designated points, typically marked by a small black line or scissor icon every few inches. Cutting at these marks will ensure the electrical circuit remains functional.
What is the main difference between 12V and 24V LED strip lights?
What is the main difference between 12V and 24V LED strip lights?
The main difference is the maximum run length. 24V LED strip lights can run longer distances (typically up to 60 feet) before experiencing noticeable voltage drop, while 12V LED strip lights are best used for shorter, simpler applications (up to 30 feet).
What is the benefit of COB LED Strip Lights over SMD strips?
What is the benefit of COB LED Strip Lights over SMD strips?
COB LED Strip Lights use Chip-on-Board technology, which packs the LEDs tightly together to produce a single, continuous line of light. This eliminates the individual "dots" or "hot spots" visible in standard SMD LED tape light, creating a cleaner aesthetic.
Do all LED strip lights require an external driver?
Do all LED strip lights require an external driver?
Only low-voltage LED strip lights (12V and 24V) require an external power supply or LED driver to convert 120V house power down to a safe working voltage. 120V LED Strip Lights connect directly to the wall outlet and do not require an external driver.
How do I install my flexible LED strip for a clean, professional look?
How do I install my flexible LED strip for a clean, professional look?
For the cleanest appearance, mount your flexible LED strip inside an aluminum channel with a frosted diffuser. This provides better heat dissipation, protects the strip, and turns the segmented light into a smooth, continuous line of strip lighting.
