GM Lighting LTR-S SPEC 16'-4" LED Tape Light, 5000K, COB, 24V, 95+ CRI, Dimmable
In stock
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption.
- Color Temperature: Emits a bright 5000K daylight color.
- Cuttable Increments: Field cuttable every 2 inches for custom lengths.
- Maximum Run: Supports up to 16'-4" continuous run to prevent voltage drop.
- COB Technology: Provides a seamless, dotless linear light output.
We process payments securely and do not store credit card information.
Description
Description

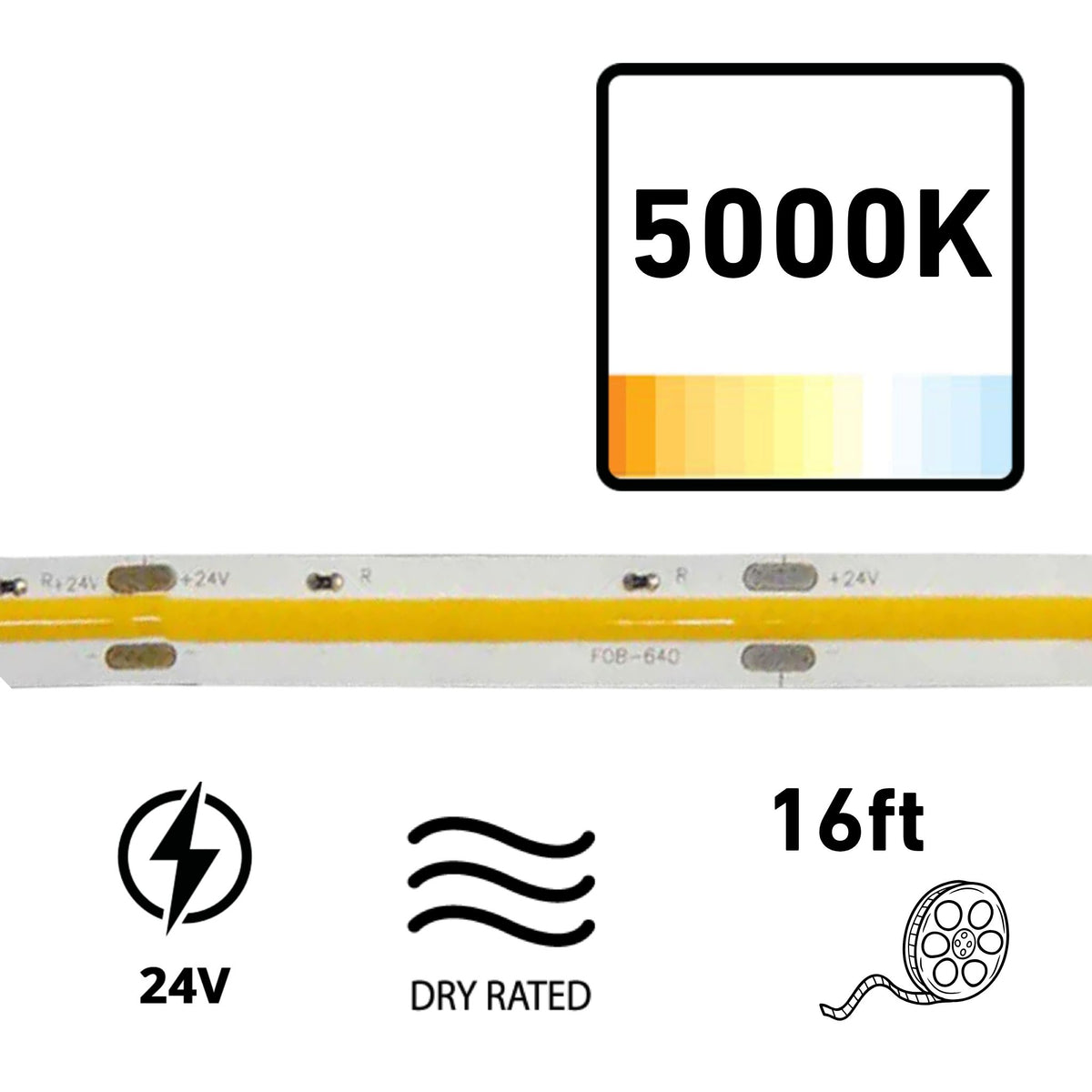

GM Lighting LTR-S SPEC LED Tape Light — 5000K & COB Technology
The GM Lighting LTR-S-COB-24V-4.5W-50K-16 is a 16'-4" LED tape light featuring advanced COB (Chip On Board) technology for a seamless, dotless light output. This tape light operates at 24V and is designed for dry locations, making it ideal for indoor applications.
Key Features
- Voltage: 24V DC operation ensures efficient power usage.
- Wattage: Consumes 4.5 watts per foot.
- Lumens: High output with 95+ CRI for accurate color rendering.
- LED Density: 146 LEDs per foot for uniform illumination.
- Max Run: Maximum continuous run of 16'-4".
- Cuttable: Field cuttable every 2 inches for precise installations.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 180-degree viewing angle for wide coverage.
- Certifications: UL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, suitable for use with standard aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With a color temperature of 5000K and a CRI of 95+, this tape light delivers bright, daylight illumination with exceptional color accuracy. The COB technology ensures a smooth, dotless light output.
Power, Wiring & Installation
This tape light requires a 24V DC power supply and is dimmable with compatible drivers. It can be cut every 2 inches, allowing for custom lengths, and supports a maximum run of 16'-4" to prevent voltage drop.
Where This Tape Works Best
- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4" LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 60" lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-COB-24V-4.5W-50K-16?
What is the maximum run length for the LTR-S-COB-24V-4.5W-50K-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the LTR-S-COB-24V-4.5W-50K-16?
What voltage is required for the LTR-S-COB-24V-4.5W-50K-16?
Is the LTR-S-COB-24V-4.5W-50K-16 dimmable?
Is the LTR-S-COB-24V-4.5W-50K-16 dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
