GM Lighting LTR-S SPEC 98'-6" LED Tape Light, 5000K, 24V, COB, 90+ CRI, Dimmable
In stock
About this item
About this item
- Voltage: Operates at 24V for efficient power usage.
- Color Temperature: 5000K for bright, daylight illumination.
- COB Technology: Provides a seamless, dotless light output.
- Field Cuttable: Can be cut every 2 inches for precise installations.
- Maximum Run: Up to 16'-4" on a single power lead to prevent voltage drop.
We process payments securely and do not store credit card information.
Description
Description

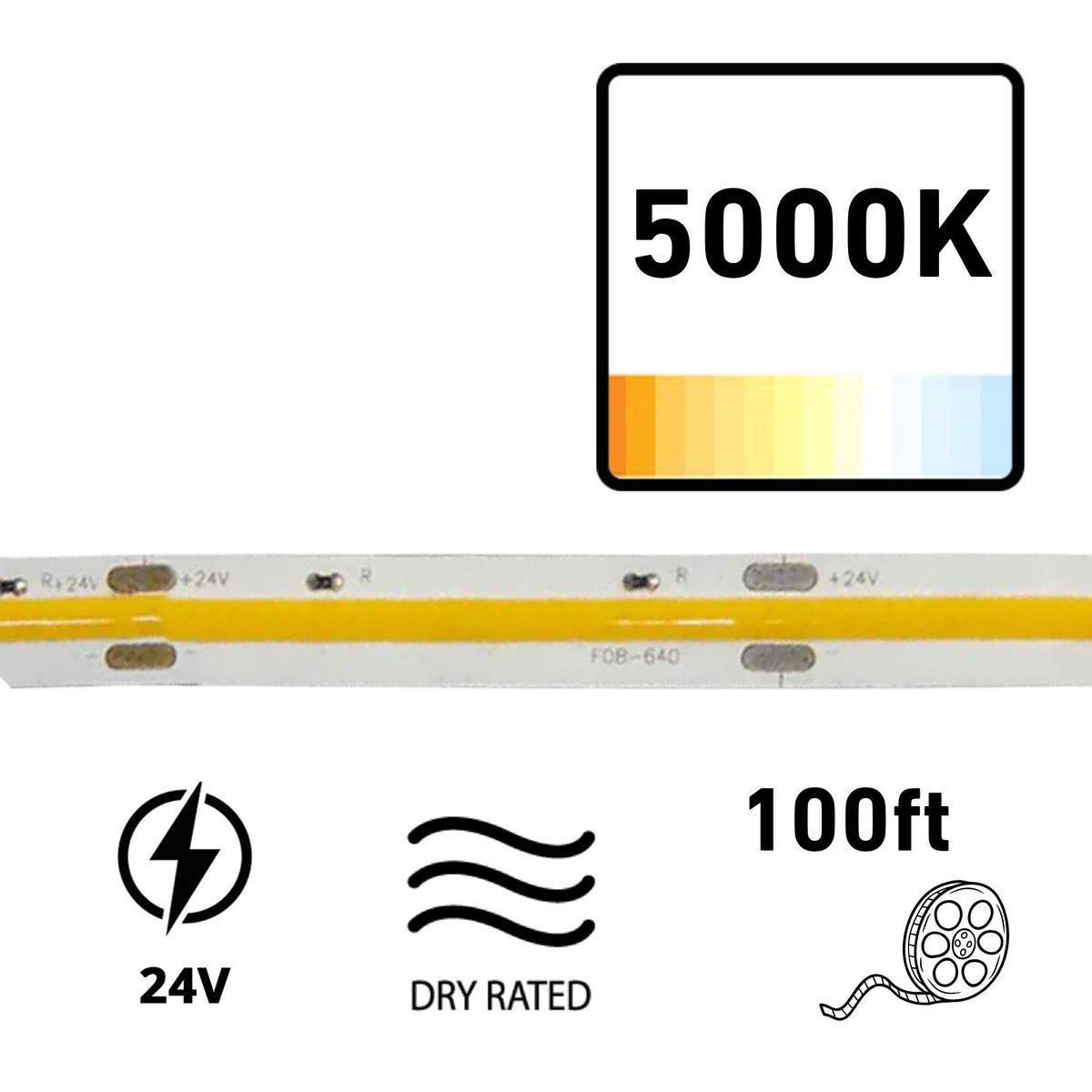

GM Lighting LTR-S SPEC LED Tape Light — 5000K & COB Technology
The GM Lighting LTR-S-COB-24V-4.5W-50K-100 is a high-performance LED tape light featuring COB (Chip On Board) technology for a seamless, dotless light output. This tape light is 98'-6" long and operates at 24V, making it suitable for dry locations. With a color temperature of 5000K, it delivers bright, daylight illumination.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: 4.5 watts per foot for energy-efficient lighting.
- LED Density: 146 LEDs per foot for uniform light distribution.
- Maximum Run: 16'-4" on a single power lead to prevent voltage drop.
- Cuttable: Every 2 inches for custom lengths.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 180° for wide light coverage.
- CRI: 95+ for excellent color rendering.
- Certifications: UL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With a high CRI of 95+, this tape light ensures vibrant and accurate color rendering. The COB technology eliminates pixelation, providing a smooth, continuous light output.
Power, Wiring & Installation
Requires a 24V DC power supply. The tape is field cuttable every 2 inches, allowing for precise customization. Maximum continuous run is 16'-4" to prevent voltage drop. Dimmable with compatible drivers.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 98'-6" reel of LED tape light
- (10) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
