GM Lighting LTR-S SPEC 16'-4" LED Tape Light, 4000K, 524 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Provides a crisp 4000K light, ideal for task lighting and workspaces.
- Voltage & Max Run: Operates at 24V with a maximum run of 16'-4" to ensure consistent brightness.
- Cuttable Increments: Field cuttable every 2" for precise length customization.
- COB Technology: Features COB (Chip On Board) for a seamless, dotless lighting effect.
- High CRI: 95+ CRI ensures accurate color rendering for vibrant illumination.
We process payments securely and do not store credit card information.
Description
Description

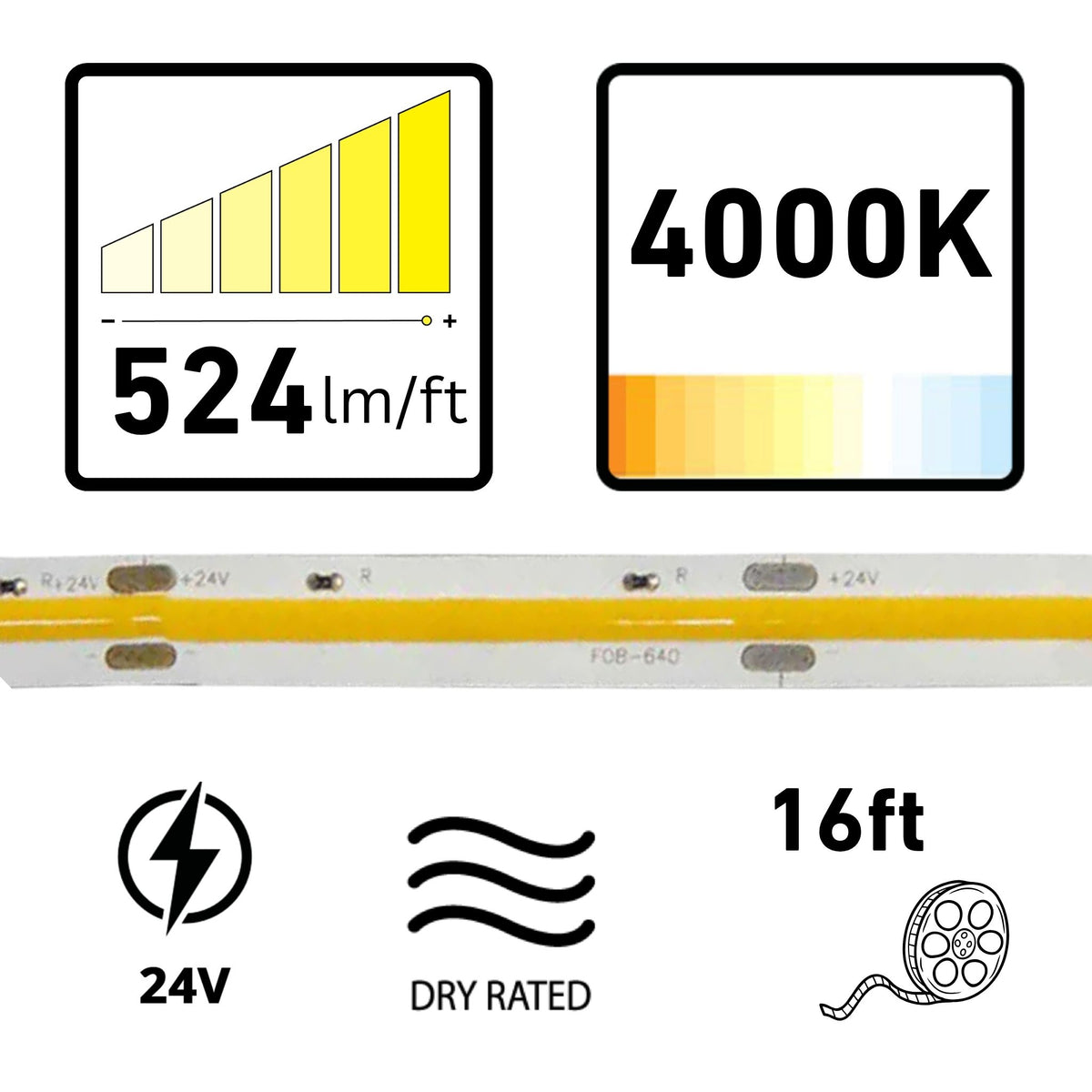

GM Lighting LTR-S SPEC LED Tape Light — 4000K & COB Dotless
The GM Lighting LTR-S-COB-24V-4.5W-40K-16 is a 16'-4" LED tape light featuring advanced COB (Chip On Board) technology for a seamless, dotless lighting effect. This tape light operates at 24V and is designed for dry locations, making it ideal for indoor applications.
Key Features
- Voltage: 24V DC for efficient power usage.
- Wattage: 4.5 watts per foot for energy-efficient lighting.
- Lumens: 524 lumens per foot for bright illumination.
- LEDs per Foot: 146 LEDs per foot for uniform light distribution.
- Maximum Run: 16'-4" to prevent voltage drop.
- Cuttable: Every 2" for custom lengths.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 180° for wide light dispersion.
- IP Rating: Dry rated for indoor use.
- Certifications: UL and Title 24 compliant.
Core Design & Construction
Constructed with a 10mm wide PCB, this tape light is compatible with most aluminum channels. It features a durable 3M adhesive backing for easy installation in dry environments.
LED Illumination & Performance
With 524 lumens per foot and a high CRI of 95+, this tape light delivers vibrant and accurate color rendering. The COB technology ensures a smooth, dotless light output.
Power, Wiring & Installation
Requires a 24V power supply, sold separately. The tape is field cuttable every 2" and supports a maximum continuous run of 16'-4". It is dimmable with compatible drivers.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4" reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
