GM Lighting LTR-S SPEC 98'-6' LED Tape Light, COB, 4000K, 524 Lumens/ft, 24V
In stock
About this item
About this item
- COB Technology: Provides a seamless linear light display with no LED pixelation.
- Voltage: Operates at 24V, ensuring compatibility with low-voltage systems.
- Maximum Run: Capable of a maximum continuous run of 16'-4' to prevent voltage drop.
- Cuttable Increments: Field cuttable every 2' for customized lengths.
- Environment: Designed for dry locations, suitable for indoor applications.
We process payments securely and do not store credit card information.
Description
Description

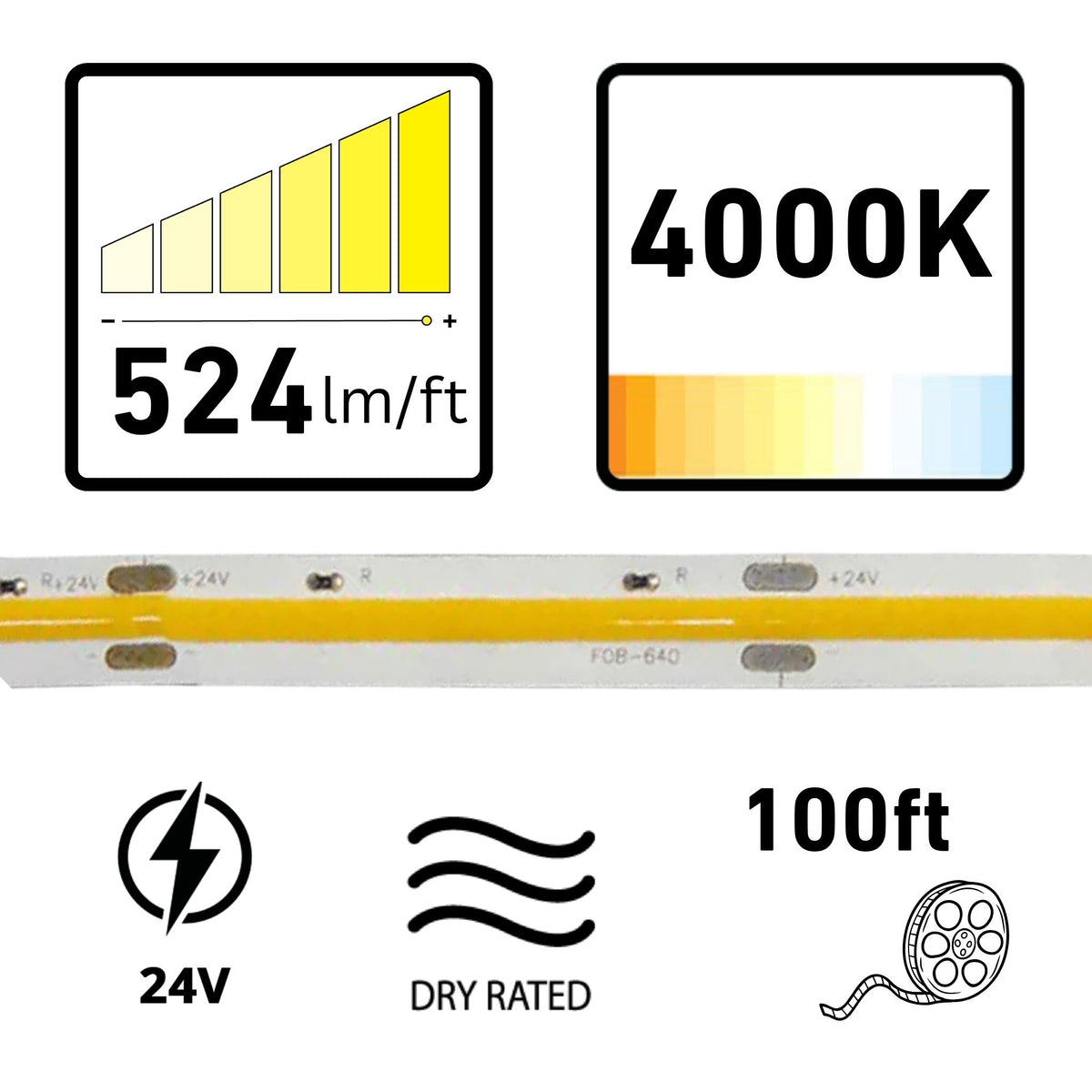

GM Lighting LTR-S SPEC LED Tape Light — 4000K & COB Technology
The GM Lighting LTR-S-COB-24V-4.5W-40K-100 is a high-performance LED tape light featuring COB (Chip On Board) technology for a seamless, dotless illumination. This 98'-6' tape light operates at 24V and is designed for dry locations, making it ideal for various indoor applications.
Key Features
- Voltage: 24V DC operation for efficient power use.
- Wattage: 4.5 watts per foot for energy-efficient lighting.
- Lumens: 524 lumens per foot for bright, consistent illumination.
- LED Density: 146 LEDs per foot for high-density lighting.
- Max Run: 16'-4' maximum run length to prevent voltage drop.
- Cuttable: Field cuttable every 2' for custom installations.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 180° for wide light distribution.
- IP Rating: Dry location rated for indoor use.
- Certifications: UL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for easy installation on various surfaces.
LED Illumination & Performance
With 524 lumens per foot and a 95+ CRI, this tape light delivers high-quality, vibrant lighting. The COB technology ensures a dotless, uniform light output.
Power, Wiring & Installation
This tape light requires a 24V DC power supply and is dimmable with compatible drivers. It can be cut every 2' for tailored installations and supports a maximum continuous run of 16'-4'.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 98'-6' reel of LED tape light
- (10) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-COB-24V-4.5W-40K-100?
What is the maximum run length for the LTR-S-COB-24V-4.5W-40K-100?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light compatible with standard channels?
Is this tape light compatible with standard channels?
What type of dimming is supported?
What type of dimming is supported?
