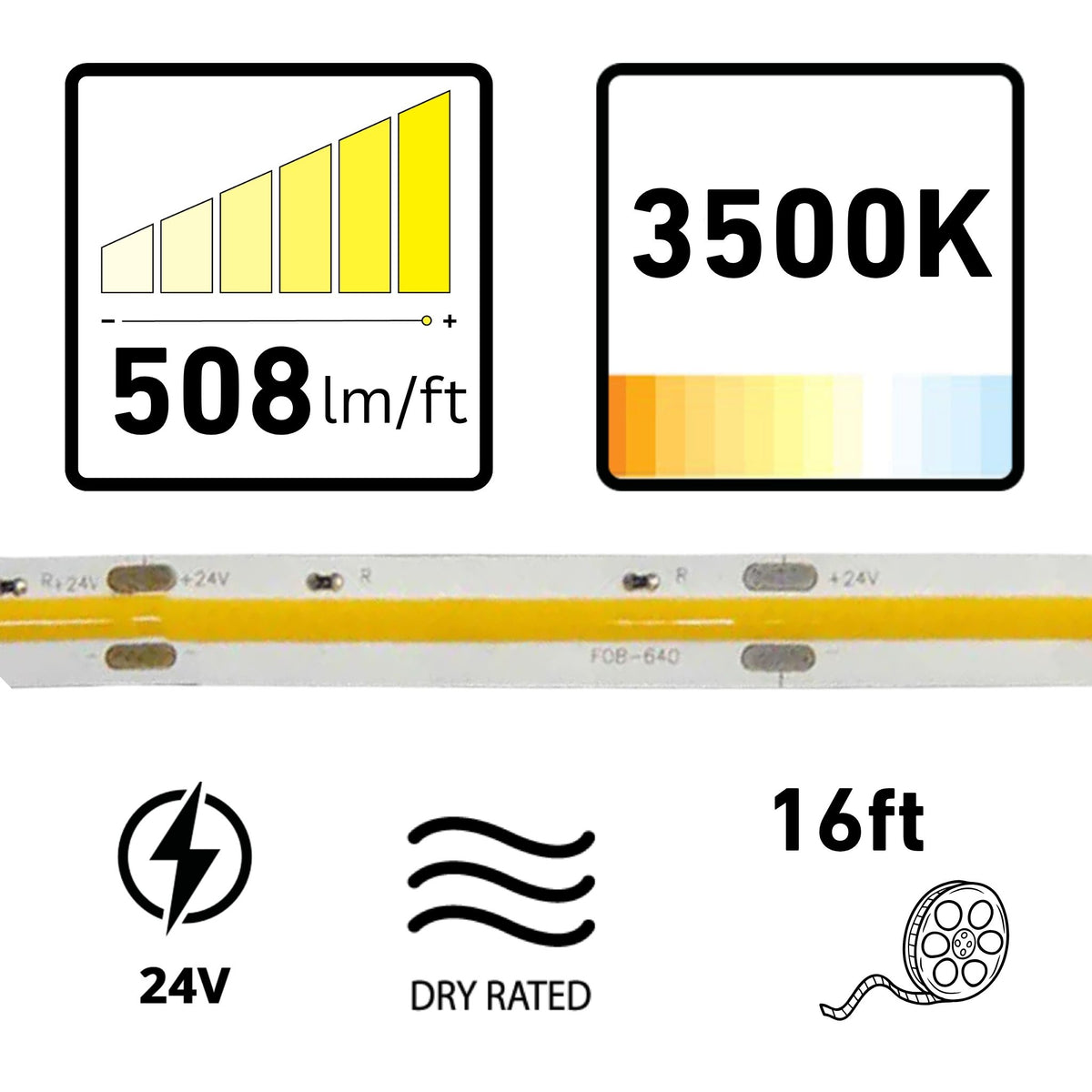

GM Lighting LTR-S SPEC 16'-4" LED Tape Light, 3500K, 508 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V DC, ensuring efficient power consumption.
- Color Temperature: Provides a neutral white light at 3500K, ideal for various settings.
- Lumens per Foot: Delivers 508 lumens per foot for bright illumination.
- Cuttable Increments: Can be cut every 2 inches for precise installations.
- COB Technology: Features dotless COB technology for a seamless light output.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 3500K & COB Technology
The GM Lighting LTR-S-COB-24V-4.5W-35K-16 is a 16'-4" LED tape light featuring advanced COB (Chip On Board) technology. This tape light operates at 24V DC and is designed for dry locations, offering a seamless linear light display with no LED pixelation.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: 4.5 watts per foot for energy efficiency.
- Lumens per Foot: 508 lumens for bright, effective lighting.
- LEDs per Foot: 146 LEDs for uniform light distribution.
- Maximum Run: 16'-4" on a single power feed.
- Cuttable Increments: Every 2 inches for custom lengths.
- PCB Width: 10mm, compatible with most channels.
- Beam Angle: 180° for wide light dispersion.
- IP Rating: Dry location use only.
- Certifications: UL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, suitable for standard aluminum channels. It includes a 3M adhesive backing for secure installation and is designed for dry environments.
LED Illumination & Performance
With 508 lumens per foot and a high CRI of 95+, this tape light ensures vibrant and accurate color rendering. The COB technology provides a dotless, continuous light output.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is dimmable and can be cut every 2 inches, allowing for tailored installations. The maximum continuous run is 16'-4" to prevent voltage drop.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4" LED tape light spool
- (3) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-COB-24V-4.5W-35K-16 tape light?
What is the maximum run length for the LTR-S-COB-24V-4.5W-35K-16 tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is the LTR-S-COB-24V-4.5W-35K-16 tape light dimmable?
Is the LTR-S-COB-24V-4.5W-35K-16 tape light dimmable?
What type of channels are compatible with this tape light?
What type of channels are compatible with this tape light?
