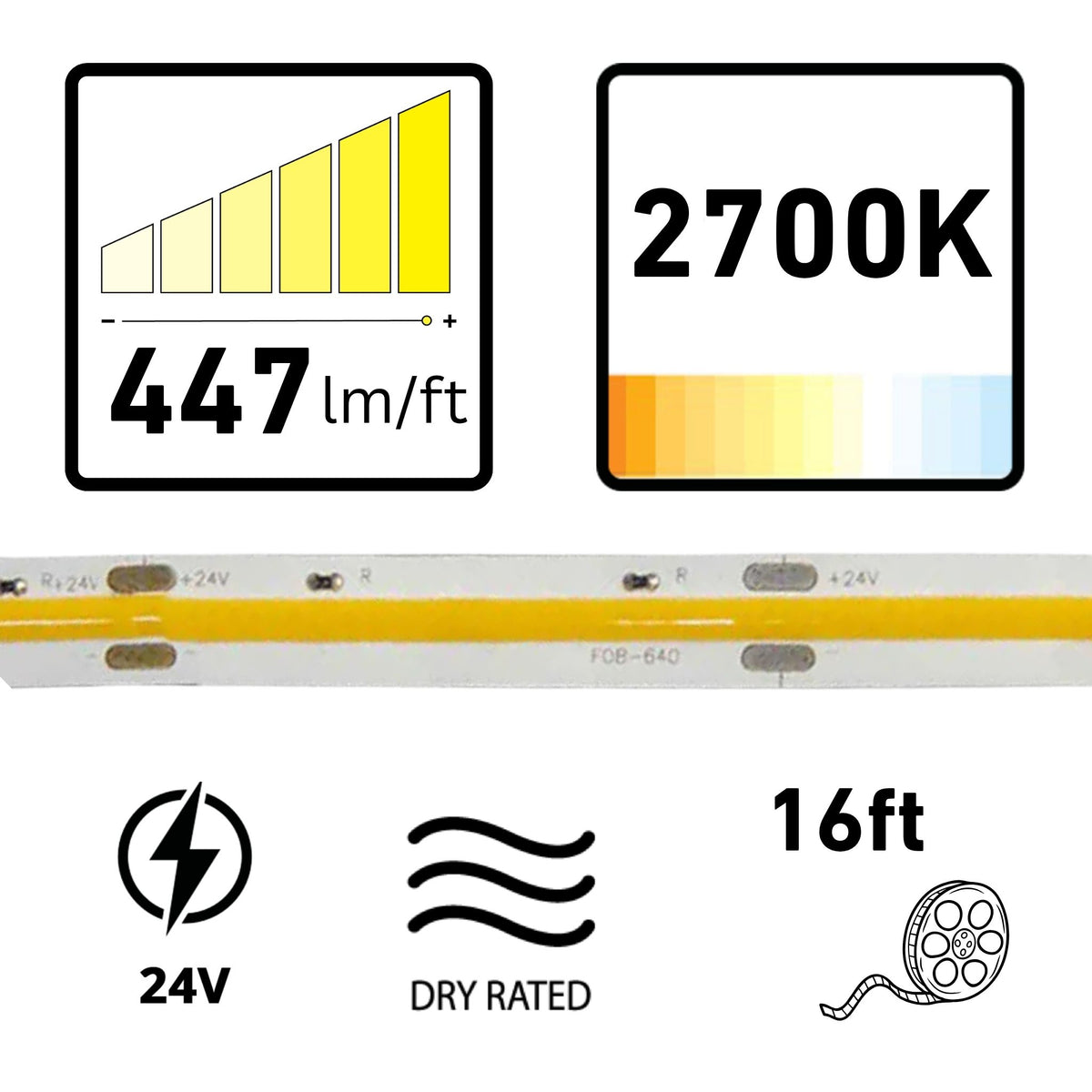

GM Lighting LTR-S SPEC 16'-4" LED Tape Light, COB, 2700K, 447 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V, ensuring compatibility with low voltage systems.
- Color Temperature: Provides a warm 2700K light, ideal for cozy environments.
- Maximum Run: Supports a continuous run of up to 16'-4" to minimize voltage drop.
- Cuttable: Field cuttable every 2" for precise installations.
- LED Density: Features 146 LEDs per foot for a seamless, dotless appearance.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 2700K & COB Technology
The GM Lighting LTR-S-COB-24V-4.5W-27K-16 is a 16'-4" LED tape light featuring advanced COB (Chip On Board) technology. This tape light operates at 24V and is designed for dry locations, making it ideal for indoor applications.
Key Features
- Voltage: 24V DC operation for efficient power usage.
- Wattage: Consumes 4.5 watts per foot.
- Lumens: Delivers 447 lumens per foot.
- LED Density: 146 LEDs per foot for uniform light distribution.
- Max Run: Maximum continuous run of 16'-4".
- Cuttable: Can be cut every 2" for custom lengths.
- PCB Width: 10mm, suitable for most channels.
- Beam Angle: 180° for wide light coverage.
- Certifications: UL listed and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, compatible with standard aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With 447 lumens per foot and a CRI of 95+, this COB tape light provides high-quality, dotless illumination in a warm 2700K color temperature.
Power, Wiring & Installation
Requires a 24V DC power supply. The tape is field cuttable every 2" and supports dimming for customizable lighting solutions. Maximum run length is 16'-4" to prevent voltage drop.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4" LED tape light spool
- (3) ESTW-60 Sure-Tite connectors
Specifications
