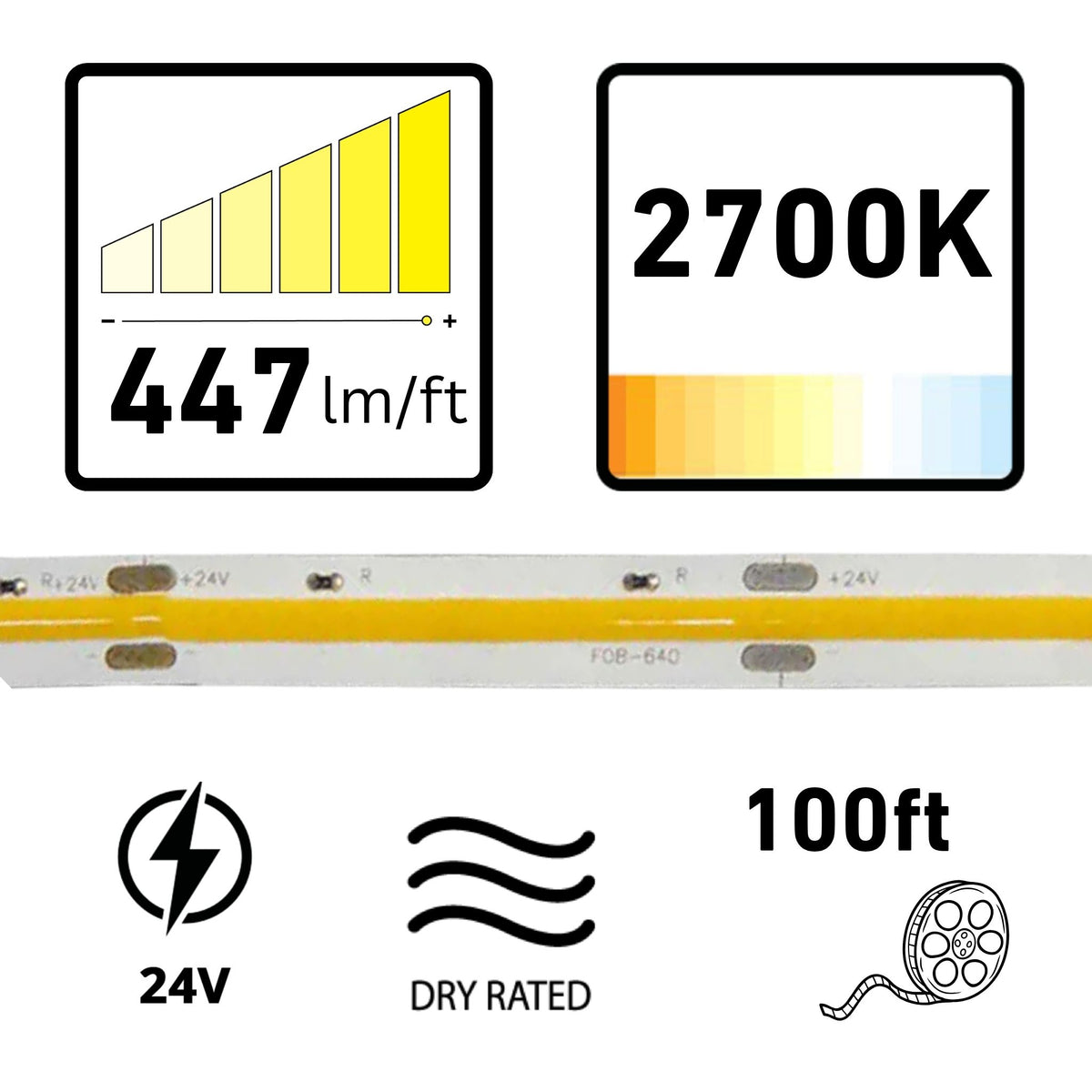

GM Lighting LTR-S SPEC 98'-6" LED Tape Light, 2700K, 447 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption.
- Color Temperature: Provides a warm 2700K light, ideal for cozy environments.
- Max Run: Maximum continuous run of 16'-4" to prevent voltage drop.
- Cuttable: Field cuttable every 2" for customized lengths.
- LED Density: Features 146 LEDs per foot for a seamless light output.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 2700K & COB Technology

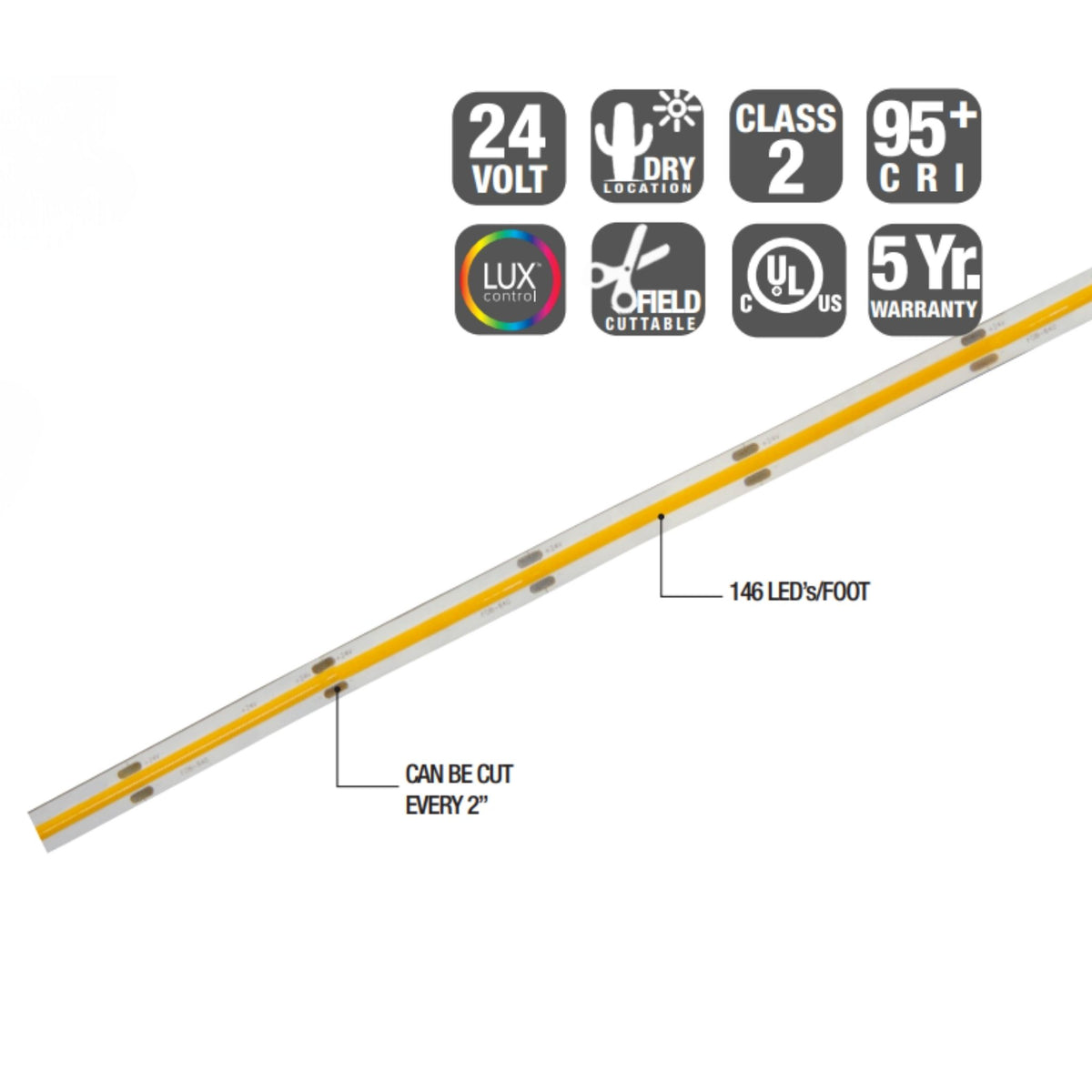

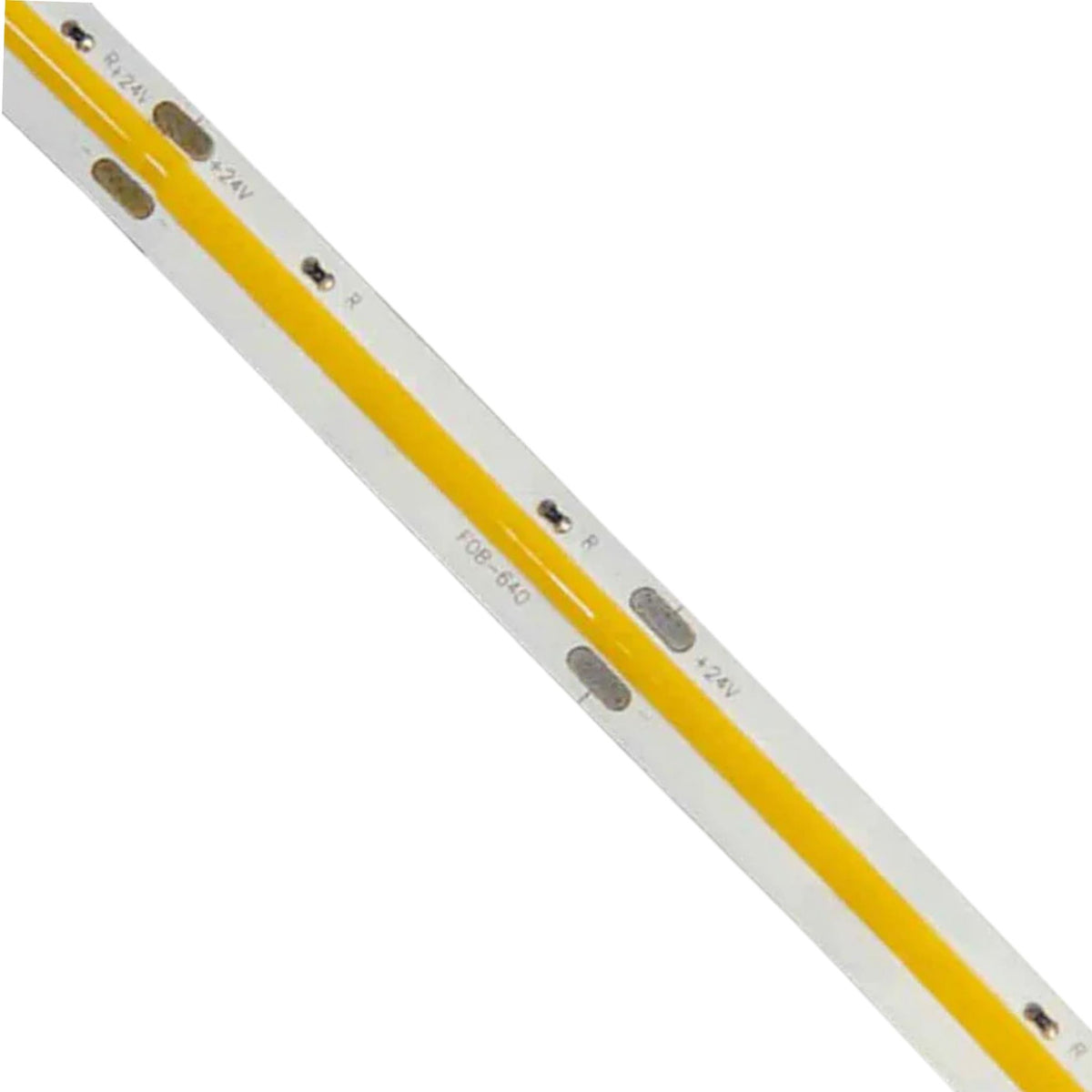

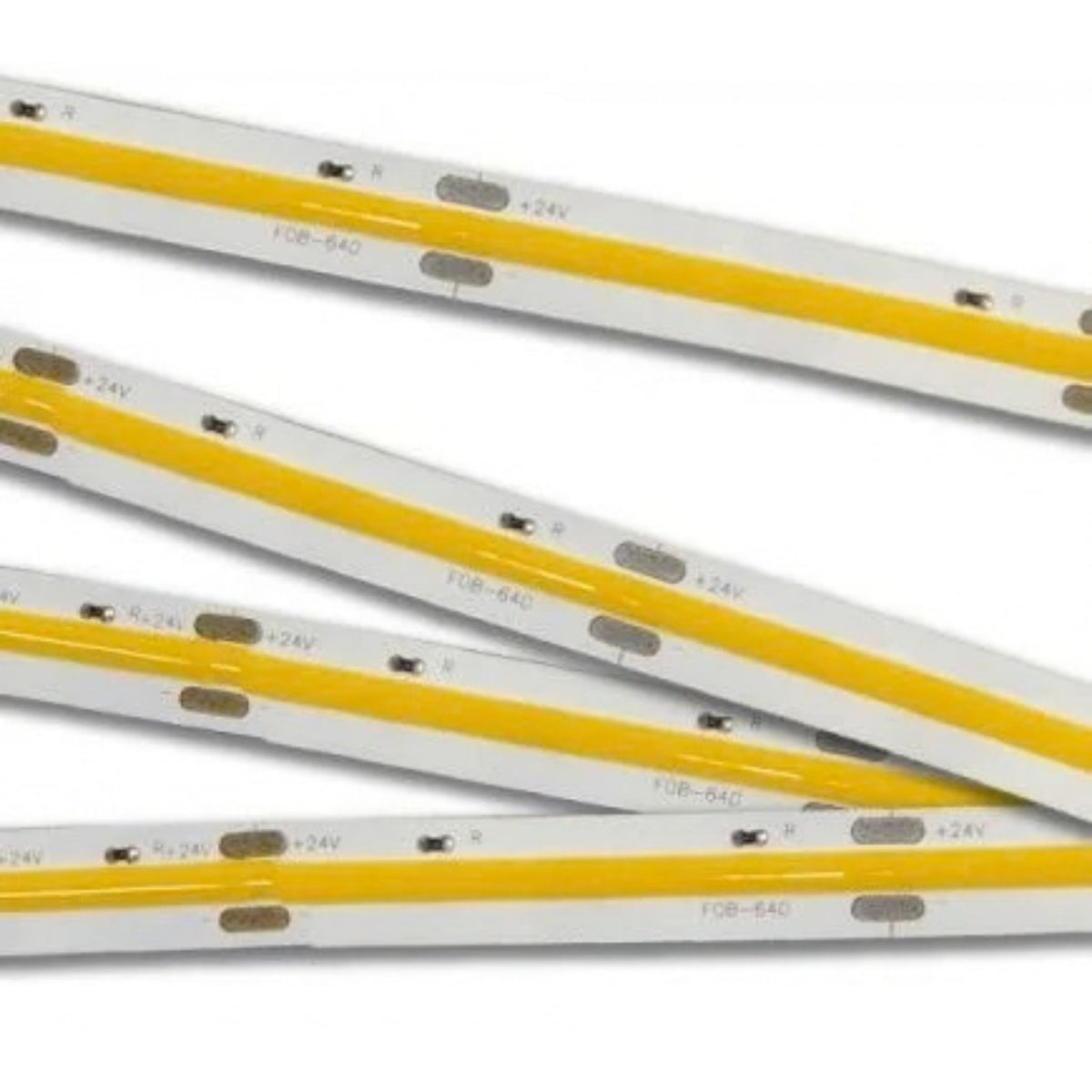

The GM Lighting LTR-S-COB-24V-4.5W-27K-100 is a high-performance LED tape light featuring COB (Chip On Board) technology for a seamless, dotless light output. This 98'-6" tape light operates at 24V and is designed for dry locations, making it ideal for indoor applications.
Key Features
- Voltage: 24V DC operation for stable performance.
- Wattage: Consumes 4.5 watts per foot.
- Lumens: Delivers 447 lumens per foot.
- LED Density: 146 LEDs per foot for uniform illumination.
- Max Run: Supports up to 16'-4" on a single power feed.
- Cuttable: Can be cut every 2" for precise installations.

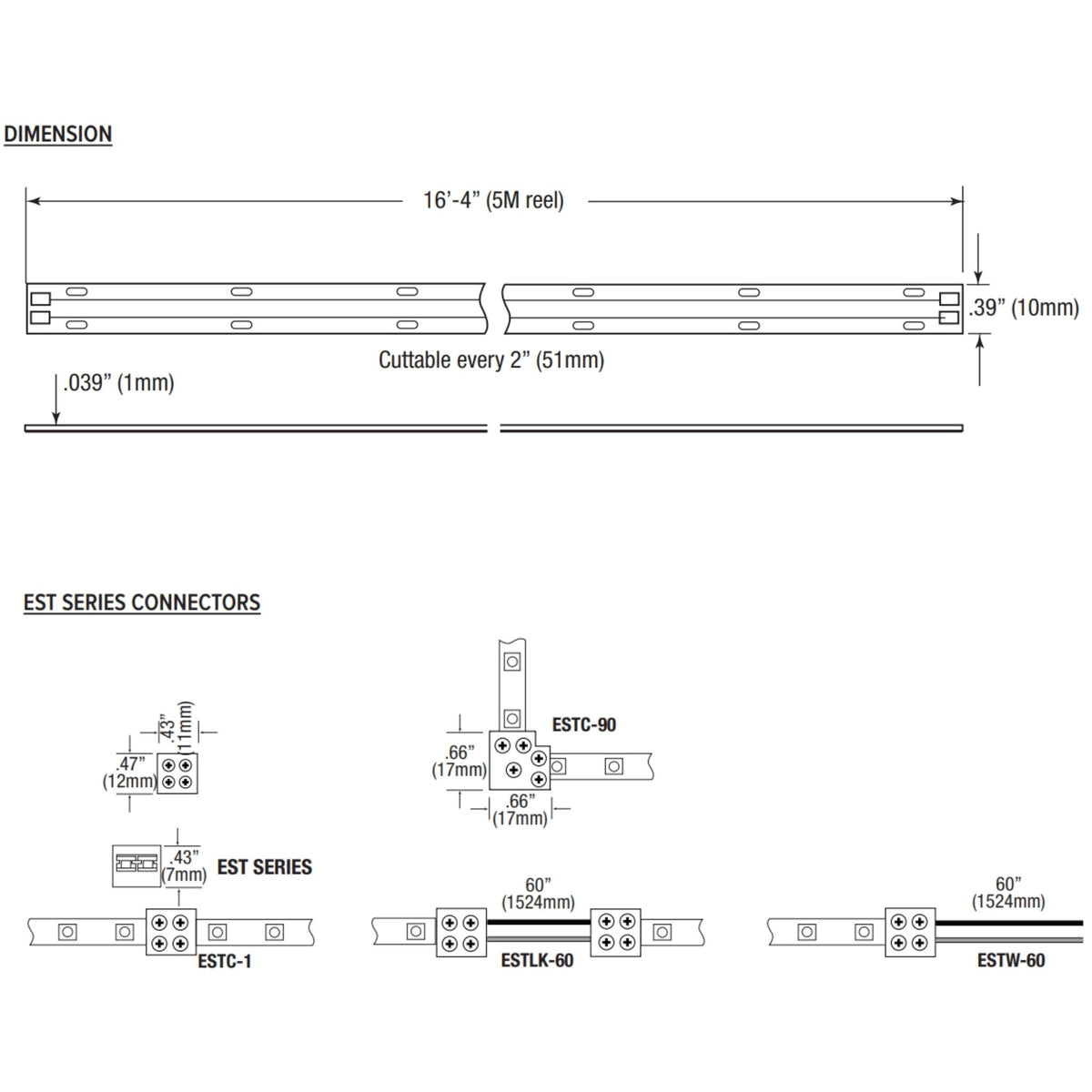

- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: 180° for wide light distribution.
- IP Rating: Dry rated for indoor use.
- Certifications: UL listed and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, suitable for most aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is designed for dry indoor environments.
LED Illumination & Performance
With a high CRI of 95+, this tape light ensures excellent color rendering. The COB technology provides a continuous, dotless light output, perfect for accent and task lighting.
Power, Wiring & Installation
Requires a 24V DC power supply, sold separately. The tape is field cuttable every 2" and supports dimming for customizable lighting effects. Maximum continuous run is 16'-4" to prevent voltage drop.

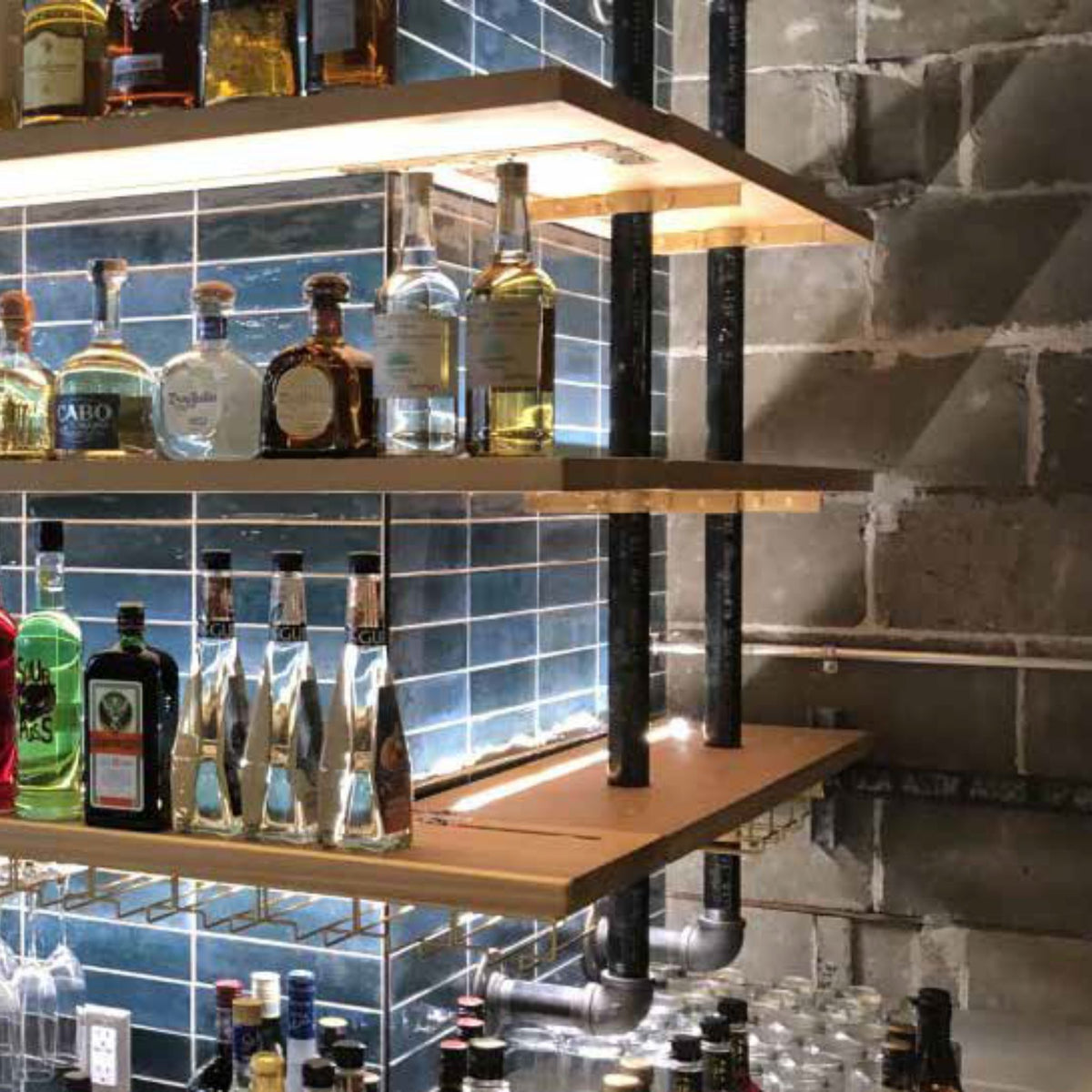

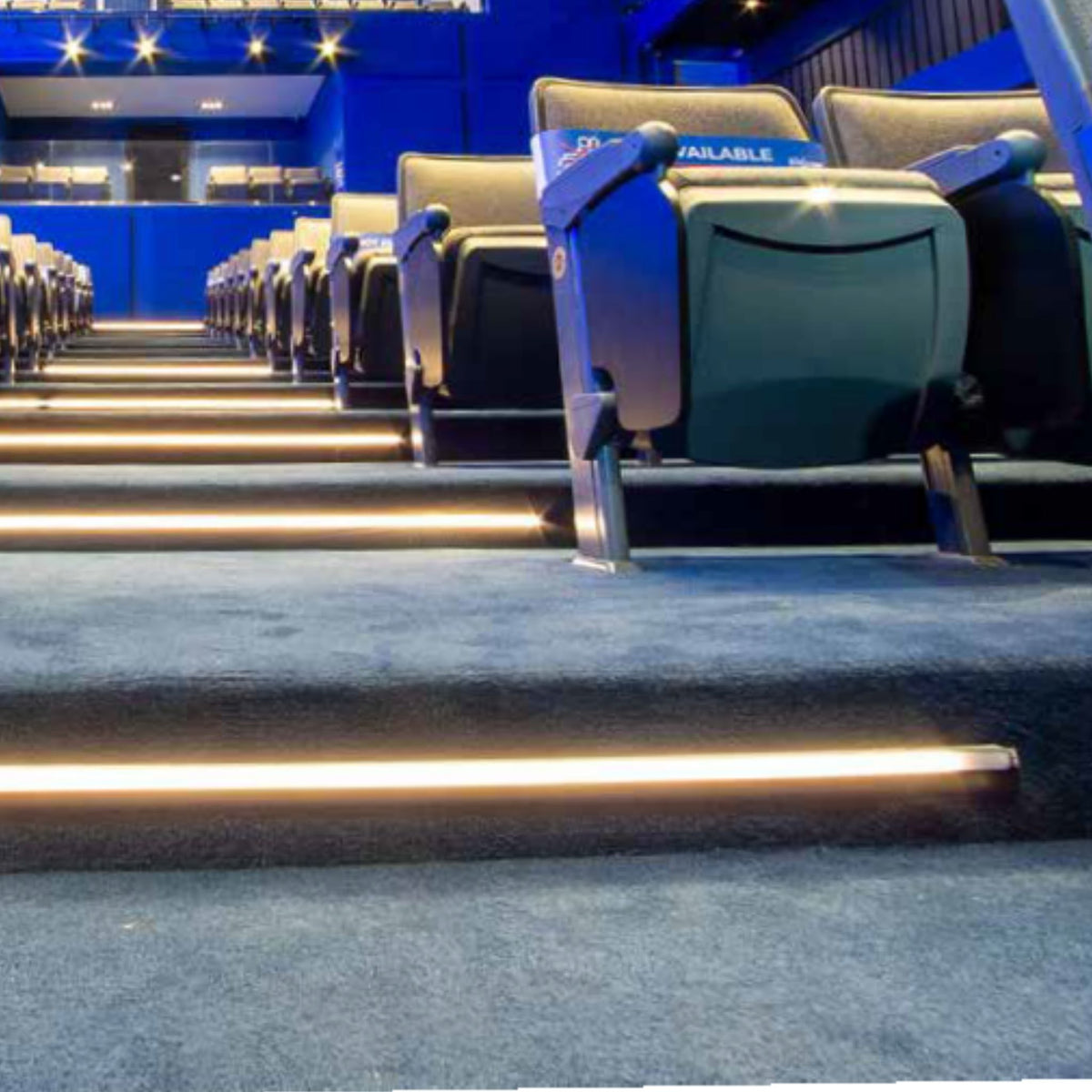

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 98'-6" LED tape light spool
- (10) ESTW-60 Sure-Tite connectors
