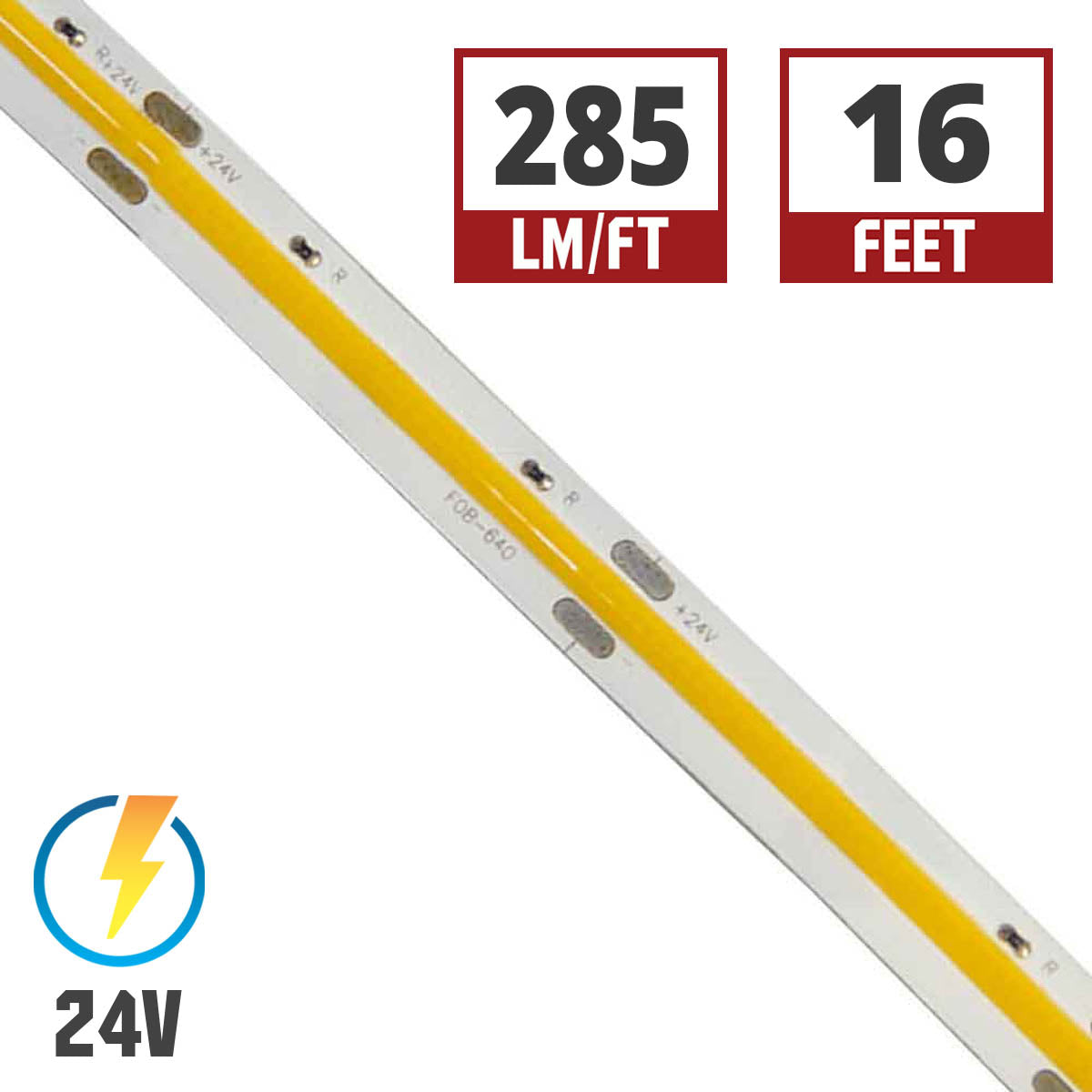

GM Lighting LTR S COB 16' LED Tape Light, 4000K, 285 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V, ensuring efficient power use for extended installations.
- Color Temperature: 4000K provides a neutral white light ideal for task lighting.
- Max Run: Capable of running up to 32'-8'' continuously, minimizing voltage drop.
- Cuttable: Field cuttable every 2'', allowing precise customization for any project.
- COB Technology: Chip On Board design offers a seamless, dotless light output.
We process payments securely and do not store credit card information.
Description
Description

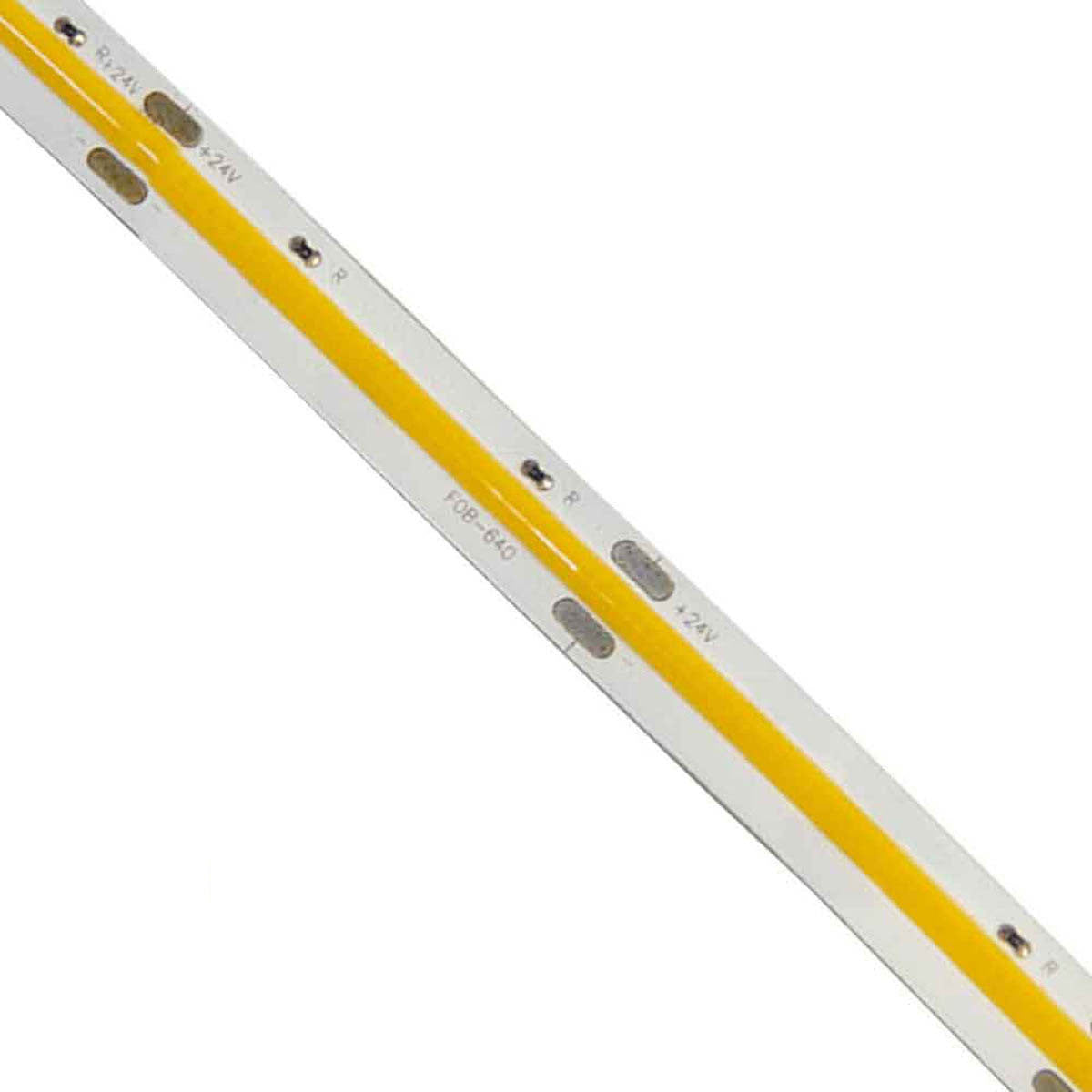

GM Lighting LTR S COB LED Tape Light — 4000K & COB Technology
The GM Lighting LTR-S-COB-24V-3.0W-40K-16 is a 16'-4'' LED tape light featuring advanced COB (Chip On Board) technology. This tape light operates at 24V and is designed for dry locations, making it ideal for indoor applications.
Key Features
- Voltage: 24V DC operation for efficient power distribution.
- Wattage: 3 watts per foot for optimal brightness.
- Lumens: 285 lumens per foot for bright, effective illumination.

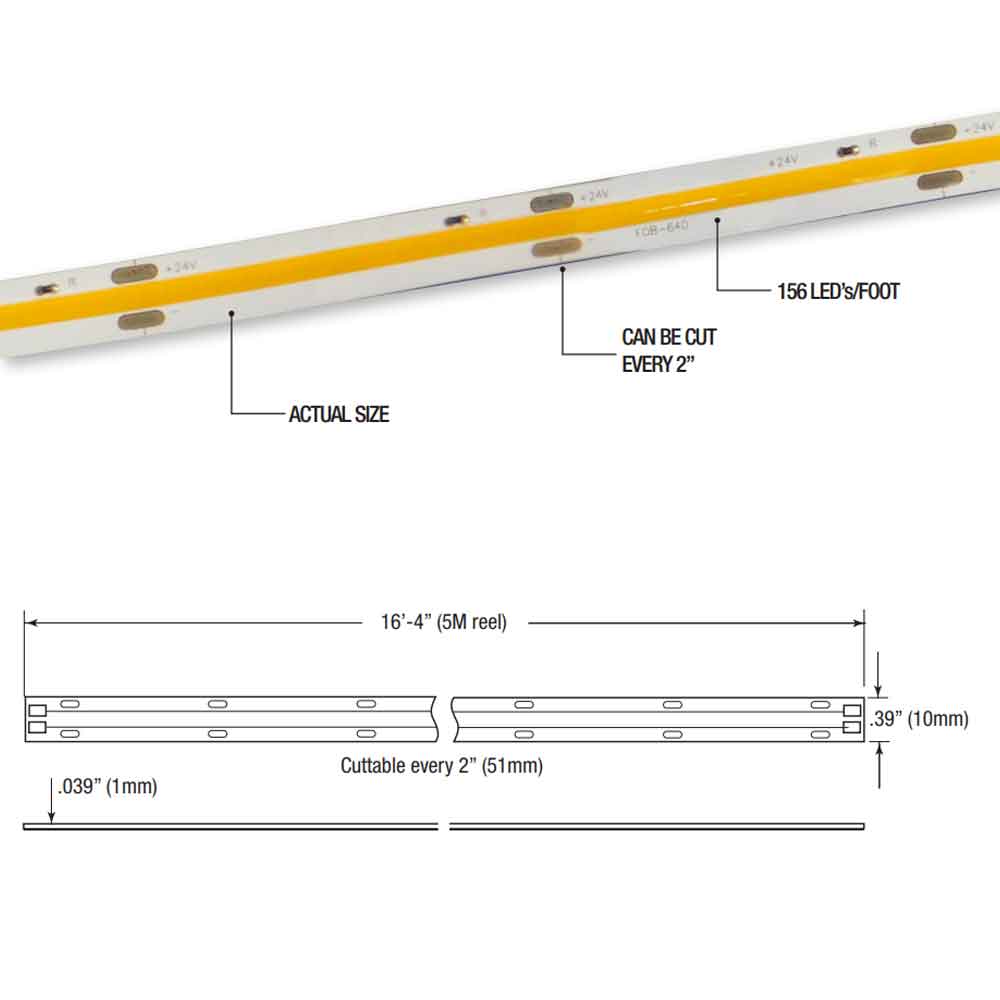

- LED Density: 156 LEDs per foot ensures uniform light distribution.
- Max Run: 32'-8'' on a single power feed to prevent voltage drop.
- Cuttable: Every 2'' for tailored installations.
- PCB Width: 10mm, compatible with standard channels.
- Beam Angle: 180° for wide light coverage.
- Certifications: UL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, suitable for most aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With a high CRI of 95+, this tape light delivers 285 lumens per foot, ensuring vibrant and accurate color rendering. The COB technology provides a continuous, dotless light output.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is field cuttable every 2'' and supports dimming for customizable lighting effects. Ensure a maximum run of 32'-8'' to avoid voltage drop.

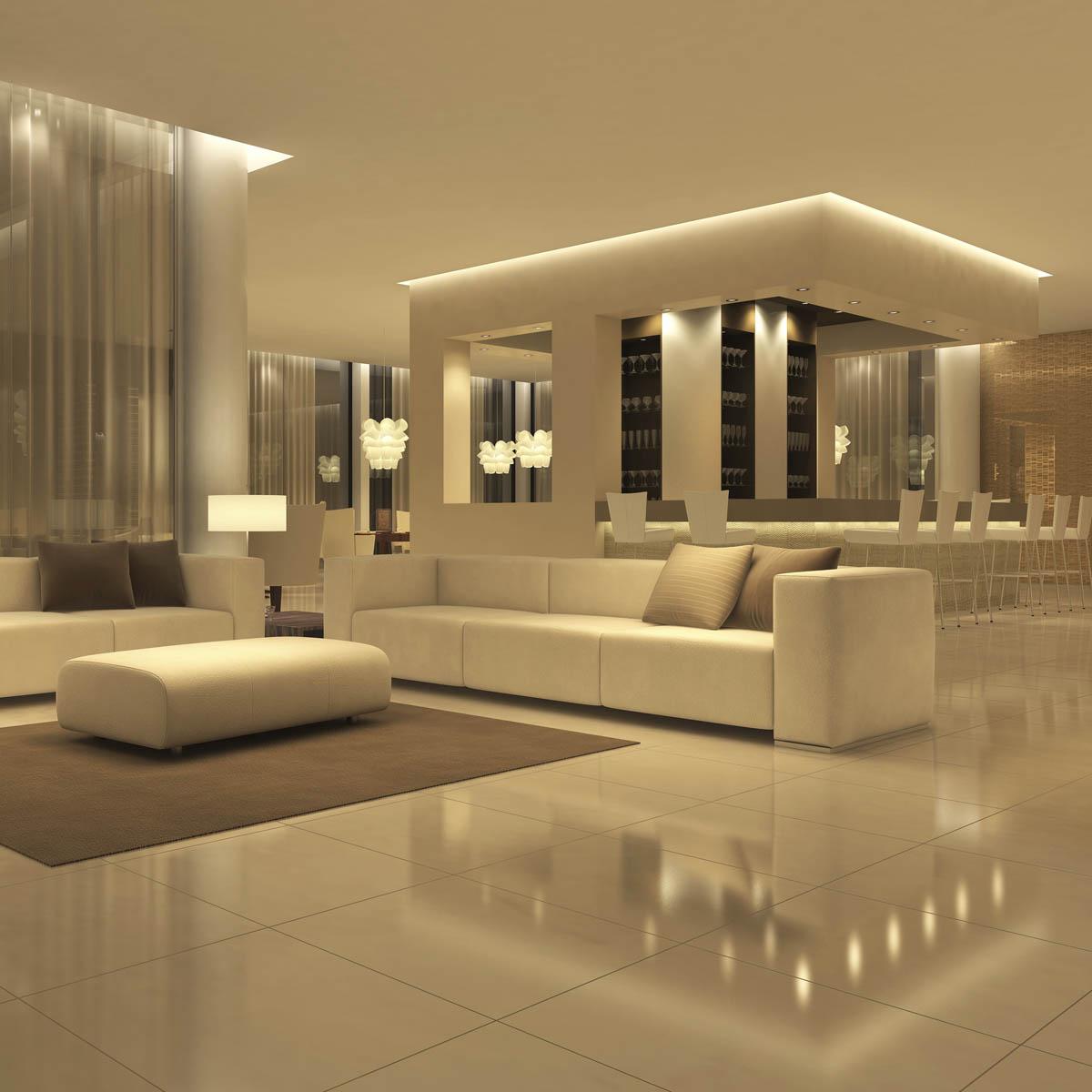

Where This Tape Works Best
- Cove lighting

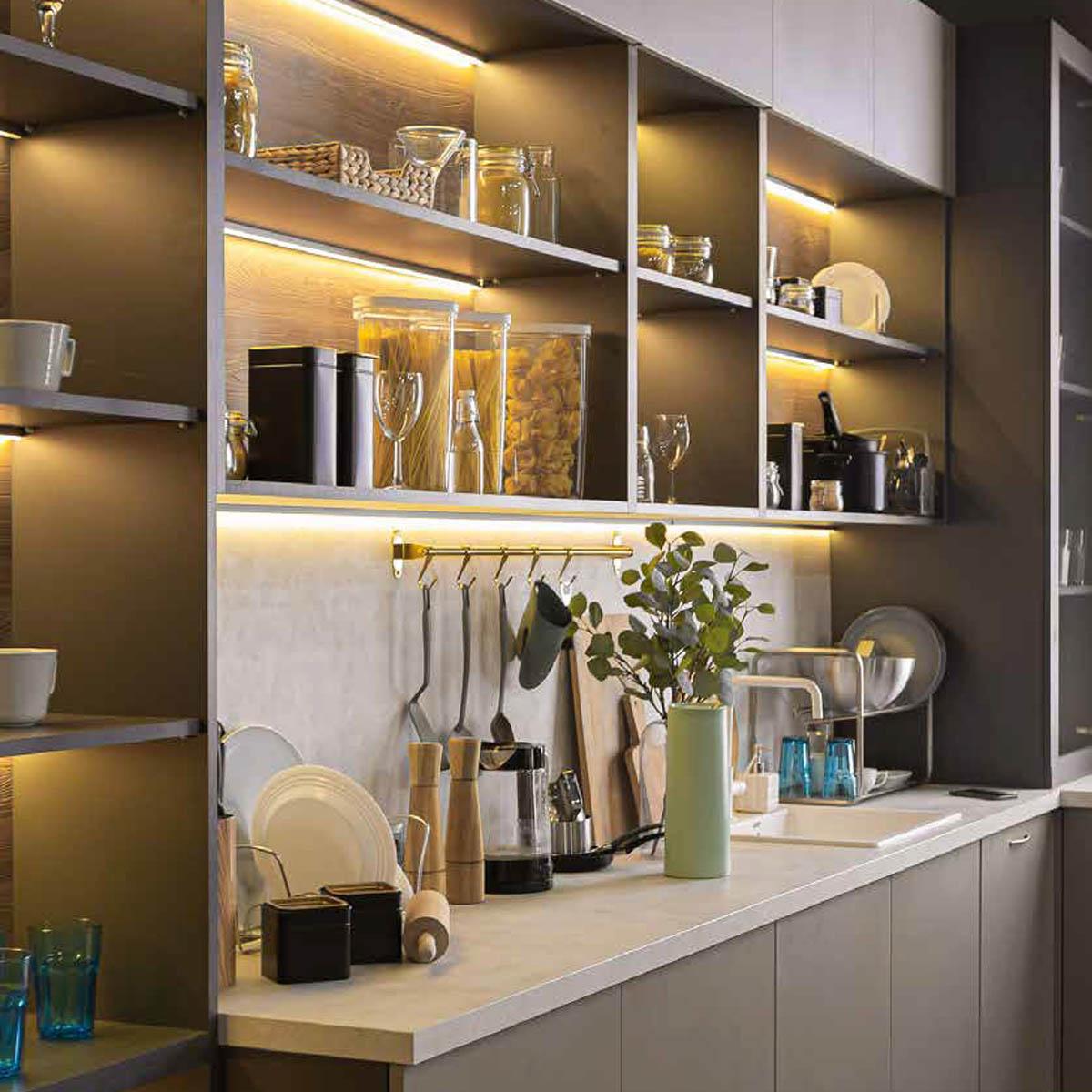

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4'' spool of LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 48'' lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-COB-24V-3.0W-40K-16?
What is the maximum run length for the LTR-S-COB-24V-3.0W-40K-16?
How often can this tape light be cut?
How often can this tape light be cut?
What voltage is required for the LTR-S-COB-24V-3.0W-40K-16?
What voltage is required for the LTR-S-COB-24V-3.0W-40K-16?
Is this tape light compatible with standard channels?
Is this tape light compatible with standard channels?
Does the LTR-S-COB-24V-3.0W-40K-16 support dimming?
Does the LTR-S-COB-24V-3.0W-40K-16 support dimming?
