GM Lighting LTR S COB, 16'-4' LED Tape Light, 3000K, 265 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V DC for efficient power usage.
- Color Temperature: Emits a warm 3000K light for ambient settings.
- Maximum Run: Supports up to 32'-8' on a single power feed.
- Cuttable Increments: Can be cut every 2' for custom installations.
- COB Technology: Provides a seamless, dotless light output.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR S COB LED Tape Light — 3000K & COB Technology

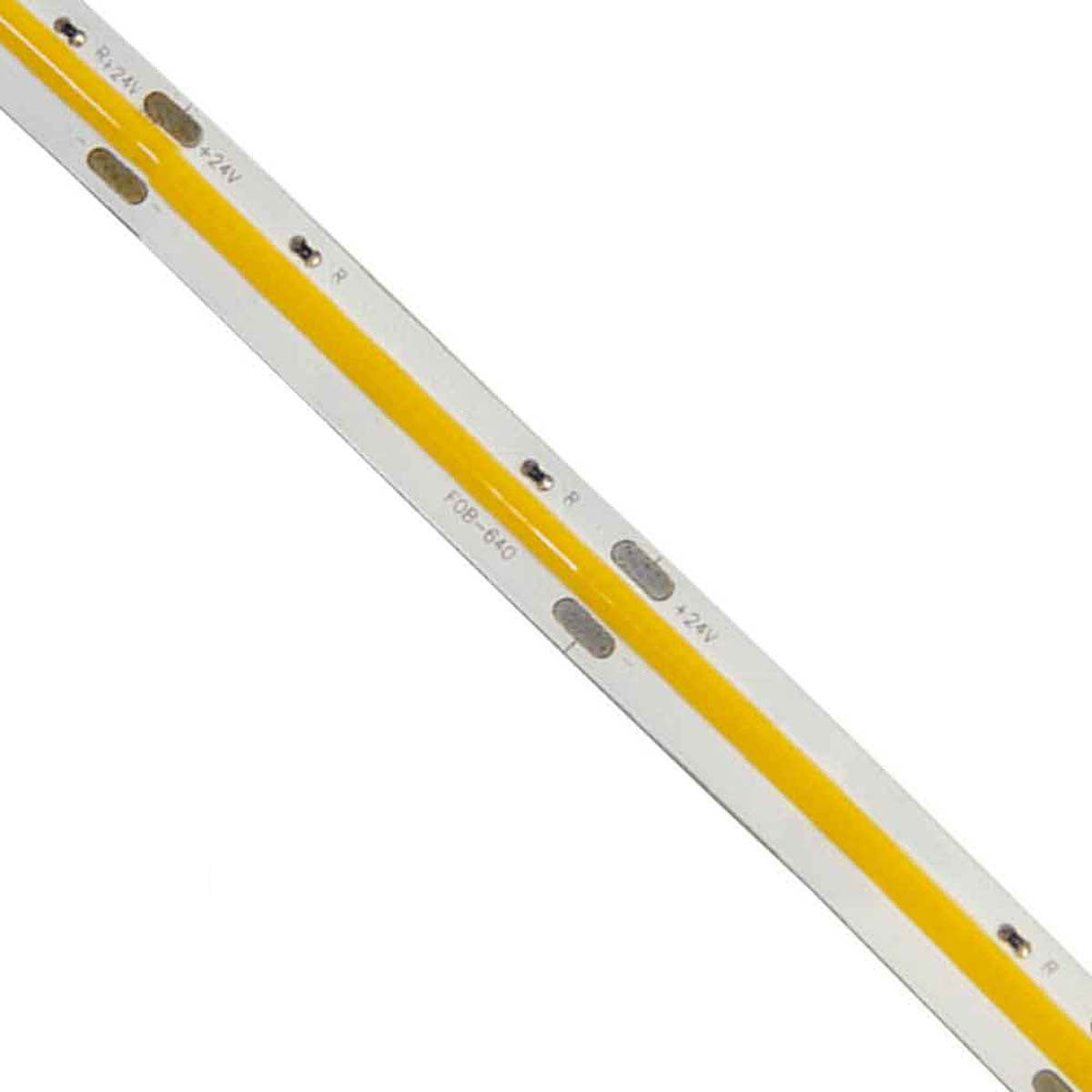

The GM Lighting LTR-S-COB-24V-3.0W-30K-16 is a 16'-4' LED tape light featuring advanced COB (Chip On Board) technology. This tape light operates at 24V DC and is designed for dry locations. It offers a warm 3000K color temperature, making it ideal for creating inviting atmospheres.
Key Features
- Voltage: 24V DC operation for consistent performance.
- Wattage: Consumes 3.0 watts per foot.
- Lumens: Delivers 265 lumens per foot.
- LED Density: 156 LEDs per foot for uniform light distribution.
- Maximum Run: 32'-8' maximum run length per power feed.

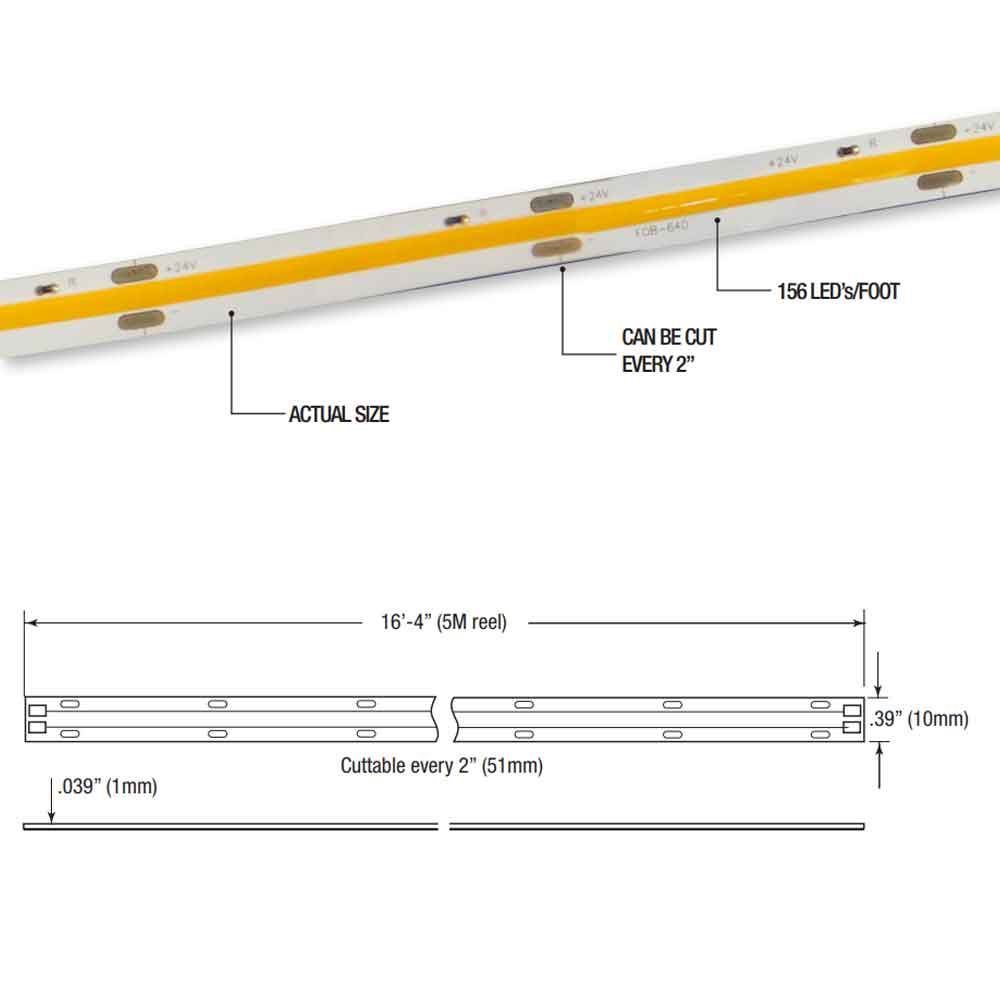

- Cuttable: Field cuttable every 2' for precise installations.
- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: 180° viewing angle for wide coverage.
- IP Rating: Suitable for dry locations.
- Certifications: UL listed and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With a high CRI of 95+, this tape light ensures excellent color rendering. The COB technology eliminates pixelation, providing a smooth, continuous light output.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is dimmable and can be cut every 2' for customized lengths, supporting a maximum continuous run of 32'-8'.
Where This Tape Works Best
- Cove lighting

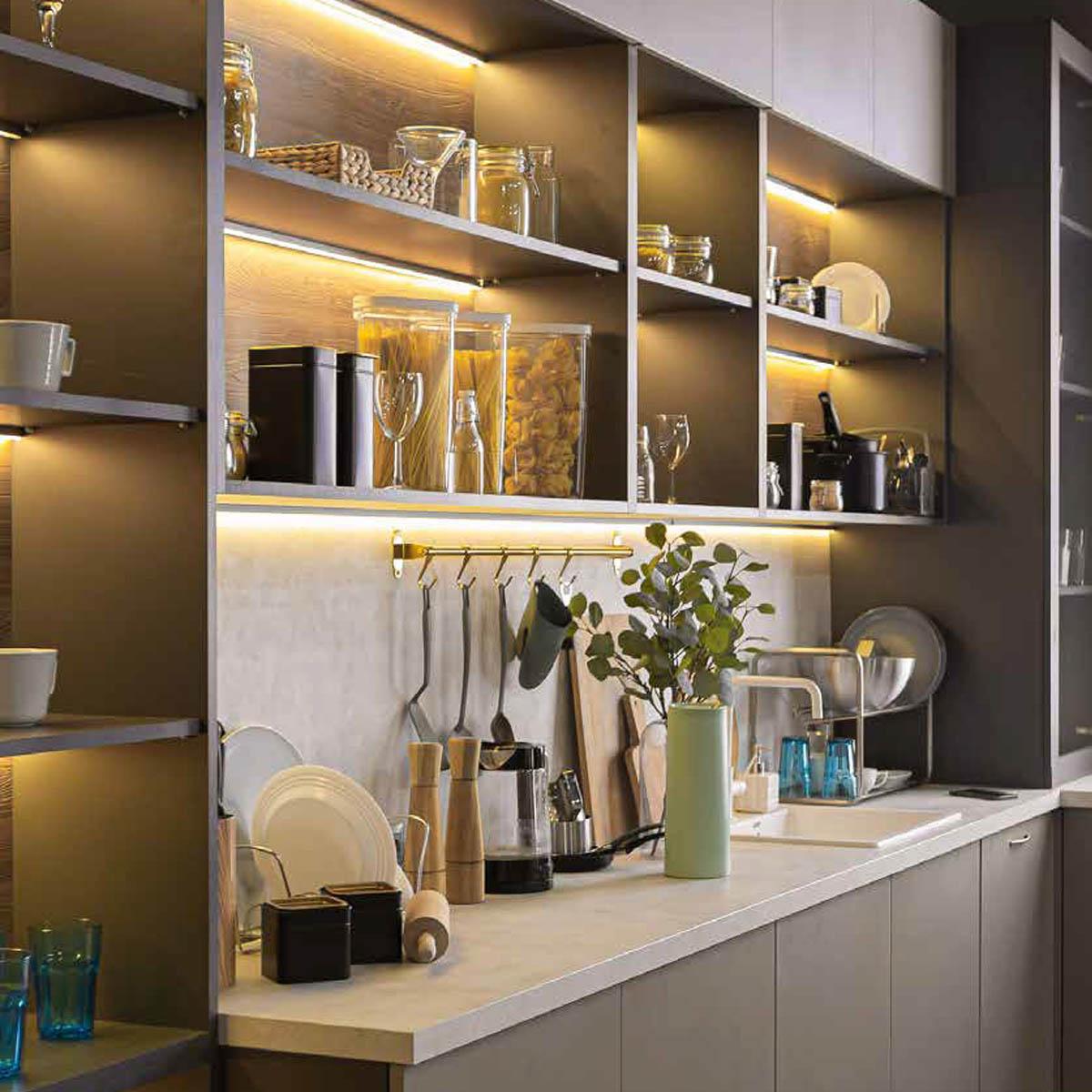

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' LED tape light spool
- 48' lead affixed to tape
- (3) ESTW-60 Sure-Tite connectors
