GM Lighting LTR-S-COB-24V-3.0W-27K-16 | COB LED Tape Light 16ft | 2700K Warm White | 255 Lumens/Ft
GM Lighting LTR-S-COB-24V-3.0W-27K-16 | COB LED Tape Light 16ft | 2700K Warm White | 255 Lumens/Ft
Regular price
$181.80
Sale price
$181.80
Regular price
$0.00
Shipping calculated at checkout.
In stock
Choose your location
enter a US zip code
Must be ordered in quantities of .
Couldn't load pickup availability
About this item
About this item
- Dotless COB Technology – Seamless linear illumination with no visible LED spots
- 255 Lumens/Ft at 2700K – Warm white light with 95+ CRI color accuracy
- Professional Grade – UL Listed, Title 24 compliant, 5-year warranty
- Flexible & Cuttable – Cut every 2" with 180° viewing angle for uniform coverage
- Complete Kit – 16'-4" reel with 48" lead and (3) Sure-Tite connectors included
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
Payment & Security
Payment methods
We process payments securely and do not store credit card information.
Description
Description

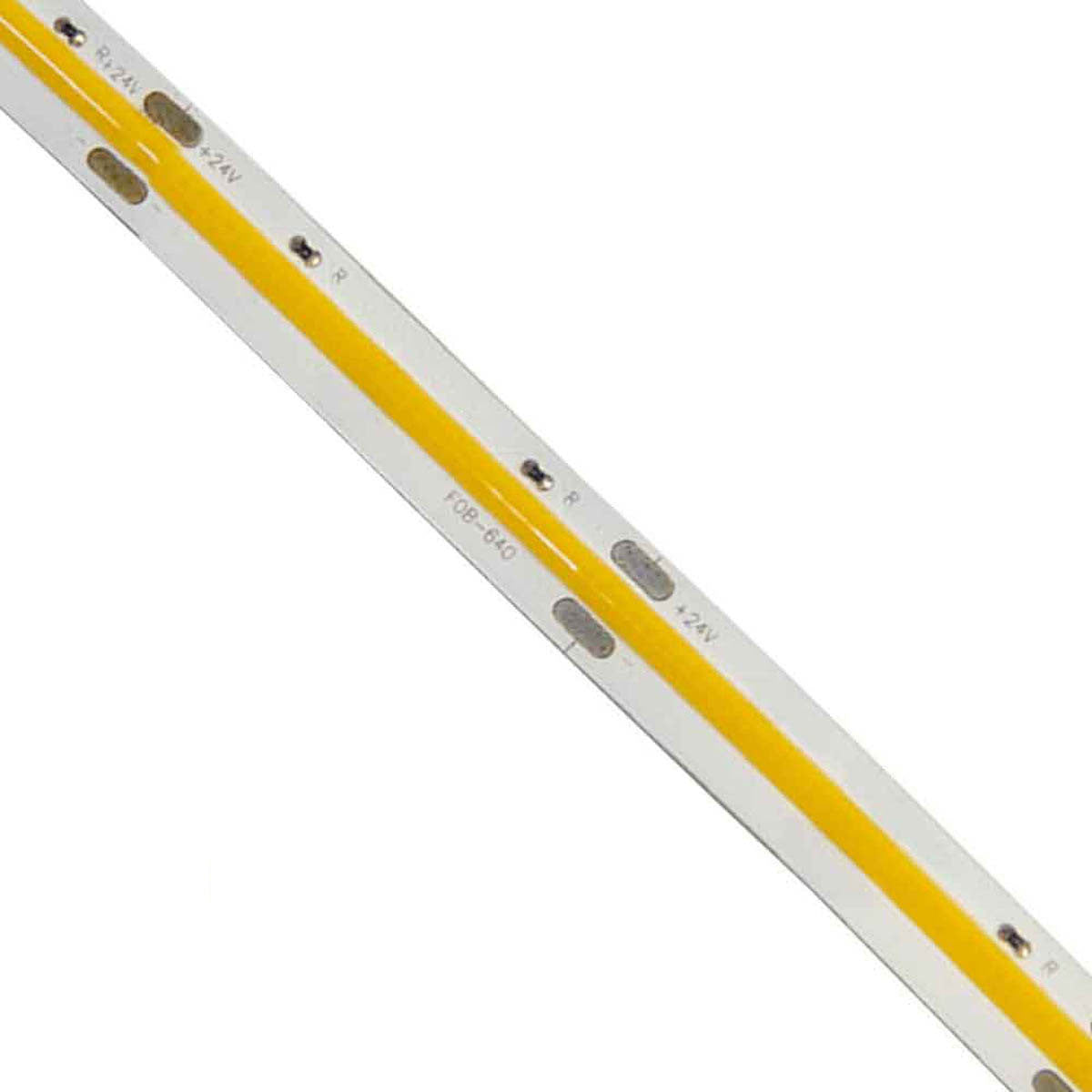

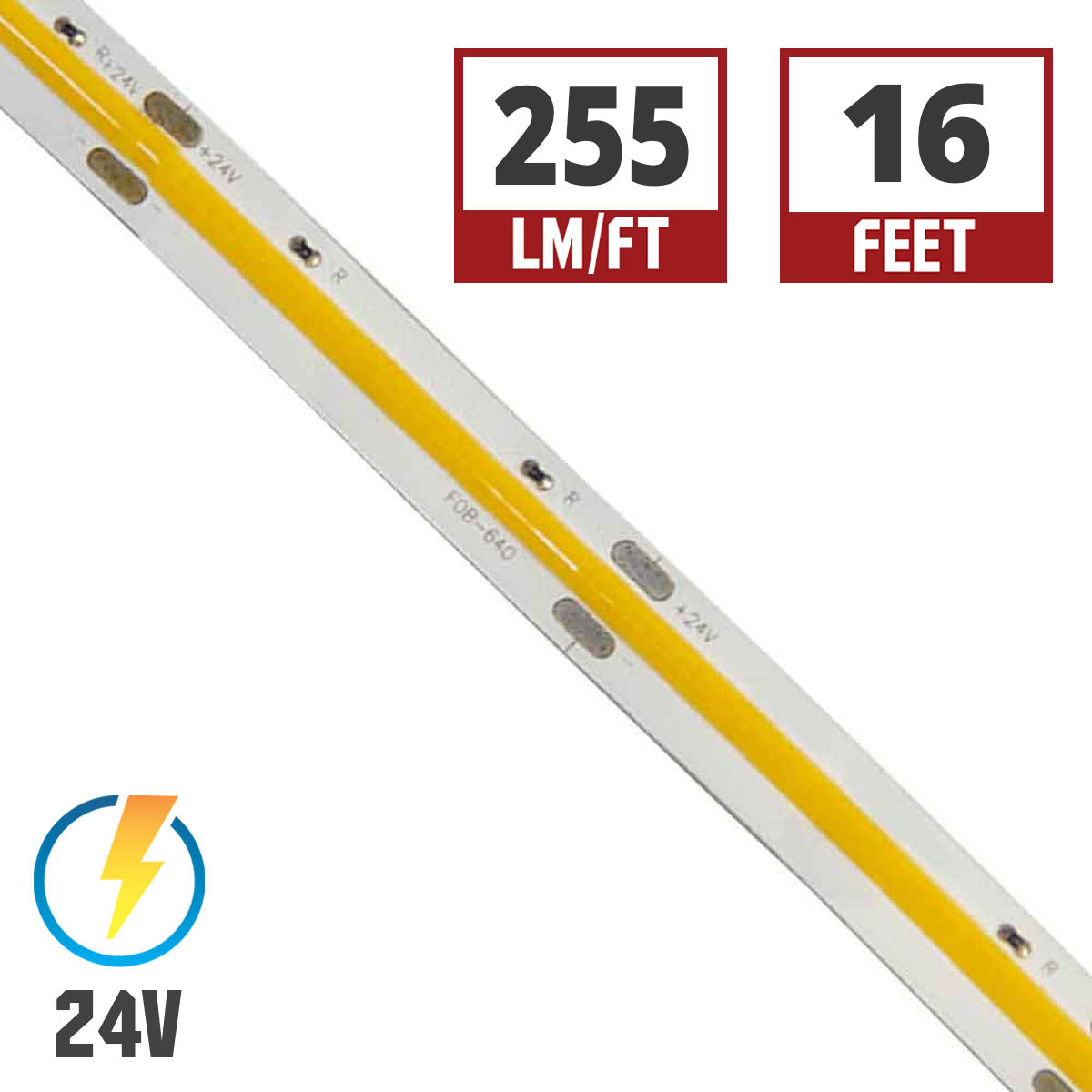

Premium COB LED tape light delivering seamless, dotless illumination for professional lighting installations. The LTR-S-COB-24V-3.0W-27K-16 features tightly spaced diodes encapsulated into a single phosphor strip, providing a continuous linear light display with no LED pixelation—ideal for under cabinet, cove, accent, and architectural lighting applications.
Key Features
- Dotless COB Technology: Chip-on-board design eliminates visible LED spots for seamless linear illumination
- High-Efficiency Output: 255 lumens per foot at 2700K warm white color temperature
- Superior Color Rendering: 95+ CRI for accurate, vibrant color reproduction
- Flexible Installation: 156 LEDs per foot, cuttable every 2" for precise customization
- Wide Viewing Angle: 180° beam spread for uniform light distribution
- Full Dimming Control: Compatible with GM's LUXcontrol® App and standard controllers
- UL Listed & Class 2 Rated: Title 24 compliant when used with specific drivers
- Professional Grade: 3M adhesive backing, includes Sure-Tite connectors
- Extended Warranty: 5-year coverage when paired with GM power supply
Technical Specifications
- Model: LTR-S-COB-24V-3.0W-27K-16

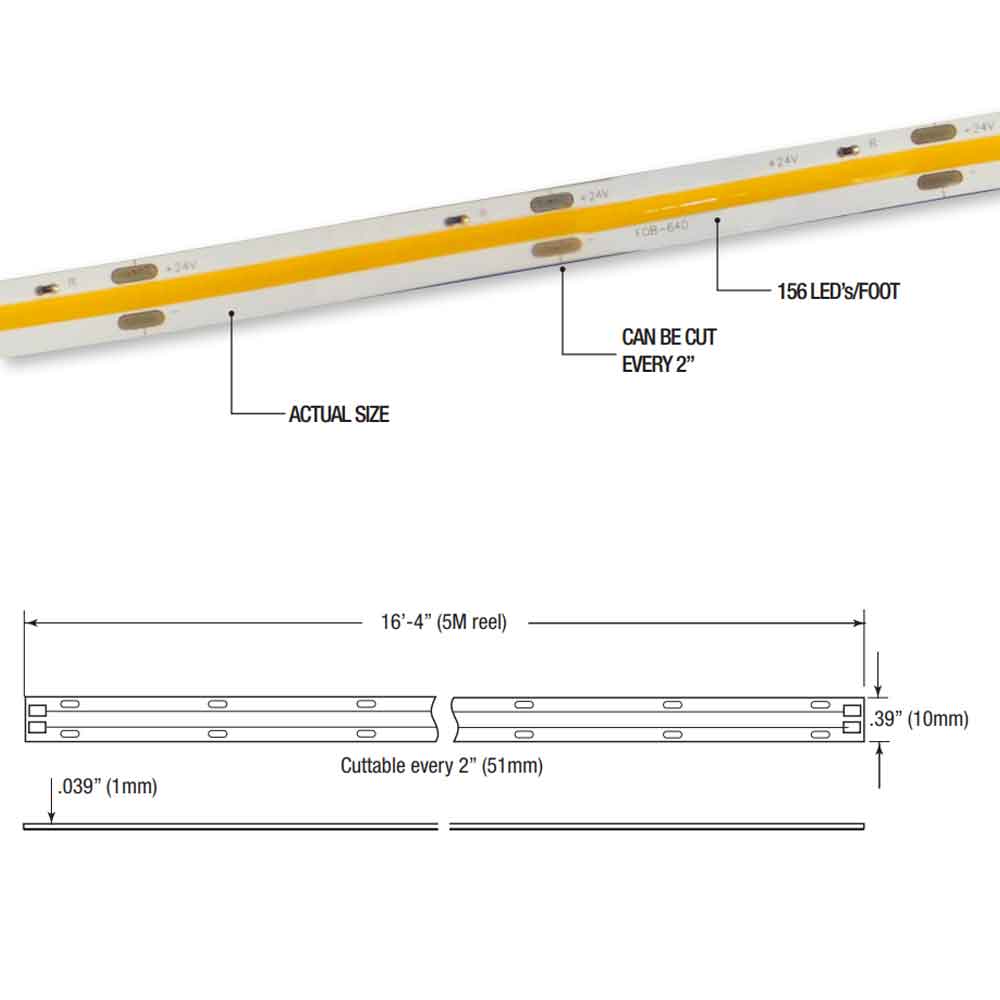

- Length: 16'-4" reel includes 48" lead affixed to tape and (3) ESTW-60 Sure-Tite connectors
- Power: 24VDC, 3 watts per foot
- Color Temperature: 2700K warm white
- Luminous Output: 255 lumens per foot
- CRI: 95+
- LED Density: 156 LEDs per foot
- Viewing Angle: 180°
- Operating Temperature: -4°F to 122°F
- Maximum Run Length: 32'-8" on a given load
- Cut Interval: Every 2"
- Mounting: 3M adhesive back, dry location rated
- Certifications: UL Listed, Closet Rated (NEC code NFF470 410.16), Title 24 compliant with specific drivers
Applications

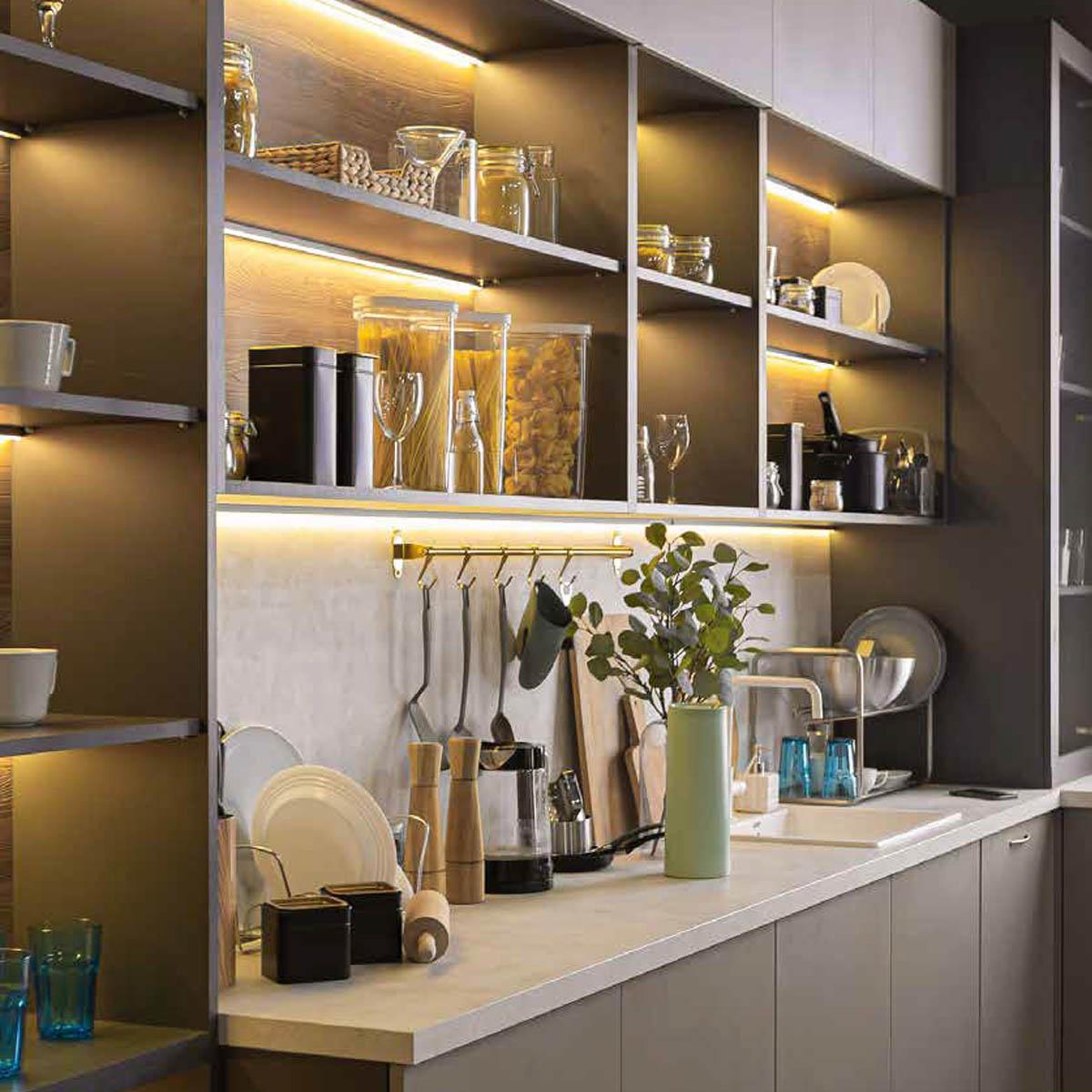

- Under cabinet and task lighting in kitchens and workspaces

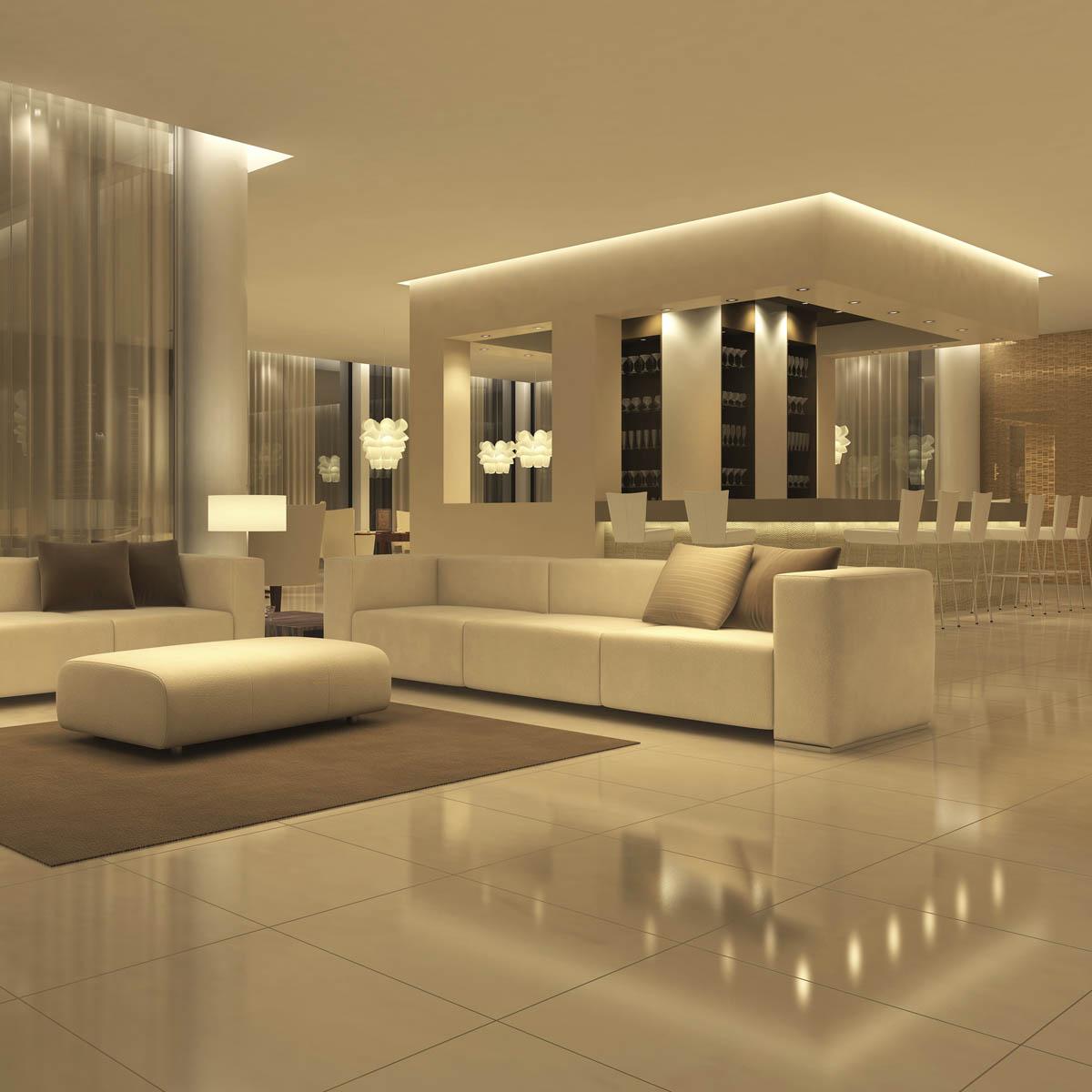

- Cove and indirect architectural lighting
- Display case and retail merchandising illumination
- Accent lighting for shelving, niches, and alcoves
- Hospitality and residential ambient lighting
- Closet and storage space lighting (NEC compliant)
Note: Requires compatible 24V LED driver (sold separately). Consult factory for Title 24 compliance and driver pairing recommendations. Remote control available via GM's LUXcontrol® App and compatible controllers.
Specifications
Specifications
Dimensions
Length/Depth
192 in
Width/Diameter
0.4 in
Height
0.04 in
Weight
0.25 lb
Documents
Characteristics & Features
Lamp Color
2700K
Color Rendering
95 CRI
Beam Angle
180
Dimmable
Yes
Electrical Information
Voltage
24V
Item Details
SKU
LTR-S-COB-24V-3.0W-27K-16
Brand
GM Lighting
Family
LTR S COB
UPC
849951014359
Warranty & Certifications
Product Warranty
5 Years
Product Rating
Dry Rated
Frequently Asked Questions
Can I cut LED strip lights to a specific length?
Can I cut LED strip lights to a specific length?
Yes, LED strip lights are designed to be cut to length at designated points, typically marked by a small black line or scissor icon every few inches. Cutting at these marks will ensure the electrical circuit remains functional.
What is the main difference between 12V and 24V LED strip lights?
What is the main difference between 12V and 24V LED strip lights?
The main difference is the maximum run length. 24V LED strip lights can run longer distances (typically up to 60 feet) before experiencing noticeable voltage drop, while 12V LED strip lights are best used for shorter, simpler applications (up to 30 feet).
What is the benefit of COB LED Strip Lights over SMD strips?
What is the benefit of COB LED Strip Lights over SMD strips?
COB LED Strip Lights use Chip-on-Board technology, which packs the LEDs tightly together to produce a single, continuous line of light. This eliminates the individual "dots" or "hot spots" visible in standard SMD LED tape light, creating a cleaner aesthetic.
Do all LED strip lights require an external driver?
Do all LED strip lights require an external driver?
Only low-voltage LED strip lights (12V and 24V) require an external power supply or LED driver to convert 120V house power down to a safe working voltage. 120V LED Strip Lights connect directly to the wall outlet and do not require an external driver.
How do I install my flexible LED strip for a clean, professional look?
How do I install my flexible LED strip for a clean, professional look?
For the cleanest appearance, mount your flexible LED strip inside an aluminum channel with a frosted diffuser. This provides better heat dissipation, protects the strip, and turns the segmented light into a smooth, continuous line of strip lighting.
