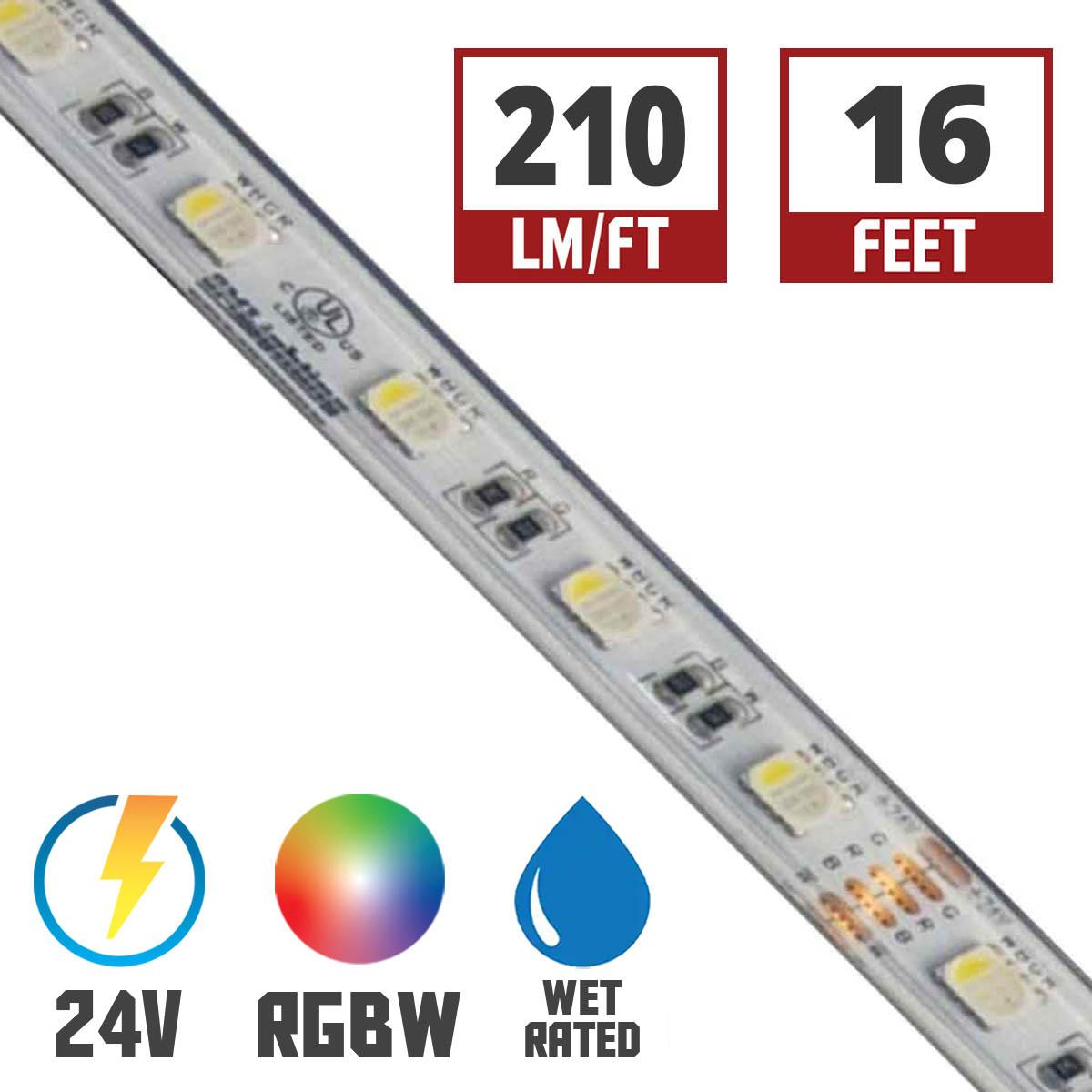

GM Lighting LTR-S SPEC 16'-4' LED Tape Light, Wet Rated, RGBW, 210 Lumens/ft, 24V
In stock
About this item
About this item
- Color Technology: RGBW with 3000K white for versatile color and brightness control.
- Voltage & Power: Operates at 24V with 3W per foot for efficient energy use.
- Max Run: Maximum continuous run length of 32'-8' to prevent voltage drop.
- Cuttable Increments: Field cuttable every 4' for custom installations.
- Wet Location Rated: Designed for outdoor use with a protective silicone sheath.
We process payments securely and do not store credit card information.
Description
Description

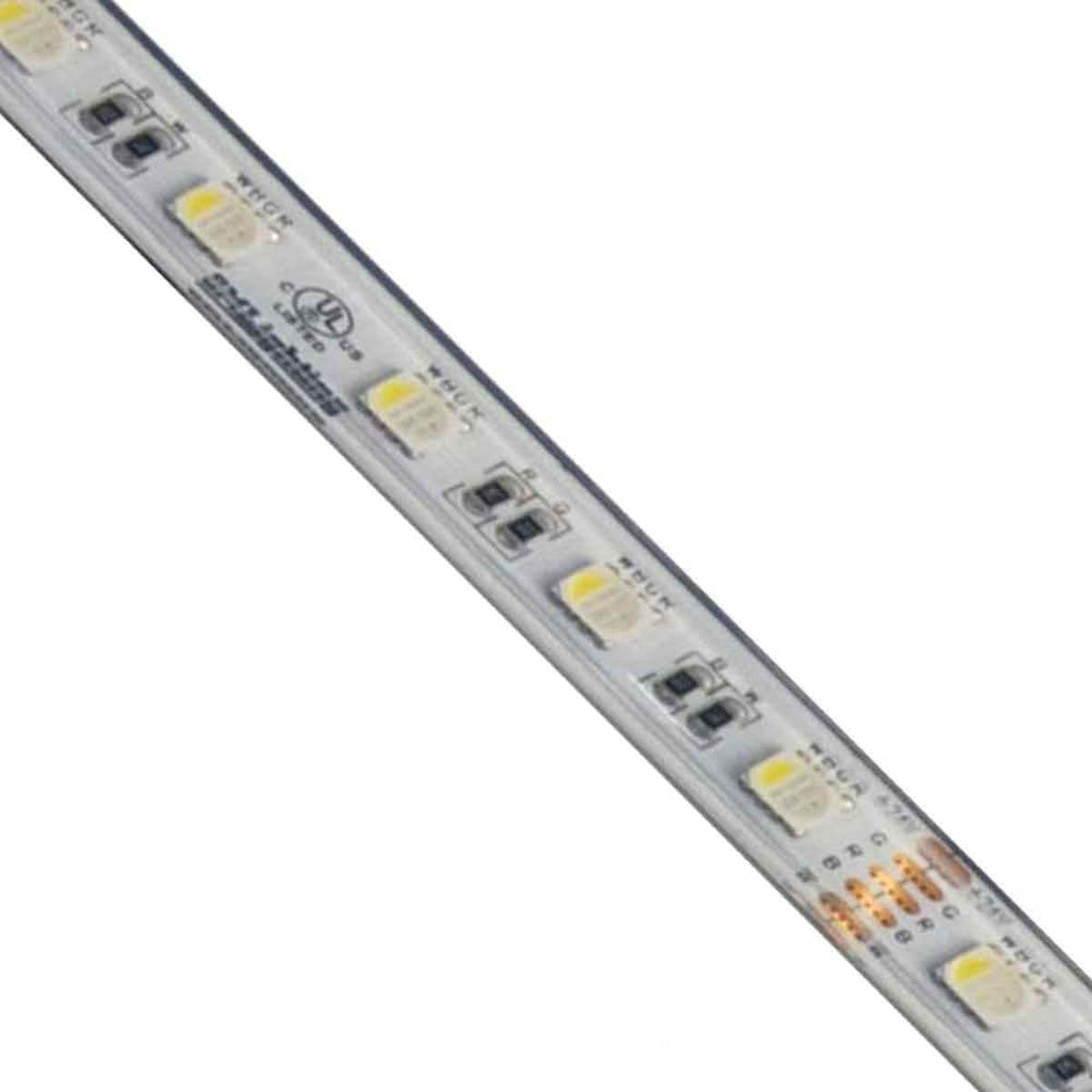

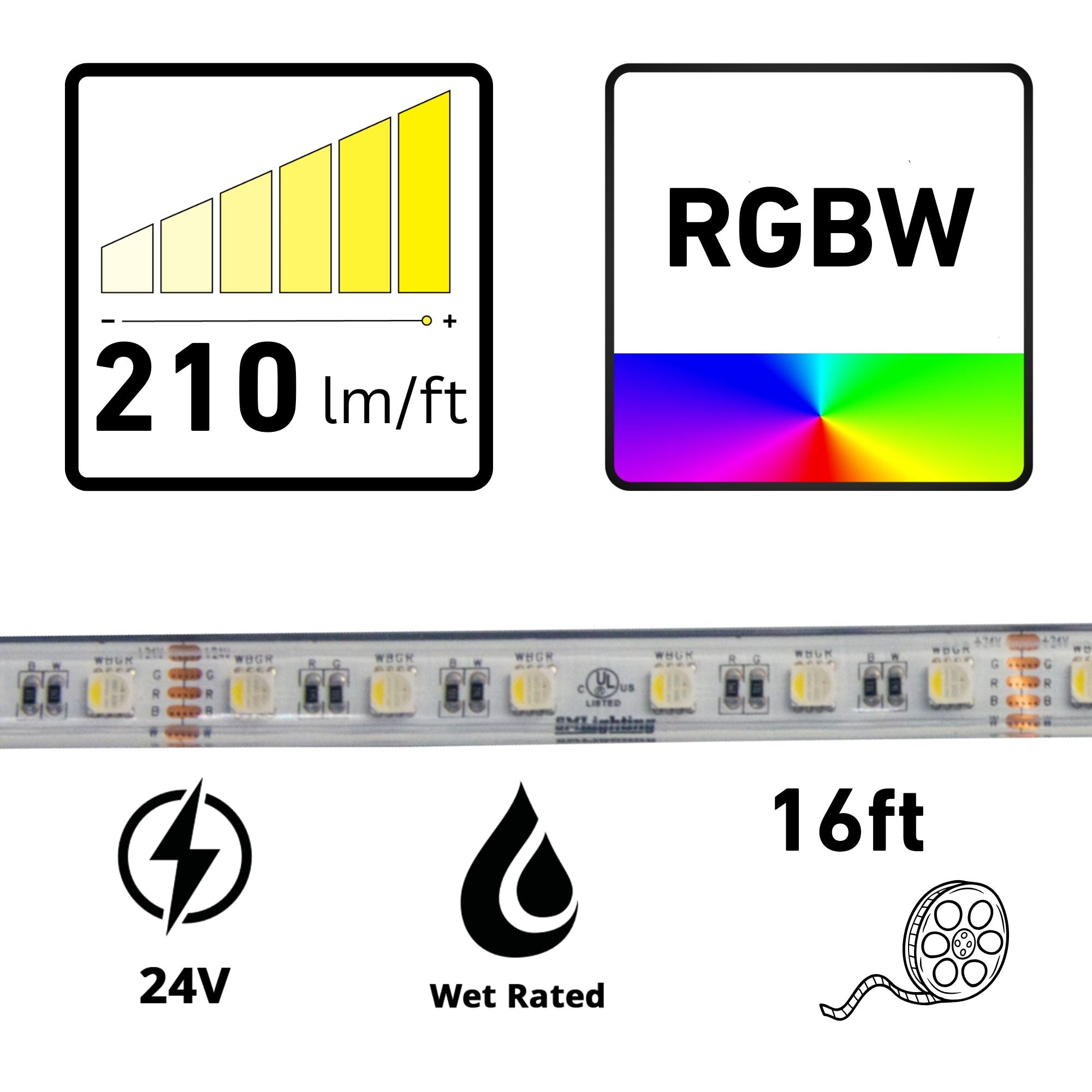

GM Lighting LTR-S SPEC LED Tape Light — RGBW & Wet Rated
The GM Lighting LTR-S-24V-WP-3.0W-RGBW-16 is a high-performance LED tape light designed for wet locations, offering vibrant RGBW color capabilities. This 16'-4' tape light operates at 24V and is ideal for outdoor applications. With a power consumption of 3W per foot, it provides efficient lighting solutions for various environments.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: 3W per foot for energy-efficient operation.
- Lumens: 210 lumens per foot in 3000K mode for bright illumination.
- LED Density: 60 LEDs per meter for uniform light distribution.
- Max Run Length: 32'-8' to ensure optimal performance without voltage drop.

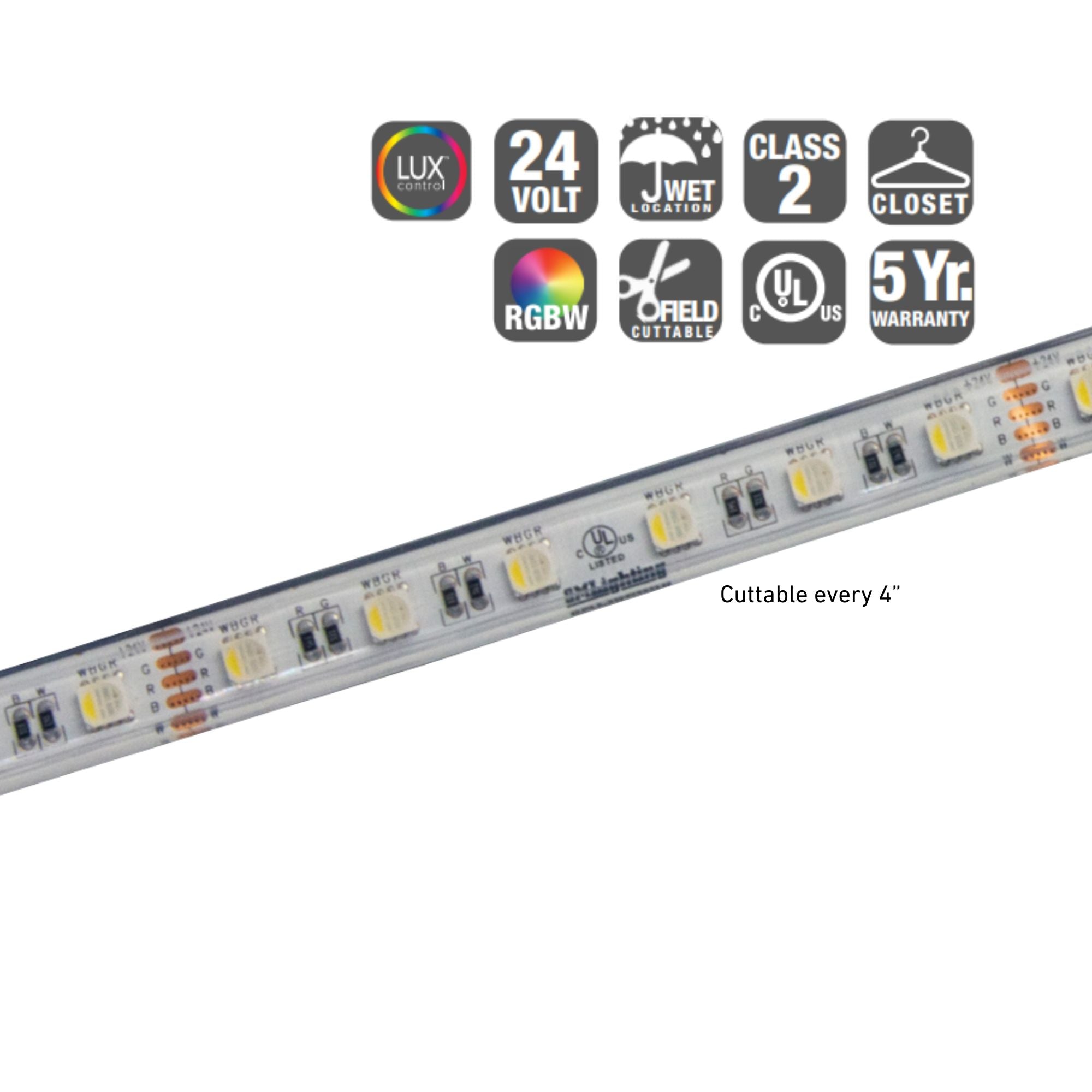

- Cuttable: Every 4' for tailored installations.

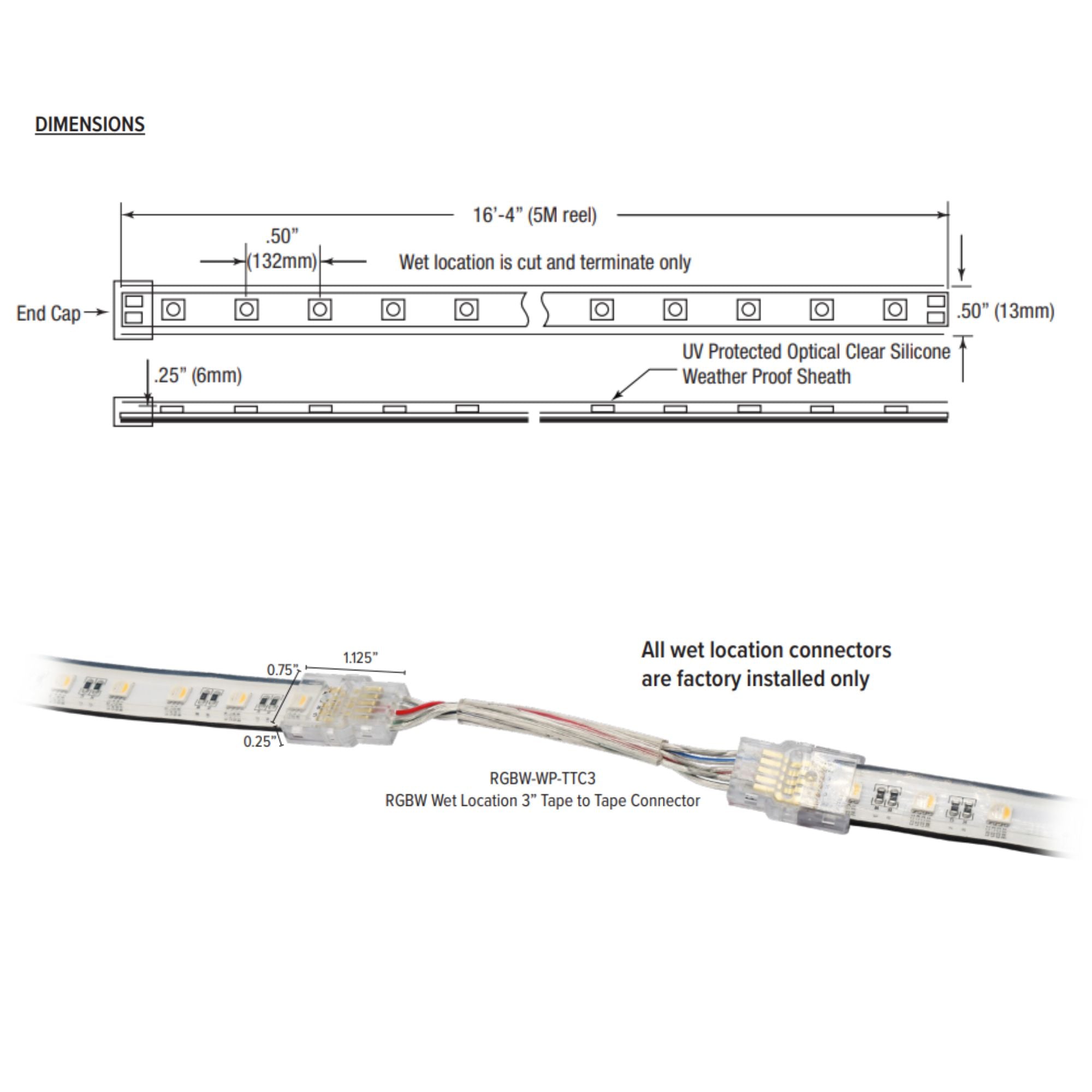

- PCB Width: 0.25' (6mm) for compatibility with various channels.
- Beam Angle: 120° for wide light coverage.
- IP Rating: Wet location rated for outdoor use.
- Certifications: UL, Class 2, Closet Rated for safety and compliance.
Core Design & Construction

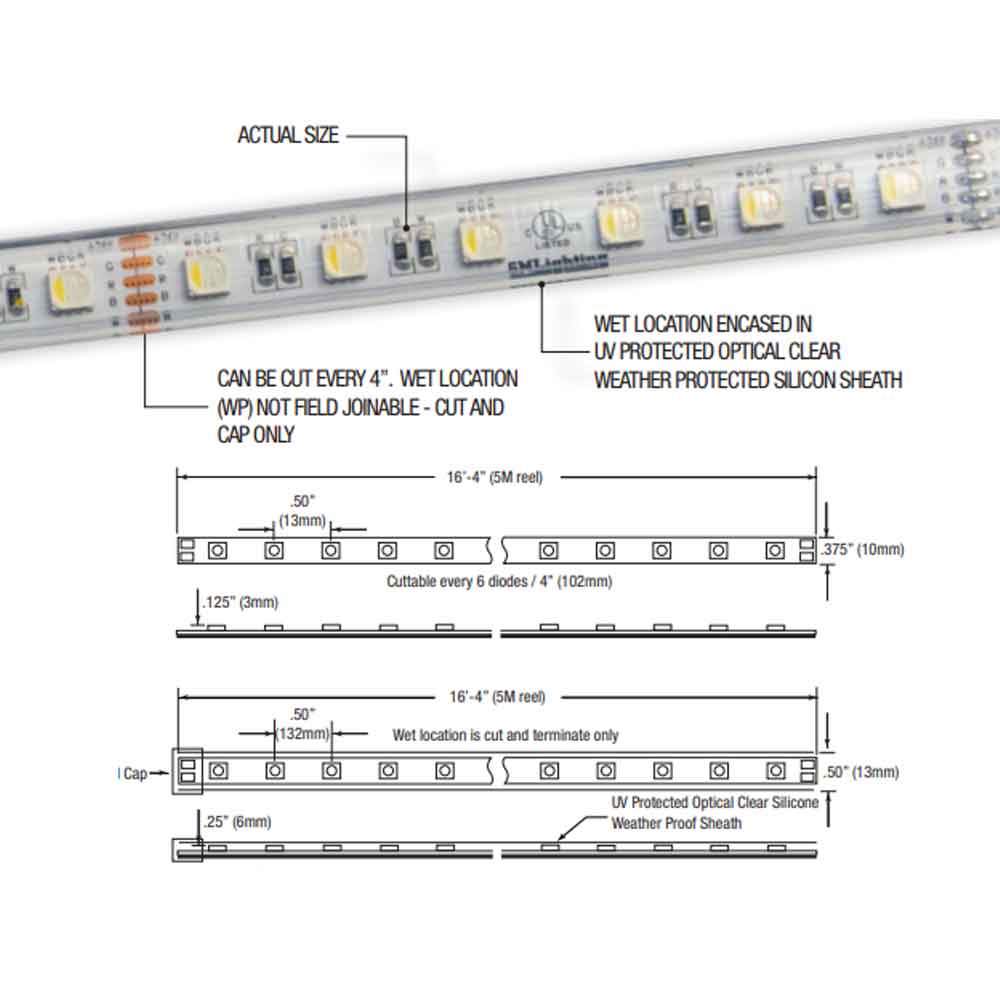

The tape light features a 0.25' wide PCB, ensuring compatibility with standard channels. It is encased in a UV-protected optical clear silicone sheath, providing durability and weather resistance. The 3M adhesive backing facilitates easy installation on various surfaces.
LED Illumination & Performance
With 210 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The RGBW light engine allows for a broad spectrum of colors, including a 3000K white light option for general lighting needs.
Power, Wiring & Installation
This tape light requires a 24V non-dimmable power supply. It is field cuttable every 4', allowing for customized lengths. The maximum continuous run is 32'-8', and it supports dimmability for versatile lighting control.

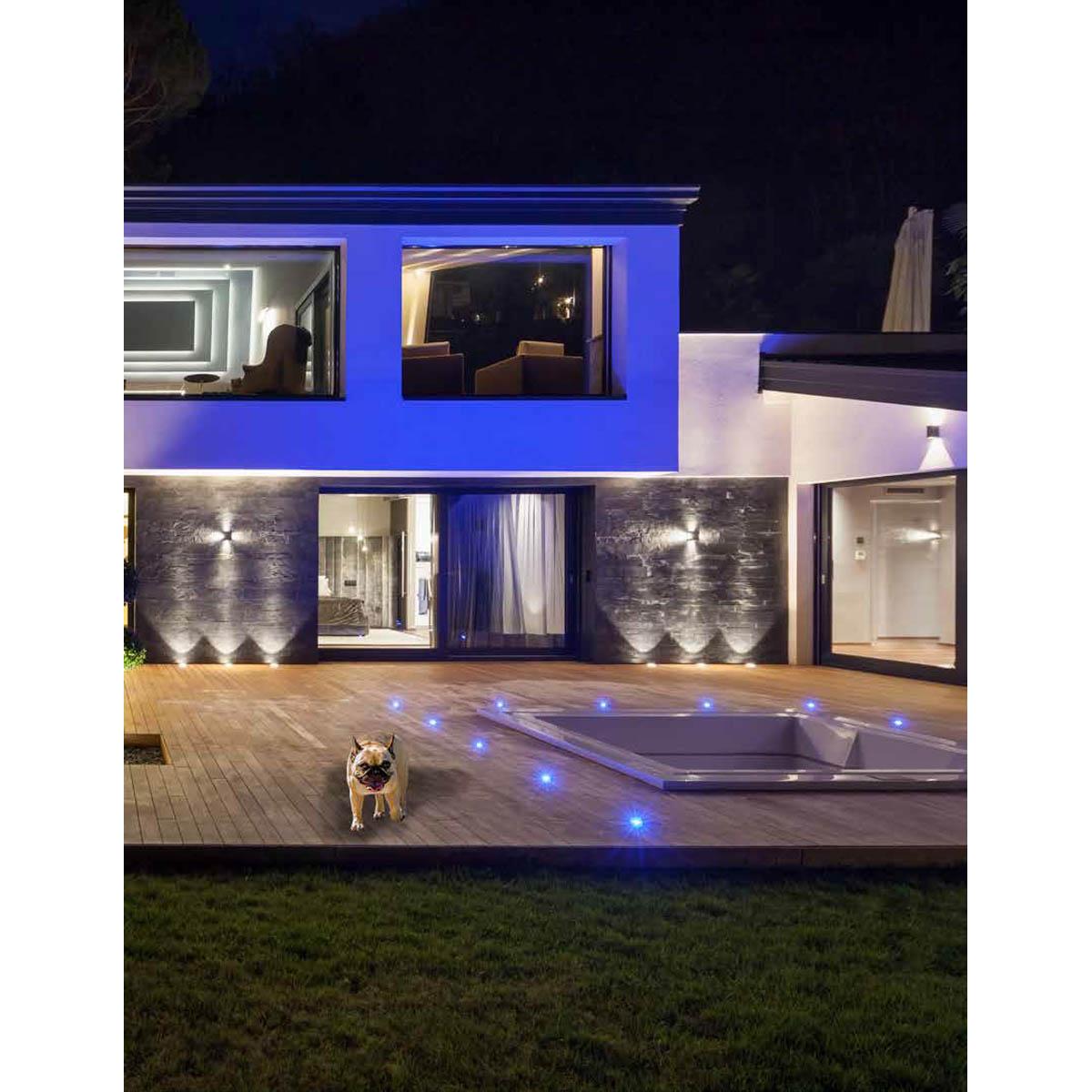

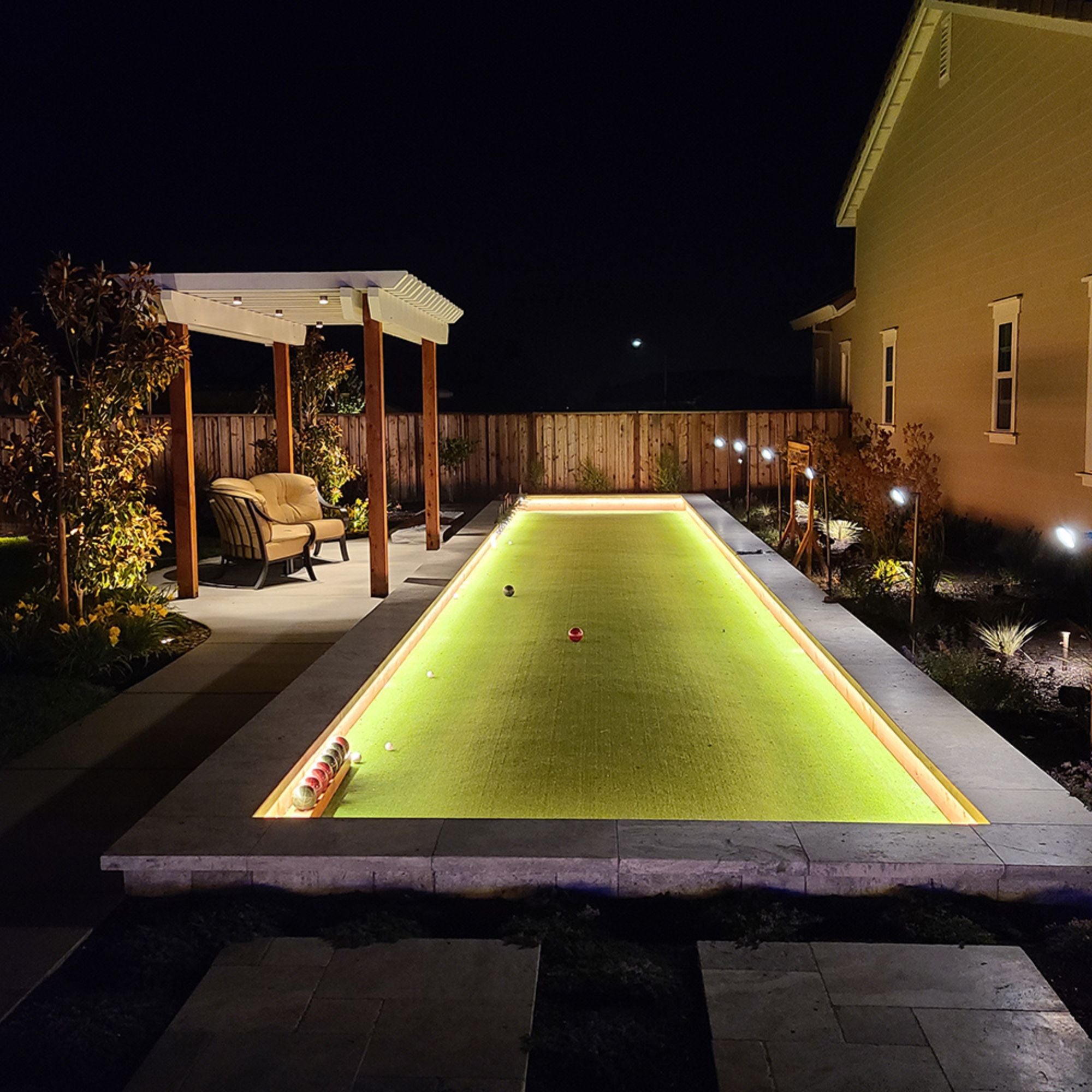

Where This Tape Works Best
- Outdoor pathways
- Architectural accents
- Garden lighting

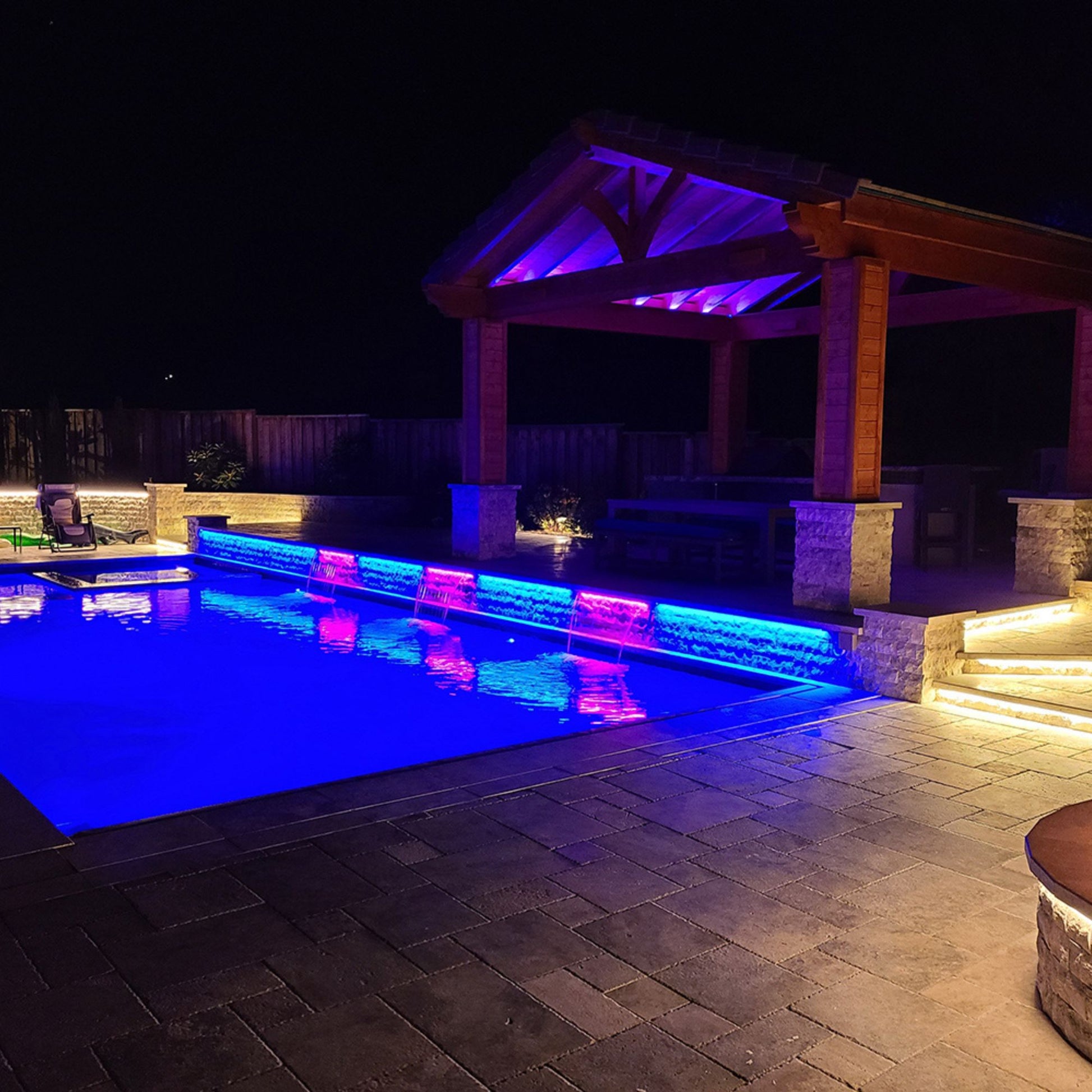

- Poolside illumination
What's Included
- 16'-4' reel of LED tape light
- 24' lead affixed to tape
- Cut and cap kit
