GM Lighting LTR-S SPEC, 16'-4 in. LED Tape Light, 4000K, 483 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Provides a crisp 4000K light, ideal for task lighting.
- Voltage: Operates at 24V, requiring a compatible power supply.
- Max Run: Maximum continuous run of 16'-4 in. to prevent voltage drop.
- Cuttable: Field cuttable every 1 in. for custom installations.
- PCB Width: 10mm width ensures compatibility with standard channels.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 4000K & High CRI
The GM Lighting LTR-S-24V-5.8W-40K-16 is a high-performance LED tape light designed for architectural-grade applications. This 16'-4 in. tape light operates at 24V and is Dry Rated, making it suitable for indoor environments. With a color temperature of 4000K and a high CRI of 95+, it delivers superior color rendering and brightness.
Key Features
- Voltage: 24V DC operation for efficient power use.
- Wattage: Consumes 5.8 watts per foot.
- Lumens: Delivers 483 lumens per foot for bright illumination.
- LED Density: 72 LEDs per foot for uniform light distribution.
- Max Run: 16'-4 in. maximum run to prevent voltage drop.
- Cuttable: Can be cut every 1 in. for precise length adjustments.
- PCB Width: 10mm width for easy installation in channels.
- Beam Angle: 120° for wide light dispersion.
- Certifications: UL Listed, Title 24 compliant with specific drivers.

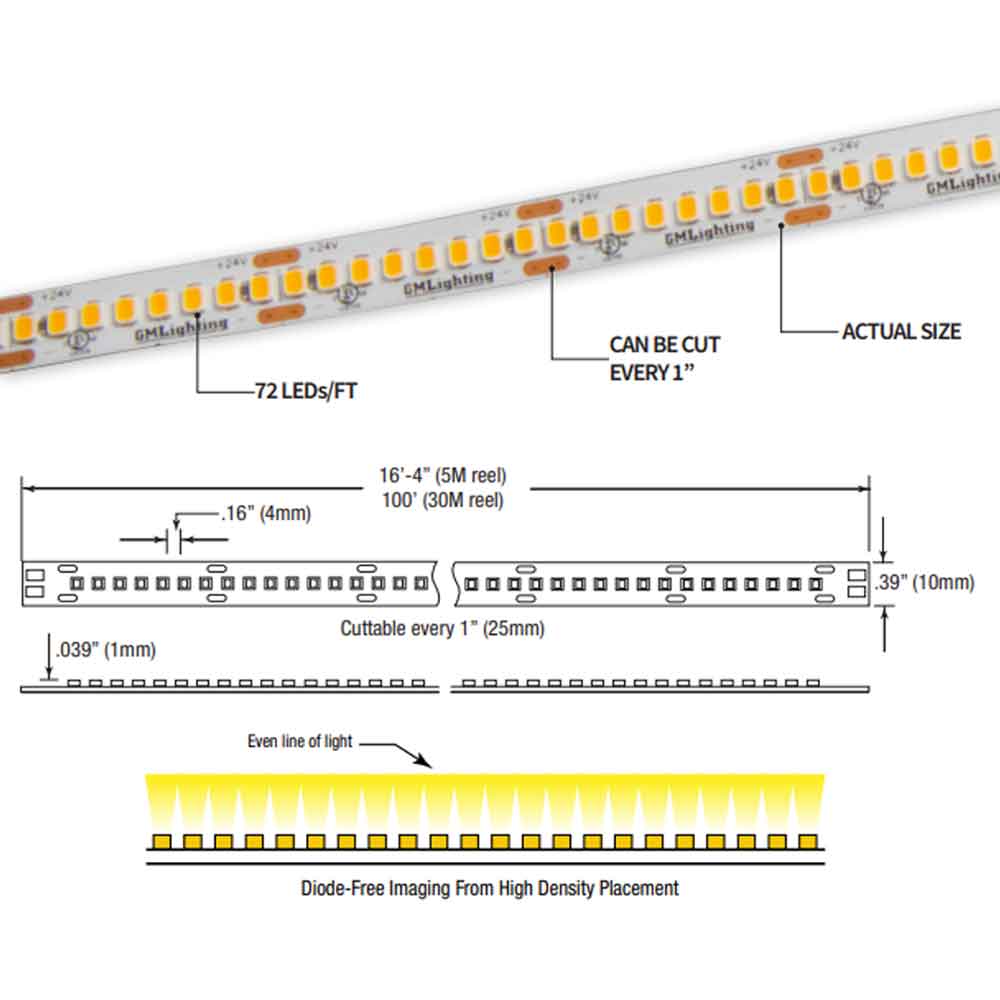

Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with standard aluminum channels. It includes a 3M adhesive backing for secure mounting and is designed for dry indoor environments.
LED Illumination & Performance
With 483 lumens per foot and a CRI of 95+, this tape light provides bright, high-quality illumination. The light engine uses premium diodes for consistent color and brightness.
Power, Wiring & Installation
This tape light operates at 24V and requires a compatible driver. It is field cuttable every 1 in., allowing for custom lengths. The maximum continuous run is 16'-4 in. to avoid voltage drop, and it is fully dimmable with compatible controls.

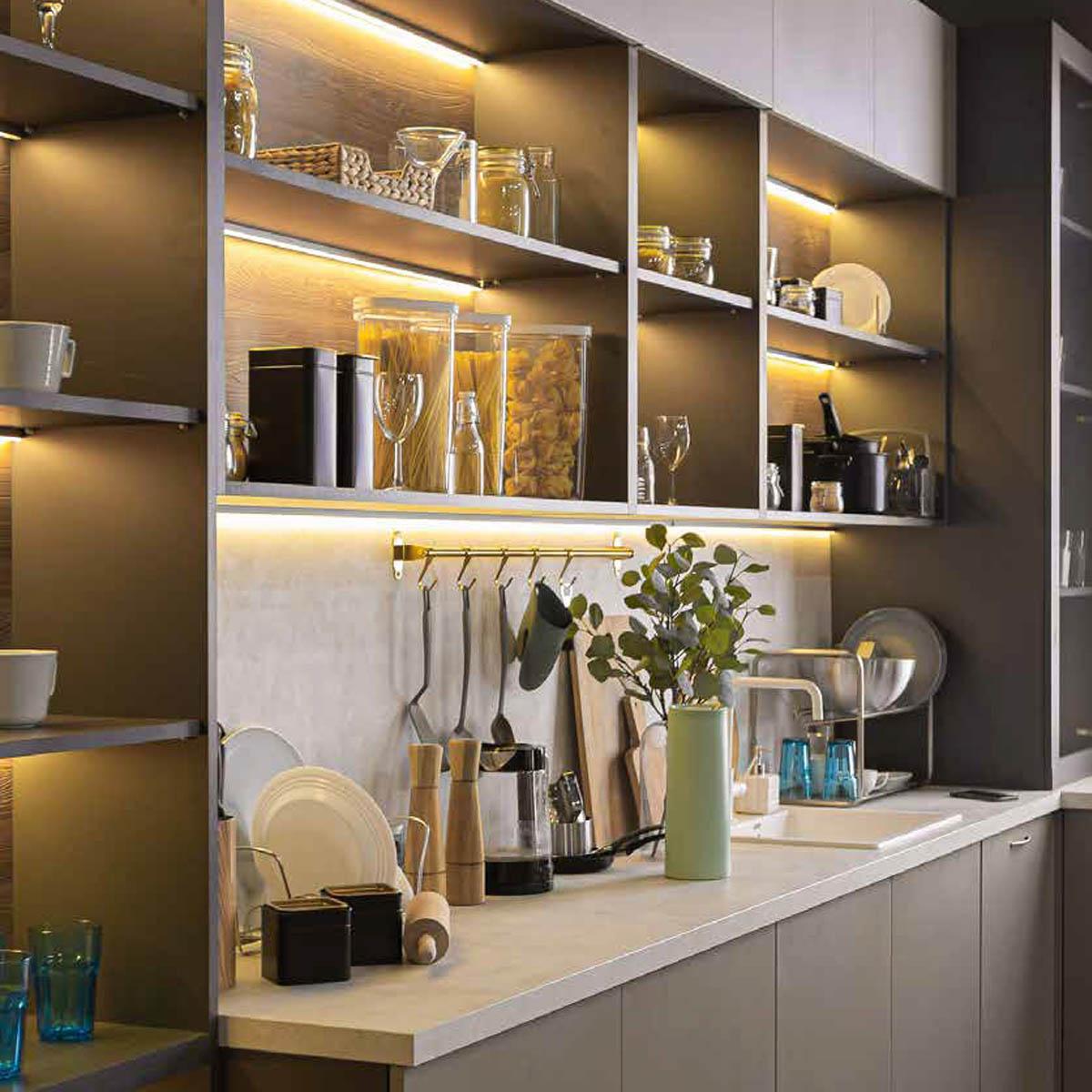

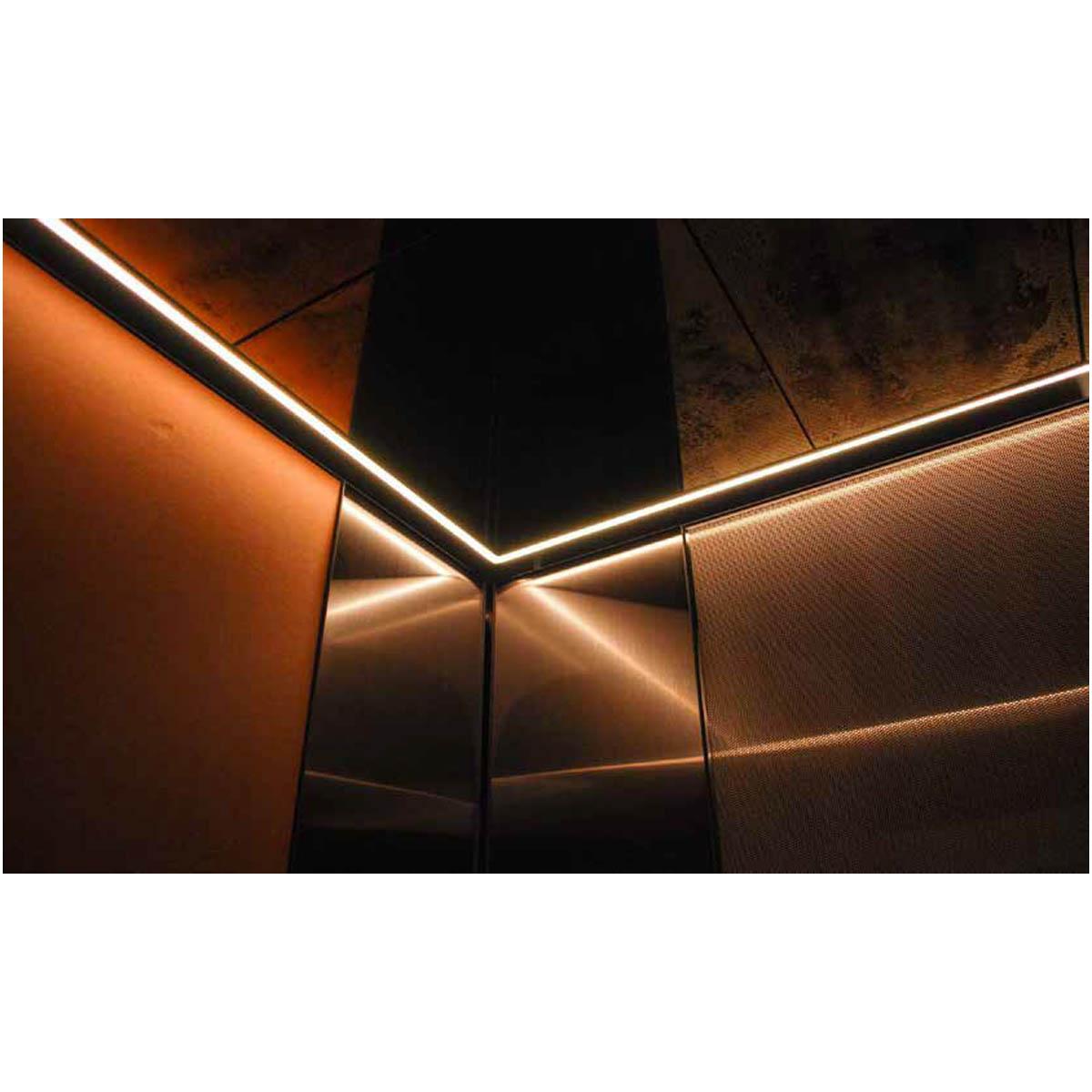

Where This Tape Works Best
- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
- Task lighting
What's Included
- 16'-4 in. reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 24 in. lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-5.8W-40K-16?
What is the maximum run length for the LTR-S-24V-5.8W-40K-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage does the LTR-S-24V-5.8W-40K-16 require?
What voltage does the LTR-S-24V-5.8W-40K-16 require?
Is the LTR-S-24V-5.8W-40K-16 dimmable?
Is the LTR-S-24V-5.8W-40K-16 dimmable?
What is the width of the PCB for this tape light?
What is the width of the PCB for this tape light?
