GM Lighting LTR-S SPEC LED Tape Light — 4000K & High CRI

The GM Lighting LTR-S-24V-5.8W-40K-100 is a high-performance LED tape light offering a crisp 4000K color temperature and 95+ CRI for superior color rendering. This tape light measures 98'-6' in length and operates on 24V DC, making it suitable for dry indoor environments.

Key Features

• Voltage: 24V DC operation for consistent performance.
• Wattage: Consumes 5.8 watts per foot.
• Lumens: Delivers 483 lumens per foot for bright illumination.

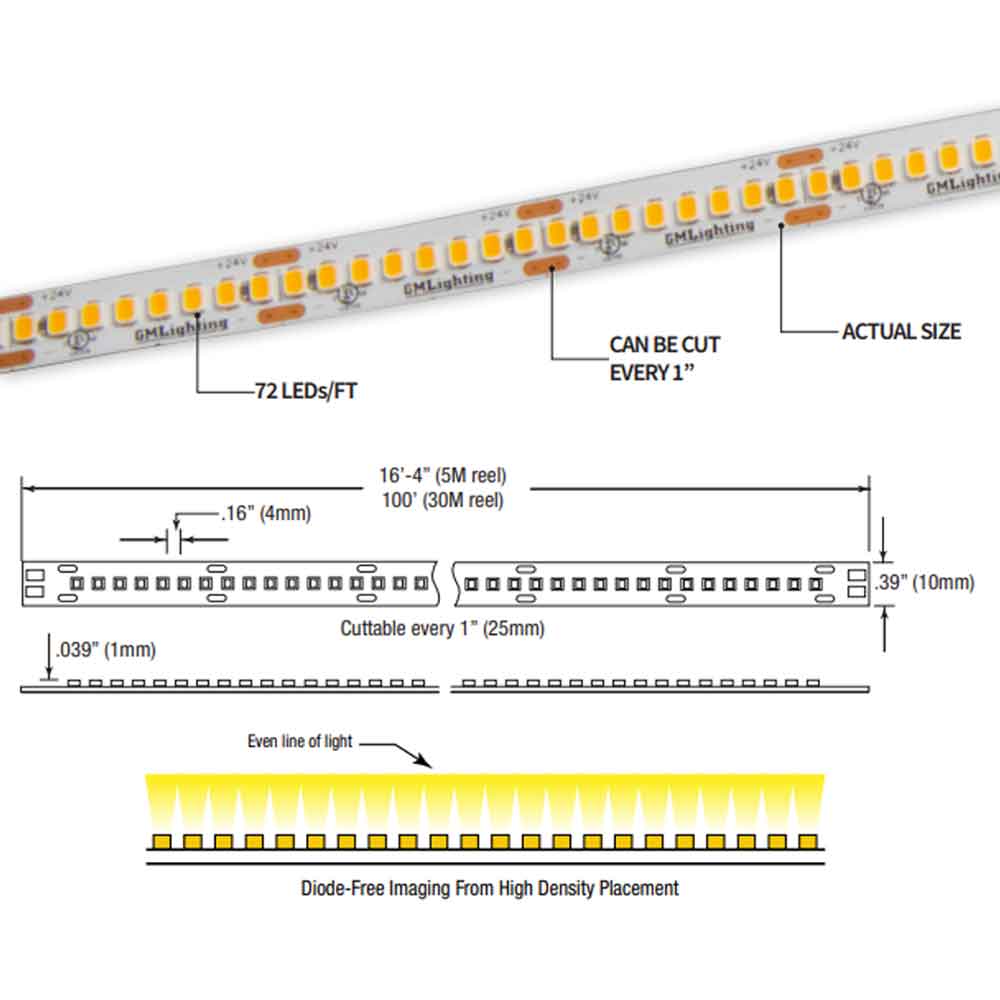

• LED Density: Features 72 LEDs per foot for uniform light distribution.
• Max Run: Maximum continuous run of 16'-4' to prevent voltage drop.
• Cuttable: Can be cut every 1' for precise length adjustments.
• PCB Width: 10mm width for easy installation in standard channels.
• Beam Angle: 120° for wide light distribution.
• Certifications: UL listed and Title 24 compliant with specific drivers.

Core Design & Construction

The tape light features a 10mm wide PCB, ensuring compatibility with a variety of aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry locations.

LED Illumination & Performance

With 483 lumens per foot and a 95+ CRI, this tape light provides high-quality illumination suitable for detailed tasks and accent lighting. The high-density LED placement ensures a smooth, even line of light.

Power, Wiring & Installation

This 24V tape light requires a compatible power supply and is field cuttable every 1'. It supports dimming for adjustable brightness levels and has a maximum run length of 16'-4'.

Where This Tape Works Best

• Under cabinet lighting
• Cove lighting
• Accent lighting
• Display case lighting
• Task lighting

What's Included

• 98'-6' reel of LED tape light
• (10) ESTW-60 Sure-Tite connectors
