GM Lighting LTR-S SPEC, 16'-4' LED Tape Light, 3500K, 438 Lumens/ft, 24V
Hurry up, only 8 items left in stock.
About this item
About this item
- Color Temperature: 3500K provides a neutral white light ideal for various applications.
- Voltage: Operates at 24V DC, requiring a compatible power supply.
- Max Run: Maximum continuous run of 16'-4' to prevent voltage drop.
- Cuttable: Field cuttable every 1' for custom lengths.
- CRI: 95+ CRI ensures superior color rendering for true-to-life colors.
We process payments securely and do not store credit card information.
Description
Description

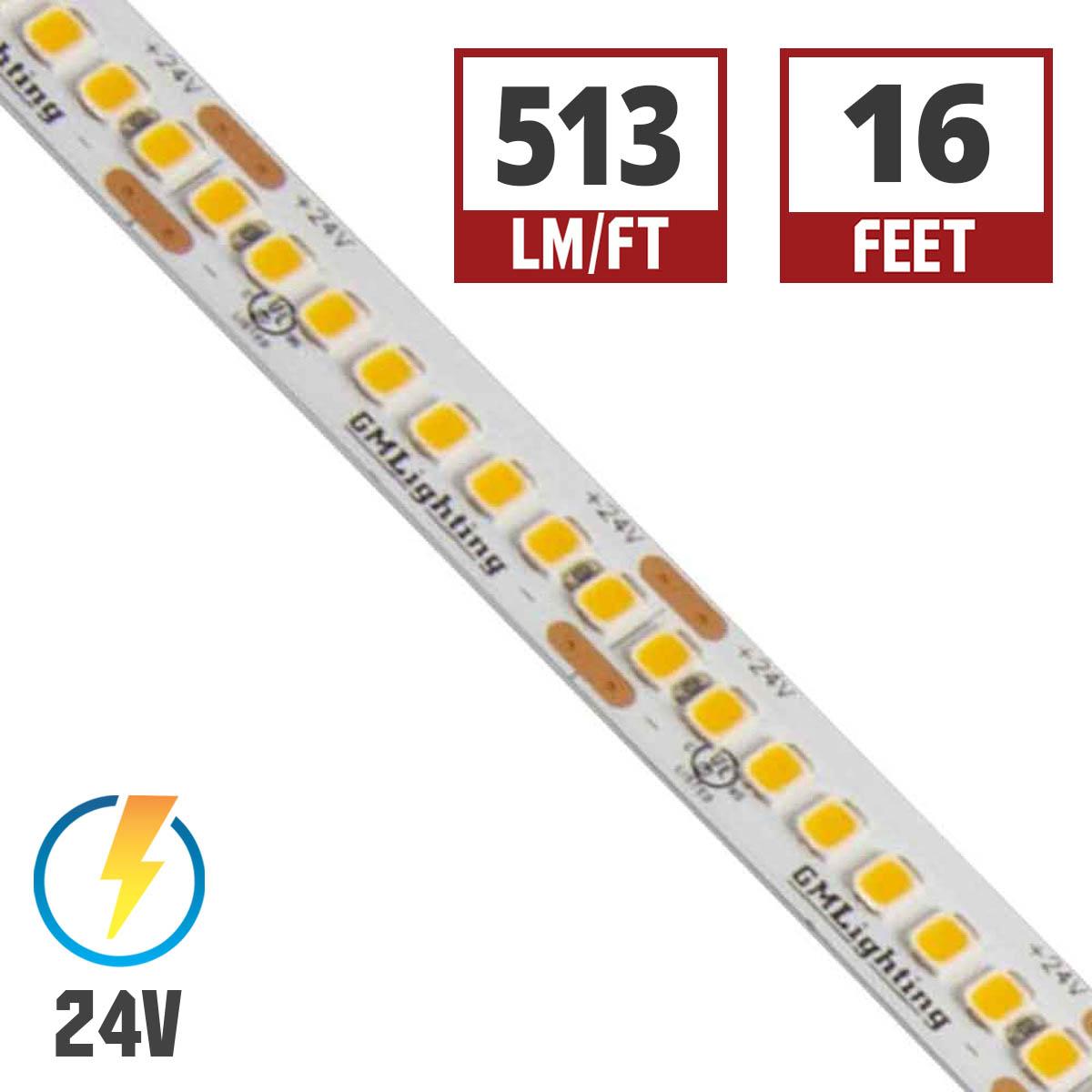

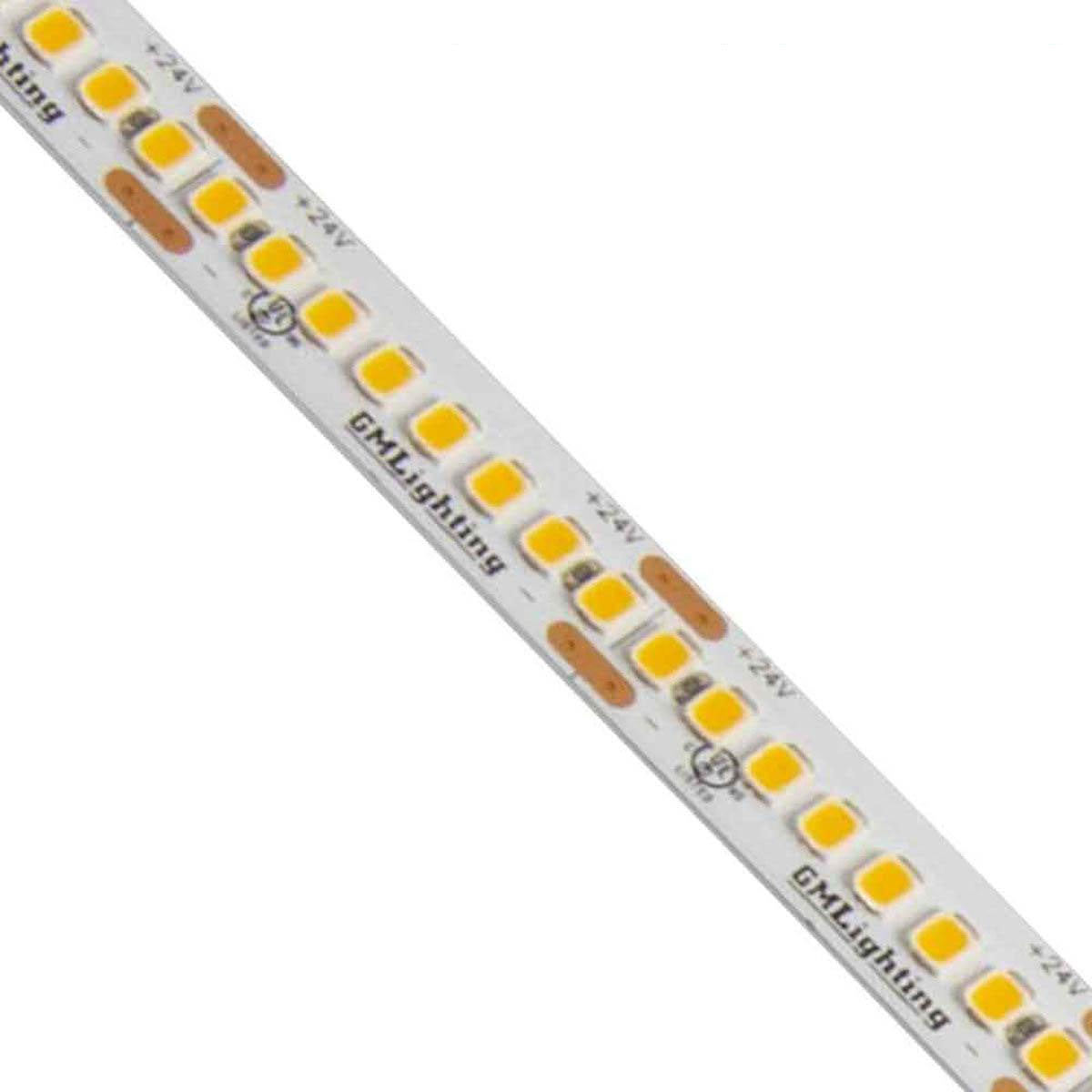

GM Lighting LTR-S SPEC LED Tape Light — 3500K & High CRI
The GM Lighting LTR-S-24V-5.8W-35K-16 is a high-performance LED tape light designed for architectural-grade applications. This 16'-4' tape light operates at 24V DC and is dry rated, making it suitable for indoor environments. With a color temperature of 3500K and a high CRI of 95+, it delivers exceptional light quality.
Key Features
- Voltage: 24V DC operation for efficient power usage.
- Wattage: 5.8 watts per foot for bright illumination.
- Lumens: 438 lumens per foot for high brightness.

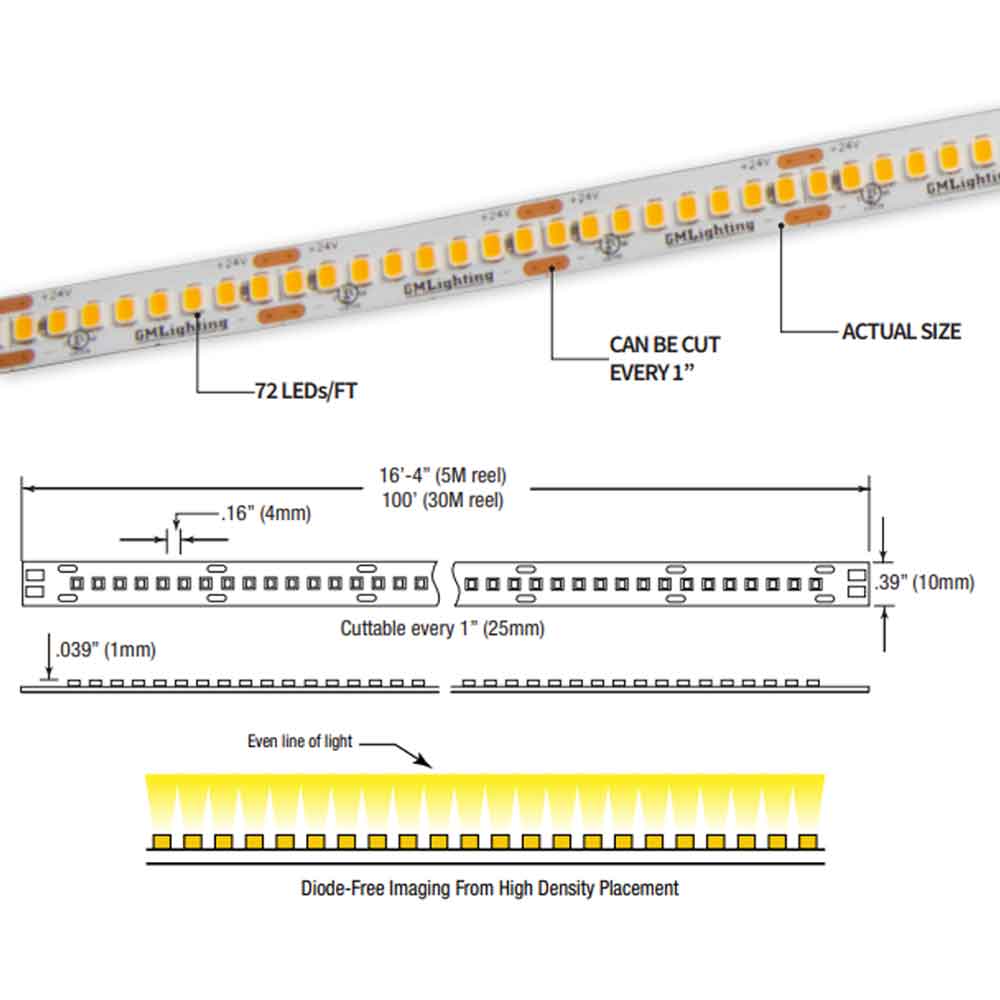

- LED Density: 72 LEDs per foot for uniform light distribution.
- Max Run: 16'-4' to prevent voltage drop.
- Cuttable: Every 1' for custom installations.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light coverage.
- IP Rating: Dry rated for indoor use.
- Certifications: UL, Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive back for easy installation and is designed for dry locations.
LED Illumination & Performance
With 438 lumens per foot and a CRI of 95+, this tape light provides vibrant and accurate color rendering, ideal for detailed tasks and ambient lighting.
Power, Wiring & Installation
Requires a 24V DC power supply. The tape is field cuttable every 1' and supports a maximum continuous run of 16'-4'. It is dimmable for adjustable light levels.
Where This Tape Works Best

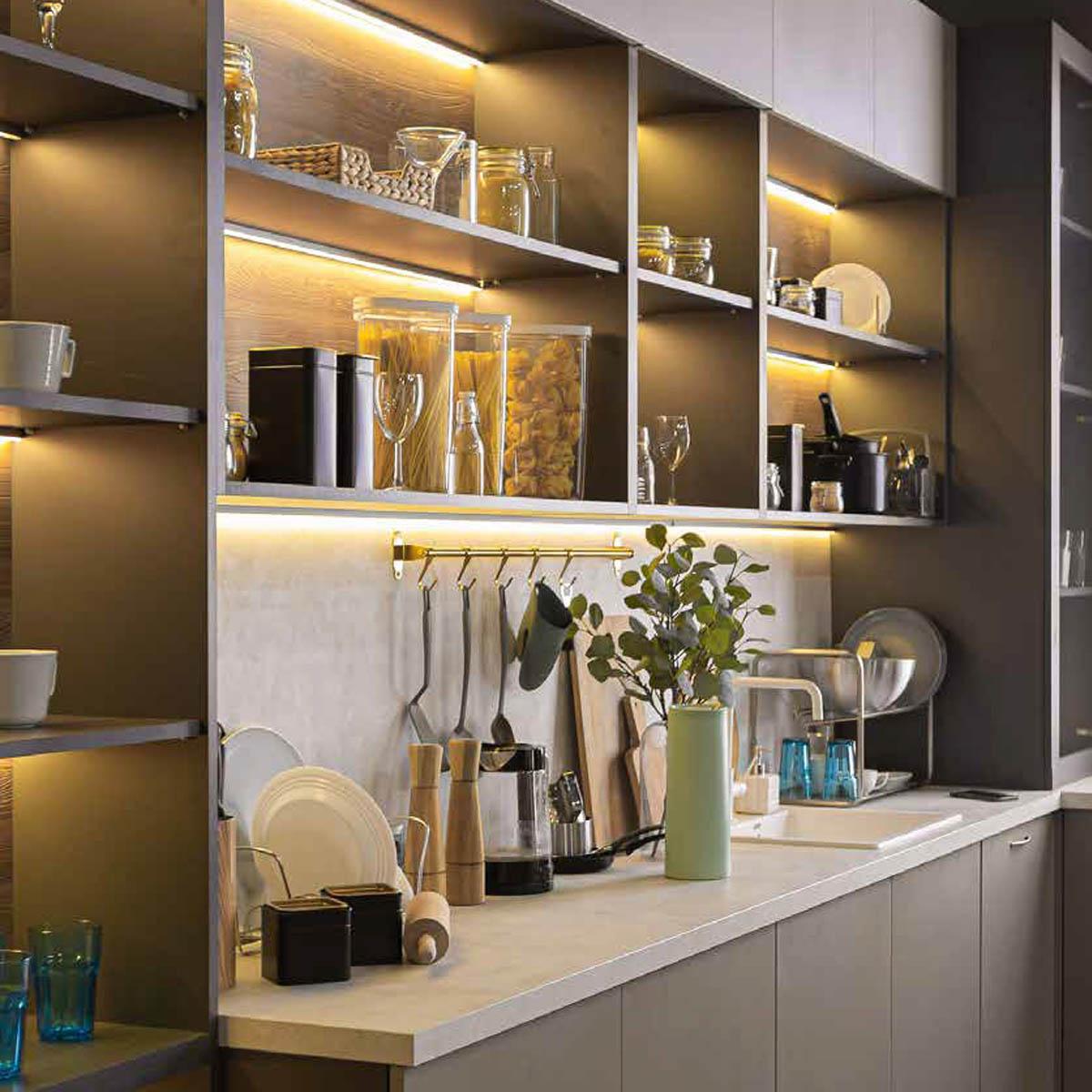

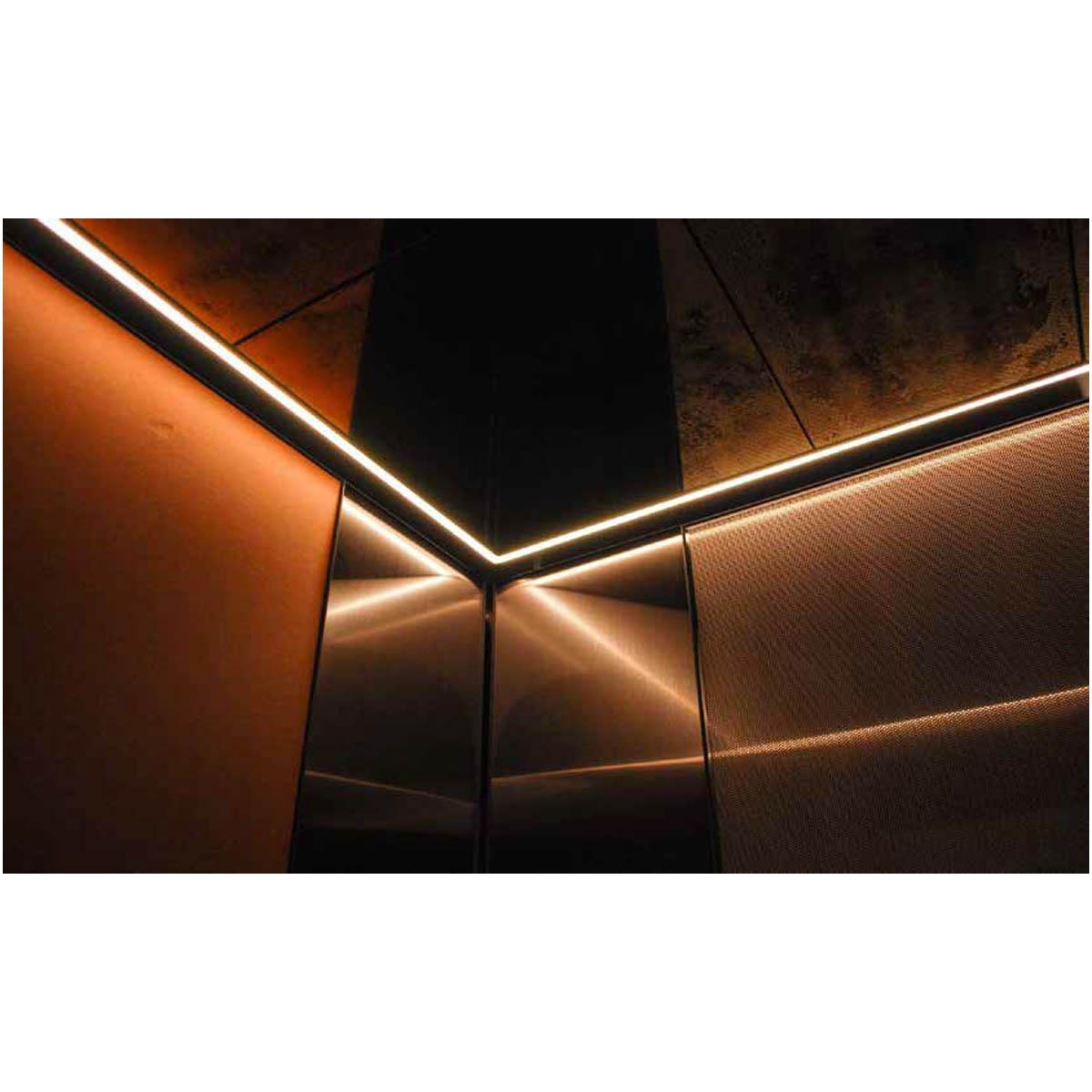

- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' LED tape light
- (3) ESTW-60 Sure-Tite connectors
