GM Lighting LTR-S SPEC 16'-4" LED Tape Light, 3000K, 446 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Emits a warm 3000K light, ideal for creating inviting environments.
- Voltage: Operates on 24V DC, ensuring compatibility with low voltage systems.
- Maximum Run: Capable of a continuous run up to 16'-4" to suit extensive installations.
- Cuttable: Can be precisely cut every 1" for custom lengths.
- CRI: Features a high 95+ CRI for superior color rendering.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 3000K & High CRI
The LTR-S-24V-5.8W-30K-16 is a 16'-4" LED tape light from GM Lighting's Specification Series, designed for high-performance architectural lighting. Operating at 24V DC, this tape light is dry rated and suitable for indoor applications.
Key Features
- Voltage: 24V DC for low voltage applications.
- Wattage: 5.8 watts per foot for powerful illumination.
- Lumens: 446 lumens per foot for bright, efficient lighting.
- LED Density: 72 LEDs per foot for uniform light distribution.
- Maximum Run: 16'-4" to prevent voltage drop.
- Cuttable: Every 1" for precise customization.

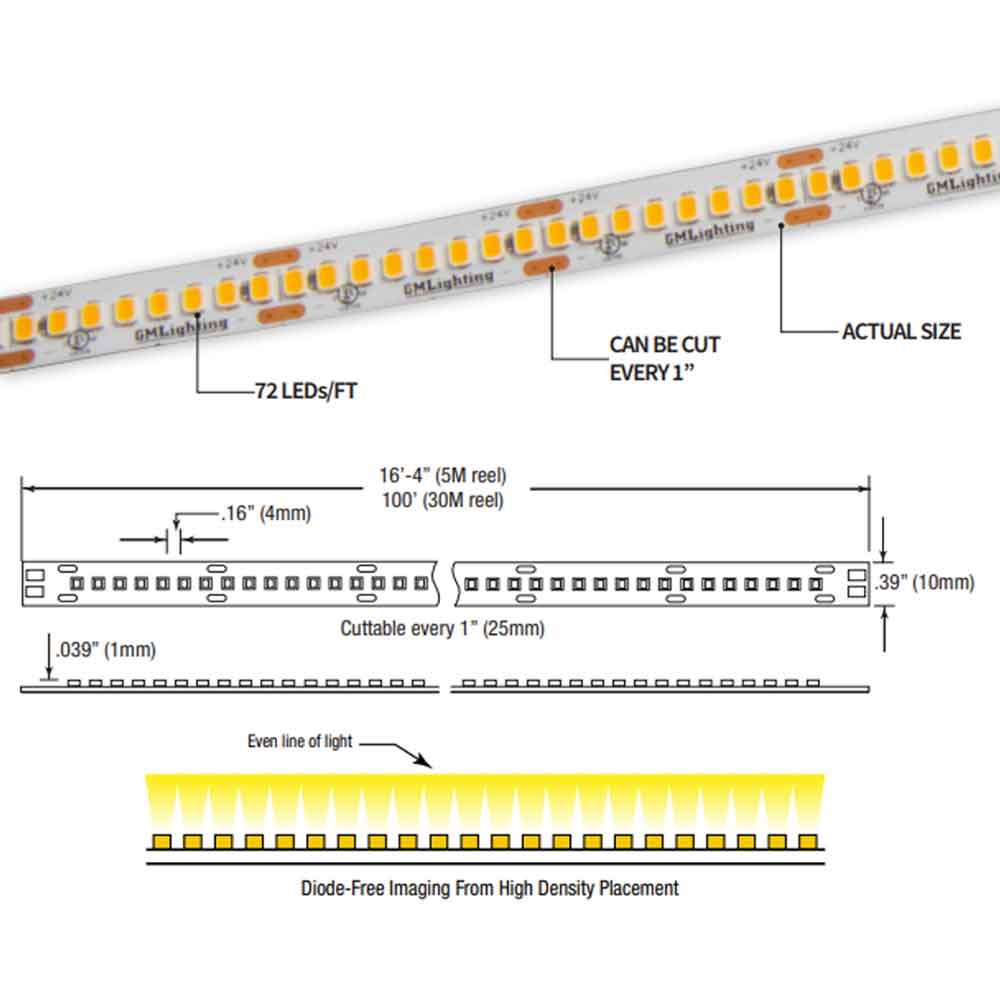

- PCB Width: 10mm, compatible with standard channels.
- Beam Angle: 120° for wide light dispersion.
- CRI: 95+ for excellent color rendering.
- Certifications: UL, Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for secure installation and is dry rated for indoor use.
LED Illumination & Performance
With 446 lumens per foot and a 95+ CRI, this tape light provides bright, high-quality illumination. It uses premium diodes for consistent, even lighting.
Power, Wiring & Installation
Requires a 24V DC driver, sold separately. The tape is cuttable every 1" and supports a maximum run of 16'-4" to avoid voltage drop. It is dimmable for adjustable lighting.

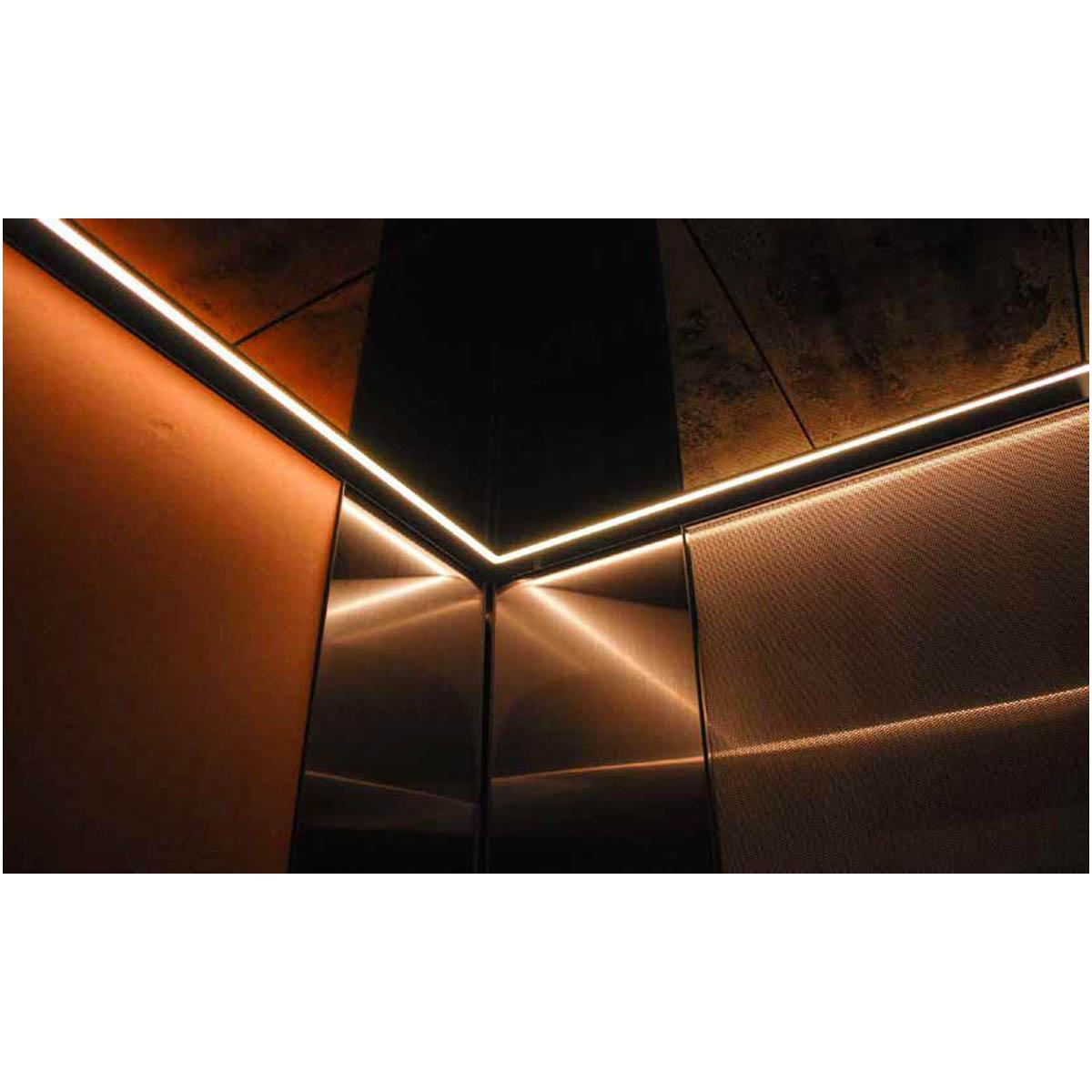

Where This Tape Works Best
- Cove lighting

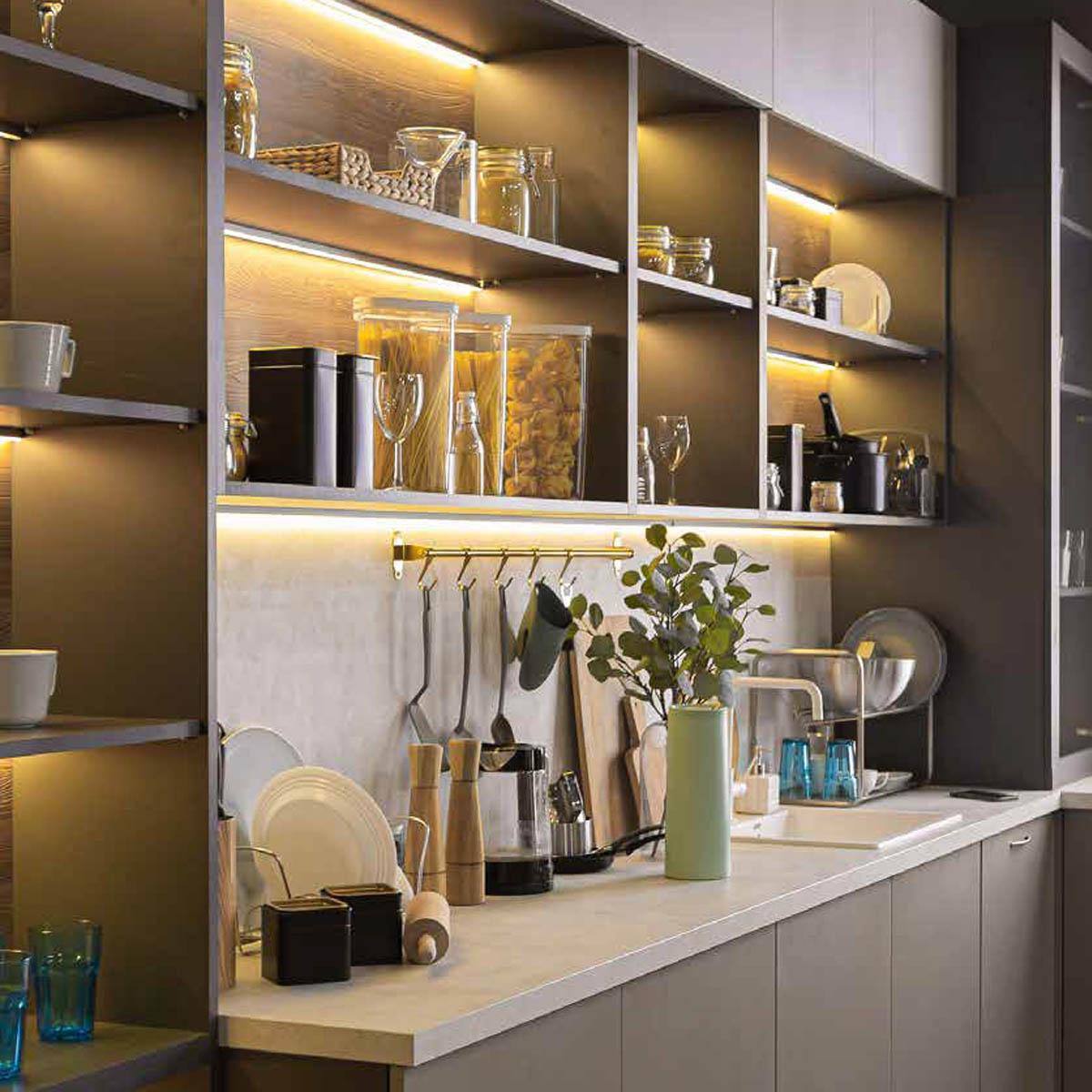

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4" reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
