GM Lighting LTR-S SPEC, 98'-6" LED Tape Light, 3000K, 519 Lumens/ft, 24V
GM Lighting LTR-S SPEC, 98'-6" LED Tape Light, 3000K, 519 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: Provides a warm 3000K light, ideal for creating inviting atmospheres.
- Voltage: Operates at 24V, requiring a compatible power supply for optimal performance.
- Max Run: Maximum continuous run of 16'-4" to prevent voltage drop.
- Cuttable: Field cuttable every 1" for custom lengths and precise installations.
- CRI: High 95+ CRI ensures accurate color rendering for vibrant displays.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

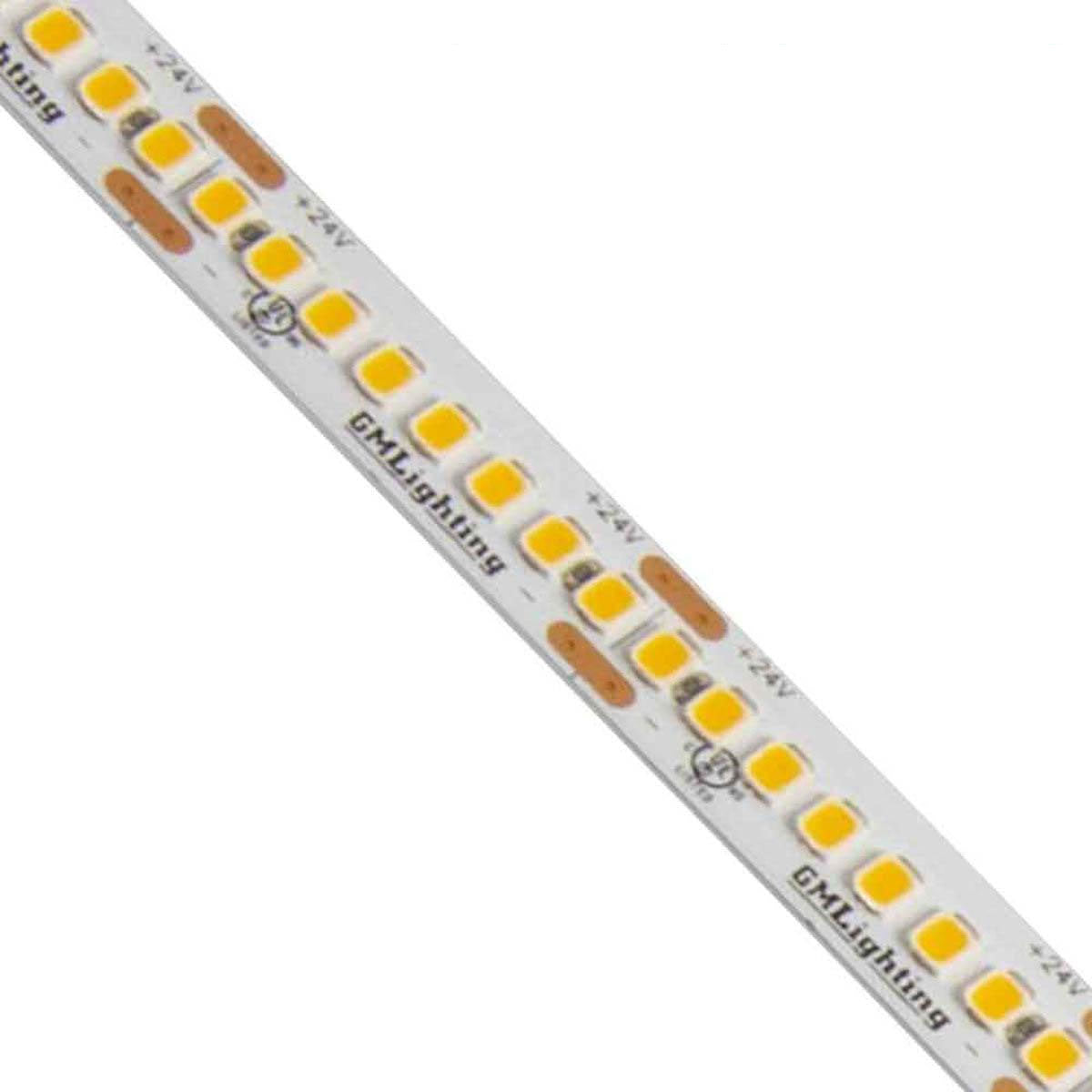

GM Lighting LTR-S SPEC LED Tape Light — 3000K & High CRI
The GM Lighting LTR-S-24V-5.8W-30K-100 is a 98'-6" LED tape light designed for architectural-grade applications. This tape light operates at 24V and is dry rated, making it suitable for indoor use. With a color temperature of 3000K and a high 95+ CRI, it delivers superior light quality for demanding environments.
Key Features
- Voltage: 24V DC operation for consistent performance.
- Wattage: 5.8 watts per foot for efficient energy use.

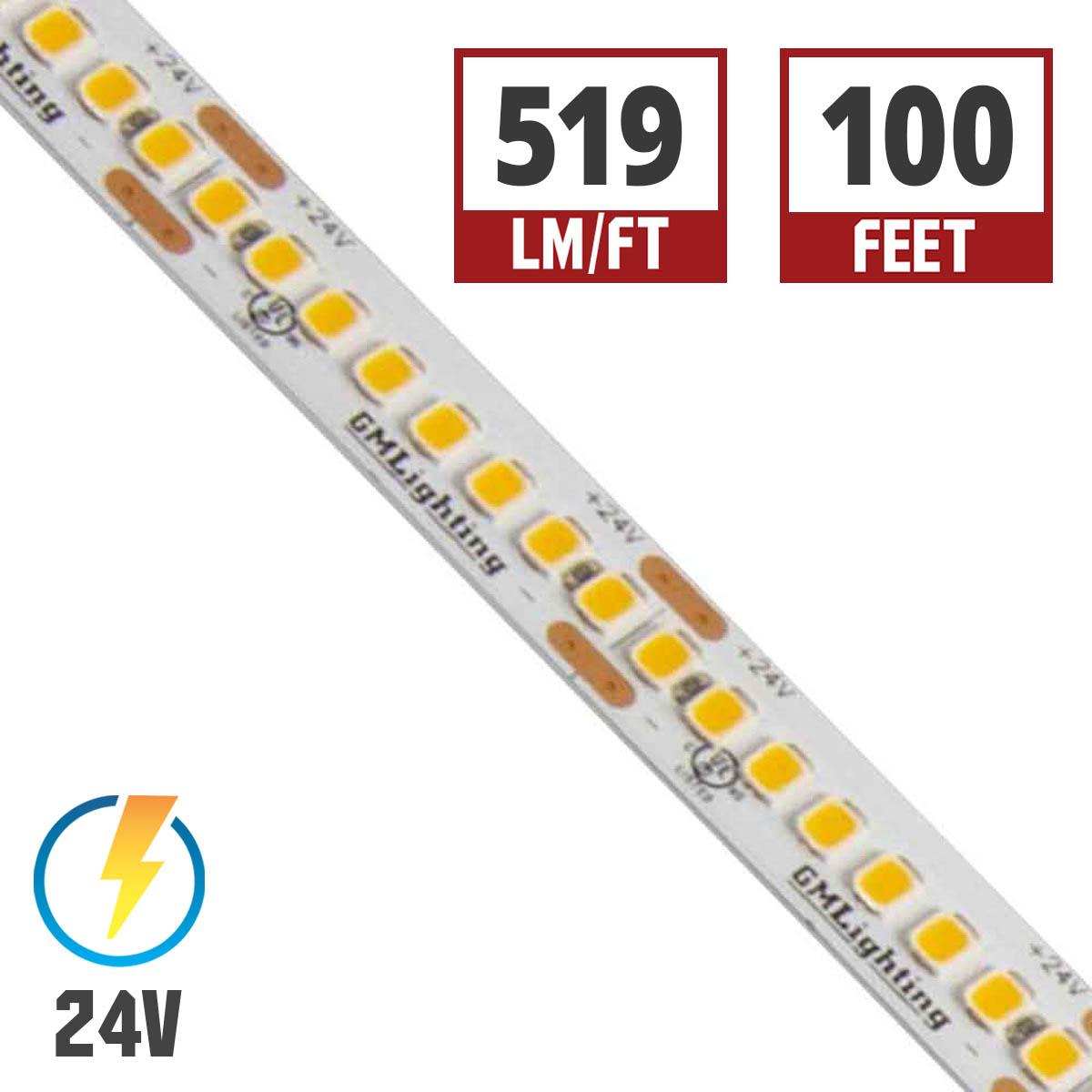

- Lumens: 519 lumens per foot for bright illumination.
- LED Density: 280 LEDs per meter for uniform light distribution.
- Max Run: 16'-4" maximum continuous run to prevent voltage drop.

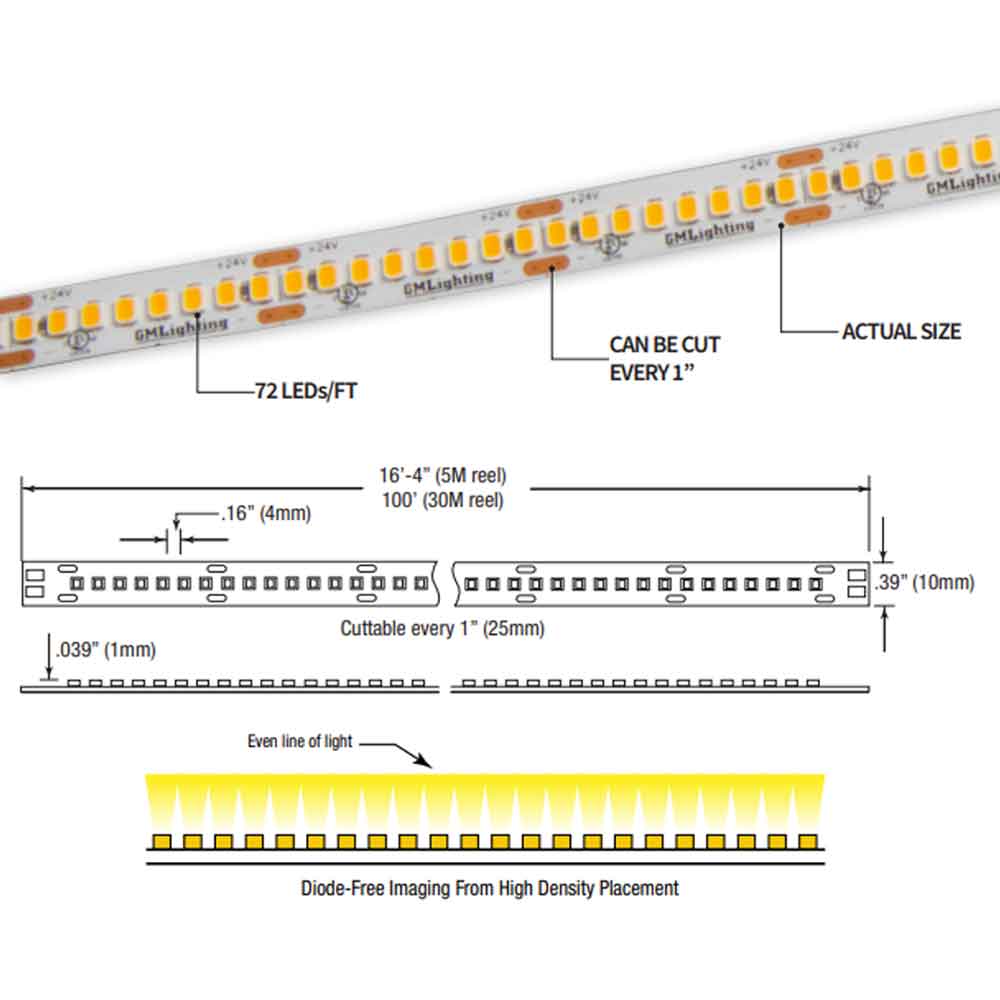

- Cuttable: Can be cut every 1" for custom installations.
- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- Certifications: UL listed, Title 24 compliant, and Class 2 rated.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for easy installation and is designed for dry locations.
LED Illumination & Performance
With 519 lumens per foot and a 95+ CRI, this tape light offers excellent illumination and color accuracy. The high-density LED placement ensures a smooth, even line of light.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is field cuttable every 1" and supports a maximum continuous run of 16'-4". The tape light is dimmable, allowing for adjustable light levels.
Where This Tape Works Best
- Cove lighting

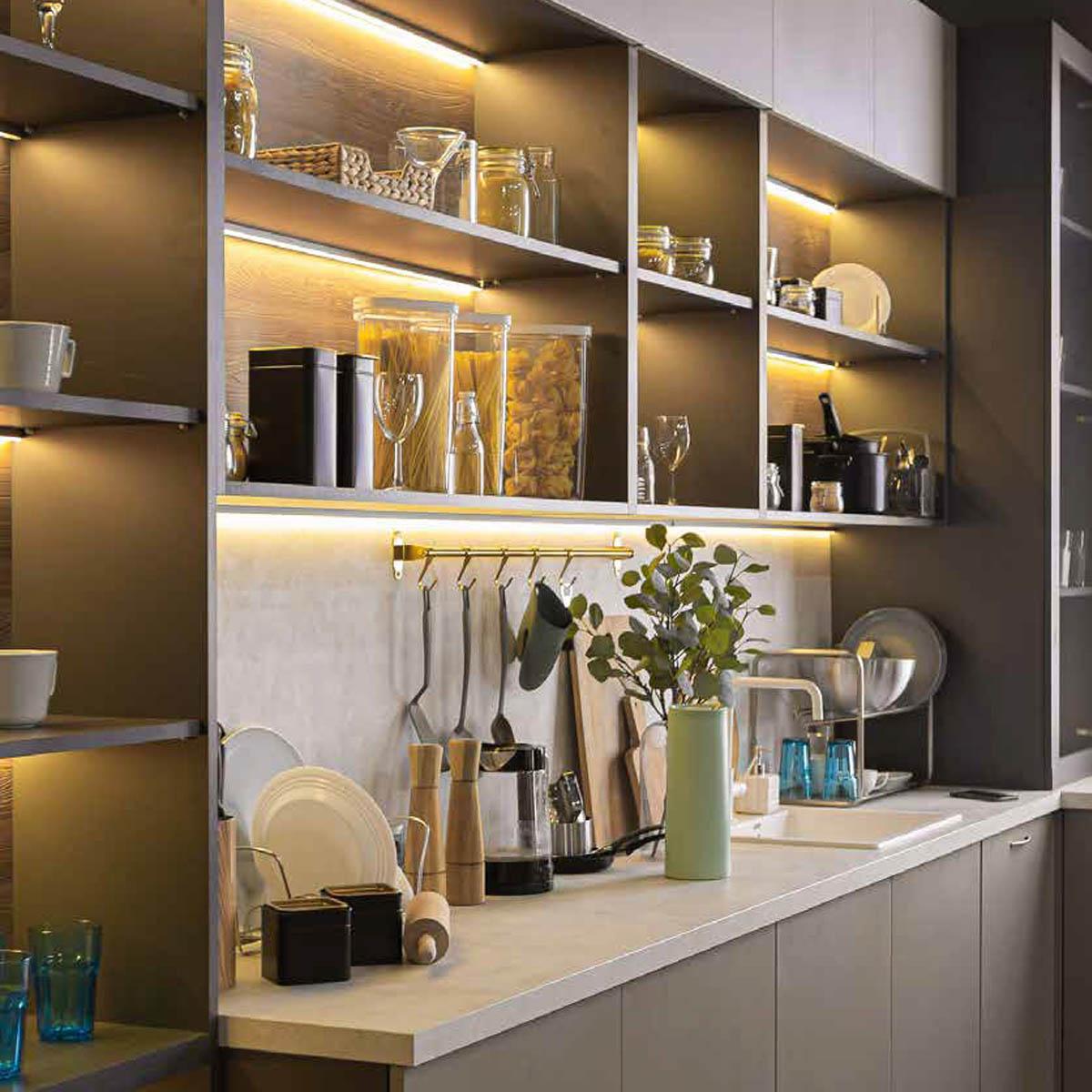

- Under cabinet lighting
- Accent lighting
- Display case lighting

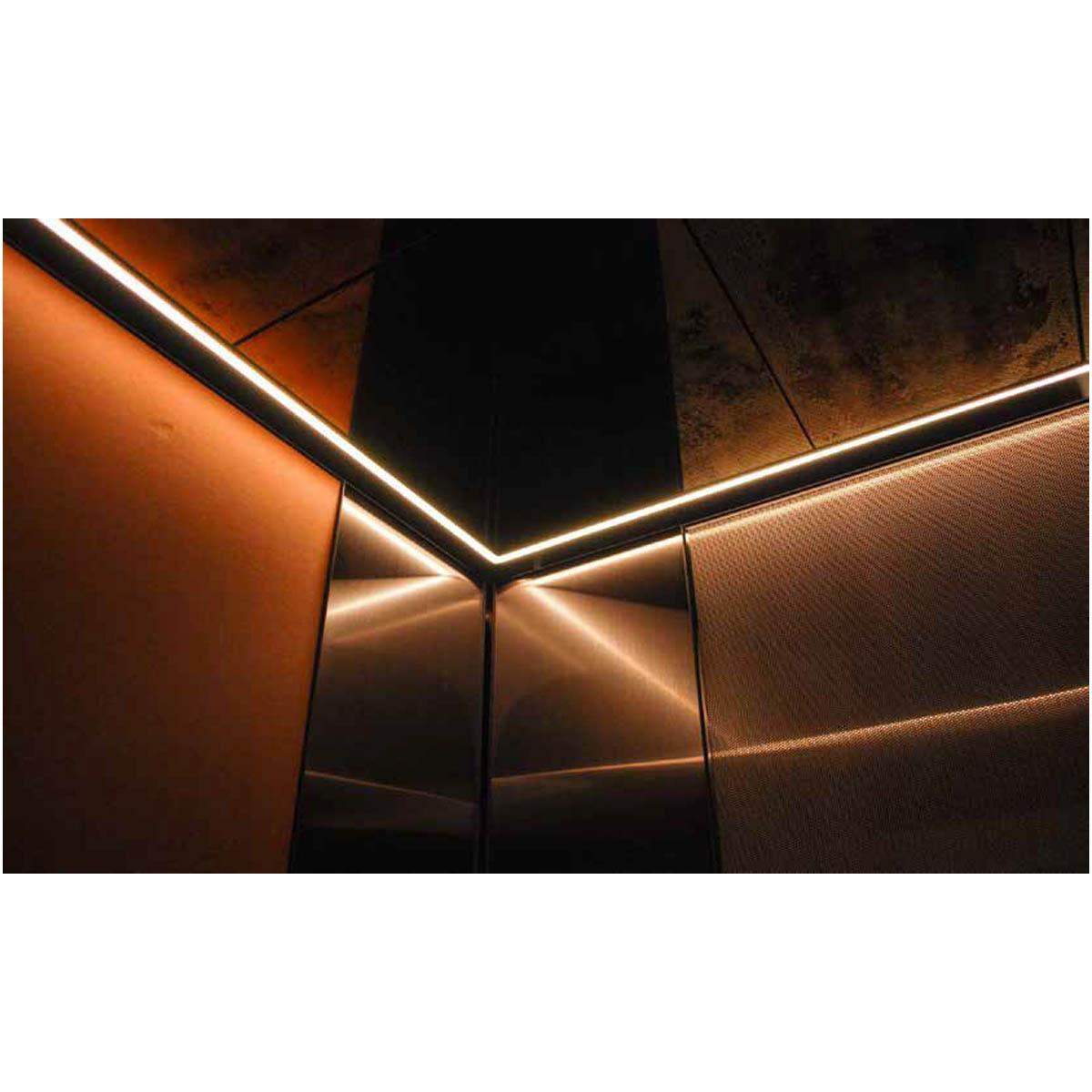

- Architectural lighting
What's Included
- 98'-6" LED tape light reel
- (10) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-5.8W-30K-100?
What is the maximum run length for the LTR-S-24V-5.8W-30K-100?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the LTR-S-24V-5.8W-30K-100?
What voltage is required for the LTR-S-24V-5.8W-30K-100?
Is the tape light dimmable?
Is the tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
