GM Lighting LTR-S SPEC 16'-4' LED Tape Light, 2700K, 520 Lumens per Foot, 24V
GM Lighting LTR-S SPEC 16'-4' LED Tape Light, 2700K, 520 Lumens per Foot, 24V
Hurry up, only 1 item left in stock.
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: 2700K provides a warm, inviting glow ideal for residential and hospitality settings.
- Voltage: Operates on 24V DC, requiring a compatible power supply for optimal performance.
- Max Run: Maximum continuous run length of 16'-4' to prevent voltage drop and ensure consistent illumination.
- Cuttable: Field cuttable every 1' for customized lengths and precise installations.
- PCB Width: 10mm width ensures compatibility with standard aluminum channels for seamless integration.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 2700K & High CRI
The GM Lighting LTR-S-24V-5.8W-27K-16 is a high-performance LED tape light designed for architectural-grade applications. This 16'-4' tape light operates at 24V DC and is dry rated, making it ideal for indoor installations. With a 95+ CRI, it delivers superior color rendering, enhancing the appearance of any space.
Key Features
- Voltage: 24V DC ensures efficient power consumption and compatibility with low-voltage systems.
- Wattage: Consumes 5.8 watts per foot for energy-efficient operation.
- Lumens: Delivers 520 lumens per foot, providing bright and consistent illumination.

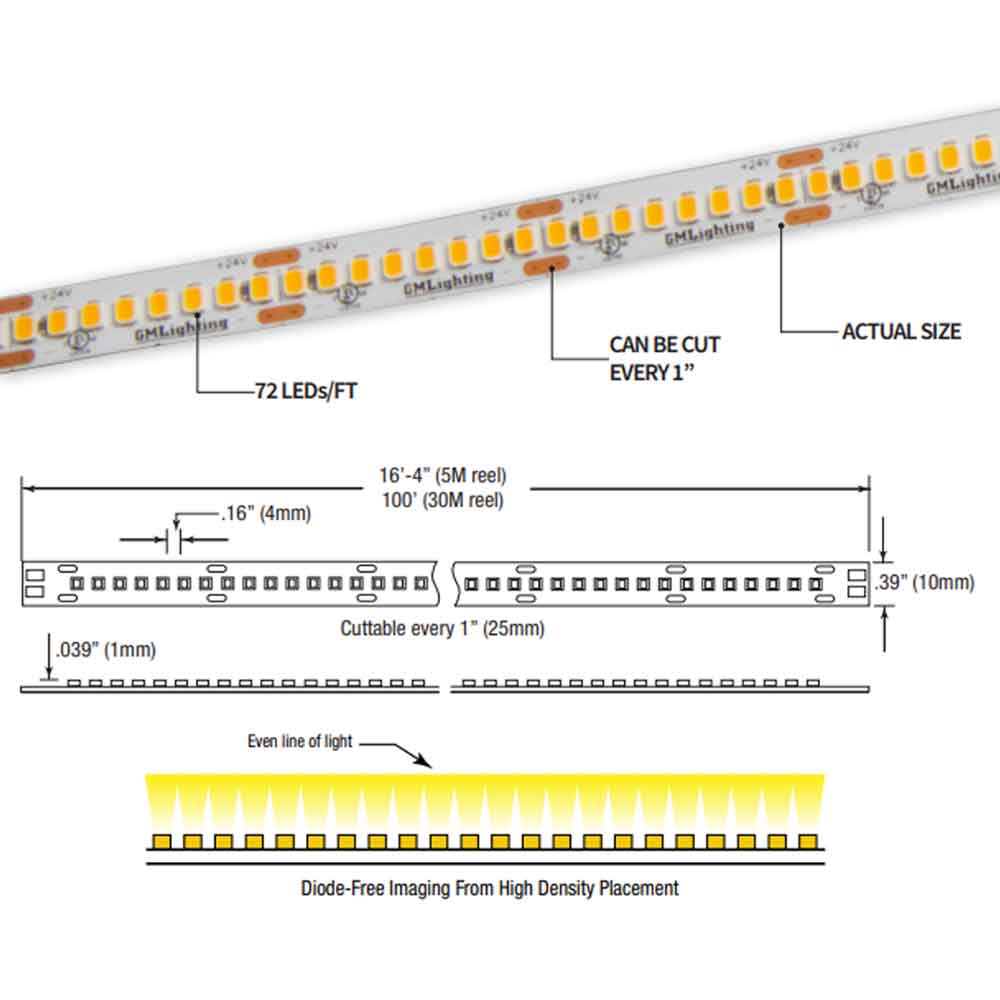

- LED Density: Features 72 LEDs per foot for uniform light distribution.
- Max Run: Supports a maximum run of 16'-4' on a single power feed.
- Cuttable: Can be cut every 1' for customized lengths.
- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: 120° wide beam angle for broad light coverage.
- IP Rating: Dry rated, suitable for indoor use only.
- Certifications: UL listed and Title 24 compliant when used with specific drivers.
Core Design & Construction
The LTR-S SPEC tape light features a 10mm PCB width, ensuring compatibility with standard aluminum channels. It includes a 3M adhesive backing for secure mounting and is designed for dry locations.
LED Illumination & Performance
With 520 lumens per foot and a 95+ CRI, this tape light offers excellent illumination and color accuracy. The high-density LED placement ensures a smooth, even line of light.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is field cuttable every 1' and supports a maximum continuous run of 16'-4'. It is dimmable with compatible dimmers for customizable lighting effects.
Where This Tape Works Best
- Cove lighting

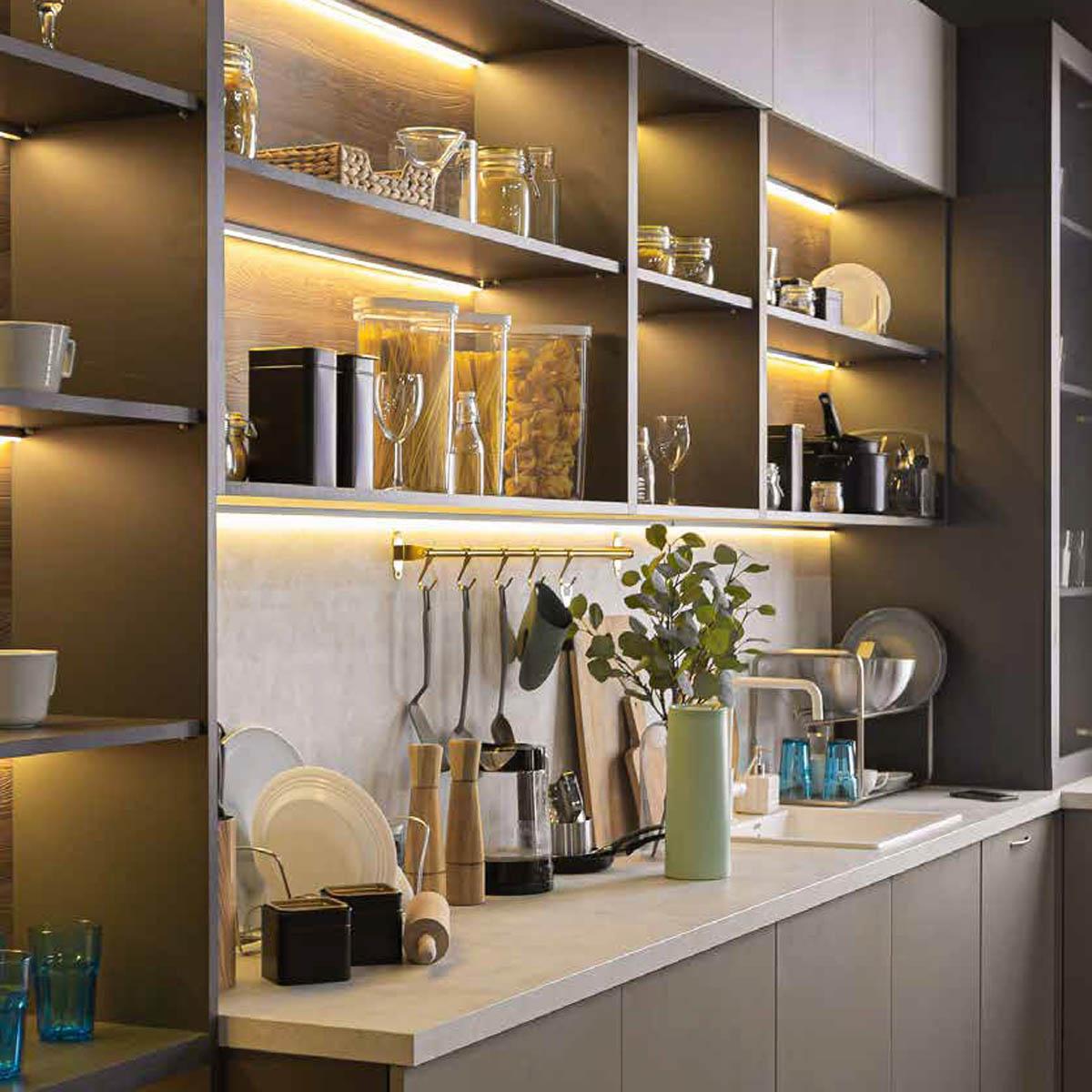

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 24' lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-5.8W-27K-16 tape light?
What is the maximum run length for the LTR-S-24V-5.8W-27K-16 tape light?
Can the LTR-S-24V-5.8W-27K-16 tape light be cut to custom lengths?
Can the LTR-S-24V-5.8W-27K-16 tape light be cut to custom lengths?
What voltage is required for the LTR-S-24V-5.8W-27K-16 tape light?
What voltage is required for the LTR-S-24V-5.8W-27K-16 tape light?
Is the LTR-S-24V-5.8W-27K-16 tape light compatible with dimmers?
Is the LTR-S-24V-5.8W-27K-16 tape light compatible with dimmers?
What is the width of the PCB for the LTR-S-24V-5.8W-27K-16 tape light?
What is the width of the PCB for the LTR-S-24V-5.8W-27K-16 tape light?
