GM Lighting LTR-S SPEC, 98'-6' LED Tape Light, 2700K, 426 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Provides a warm 2700K light, ideal for creating cozy atmospheres.
- Voltage and Power: Operates at 24V with a power consumption of 5.8 watts per foot.
- Maximum Run: Can be run continuously up to 16'-4' on a single power supply to prevent voltage drop.
- Cuttable Increments: Field cuttable every 1' for custom lengths and installations.
- PCB Width: 10mm width ensures compatibility with standard channels and profiles.
We process payments securely and do not store credit card information.
Description
Description

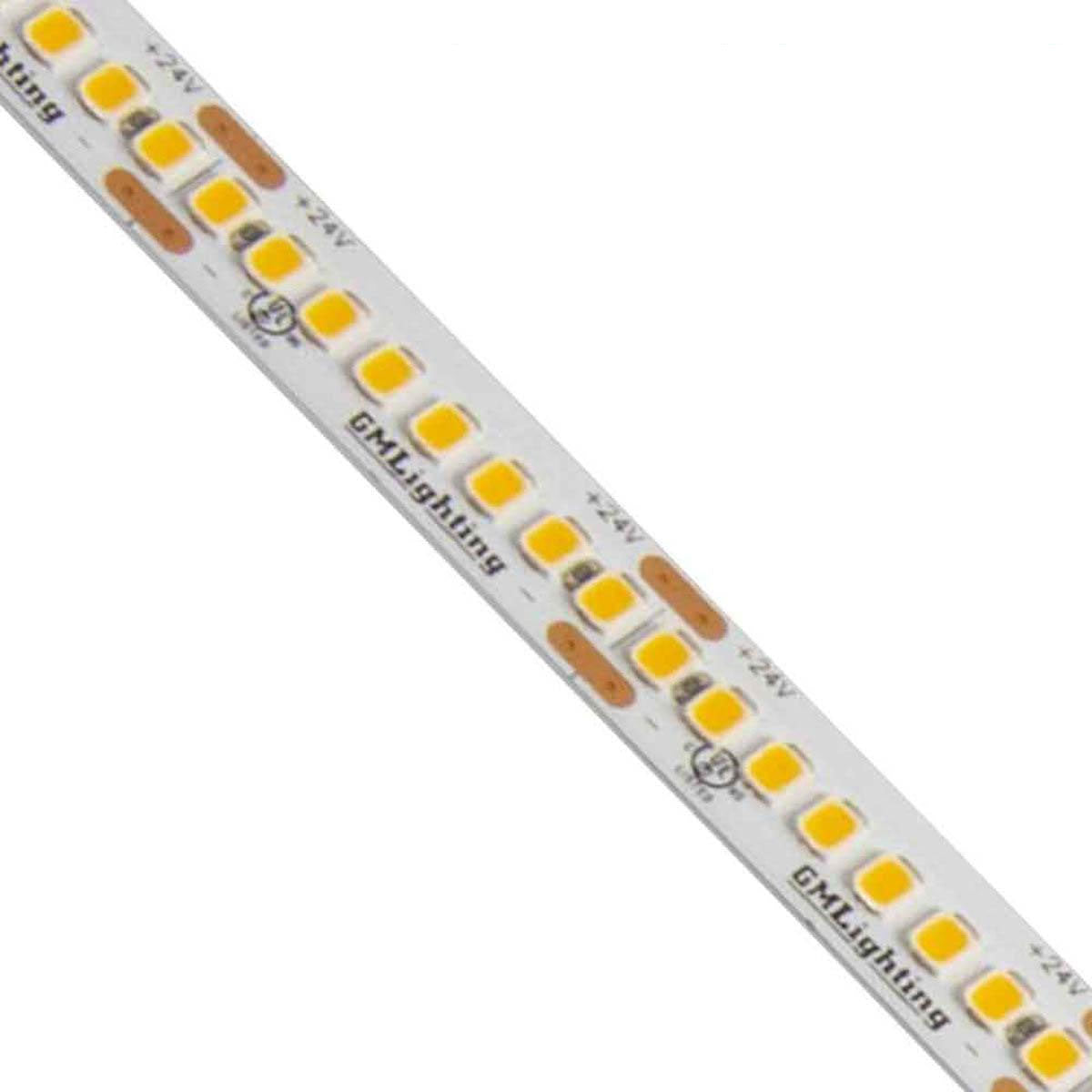

GM Lighting LTR-S SPEC LED Tape Light — 2700K & High CRI
The GM Lighting LTR-S-24V-5.8W-27K-100 LED Tape Light offers a high-quality lighting solution with a warm 2700K color temperature and 95+ CRI for superior color rendering. This tape light measures 98'-6' in length and operates at 24V, making it suitable for dry locations.
Key Features
- Voltage: 24V DC operation for efficient power usage.
- Wattage: Consumes 5.8 watts per foot.
- Lumens: Delivers 426 lumens per foot for bright illumination.

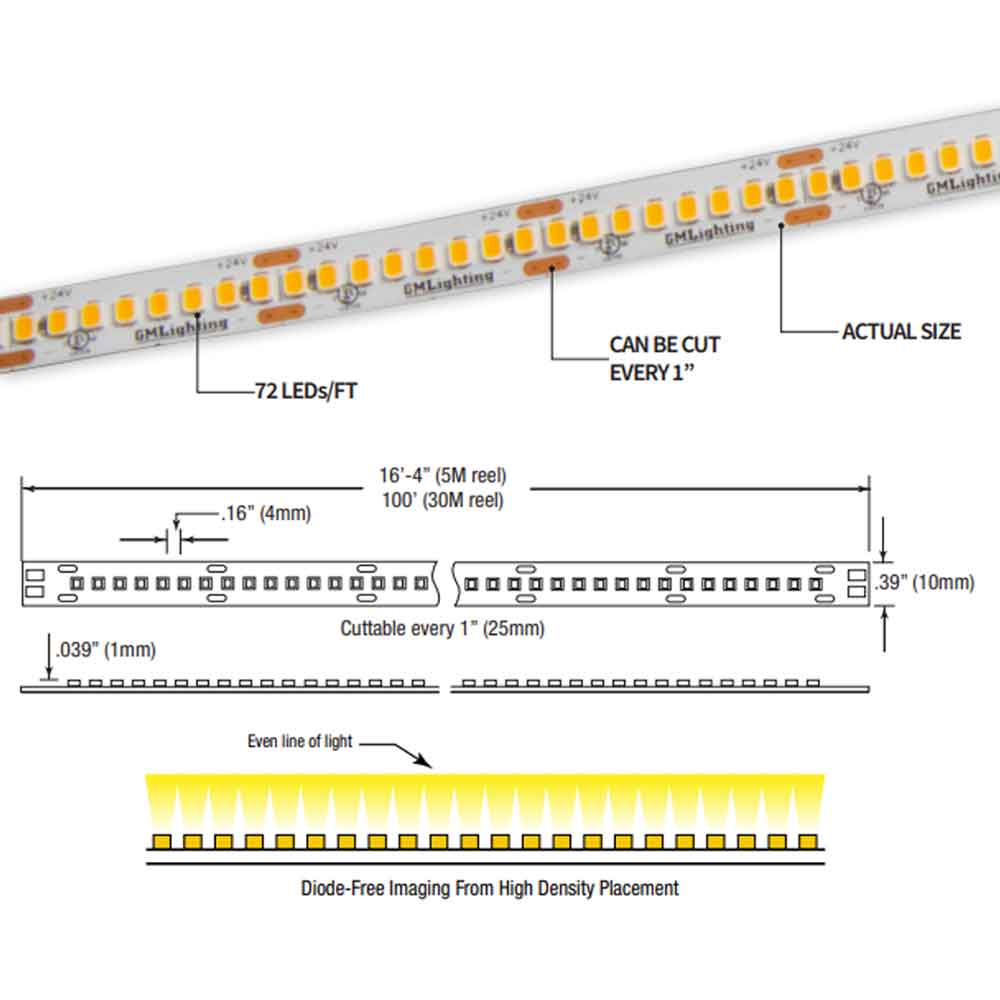

- LED Density: Features 72 LEDs per foot for consistent light output.
- Max Run: Maximum continuous run of 16'-4' to avoid voltage drop.
- Cuttable: Can be cut every 1' for tailored installations.
- PCB Width: 10mm width for easy integration into channels.
- Beam Angle: 120° for wide light distribution.
- Certifications: UL listed and Title 24 compliant.
Core Design & Construction
Constructed with a 10mm PCB width, this tape light is compatible with most aluminum channels. It features a durable 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With a high lumen output of 426 lumens per foot and a 95+ CRI, this LED tape light ensures vibrant and accurate color representation, utilizing premium diodes for diode-free imaging.
Power, Wiring & Installation
This tape light requires a 24V power supply and is dimmable for adjustable brightness. It can be cut every 1' for custom installations, with a maximum run of 16'-4' to prevent voltage drop.

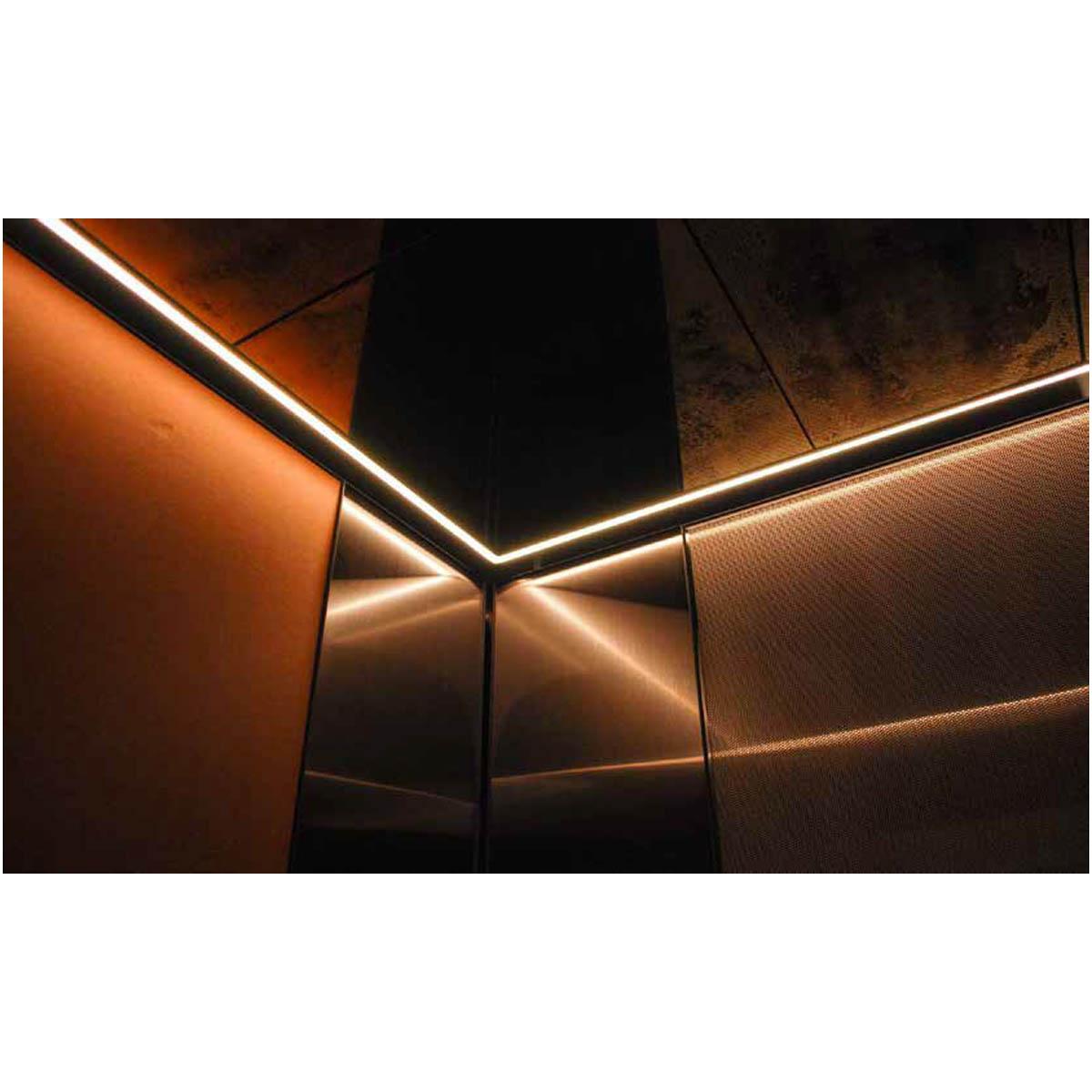

Where This Tape Works Best

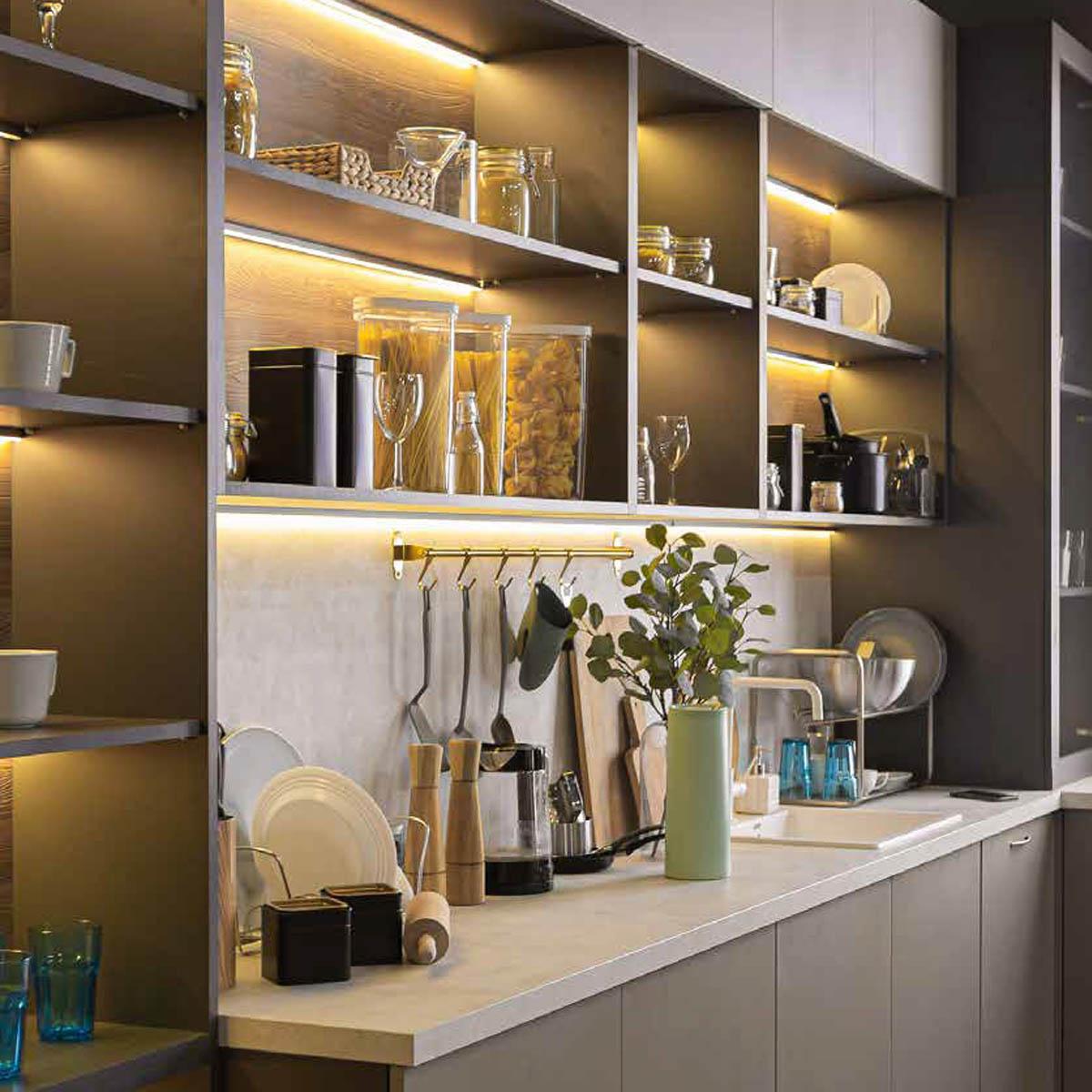

- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
- Architectural detailing
What's Included
- 98'-6' reel of LED tape light
- (10) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-5.8W-27K-100?
What is the maximum run length for the LTR-S-24V-5.8W-27K-100?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light dimmable?
Is this tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
