GM Lighting LTR-S SPEC 16' LED Tape Light, 4000K, 222 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Provides a crisp 4000K light, ideal for task lighting.
- Voltage & Power: Operates at 24V with a power consumption of 2.5 watts per foot.
- Max Run: Capable of a maximum run of 32'-8'' on a single power feed.

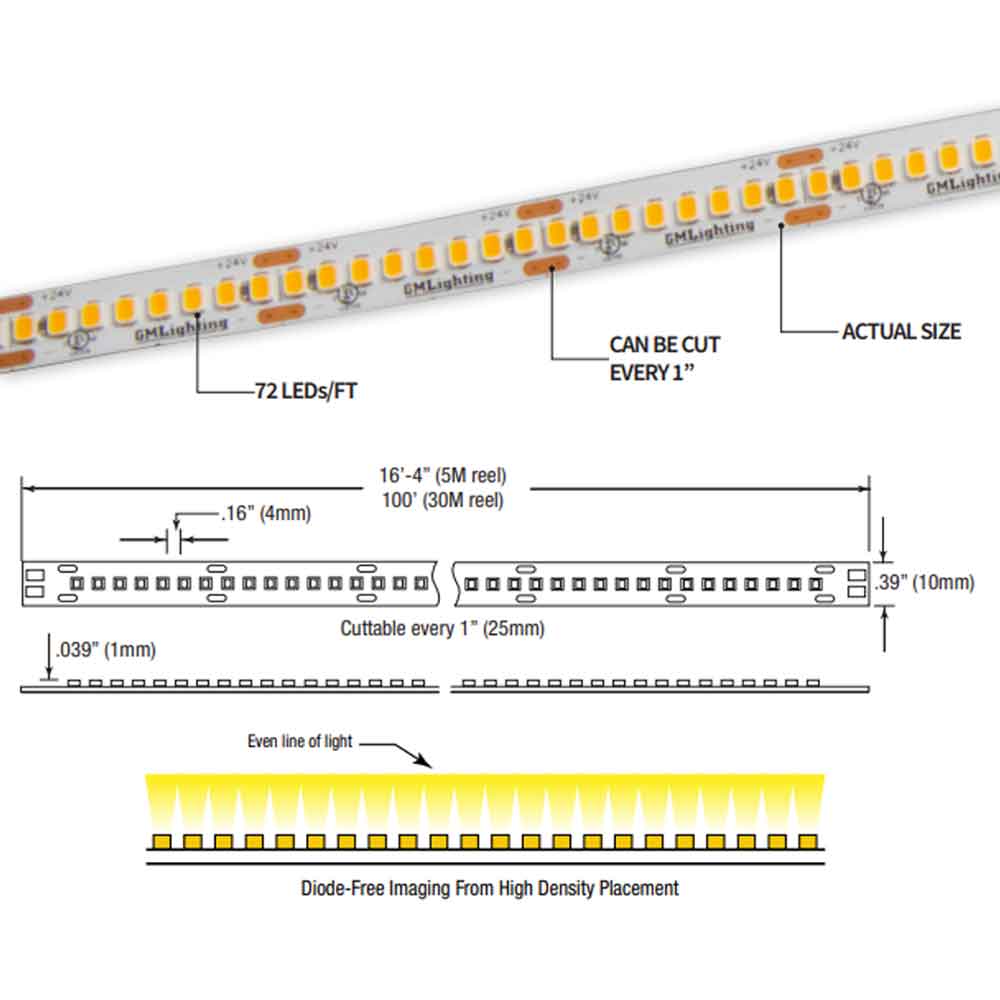

- Cuttable: Can be cut every 1 inch for customized lengths.
- PCB Width: Features a 10mm PCB width for easy channel compatibility.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 4000K & High CRI
The GM Lighting LTR-S-24V-2.5W-40K-16 LED Tape Light offers a high-performance lighting solution with a crisp 4000K color temperature. This 16'-4'' tape light operates at 24V and is designed for dry environments, making it ideal for indoor applications.
Key Features
- Voltage: Operates at 24V DC for efficient power usage.
- Wattage: Consumes 2.5 watts per foot.
- Lumens: Delivers 222 lumens per foot for bright illumination.
- LED Density: Features 72 LEDs per foot for uniform light distribution.
- Max Run: Supports a maximum run of 32'-8'' on a single power feed.
- Cuttable: Field cuttable every 1 inch for custom installations.
- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: Offers a 120° viewing angle for wide light dispersion.
- Certifications: UL listed and Title 24 compliant when used with specific drivers.
Core Design & Construction
Constructed with a 10mm PCB width, this tape light is compatible with various aluminum channels. It features a durable 3M adhesive backing for secure mounting in dry locations.
LED Illumination & Performance
With a high CRI of 95+, this tape light ensures accurate color rendering, making it suitable for applications where color accuracy is critical. The light engine uses premium diodes for consistent and reliable performance.
Power, Wiring & Installation
This tape light requires a 24V power supply and is dimmable for adjustable lighting levels. It can be cut every 1 inch, allowing for precise customization. The maximum continuous run is 32'-8'' to prevent voltage drop.
Where This Tape Works Best

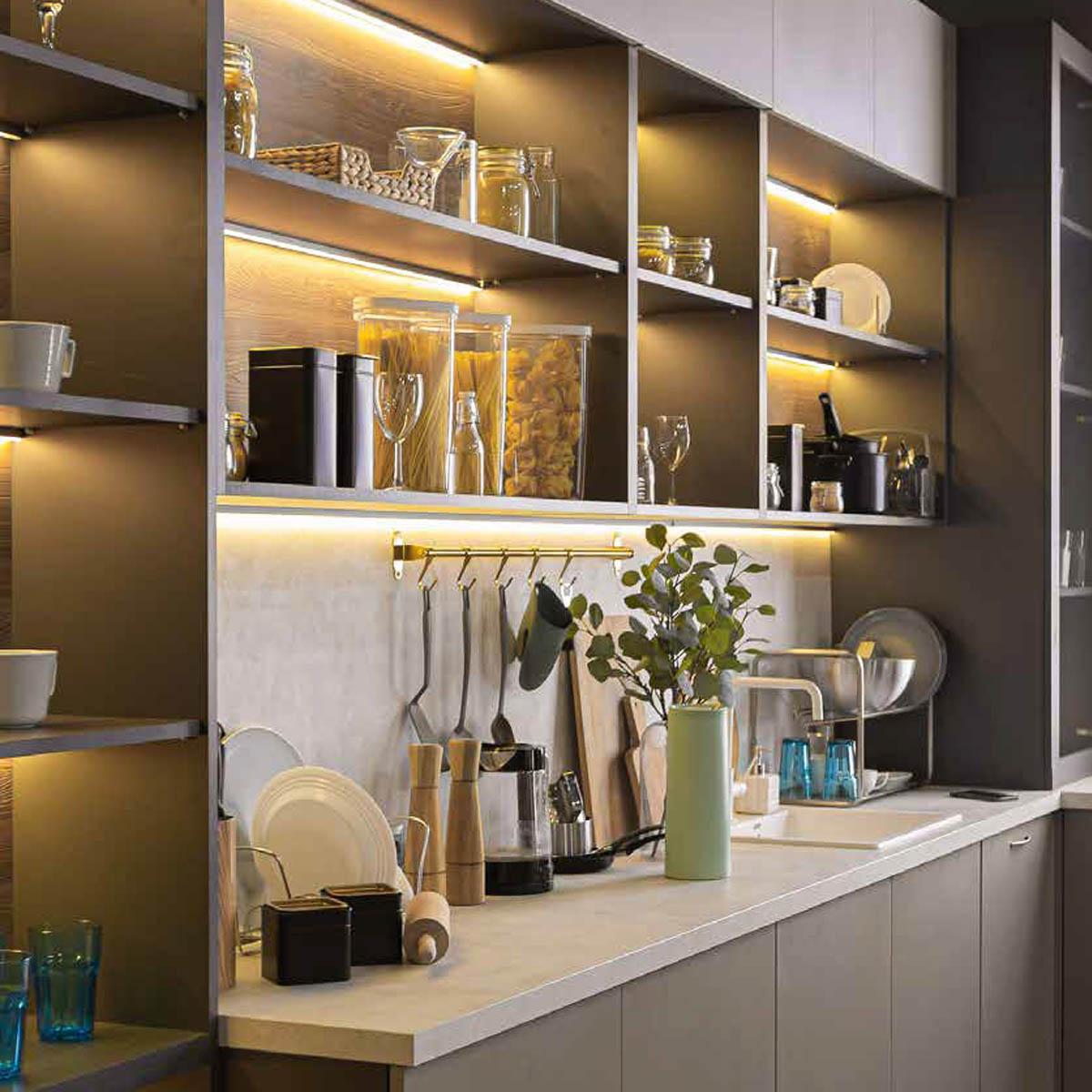

- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4'' reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 24'' lead affixed to tape
