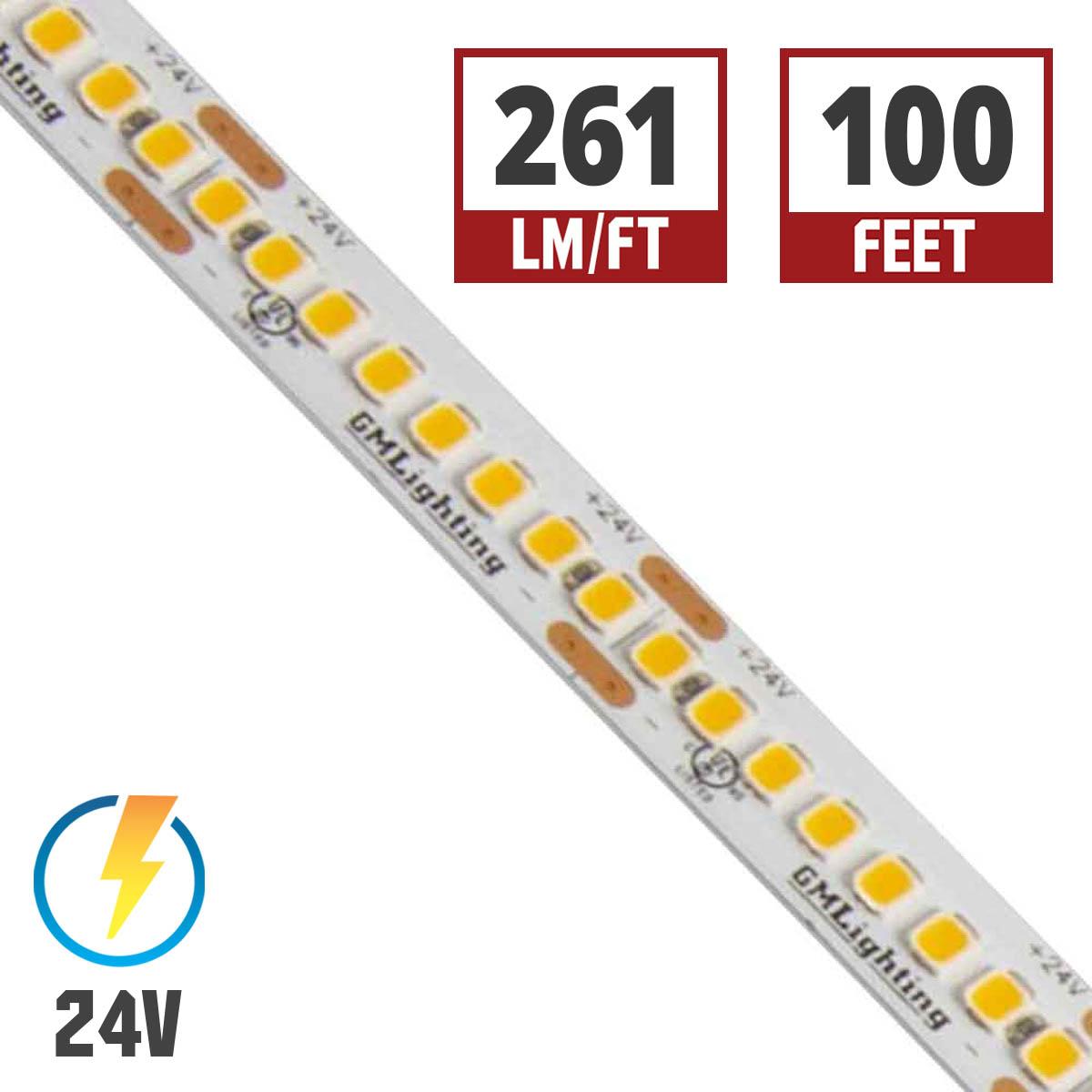

GM Lighting LTR-S SPEC, 98'-6' LED Tape Light, 4000K, 261 Lumens/ft, 24V
GM Lighting LTR-S SPEC, 98'-6' LED Tape Light, 4000K, 261 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: Provides a crisp 4000K light, ideal for task lighting.
- Voltage: Operates at 24V, ensuring efficient power use.
- Max Run: Supports a maximum run of 32'-8' on a single lead.
- Cuttable: Can be cut every 1' for customized lengths.
- PCB Width: 10mm width for compatibility with standard channels.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

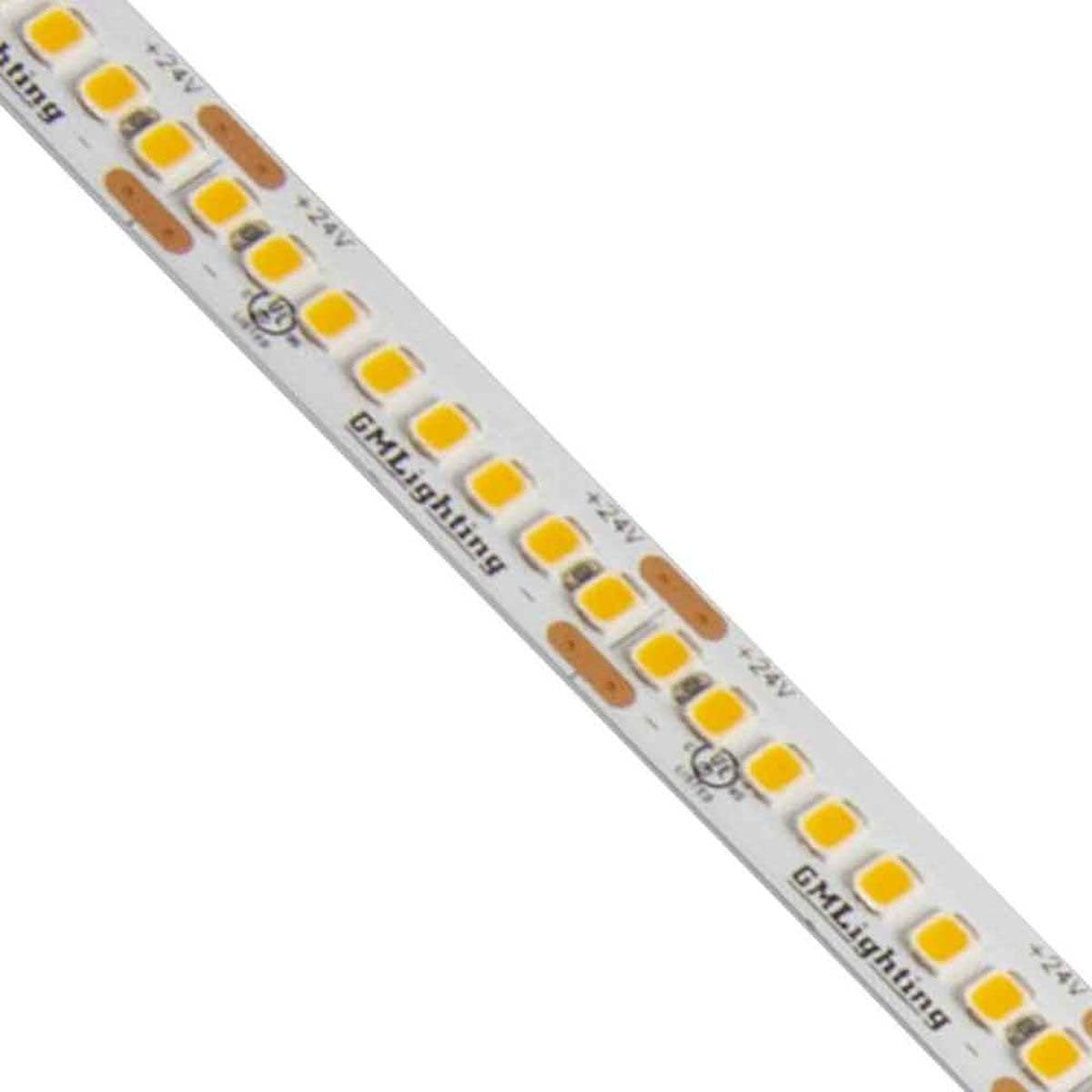

GM Lighting LTR-S SPEC LED Tape Light — 4000K & High CRI
The GM Lighting LTR-S-24V-2.5W-40K-100 is a high-performance LED tape light designed for precise lighting applications. This 98'-6' tape light operates at 24V and is Dry Rated, making it suitable for indoor environments. With a 4000K color temperature, it delivers a bright, neutral white light.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: 2.5 watts per foot for energy efficiency.
- Lumens: 261 lumens per foot for bright illumination.
- LED Density: 72 LEDs per foot for even light distribution.
- Max Run: 32'-8' maximum run length to prevent voltage drop.
- Cut Increments: Field cuttable every 1' for custom installations.
- PCB Width: 10mm for easy channel integration.
- Beam Angle: 120° for wide light dispersion.
- Certifications: UL, Title 24 compliant with specific drivers.

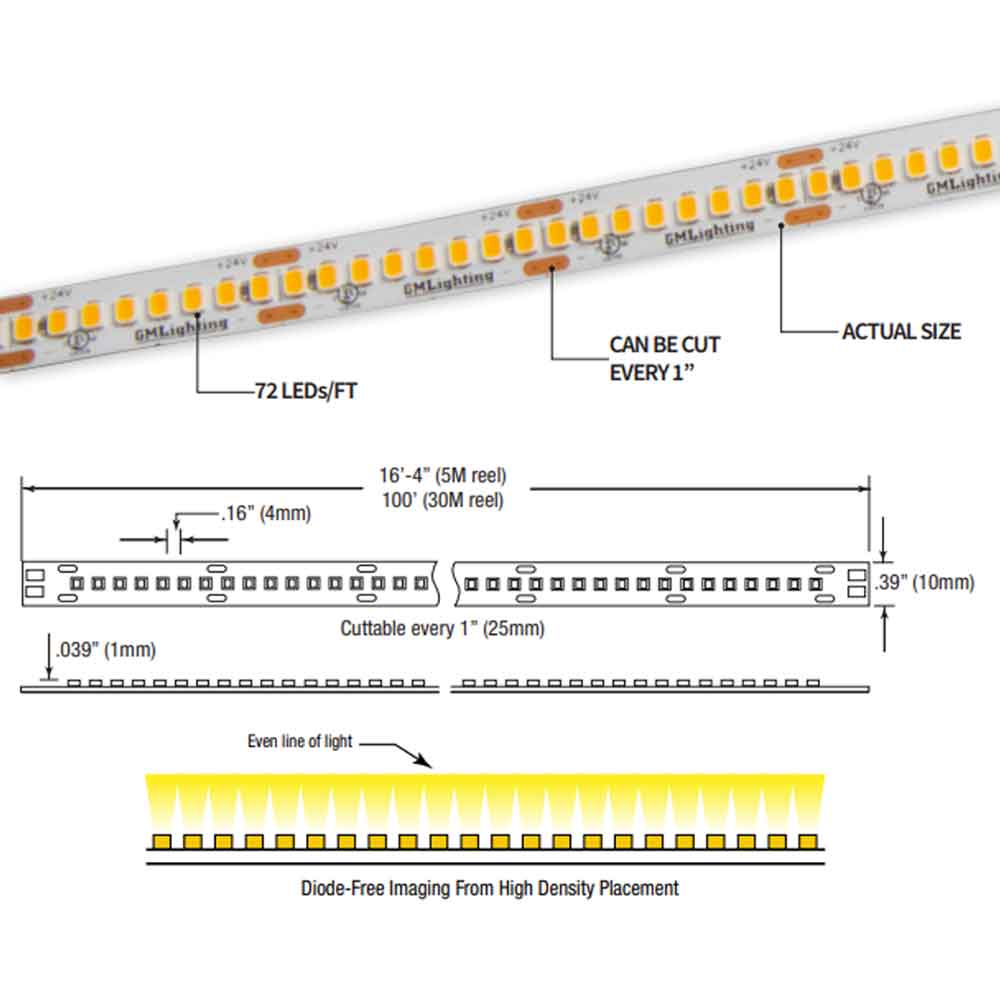

Core Design & Construction
The tape light features a 10mm PCB width, ideal for fitting into standard aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry locations.
LED Illumination & Performance
With a high CRI of 95+, this tape light ensures accurate color rendering, making it perfect for environments where color accuracy is crucial. The light engine is designed for diode-free imaging, providing a smooth, continuous line of light.
Power, Wiring & Installation
This tape light requires a 24V power supply and is dimmable for adjustable lighting levels. It can be cut every 1' for tailored installations, with a maximum continuous run of 32'-8' to avoid voltage drop.

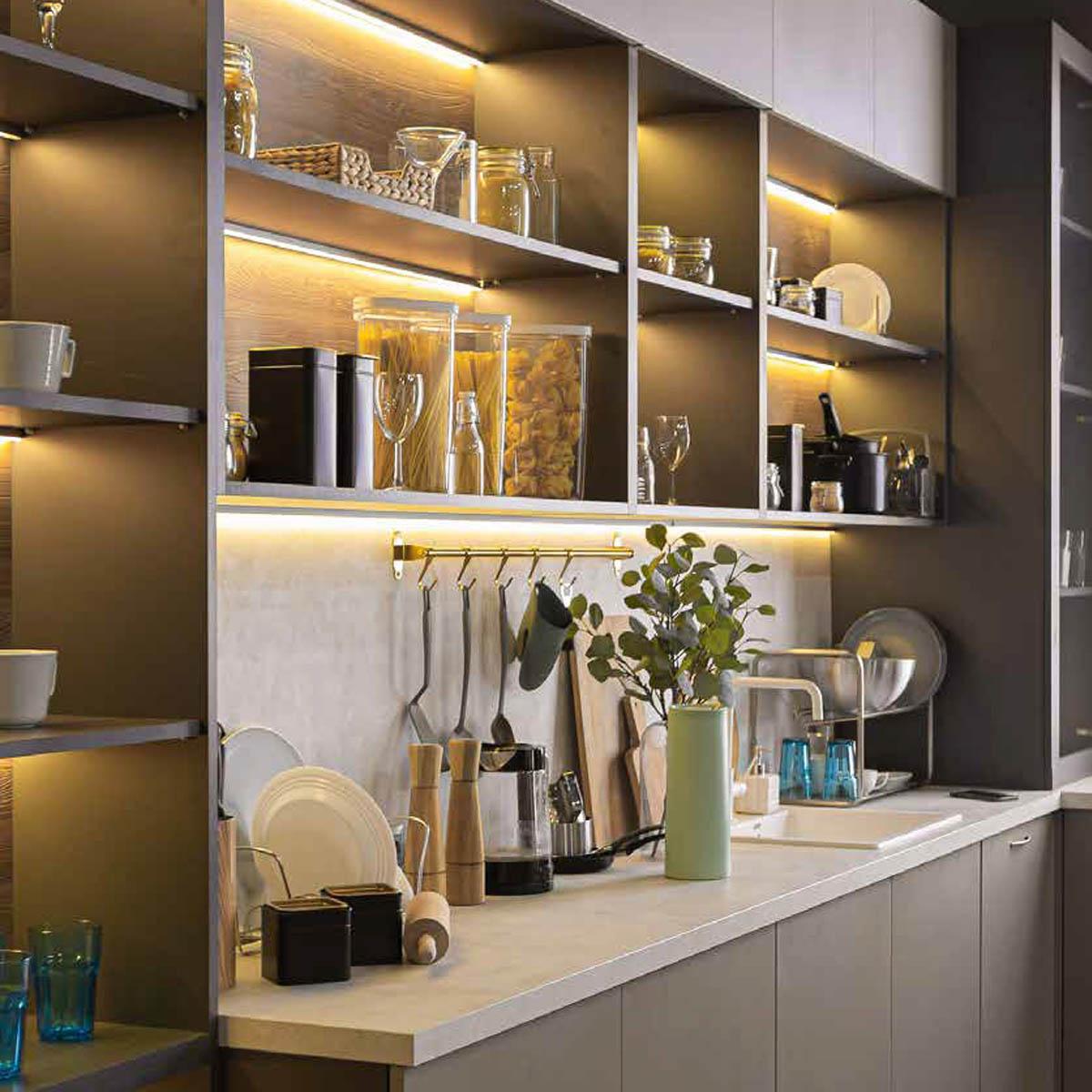

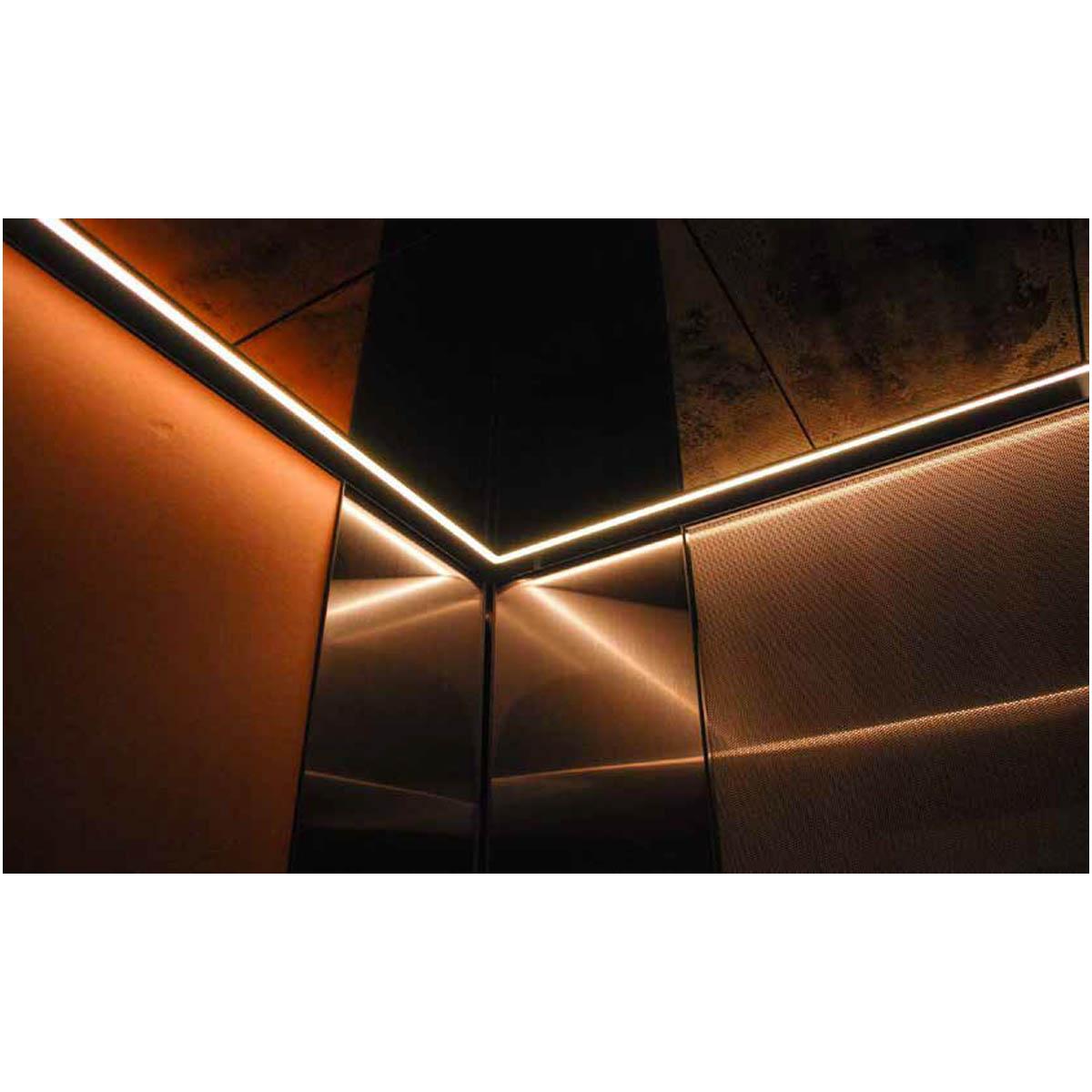

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 98'-6' LED tape light spool
- (10) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-2.5W-40K-100?
What is the maximum run length for the LTR-S-24V-2.5W-40K-100?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light suitable for wet locations?
Is this tape light suitable for wet locations?
What type of adhesive backing does this tape light have?
What type of adhesive backing does this tape light have?
