GM Lighting LTR-S SPEC 16'-4' LED Tape Light, 3500K, 203 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Provides a neutral white light at 3500K for versatile applications.
- Voltage & Max Run: Operates at 24V with a maximum run of 32'-8' to prevent voltage drop.
- Cuttable Increments: Field cuttable every 1' for precise installation and customization.
- PCB Width: Features a 10mm PCB width, ideal for standard channels.
- CRI & Lumens: Delivers 203 lumens per foot with a high CRI of 95+ for excellent color rendering.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 3500K & High CRI
The GM Lighting LTR-S-24V-2.5W-35K-16 is a 16'-4' LED tape light designed for architectural-grade applications. This tape light operates at 24V and is dry rated, making it suitable for indoor environments. With a high CRI of 95+, it ensures superior color accuracy.
Key Features
- Voltage: Operates at 24V for efficient power usage.
- Wattage: Consumes 2.5 watts per foot.
- Lumens: Provides 203 lumens per foot.
- LED Density: Features 72 LEDs per foot for uniform illumination.
- Max Run: Maximum continuous run of 32'-8'.
- Cuttable: Can be cut every 1' for custom lengths.
- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: 120-degree viewing angle for wide light distribution.
- IP Rating: Dry rated for indoor use.
- Certifications: UL listed and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with various aluminum channels. It includes a 3M adhesive backing for secure mounting and is designed for dry indoor environments.
LED Illumination & Performance
With 203 lumens per foot and a CRI of 95+, this tape light provides bright, accurate lighting. It uses high-quality diodes for consistent illumination.
Power, Wiring & Installation
Requires a 24V power supply, sold separately. The tape is field-cuttable every 1' and supports dimming for adjustable lighting levels. Maximum run is 32'-8' to prevent voltage drop.
Where This Tape Works Best

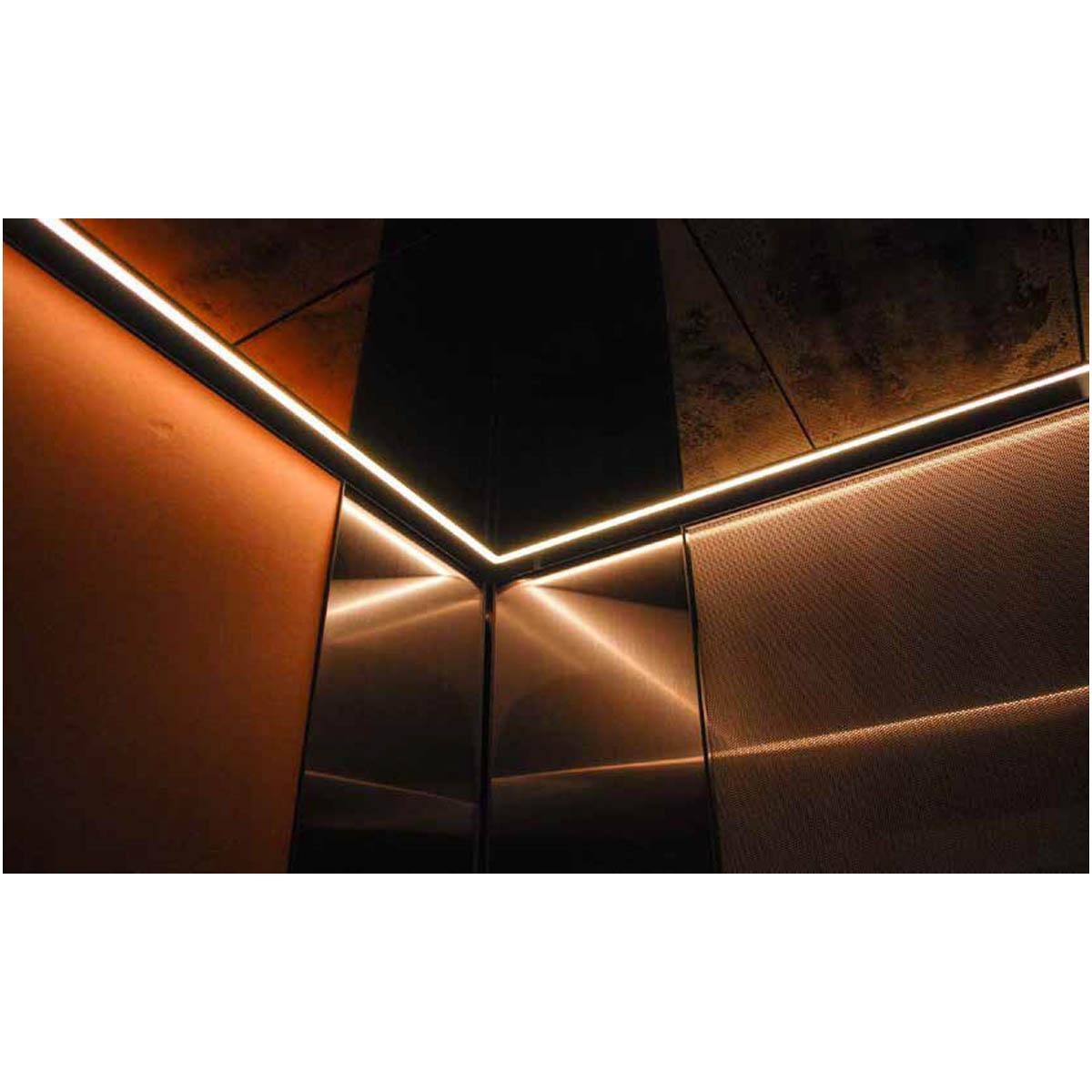

- Cove lighting

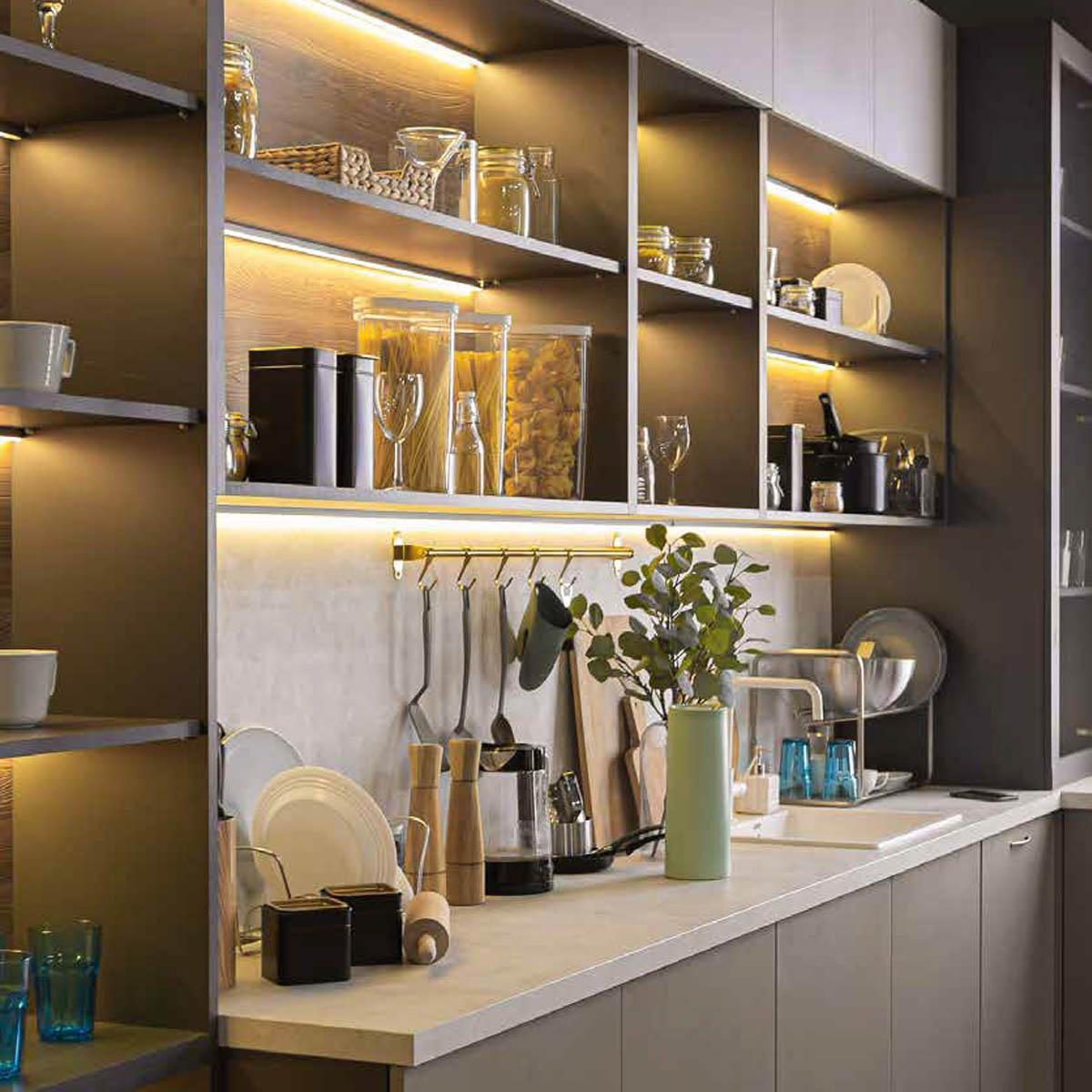

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 24' lead affixed to tape
