GM Lighting LTR-S SPEC, 98'-6" LED Tape Light, 3500K, 203 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: 3500K for neutral white illumination.
- Voltage: Operates at 24V for efficient power usage.
- Max Run: Up to 32'-8" on a single lead to prevent voltage drop.
- Cuttable: Field cuttable every 1" for custom lengths.
- PCB Width: 10mm, compatible with standard channels.
We process payments securely and do not store credit card information.
Description
Description

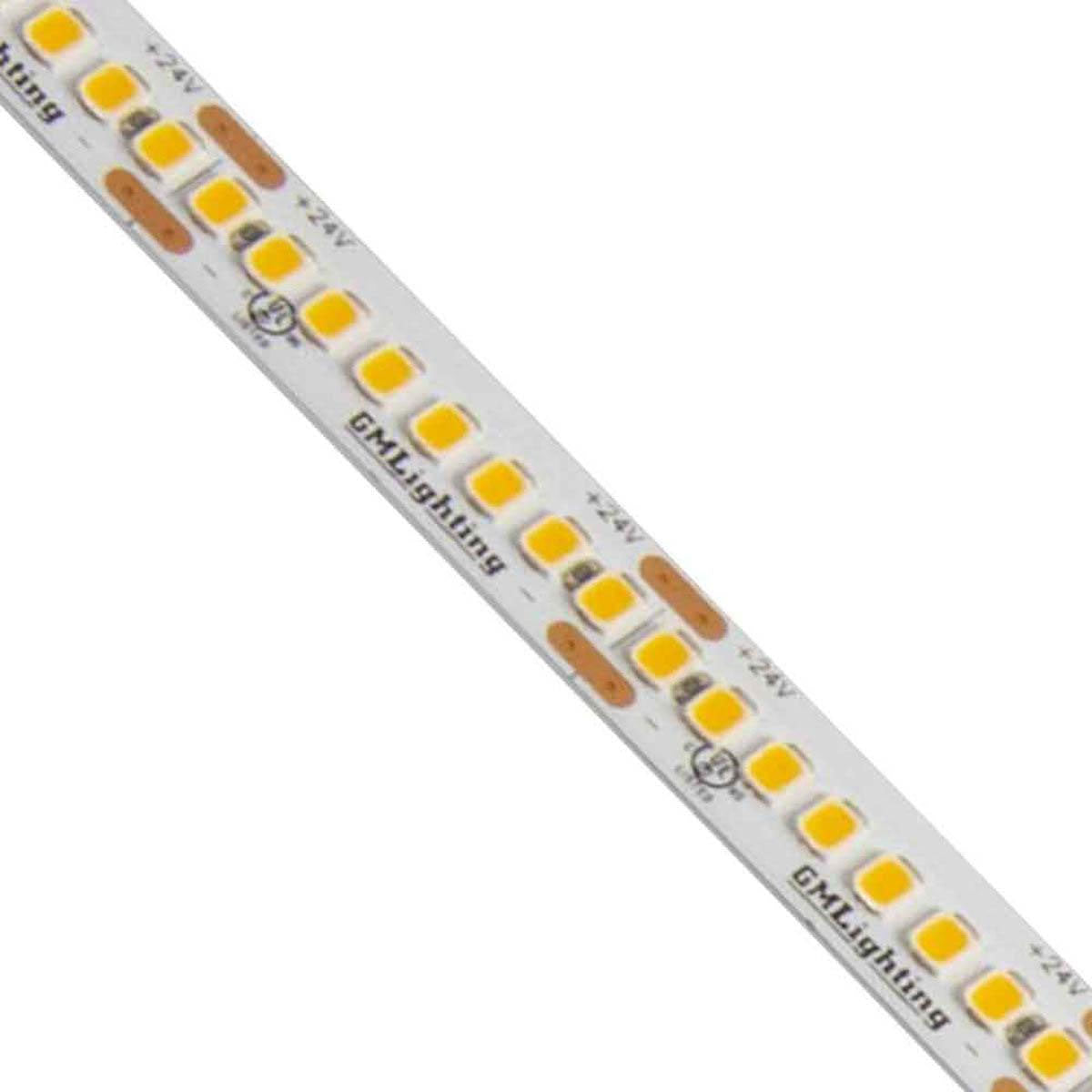

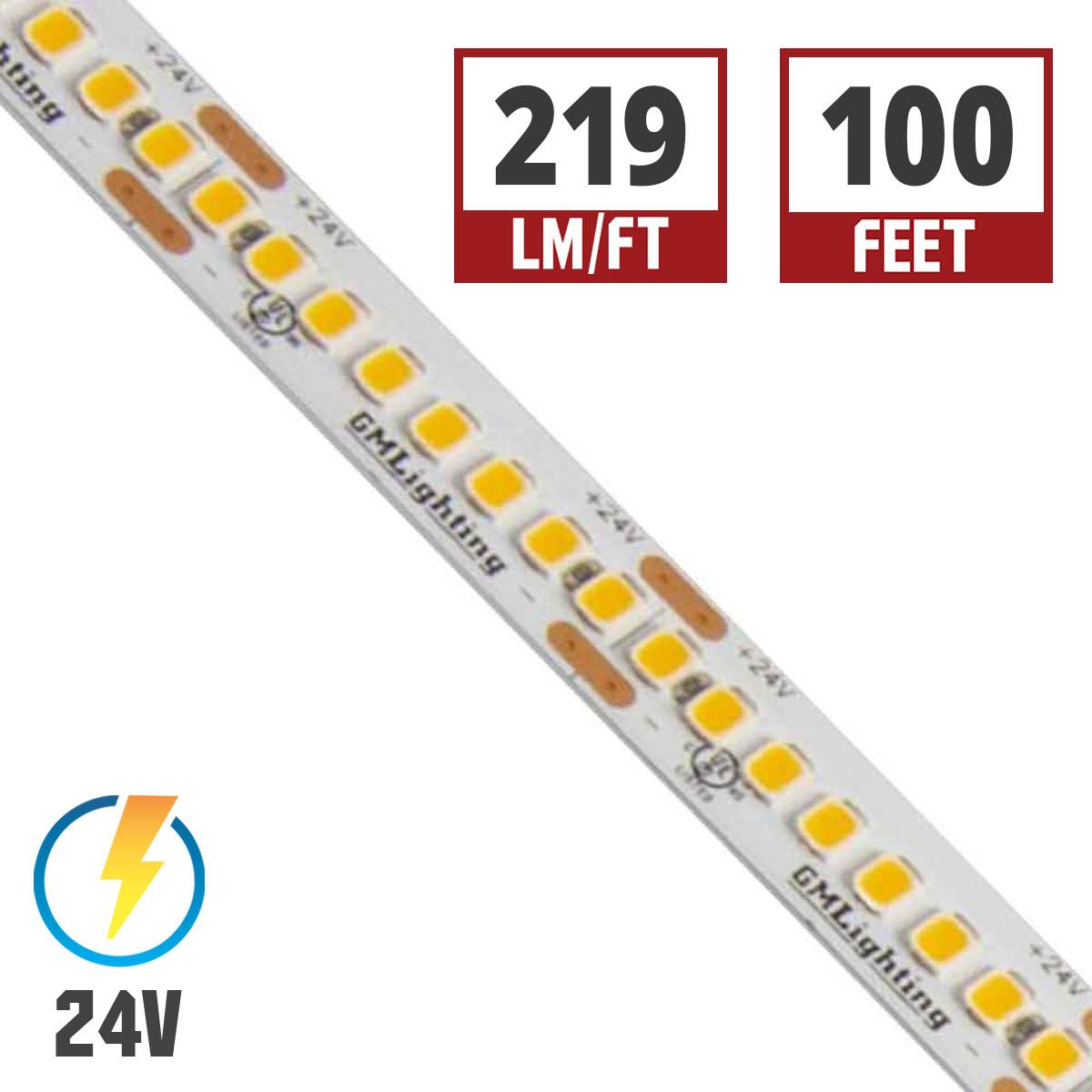

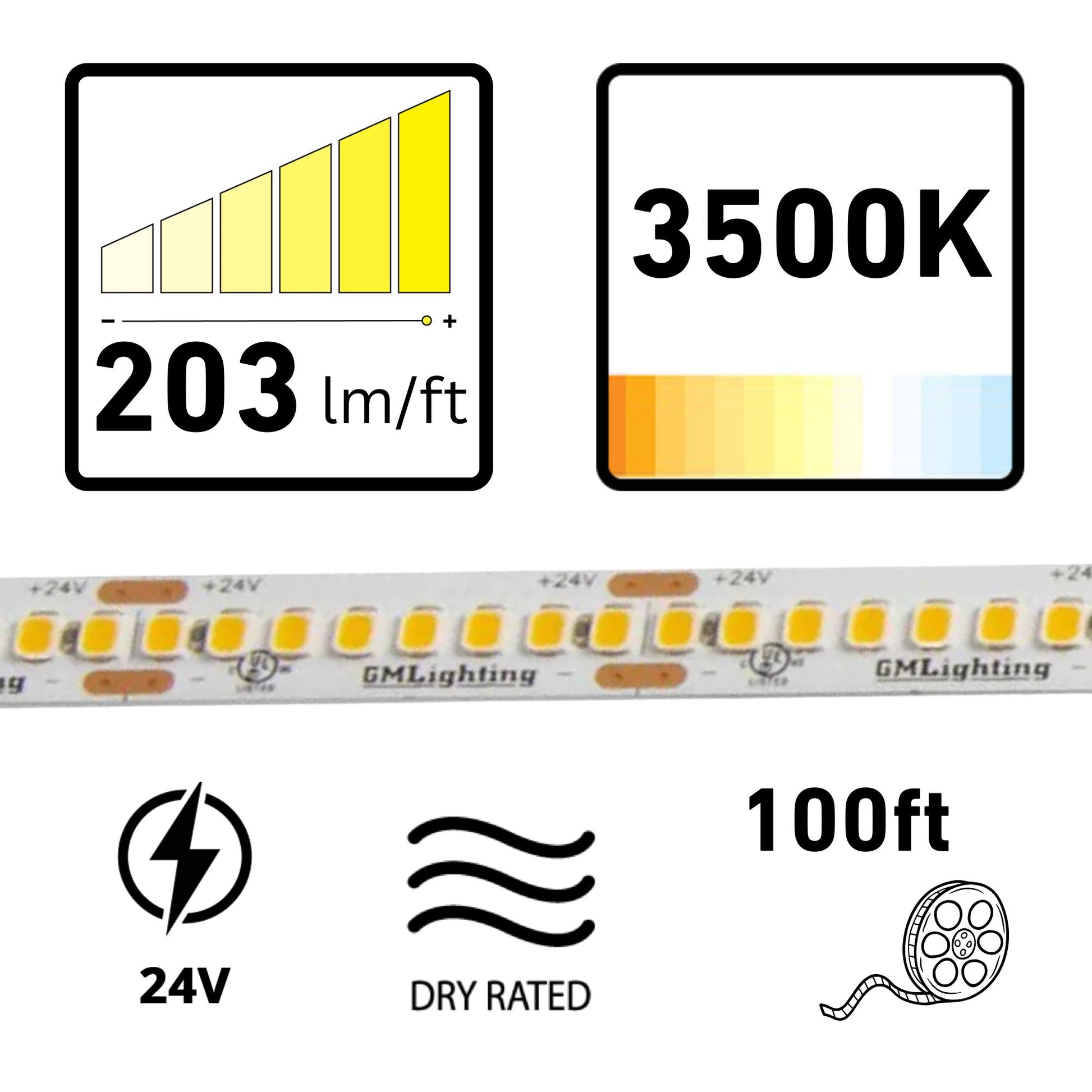

GM Lighting LTR-S SPEC LED Tape Light — 3500K & High CRI
The GM Lighting LTR-S-24V-2.5W-35K-100 is a high-performance LED tape light designed for architectural-grade applications. This 98'-6" tape light operates at 24V and is Dry Rated, making it ideal for indoor installations. With a color temperature of 3500K, it provides a neutral white light that is perfect for various settings.
Key Features
- Voltage: 24V DC for consistent performance.
- Wattage: 2.5 watts per foot for energy efficiency.
- Lumens: 203 lumens per foot for bright illumination.
- LED Density: 72 LEDs per foot for uniform light distribution.
- Max Run: 32'-8" to prevent voltage drop.

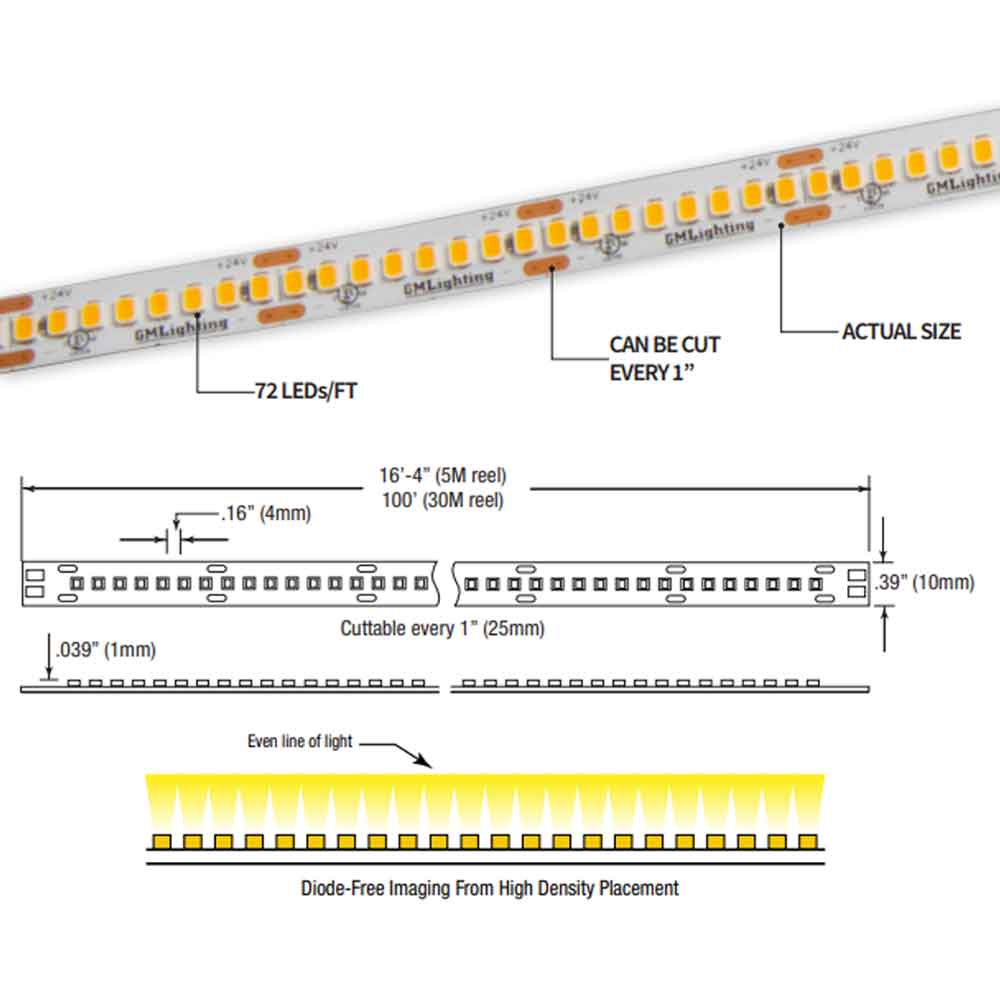

- Cuttable: Every 1" for custom installations.
- PCB Width: 10mm for compatibility with various channels.
- Beam Angle: 120° for wide light coverage.
- IP Rating: Dry Rated for indoor use.
- Certifications: UL, Title 24 compliant.
Core Design & Construction
The tape light features a 10mm PCB width, ensuring compatibility with standard aluminum channels. It includes a 3M adhesive backing for secure mounting and is designed for dry locations.
LED Illumination & Performance
With 203 lumens per foot and a 95+ CRI, this LED tape light delivers high-quality illumination with excellent color rendering, ideal for applications requiring precise lighting.
Power, Wiring & Installation
This tape light requires a 24V power supply and is dimmable, allowing for customized lighting levels. It can be cut every 1" for tailored installations and supports a maximum continuous run of 32'-8".

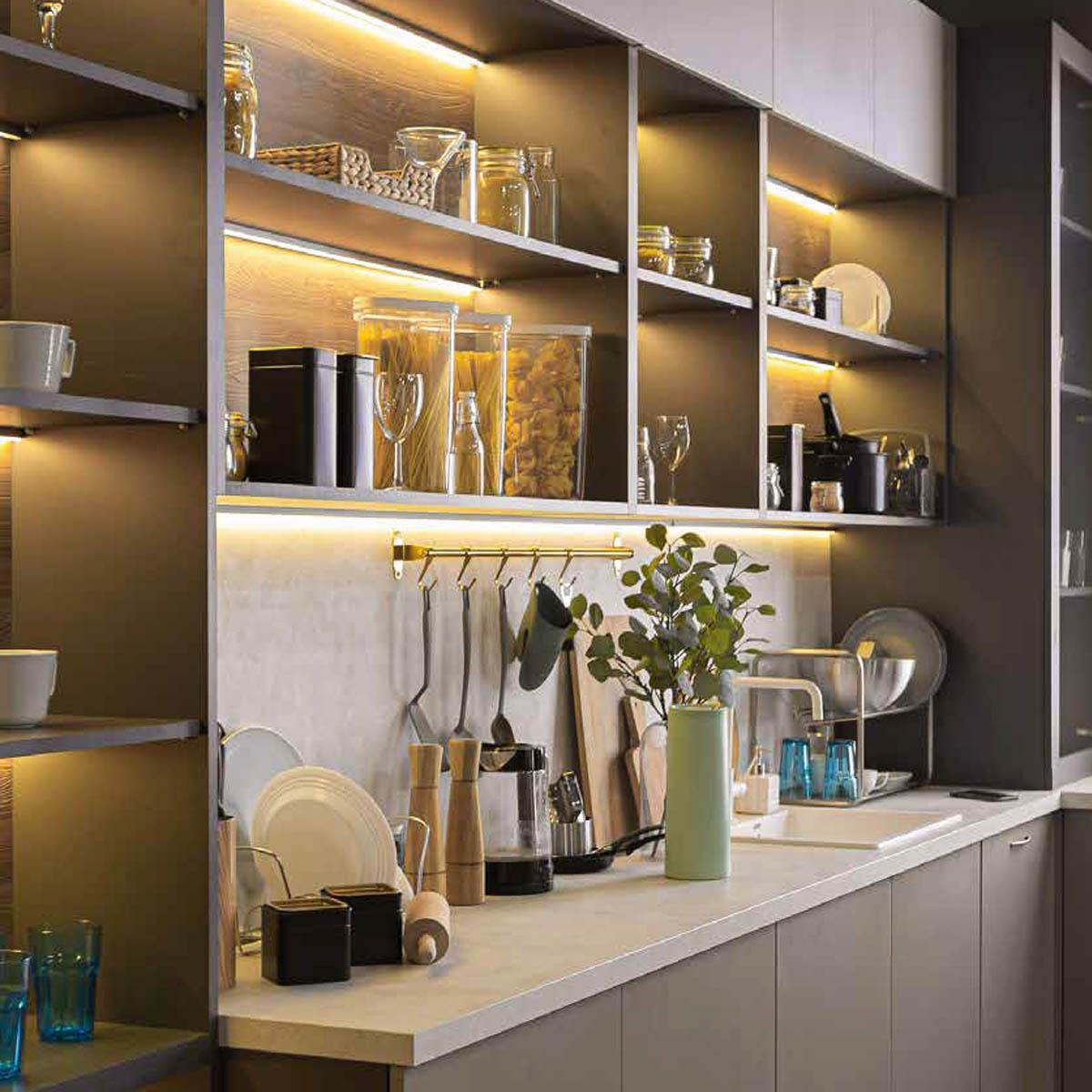

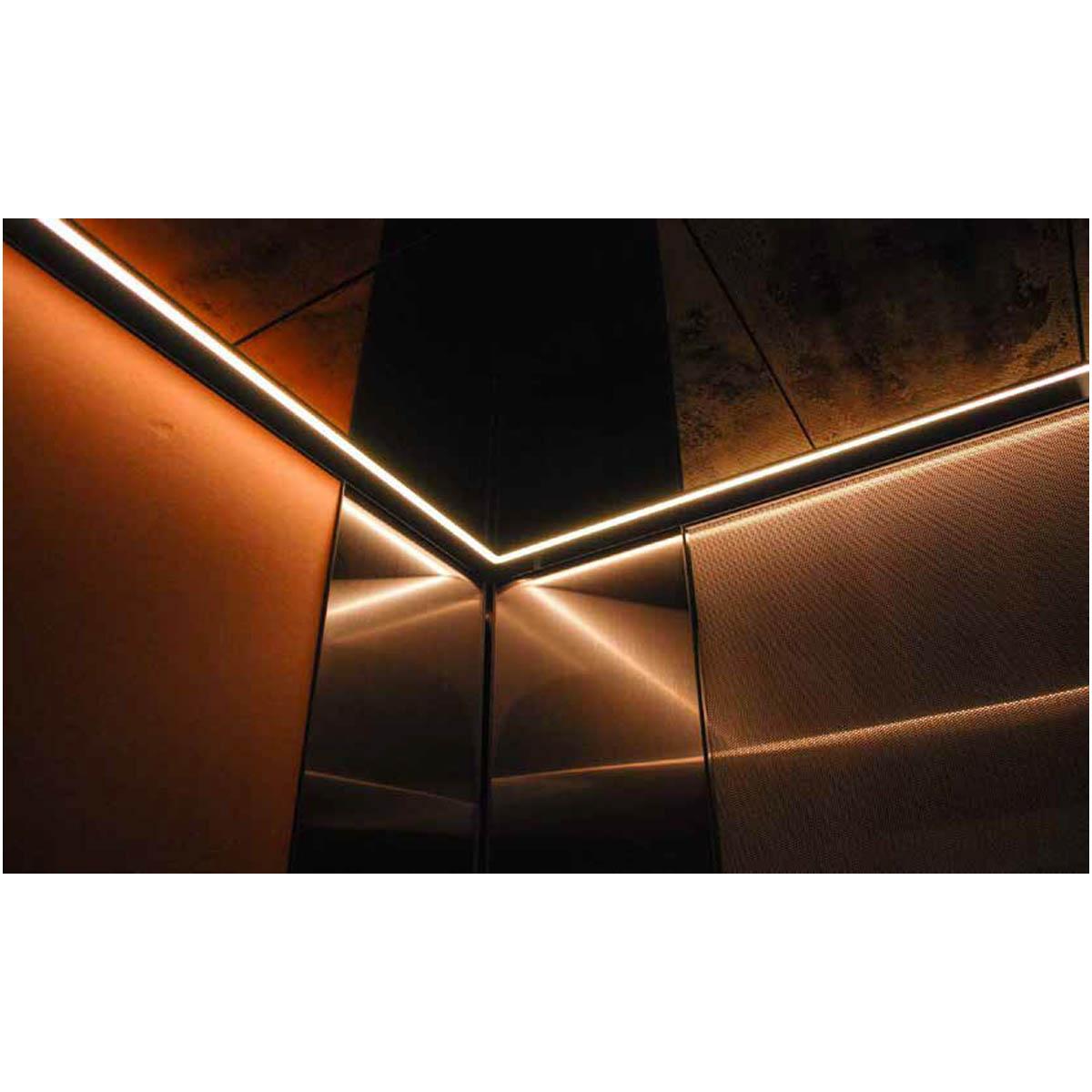

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Display case lighting
- Accent lighting
What's Included
- 98'-6" reel of LED tape light
- (10) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-2.5W-35K-100?
What is the maximum run length for the LTR-S-24V-2.5W-35K-100?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is the LTR-S-24V-2.5W-35K-100 dimmable?
Is the LTR-S-24V-2.5W-35K-100 dimmable?
What is the PCB width of this tape light?
What is the PCB width of this tape light?
