GM Lighting LTR-S SPEC, 16'-4' LED Tape Light, 2700K, 216 Lumens/ft, 24V
GM Lighting LTR-S SPEC, 16'-4' LED Tape Light, 2700K, 216 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: Emits a warm 2700K light, ideal for creating cozy atmospheres.
- Voltage: Operates on 24V DC, ensuring efficient energy consumption.
- Max Run: Supports up to 32'-8' on a single lead, minimizing voltage drop.
- Cuttable: Customizable with cut increments every 1', allowing precise installations.
- PCB Width: 10mm width compatible with standard channels for seamless integration.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 2700K & High CRI
The GM Lighting LTR-S-24V-2.5W-27K-16 is a 16'-4' LED tape light designed for architectural-grade applications. This tape light operates at 24V DC and is dry rated, making it suitable for indoor environments. With a high CRI of 95+, it ensures superior color rendering.
Key Features
- Voltage: 24V DC for efficient power usage.
- Wattage: 2.5 watts per foot for energy-efficient lighting.
- Lumens: 216 lumens per foot for bright illumination.
- LED Density: 72 LEDs per foot for even light distribution.
- Max Run: 32'-8' on a single lead to prevent voltage drop.
- Cuttable: Every 1' for custom lengths.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: Dry rated for indoor use.
- Certifications: UL, Title 24 compliant, and Closet Rated.
Core Design & Construction

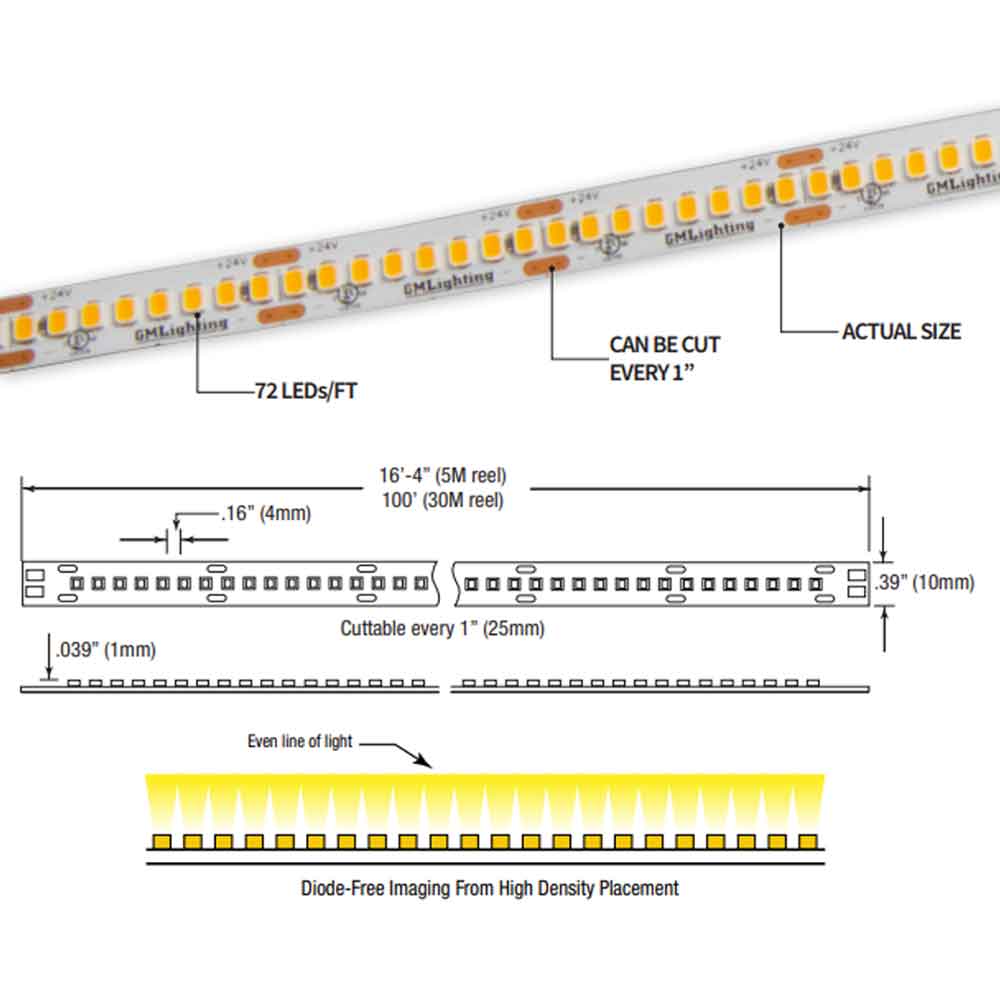

Featuring a 10mm PCB width, this tape light is designed for easy integration into standard aluminum channels. It includes a 3M adhesive backing for secure installation and is dry rated for indoor use.
LED Illumination & Performance
With 216 lumens per foot and a CRI of 95+, this LED tape light delivers high-quality illumination with excellent color accuracy. The light engine is designed for even light distribution without diode imaging.
Power, Wiring & Installation
This tape light requires a 24V DC power supply and is field-cuttable every 1', allowing for precise customization. It supports a maximum continuous run of 32'-8' to prevent voltage drop and is dimmable for adjustable lighting levels.

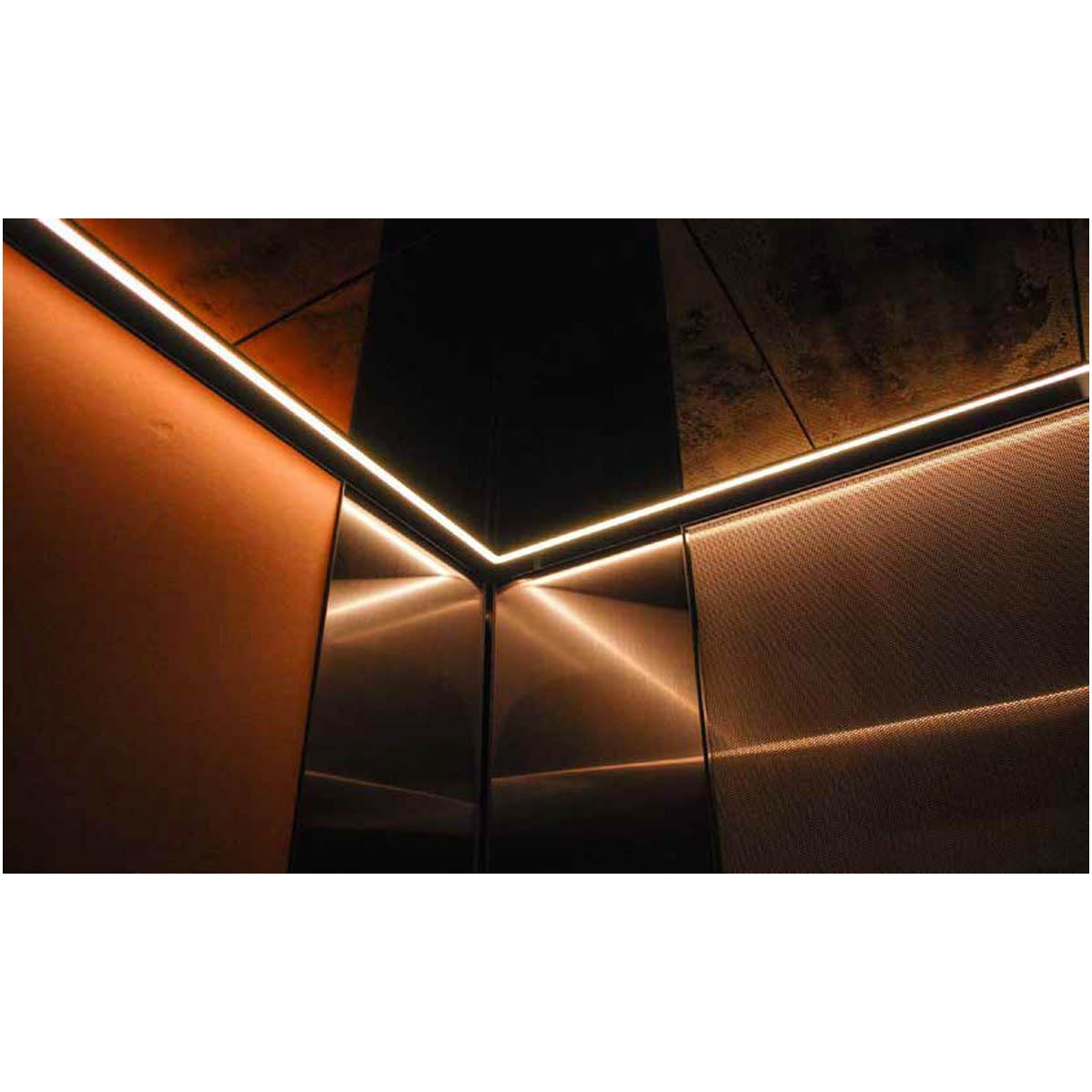

Where This Tape Works Best
- Cove lighting

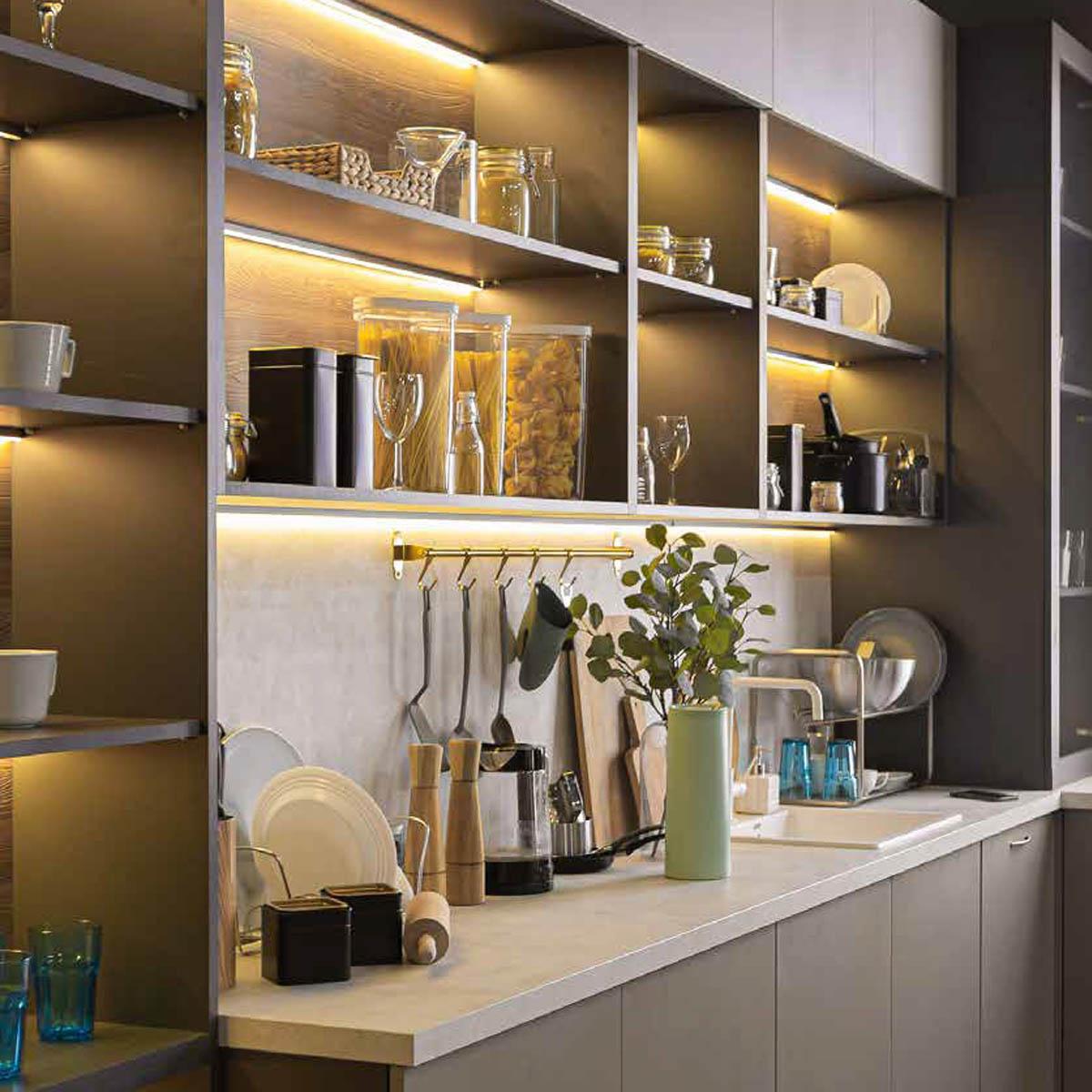

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' LED tape light spool
- (3) ESTW-60 Sure-Tite connectors
- 24' lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-2.5W-27K-16?
What is the maximum run length for the LTR-S-24V-2.5W-27K-16?
Can the LTR-S-24V-2.5W-27K-16 be cut to custom lengths?
Can the LTR-S-24V-2.5W-27K-16 be cut to custom lengths?
What voltage is required for the LTR-S-24V-2.5W-27K-16?
What voltage is required for the LTR-S-24V-2.5W-27K-16?
Is the LTR-S-24V-2.5W-27K-16 compatible with standard channels?
Is the LTR-S-24V-2.5W-27K-16 compatible with standard channels?
What is the CRI of the LTR-S-24V-2.5W-27K-16?
What is the CRI of the LTR-S-24V-2.5W-27K-16?
