GM Lighting LTR-S SPEC 98'-6" LED Tape Light, 2700K, 195 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V, ensuring compatibility with low voltage systems.
- Color Temperature: Emits a warm 2700K light, ideal for cozy environments.
- Max Run: Maximum continuous run length of 32'-8" to prevent voltage drop.

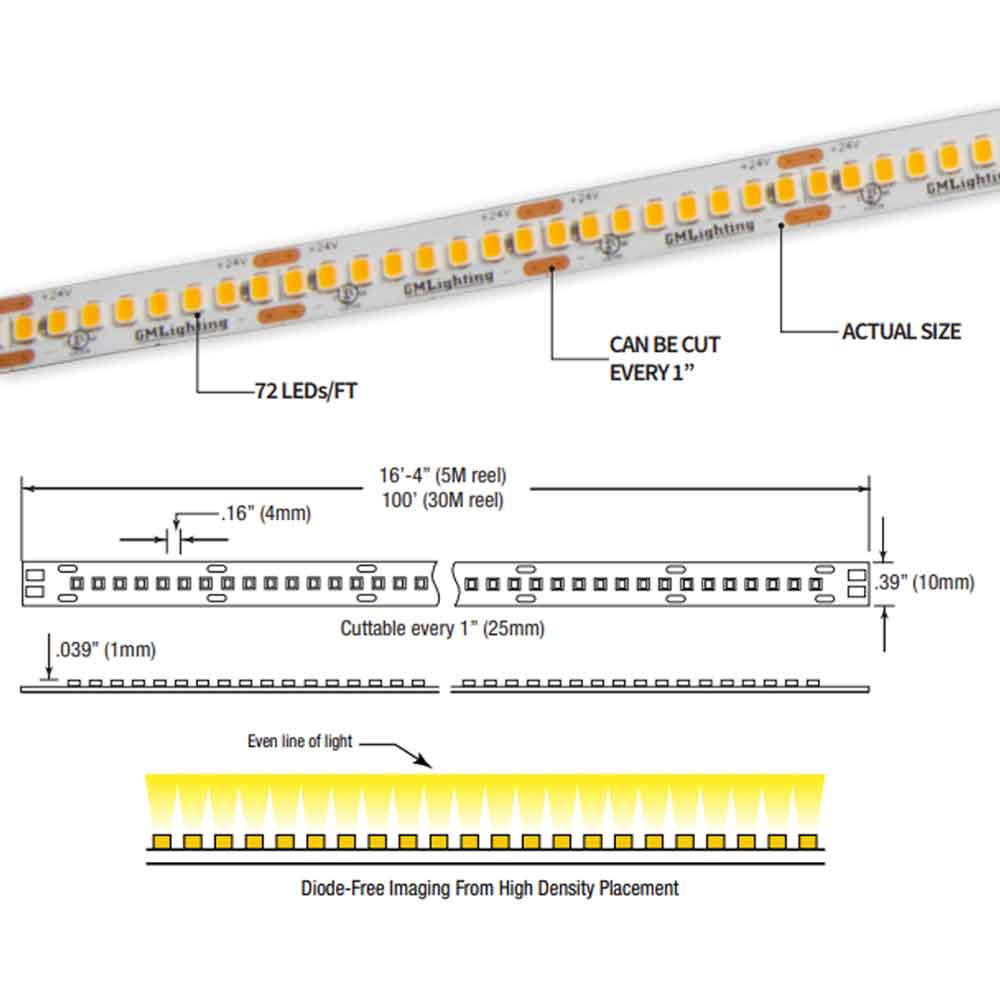

- Cuttable: Field cuttable every 1" for precise installations.
- PCB Width: 10mm width, suitable for standard channels.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 2700K & High CRI
The GM Lighting LTR-S-24V-2.5W-27K-100 is a high-performance LED tape light designed for architectural-grade applications. This 98'-6" tape light operates at 24V and is Dry Rated, making it suitable for indoor use. With a 2700K color temperature, it provides a warm and inviting ambiance.
Key Features
- Voltage: 24V DC operation for consistent performance.
- Wattage: 2.5 watts per foot for energy-efficient lighting.
- Lumens: 195 lumens per foot for bright illumination.
- LED Density: 72 LEDs per foot for uniform light distribution.
- Max Run: 32'-8" on a single power feed to prevent voltage drop.
- Cuttable: Every 1" for custom lengths.
- PCB Width: 10mm for compatibility with most channels.
- Beam Angle: 120° for wide light coverage.
- IP Rating: Dry Rated for indoor use.
- Certifications: UL Listed, Title 24 compliant.
Core Design & Construction
Featuring a 10mm PCB width, this tape light is compatible with standard aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With 195 lumens per foot and a 95+ CRI, this tape light delivers high-quality illumination with excellent color rendering, utilizing premium diodes for consistent light output.
Power, Wiring & Installation
Requires a 24V DC power supply, sold separately. The tape is field cuttable every 1" and supports dimming for customizable lighting solutions.

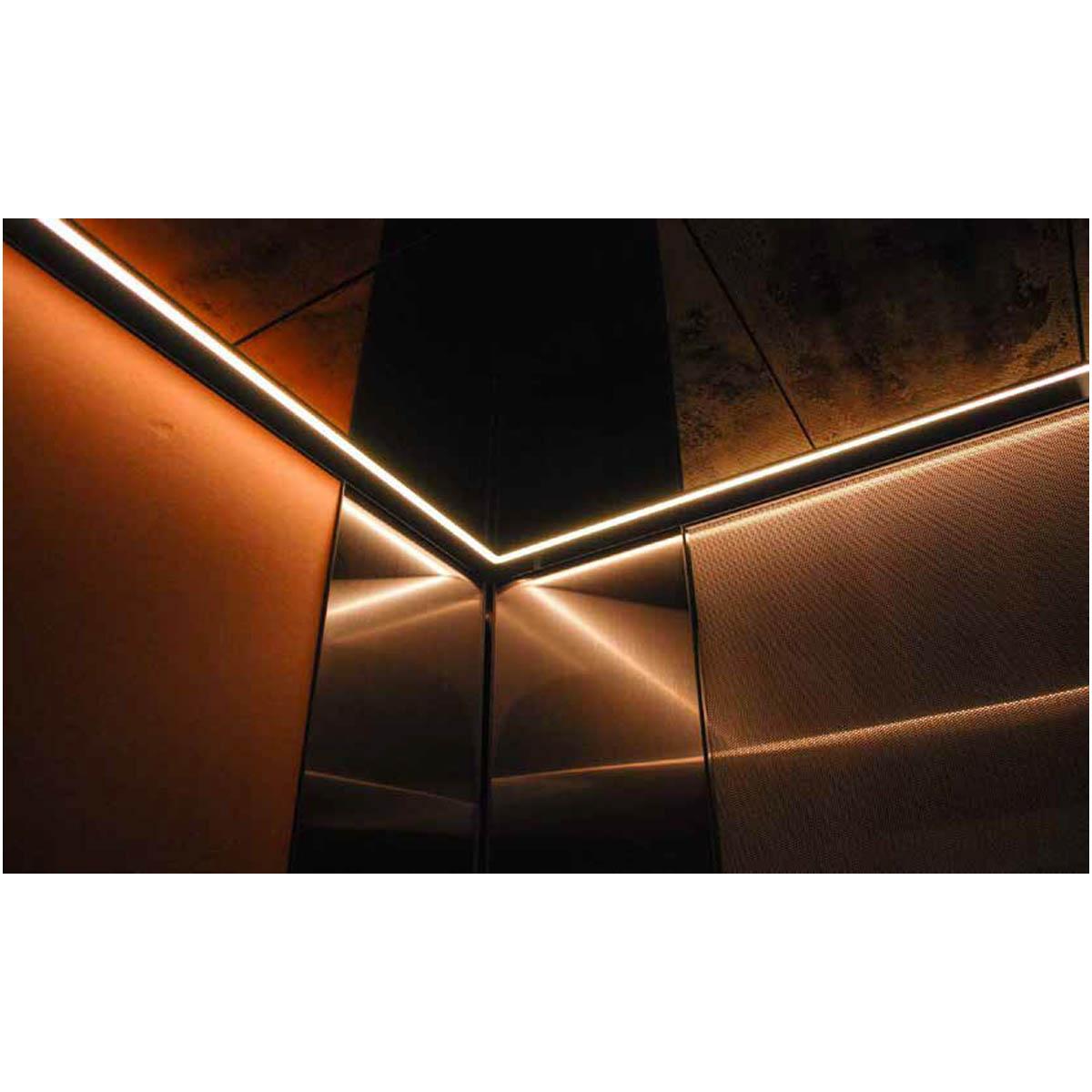

Where This Tape Works Best
- Cove lighting

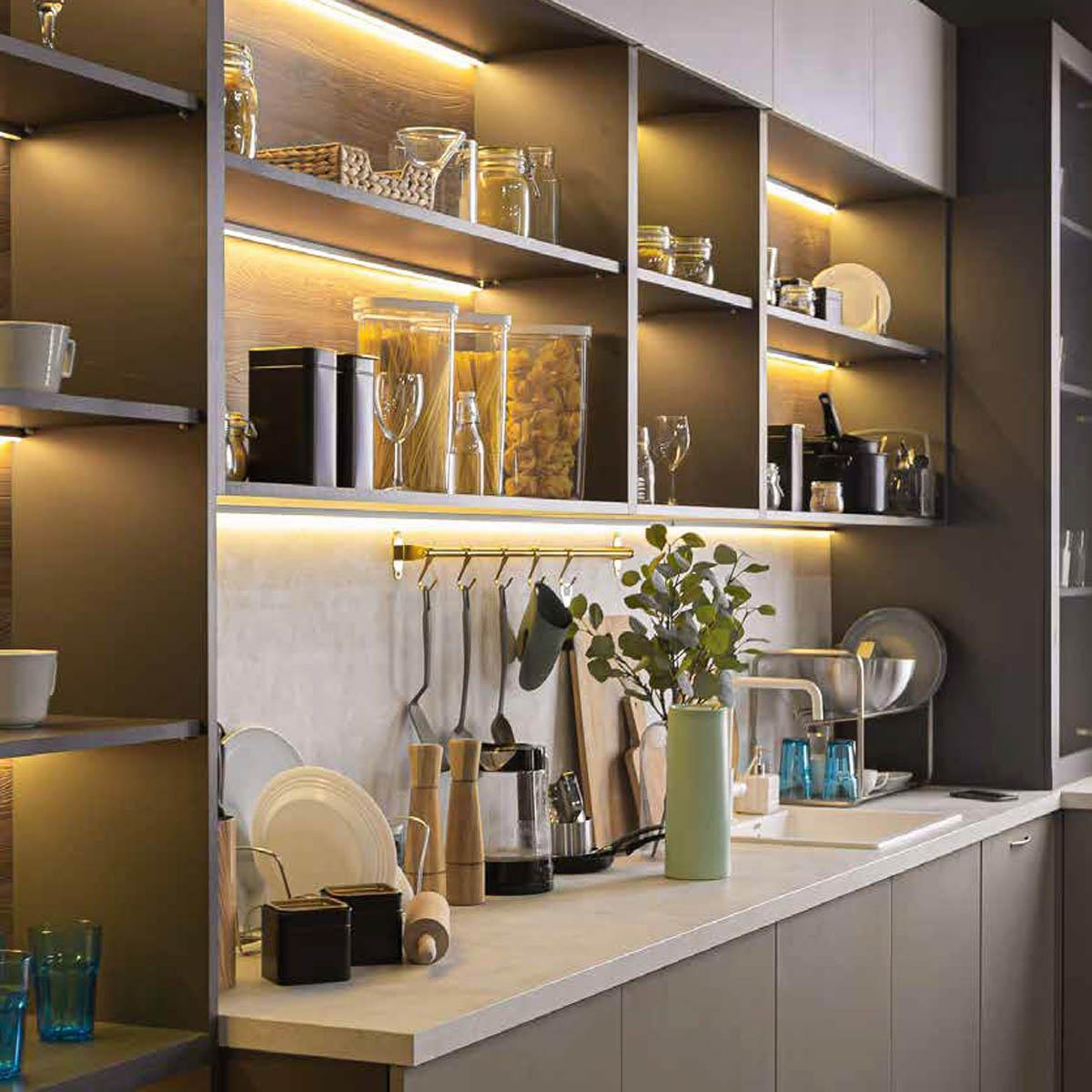

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 98'-6" LED tape light spool
- (10) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-24V-2.5W-27K-100?
What is the maximum run length for the LTR-S-24V-2.5W-27K-100?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light suitable for outdoor use?
Is this tape light suitable for outdoor use?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
