GM Lighting LTR-P PRO 16'-4' LED Tape Light, IP65 Wet Rated, 5000K, 493 Lumens/ft, 24V
GM Lighting LTR-P PRO 16'-4' LED Tape Light, IP65 Wet Rated, 5000K, 493 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: 5000K for crisp, daylight-like illumination.
- Voltage: Operates at 24VDC, ensuring efficient power usage.
- Max Run: Maximum continuous run of 16'-4' to prevent voltage drop.
- Cuttable Increments: Field cuttable every 2' for custom installations.
- IP Rating: IP65 rated for wet locations, ideal for outdoor applications.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-P PRO LED Tape Light — 5000K & Wet Rated
The GM Lighting LTR-P-WP-24V-5.8W-50K-16 is a professional-grade LED tape light designed for wet locations. This 16'-4' tape light operates at 24VDC and is IP65 rated, making it suitable for outdoor environments. With a color temperature of 5000K, it delivers a bright, daylight-like illumination.
Key Features
- Voltage: 24VDC for consistent power delivery.
- Wattage: 5.8 watts per foot for high output.
- Lumens per Foot: 493 lumens for bright lighting.
- LEDs per Foot: 36 LEDs for uniform light distribution.
- Maximum Run: 16'-4' to prevent voltage drop.

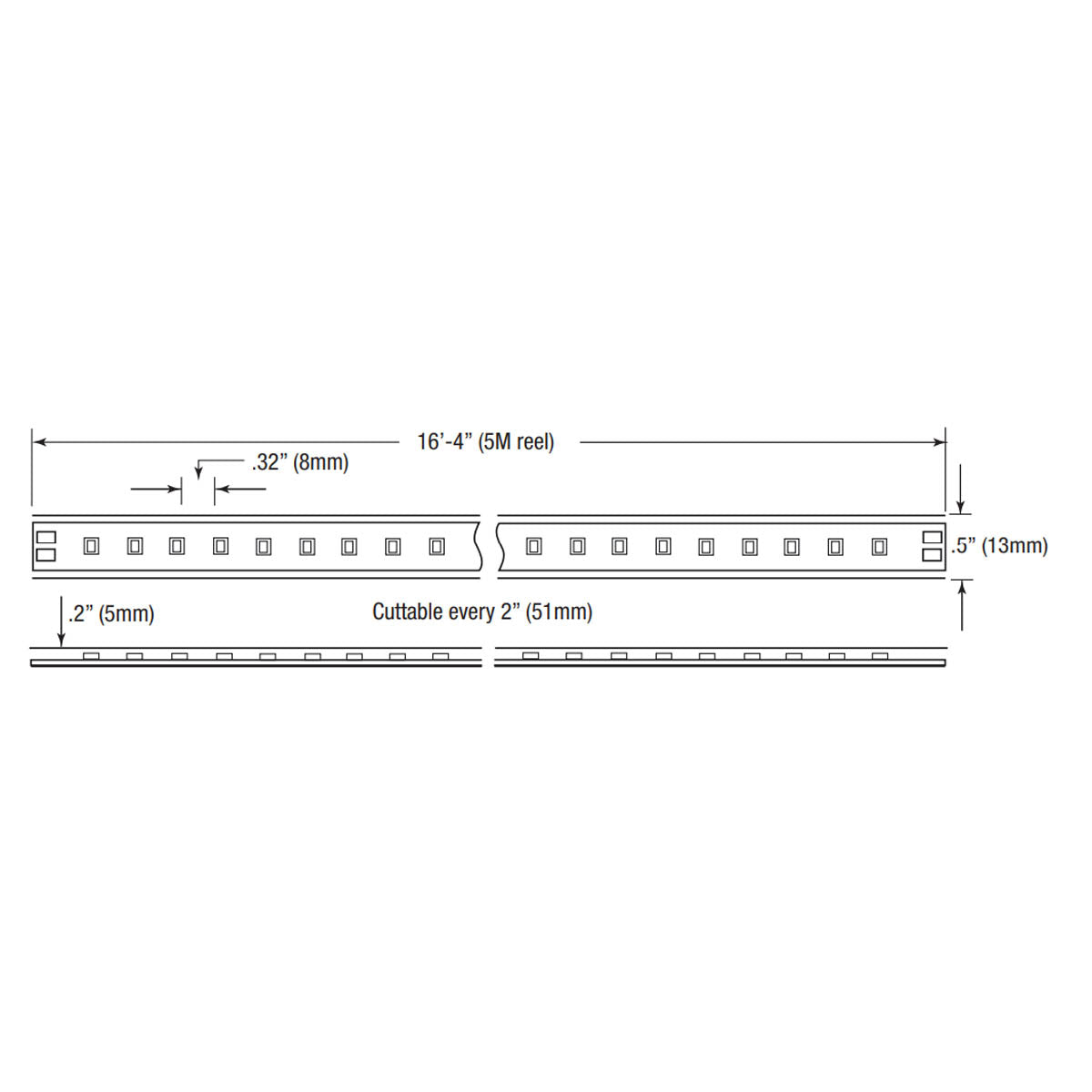

- Cuttable Increments: Every 2' for custom lengths.
- PCB Width: 8mm for compatibility with most channels.
- Beam Angle: 120° for wide light spread.
- IP Rating: IP65 for wet locations.
- Certifications: UL, Title 24 compliant with select power supplies.
Core Design & Construction
The tape light features a narrow 8mm PCB width, making it compatible with various aluminum channels. It is encased in an optical clear UV-protected silicone sheath, providing durability and protection against the elements. The tape includes a strong adhesive backing for secure mounting.
LED Illumination & Performance
With 493 lumens per foot and a high 90+ CRI, this tape light ensures vibrant and accurate color rendering. It utilizes premium diodes for reliable performance in wet conditions.
Power, Wiring & Installation
This tape light requires a 24VDC power supply and is dimmable for adjustable lighting levels. It can be cut every 2' for precise installations and has a maximum continuous run of 16'-4' to prevent voltage drop.

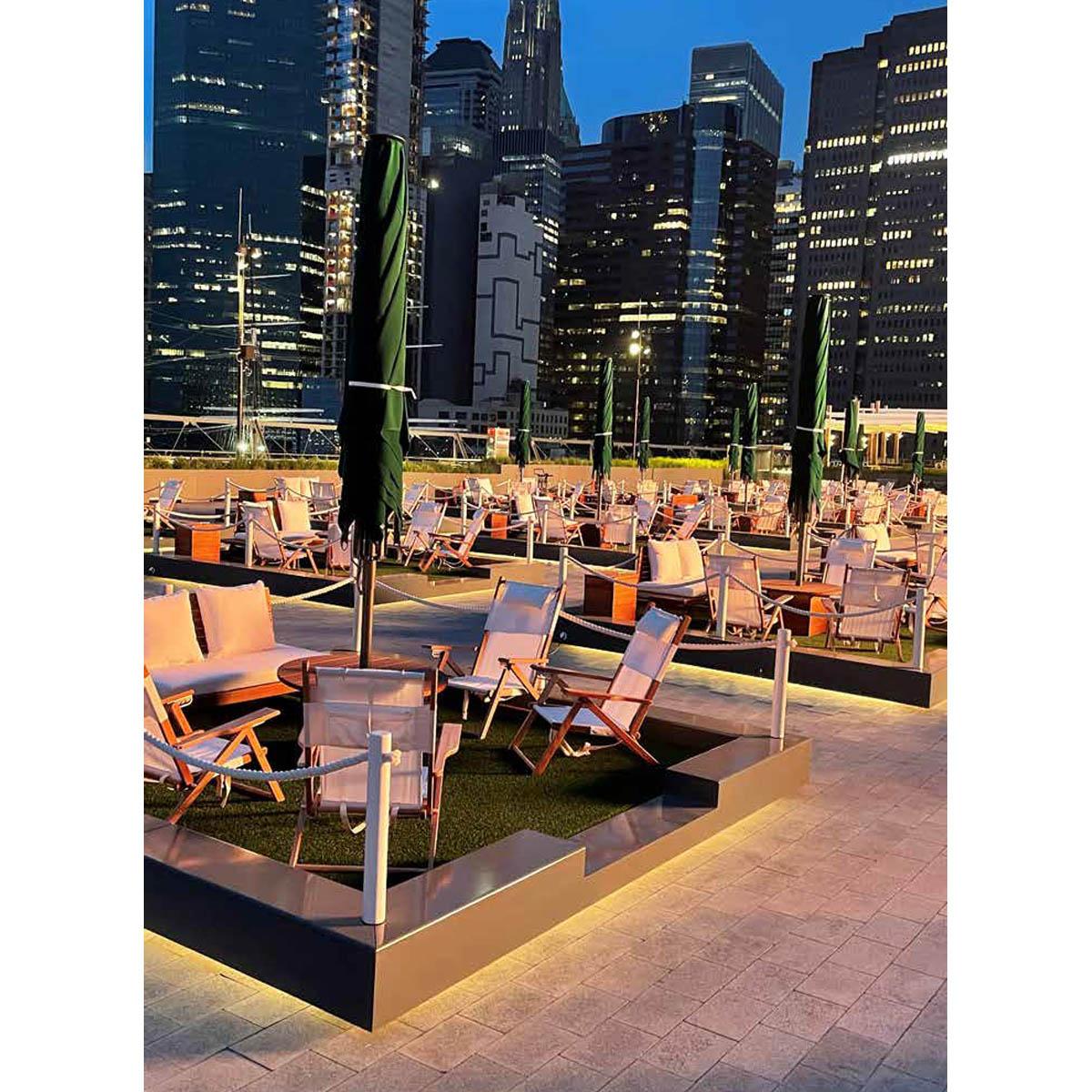

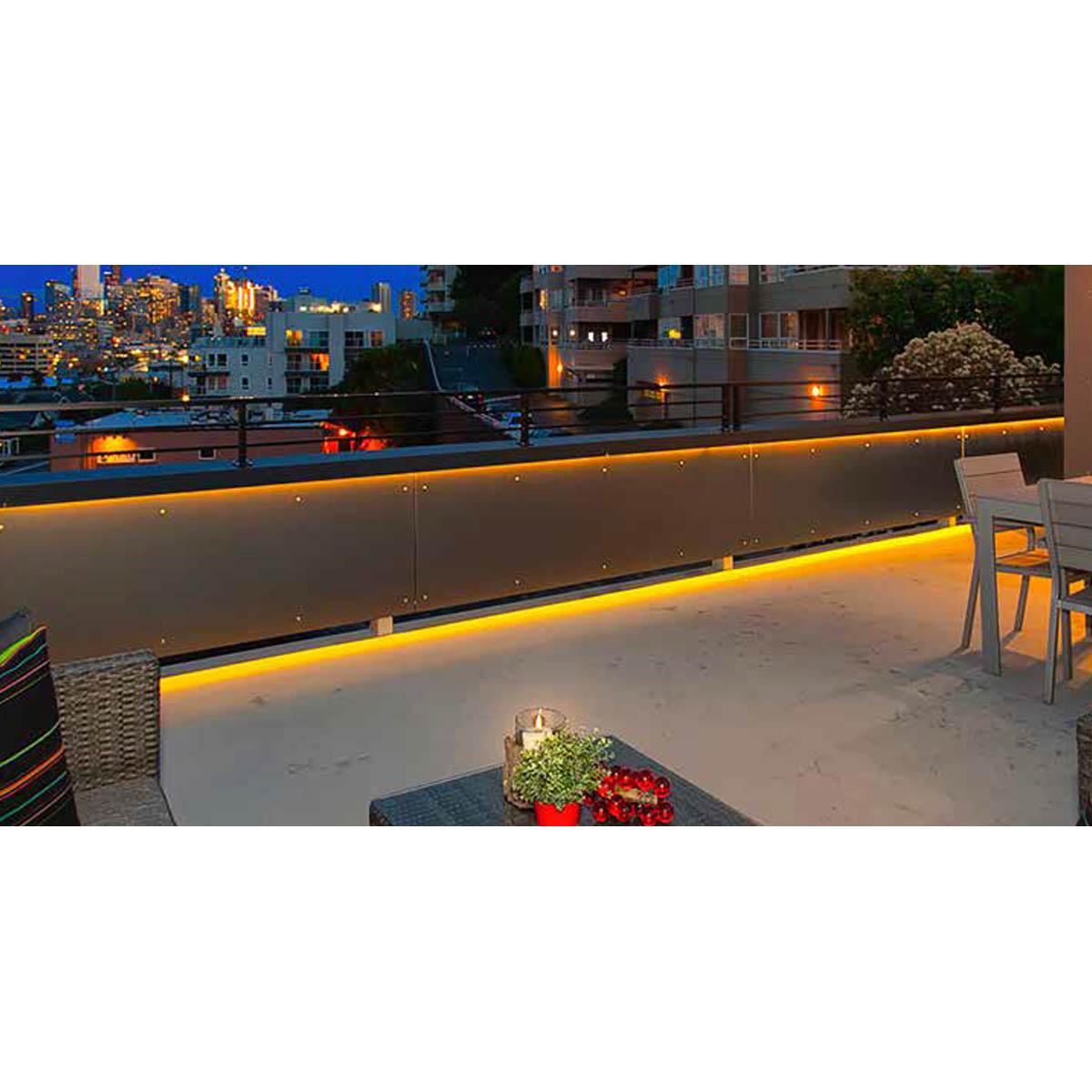

Where This Tape Works Best
- Outdoor pathways
- Garden lighting
- Poolside accents
- Architectural facades
What's Included
- 16'-4' LED tape light spool
- (20) silicon mounting clips and screws
- (2) silicon end caps
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-P-WP-24V-5.8W-50K-16?
What is the maximum run length for the LTR-P-WP-24V-5.8W-50K-16?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light suitable for outdoor use?
Is this tape light suitable for outdoor use?
What is the PCB width of the tape light?
What is the PCB width of the tape light?
