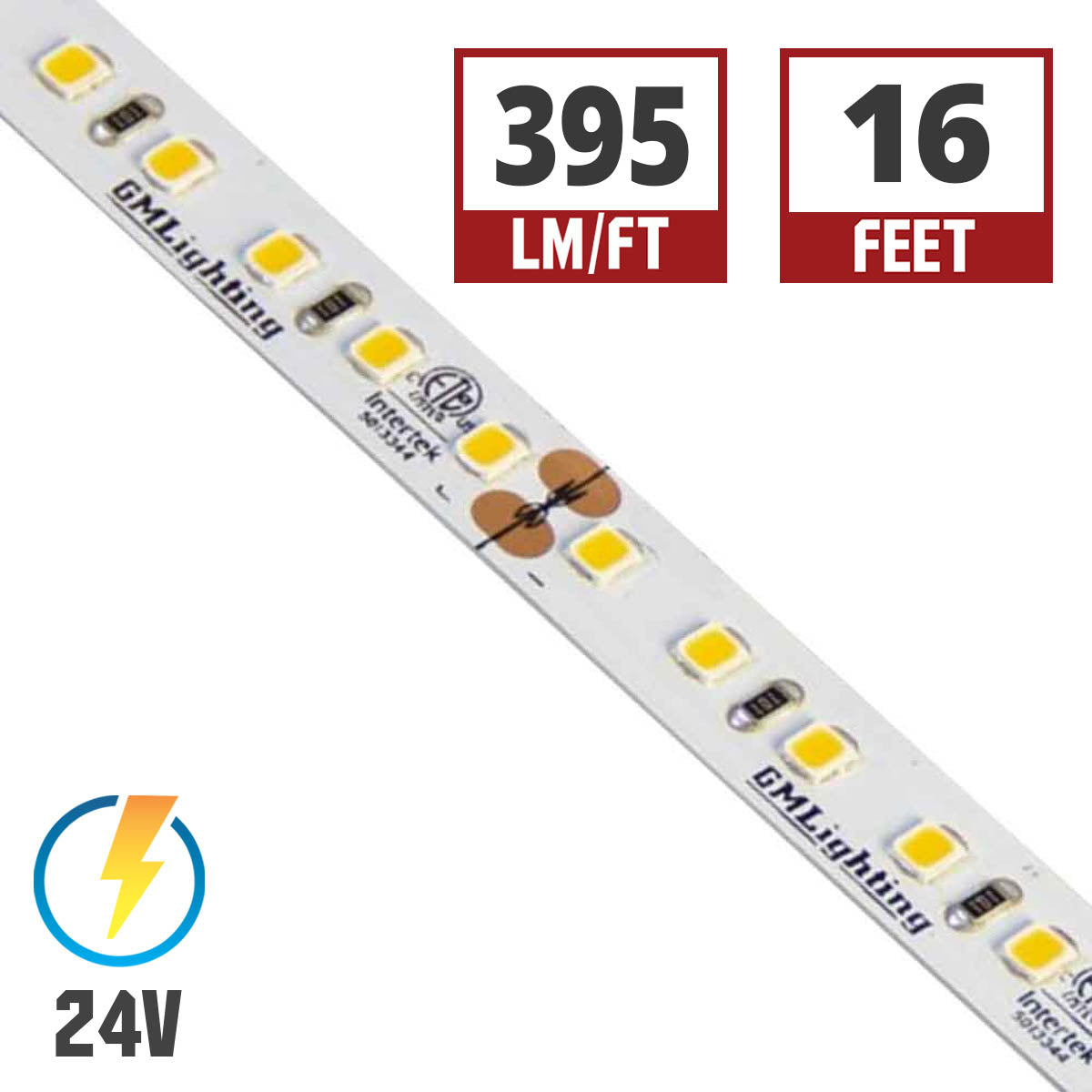

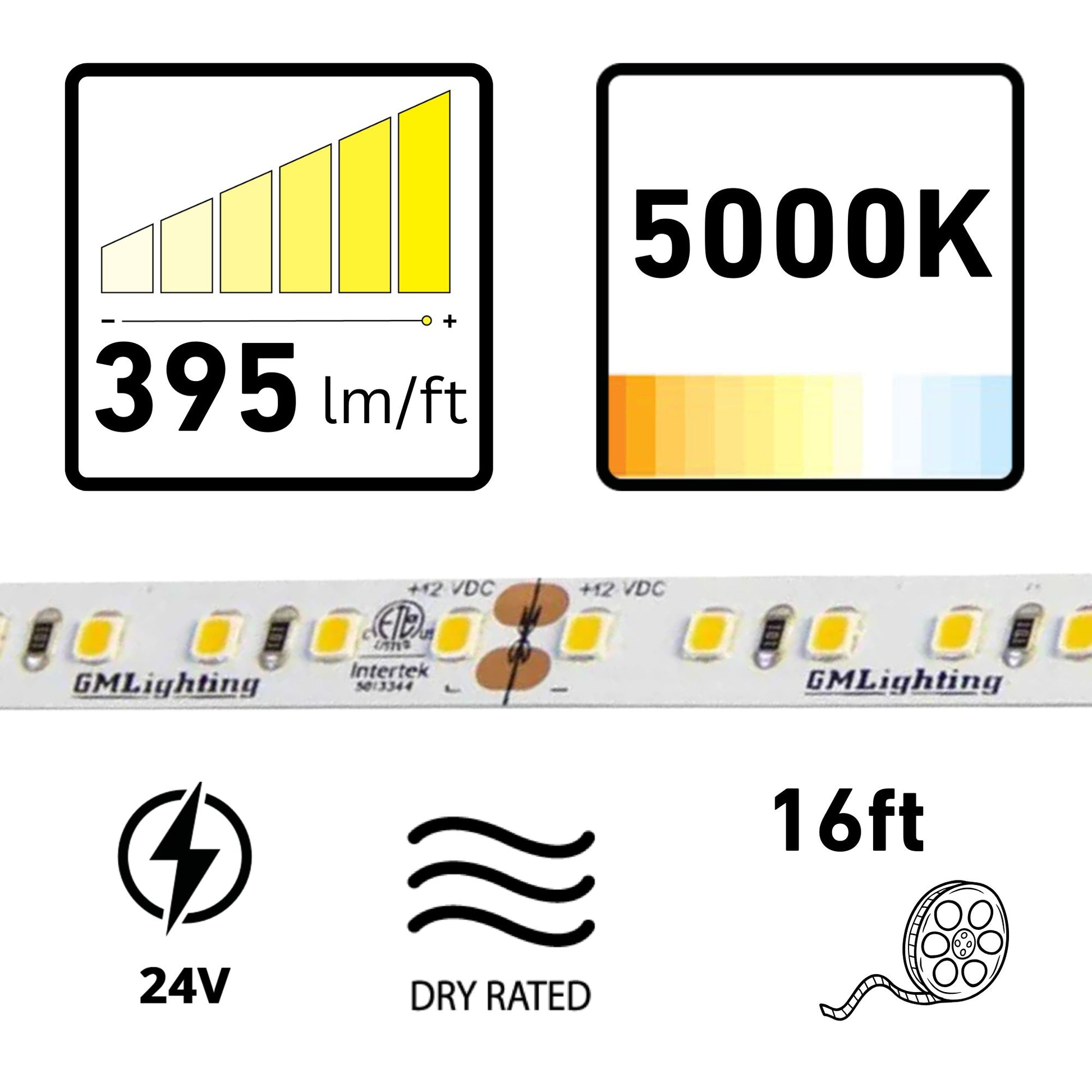

GM Lighting LTR-P PRO 16'-4" LED Tape Light, 5000K, 395 Lumens/ft, 24V
GM Lighting LTR-P PRO 16'-4" LED Tape Light, 5000K, 395 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: 5000K for bright, daylight illumination.
- Voltage: Operates at 24VDC for efficient power usage.
- Max Run: Supports up to 20' on a single lead to prevent voltage drop.
- Cuttable: Can be cut every 2' for custom lengths.
- LED Density: 120 LEDs per meter for consistent light output.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

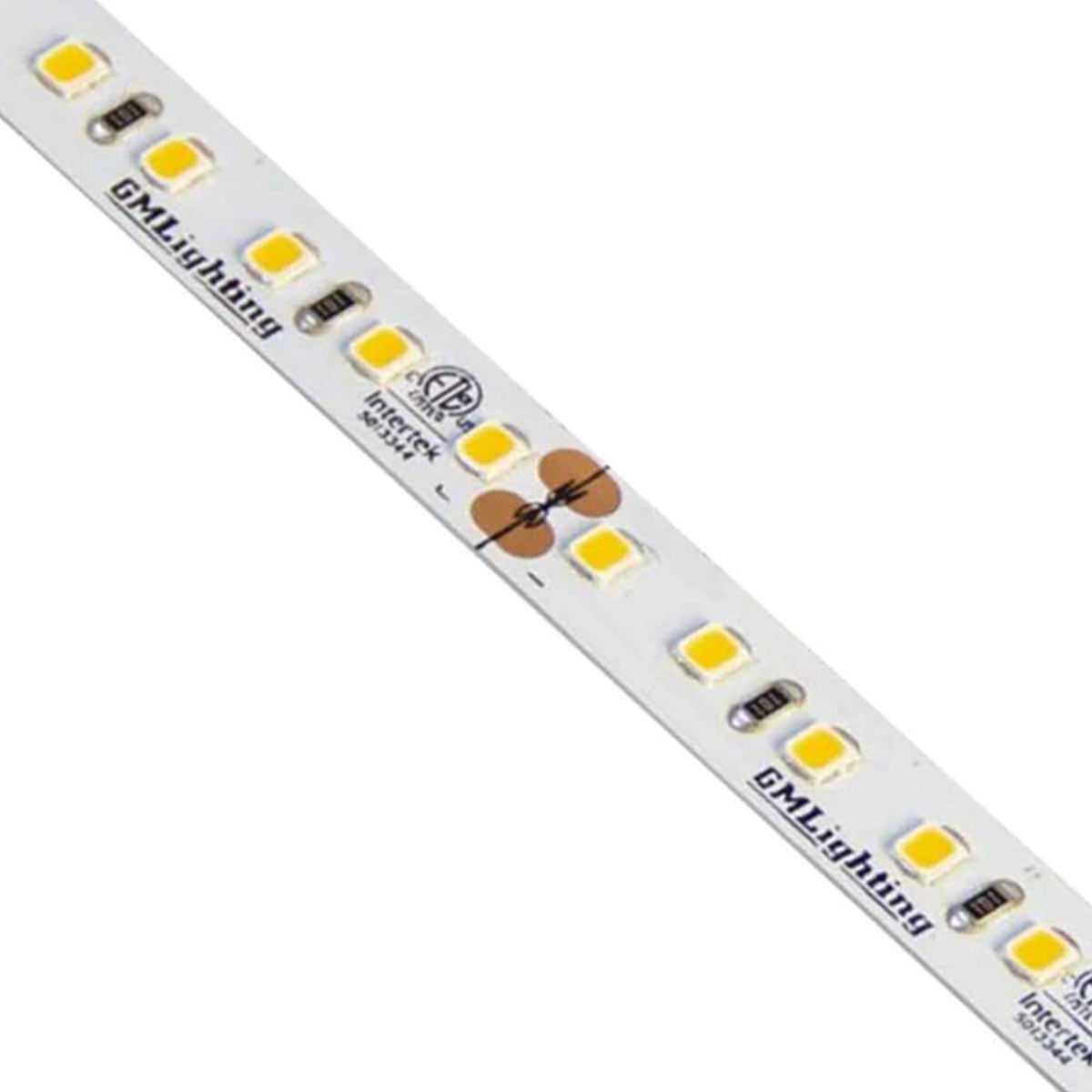

GM Lighting LTR-P PRO LED Tape Light — 5000K & High CRI
The GM Lighting LTR-P-24V-4.5W-50K-16 is a professional-grade LED tape light designed for high-quality installations. This 16'-4" tape light operates at 24VDC and is suitable for dry locations. It features a high color rendering index (CRI) of 90+, ensuring vibrant and accurate color representation.
Key Features
- Voltage: 24VDC for stable and efficient operation.
- Wattage: 4.5 watts per foot for optimal brightness.
- Lumens: 395 lumens per foot for bright illumination.
- LED Density: 120 LEDs per meter for uniform light distribution.
- Max Run: 20' maximum run length to prevent voltage drop.

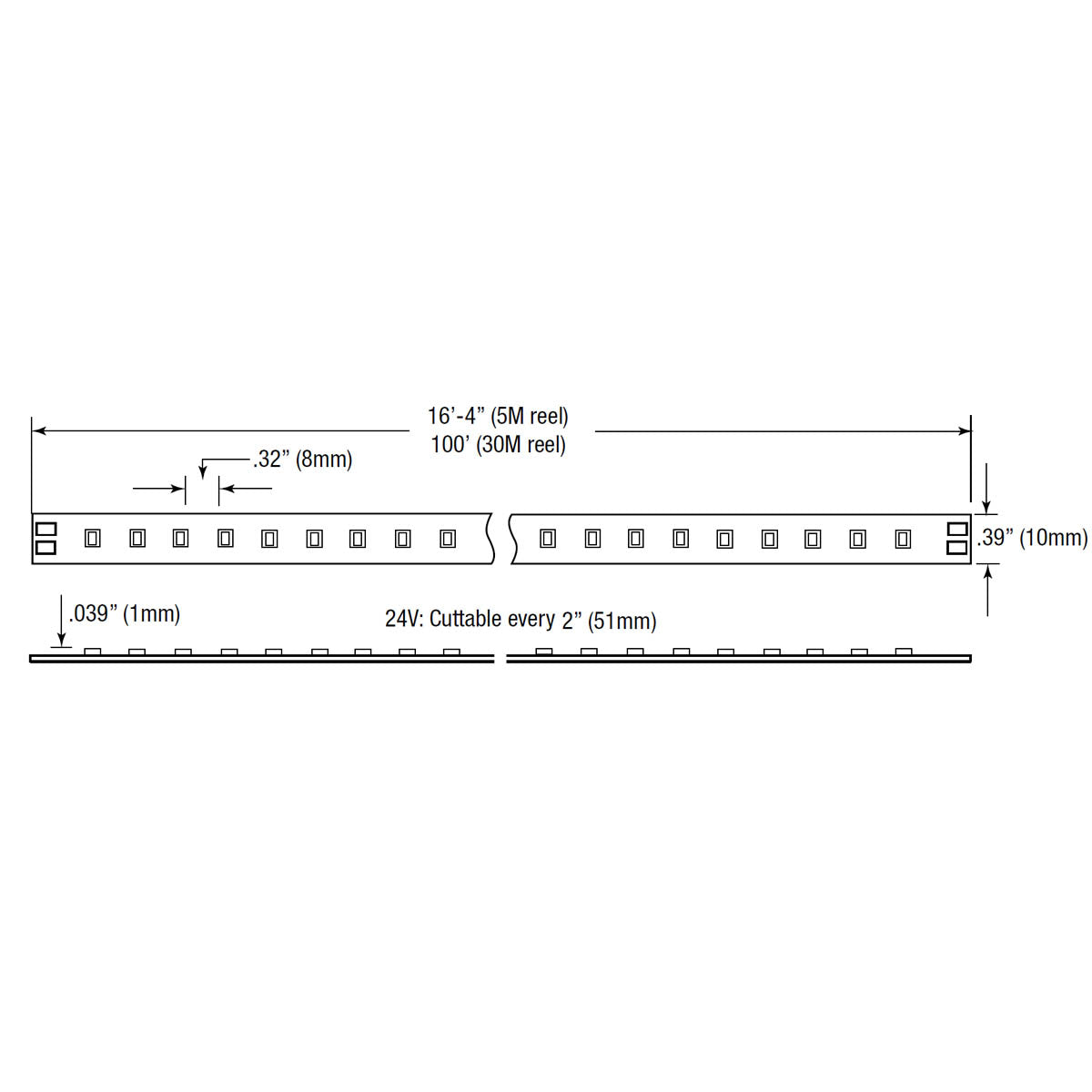

- Cuttable: Field cuttable every 2" for custom installations.
- PCB Width: 8mm for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: Dry rated for indoor use.
- Certifications: ETL and Title 24 compliant.
Core Design & Construction
The tape light features a narrow 8mm PCB, making it compatible with most aluminum channels. It includes a 3M adhesive backing for easy installation and is designed for dry locations.
LED Illumination & Performance
With 395 lumens per foot and a 90+ CRI, this tape light provides bright, high-quality illumination. The light engine is designed for consistent color and brightness.
Power, Wiring & Installation
This tape light requires a 24VDC power supply. It is field cuttable every 2" and supports a maximum continuous run of 20'. It is dimmable with compatible drivers.
Where This Tape Works Best

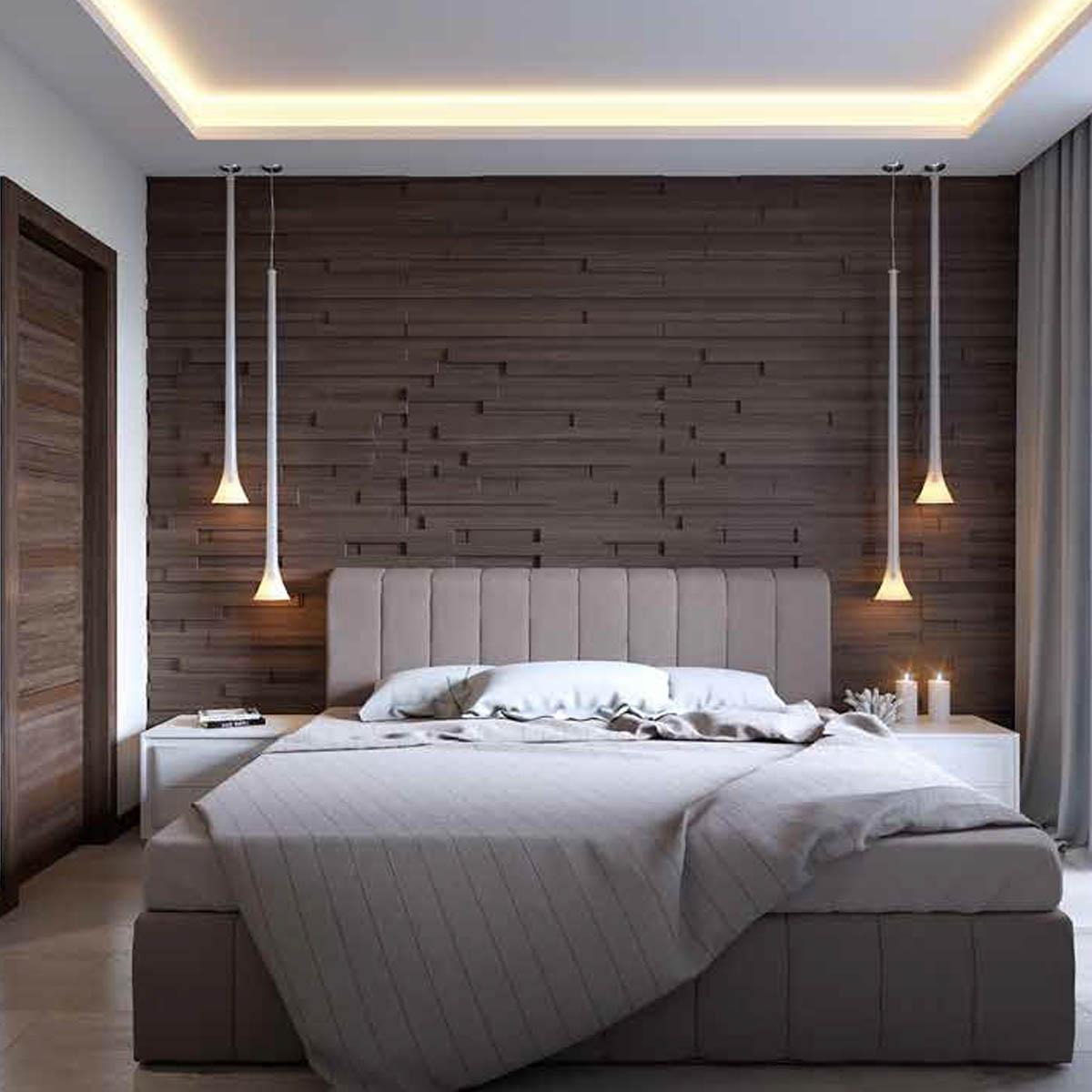

- Cove lighting

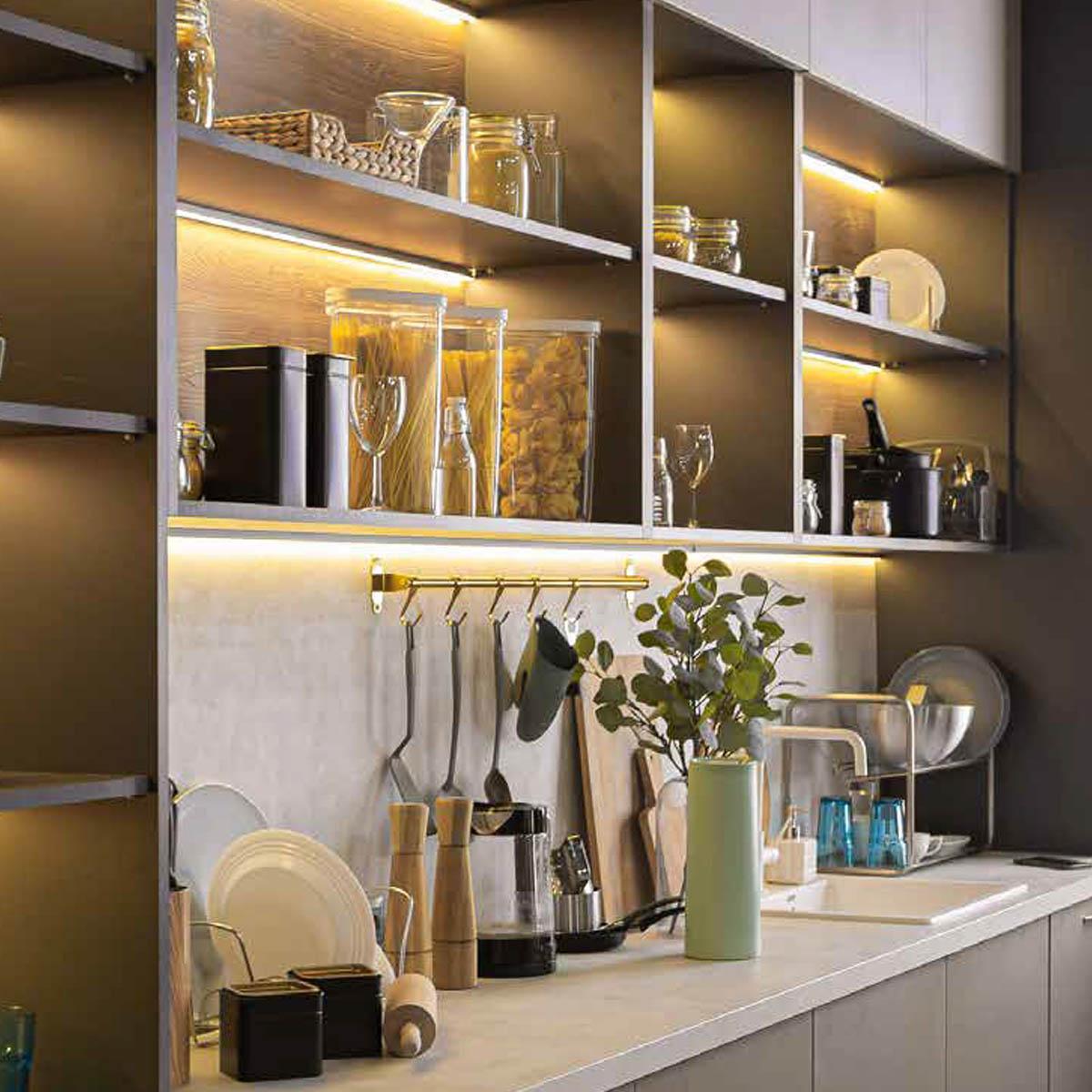

- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4" reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 48" lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-P-24V-4.5W-50K-16?
What is the maximum run length for the LTR-P-24V-4.5W-50K-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the LTR-P-24V-4.5W-50K-16?
What voltage is required for the LTR-P-24V-4.5W-50K-16?
Is the LTR-P-24V-4.5W-50K-16 dimmable?
Is the LTR-P-24V-4.5W-50K-16 dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
