GM Lighting LTR-P PRO 100' LED Tape Light, 5000K, 395 Lumens/ft, 24V
GM Lighting LTR-P PRO 100' LED Tape Light, 5000K, 395 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: Provides a crisp 5000K light, ideal for task lighting and enhancing visibility.
- Voltage: Operates on 24V DC, ensuring efficient power consumption and compatibility with low voltage systems.
- Max Run: Supports up to 20' on a single lead, minimizing voltage drop and maintaining consistent brightness.
- Cuttable Increments: Can be precisely cut every 2', allowing for custom lengths and installations.
- LED Density: Features 120 LEDs per meter, delivering uniform light distribution and high lumen output.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

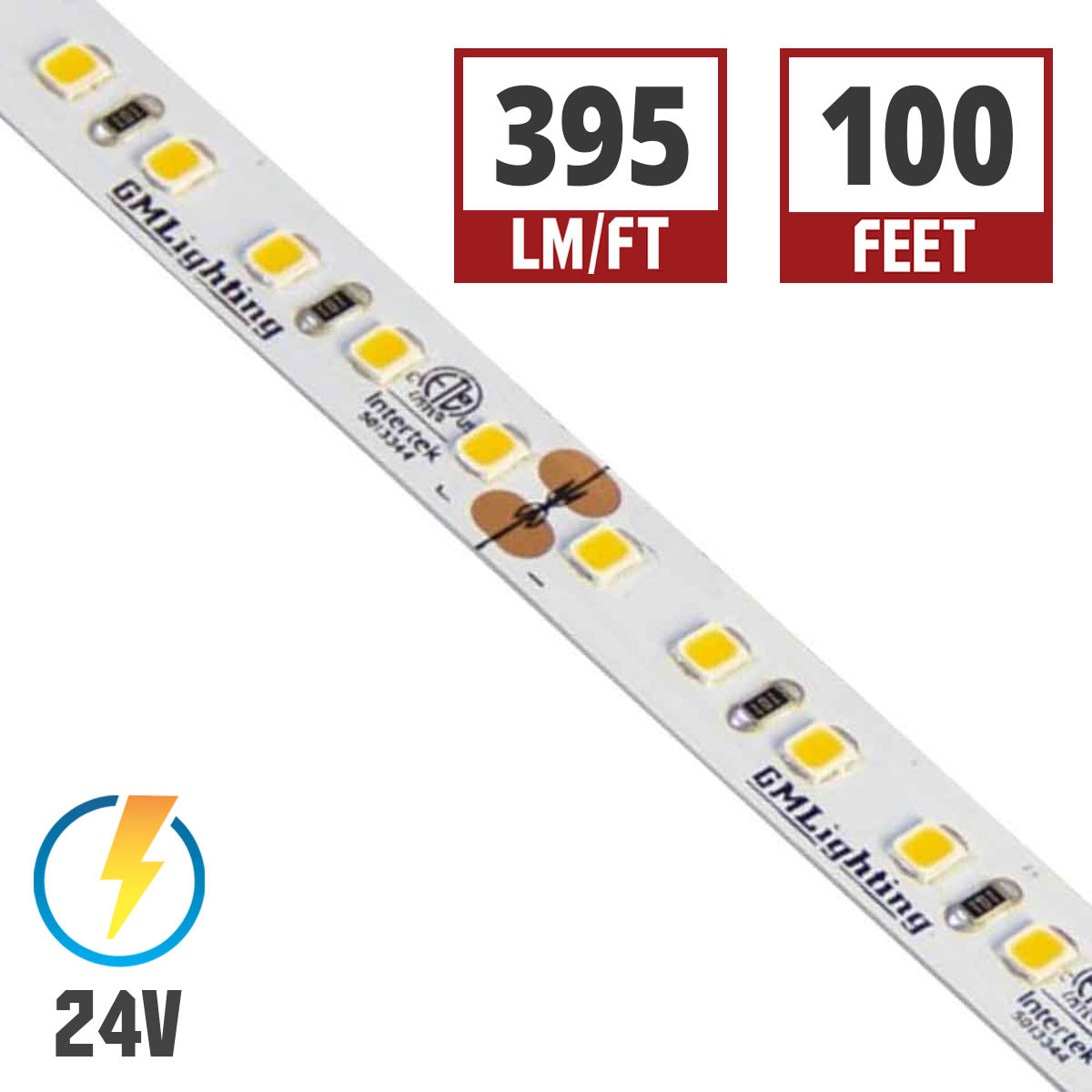

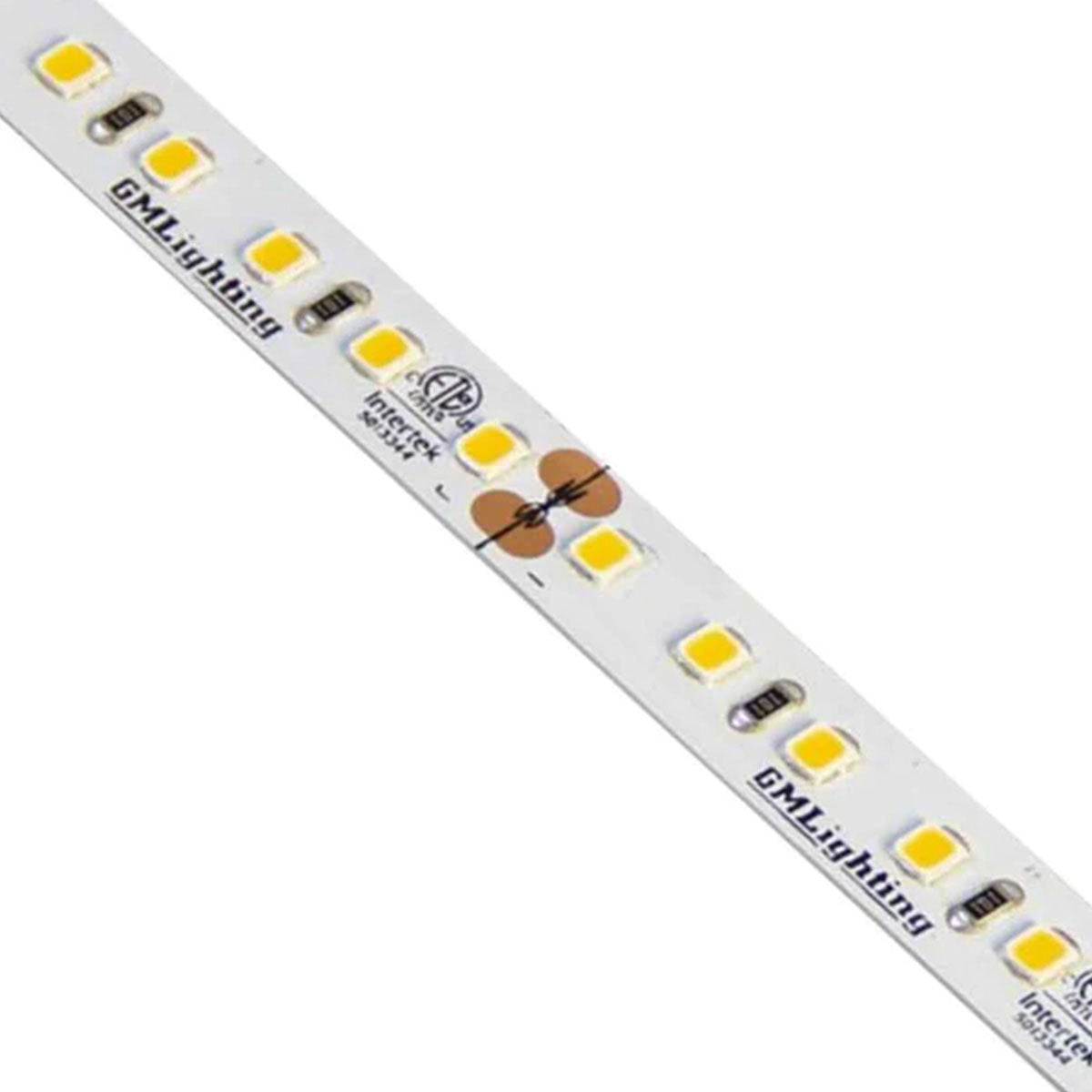

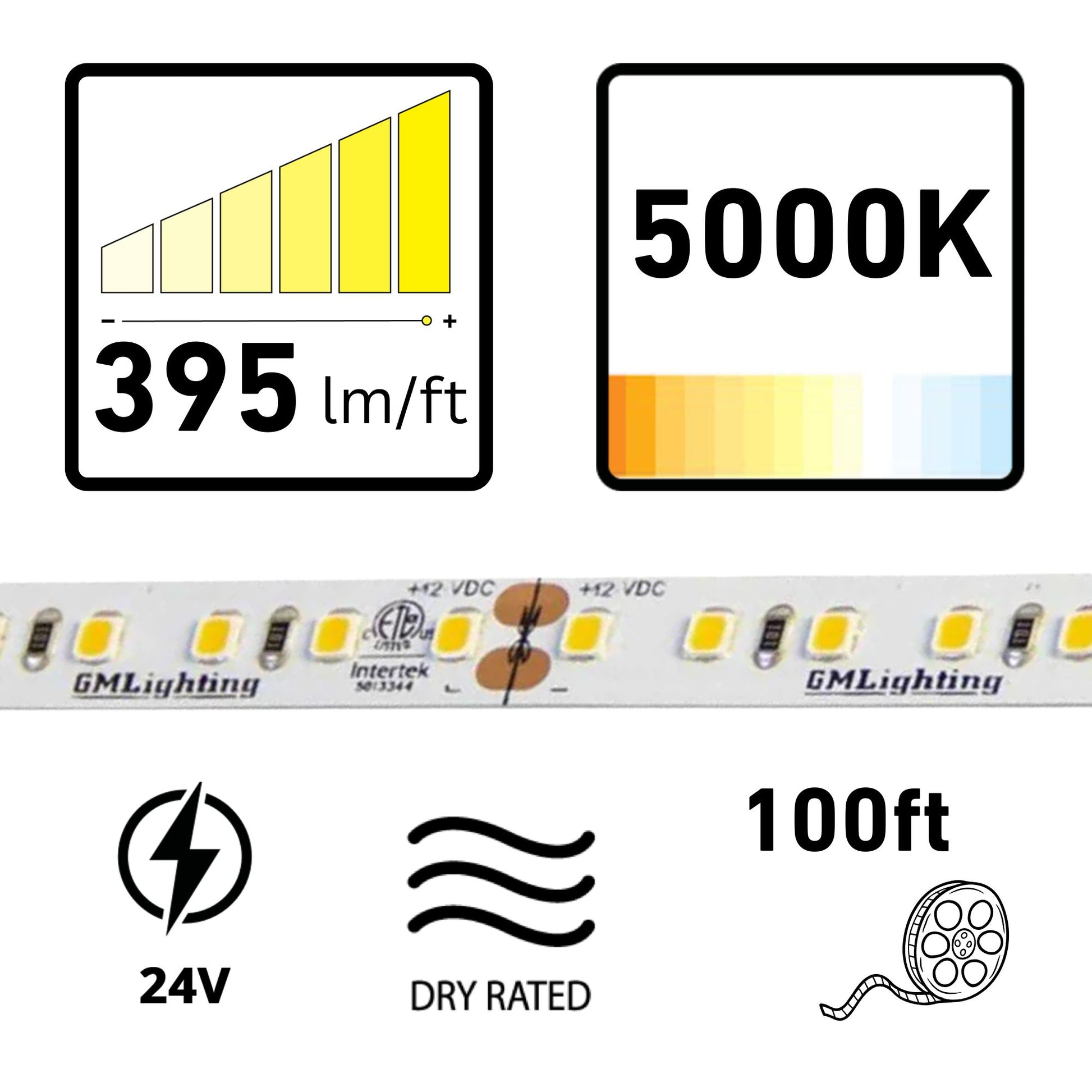

GM Lighting LTR-P PRO LED Tape Light — 5000K & Professional Grade
The GM Lighting LTR-P-24V-4.5W-50K-100 LED Tape Light is a high-performance lighting solution designed for professional installations. This 100' reel offers a 5000K color temperature, providing bright and clear illumination. Operating at 24V DC, it is suitable for dry locations and ensures efficient power usage.
Key Features
- Voltage: 24V DC for efficient energy use.
- Wattage: 4.5 watts per foot for optimal brightness.
- Lumens: 395 lumens per foot for high visibility.
- LED Density: 120 LEDs per meter for uniform light output.
- Max Run: 20' on a single lead to prevent voltage drop.
- Cuttable: Every 2' for customizable lengths.
- PCB Width: 8mm for channel compatibility.
- Beam Angle: 120° for wide light distribution.
- IP Rating: Dry location rated for indoor use.
- Certifications: ETL and Title 24 compliant.

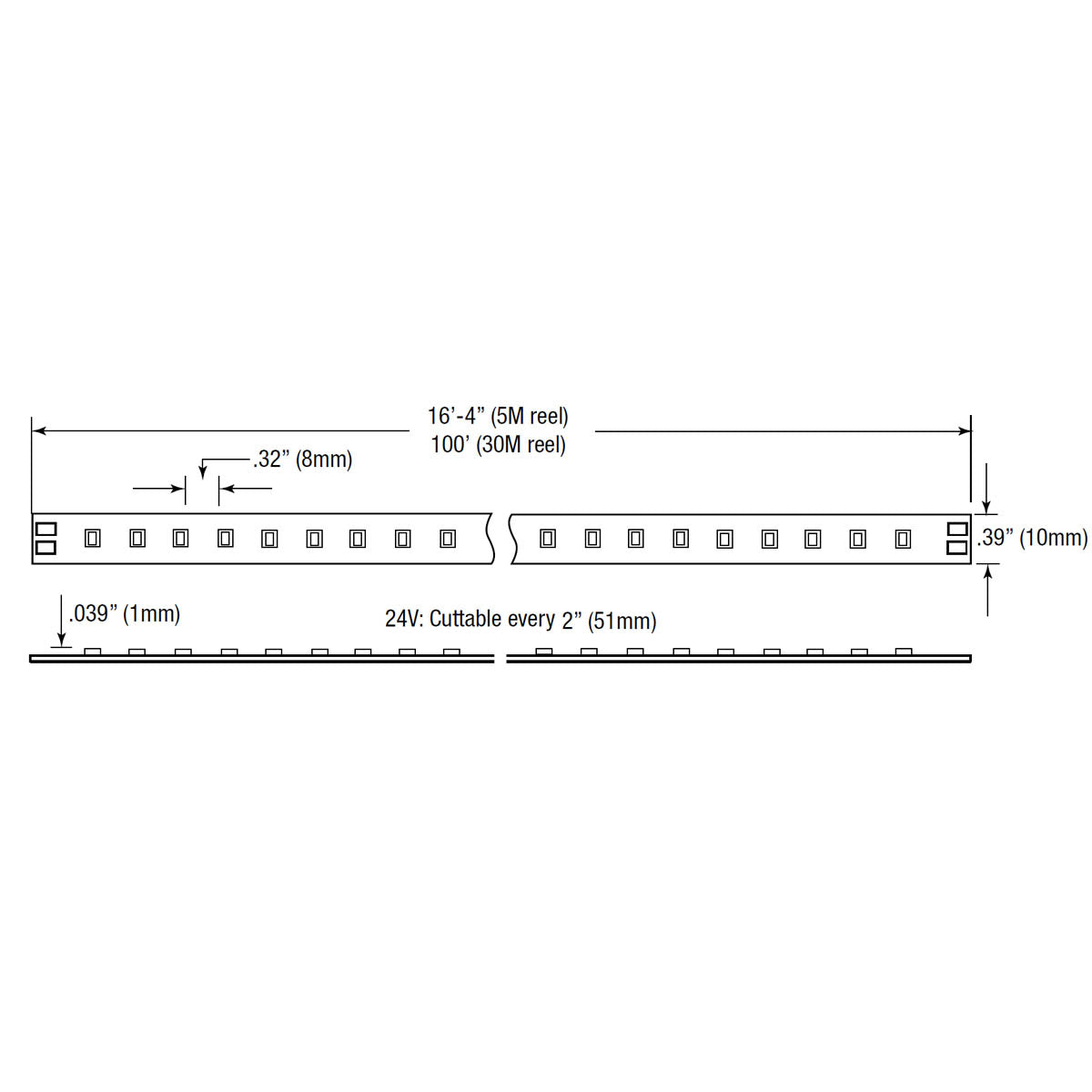

Core Design & Construction
The tape features an 8mm wide PCB, compatible with various aluminum channels for heat dissipation. It includes a 3M adhesive backing for secure mounting and is designed for dry indoor environments.
LED Illumination & Performance
With 395 lumens per foot and a 90+ CRI, this tape light ensures excellent color rendering and brightness. The light engine uses premium diodes for consistent performance.
Power, Wiring & Installation
Requires a 24V DC driver, sold separately. The tape is cuttable every 2', allowing for precise installations. Maximum continuous run is 20' to avoid voltage drop, and it is fully dimmable with compatible controls.

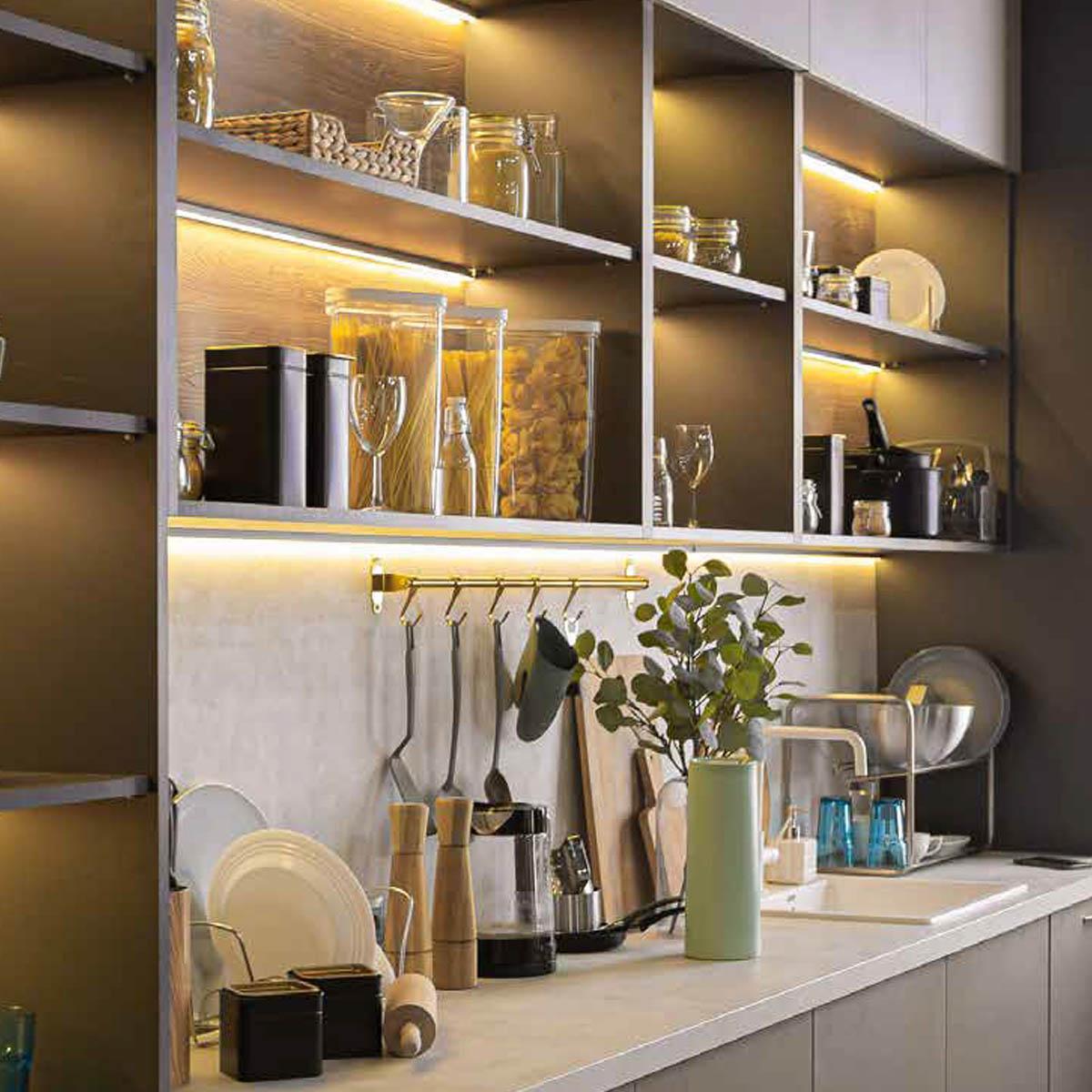

Where This Tape Works Best
- Cove lighting for ambient illumination.
- Under cabinet lighting for task areas.
- Accent lighting in retail displays.
- Architectural features in residential spaces.
What's Included
- 100' reel of LED tape light.
- (10) ESTW-60 Sure-Tite connectors for easy installation.
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-P-24V-4.5W-50K-100 tape light?
What is the maximum run length for the LTR-P-24V-4.5W-50K-100 tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the LTR-P-24V-4.5W-50K-100 tape light?
What voltage is required for the LTR-P-24V-4.5W-50K-100 tape light?
Is the LTR-P-24V-4.5W-50K-100 tape light dimmable?
Is the LTR-P-24V-4.5W-50K-100 tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
