GM Lighting LTR-P PRO 100' LED Tape Light, 4000K, 387 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24VDC, ensuring efficient power usage for extended installations.
- Color Temperature: Provides a neutral white light at 4000K, suitable for various applications.
- LED Density: Features 120 LEDs per meter for consistent illumination.
- Cuttable: Can be cut every 2 inches for precise length customization.
- Max Run: Supports a maximum continuous run of 20 feet to prevent voltage drop.
We process payments securely and do not store credit card information.
Description
Description

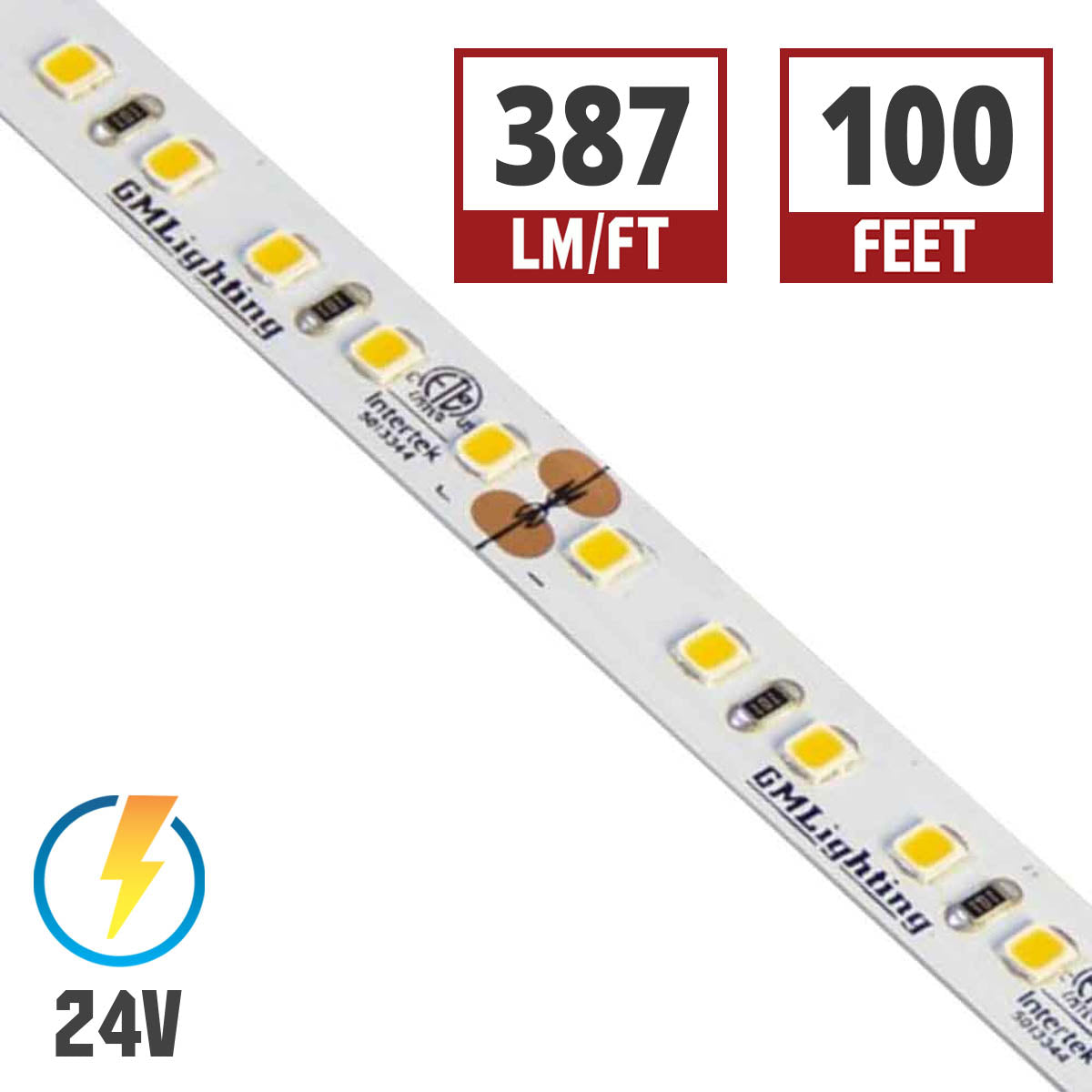

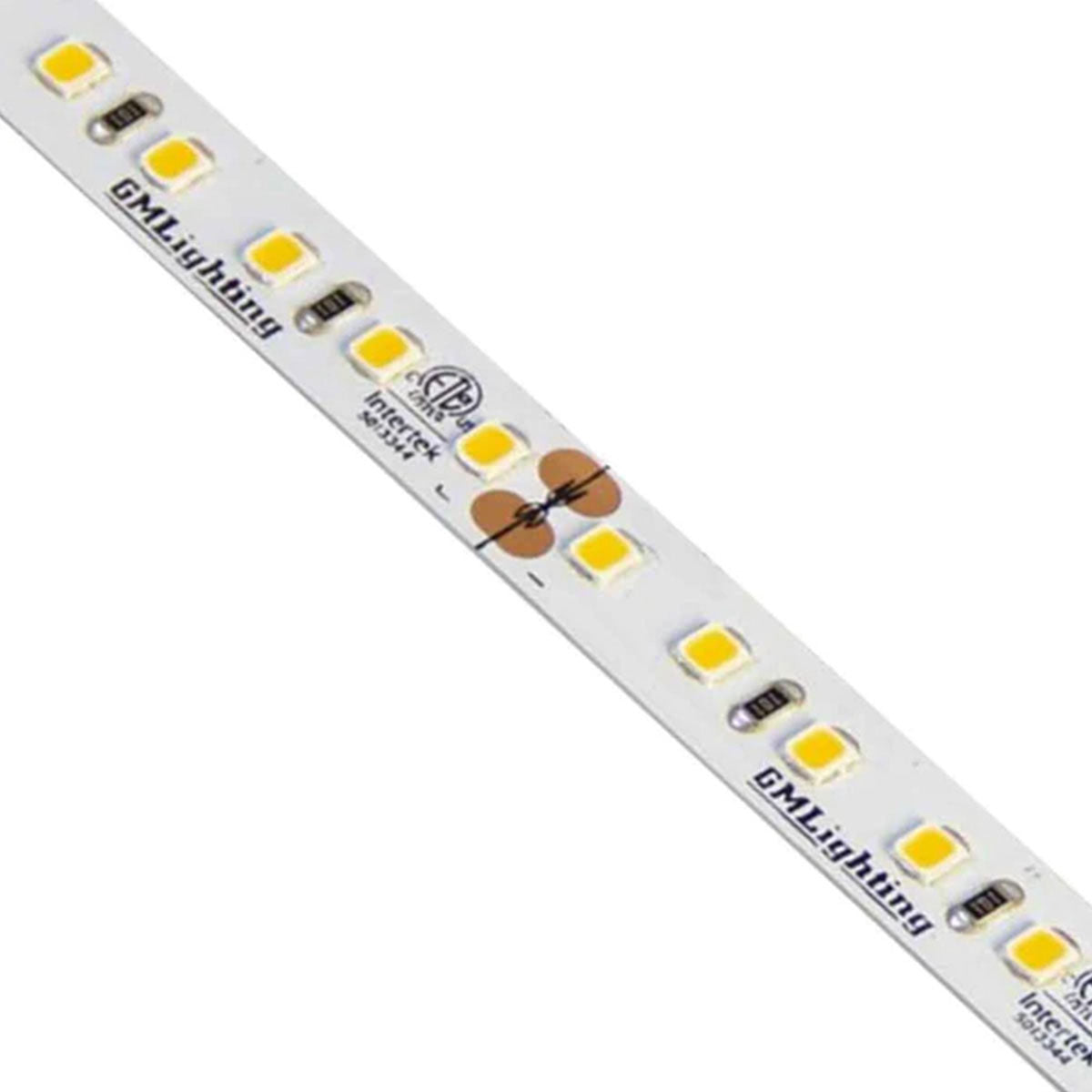

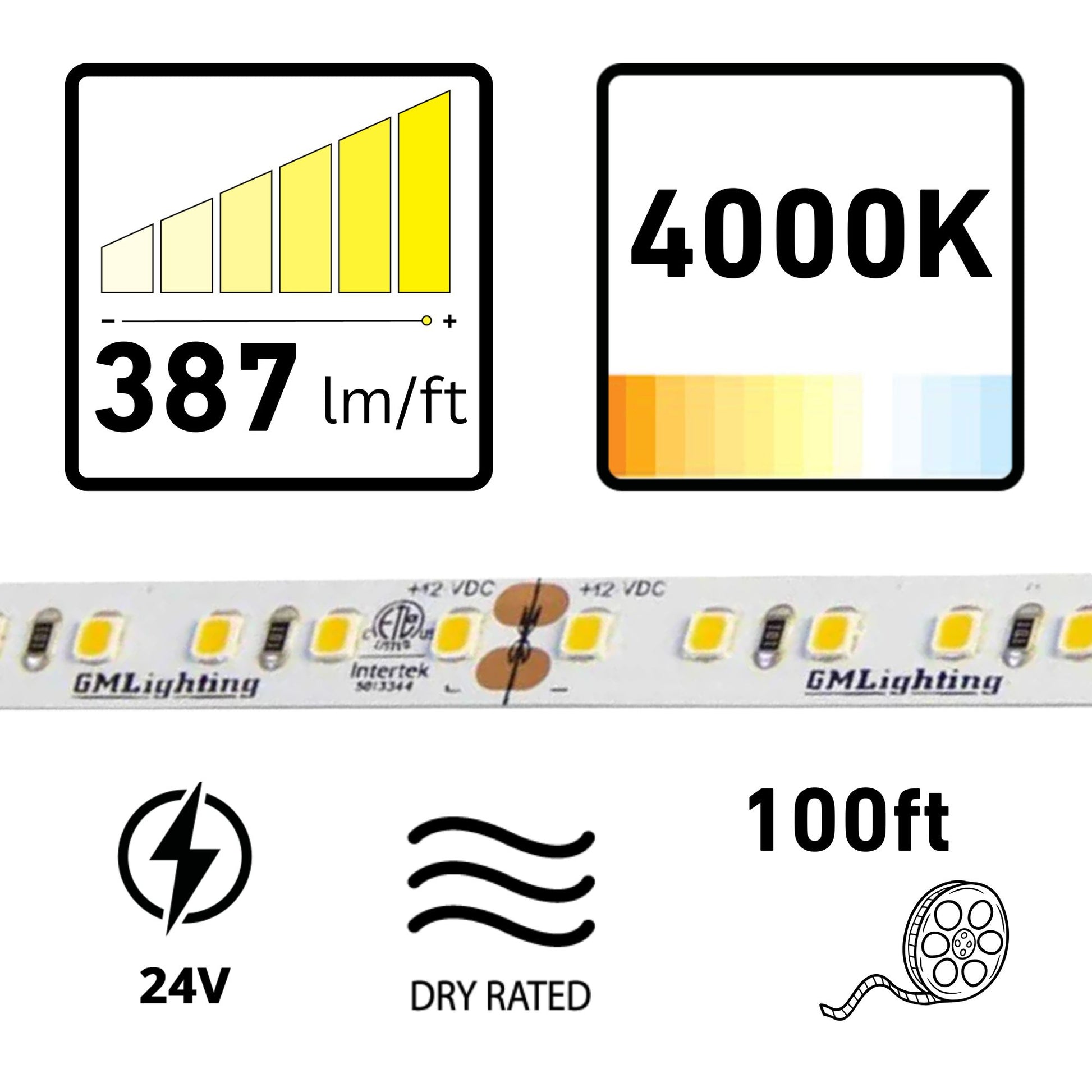

GM Lighting LTR-P PRO LED Tape Light — 4000K & Professional Grade
The GM Lighting LTR-P-24V-4.5W-40K-100 is a professional-grade LED tape light designed for high-quality installations. This 100-foot tape light operates at 24VDC and is suitable for dry locations. It delivers a neutral white light with a color temperature of 4000K and a brightness of 387 lumens per foot.
Key Features
- Voltage: 24VDC for efficient power distribution.
- Wattage: 4.5 watts per foot for optimal energy use.
- Lumens: 387 lumens per foot for bright illumination.
- LED Density: 120 LEDs per meter for uniform light output.
- Max Run: 20 feet to prevent voltage drop.
- Cuttable: Every 2 inches for custom lengths.

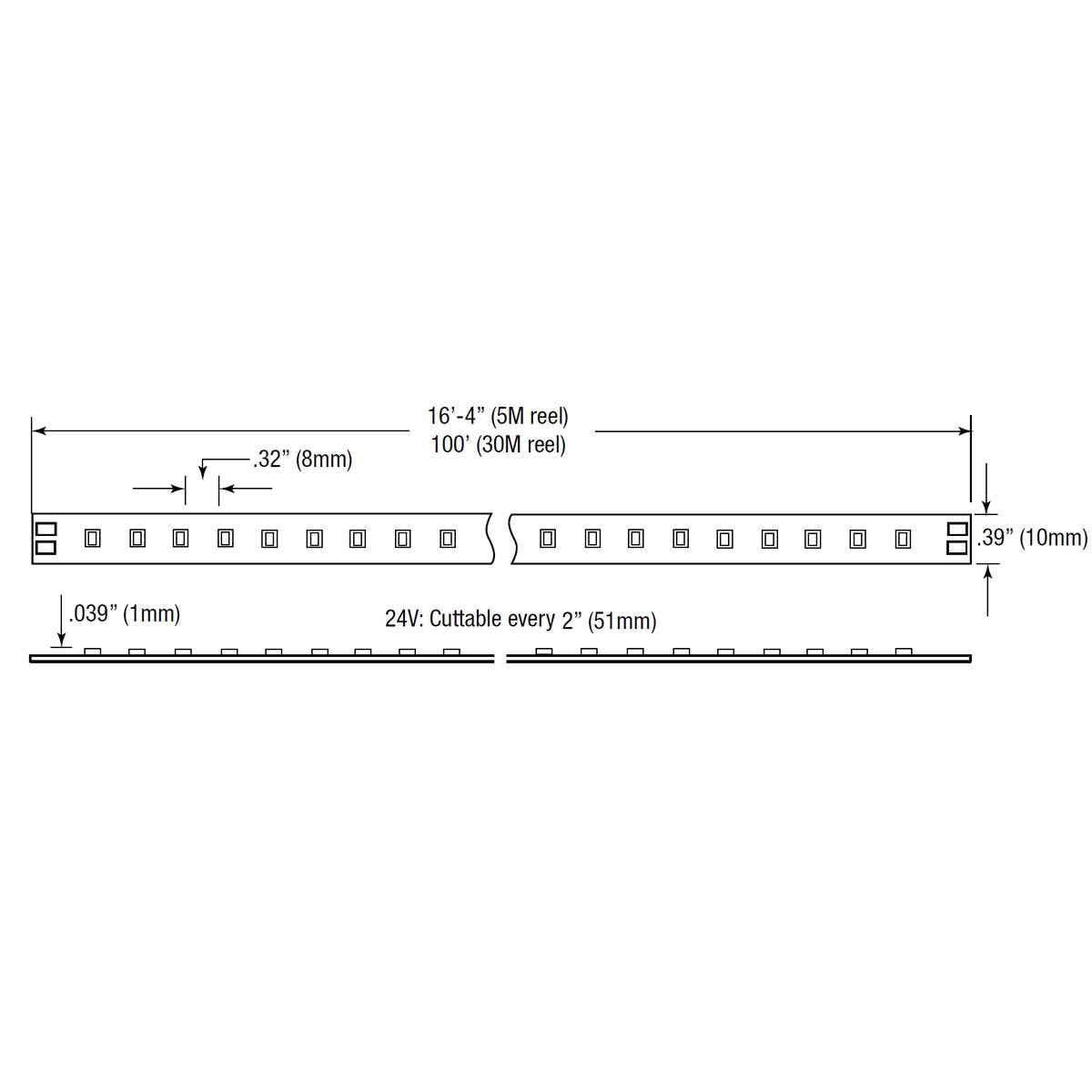

- PCB Width: 10mm, compatible with standard channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: Dry rated for indoor use.
- Certifications: ETL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, making it compatible with various aluminum channels for enhanced thermal management. It includes a 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With a brightness of 387 lumens per foot and a CRI of 90+, this tape light ensures high-quality illumination with accurate color rendering. The light engine utilizes premium diodes for consistent performance.
Power, Wiring & Installation
Requires a 24VDC power supply, with a maximum continuous run of 20 feet to prevent voltage drop. The tape is field-cuttable every 2 inches and is dimmable for adjustable lighting levels.

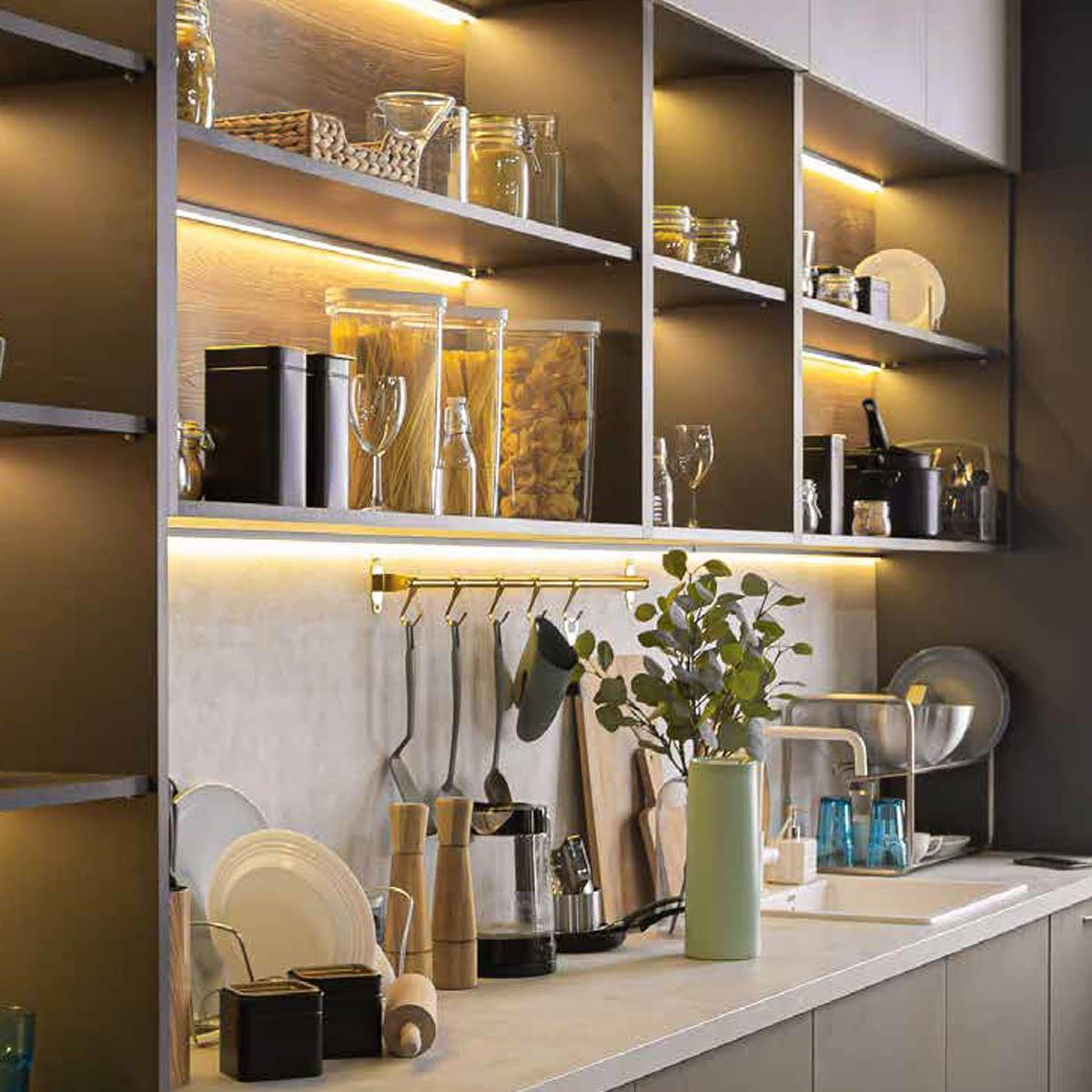

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100-foot reel of LED tape light
- (10) ESTW-60 Sure-Tite connectors
- 48-inch lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-P-24V-4.5W-40K-100?
What is the maximum run length for the LTR-P-24V-4.5W-40K-100?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light dimmable?
Is this tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
