GM Lighting LTR-P PRO 16'-4" LED Tape Light, 3000K, 334 Lumens/ft, 24V
GM Lighting LTR-P PRO 16'-4" LED Tape Light, 3000K, 334 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: The tape light offers a warm 3000K color temperature, ideal for creating cozy environments.
- Voltage: Operates at 24VDC, ensuring efficient power consumption and compatibility with low-voltage systems.
- Cuttable Increments: Can be cut every 2 inches, allowing for precise customization to fit any space.
- Maximum Run: Supports a maximum continuous run of 20 feet to prevent voltage drop and maintain consistent brightness.
- LED Density: Features 120 LEDs per meter, providing uniform illumination across the entire strip.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

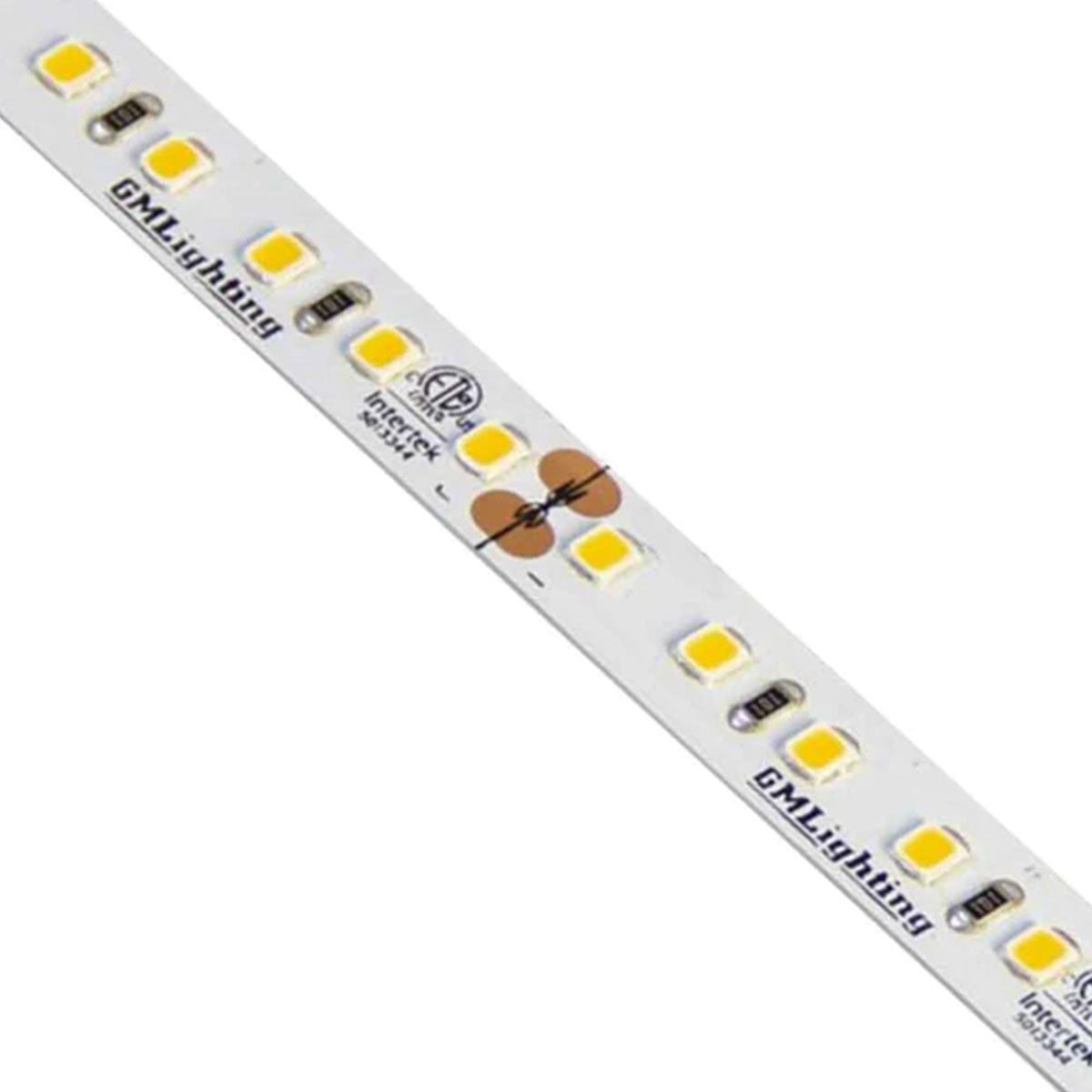

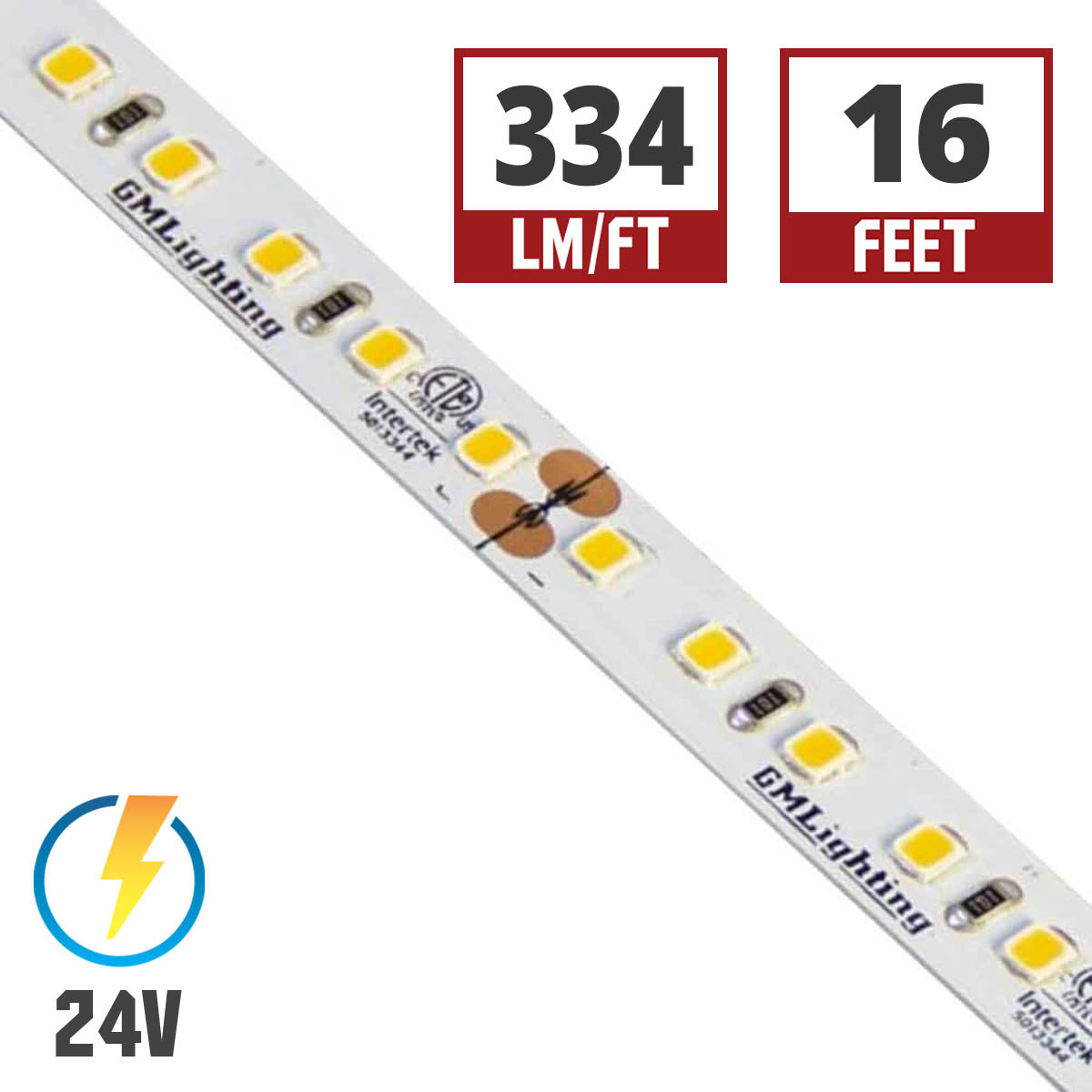

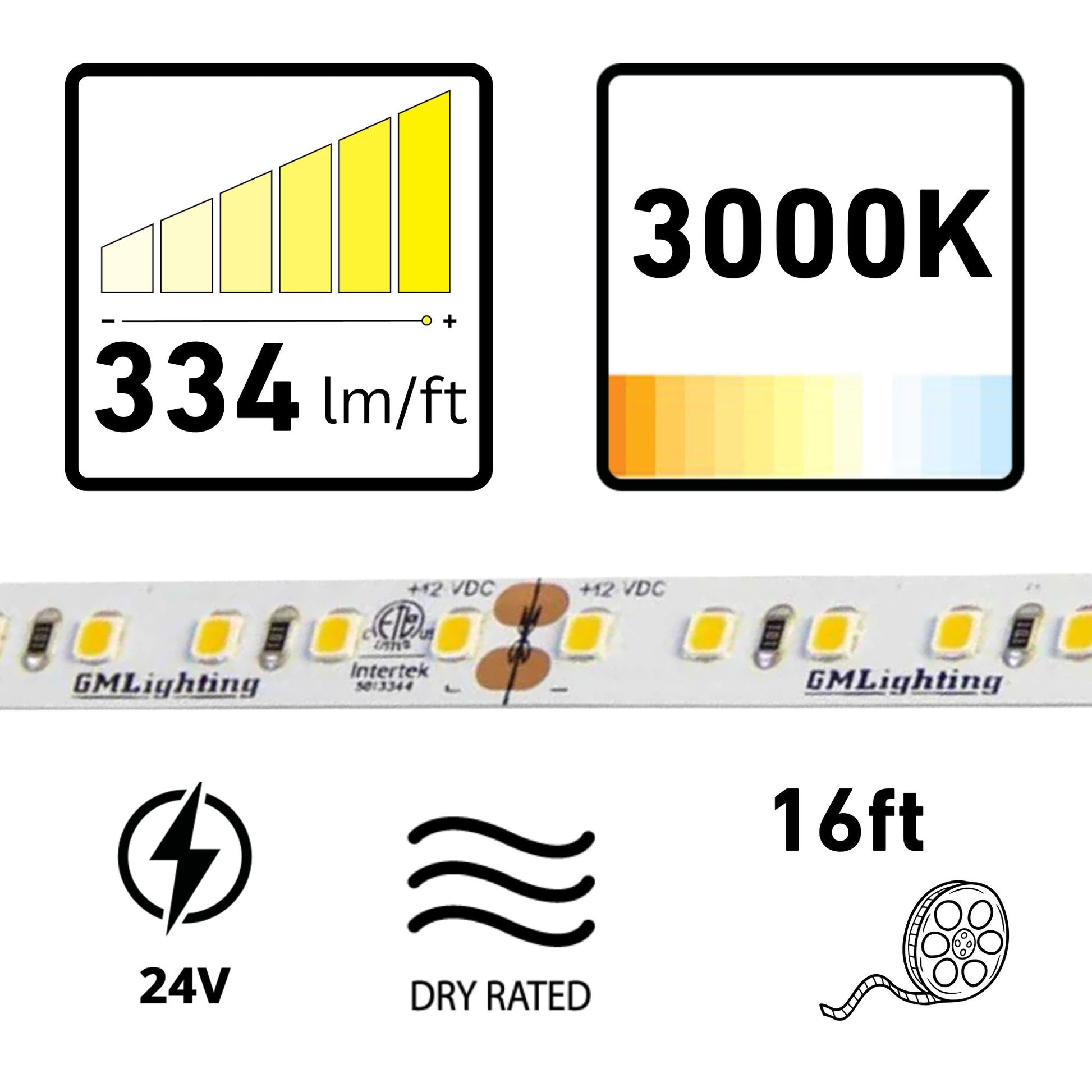

GM Lighting LTR-P PRO LED Tape Light — 3000K & High CRI
The GM Lighting LTR-P-24V-4.5W-30K-16 is a professional-grade LED tape light designed for dry locations. This 16'-4" tape light operates at 24VDC and features a warm 3000K color temperature, delivering 334 lumens per foot with a high CRI of 90+ for superior color rendering.
Key Features
- Voltage: 24VDC ensures compatibility with low-voltage systems.
- Wattage: Consumes 4.5 watts per foot for energy-efficient lighting.
- Lumens: Provides 334 lumens per foot for bright, effective illumination.
- LED Density: 120 LEDs per meter for uniform light distribution.
- Max Run: Maximum continuous run of 20 feet to prevent voltage drop.
- Cuttable: Field cuttable every 2 inches for custom lengths.

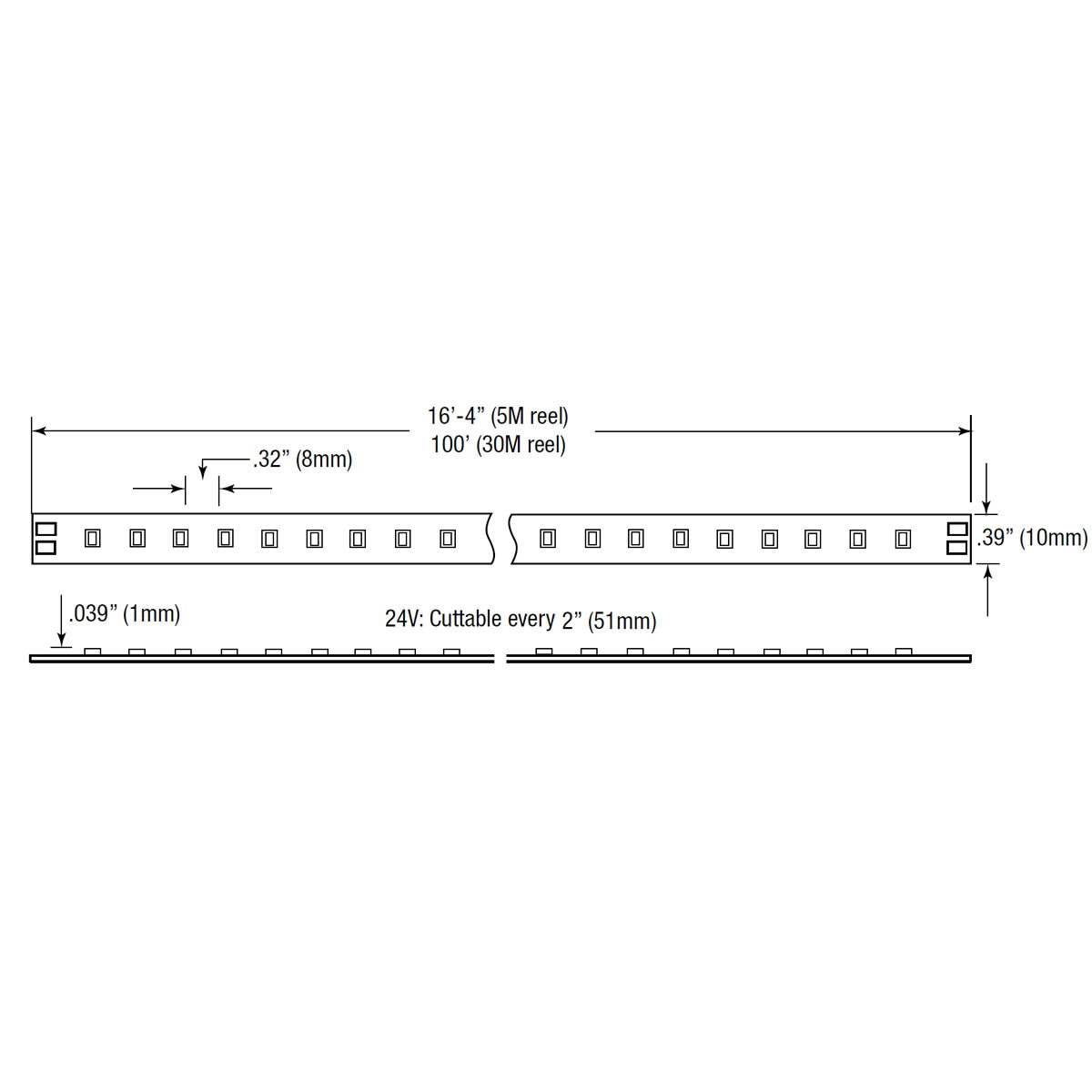

- PCB Width: 8mm width suitable for various channel installations.
- Beam Angle: 120° viewing angle for wide light dispersion.
- IP Rating: Dry rated for indoor use.
- Certifications: ETL and Title 24 compliant when used with specific drivers.
Core Design & Construction
The tape light features an 8mm wide PCB, compatible with most aluminum channels. It includes a 3M adhesive backing for secure mounting and is designed for dry indoor environments.
LED Illumination & Performance
With 334 lumens per foot and a CRI of 90+, this tape light ensures vibrant and accurate color representation. The light engine uses premium diodes for consistent performance.
Power, Wiring & Installation
Requires a 24VDC power supply. The tape is cuttable every 2 inches and supports a maximum run of 20 feet. It is dimmable with compatible dimmers for adjustable lighting.

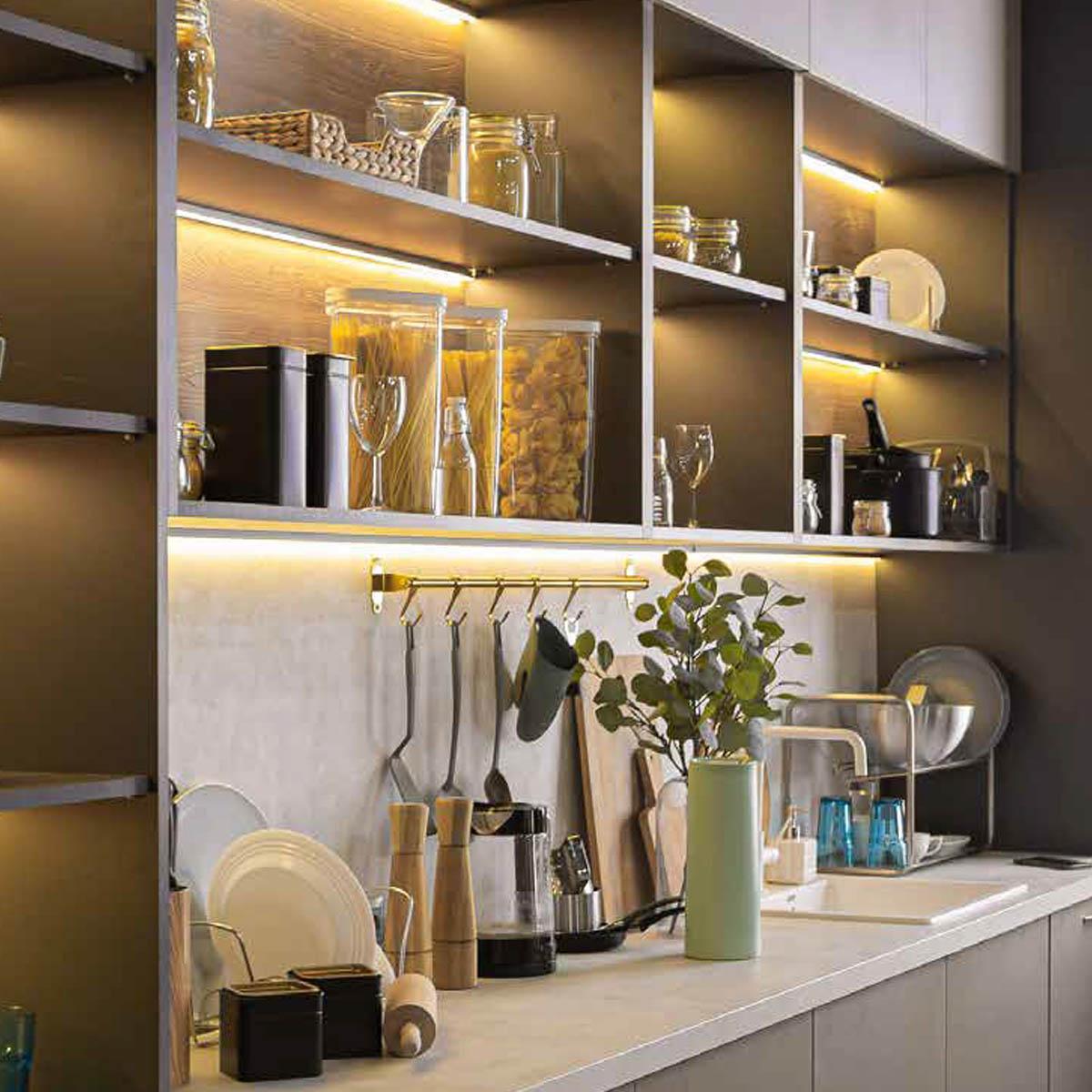

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4" reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
- 48" lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-P-24V-4.5W-30K-16 tape light?
What is the maximum run length for the LTR-P-24V-4.5W-30K-16 tape light?
How often can the LTR-P-24V-4.5W-30K-16 tape light be cut?
How often can the LTR-P-24V-4.5W-30K-16 tape light be cut?
What voltage is required for the LTR-P-24V-4.5W-30K-16 tape light?
What voltage is required for the LTR-P-24V-4.5W-30K-16 tape light?
Is the LTR-P-24V-4.5W-30K-16 tape light dimmable?
Is the LTR-P-24V-4.5W-30K-16 tape light dimmable?
What is the width of the PCB for the LTR-P-24V-4.5W-30K-16 tape light?
What is the width of the PCB for the LTR-P-24V-4.5W-30K-16 tape light?
