GM Lighting LTR-P PRO 16'-4' LED Tape Light, 5000K, 254 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates on 24V DC, ideal for consistent illumination over long runs.
- Color Temperature: 5000K for bright, daylight-like illumination.
- Max Run: Capable of a maximum run of 32'-8' on a single power feed.
- Cuttable Increments: Can be cut every 2' for customizable lengths.
- LED Density: Features 120 LEDs per meter for uniform light distribution.
We process payments securely and do not store credit card information.
Description
Description

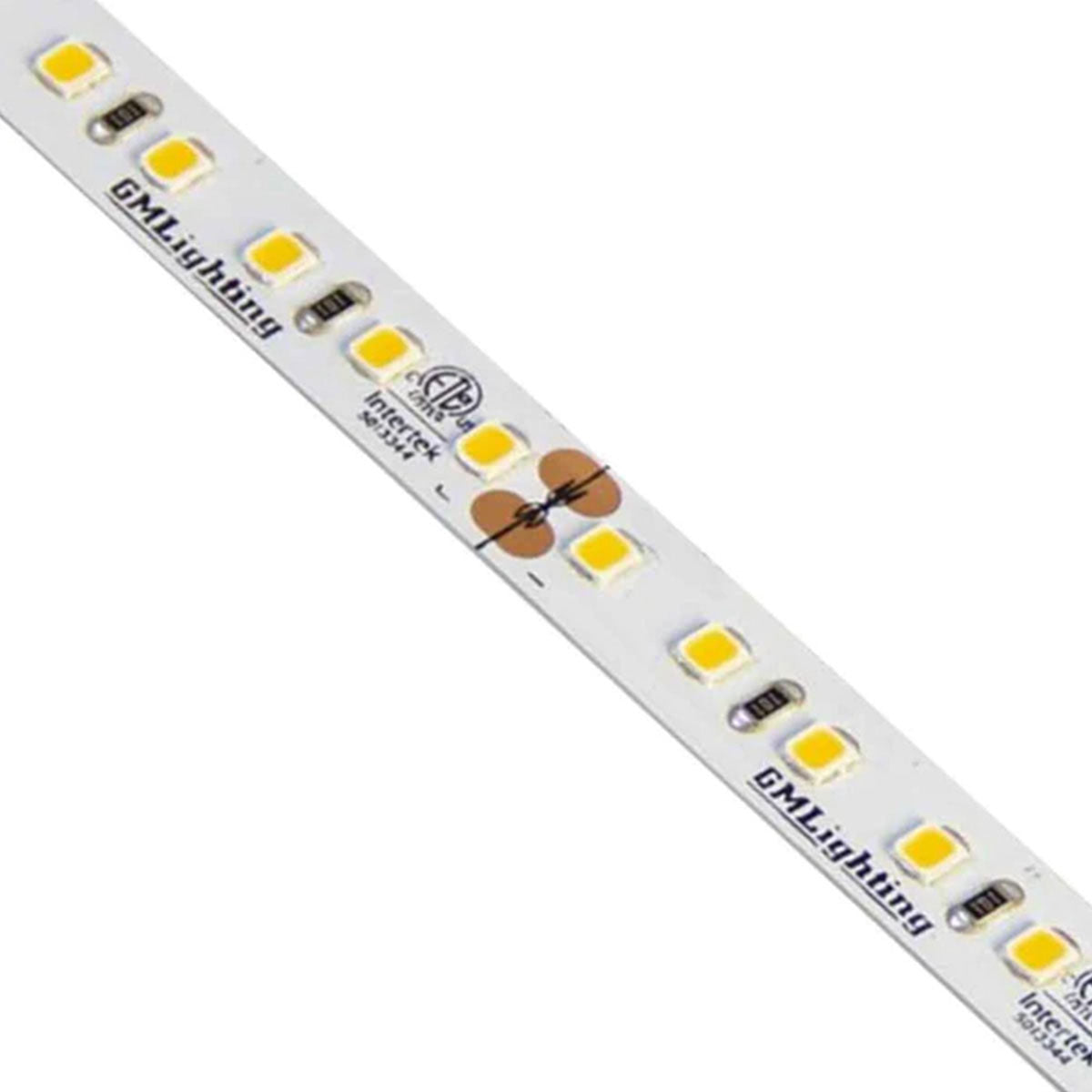

GM Lighting LTR-P PRO LED Tape Light — 5000K & High CRI
The GM Lighting LTR-P-24V-3.0W-50K-16 is a professional-grade LED tape light designed for high-quality installations. This 16'-4' tape light operates at 24V DC and is dry rated, making it suitable for indoor applications. With a color temperature of 5000K, it provides bright, daylight-like illumination.
Key Features
- Voltage: 24V DC for extended runs and reduced voltage drop.
- Wattage: Consumes 3 watts per foot for energy-efficient lighting.
- Lumens: Delivers 254 lumens per foot for bright illumination.
- LED Density: 120 LEDs per meter for consistent light output.
- Max Run: 32'-8' maximum run on a single power feed.
- Cuttable: Can be cut every 2' for custom lengths.

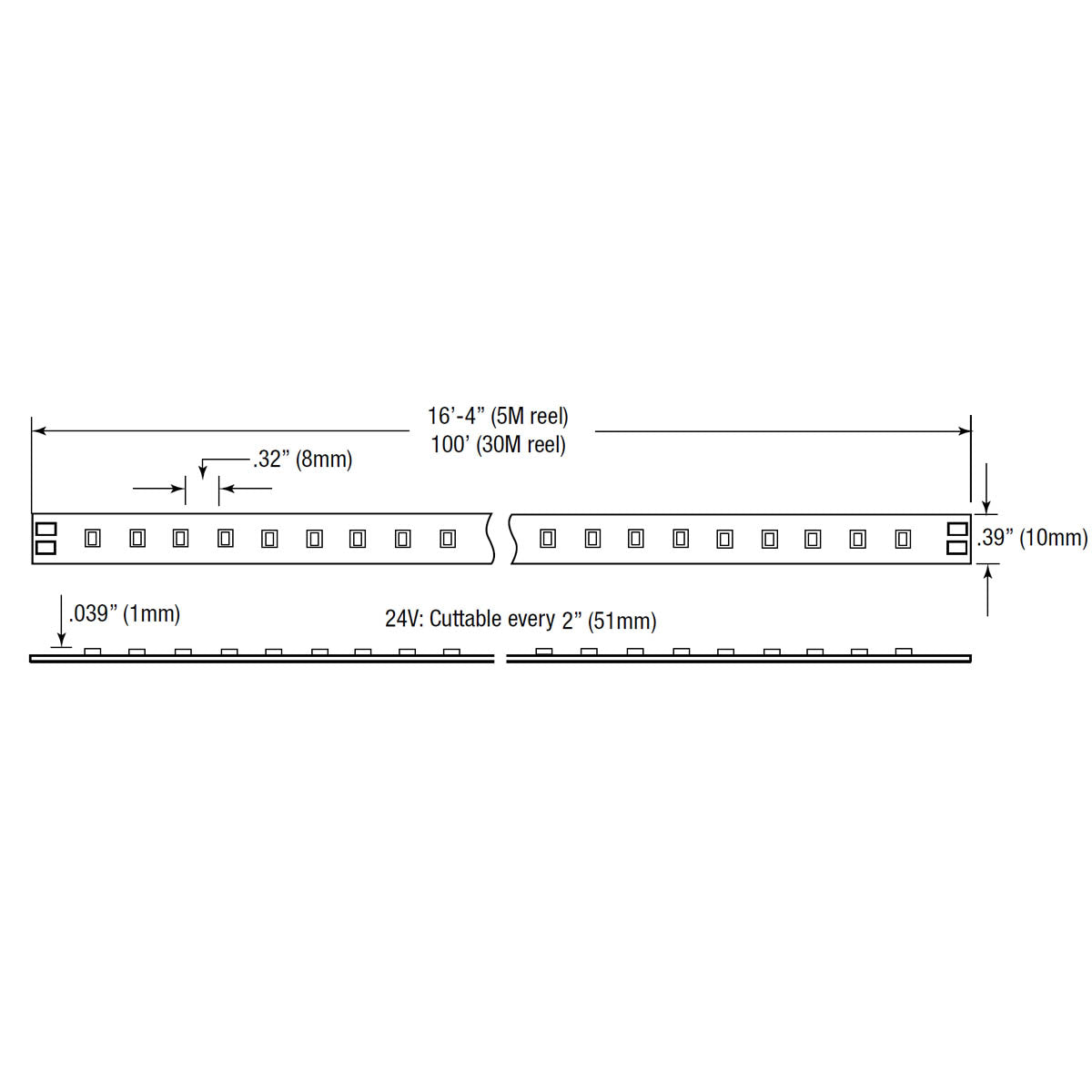

- PCB Width: 8mm, compatible with most channels.
- Beam Angle: 120° for wide light distribution.
- Certifications: UL listed and Title 24 compliant with specific drivers.
Core Design & Construction
Featuring a slim 8mm PCB width, this tape light is compatible with a variety of aluminum channels. It includes a durable 3M adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With a high CRI of 90+, this tape light ensures accurate color rendering, making it ideal for applications where color accuracy is crucial. The 5000K color temperature provides a bright, daylight-like ambiance.
Power, Wiring & Installation
Requires a 24V DC power supply. The tape light is field-cuttable every 2' and supports a maximum continuous run of 32'-8' to prevent voltage drop. It is dimmable with compatible dimmers.

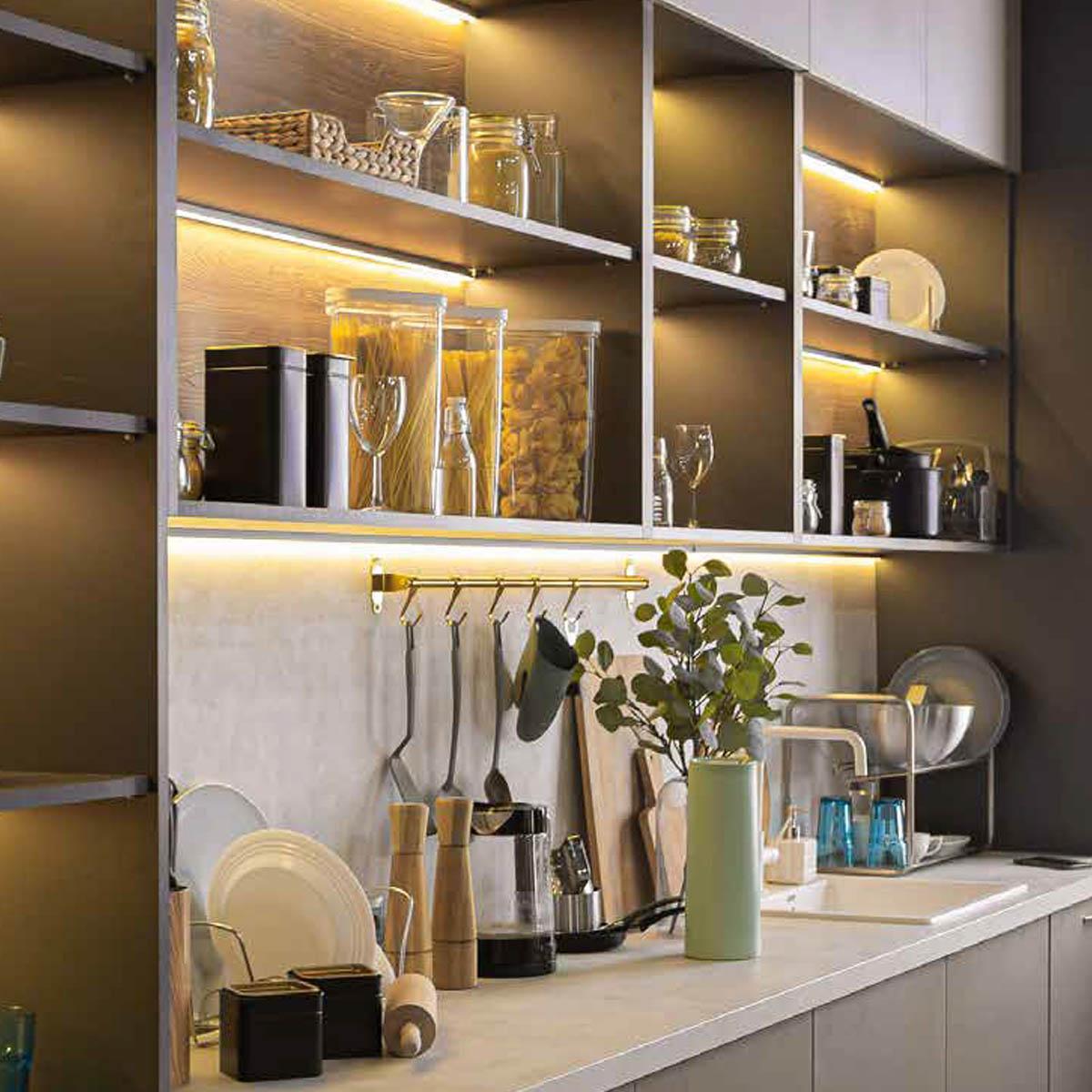

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' LED tape light spool
- (3) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-P-24V-3.0W-50K-16 tape light?
What is the maximum run length for the LTR-P-24V-3.0W-50K-16 tape light?
Can the LTR-P-24V-3.0W-50K-16 tape light be cut to custom lengths?
Can the LTR-P-24V-3.0W-50K-16 tape light be cut to custom lengths?
What voltage is required for the LTR-P-24V-3.0W-50K-16 tape light?
What voltage is required for the LTR-P-24V-3.0W-50K-16 tape light?
Is the LTR-P-24V-3.0W-50K-16 tape light dimmable?
Is the LTR-P-24V-3.0W-50K-16 tape light dimmable?
What is the PCB width of the LTR-P-24V-3.0W-50K-16 tape light?
What is the PCB width of the LTR-P-24V-3.0W-50K-16 tape light?
