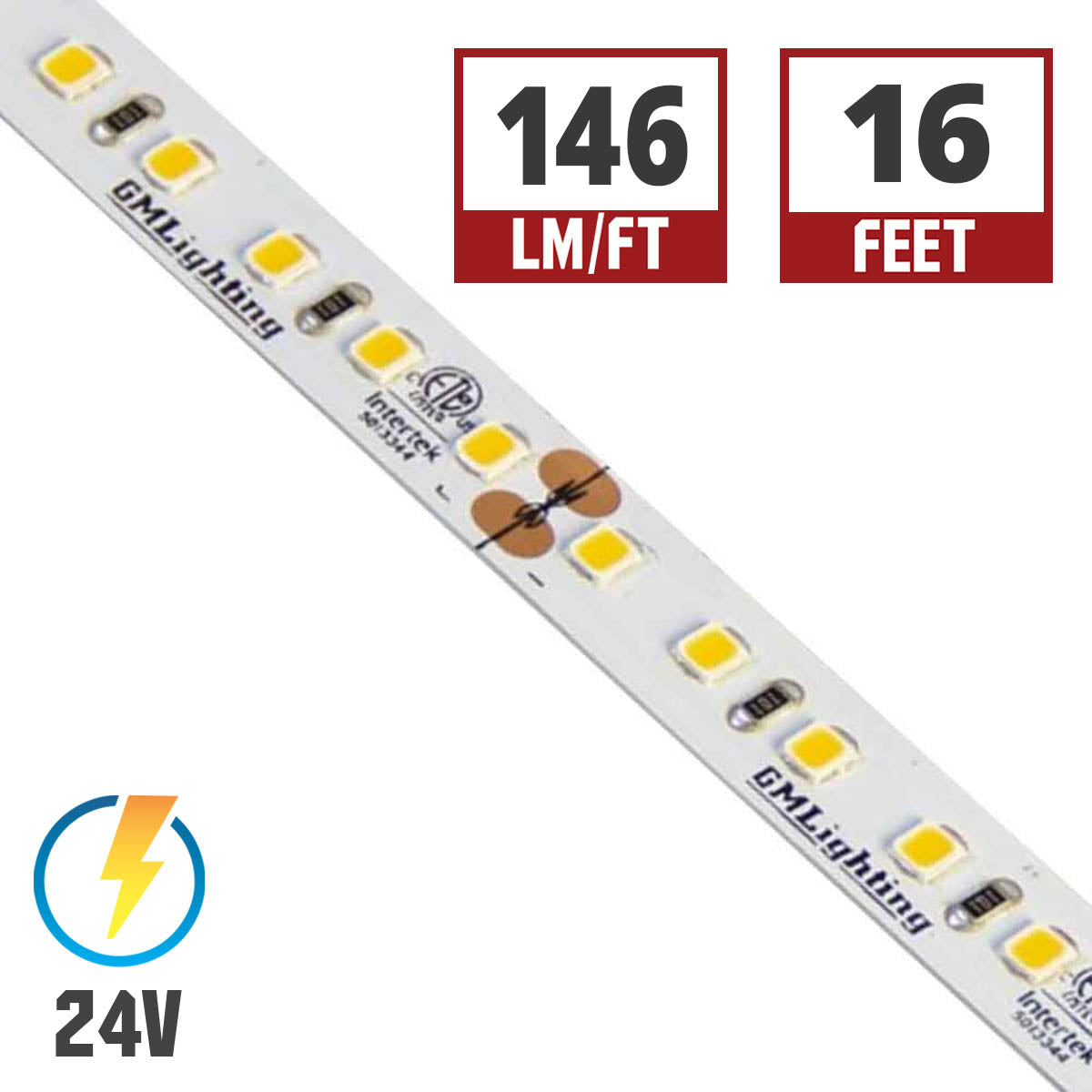

GM Lighting LTR-P PRO, 16'-4' LED Tape Light, 5000K, 146 Lumens/ft, 24V
GM Lighting LTR-P PRO, 16'-4' LED Tape Light, 5000K, 146 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: 5000K for bright, daylight illumination.
- Voltage: Operates on 24V DC, ideal for extended runs.
- Max Run: Up to 60 feet on a single power supply.
- Cuttable: Can be cut every 2 inches for custom lengths.
- LED Density: 120 LEDs per meter for consistent light output.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

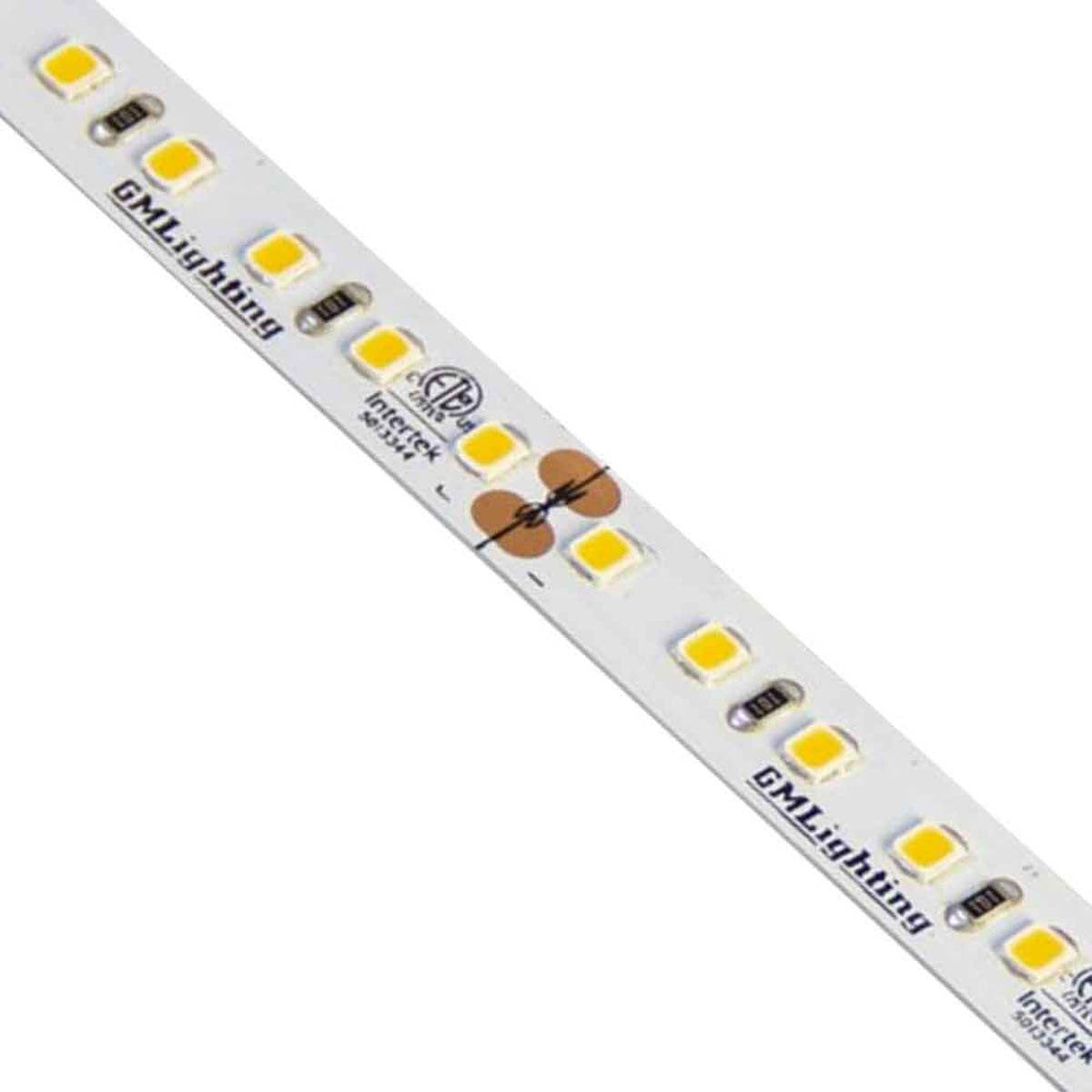

GM Lighting LTR-P PRO LED Tape Light — 5000K & High CRI
The GM Lighting LTR-P-24V-1.5W-50K-16 is a professional-grade LED tape light designed for precision lighting applications. This 16'-4' tape light operates at 24V DC and is dry rated, making it suitable for indoor environments. With a color temperature of 5000K, it delivers bright, daylight-like illumination.
Key Features
- Voltage: 24V DC for efficient power use.
- Wattage: 1.5 watts per foot for energy efficiency.
- Lumens: 146 lumens per foot for bright output.
- LED Density: 120 LEDs per meter for uniform light distribution.
- Max Run: 60 feet on a single power supply.
- Cuttable: Every 2 inches for custom installations.

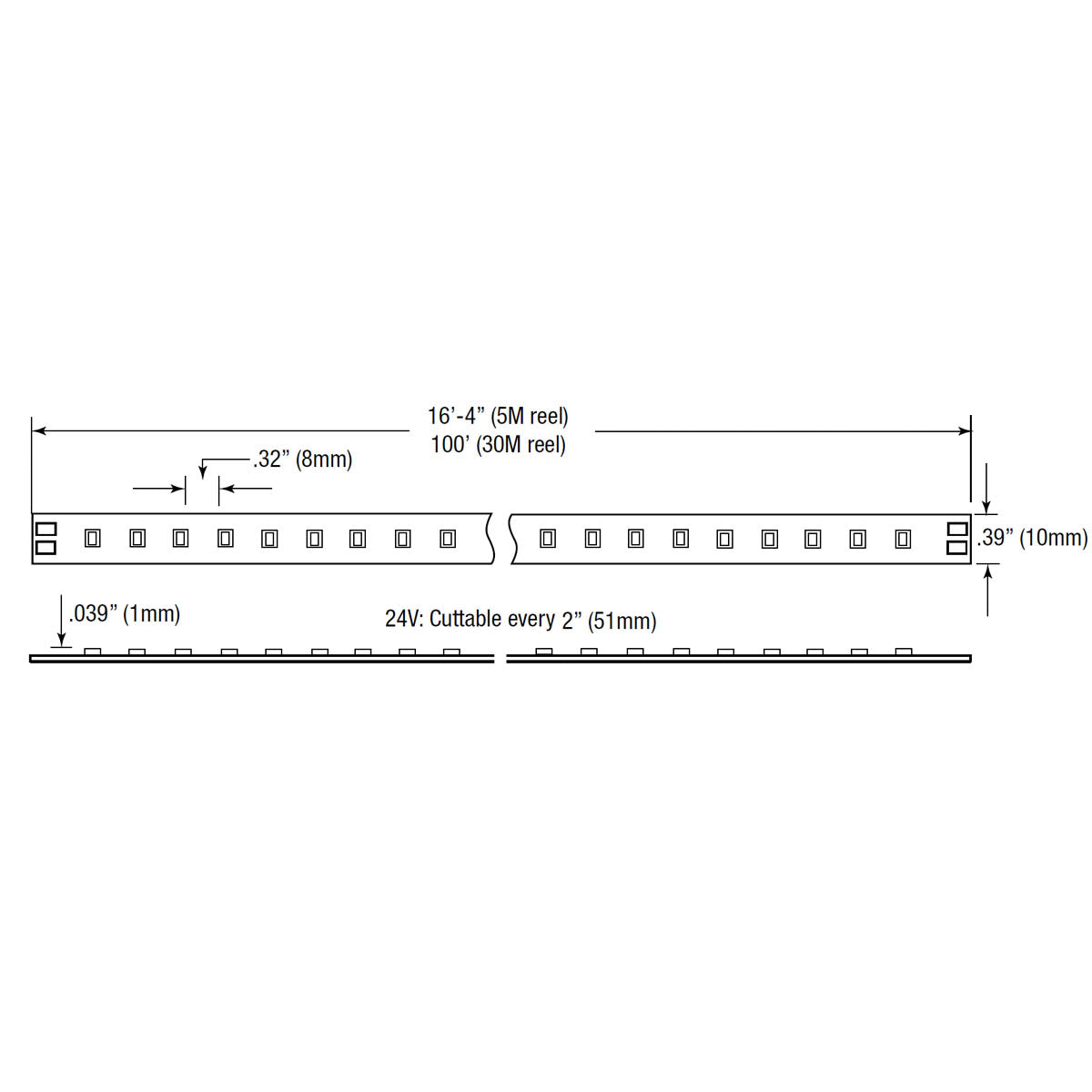

- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120 degrees for wide light coverage.
- Certifications: UL listed and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for secure mounting and is designed for dry locations.
LED Illumination & Performance
With 146 lumens per foot and a high CRI of 90+, this tape light provides vibrant and accurate color rendering, ideal for task and accent lighting.
Power, Wiring & Installation
Requires a 24V DC power supply, sold separately. The tape is field-cuttable every 2 inches and supports dimming for versatile lighting control. Maximum continuous run is 60 feet to prevent voltage drop.

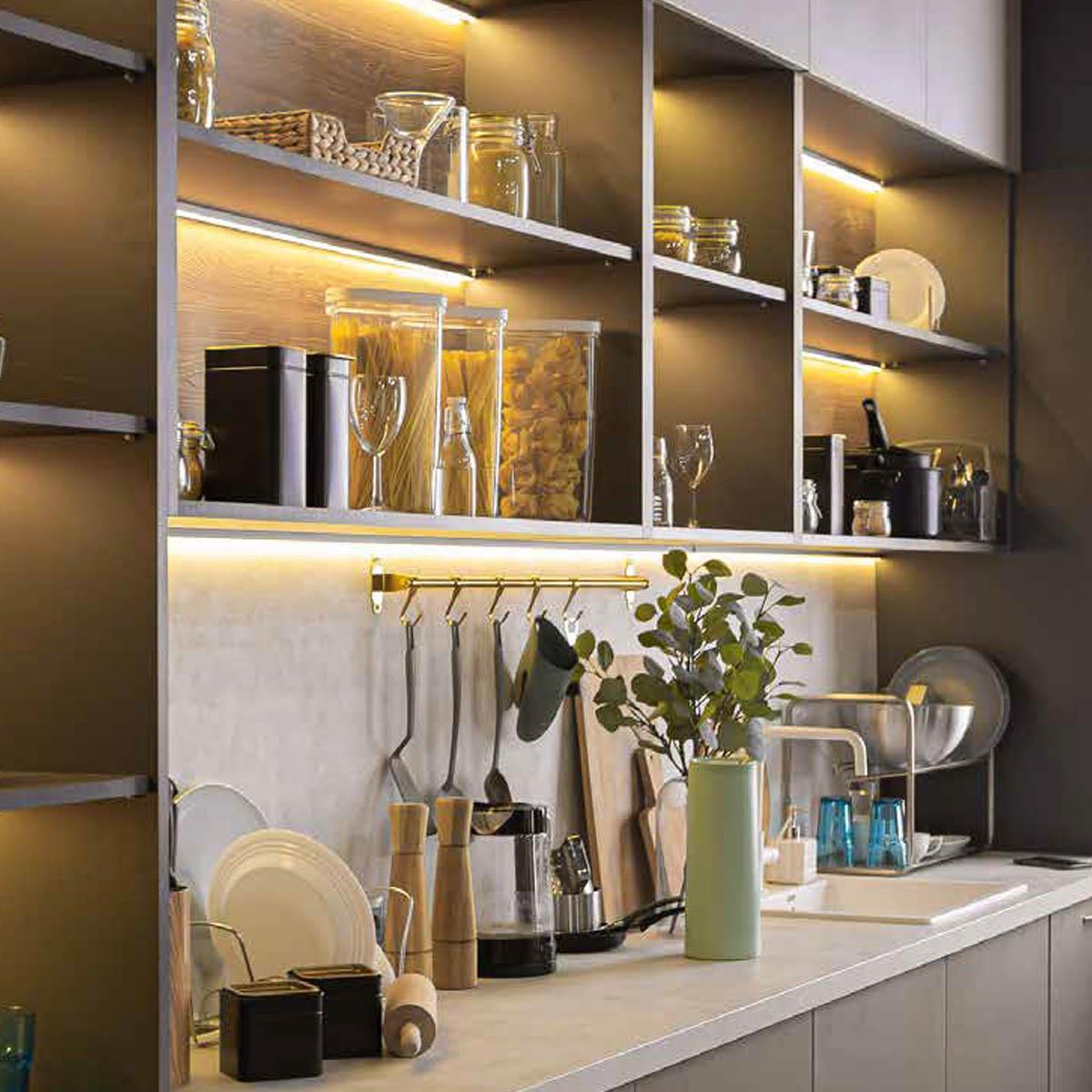

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Display case lighting
- Accent lighting
What's Included
- 16'-4' reel of LED tape light
- (3) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-P-24V-1.5W-50K-16 tape light?
What is the maximum run length for the LTR-P-24V-1.5W-50K-16 tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the LTR-P-24V-1.5W-50K-16 tape light?
What voltage is required for the LTR-P-24V-1.5W-50K-16 tape light?
Is the LTR-P-24V-1.5W-50K-16 tape light dimmable?
Is the LTR-P-24V-1.5W-50K-16 tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
