GM Lighting LTR-E ECONO LED Tape Light — 4000K & Efficient Design

The GM Lighting LTR-E-24V-1.5W-40K-100 is a 98'-6' LED tape light designed for dry locations. With a color temperature of 4000K, it provides neutral white light ideal for various applications. This tape light operates at 24V, ensuring efficient power consumption and is dry rated for indoor use.

Key Features

• Voltage: 24V operation for efficient energy use.
• Wattage: 1.5 watts per foot for energy efficiency.

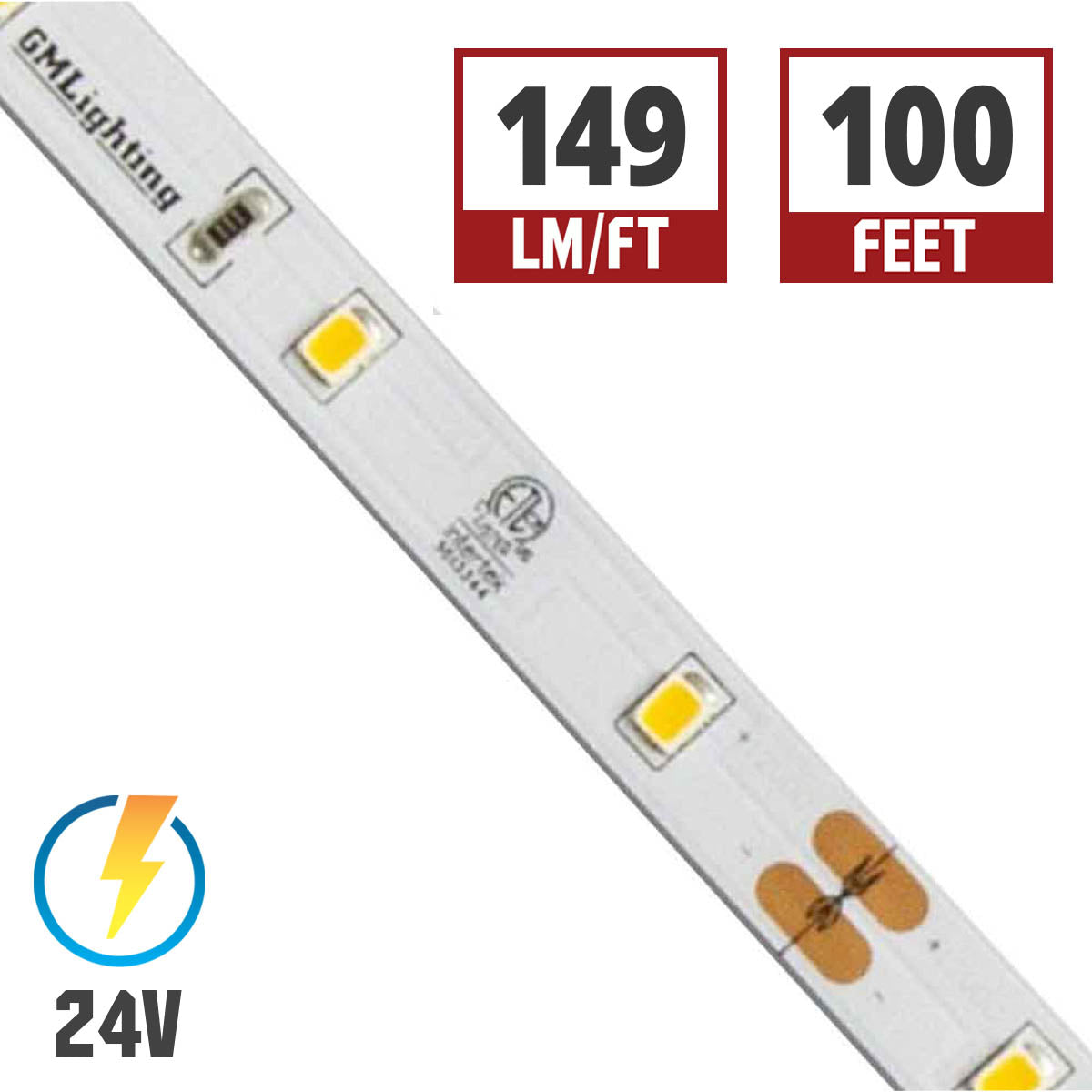

• Lumens: 149 lumens per foot for bright illumination.
• LED Density: 18 LEDs per foot for uniform light distribution.
• Max Run: 32'-8' on a single lead to prevent voltage drop.

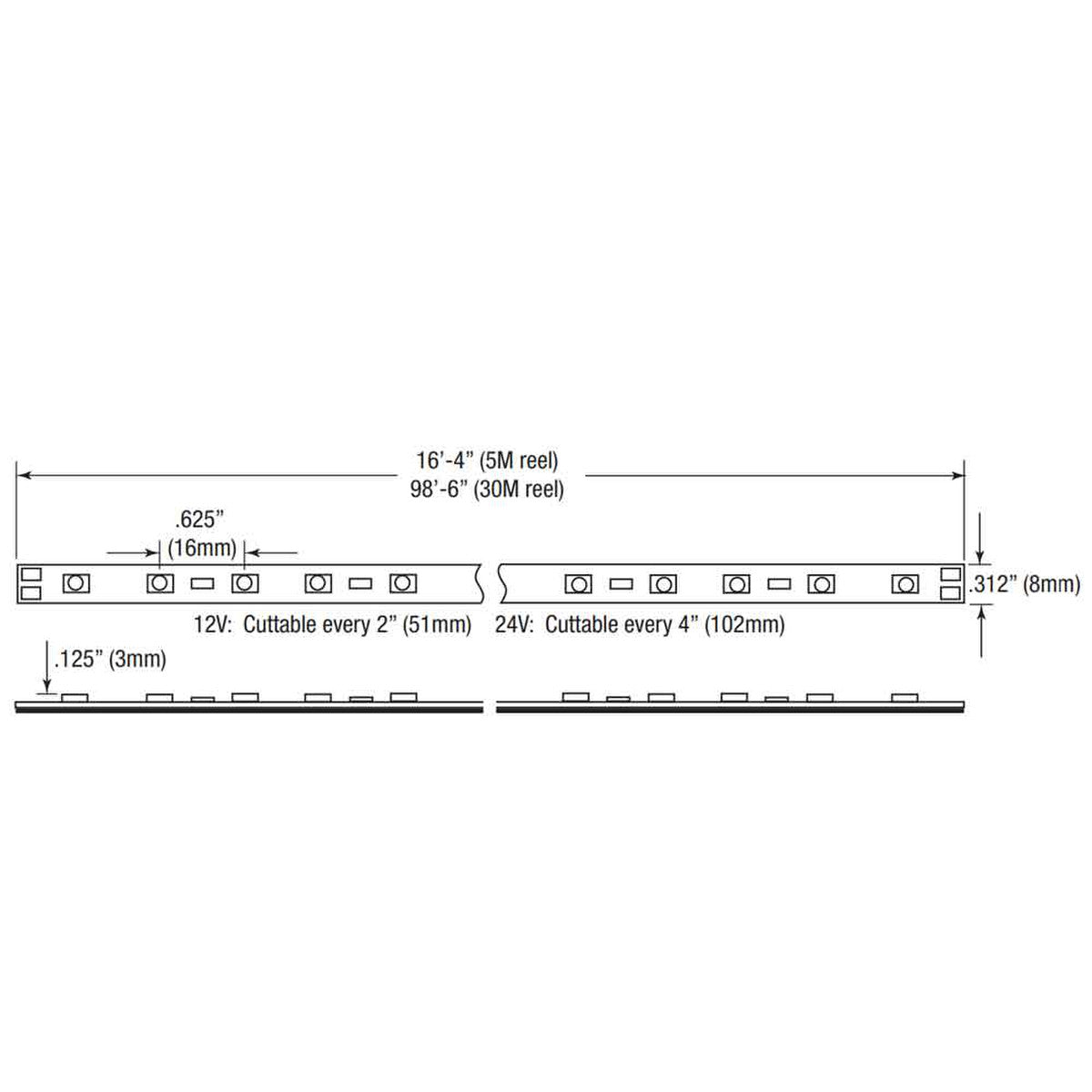

• Cuttable: Every 4' for customizable lengths.
• PCB Width: 8mm for compatibility with various channels.
• Beam Angle: 120 degrees for wide light distribution.
• IP Rating: IP20 for dry indoor environments.
• Certifications: ETL listed for safety and performance.

Core Design & Construction

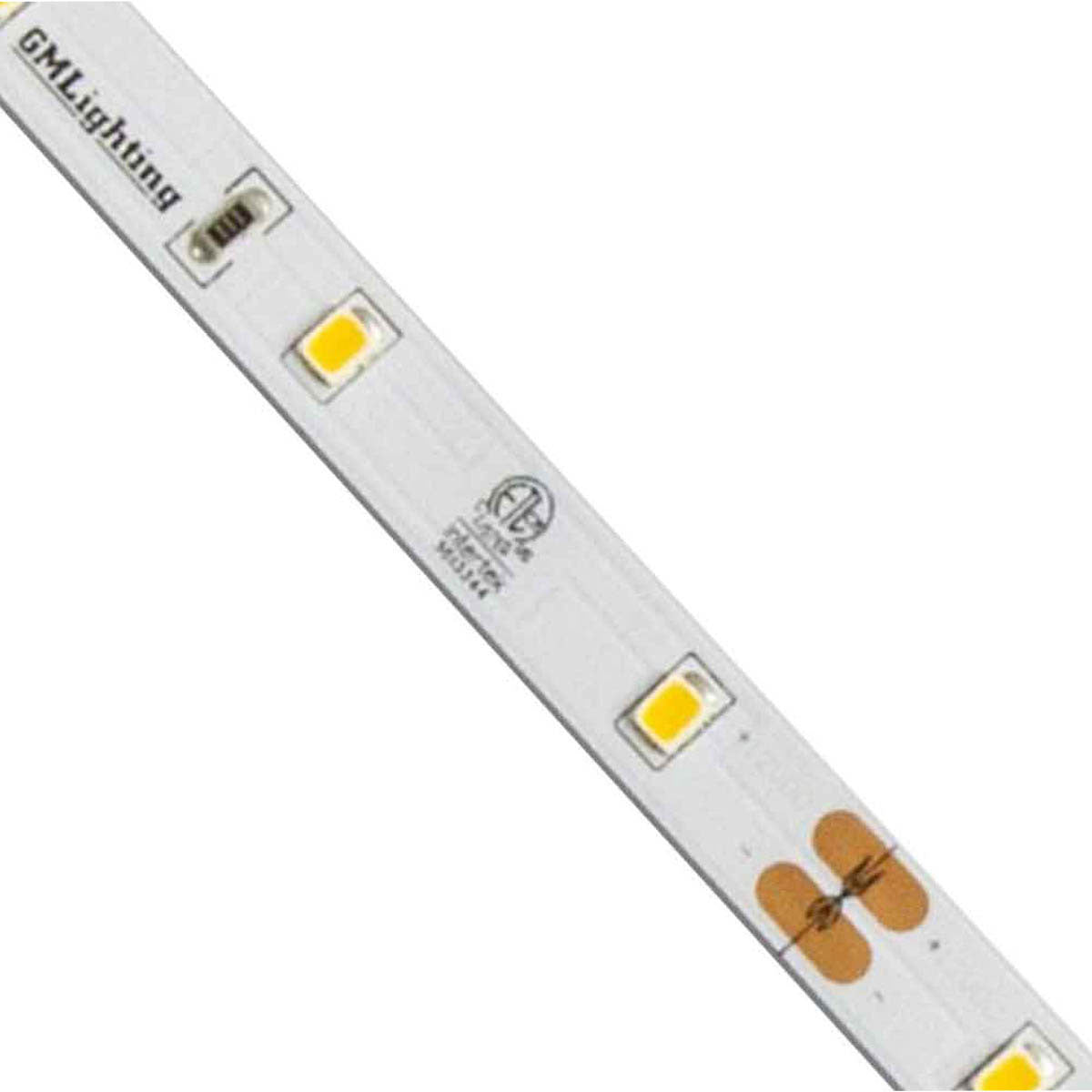

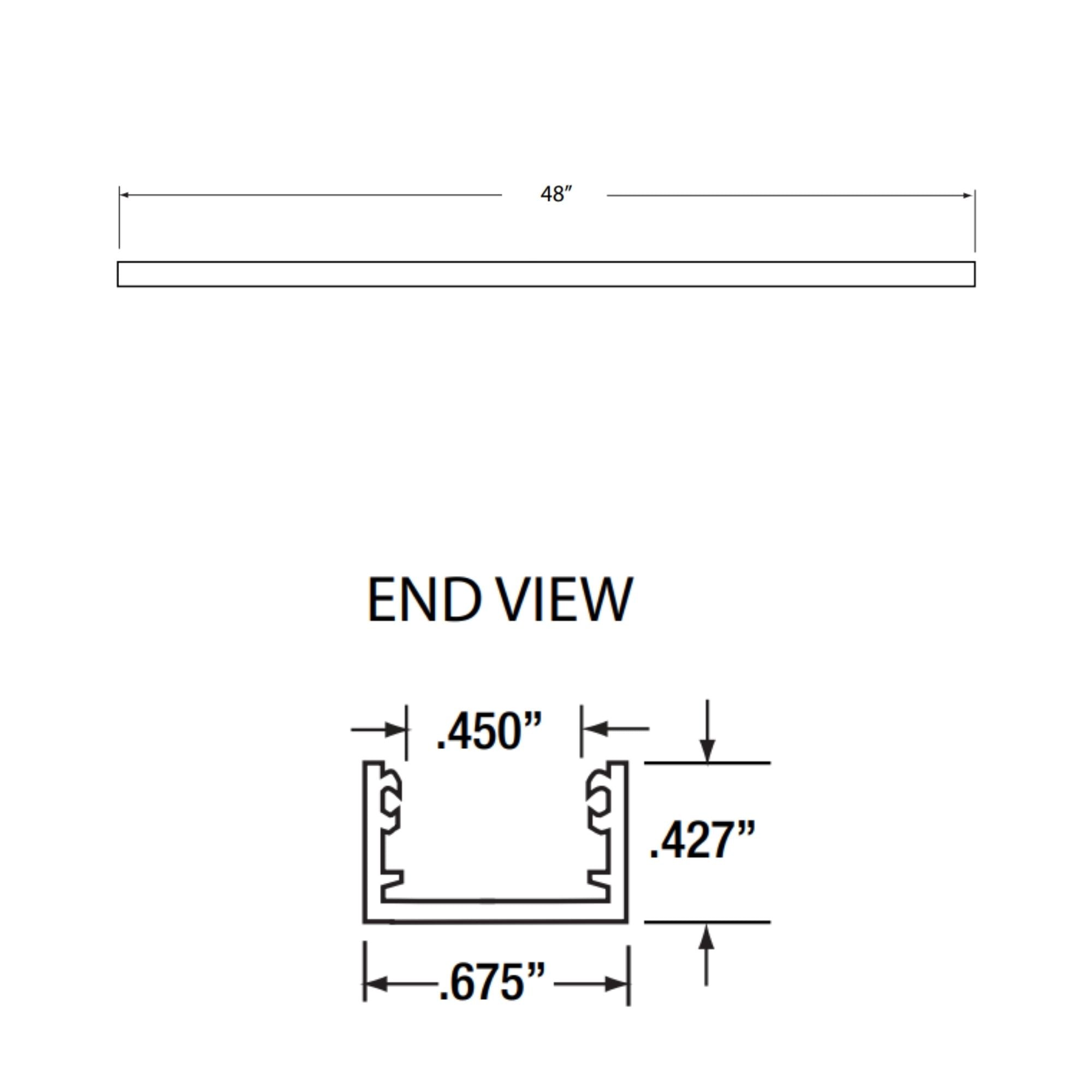

The tape light features a narrow 8mm PCB width, making it compatible with a variety of aluminum channels. It includes a 3M adhesive backing for easy installation on clean surfaces, and is designed for dry indoor environments.

LED Illumination & Performance

Delivering 149 lumens per foot with a high CRI of 90+, this tape light ensures vibrant and accurate color rendering. The light engine uses standard SMD technology for reliable performance.

Power, Wiring & Installation

This tape light requires a 24V power supply and is field cuttable every 4'. The maximum continuous run is 32'-8' to prevent voltage drop, and it is fully dimmable with compatible dimmers.

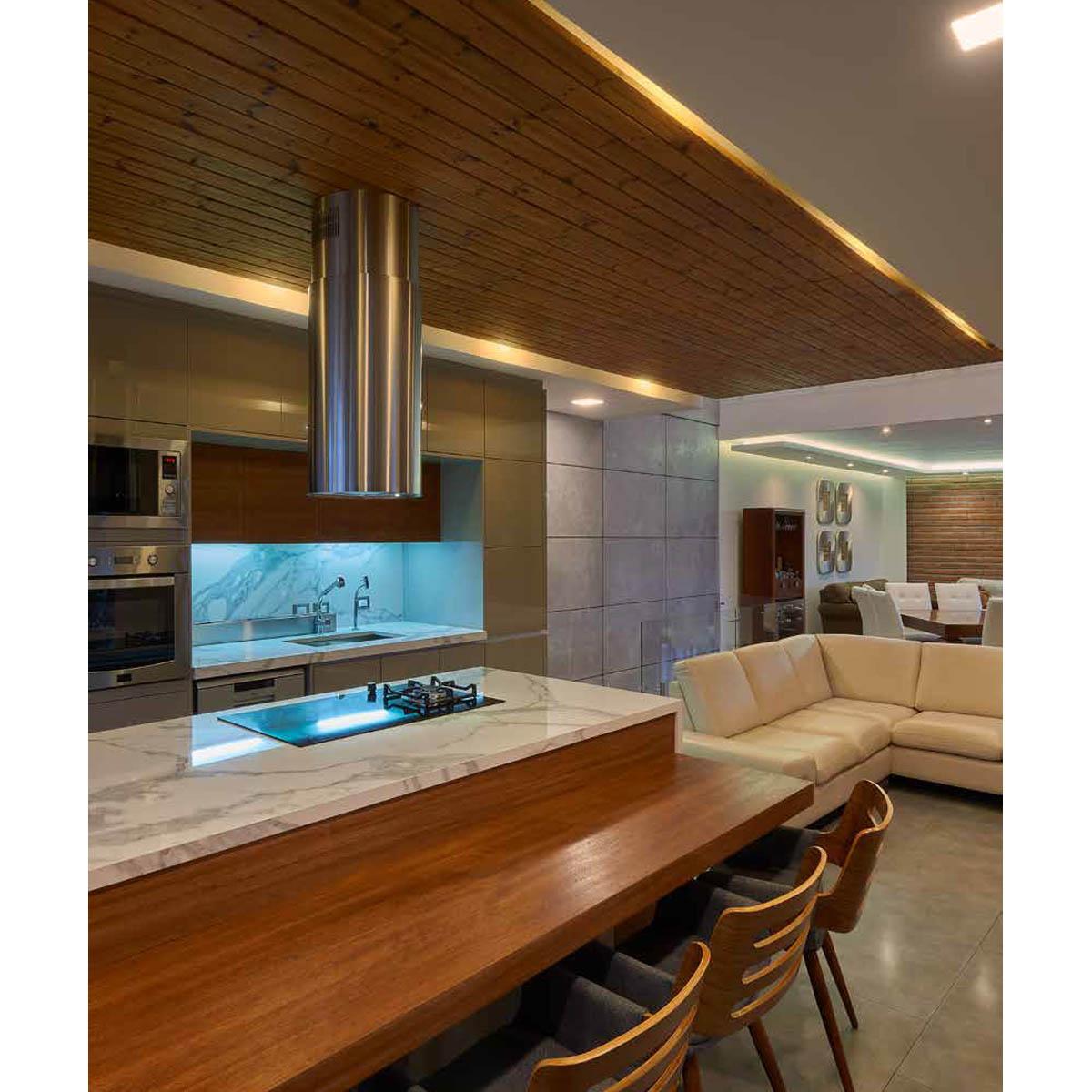

Where This Tape Works Best

• Cove lighting for ambient illumination.
• Under cabinet lighting for task areas.
• Accent lighting in display cases.
• Shelf lighting for retail environments.

What's Included

• 98'-6' reel of LED tape light.
• 48' lead affixed to tape.
