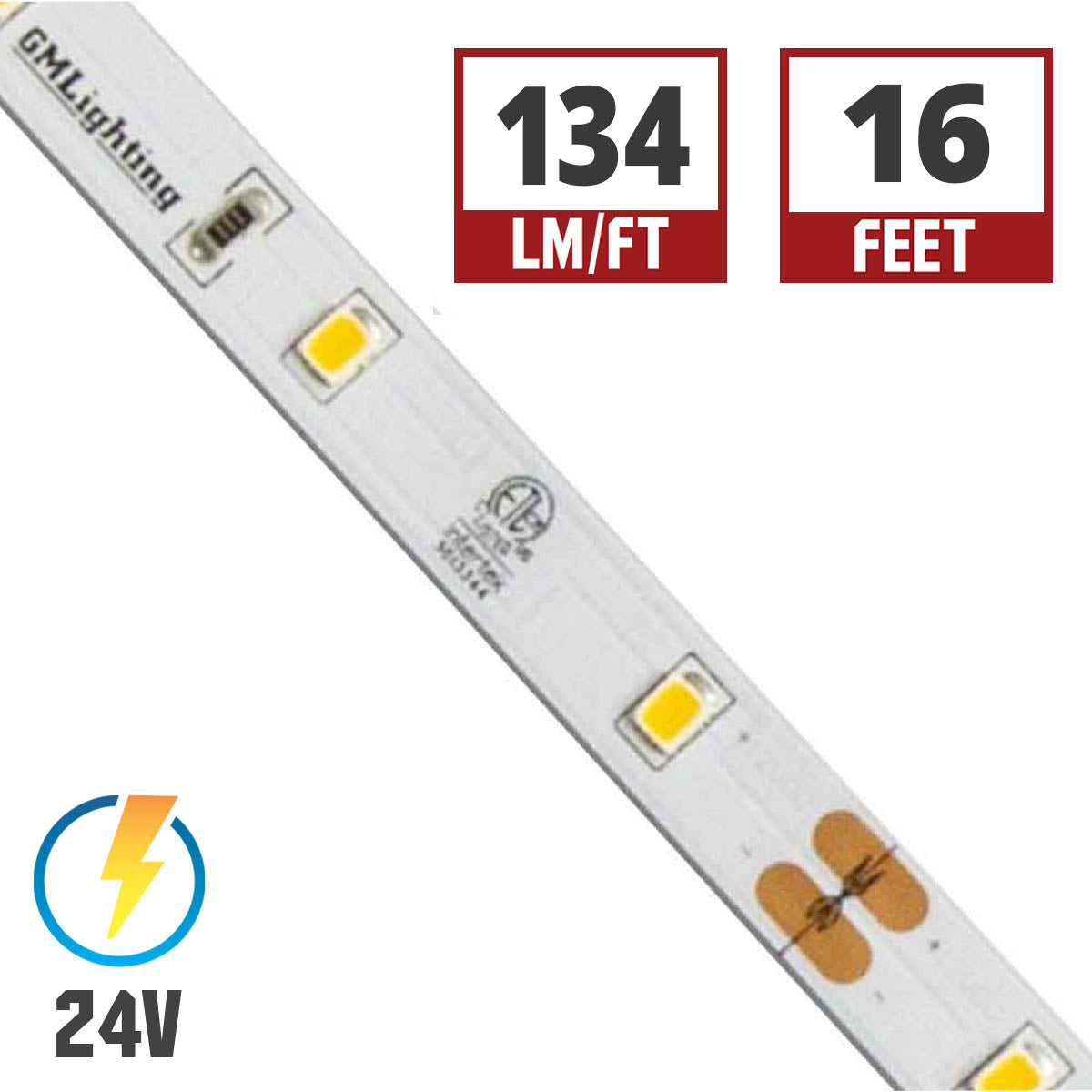

GM Lighting LTR-E ECONO, 16'-4' LED Tape Light, 3500K, 134 Lumens/ft, 24V
GM Lighting LTR-E ECONO, 16'-4' LED Tape Light, 3500K, 134 Lumens/ft, 24V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Color Temperature: 3500K for neutral white illumination.
- Voltage: Operates at 24V, ideal for longer runs.
- Cuttable Increments: Field cuttable every 4 inches for custom lengths.
- Maximum Run: Supports up to 32'-8' on a single power supply.
- LED Density: Features 18 LEDs per foot for consistent lighting.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

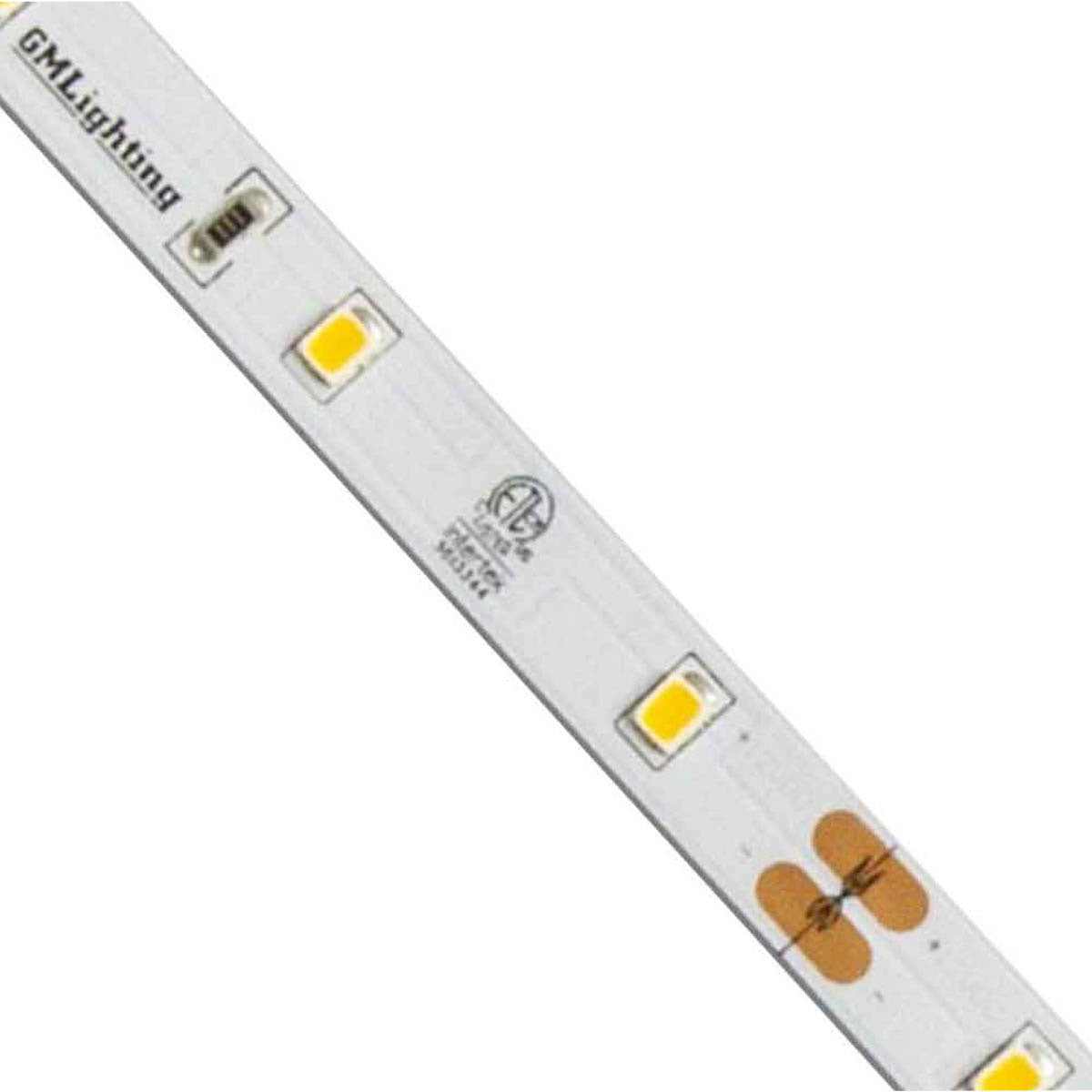

GM Lighting LTR-E ECONO LED Tape Light — 3500K & Economical Design
The GM Lighting LTR-E-24V-1.5W-35K-16 is a 16'-4' LED tape light designed for efficient and reliable linear lighting solutions. This tape light operates at 24V and is dry rated, making it suitable for indoor applications. With a color temperature of 3500K, it provides a neutral white light ideal for various settings.
Key Features
- Voltage: 24V operation for extended runs.
- Wattage: Consumes 1.5 watts per foot.
- Lumens: Delivers 134 lumens per foot.
- LED Density: 18 LEDs per foot for uniform light distribution.
- Maximum Run: Capable of running up to 32'-8' continuously.

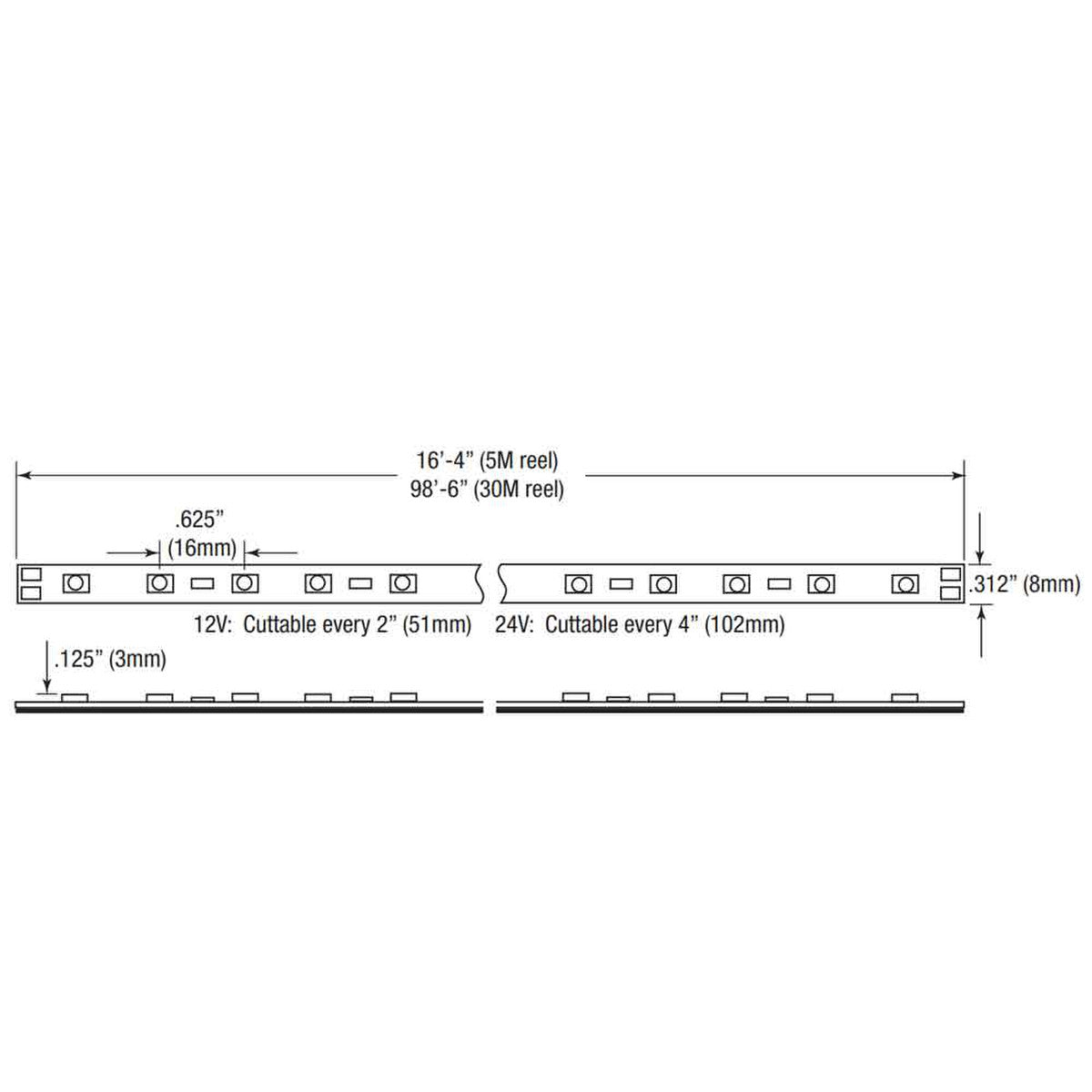

- Cuttable: Can be cut every 4 inches for precise installations.
- PCB Width: 8mm for compatibility with narrow channels.
- Beam Angle: 120° for wide light coverage.
- IP Rating: IP20, suitable for dry locations.
- Certifications: ETL listed for safety and performance.
Core Design & Construction
The tape light features a narrow 8mm PCB width, ensuring compatibility with various aluminum channels. It includes a durable 3M adhesive backing for secure mounting on clean surfaces.
LED Illumination & Performance
With a lumen output of 134 lumens per foot and a CRI of 90+, this tape light ensures high-quality illumination with excellent color rendering. The light engine utilizes standard SMD technology for reliable performance.
Power, Wiring & Installation
This tape light requires a 24V power supply, which is sold separately. It is field-cuttable every 4 inches, allowing for custom lengths. The maximum continuous run is 32'-8', and it is dimmable for adjustable lighting levels.

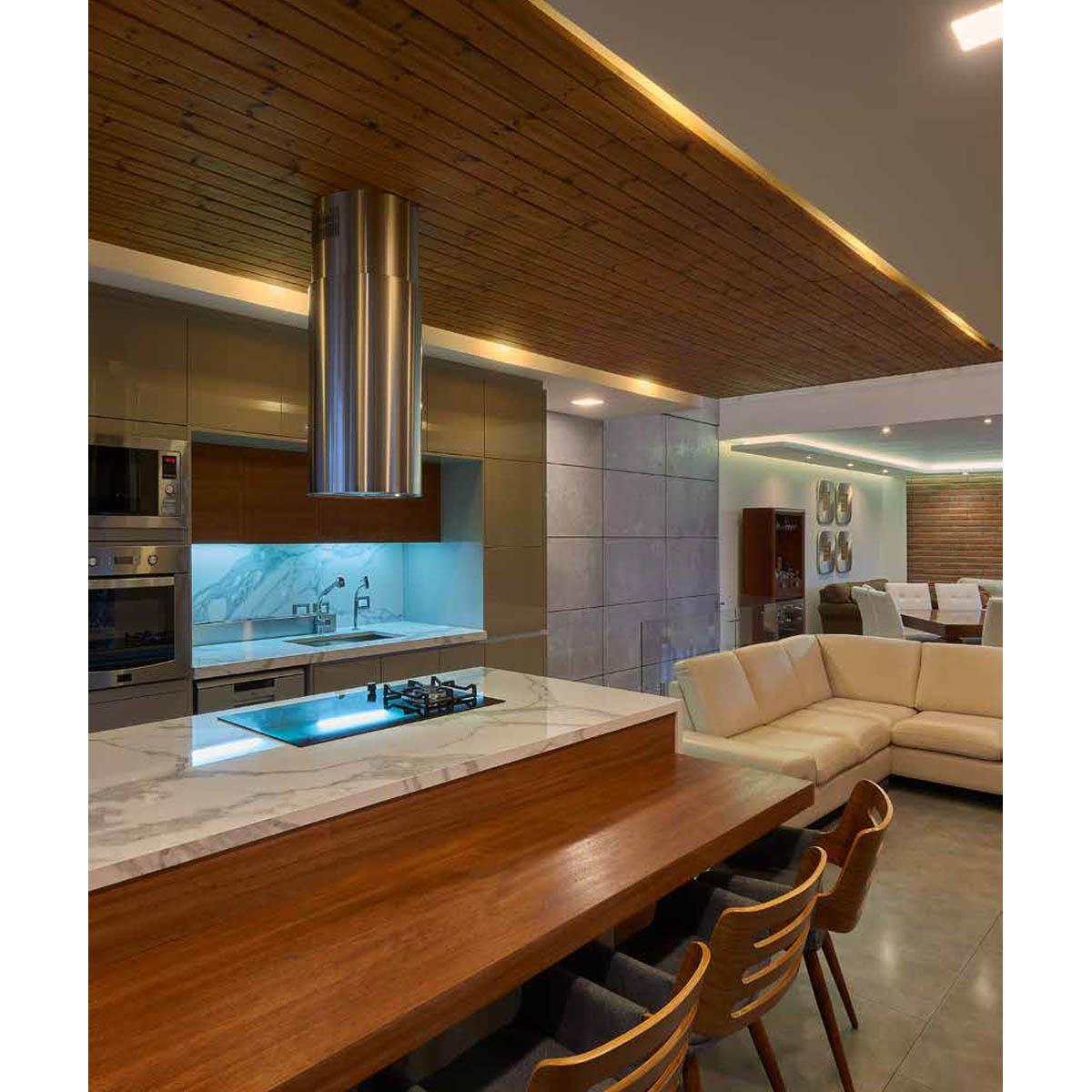

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16'-4' LED tape light spool
- 48' lead affixed to tape
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-E-24V-1.5W-35K-16?
What is the maximum run length for the LTR-E-24V-1.5W-35K-16?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this tape light?
What voltage is required for this tape light?
Is the LTR-E-24V-1.5W-35K-16 dimmable?
Is the LTR-E-24V-1.5W-35K-16 dimmable?
What is the width of the PCB for this tape light?
What is the width of the PCB for this tape light?
