GM Lighting LTR-E ECONO LED Tape Light — 3000K & Economical Design

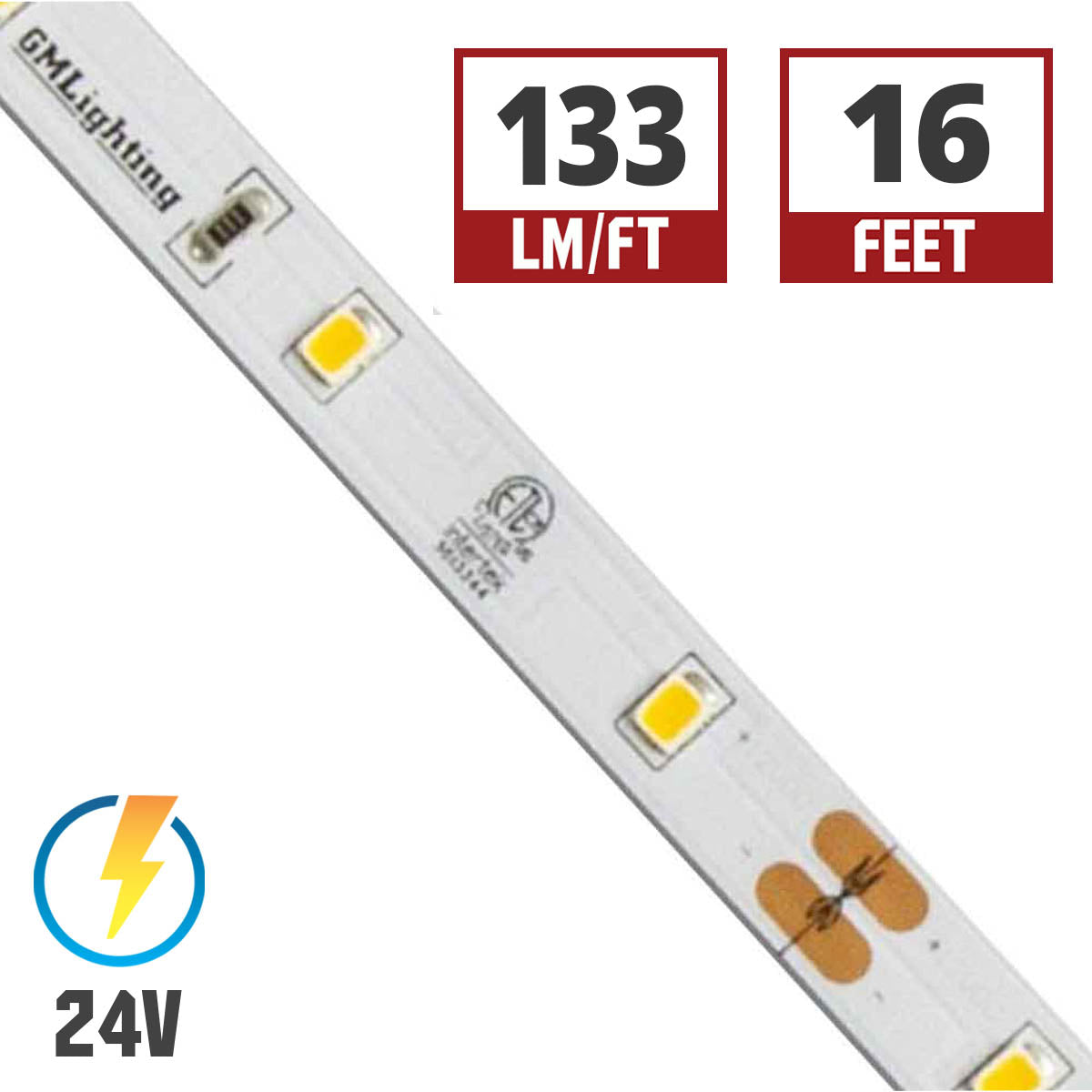

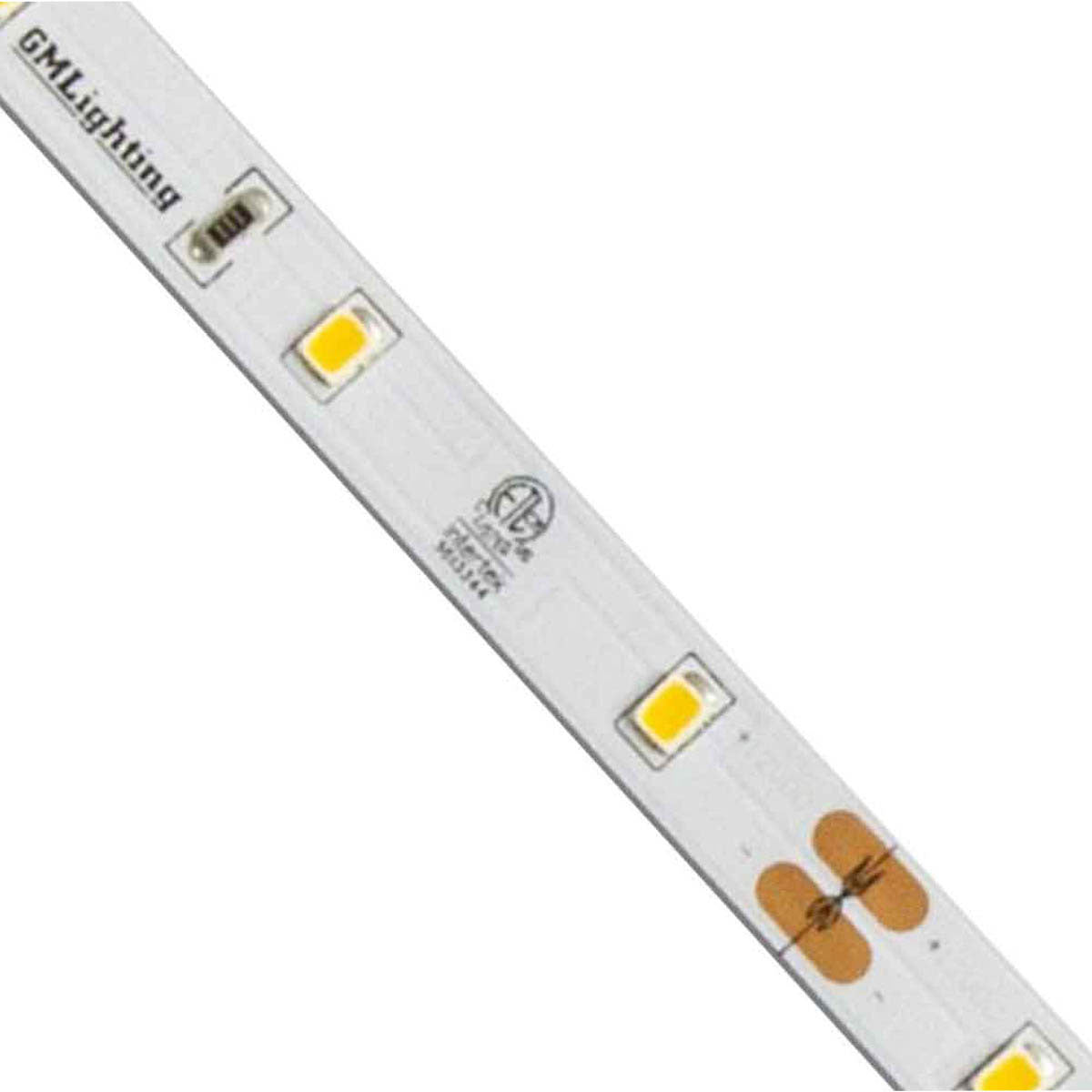

The GM Lighting LTR-E-24V-1.5W-30K-16 is a 16'-4' LED tape light designed for dry locations. This tape light operates at 24V and delivers a warm 3000K color temperature, making it ideal for various indoor applications. With a power consumption of 1.5 watts per foot, it provides efficient lighting with a brightness of 133 lumens per foot.

Key Features

• Voltage: 24V operation for low voltage systems.
• Wattage: Consumes 1.5 watts per foot.
• Lumens: Delivers 133 lumens per foot.
• LED Density: 18 LEDs per foot for uniform light distribution.
• Maximum Run: Up to 32'-8' on a single power feed.

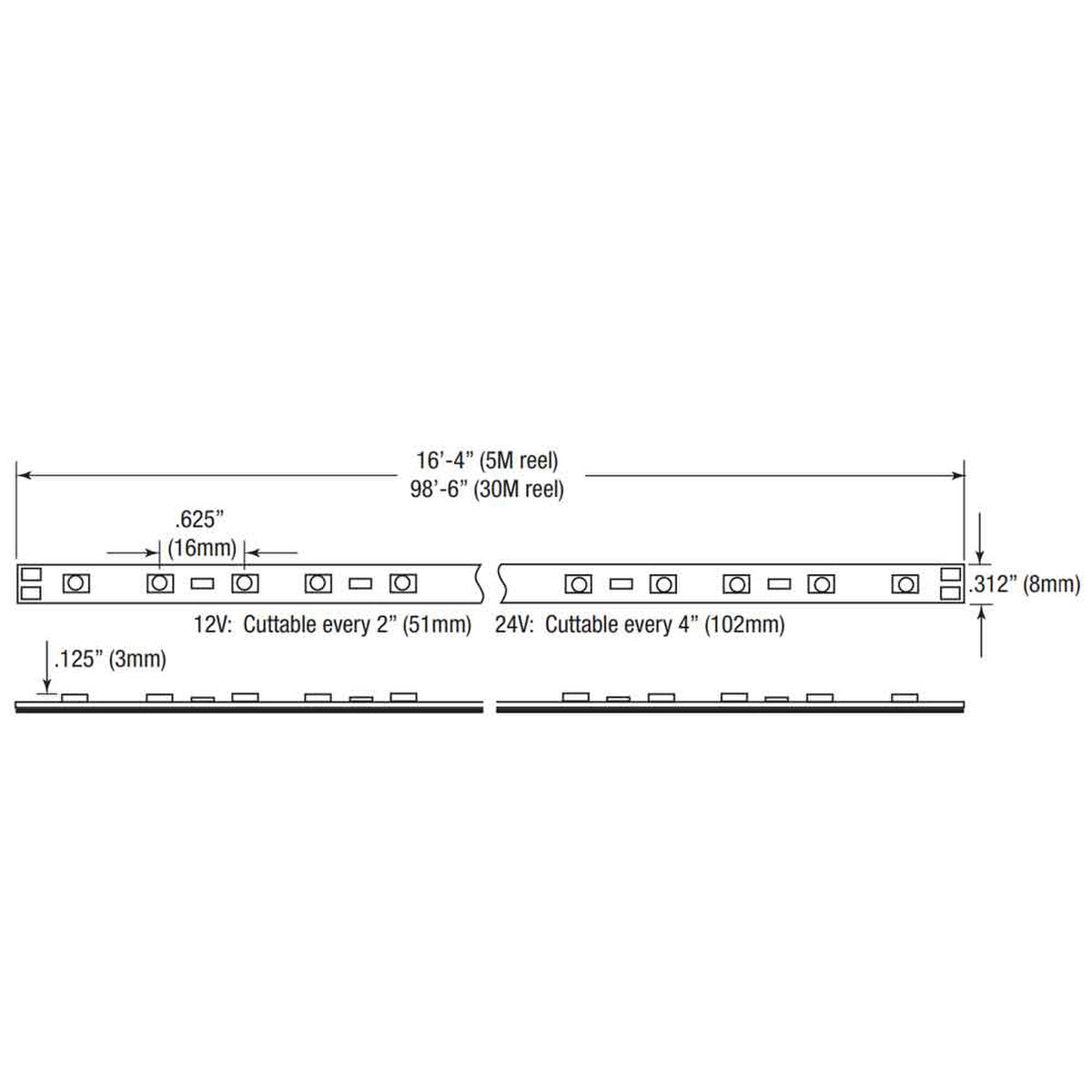

• Cuttable: Field cuttable every 4 inches for custom lengths.
• PCB Width: 8mm, suitable for standard channels.
• Beam Angle: 120° for wide light distribution.
• IP Rating: IP20, suitable for dry locations.
• Certifications: ETL listed for quality assurance.

Core Design & Construction

The tape light features a slim 8mm PCB width, compatible with most standard aluminum channels. It includes a durable 3M adhesive backing for easy installation on various surfaces.

LED Illumination & Performance

With a high CRI of 90+, this LED tape light ensures accurate color rendering, enhancing the appearance of illuminated objects. The 3000K color temperature provides a warm and inviting ambiance.

Power, Wiring & Installation

This 24V tape light requires a compatible driver for operation. It is field cuttable every 4 inches, allowing for precise customization. The maximum continuous run is 32'-8', ensuring minimal voltage drop. It is fully dimmable with compatible dimmers.

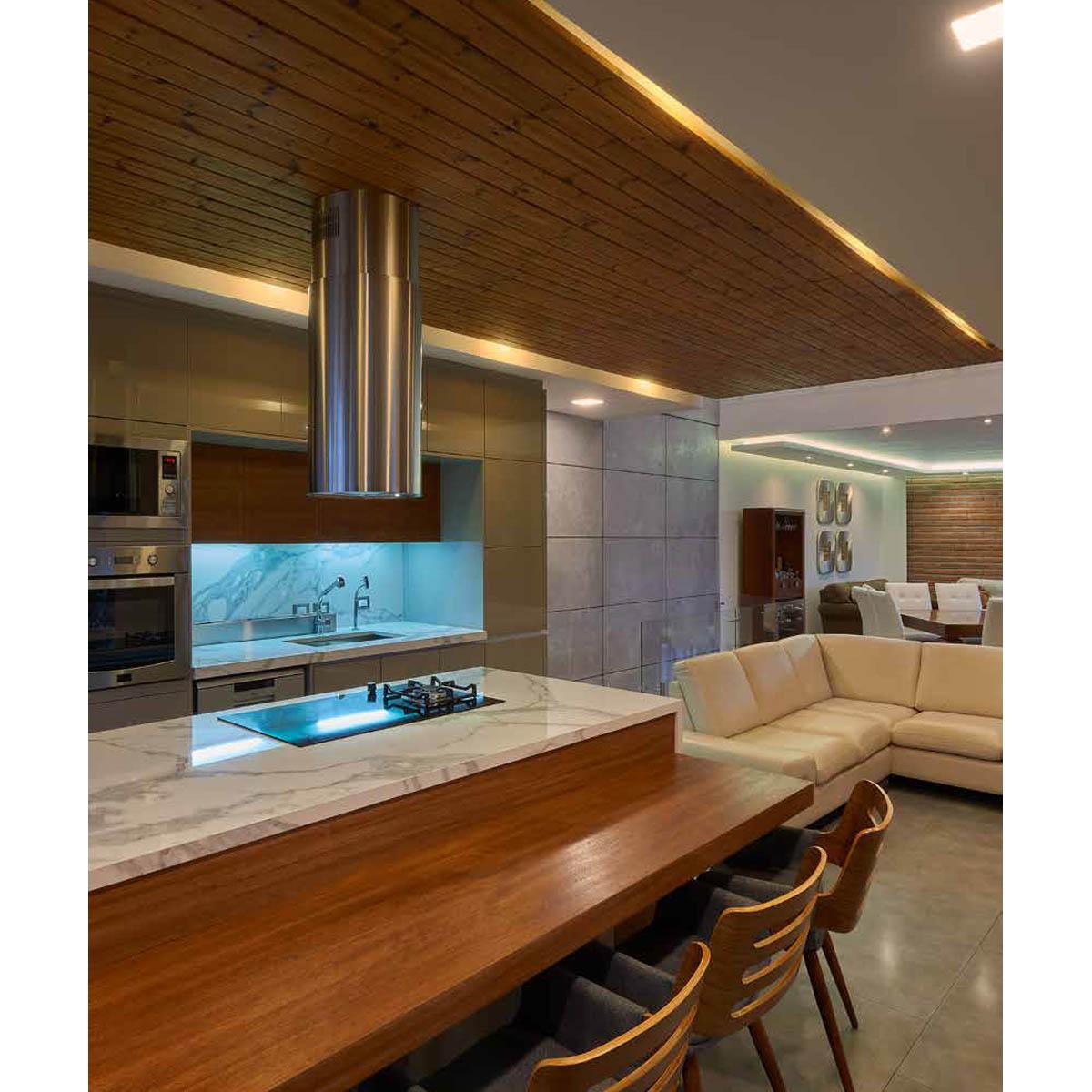

Where This Tape Works Best

• Cove lighting
• Under cabinet lighting
• Accent lighting
• Display case lighting

What's Included

• 16'-4' LED tape light spool
• 48' lead affixed to tape
