GM Lighting LTR-E ECONO, 16'-4' LED Tape Light, Amber, 12V, 1.5W/ft, Dry Rated, Dimmable
In stock
About this item
About this item
- Color Temperature: Amber light provides a warm, inviting glow ideal for accent lighting.
- Voltage: Operates at 12V, requiring a compatible power supply for installation.
- Cuttable Increments: Field cuttable every 2 inches for customized lengths.
- Max Run: Maximum continuous run length of 32'-8' to prevent voltage drop.
- LED Density: Features 18 LEDs per foot for consistent illumination.
We process payments securely and do not store credit card information.
Description
Description

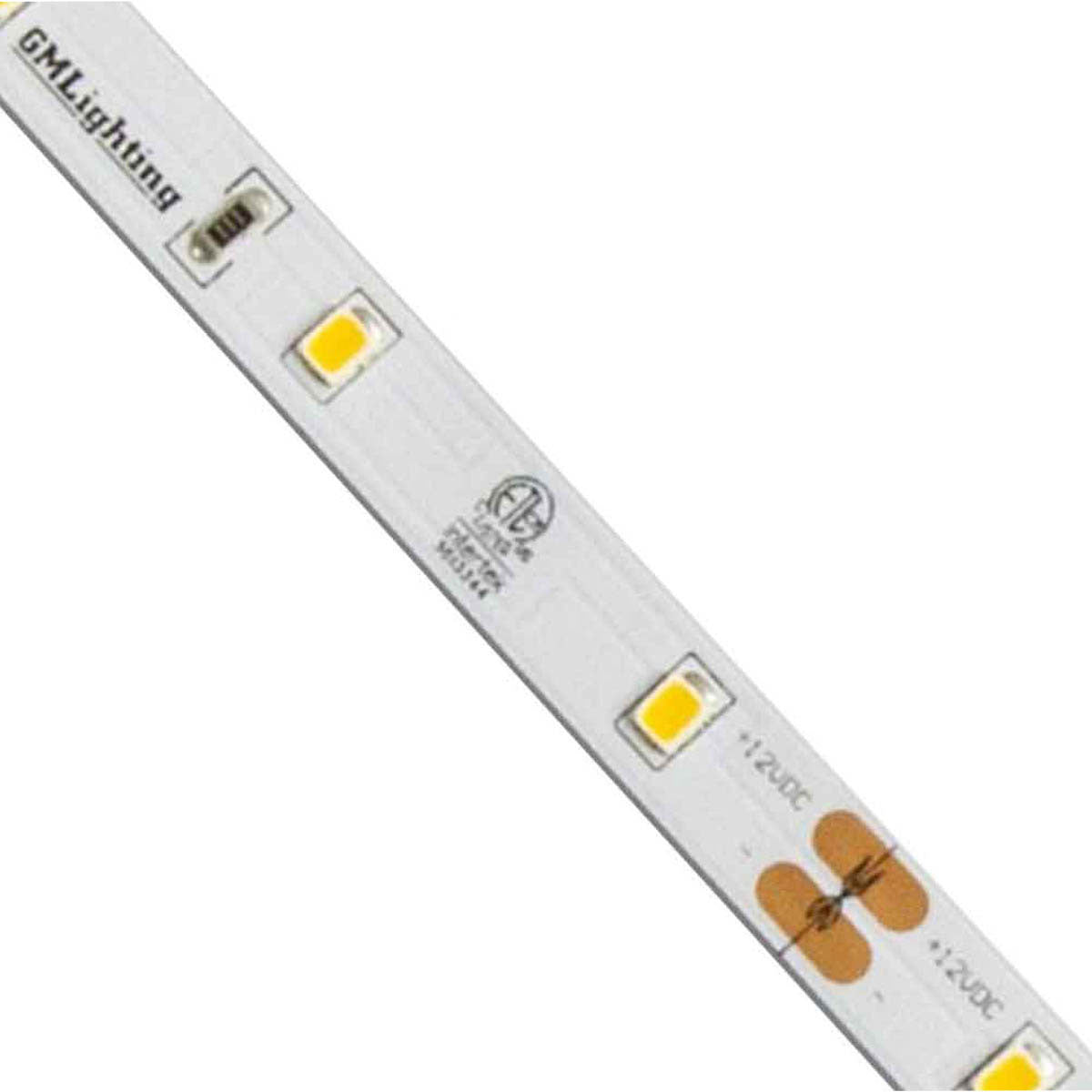

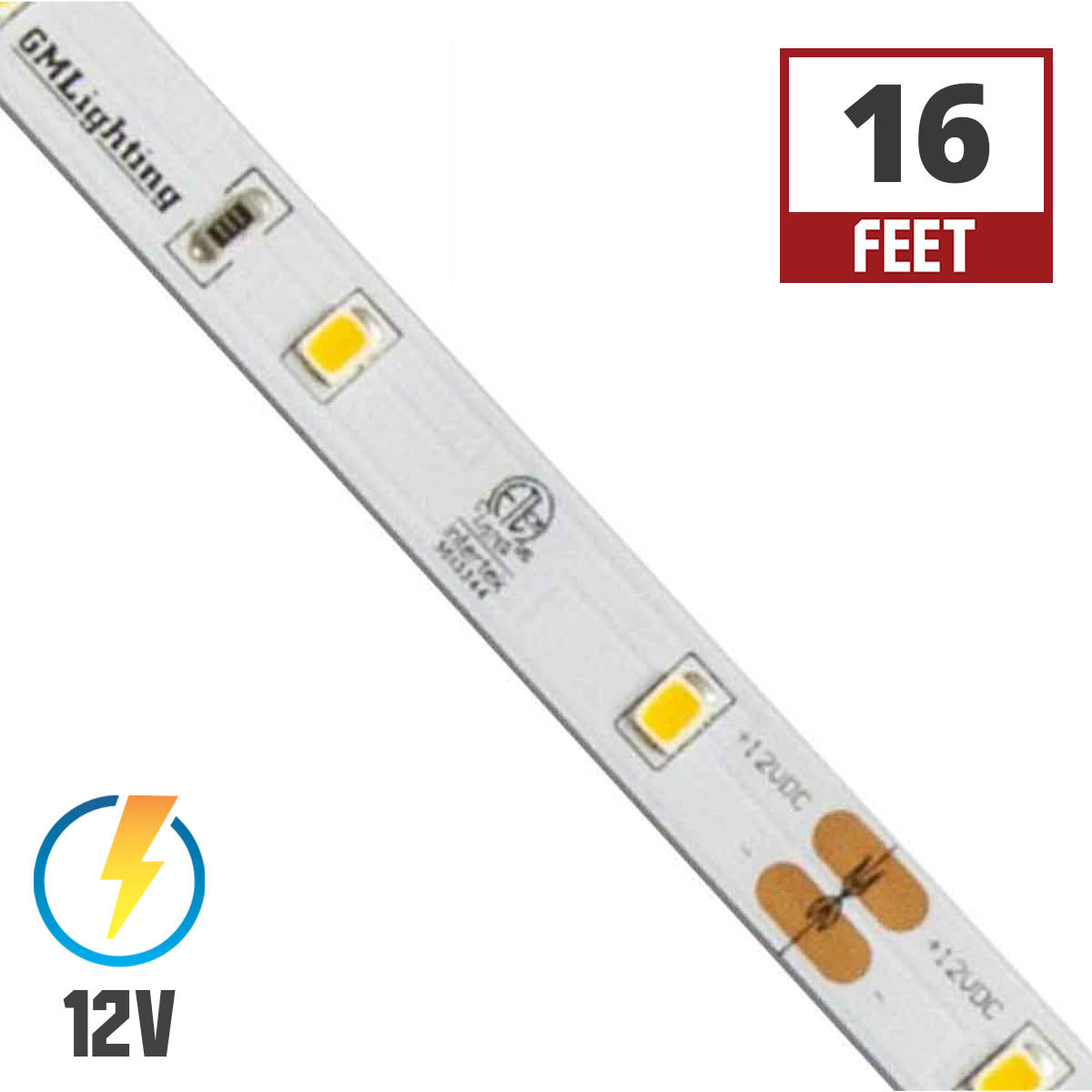

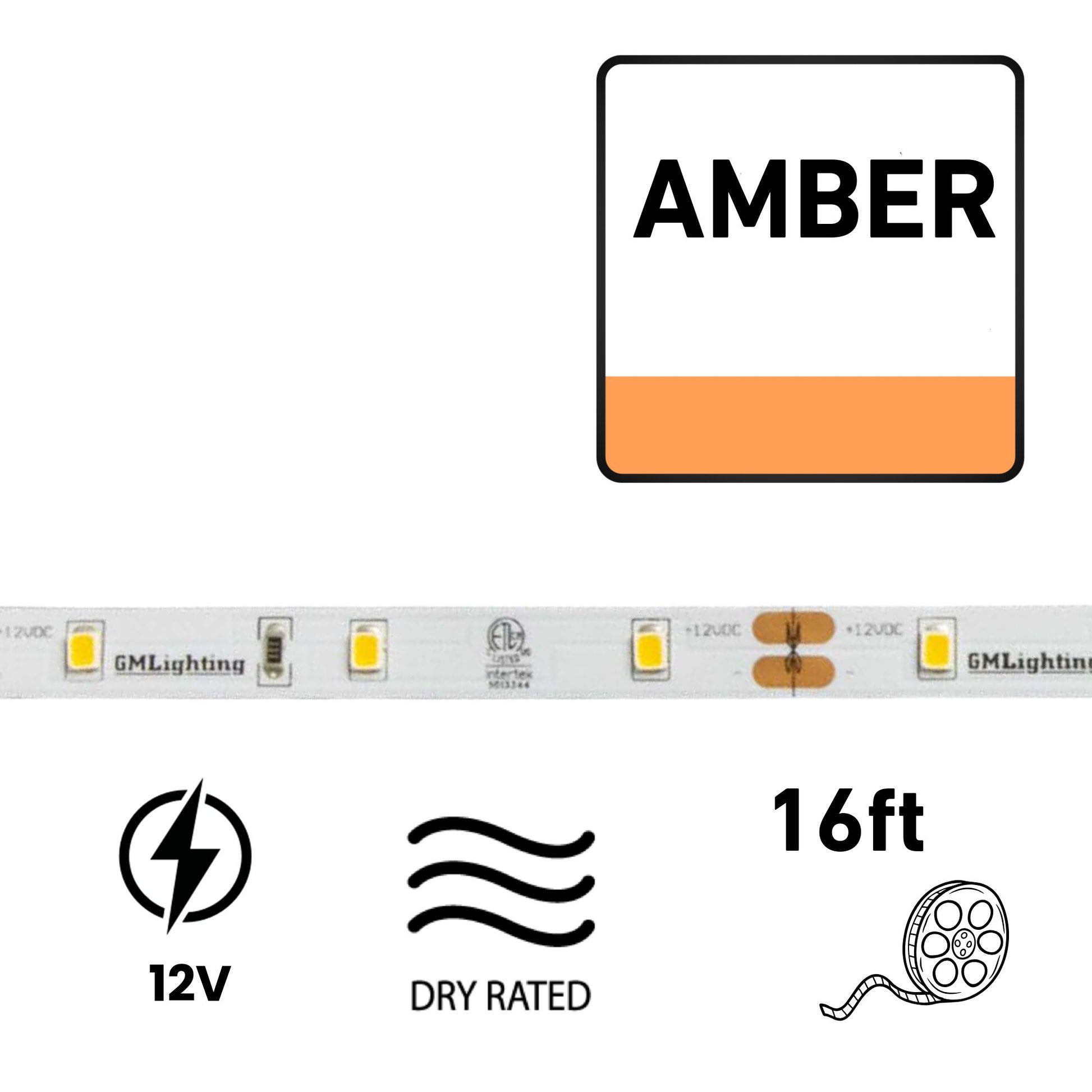

GM Lighting LTR-E ECONO LED Tape Light — Amber & Dimmable
The GM Lighting LTR-E-12V-1.5W-AM-16 is a flexible LED tape light designed for efficient and reliable linear lighting solutions. This 16'-4' reel provides amber illumination and operates at 12V, making it suitable for dry locations. The tape is field cuttable every 2 inches, allowing for precise customization.
Key Features
- Voltage: 12V DC operation for low voltage applications.
- Wattage: Consumes 1.5 watts per foot for energy-efficient lighting.
- LED Density: 18 LEDs per foot ensure even light distribution.
- Max Run: Supports up to 32'-8' on a single power feed.
- Cuttable: Can be cut every 2 inches for tailored installations.
- PCB Width: 8mm width compatible with standard channels.
- Beam Angle: 120-degree viewing angle for broad coverage.
- IP Rating: IP20, suitable for dry indoor environments.
- Certifications: ETL listed for safety and performance.
Core Design & Construction

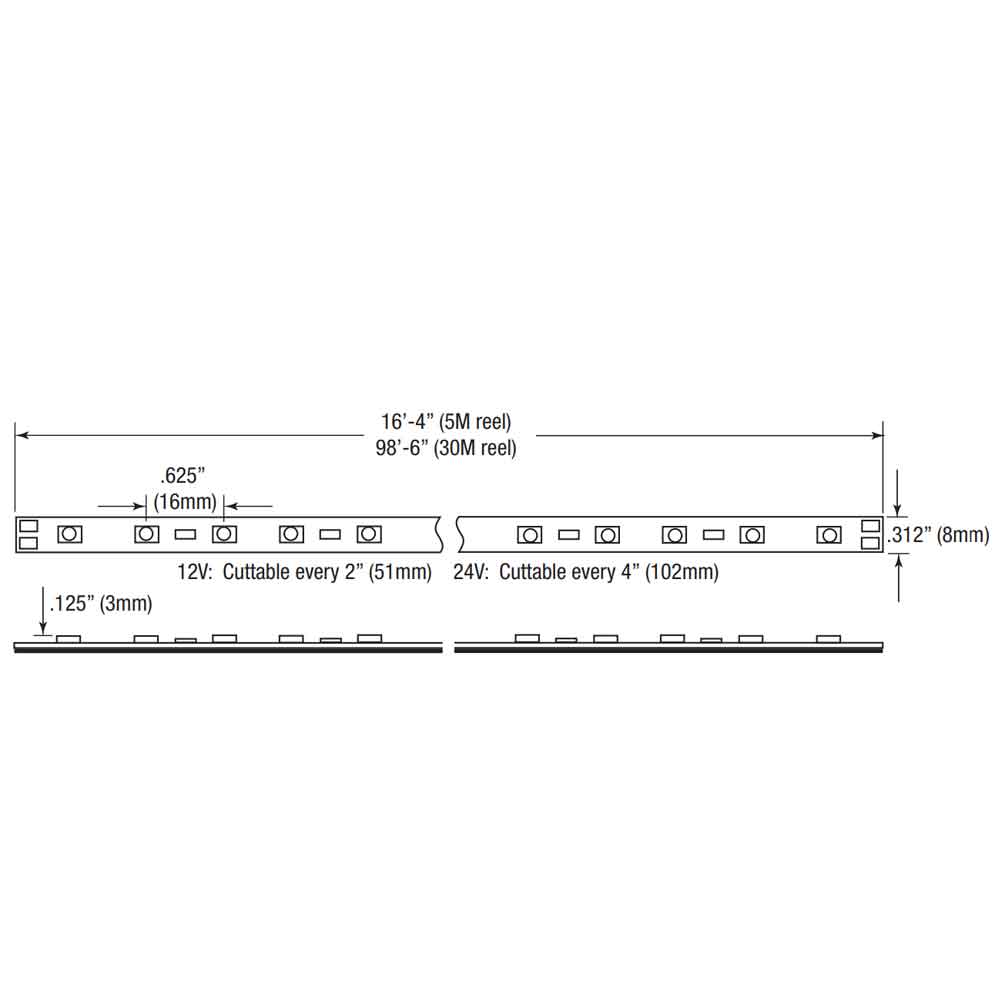

The LTR-E tape light features a narrow 8mm PCB, ideal for installation in tight spaces and compatible with most aluminum channels. It includes a durable 3M adhesive backing for secure mounting on various surfaces.
LED Illumination & Performance
This tape light delivers amber lighting with a high CRI of 80+, ensuring vibrant color rendering. The 2835 LED diodes provide consistent and reliable performance.
Power, Wiring & Installation
Operating at 12V, this tape light requires a compatible driver. It is dimmable, allowing for adjustable brightness levels. The tape can be cut every 2 inches, and the maximum continuous run is 32'-8' to prevent voltage drop.

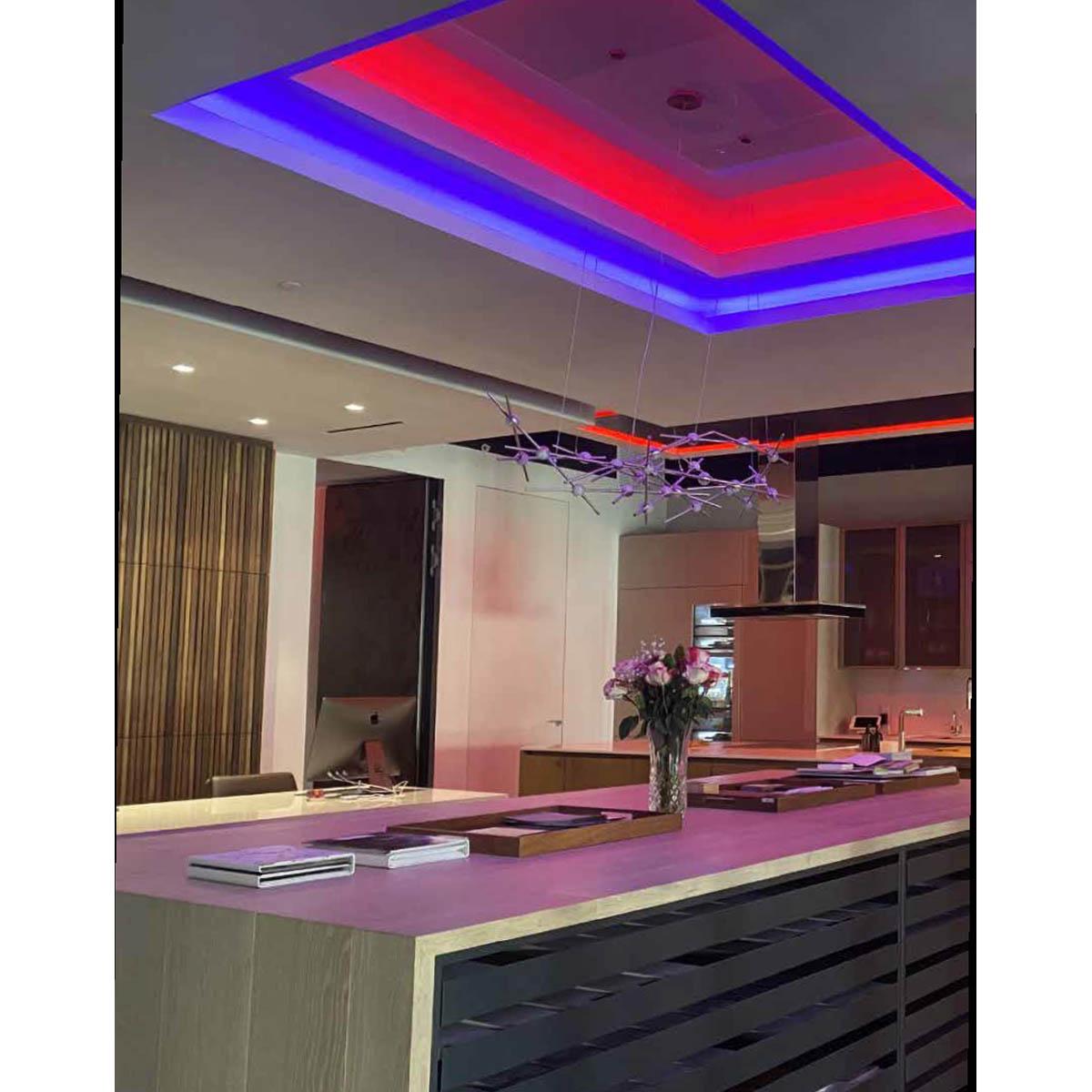

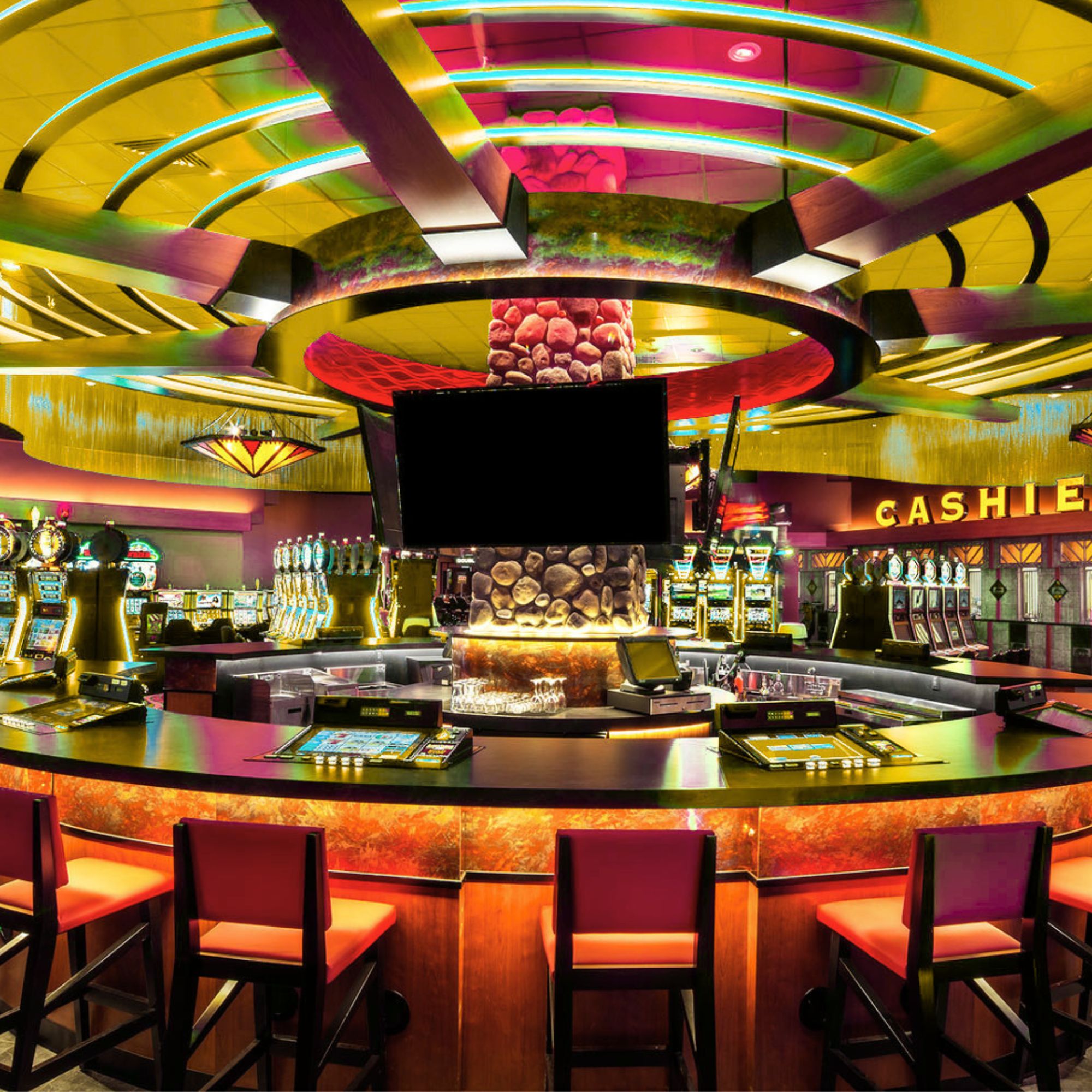

Where This Tape Works Best
- Accent lighting in residential interiors
- Under cabinet lighting in kitchens
- Display case illumination
- Architectural cove lighting
What's Included
- 16'-4' LED tape light reel
- 48' lead affixed to tape
