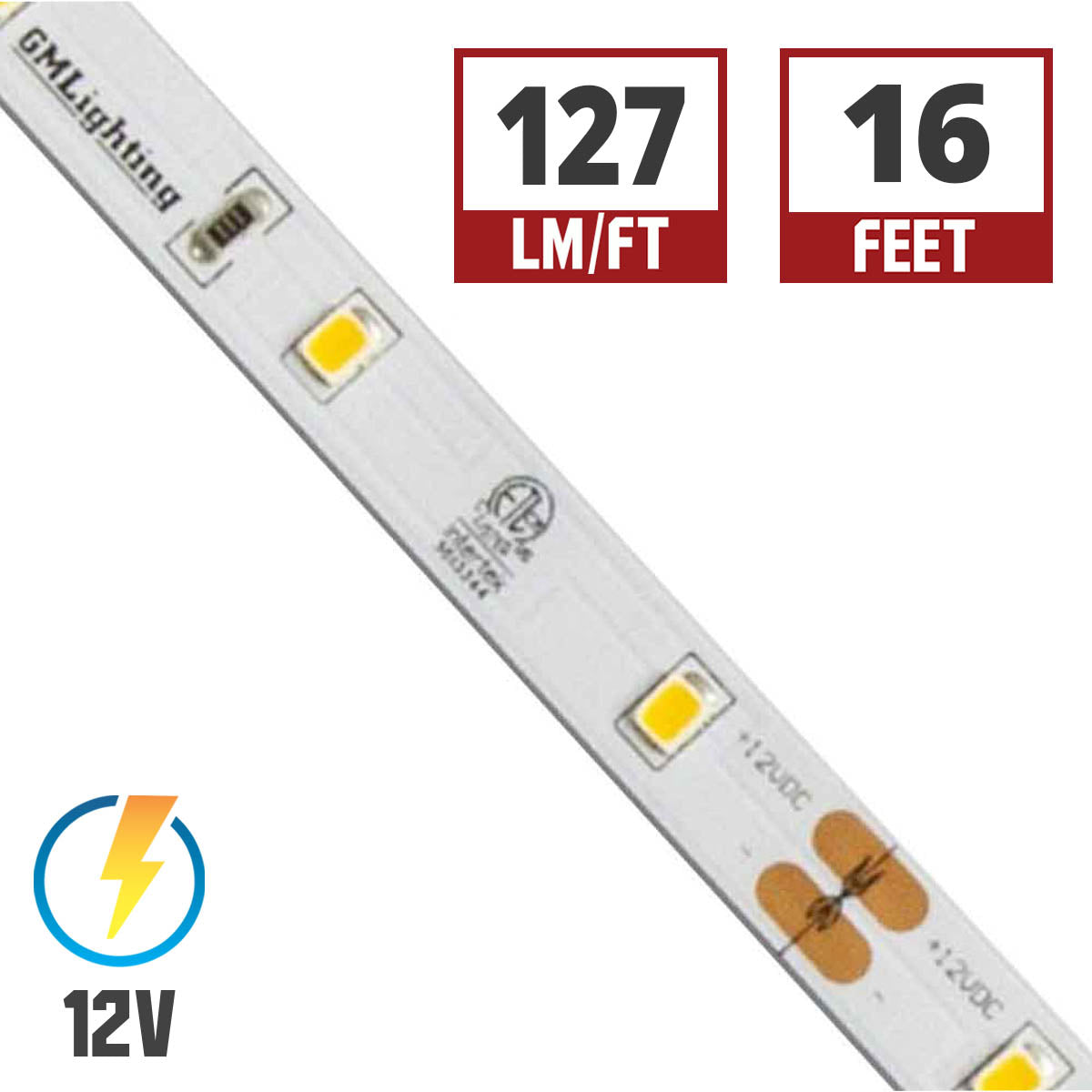

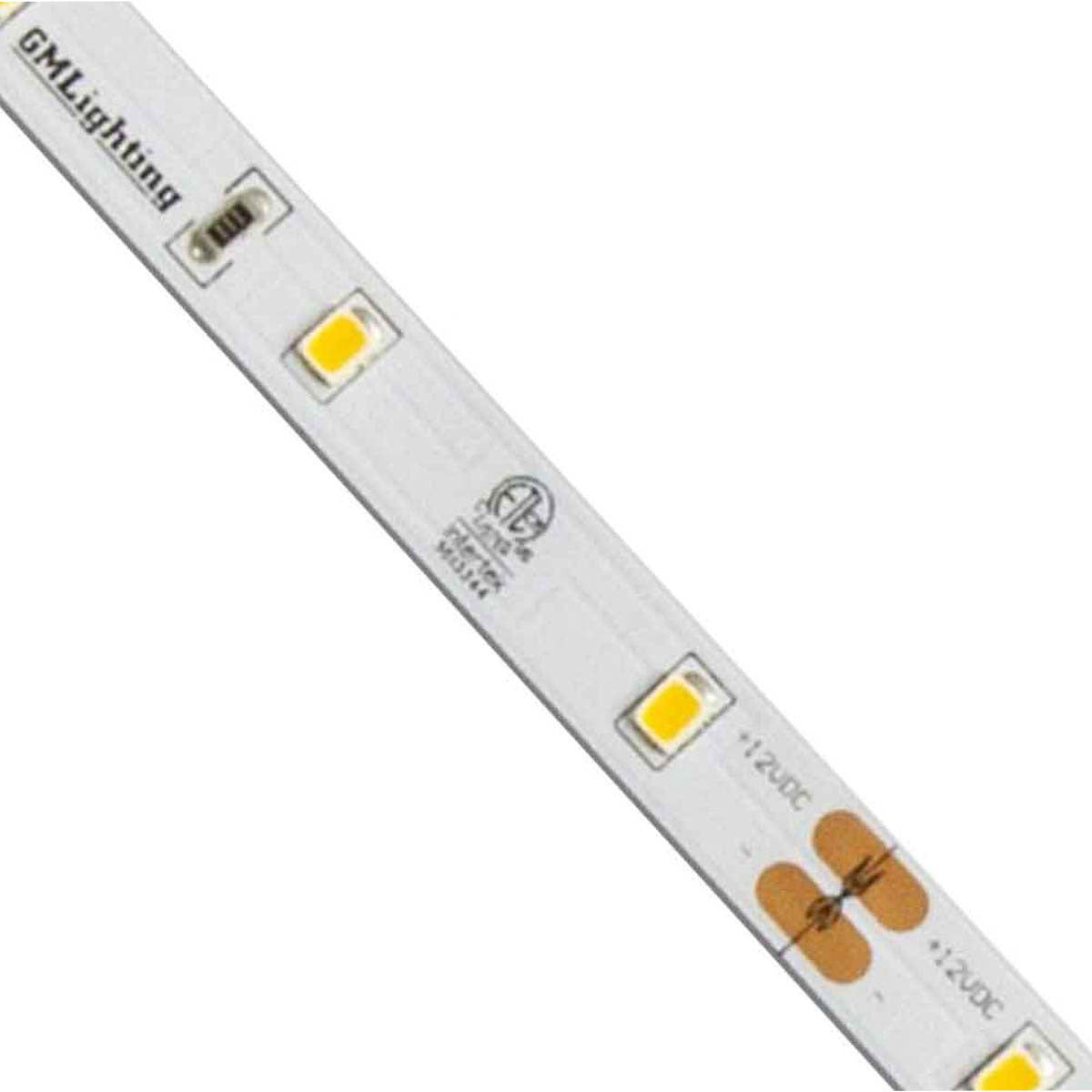

GM Lighting LTR-E ECONO, 16'-4' LED Tape Light, 2700K, 127 Lumens/ft, 12V
In stock
About this item
About this item
- Color Temperature: Provides a warm 2700K light, ideal for cozy and inviting environments.
- Voltage: Operates at 12V, requiring a compatible driver for installation.
- Max Run: Capable of a continuous run up to 32'-8' without noticeable voltage drop.
- Cuttable: Field cuttable every 2' for customized lengths and applications.
- LED Density: Features 18 LEDs per foot for consistent and uniform illumination.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-E ECONO LED Tape Light — 2700K & Economical Solution
The GM Lighting LTR-E-12V-1.5W-27K-16 is a versatile LED tape light that spans 16'-4' and operates at 12V. Designed for dry locations, it offers a warm 2700K color temperature, making it suitable for various indoor applications.
Key Features
- Voltage: 12V DC operation, suitable for low-voltage applications.
- Wattage: Consumes 1.5 watts per foot, ensuring energy efficiency.
- Lumens: Delivers 127 lumens per foot for effective illumination.
- LED Density: 18 LEDs per foot for uniform light distribution.
- Max Run: Supports up to 32'-8' on a single power feed.
- Cuttable: Can be cut every 2' for precise length adjustments.

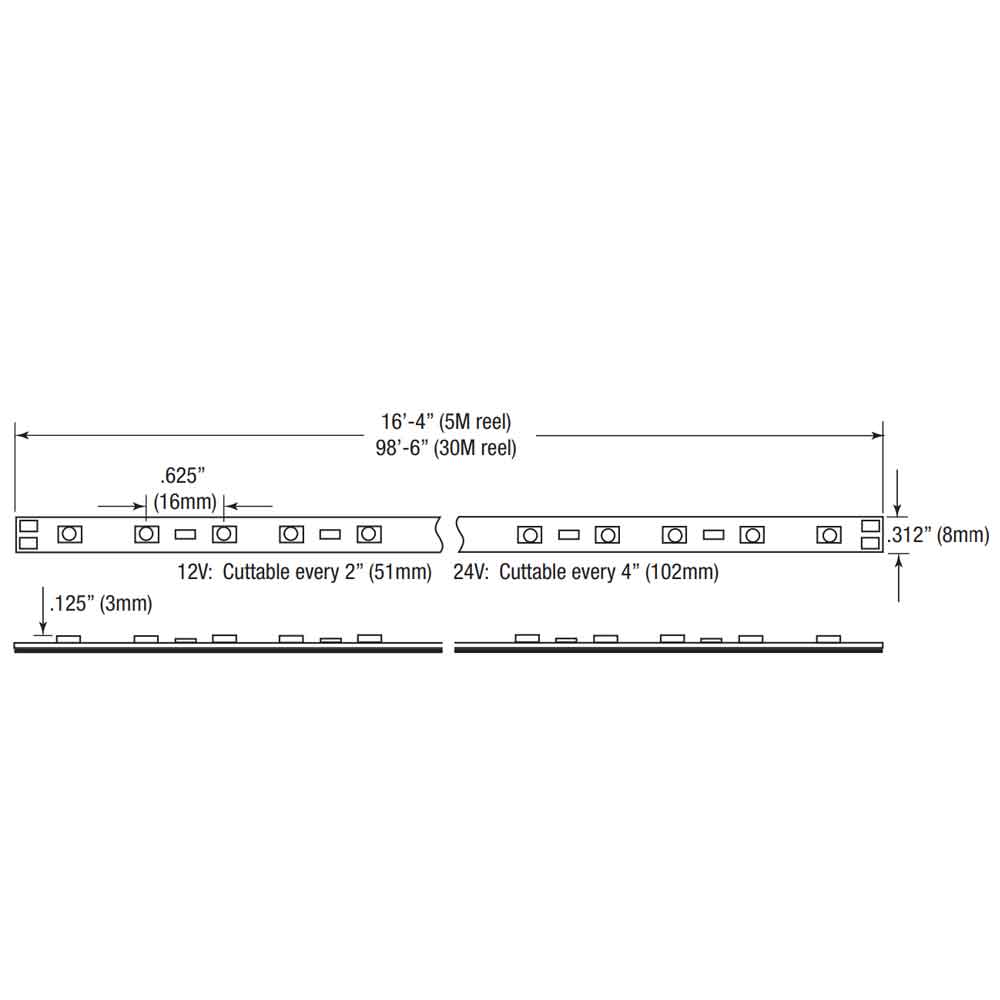

- PCB Width: 8mm, compatible with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP20, suitable for dry indoor environments.
- Certifications: ETL listed for safety and quality assurance.
Core Design & Construction
The tape light features a narrow 8mm PCB width, making it compatible with a variety of aluminum channels. It includes a 3M adhesive backing for secure mounting on clean surfaces, and is rated for dry indoor use.
LED Illumination & Performance
With a high 90+ CRI, this tape light ensures accurate color rendering, making it ideal for applications where color accuracy is crucial. The light engine uses standard SMD LEDs for reliable performance.
Power, Wiring & Installation
This tape light requires a 12V DC driver for operation. It is field-cuttable every 2', allowing for custom installations. The maximum continuous run is 32'-8' to prevent voltage drop, and it is fully dimmable with compatible dimmers.

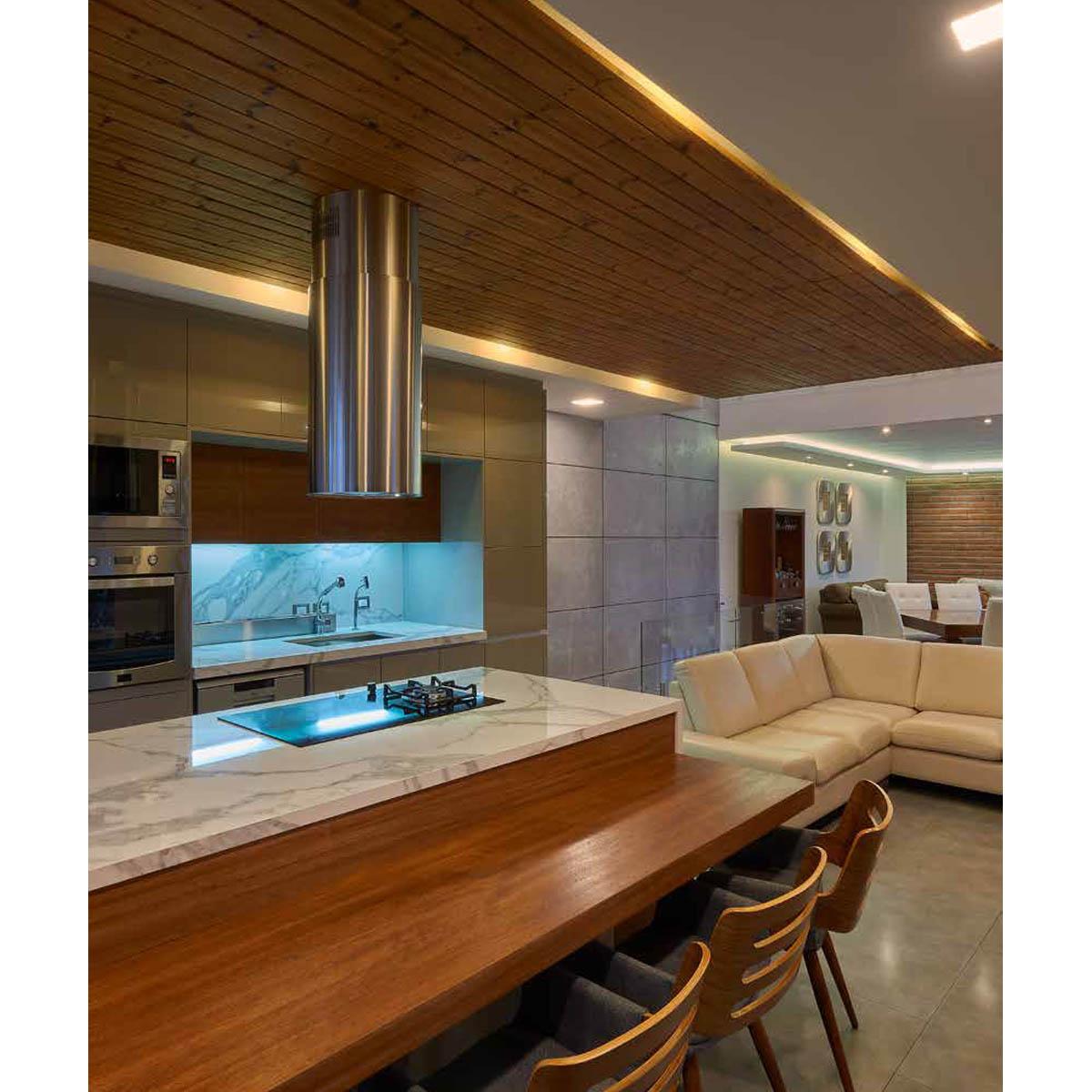

Where This Tape Works Best
- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
- Architectural detailing
What's Included
- 16'-4' LED tape light spool
- 48' lead affixed to tape
- Sure-Tite connectors sold separately
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-E-12V-1.5W-27K-16?
What is the maximum run length for the LTR-E-12V-1.5W-27K-16?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light compatible with dimmers?
Is this tape light compatible with dimmers?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
