GM Lighting LTP 60W LED Driver 12V DC - 120V
In stock
About this item
About this item
- Output Voltage: Provides a reliable 12V DC output for consistent LED performance.
- Dimming: This driver is non-dimmable, ensuring stable power delivery.
- Input Voltage: Operates efficiently with a 120V AC input, suitable for standard installations.
- Enclosure: Features a fully enclosed plastic case for enhanced safety and durability.
- Protection: Includes short circuit, overload, and over-voltage protection for reliable operation.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTP LTP-6 60W LED Driver — 12V DC
The GM Lighting LTP-6 is a robust 60W LED Driver designed for indoor applications, delivering a consistent 12V DC output. With a 120V AC input, this Constant Voltage driver is ideal for powering LED lighting systems that require stable and reliable performance. Although non-dimmable, it ensures uninterrupted power delivery, making it suitable for various lighting setups. The driver is housed in a fully enclosed plastic case, providing protection and durability.
Key Features
- Power Output: Delivers a steady 60W power output for optimal LED performance.
- Output Voltage: Supplies a 12V DC output, perfect for low-voltage LED applications.
- Input Voltage: Compatible with 120V AC input, fitting standard electrical systems.
- Dimming: Non-dimmable design ensures constant power supply.

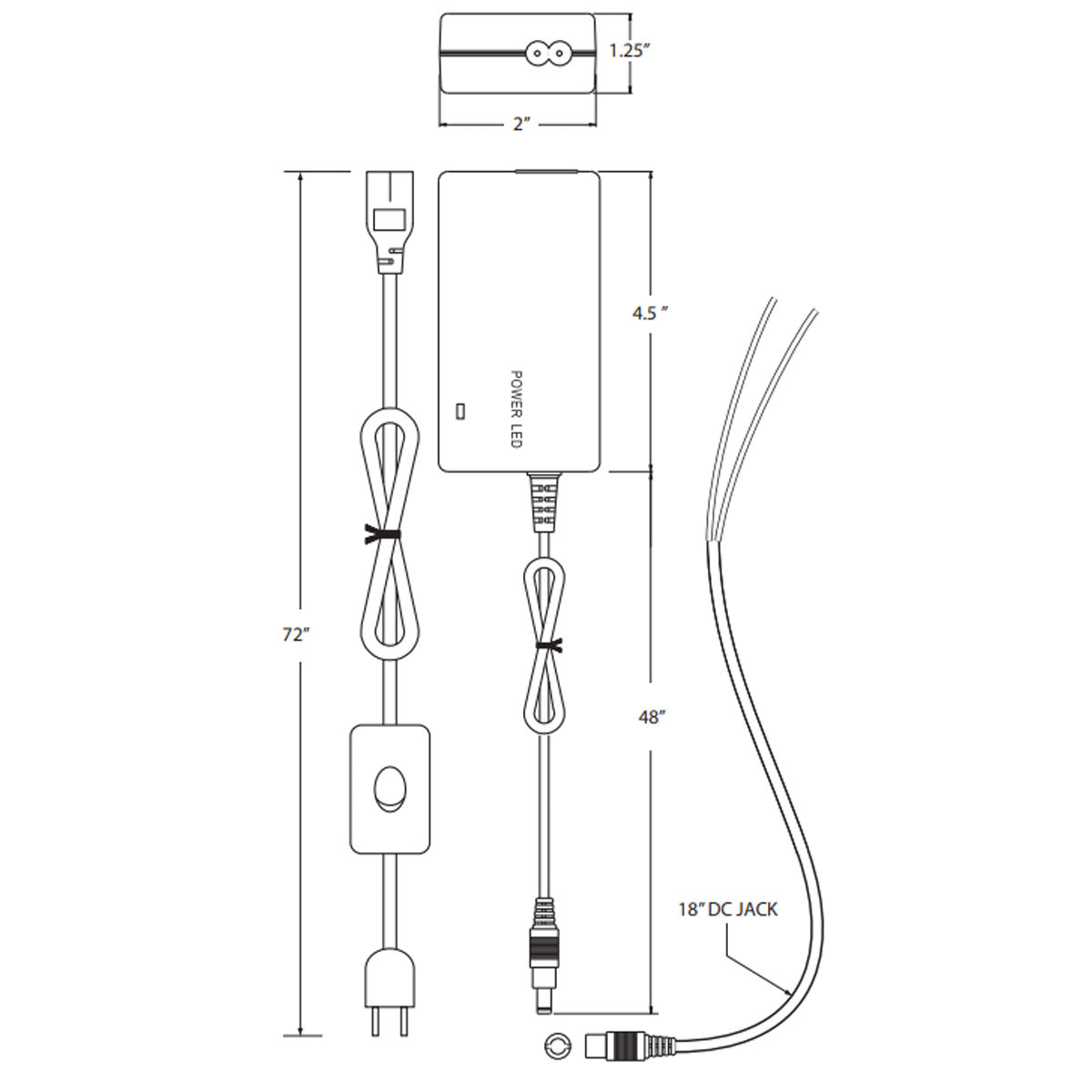

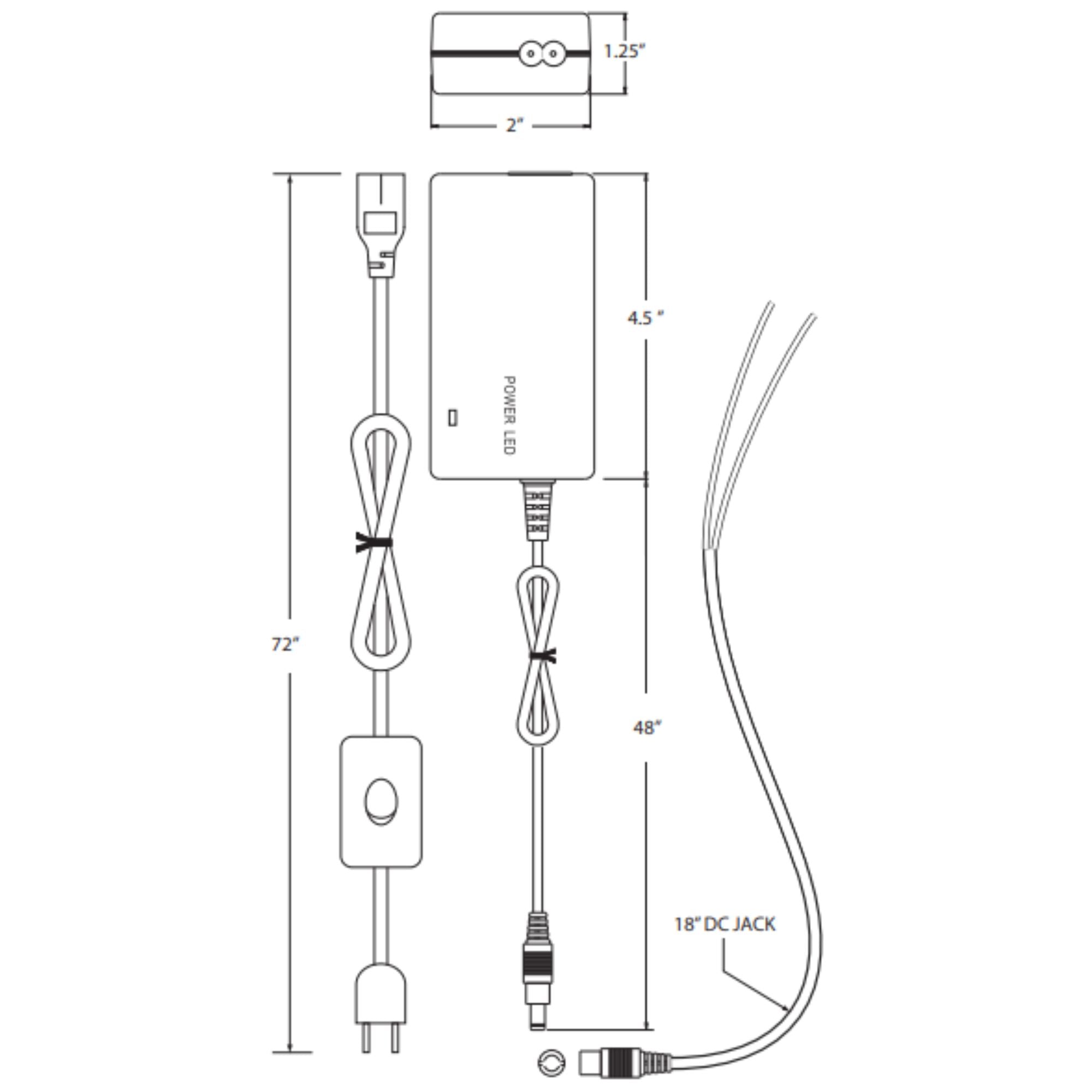

- Dimensions: Compact size of 4.5 in. L x 2.25 in. W x 1.25 in. H for easy installation.
- Enclosure Type: Fully enclosed plastic case for enhanced safety.
- Class 2: Meets Class 2 power supply standards for safe operation.
- Protection Features: Equipped with short circuit, overload, and over-voltage protection.
- Certifications: Dry location rated, ensuring suitability for indoor use.
Physical Design & Installation

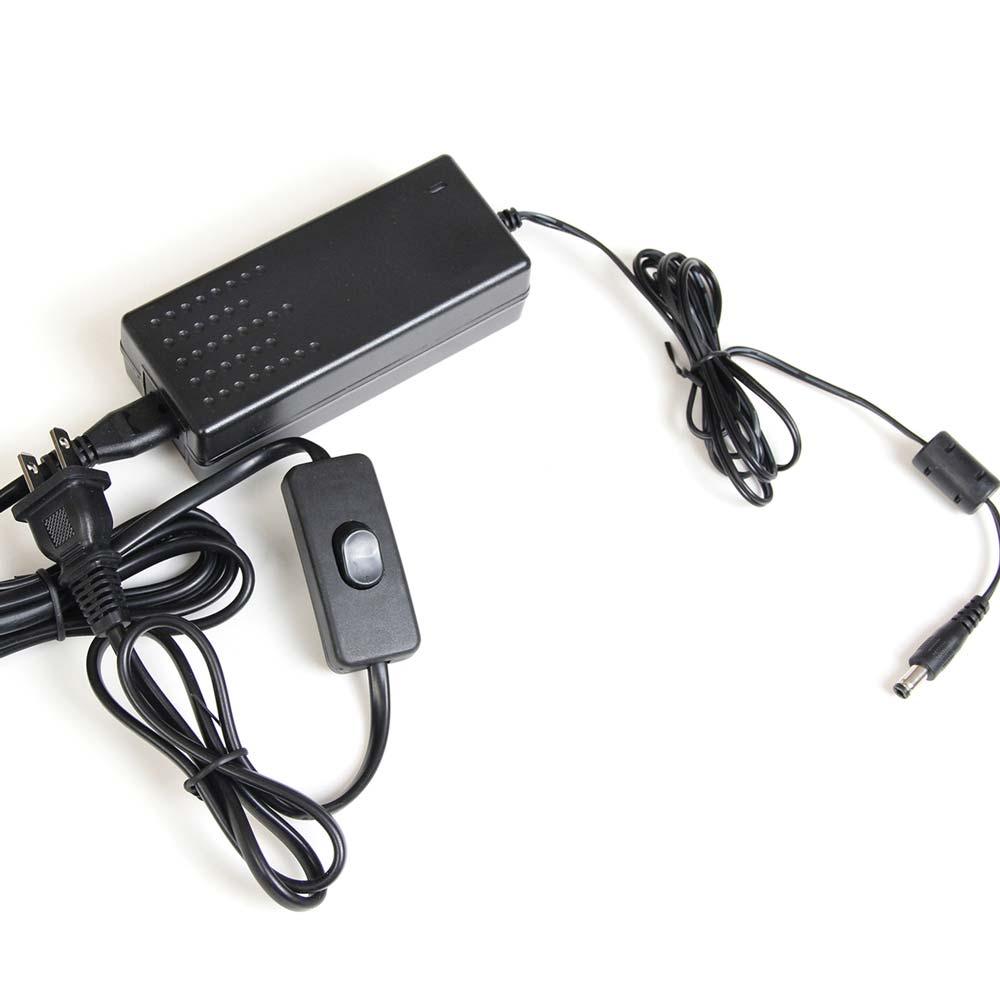

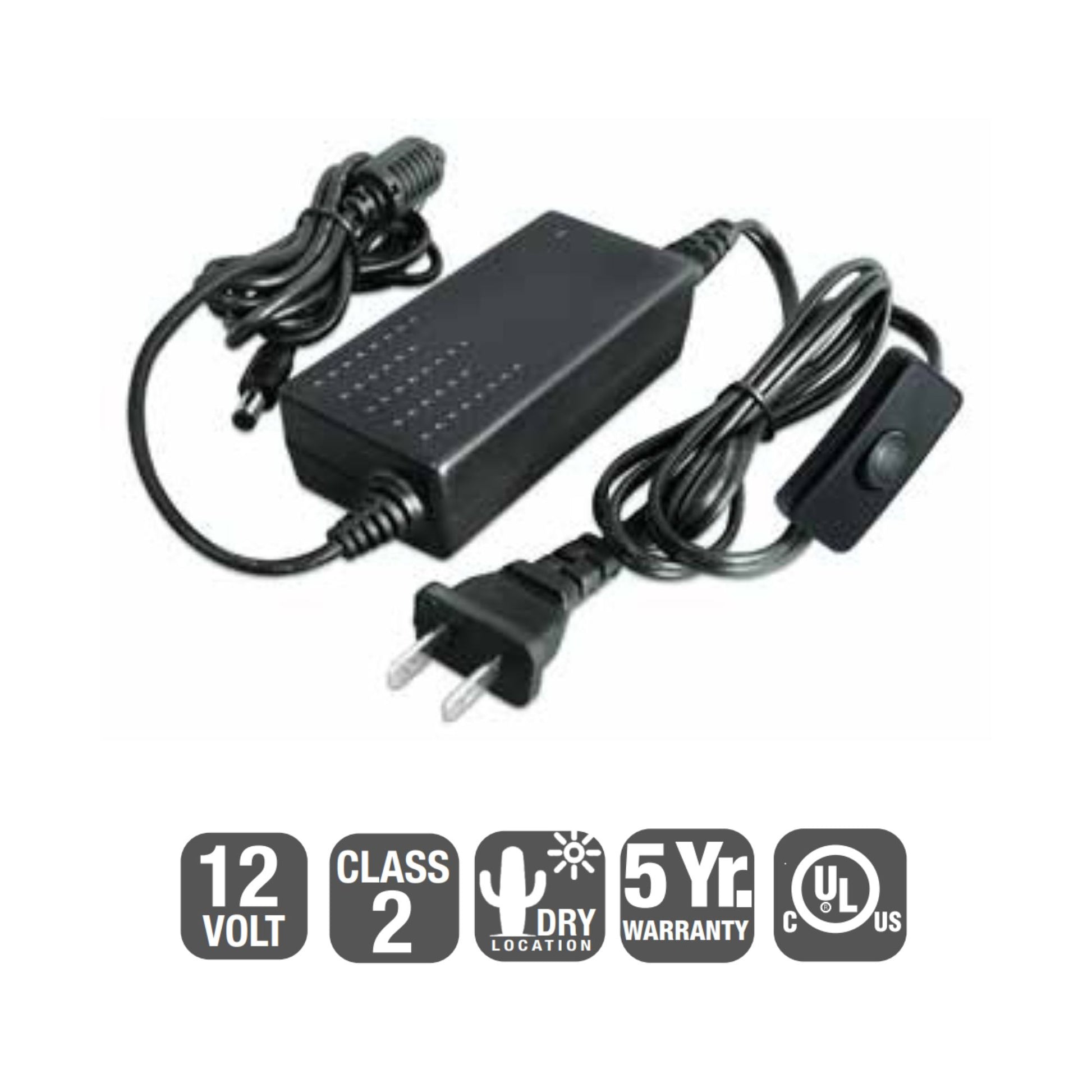

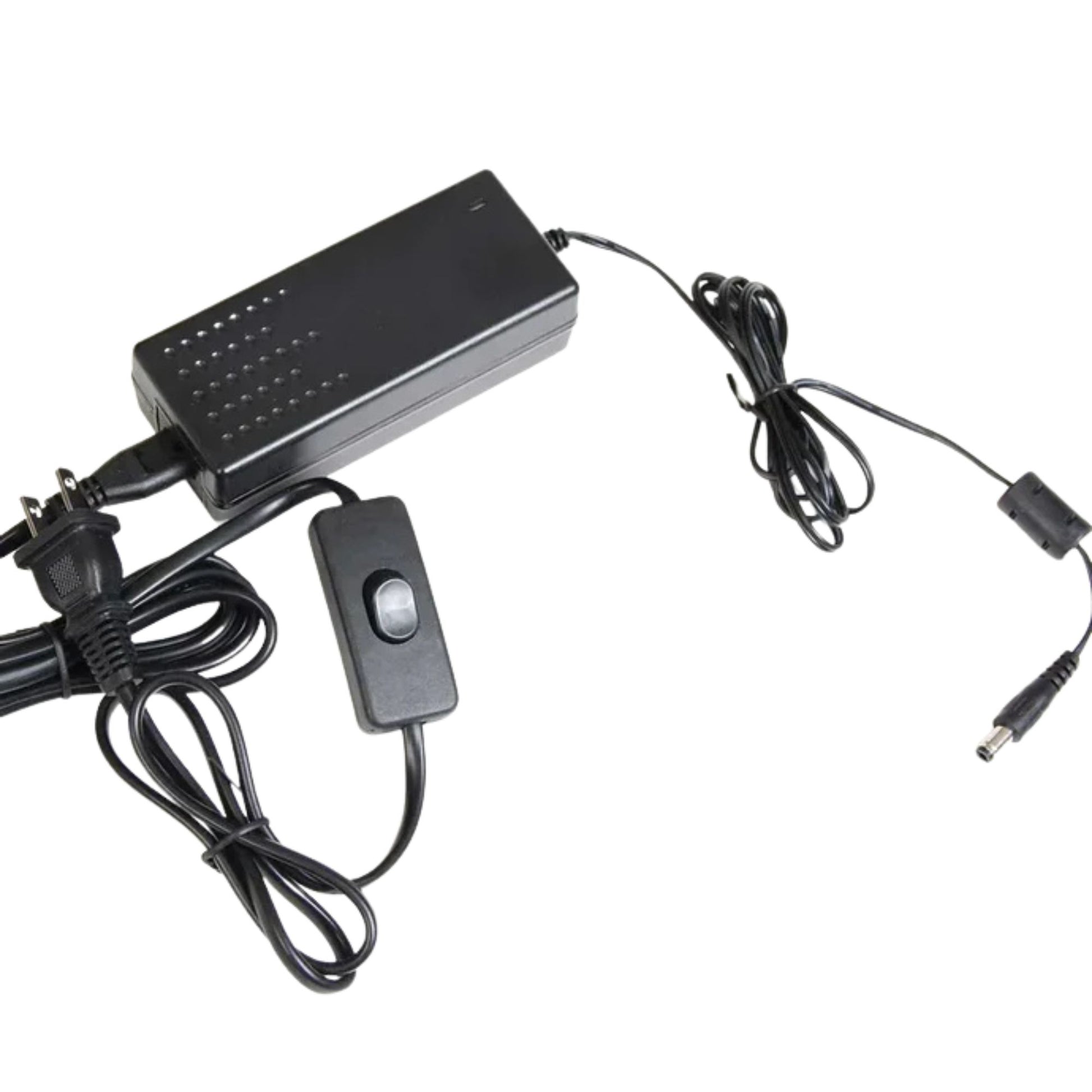

The driver features a durable plastic enclosure with a standard type P1M plug and a 72-inch 2-prong cord, including an inline on/off switch for convenient operation.
Dimming & Controls
This driver is non-dimmable, providing a constant power output without the need for dimming controls. It is designed for applications where dimming is not required.
Performance & Build
Engineered with short circuit, overload, and over-voltage protection, this driver ensures reliable performance and longevity. It complies with Class 2 standards, making it a safe choice for indoor installations.
Typical Applications
- Residential LED lighting systems
- Commercial indoor lighting
- Retail display lighting
- Under-cabinet lighting
Specifications
Specifications
Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
