GM Lighting LineDRIVE 96W LED Driver 24V DC Multi-Protocol Dimming, Integrated Junction Box, 120-277V
In stock
About this item
About this item
- Output Voltage: Provides a stable 24V DC output for consistent lighting performance.
- Dimming: Supports Multi-Protocol Dimming including Triac, ELV, MLV, and 0-10V for flexible control.
- Input Voltage: Operates efficiently with a wide input range of 120-277V AC.
- Enclosure: Features an integrated junction box for streamlined installation and compliance with NEC code.
- Protection: Equipped with over-current, over-voltage, and over-temperature protection for enhanced safety.
We process payments securely and do not store credit card information.
Description
Description

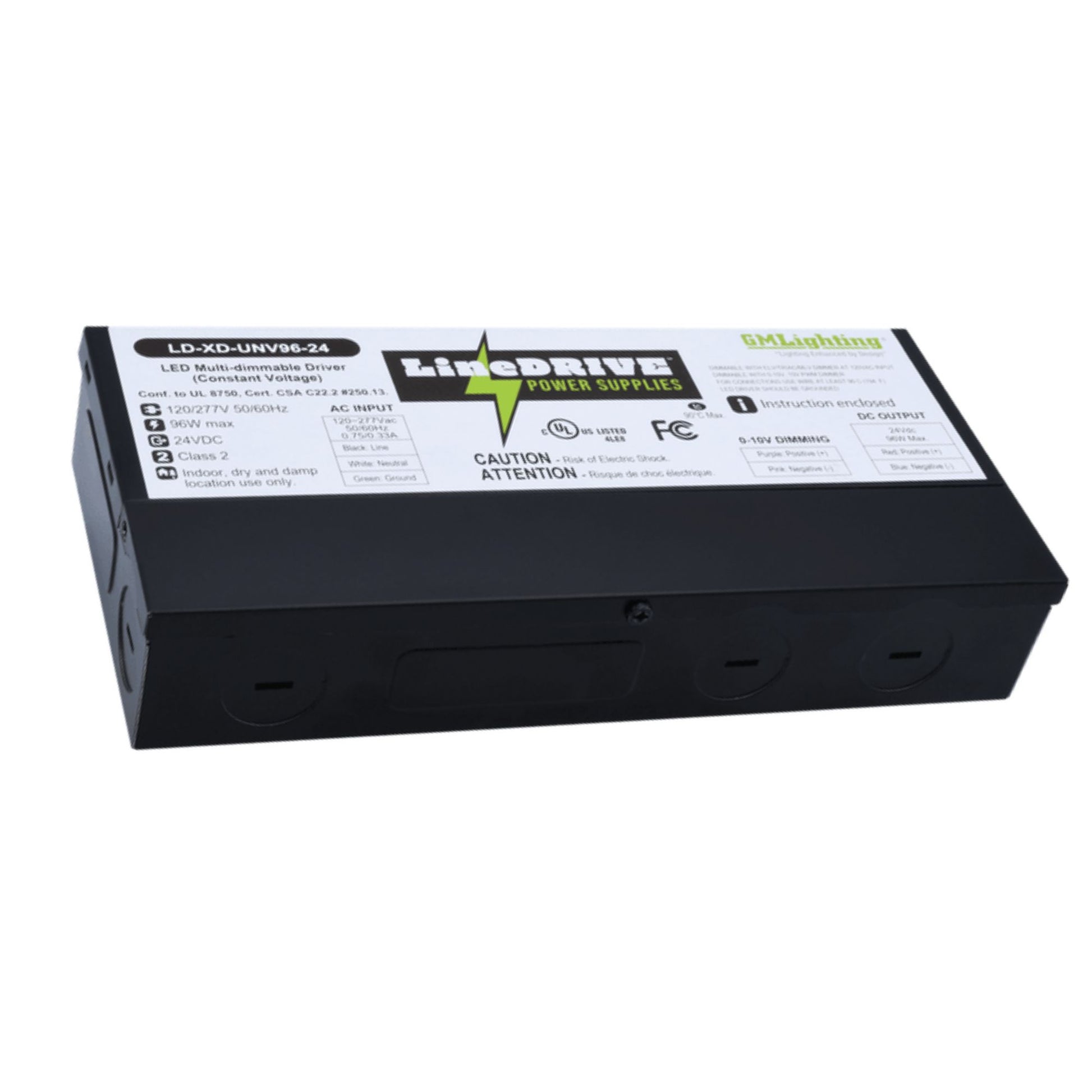

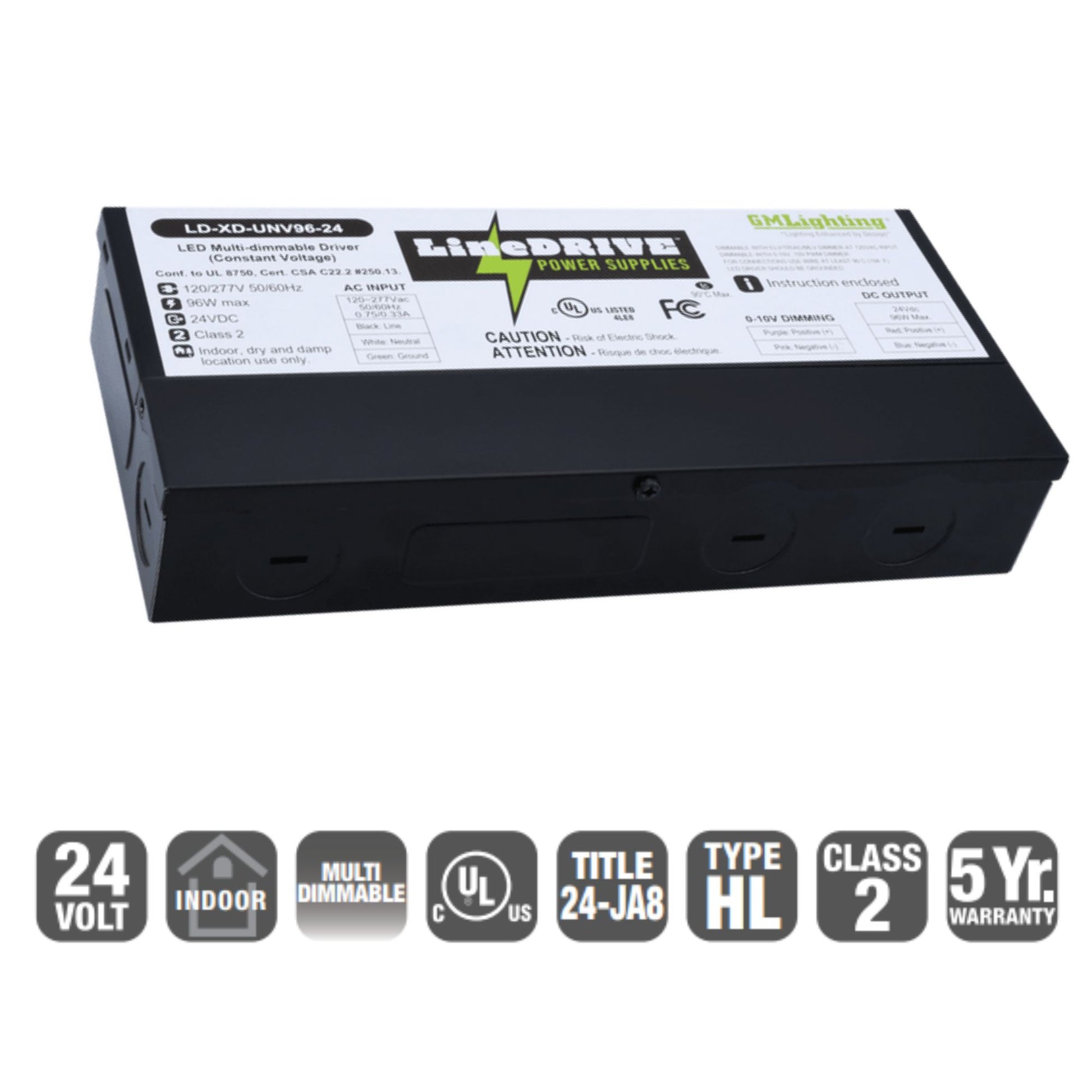

GM Lighting LineDRIVE LD-XD-UNV96-24 96W LED Driver — 24V DC
The GM Lighting LineDRIVE LD-XD-UNV96-24 is a robust 96W LED Driver designed for high-performance lighting applications. This driver delivers a reliable 24V DC output and supports Multi-Protocol Dimming, including Triac, ELV, MLV, and 0-10V, making it ideal for a wide range of lighting setups. With an input voltage range of 120-277V, it ensures compatibility with various electrical systems. The driver is Class 2 rated and features an Integrated Junction Box for easy installation.
Key Features
- Power Output: Delivers a maximum power of 96W for demanding lighting applications.
- Output Voltage: Provides a stable 24V DC output for consistent lighting performance.
- Dimming Capability: Supports Multi-Protocol Dimming including Triac, ELV, MLV, and 0-10V for flexible control.
- Minimum Load: Recommended minimum load for optimal dimming performance is 10% for most dimming protocols.

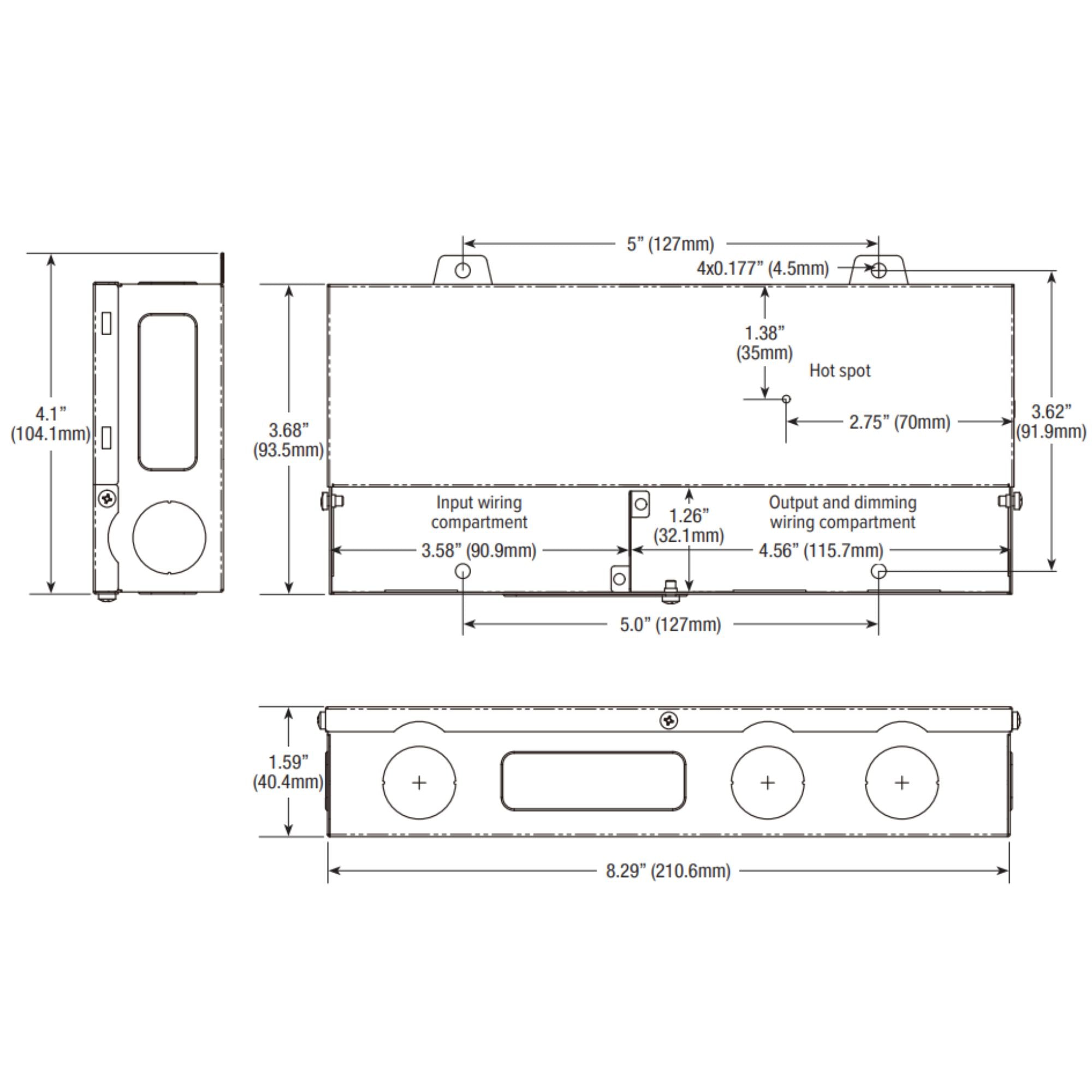

- Dimensions: Compact design measuring 8.29 in. L x 4.10 in. W x 1.59 in. H.
- Enclosure Type: Durable steel enclosure with an integrated junction box for streamlined installation.
- IP Rating: Rated for indoor dry and damp locations with an IP20 rating.
- Class 2 Compliance: Ensures low voltage output for safe operation.
- Certifications: UL listed for US and Canada, Title 24 (JA8) certified for energy efficiency.
Physical Design & Installation

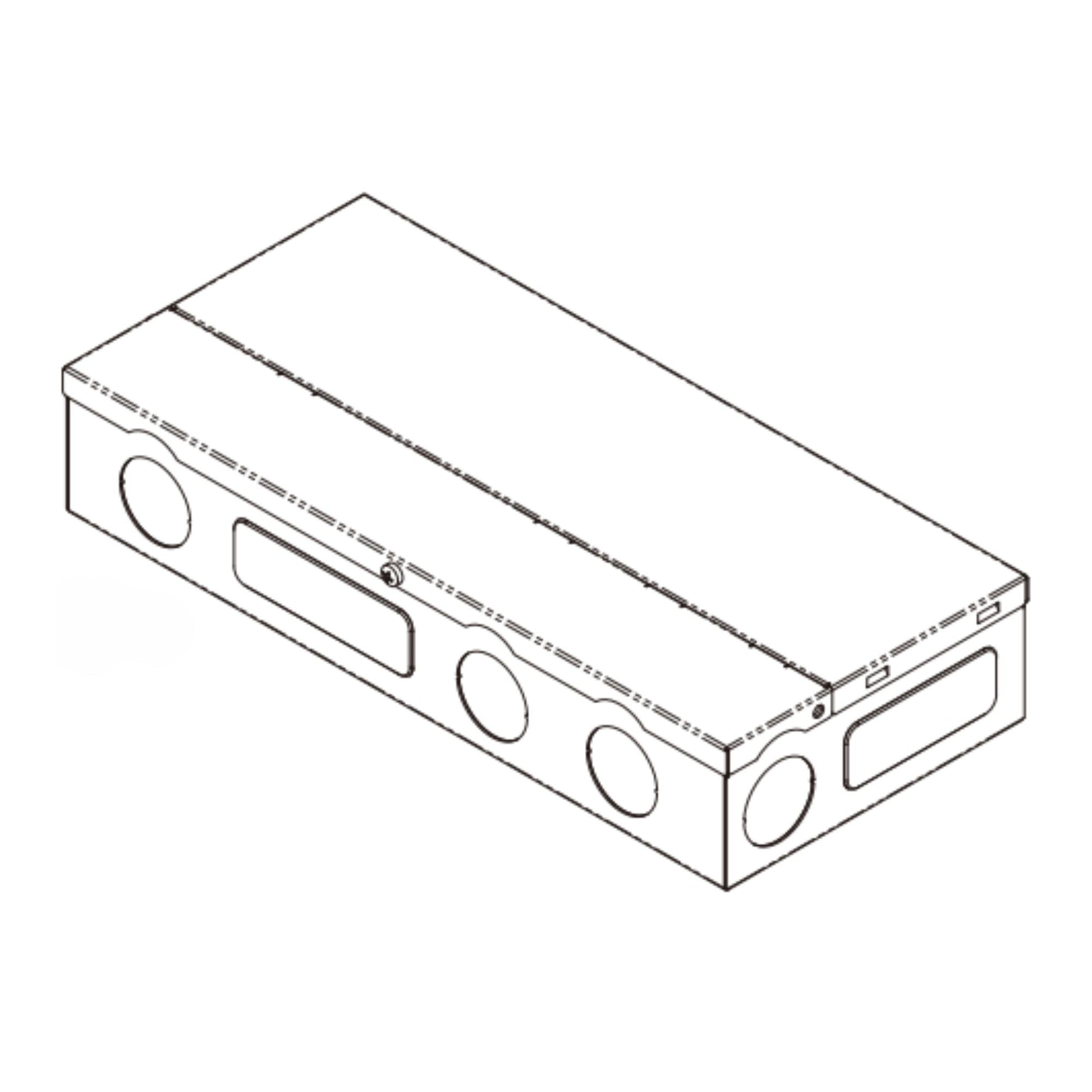

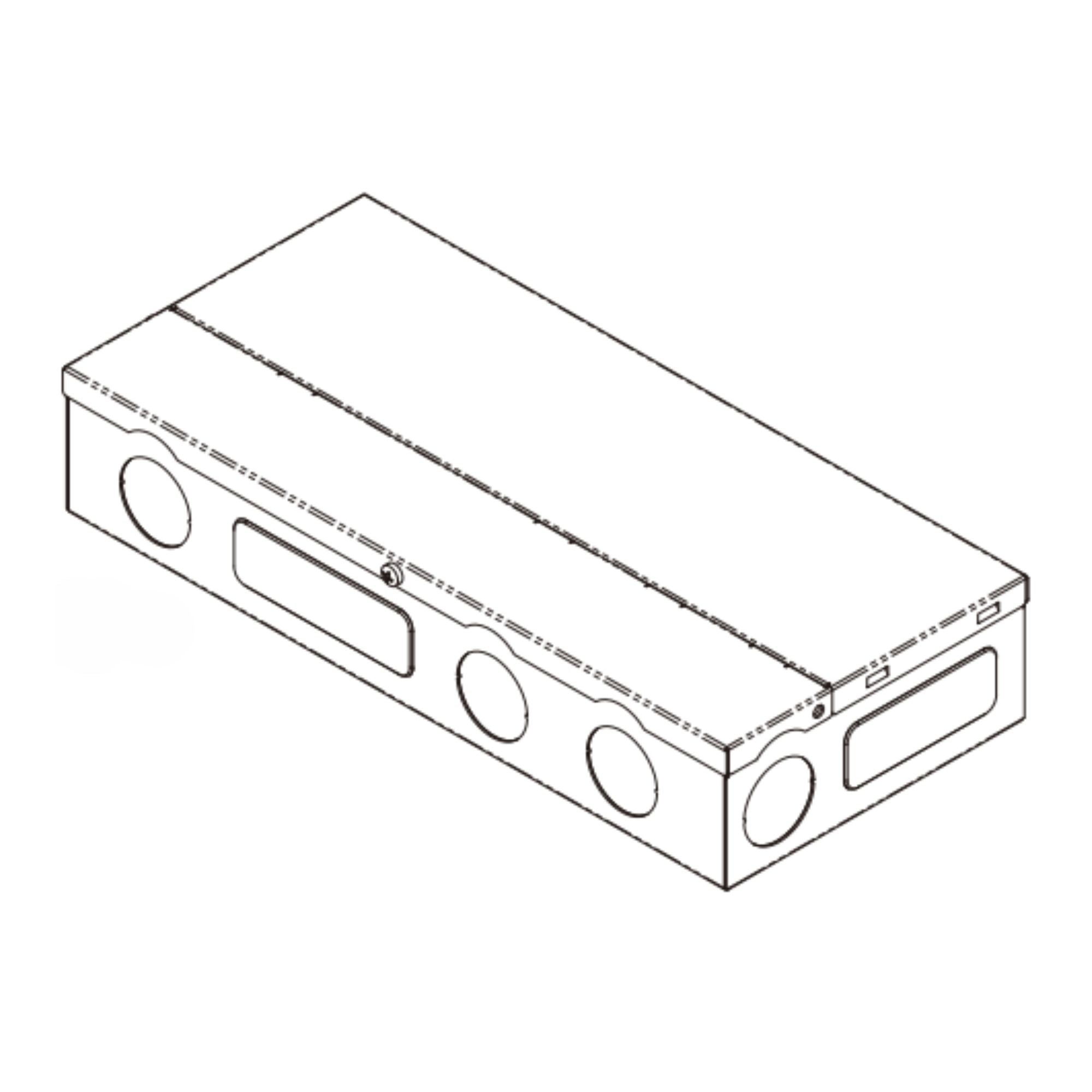

The driver features a black powder-coated steel enclosure with an integrated junction box, providing separate compartments for line and low voltage wiring, ensuring compliance with NEC code.
Dimming & Controls

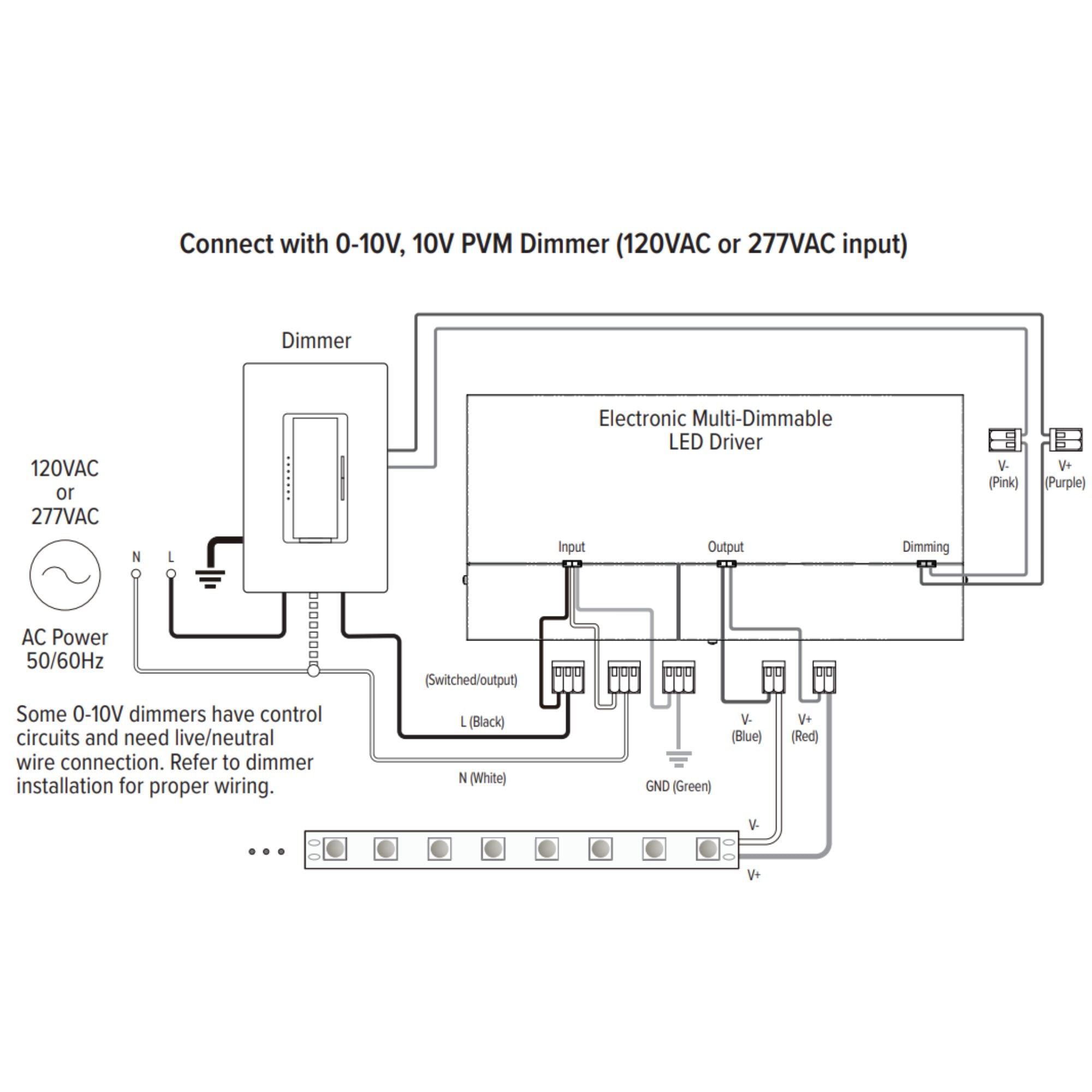

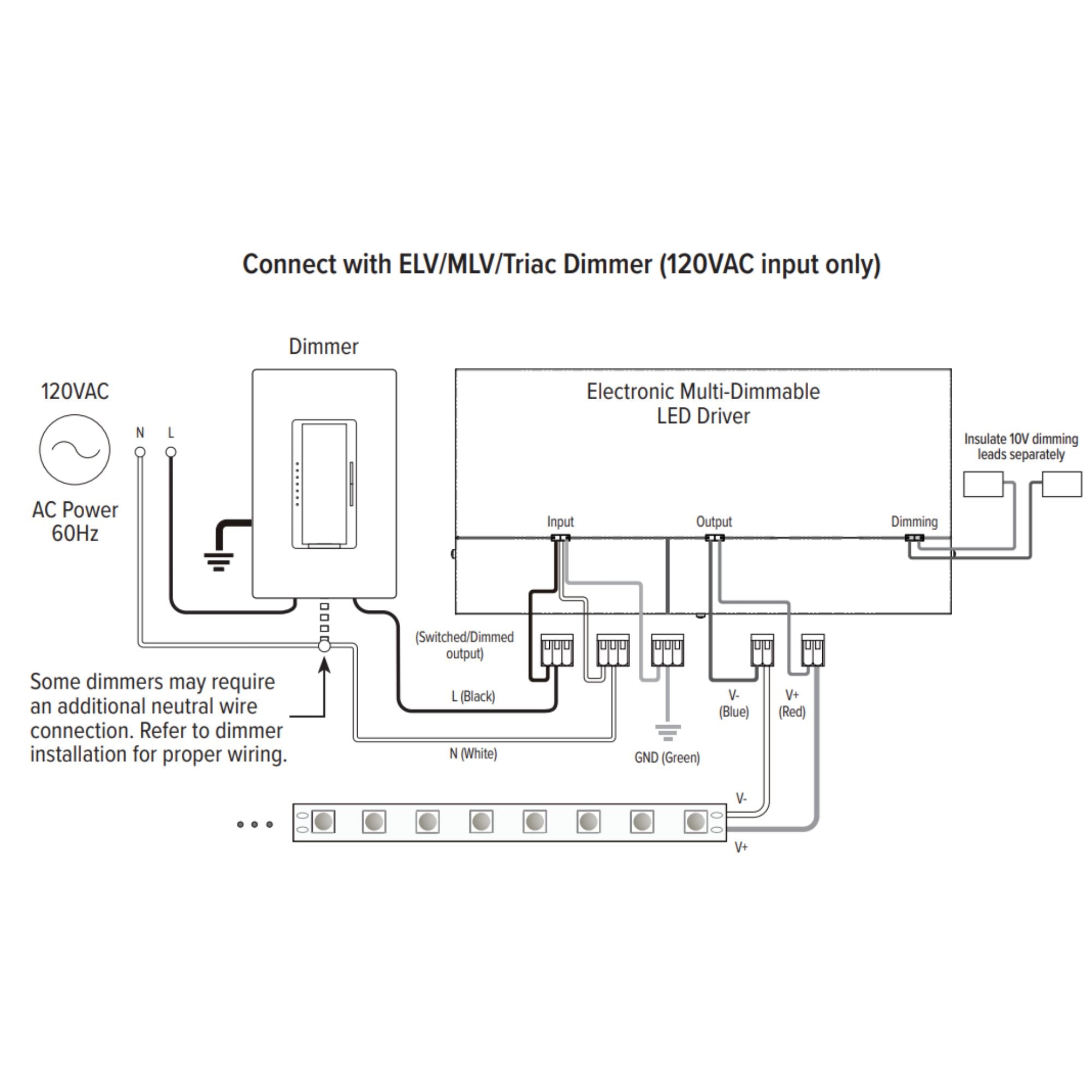

Compatible with a wide range of dimming systems, including Triac, ELV, MLV, and 0-10V. The driver supports dimming down to 1% and requires a minimum load of 10% for optimal performance.
Performance & Build
Equipped with over-current, over-voltage, and over-temperature protection, the driver ensures reliable operation. It is UL Class 2 compliant and rated for indoor dry and damp locations with an IP20 rating.
Typical Applications
- Commercial lighting installations
- Residential lighting systems
- Architectural lighting projects
- Retail lighting environments
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
