GM Lighting LineDRIVE 60W LED Driver 12V Universal Dimming, Integrated Junction Box, 120-277V
In stock
About this item
About this item
- Output Voltage: Delivers a stable 12V DC output for consistent lighting performance.

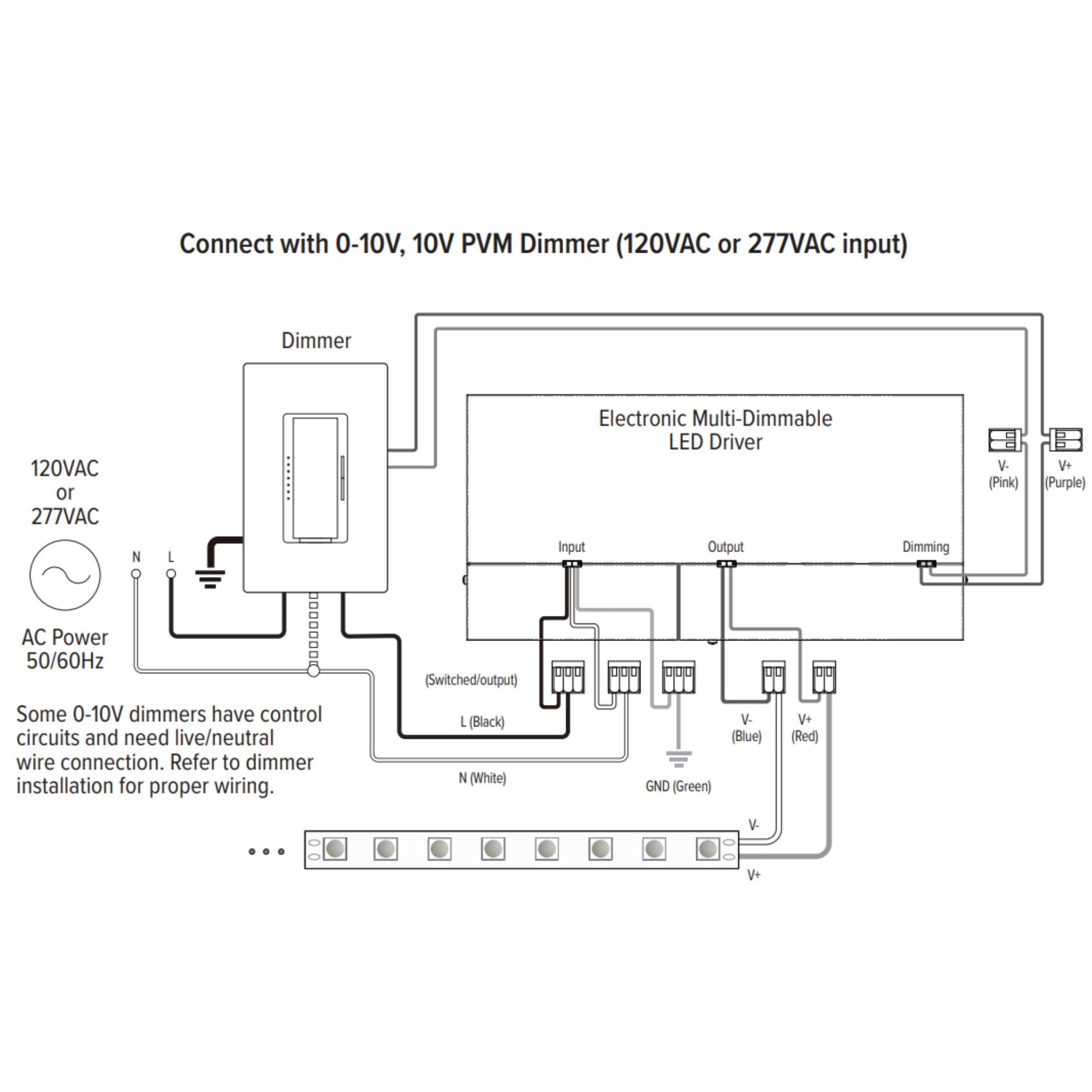

- Dimming Capability: Supports universal dimming with Triac, ELV, MLV, and 0-10V protocols for flexible lighting control.
- Input Voltage: Operates efficiently across a wide range of 120-277V AC input voltages.
- Enclosure: Features an integrated junction box for streamlined installation and compliance with NEC code.
- Protection: Equipped with over-current, over-voltage, and over-temperature protection for enhanced safety and reliability.
We process payments securely and do not store credit card information.
Description
Description

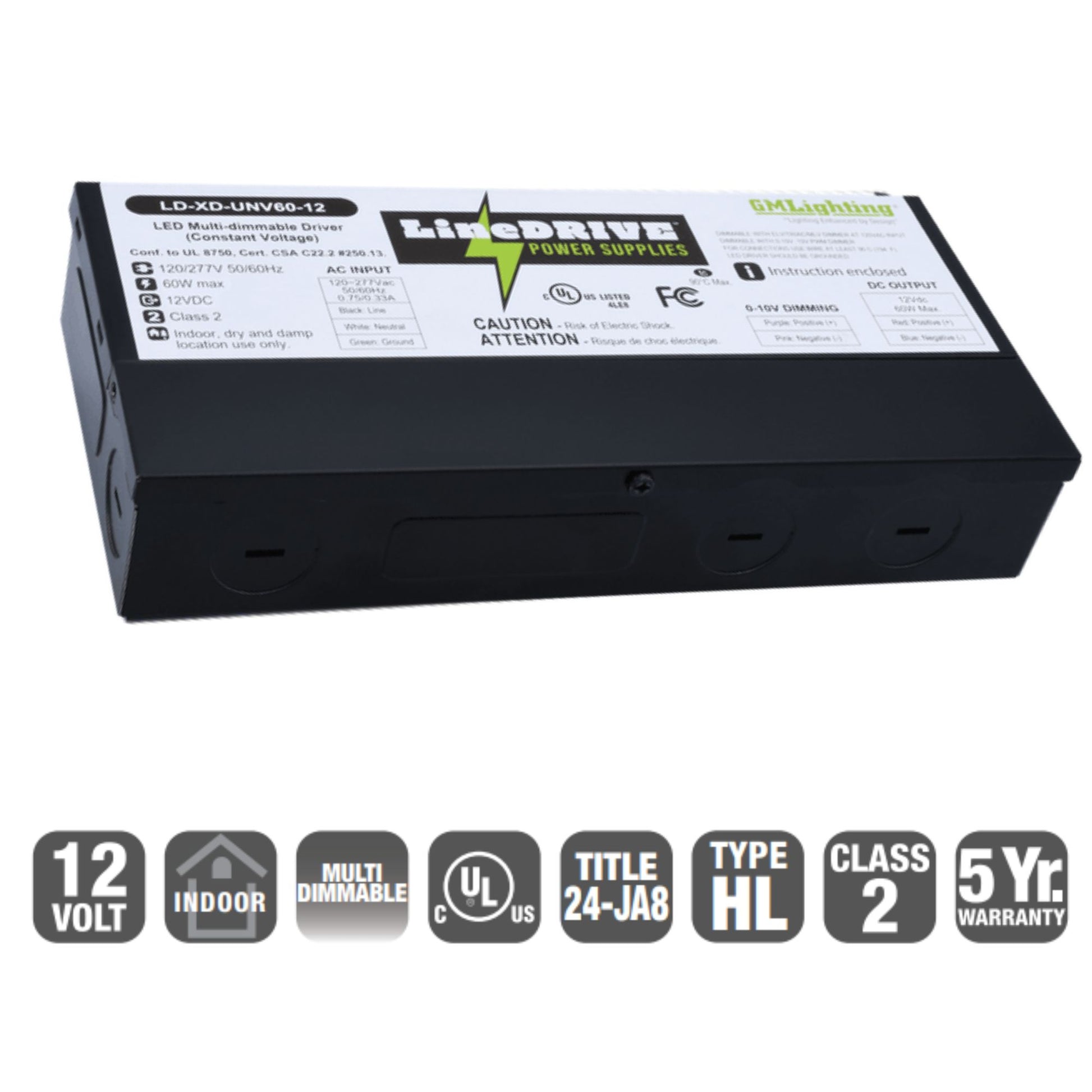

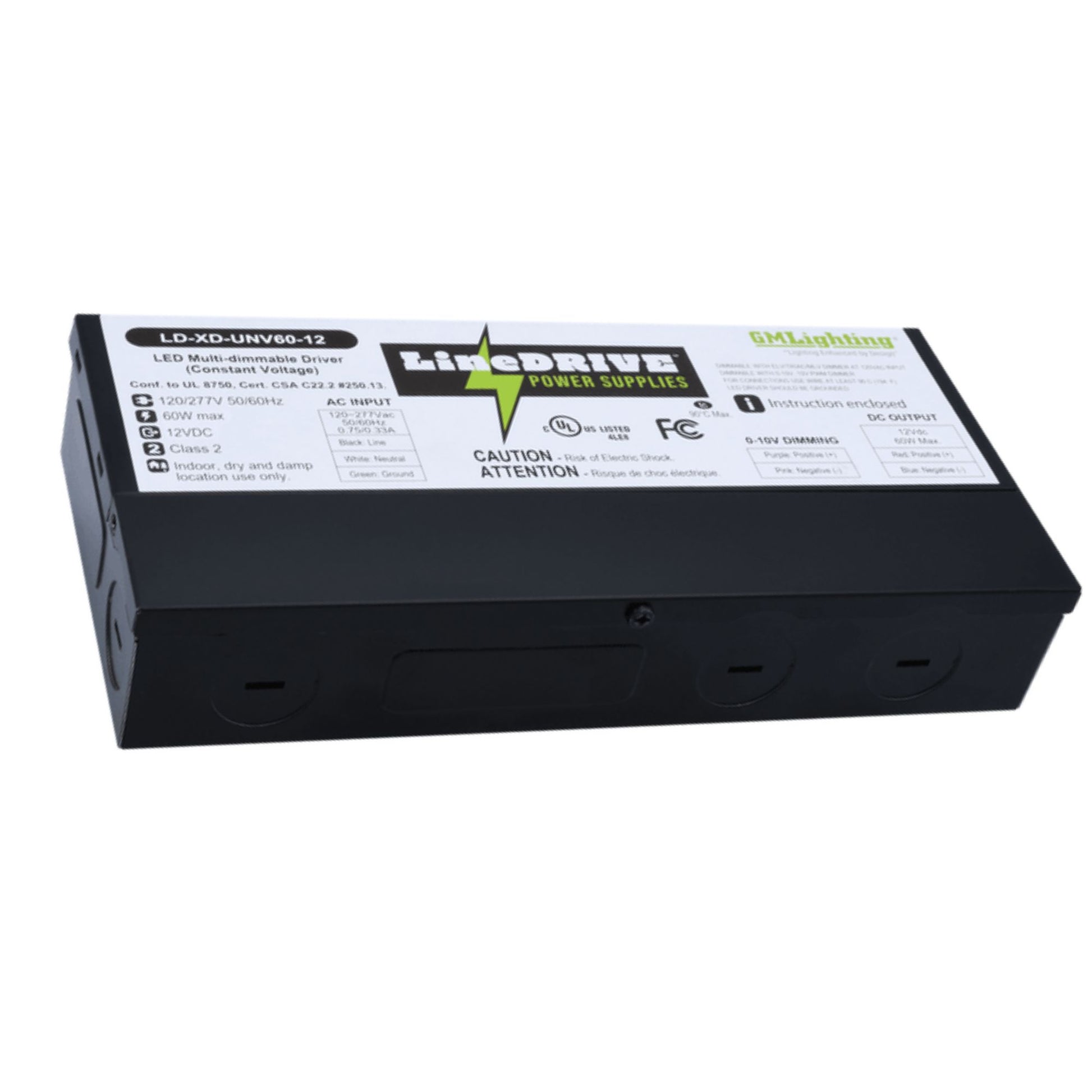

GM Lighting LineDRIVE LD-XD-UNV60-12 60W LED Driver — 12V DC
The GM Lighting LineDRIVE LD-XD-UNV60-12 is a robust 60W LED Driver designed for reliable performance in various lighting applications. With an output of 12V DC, this Constant Voltage driver is perfect for powering LED fixtures. It operates on a wide input voltage range of 120-277V and supports universal dimming protocols, including Triac, ELV, MLV, and 0-10V, ensuring compatibility with most dimming systems. The integrated junction box simplifies installation and meets NEC code requirements.
Key Features
- Power Output: Provides a maximum power output of 60W for efficient LED lighting.
- Output Voltage: Consistent 12V DC output for stable lighting performance.
- Dimming Protocols: Compatible with Triac, ELV, MLV, and 0-10V dimming systems for versatile control.
- Minimum Load: Recommended minimum load for optimal dimming performance is 10% for most dimming protocols.

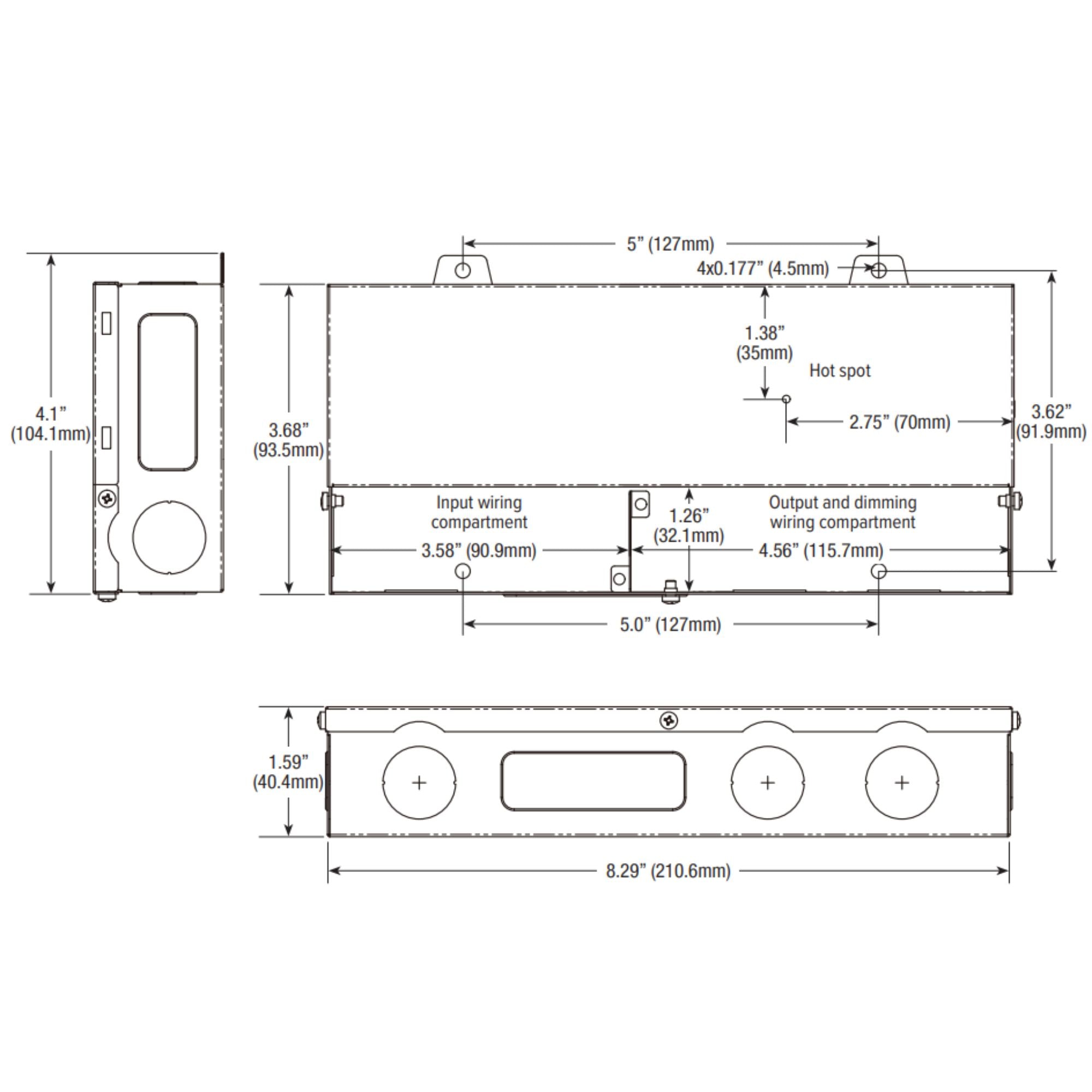

- Dimensions: Compact design with dimensions of 8.29 in. L x 4.10 in. W x 1.59 in. H.
- Enclosure Type: Durable steel enclosure with integrated junction box for easy wiring.
- IP Rating: Rated for indoor dry and damp locations with IP20 protection.
- Class 2: UL Class 2 compliant for low voltage output safety.
- Certifications: UL listed, FCC compliant, and Title 24 (JA8) certified for energy efficiency.
Physical Design & Installation

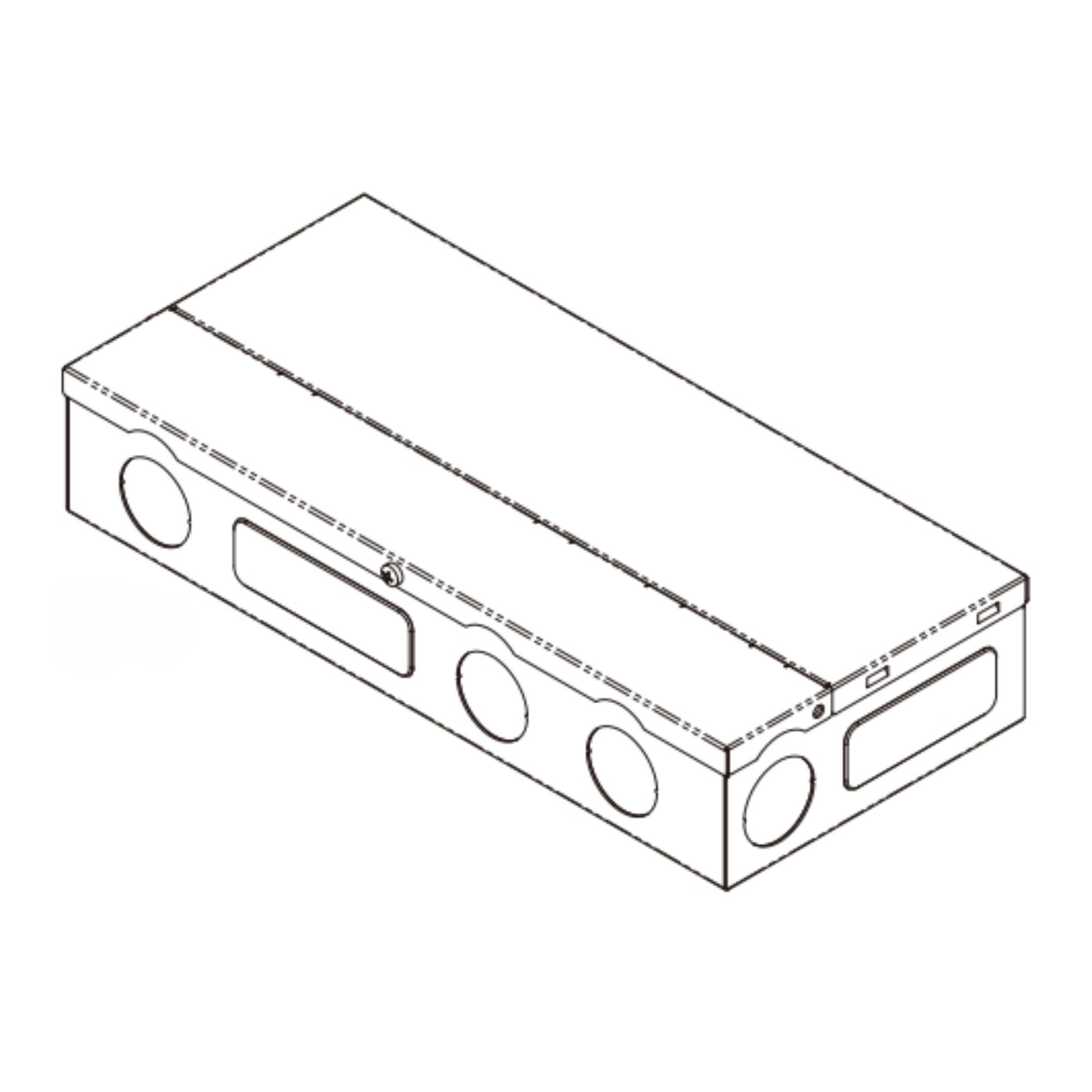

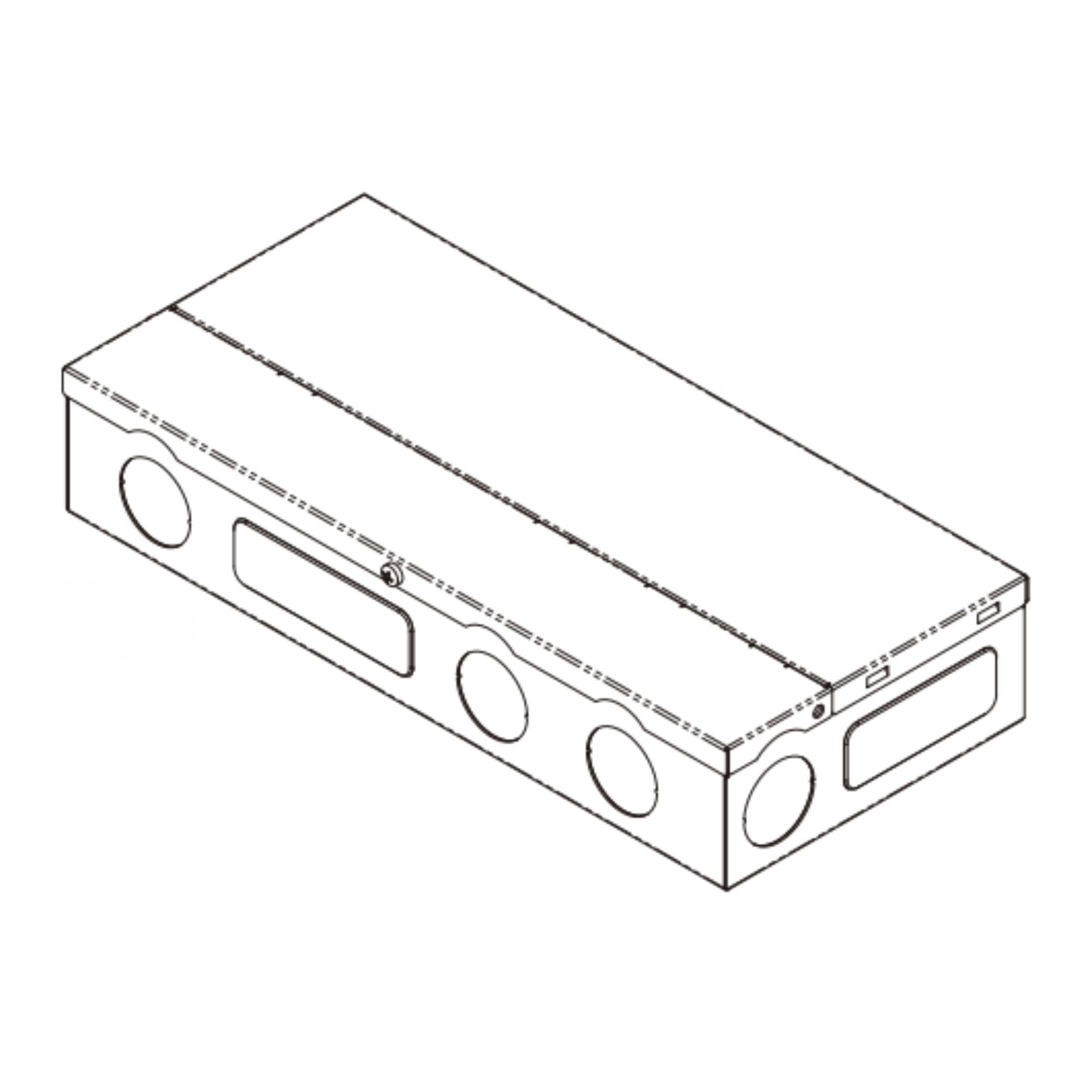

The driver features a black powder-coated steel enclosure with an integrated junction box, providing separate compartments for line and low voltage wiring.
Dimming & Controls

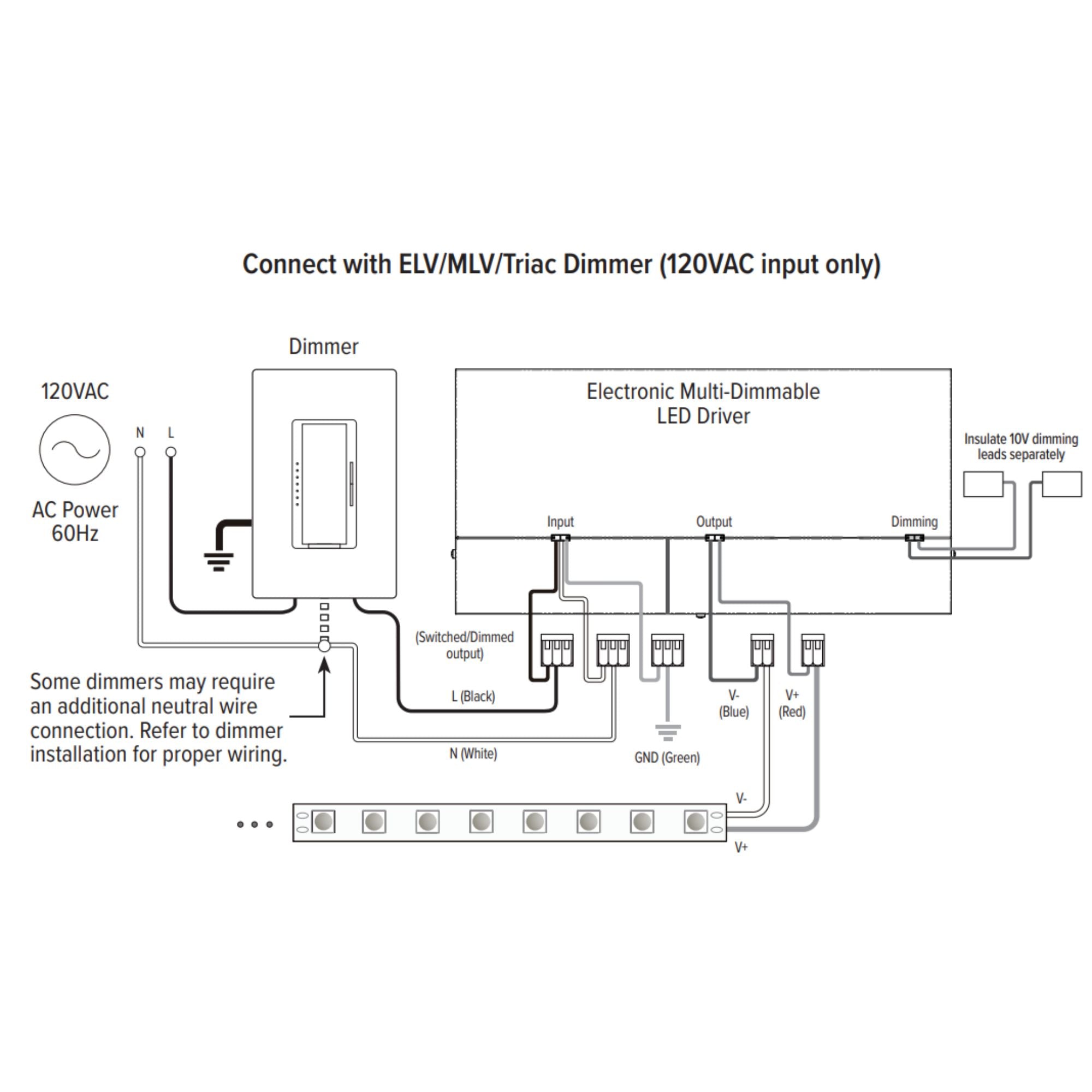

Supports universal dimming with Triac, ELV, MLV, and 0-10V protocols. Recommended minimum load for best performance is 10% for most dimming methods.
Performance & Build
Includes over-current, over-voltage, and over-temperature protection. UL Class 2 compliant with IP20 rating for indoor use.
Typical Applications
- Commercial lighting installations
- Residential LED lighting systems
- Retail and hospitality lighting
- Architectural lighting projects
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
