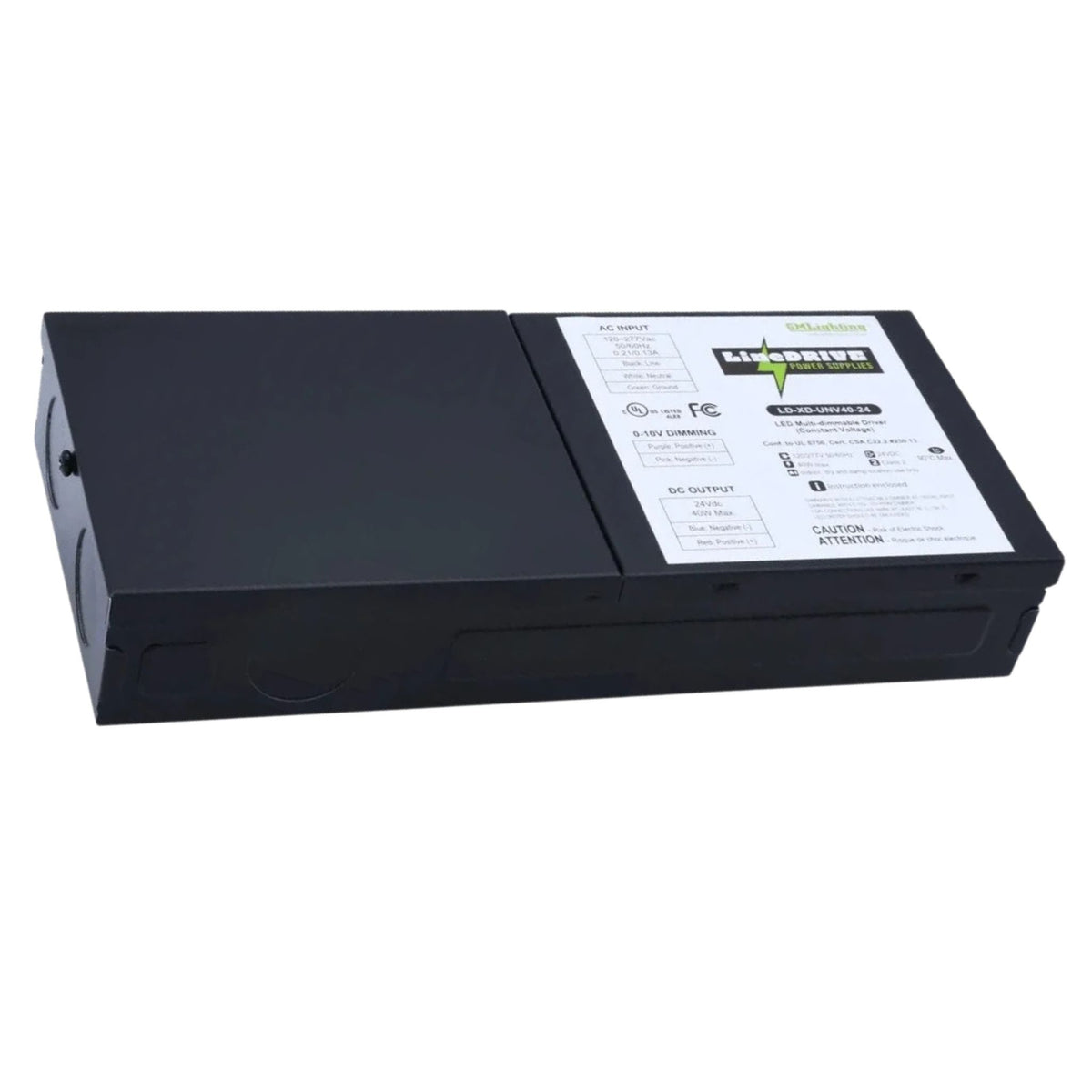

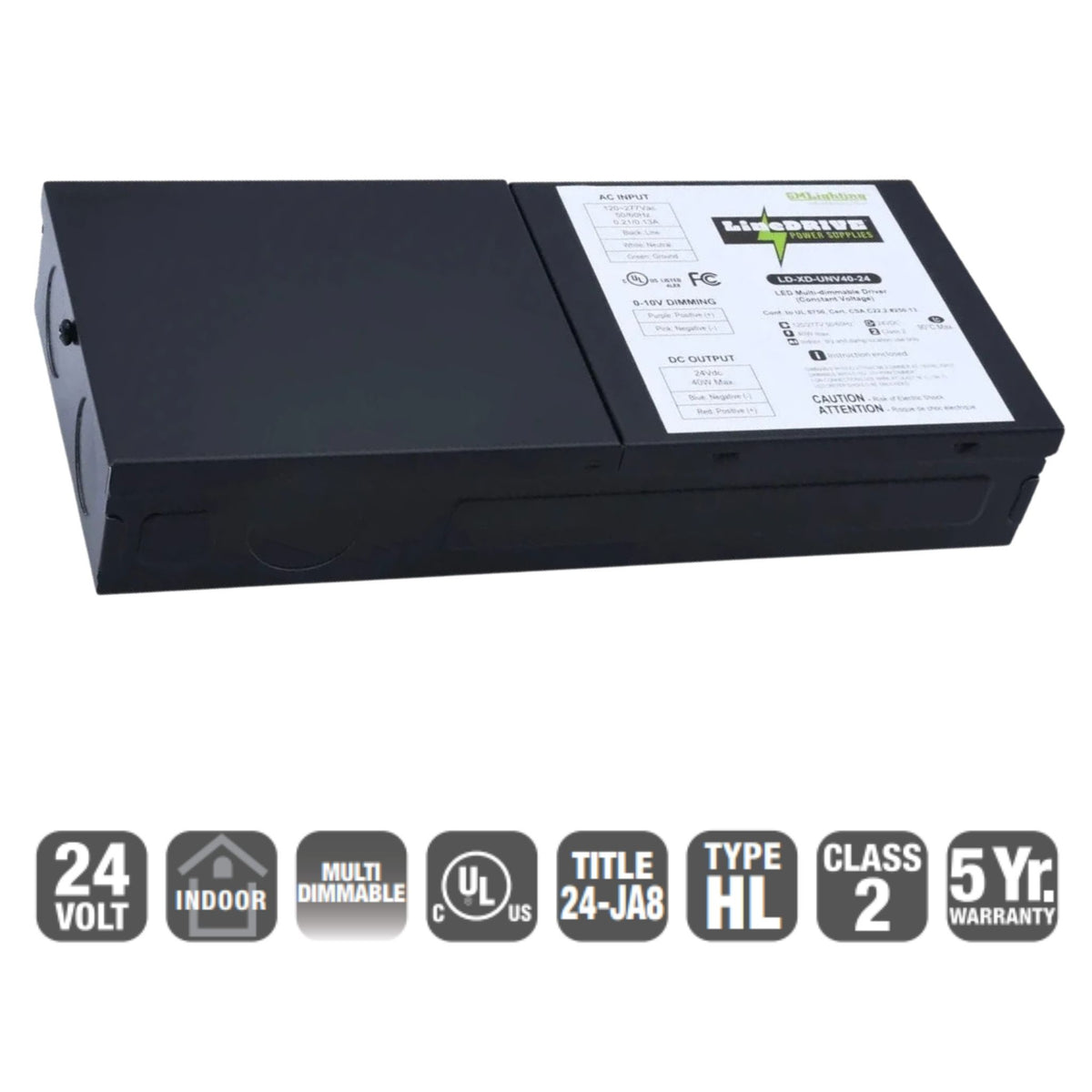

GM Lighting LineDRIVE 40W LED Driver — 24VDC

The GM Lighting LD-XD-UNV40-24 LED Driver provides a reliable 40W 24VDC Constant Voltage output for professional lighting systems. This Class 2 power supply features an Integrated Junction Box and supports universal input voltages from 120V to 277V, making it ideal for both residential and commercial applications.

Key Features

• Max Output Power: 40W
• Output Voltage: 24VDC
• Input Voltage: 120/277VAC +/- 10%
• Dimming Protocol: Multi-Dim (TRIAC, ELV, MLV, 0-10V, PWM)
• Minimum Load: 10% (40% for MLV dimming)

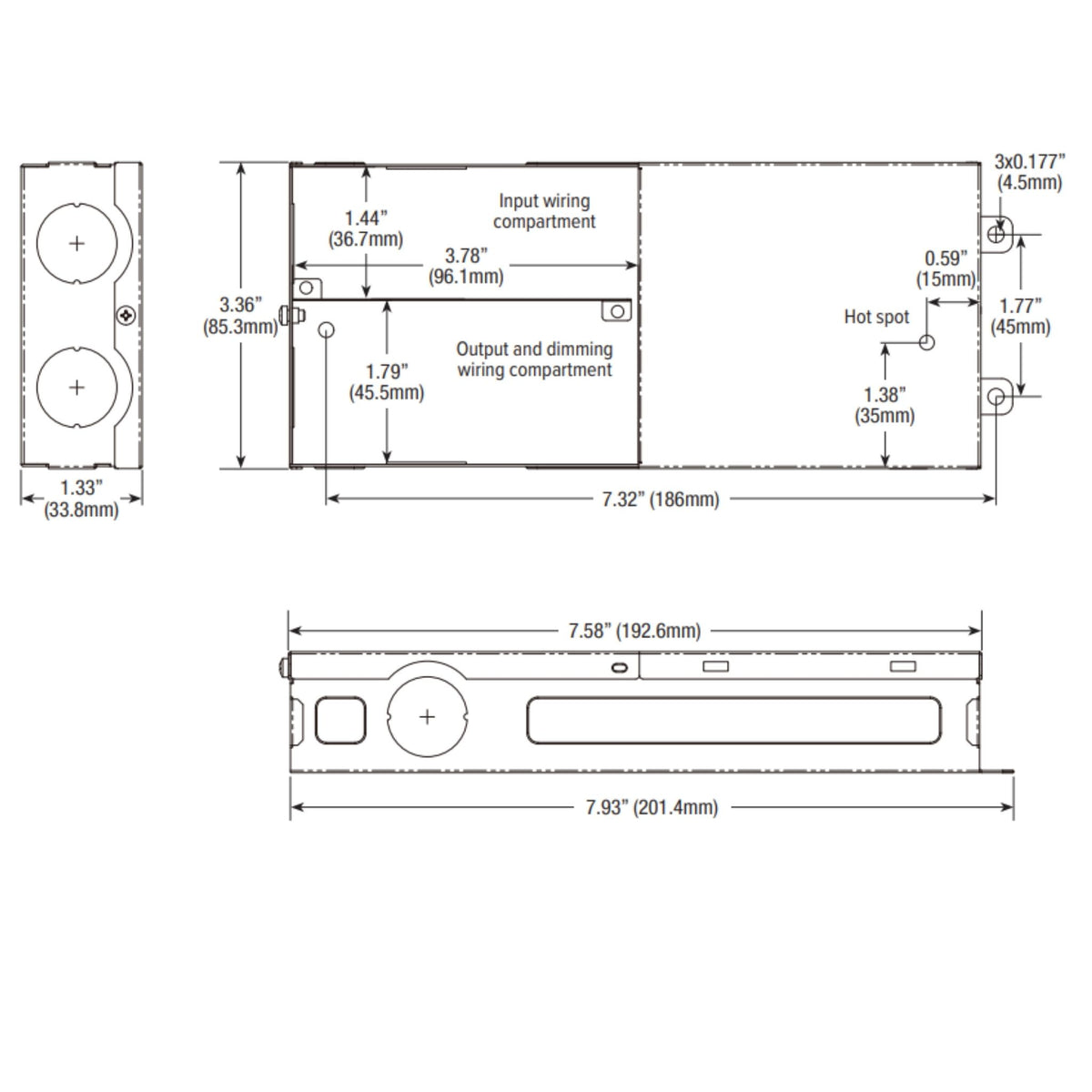

• Dimensions: 7.93 in. L x 3.36 in. W x 1.33 in. H
• Enclosure Type: Integrated Junction Box
• IP Rating: IP20 (Dry and Damp Locations)
• Class Rating: Class 2
• Certifications: UL Listed, Title 24 JA8 Certified

Physical Design & Installation

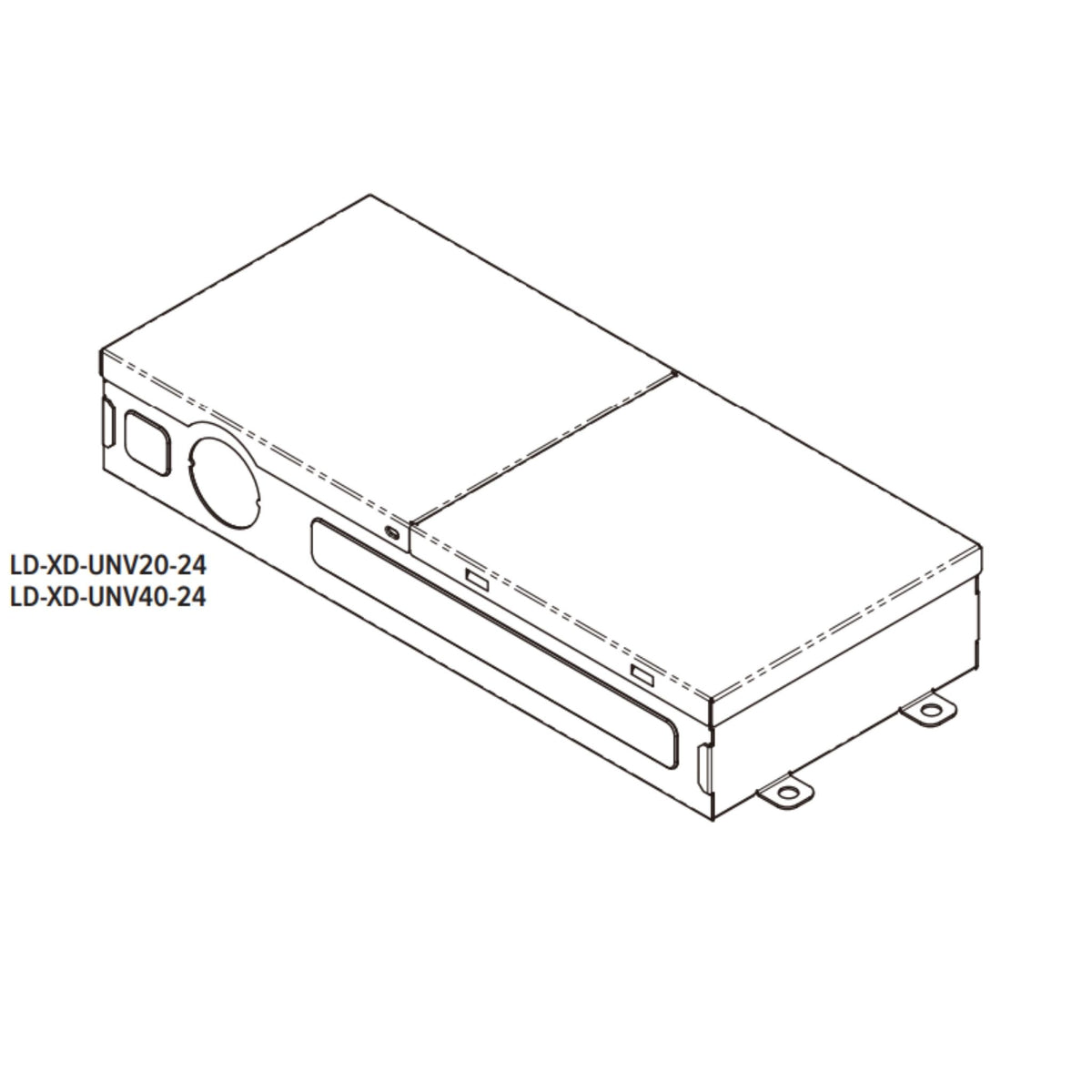

Constructed with a black powder-coated steel case, this driver includes an integrated junction box with separate compartments for line voltage and low voltage wiring. The design meets NEC code requirements and supports up to three 12 AWG conductors, ensuring a clean and compliant installation without the need for external enclosures.

Dimming & Controls

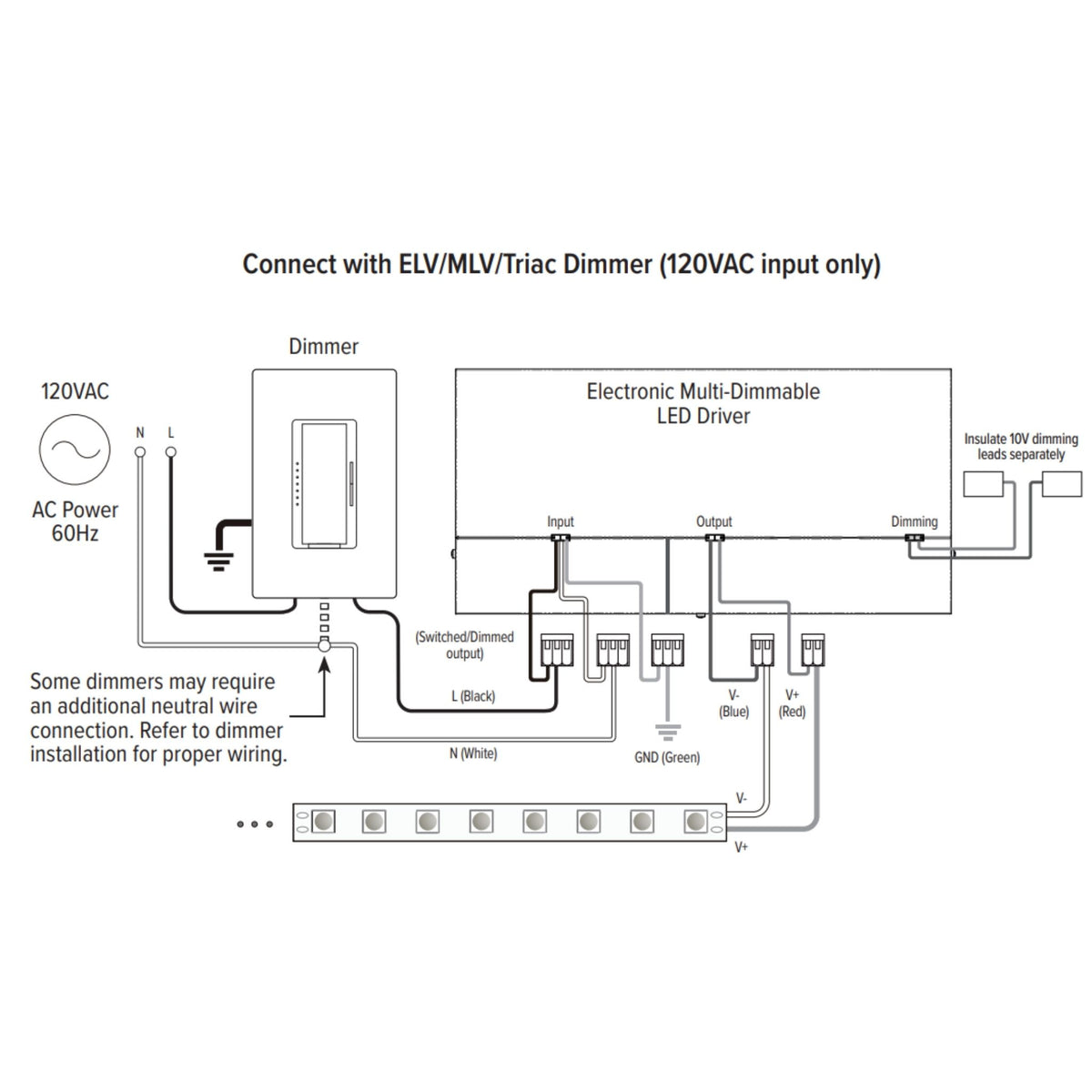

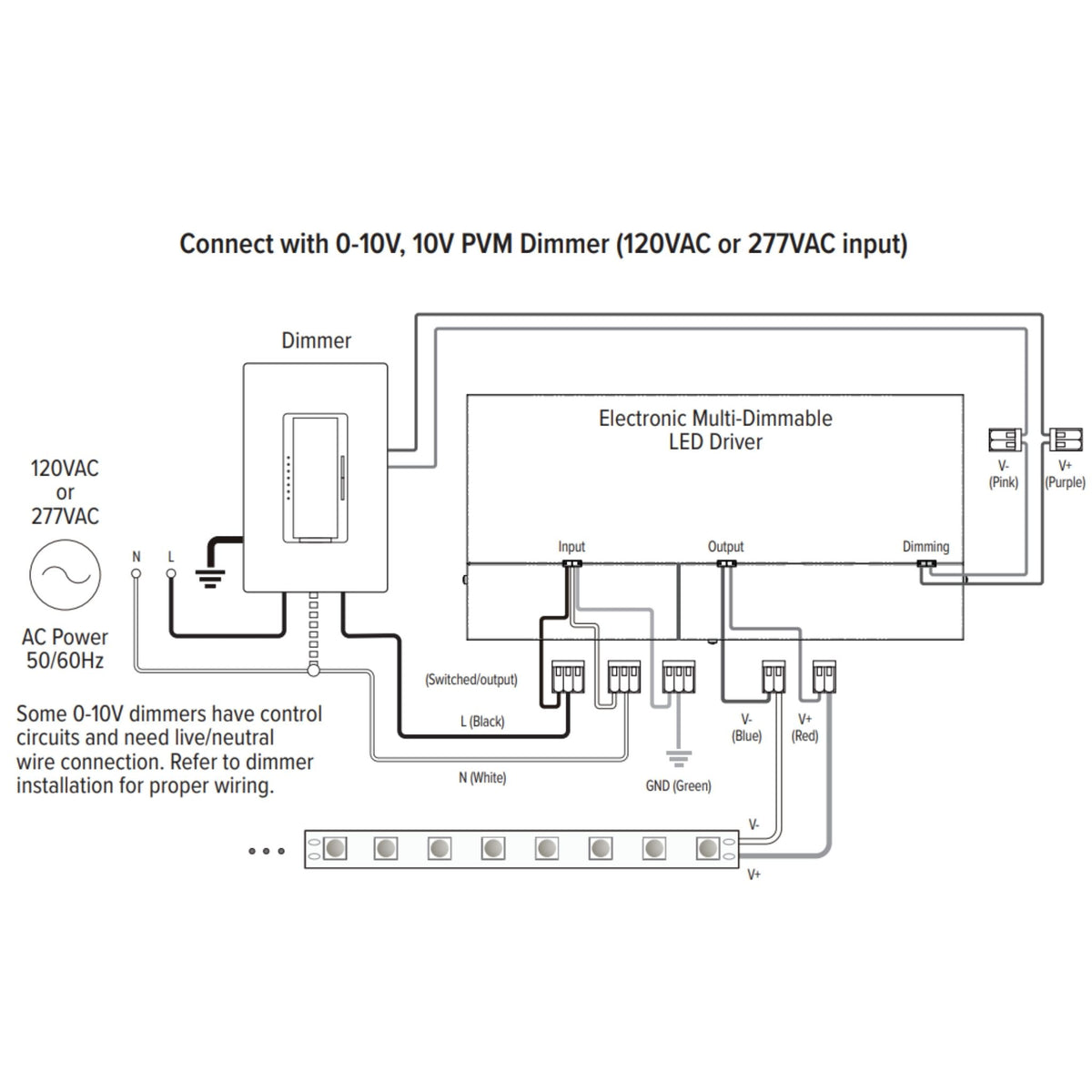

The LineDRIVE series offers flicker-free dimming down to 1%. It supports phase dimming (TRIAC, ELV, MLV) at 120VAC and low voltage dimming (0-10V, 10V PWM) at either 120VAC or 277VAC. For optimal performance, a minimum load of 10% is recommended for most protocols, while MLV requires a 40% minimum load.

Performance & Build

Engineered for longevity with an 85,000-hour life rating, this driver includes comprehensive protection circuitry. It features hiccup-mode protection for over-voltage, over-current, and short circuits, along with auto-recovery thermal protection. The unit is UL listed for the US and Canada and is rated for ambient temperatures up to 140 degrees Fahrenheit.

Typical Applications

• Under-cabinet LED lighting
• Cove and accent lighting
• Commercial display lighting
• Residential tape light installations
