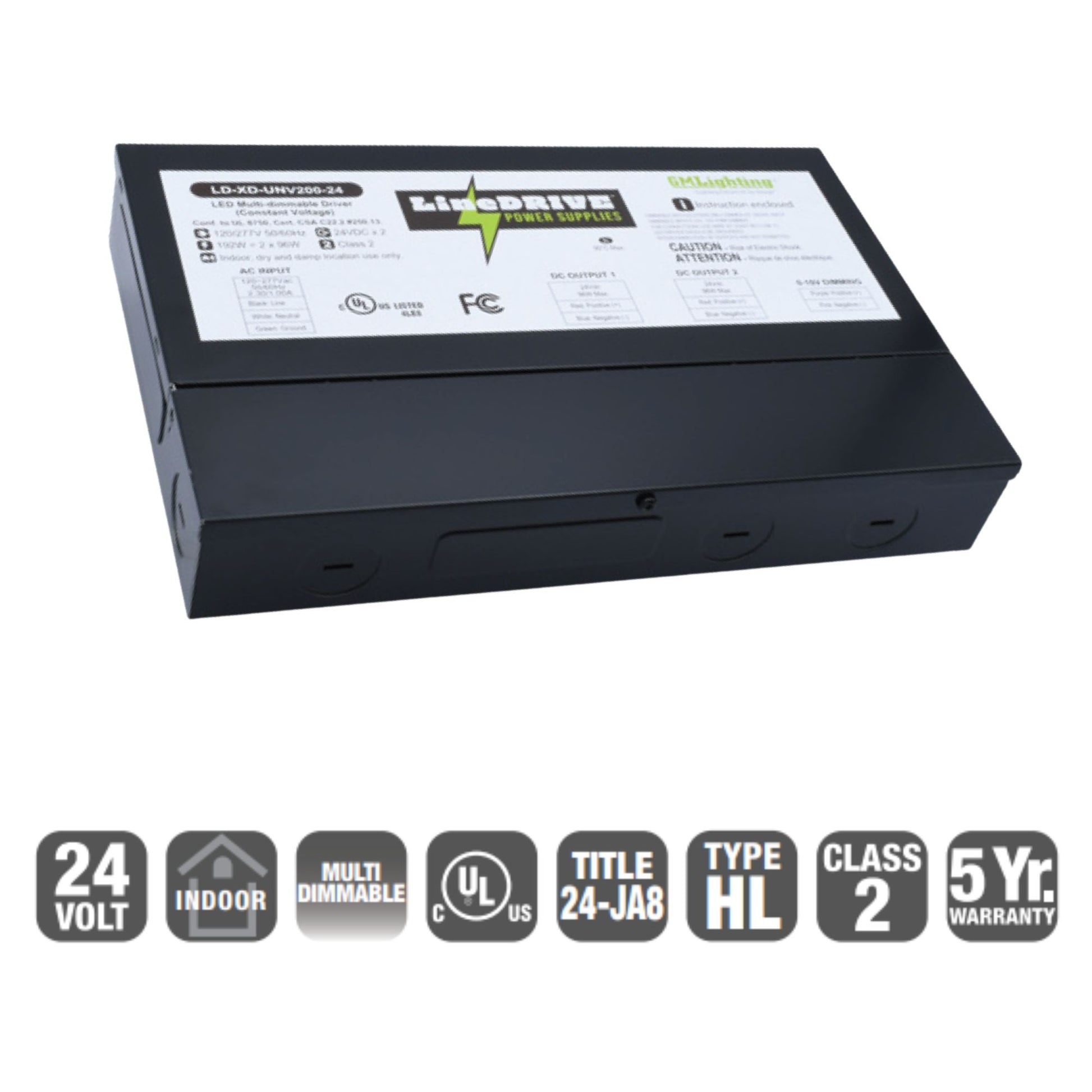

GM Lighting LineDRIVE LD-XD-UNV200-24 192W LED Driver — 24V DC
The GM Lighting LineDRIVE LD-XD-UNV200-24 is a robust 192W LED Driver designed for reliable performance in indoor applications. This Constant Voltage driver delivers a stable 24V DC output, making it ideal for powering LED tape lights and fixtures. With a versatile input range of 120-277V, it supports Multi-Protocol Dimming including Triac, ELV, MLV, 0-10V, and PWM, ensuring compatibility with a wide array of dimming systems. The driver is housed in a durable enclosure with an Integrated Junction Box, facilitating easy installation and compliance with electrical codes.
Key Features
- Power Output: Delivers a total of 192W with two channels, each supporting up to 96W.
- Output Voltage: Consistent 24V DC output for optimal LED performance.
- Dimming Compatibility: Supports Triac, ELV, MLV, 0-10V, and PWM dimming protocols.
- Minimum Load: Recommended minimum load for best dimming performance is 10% for most dimming types.

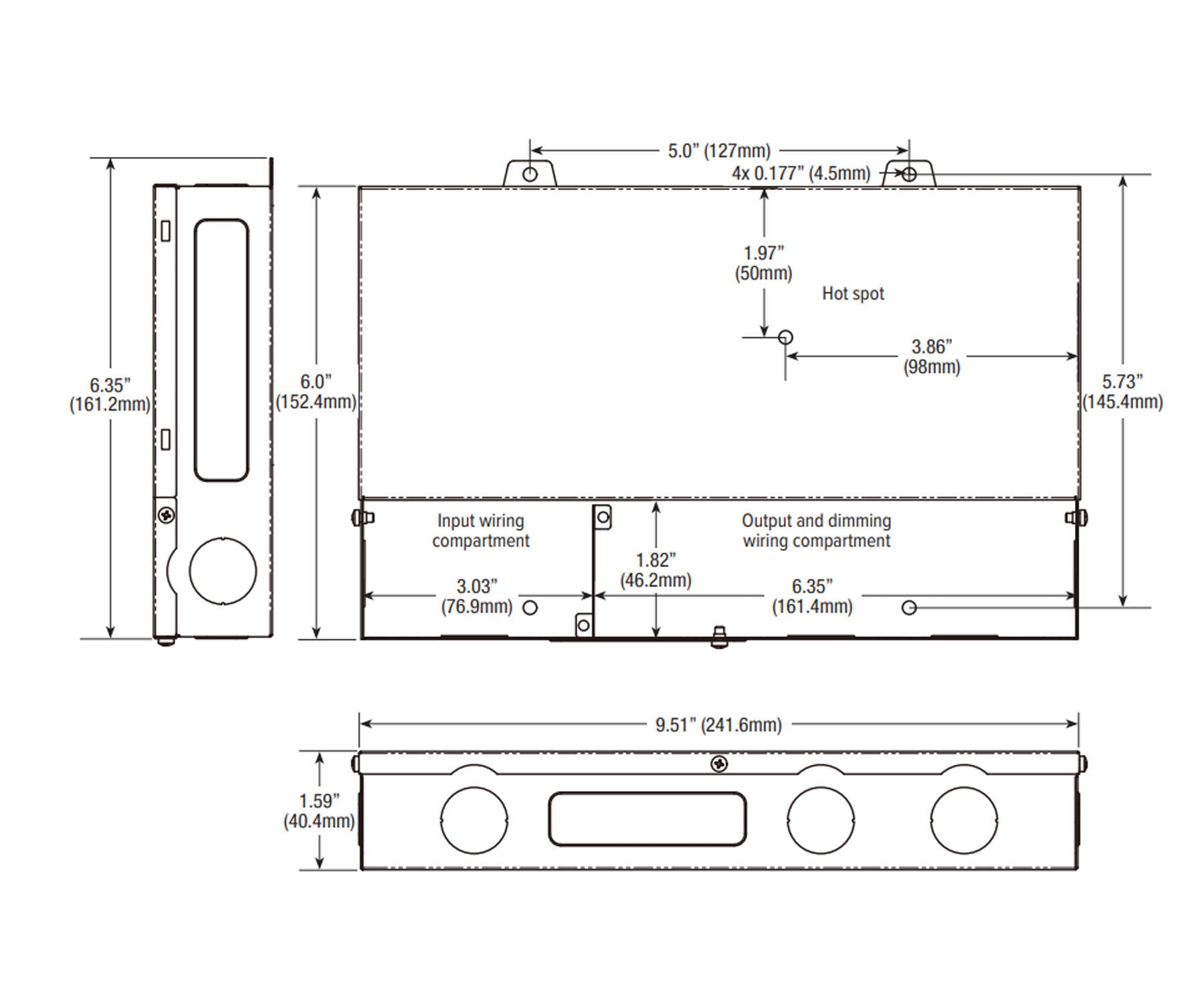

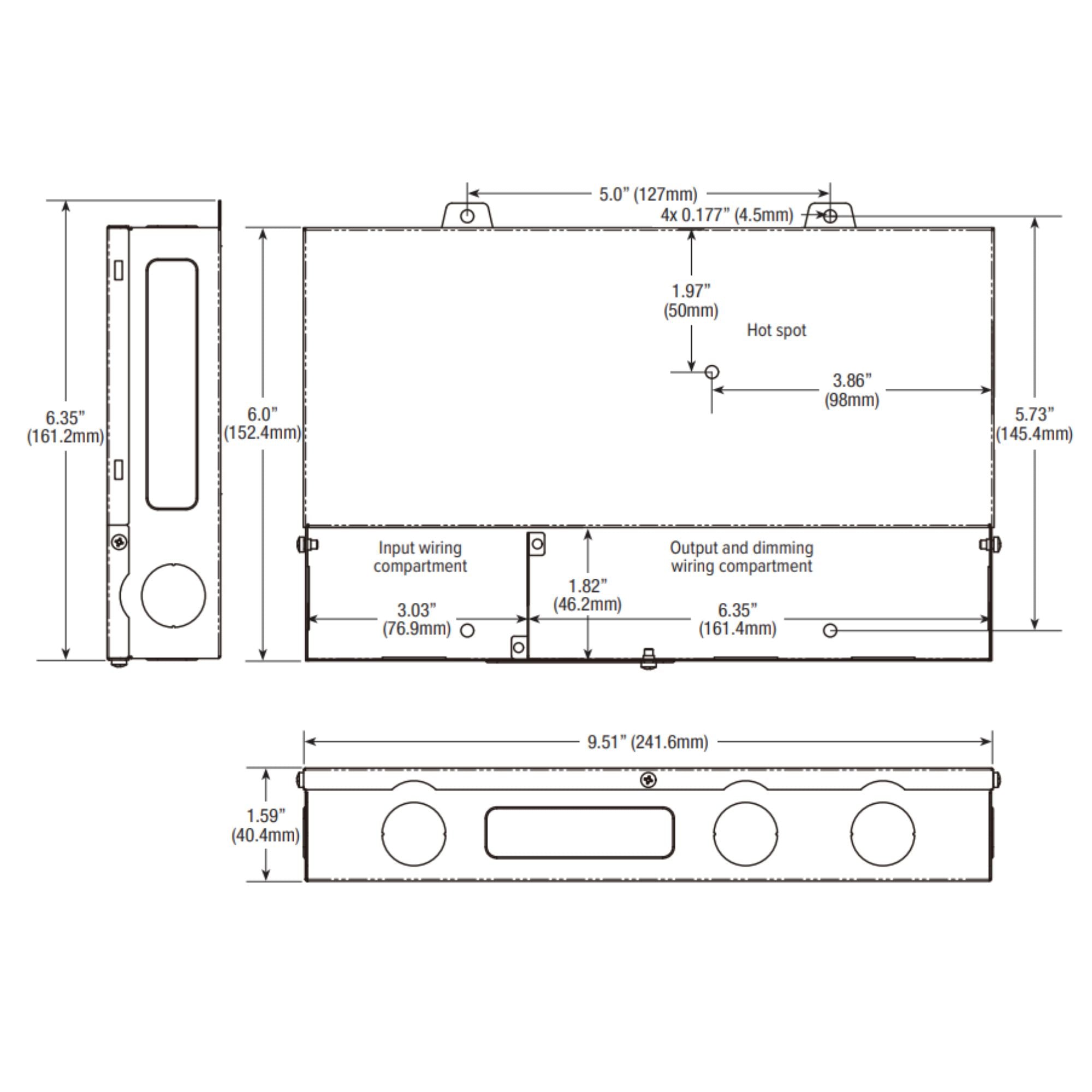

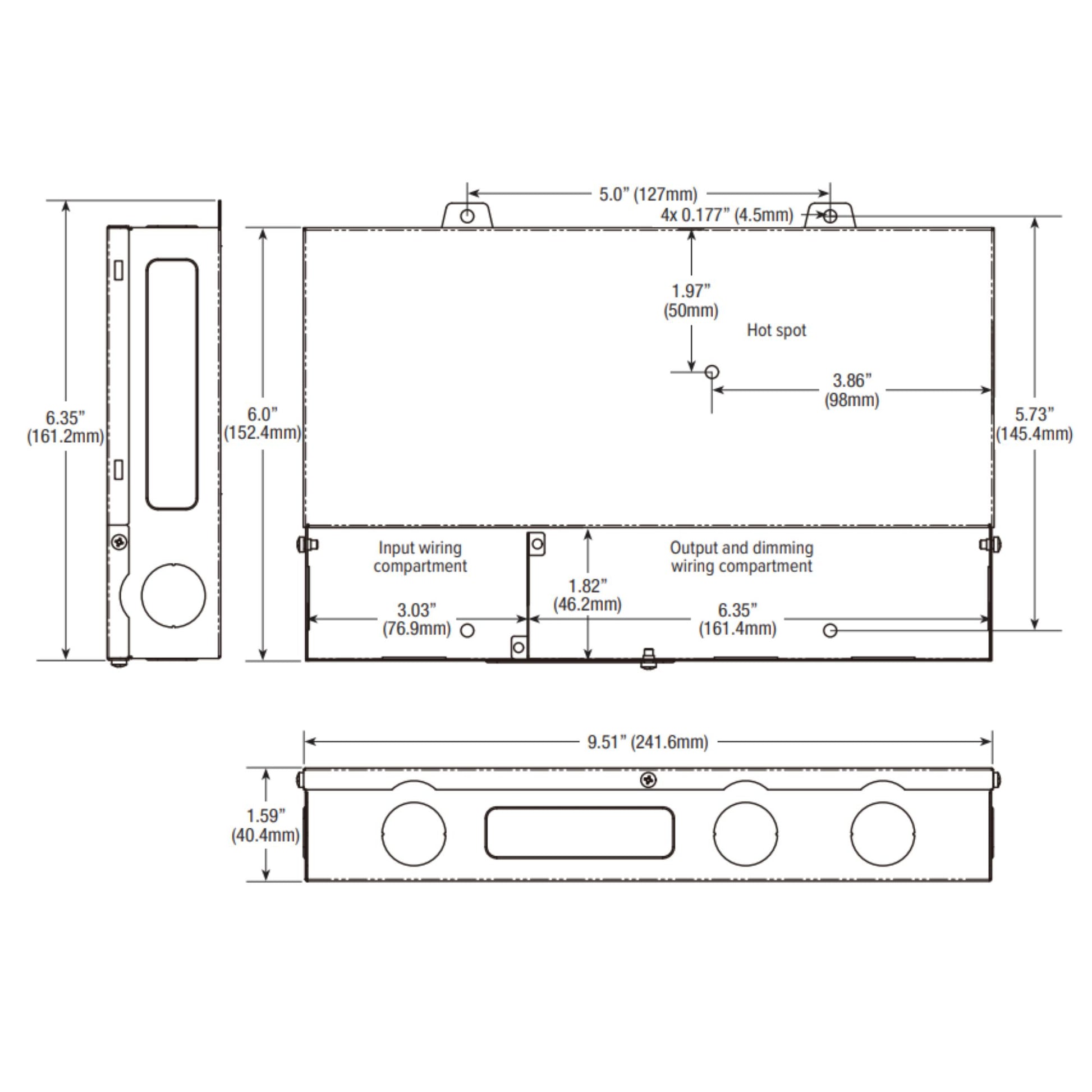

- Dimensions: Compact design measuring 9.51 in. L x 6.35 in. W x 1.59 in. H.
- Enclosure Type: Sturdy steel enclosure with integrated junction box and multiple knockouts.
- IP Rating: Rated for indoor dry and damp locations with IP20 protection.
- Class 2: Complies with UL Class 2 for low voltage output safety.
- Certifications: UL listed, FCC compliant, and Title 24 (JA8) certified.
Physical Design & Installation

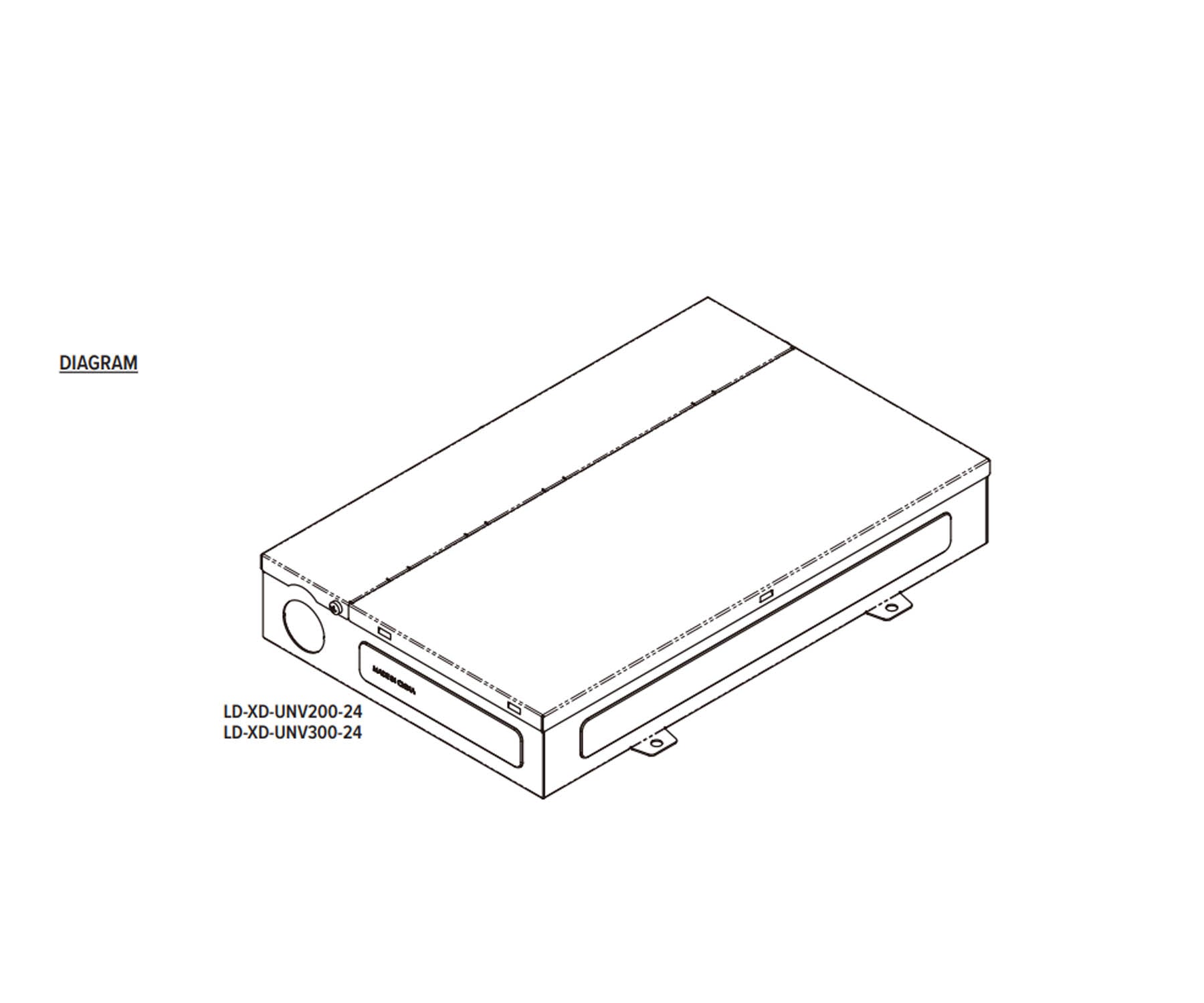

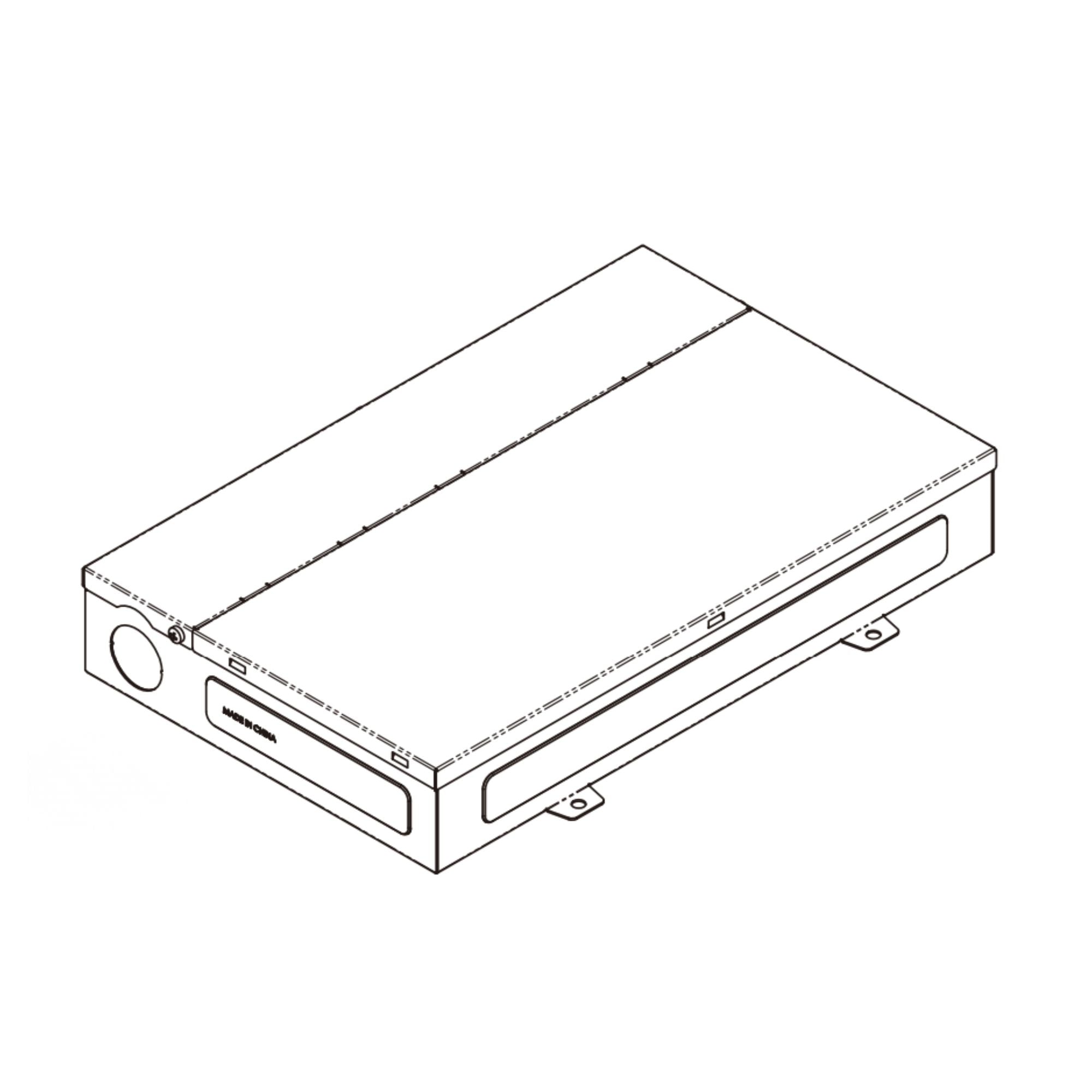

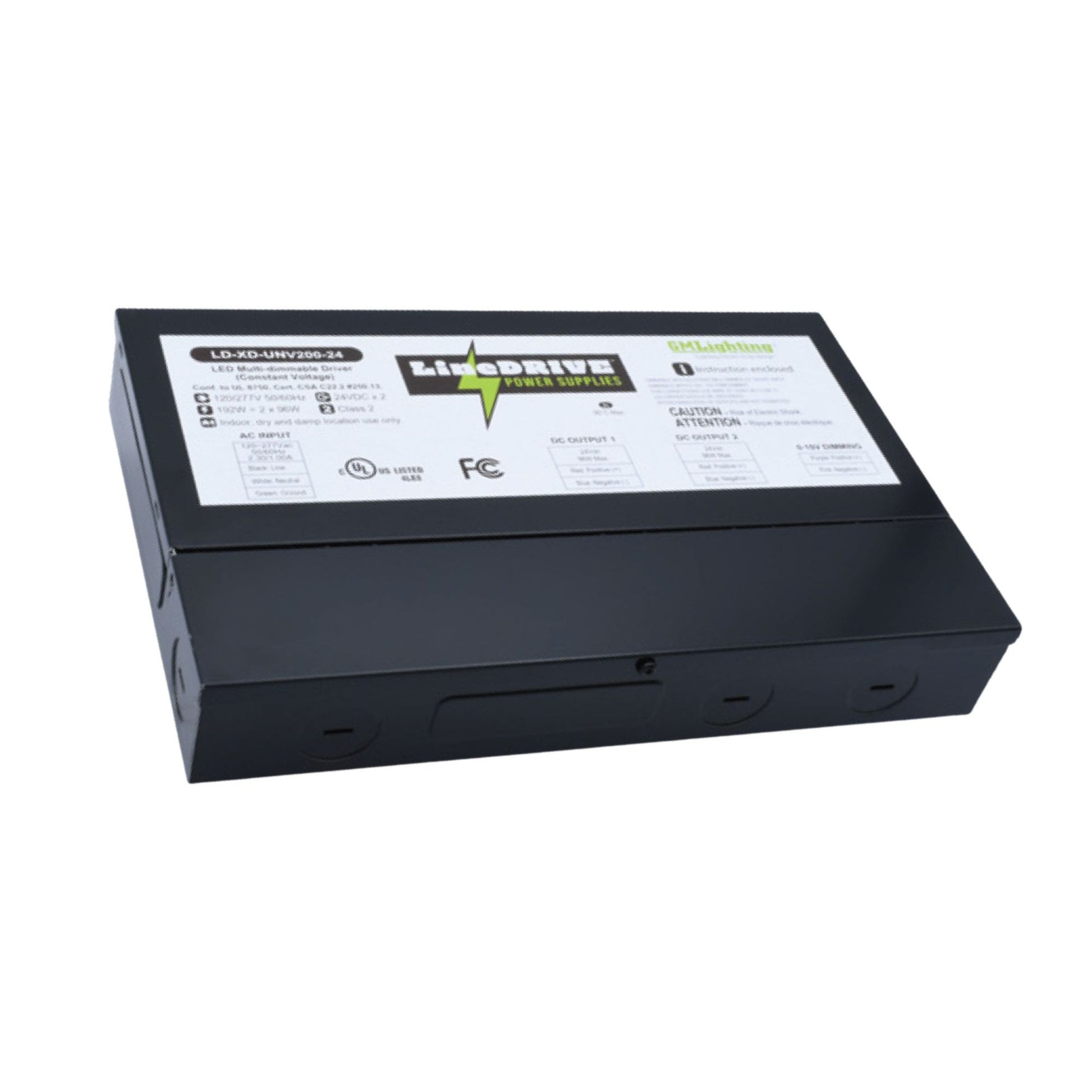

The driver features a black powder-coated steel enclosure with an integrated junction box, providing separate compartments for line and low voltage wiring, ensuring safe and efficient installation.
Dimming & Controls

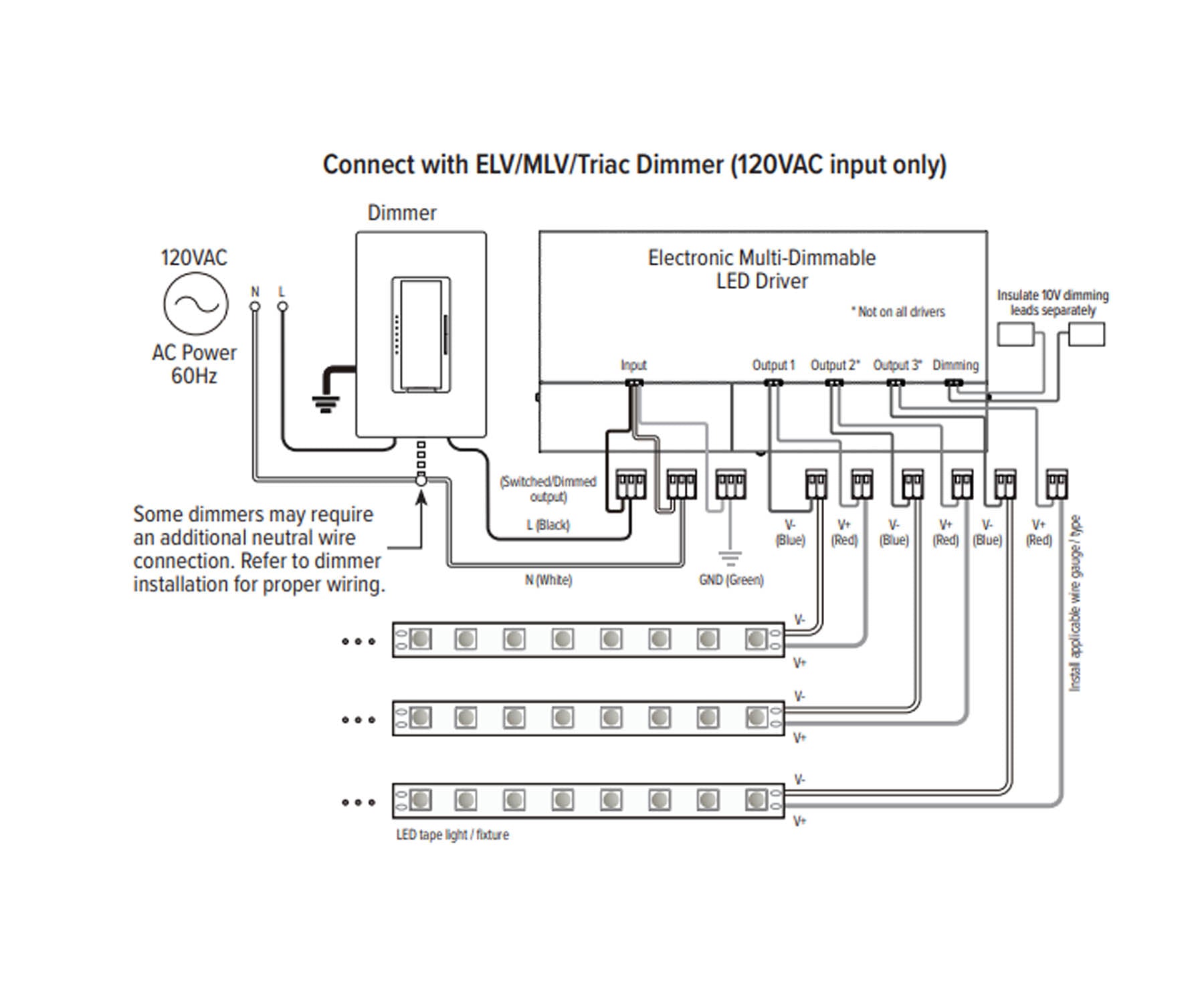

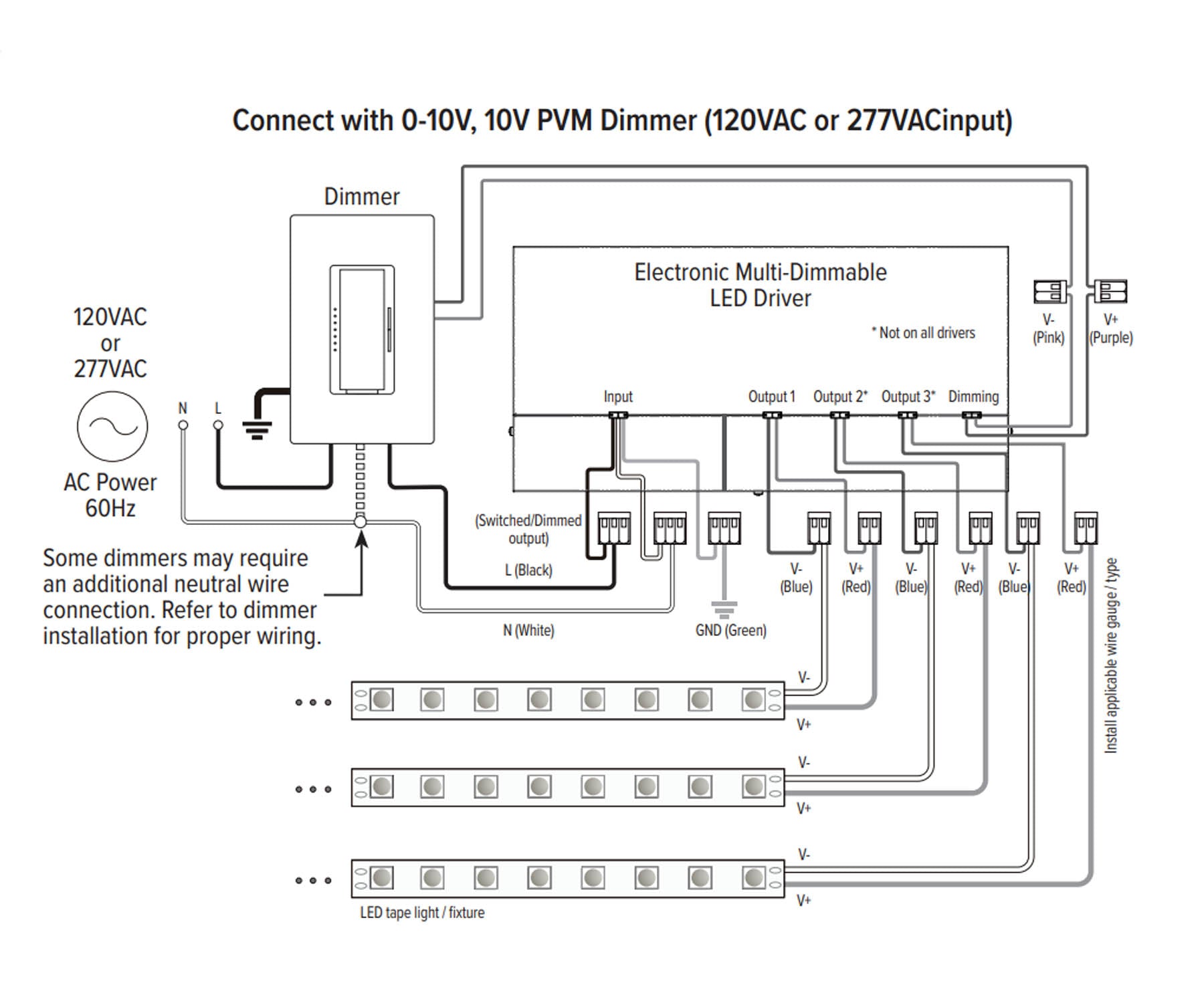

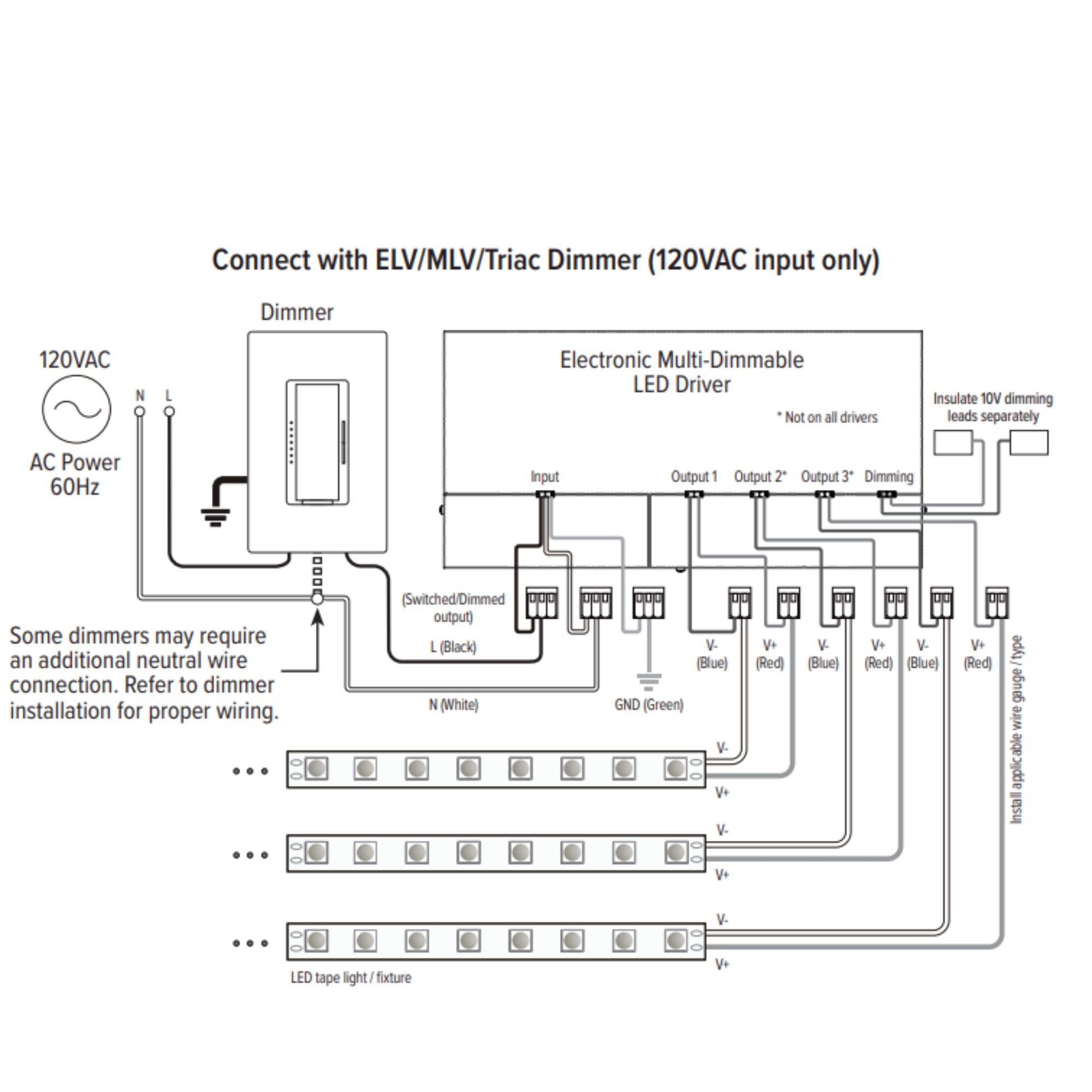

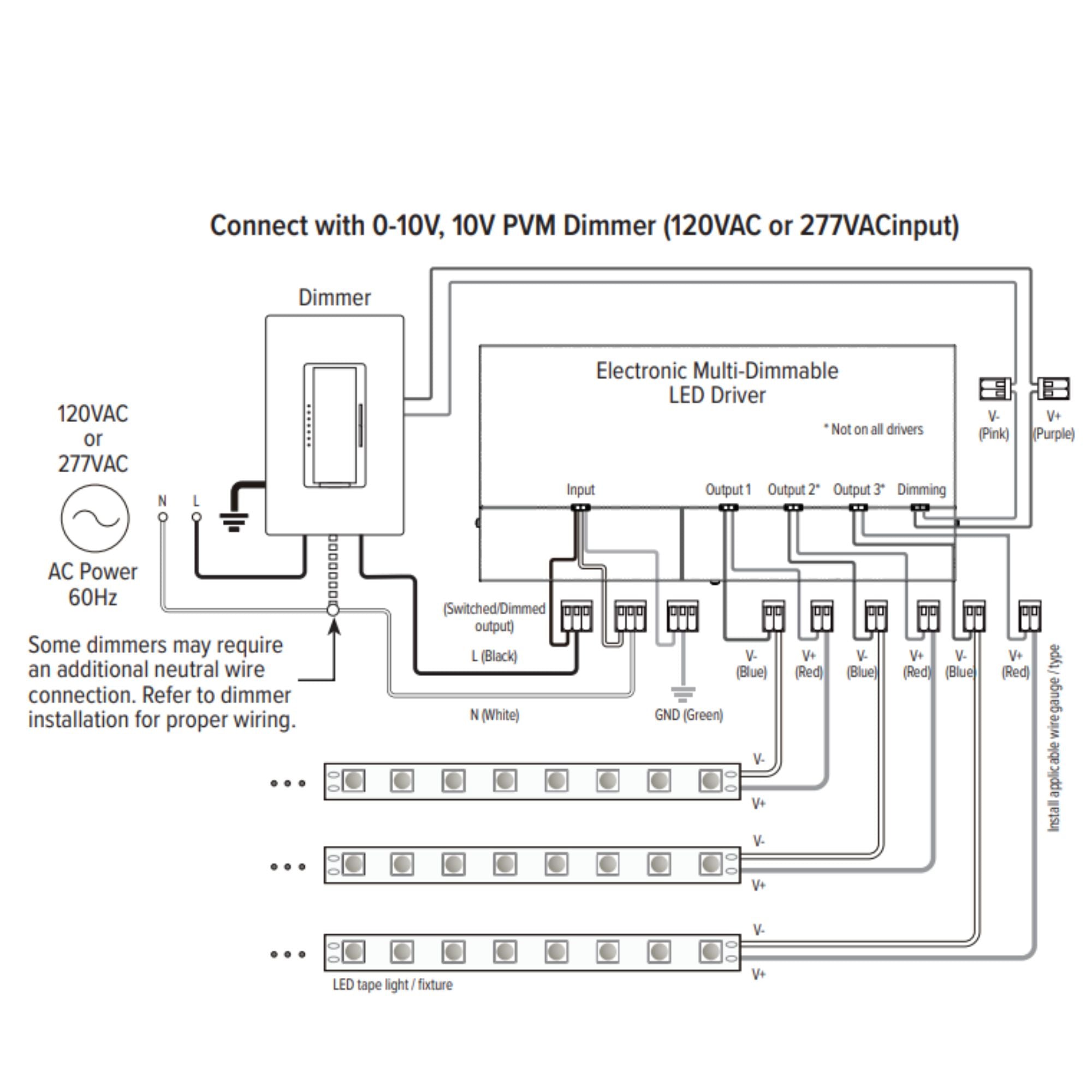

Compatible with a wide range of dimming systems, the driver supports phase dimming at 120VAC and low voltage dimming at both 120VAC and 277VAC. It ensures flicker-free dimming down to 1% with a recommended minimum load of 10% for optimal performance.
Performance & Build
Equipped with over-current, over-voltage, and over-temperature protection, the driver ensures reliable operation. It is UL Class 2 compliant and rated for indoor dry and damp locations with IP20 protection.
Typical Applications
- Commercial lighting installations
- Residential LED tape lighting
- Architectural lighting projects
- Retail display lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
