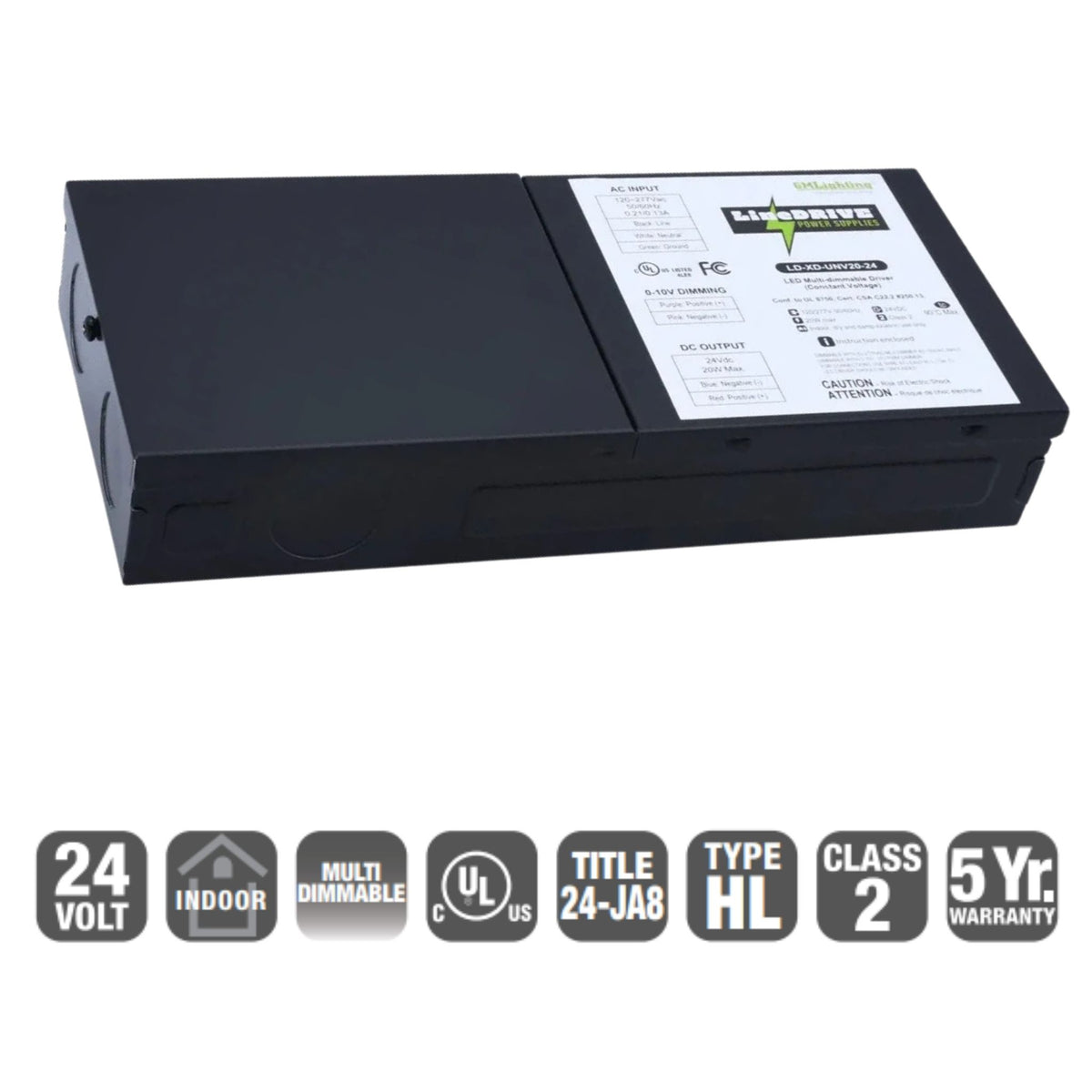

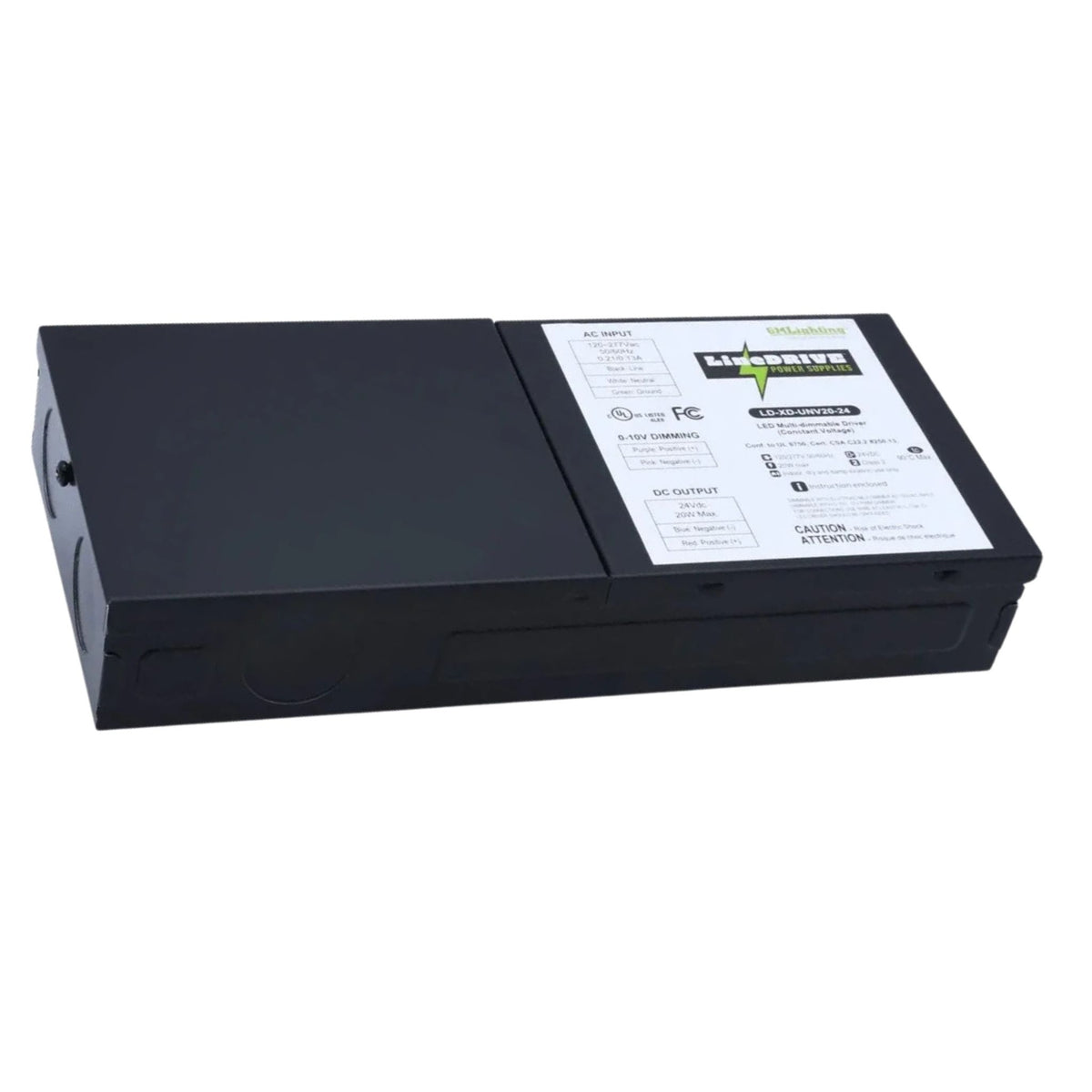

GM Lighting LineDRIVE 20W LED Driver — 24VDC
The GM Lighting LD-XD-UNV20-24 is a 20W 24VDC Constant Voltage LED Driver designed for high-performance dimming. This Class 2 power supply features an Integrated Junction Box and supports universal input voltages from 120V to 277V, ensuring compatibility with a wide range of lighting projects.
Key Features
- Power: 20W Max Output
- Output Voltage: 24VDC
- Input Voltage: 120-277VAC +/- 10 percent

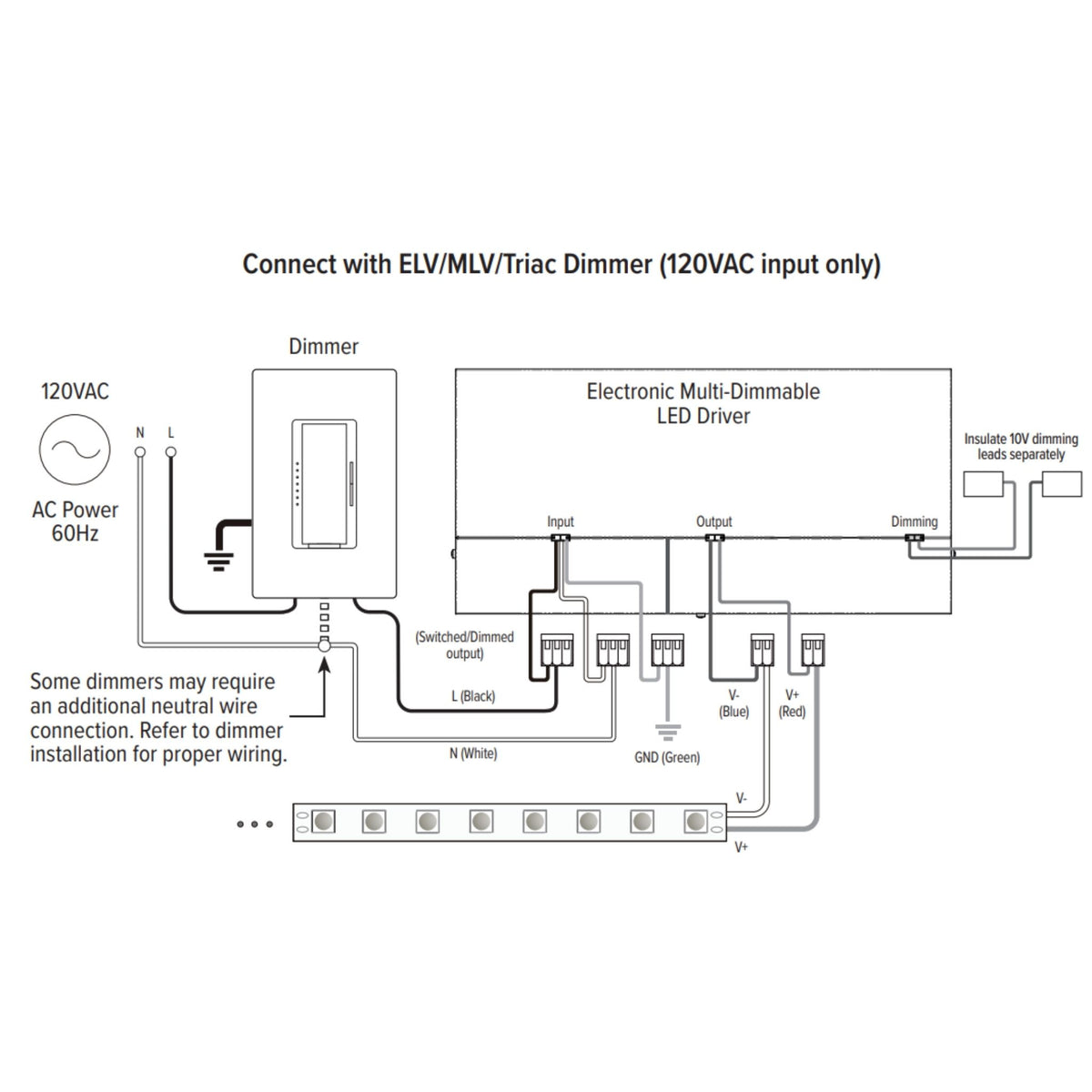

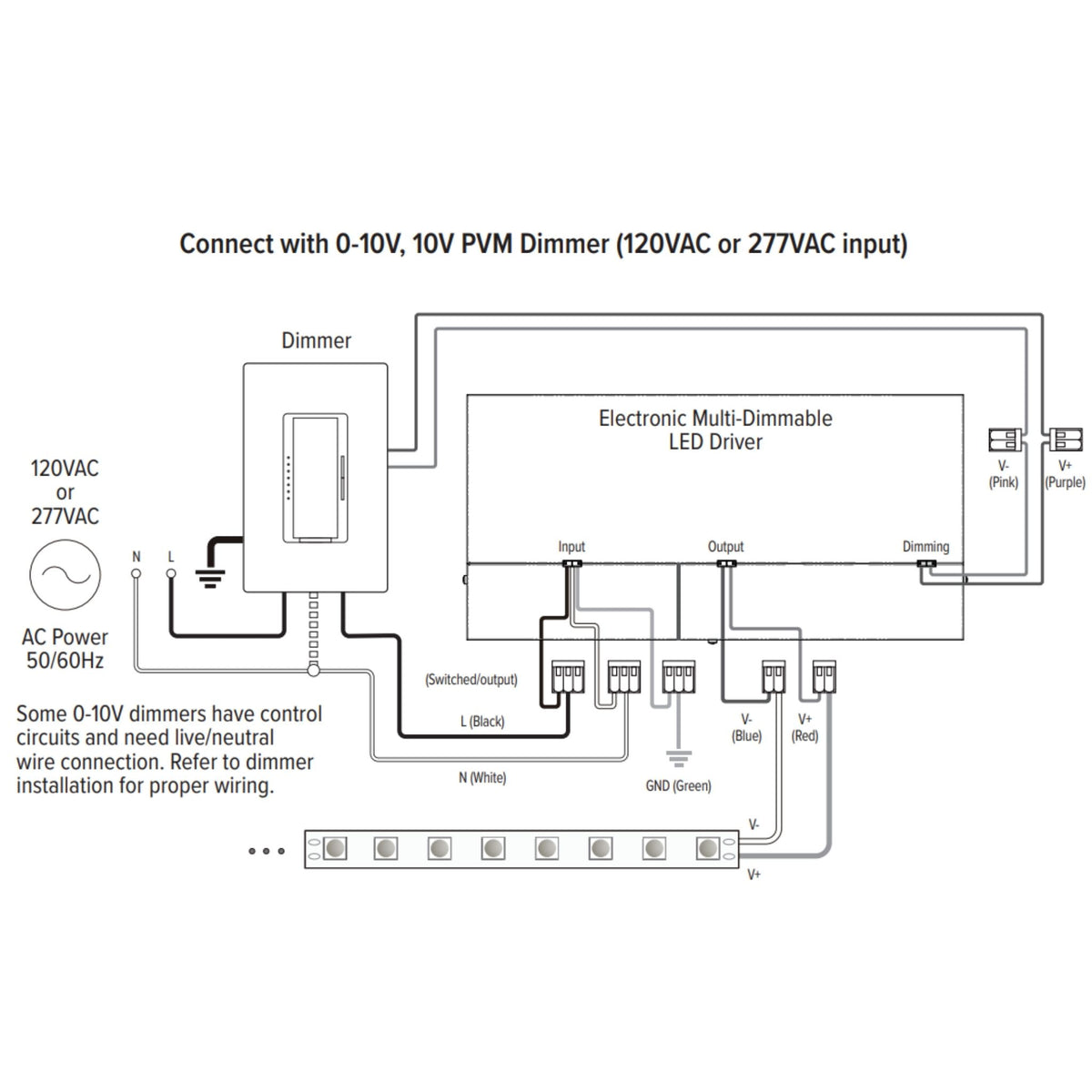

- Dimming: TRIAC, ELV, MLV (120V) and 0-10V, 10V PWM (120/277V)
- Minimum Load: 10 percent for ELV/TRIAC/0-10V; 40 percent for MLV

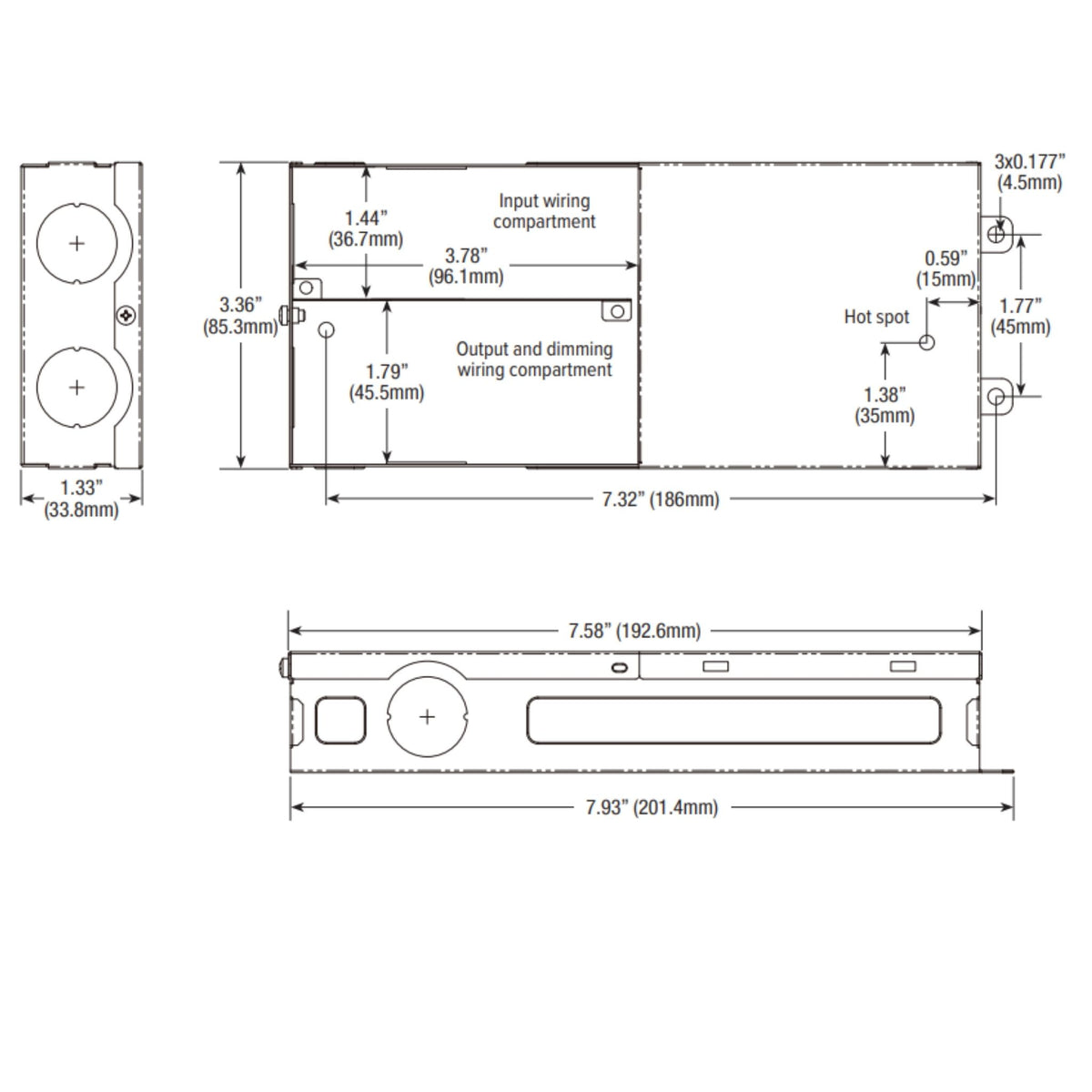

- Dimensions: 7.93 in. L x 3.36 in. W x 1.33 in. H
- Enclosure Type: Integrated Junction Box with knockouts
- IP Rating: IP20 for dry and damp locations
- Class 2: UL Class 2 rated for low voltage output
- Certifications: UL Listed, Title 24 JA8, Type HL

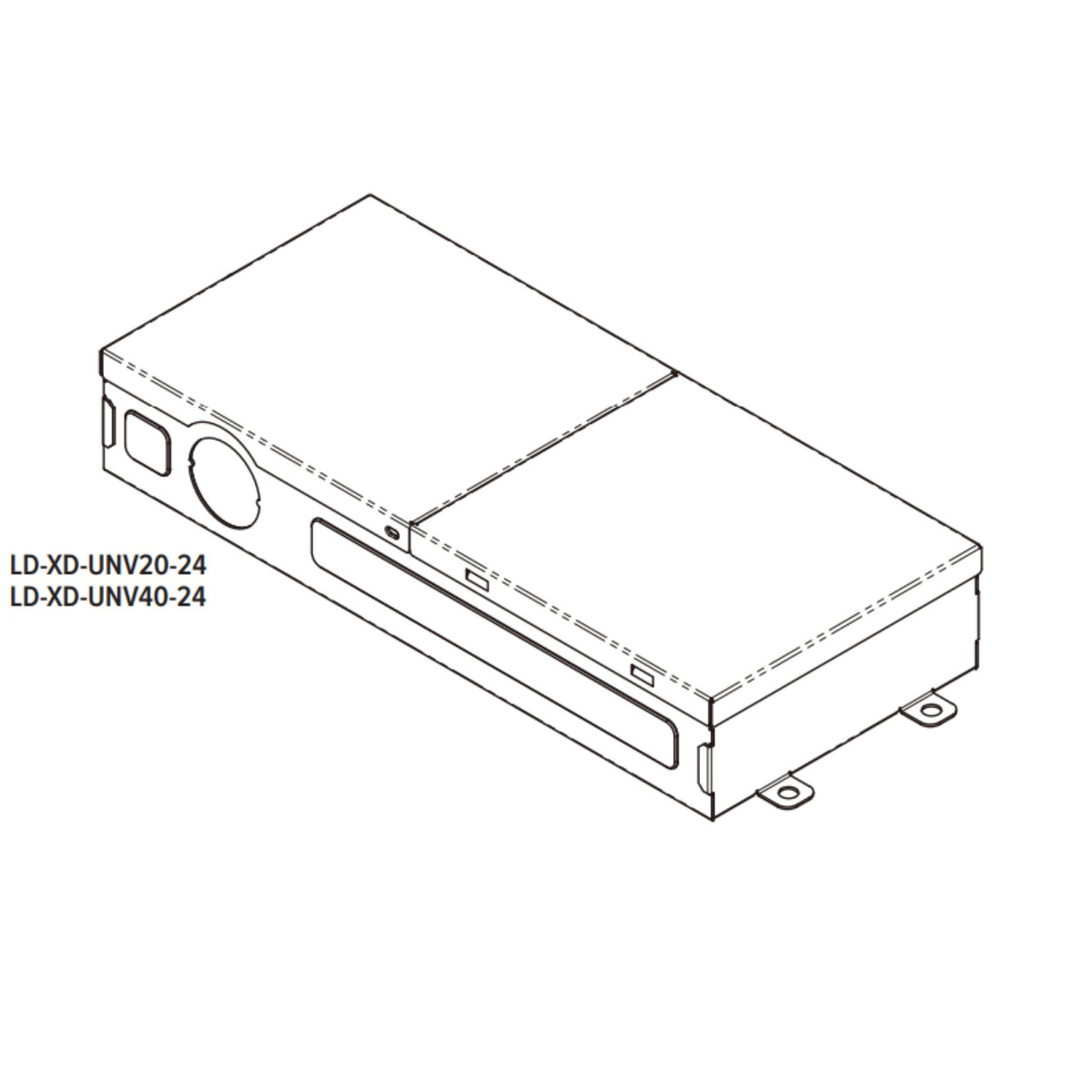

Physical Design & Installation
Constructed from black powder-coated steel, this driver includes an integrated wiring compartment that meets NEC code requirements. The separate line voltage and low voltage sections allow for safe and easy installation, accommodating up to three 12 AWG conductors in the line voltage compartment.
Dimming & Controls
This multi-dim unit offers flicker-free dimming down to 1 percent. It is compatible with standard phase dimmers at 120V and 0-10V controls at both 120V and 277V. For optimal dimming performance, a minimum load of 10 percent is recommended for most protocols, while MLV dimming requires a 40 percent minimum load.
Performance & Build
Engineered for reliability, the driver includes hiccup-mode protection for short circuits, over-current, and over-voltage scenarios. It is UL Class 2 rated and Type HL certified for hazardous locations, with a life rating of 85,000 hours at 120VAC input.
Typical Applications
- Under-cabinet LED lighting
- Cove and accent lighting
- Commercial display cases
- Residential linear lighting
